C 220¶
Company: Claw
Specifications¶
| Attribute | Value |
|---|---|
| Type | Single |
| Shank Style | Straigth |
| Eye | Ringed eye |
| Eye Position | Turned down |
| Barb | Barbless |
| Usages | Jig |
| Available Sizes | 18, 16, 14, 12, 10, 8 |
Sizes¶
Size 18¶
| Length | 10.23 mm |
| Shank | 5.77 mm |
| Height | 4.29 mm |
| Throat | 4.32 mm |
| Eye Width | 1.35 mm |
| Wire | 0.43 mm |

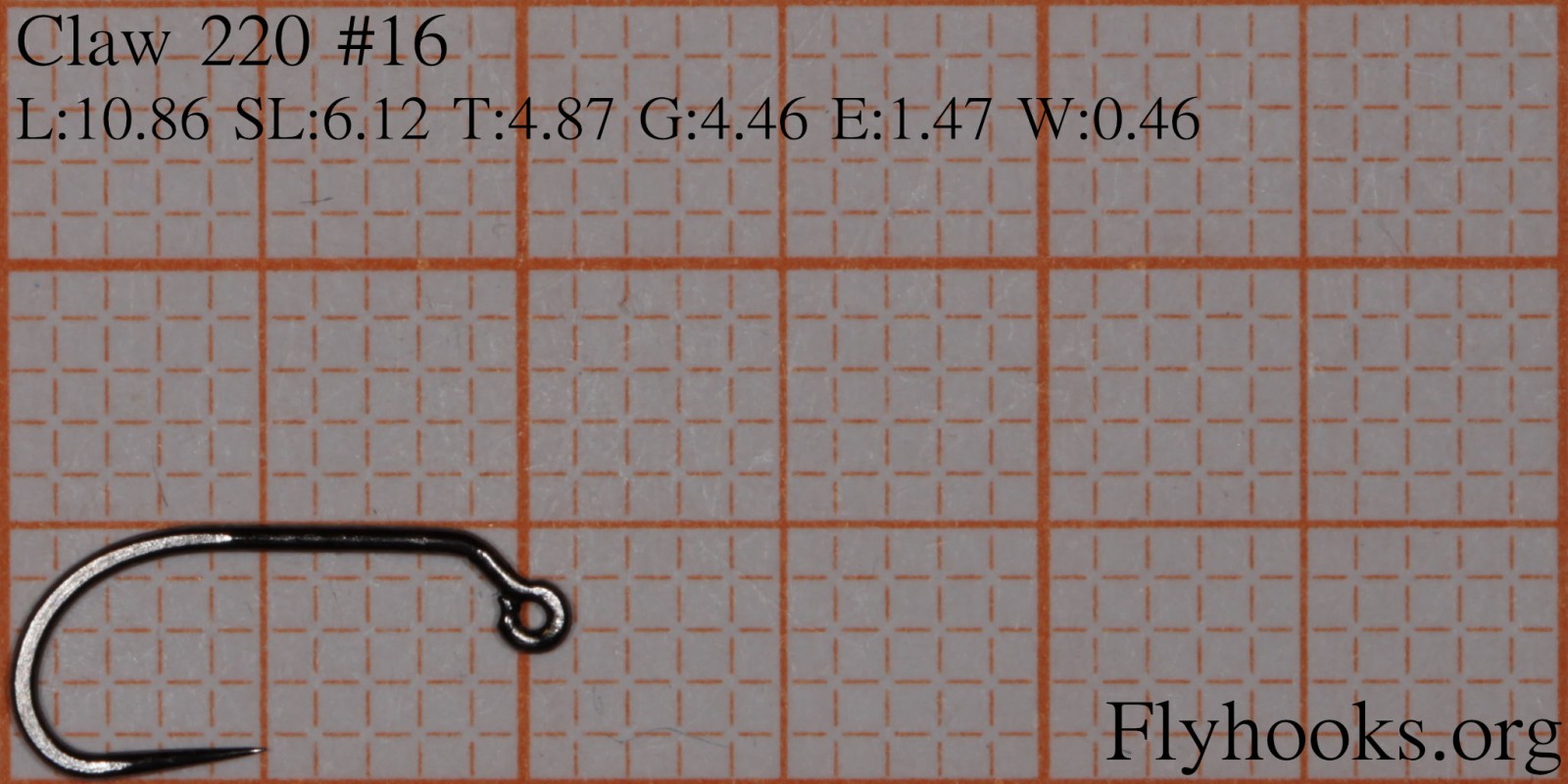

Size 16¶
| Length | 10.86 mm |
| Shank | 6.12 mm |
| Height | 4.46 mm |
| Throat | 4.87 mm |
| Eye Width | 1.47 mm |
| Wire | 0.48 mm |

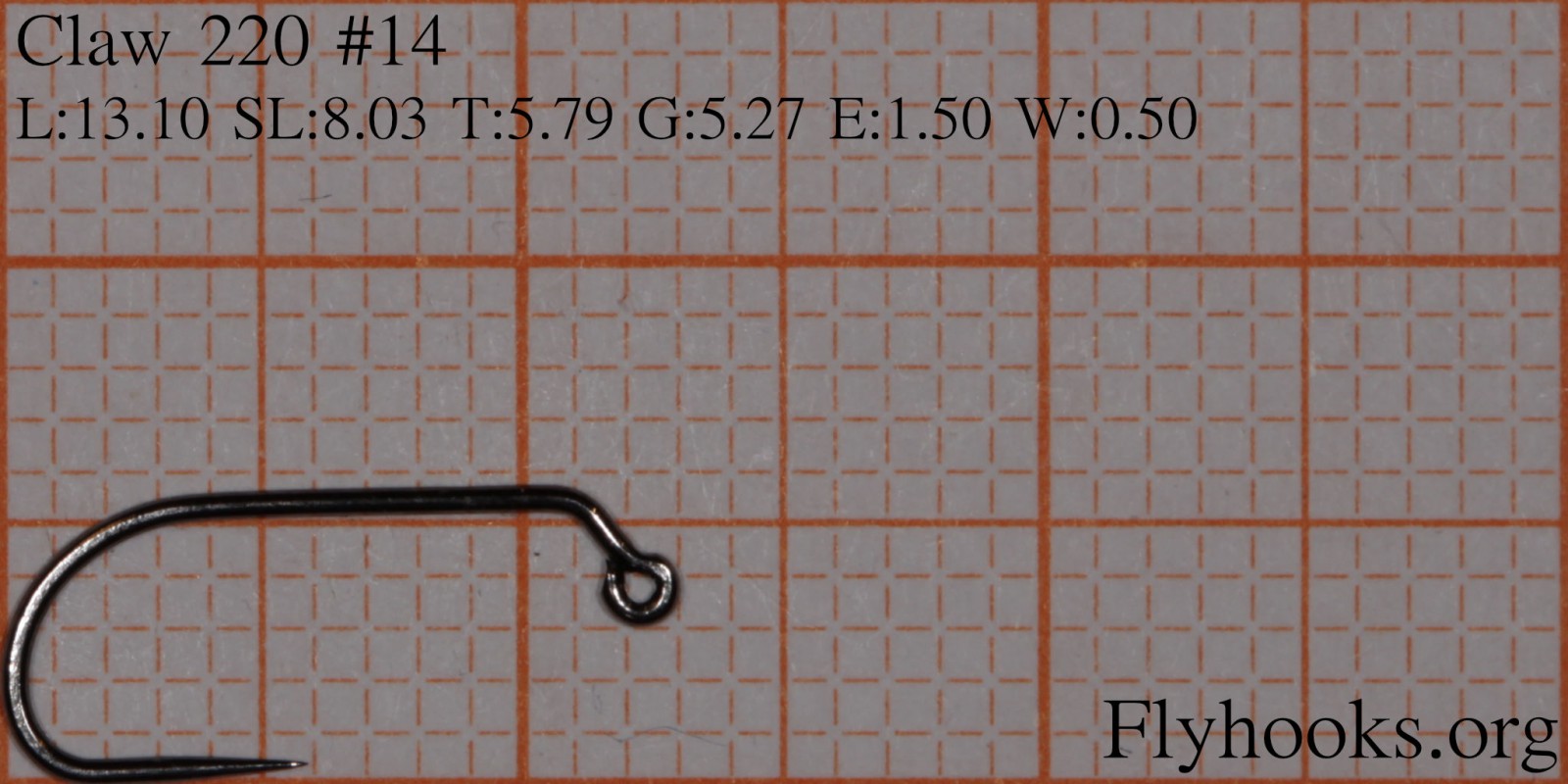

Size 14¶
| Length | 13.1 mm |
| Shank | 8.03 mm |
| Height | 5.27 mm |
| Throat | 5.79 mm |
| Eye Width | 1.5 mm |
| Wire | 0.5 mm |

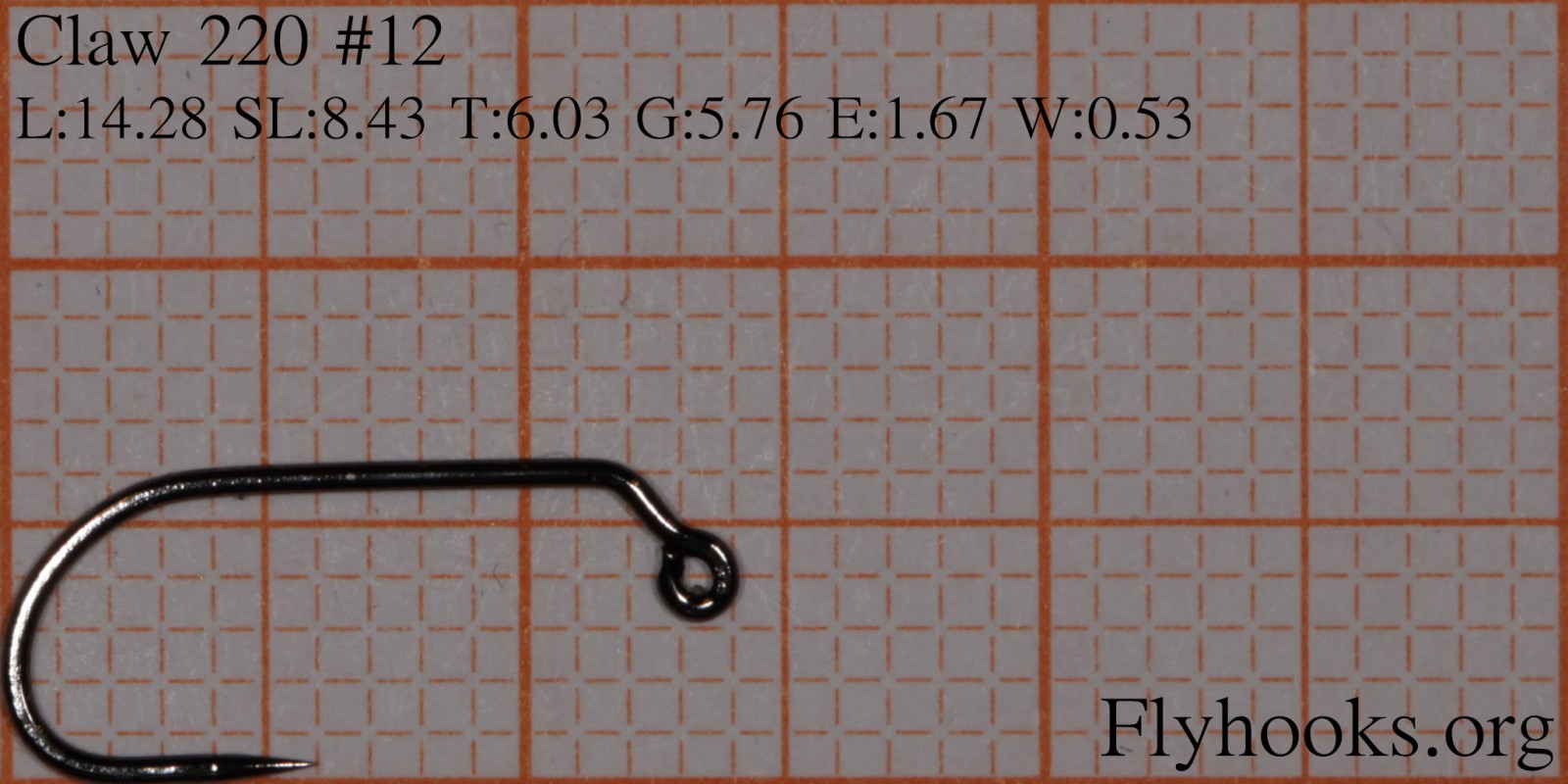

Size 12¶
| Length | 14.28 mm |
| Shank | 8.43 mm |
| Height | 5.76 mm |
| Throat | 6.03 mm |
| Eye Width | 1.67 mm |
| Wire | 0.53 mm |

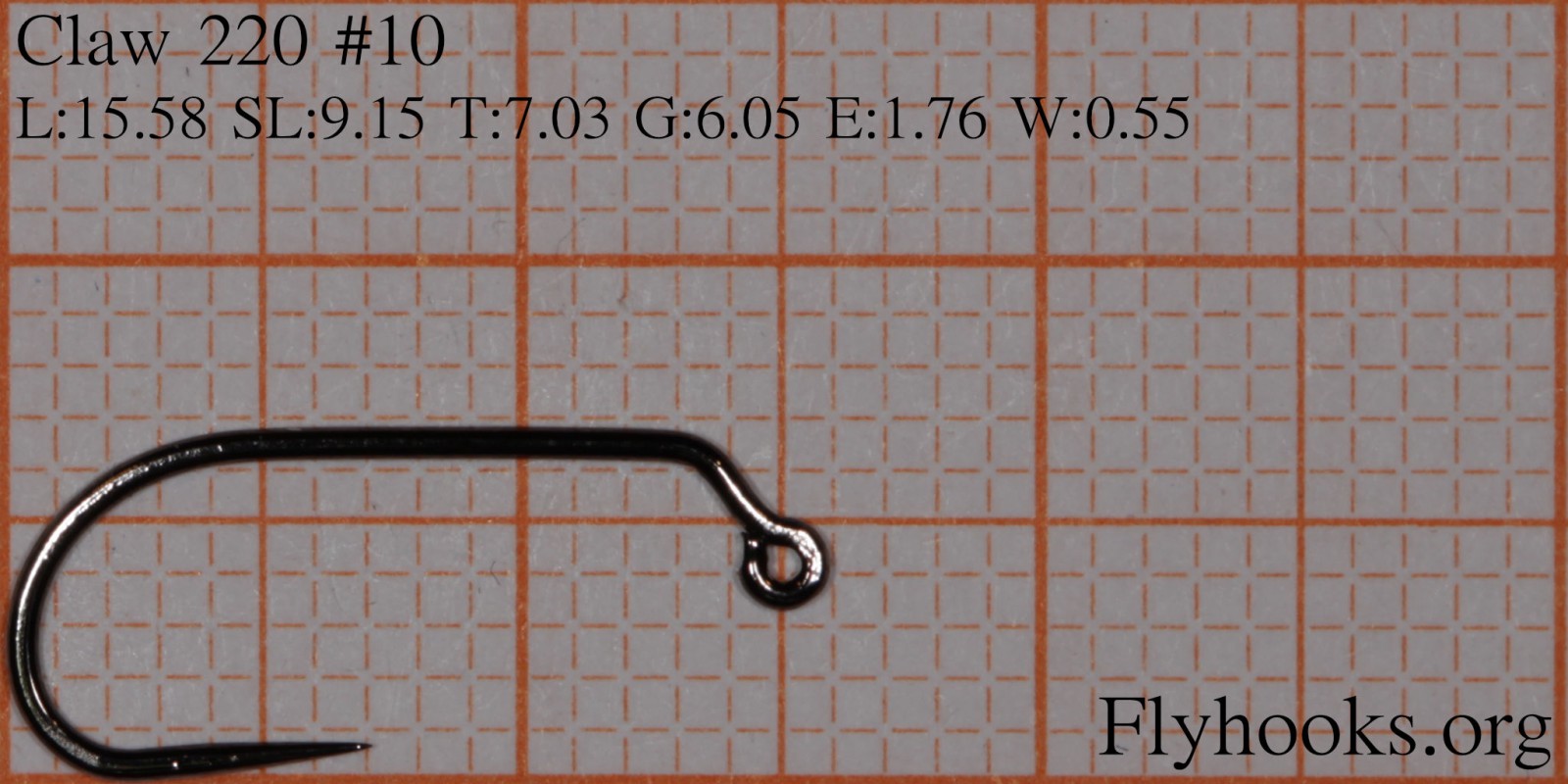

Size 10¶
| Length | 15.58 mm |
| Shank | 9.15 mm |
| Height | 6.05 mm |
| Throat | 7.03 mm |
| Eye Width | 1.76 mm |
| Wire | 0.55 mm |

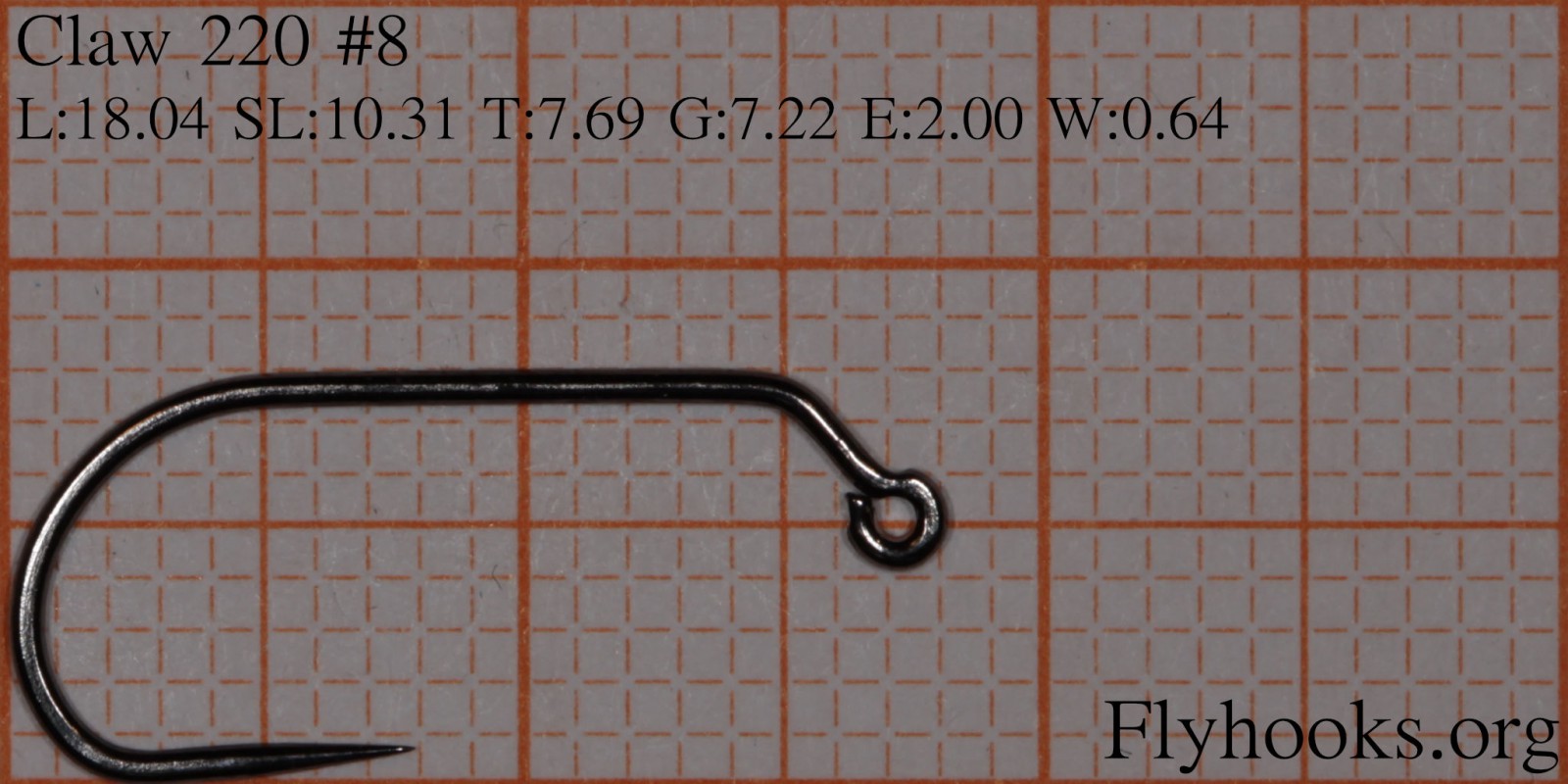

Size 8¶
| Length | 18.04 mm |
| Shank | 10.31 mm |
| Height | 7.22 mm |
| Throat | 7.69 mm |
| Eye Width | 2 mm |
| Wire | 0.64 mm |
