Ken Sawada: SL4 Single Bartleet

Company	Ken Sawada
www	www.kensawada.com
Type	Single
Eye	Looped eye
Eye Position	Turned up
Shank Style	Curved
Bend	Sproat bend
Barb	Barb
Color	Black
Usages	Salmon Freshwater Seatrout Steelhead
Sizes	8 6 4 2 2/0 3/0

Boxes

Sizes

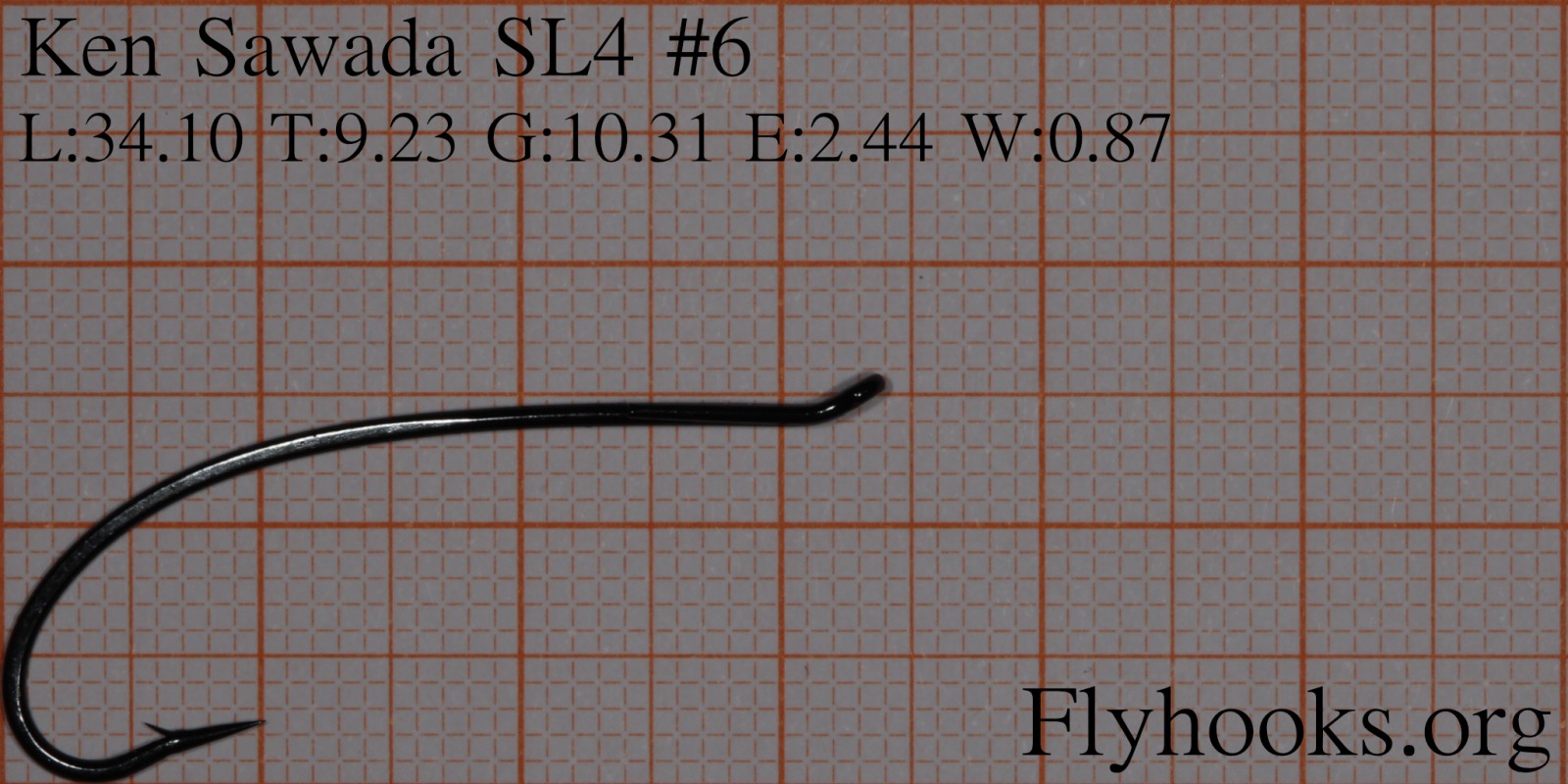

Length	34.10 mm
Throat	9.23 mm
Gape	10.31 mm
Eye Width	2.44 mm
Wire Thickness	0.87 mm

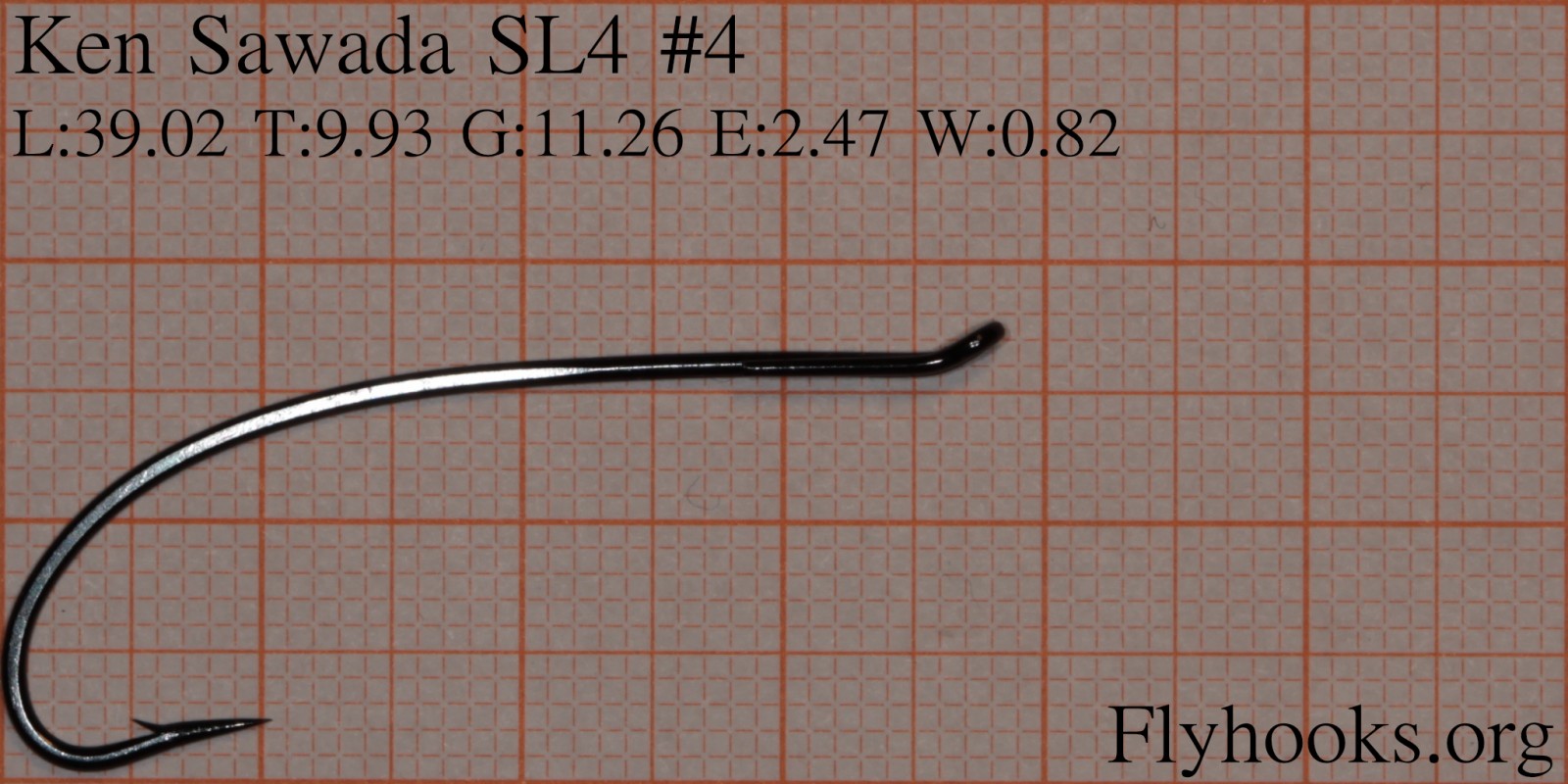

Length	39.02 mm
Throat	9.93 mm
Gape	11.26 mm
Eye Width	2.47 mm
Wire Thickness	0.82 mm

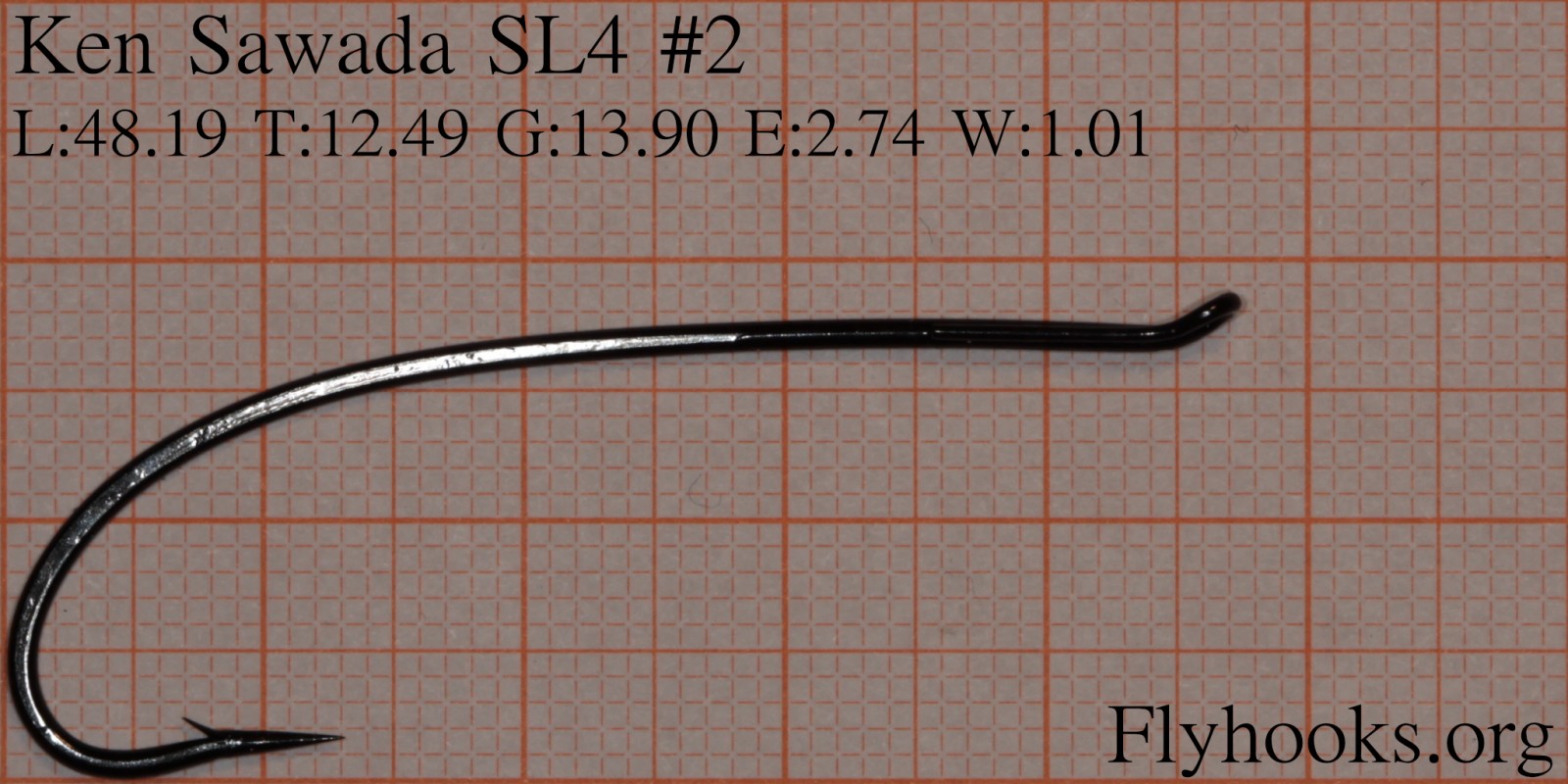

Length	48.19 mm
Throat	12.49 mm
Gape	13.90 mm
Eye Width	2.74 mm
Wire Thickness	1.01 mm

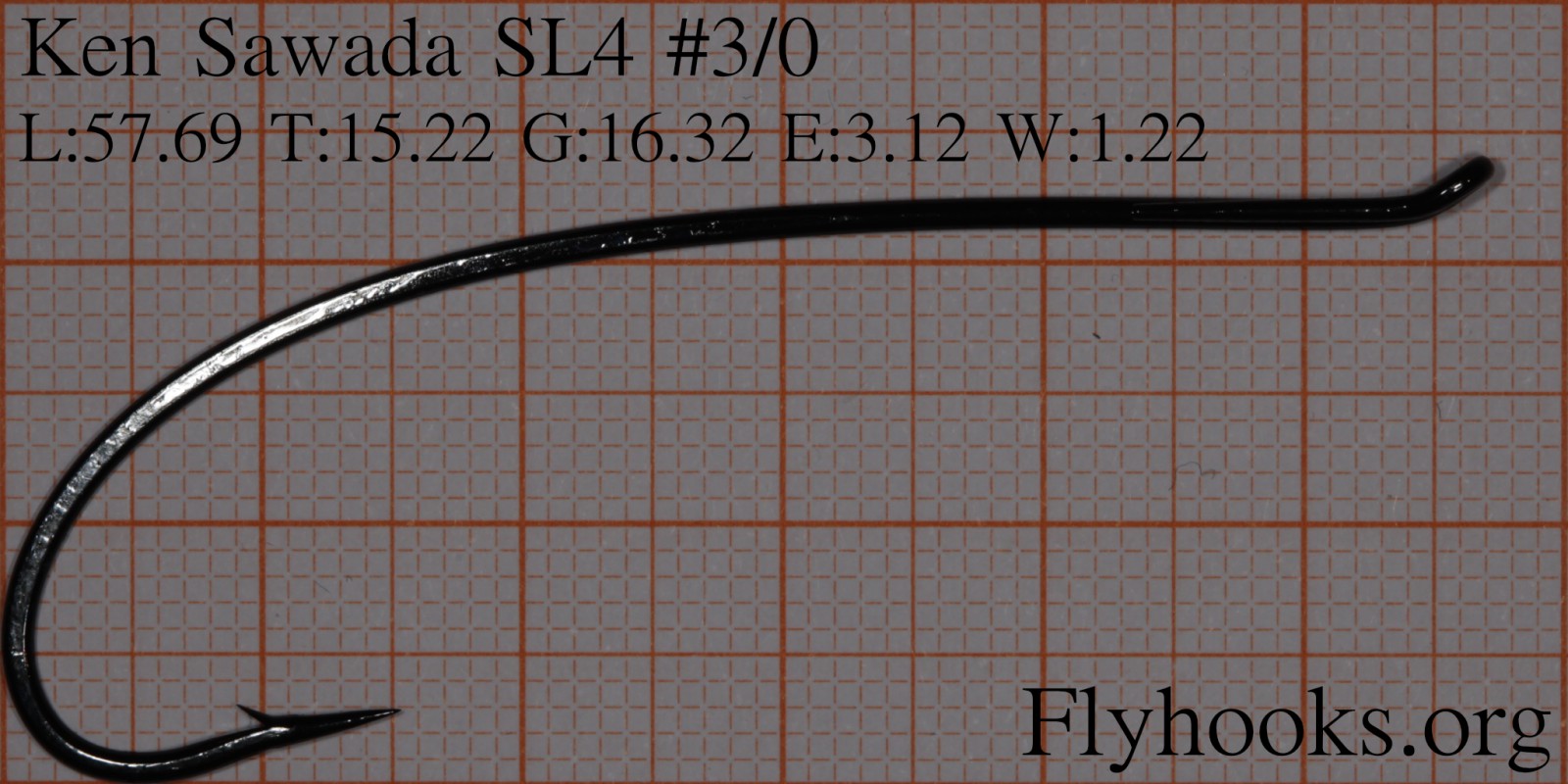

Length	57.69 mm
Throat	15.22 mm
Gape	16.32 mm
Eye Width	3.12 mm
Wire Thickness	1.22 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
6	CS42 - Bomber	34.10 -> 32.50		10.31 -> 10.55	9.23 -> 9.33	0.87 -> 0.83
6	80500BL	34.10 -> 33.47		10.31 -> 9.87	9.23 -> 10.05	0.87 -> 0.88
6	TMC202SP	34.10 -> 33.79		10.31 -> 10.14	9.23 -> 9.91	0.87 -> 0.79
4	TMC202SP	39.02 -> 38.06		11.26 -> 11.39	9.93 -> 10.35	0.82 -> 0.84
3/0	CS10/3 - Bartleet Blind Eye	57.69 -> 55.92		16.32 -> 16.41	15.22 -> 14.76	1.22 -> 1.25
3/0	2050 Spey - Bronze	57.69 -> 57.21		16.32 -> 16.23	15.22 -> 14.81	1.22 -> 1.21
3/0	2055	57.69 -> 58.38		16.32 -> 16.36	15.22 -> 14.67	1.22 -> 1.18
