Sealey: 1762B

Company	Sealey
Type	Single
Size	7xl
Strength	Heavy wire
Eye	Ringed eye
Eye Position	Turned down
Shank Style	Straigth
Bend	Round bend
Barb	Barb
Color	Bronze
Usages	Streamer Freshwater
Sizes	4 3 2 1 1/0 2/0 3/0

Sizes

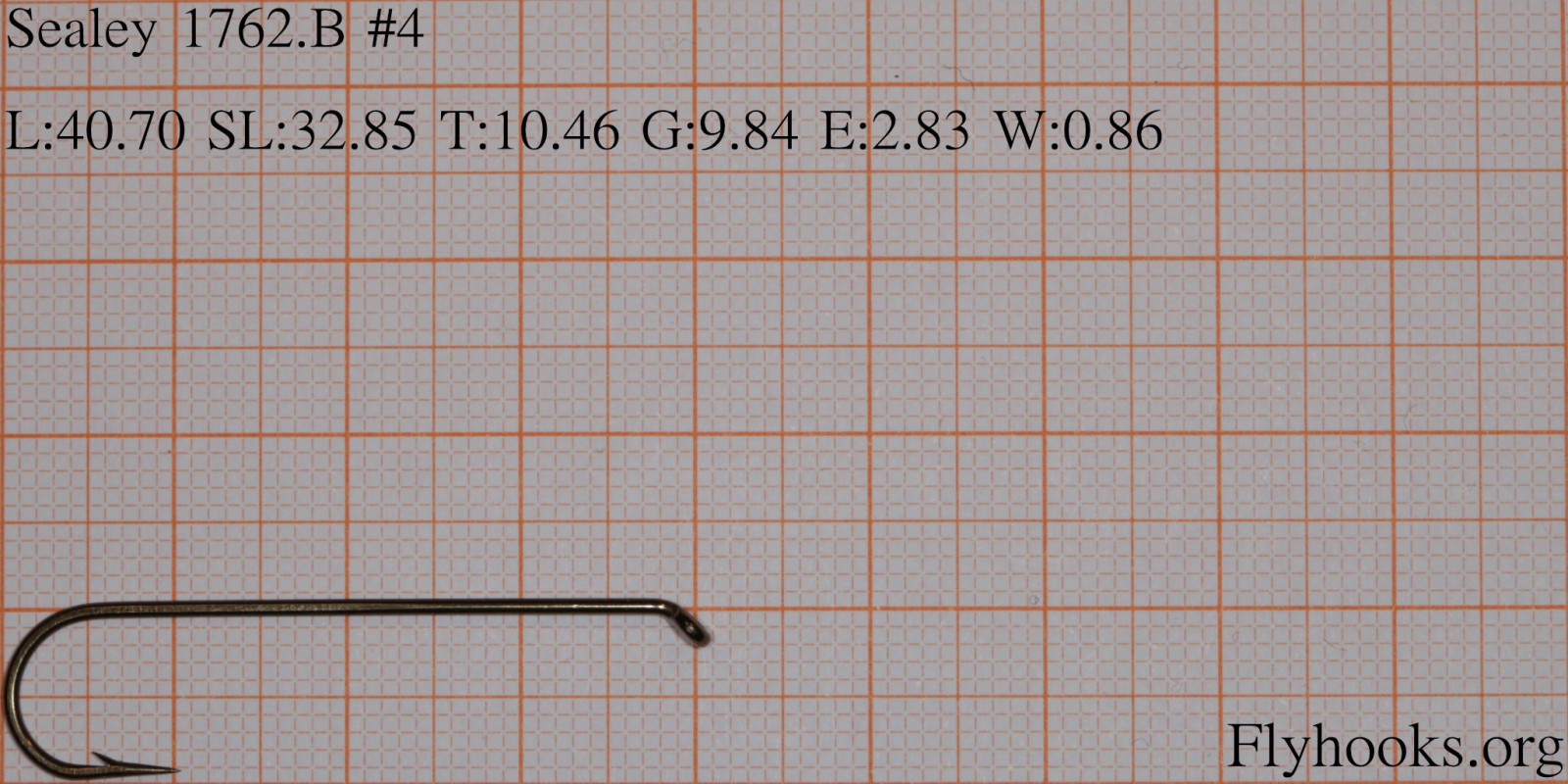

Length	40.70 mm
Shank Length	32.85 mm
Throat	10.46 mm
Gape	9.84 mm
Eye Width	2.83 mm
Wire Thickness	0.86 mm

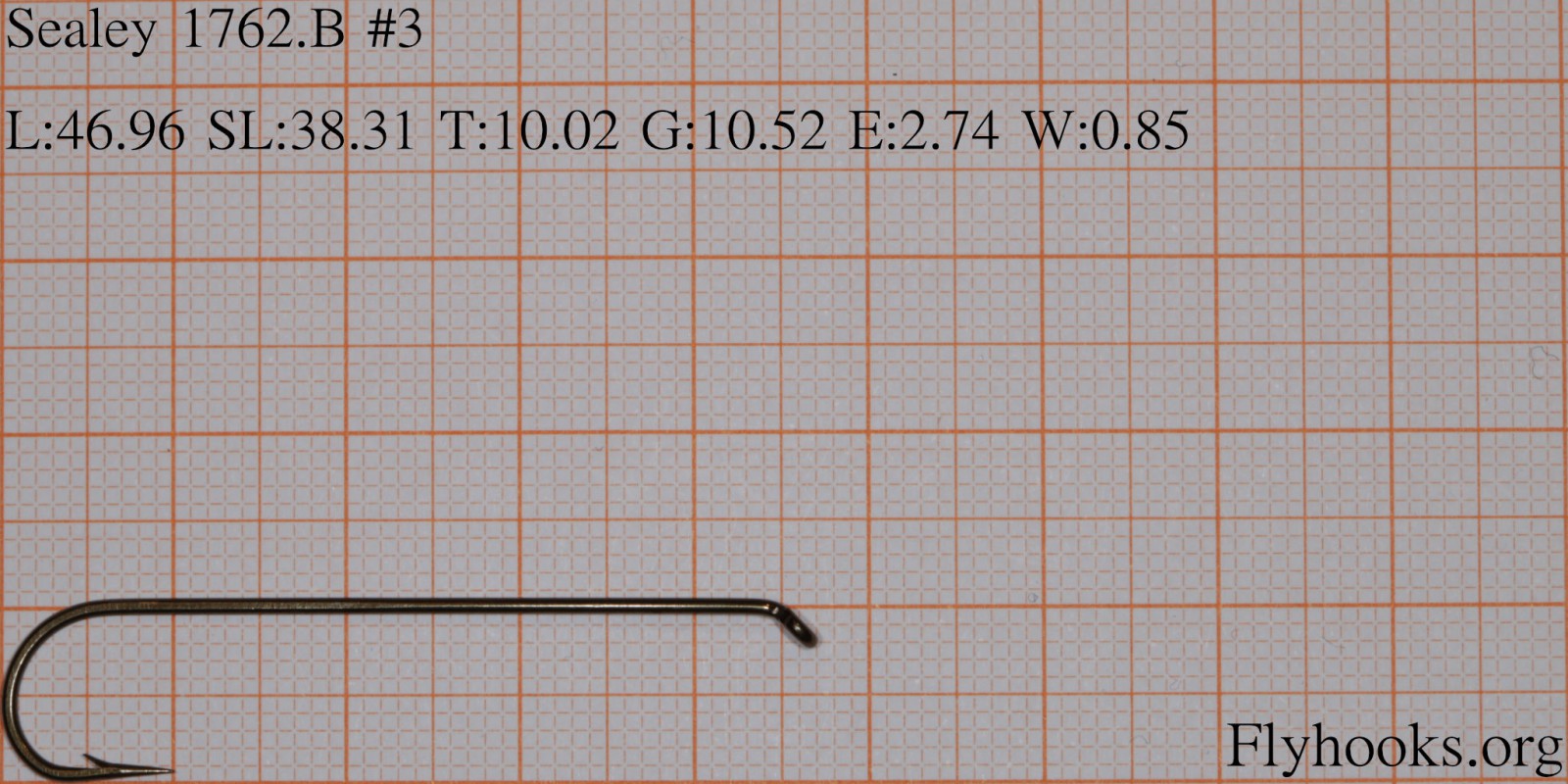

Length	46.96 mm
Shank Length	38.31 mm
Throat	10.02 mm
Gape	10.52 mm
Eye Width	2.74 mm
Wire Thickness	0.85 mm

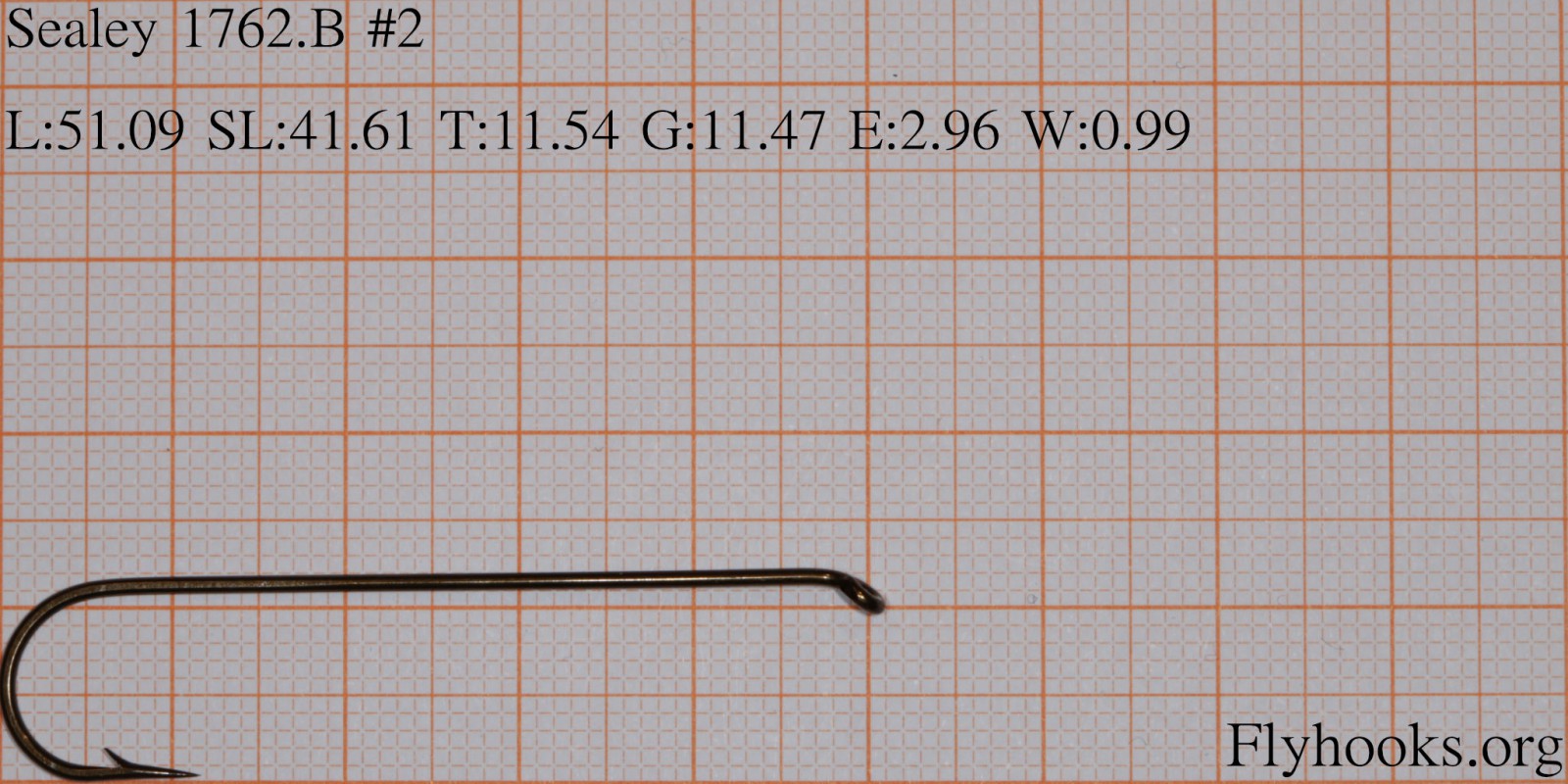

Length	51.09 mm
Shank Length	41.61 mm
Throat	11.54 mm
Gape	11.47 mm
Eye Width	2.96 mm
Wire Thickness	0.99 mm

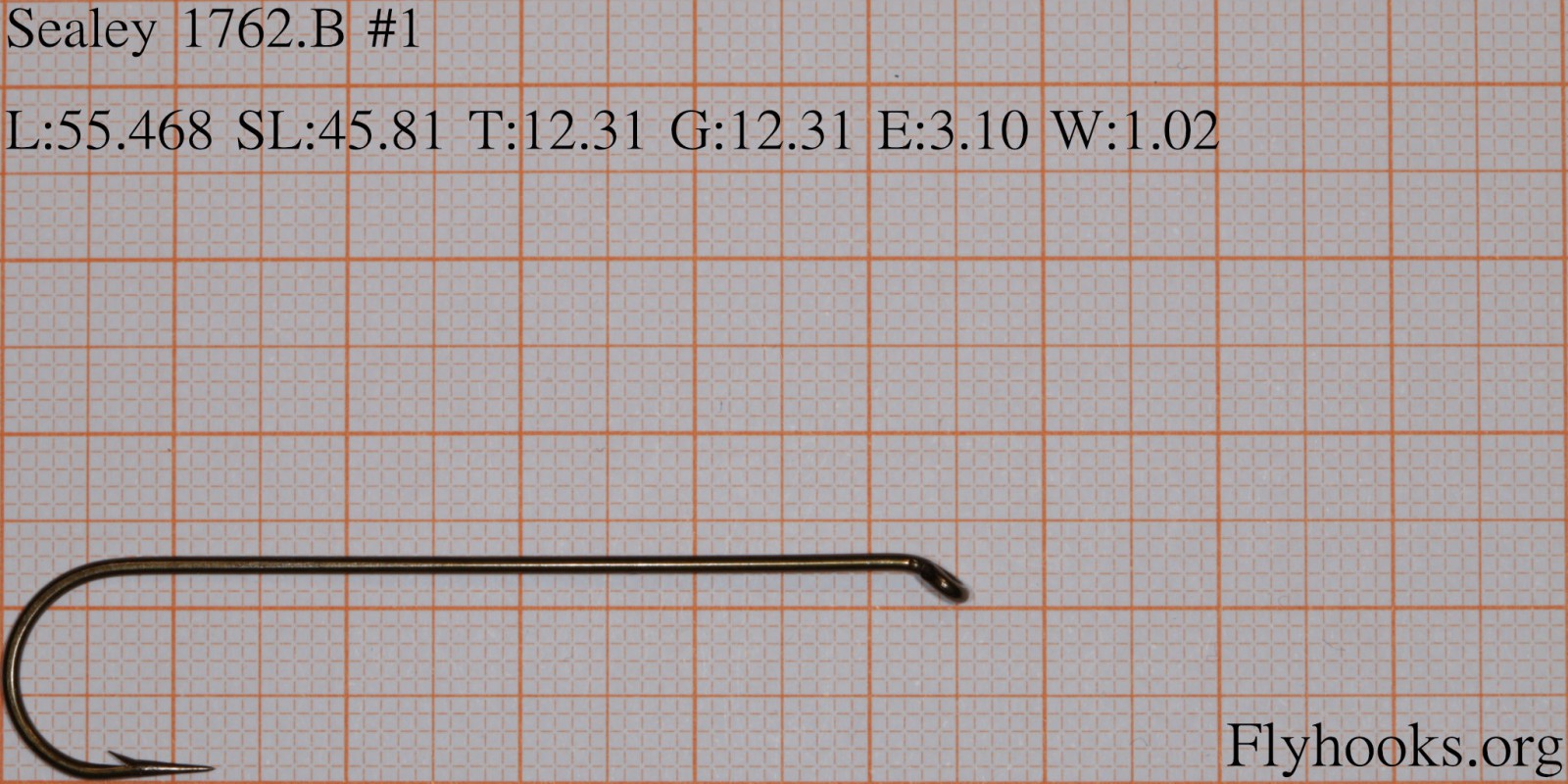

Length	55.46 mm
Shank Length	45.81 mm
Throat	12.31 mm
Gape	12.31 mm
Eye Width	3.10 mm
Wire Thickness	1.02 mm

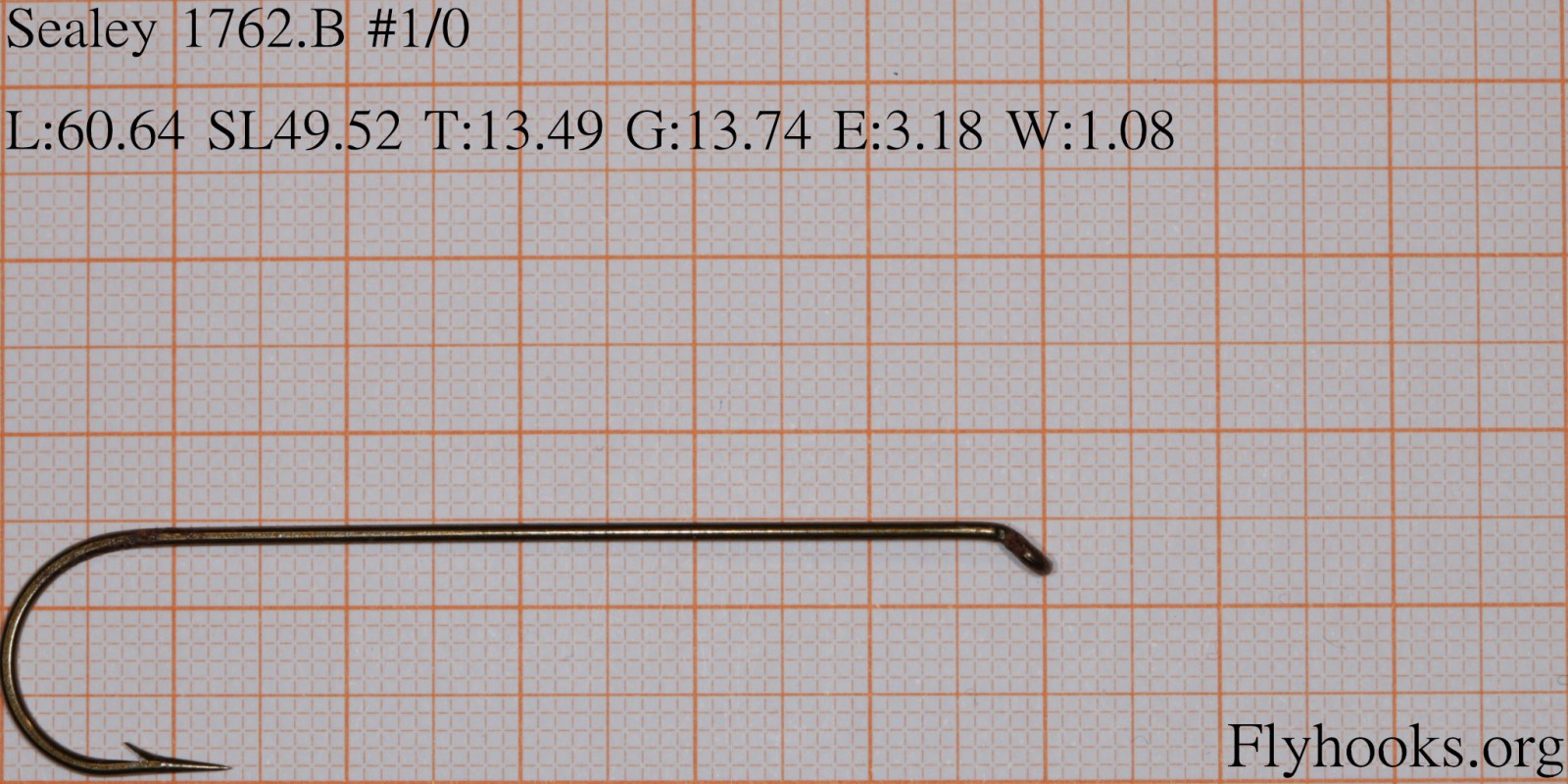

Length	60.64 mm
Shank Length	49.52 mm
Throat	13.49 mm
Gape	13.74 mm
Eye Width	3.18 mm
Wire Thickness	1.08 mm

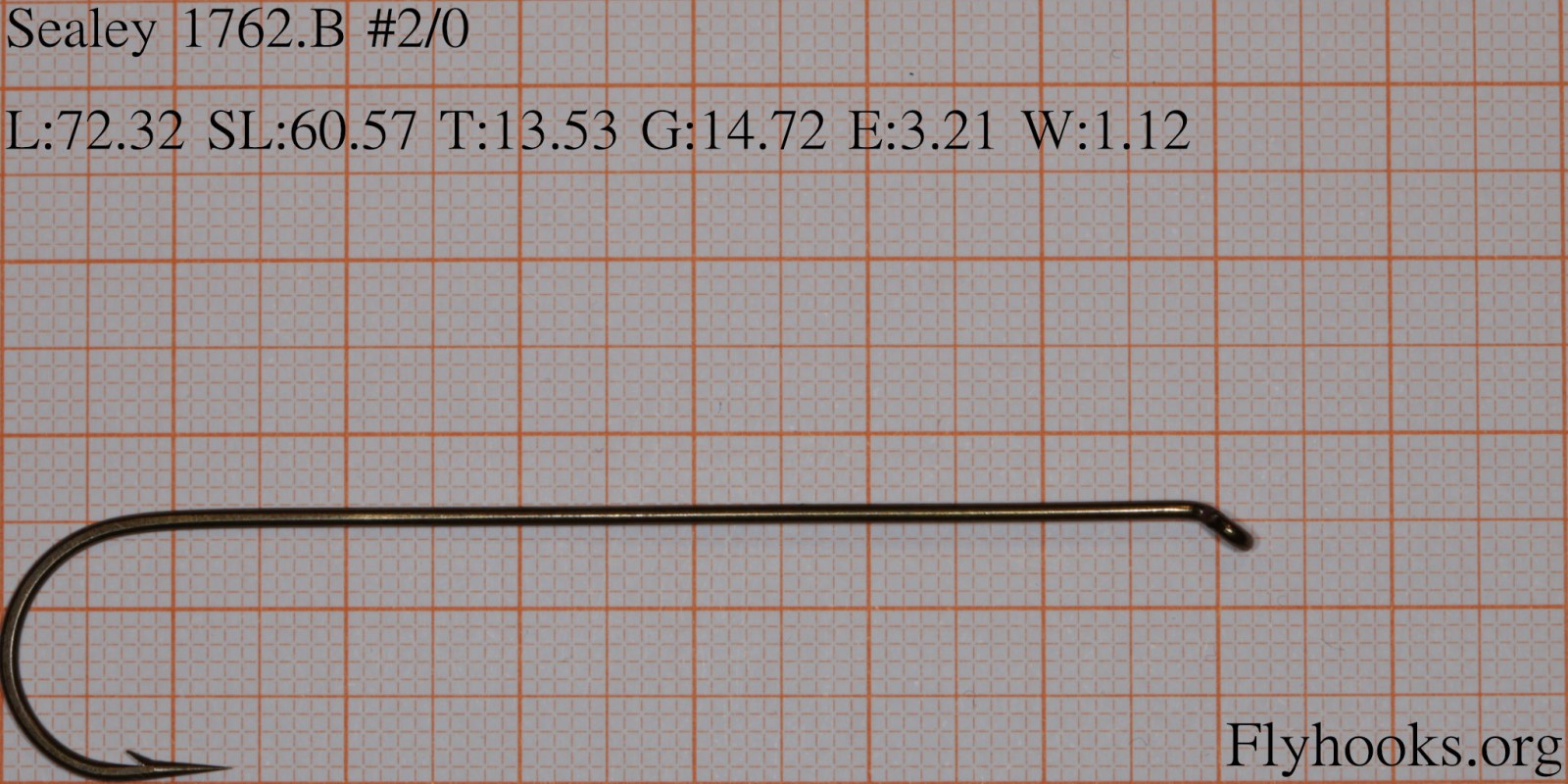

Length	72.32 mm
Shank Length	60.57 mm
Throat	13.53 mm
Gape	14.72 mm
Eye Width	3.21 mm
Wire Thickness	1.12 mm

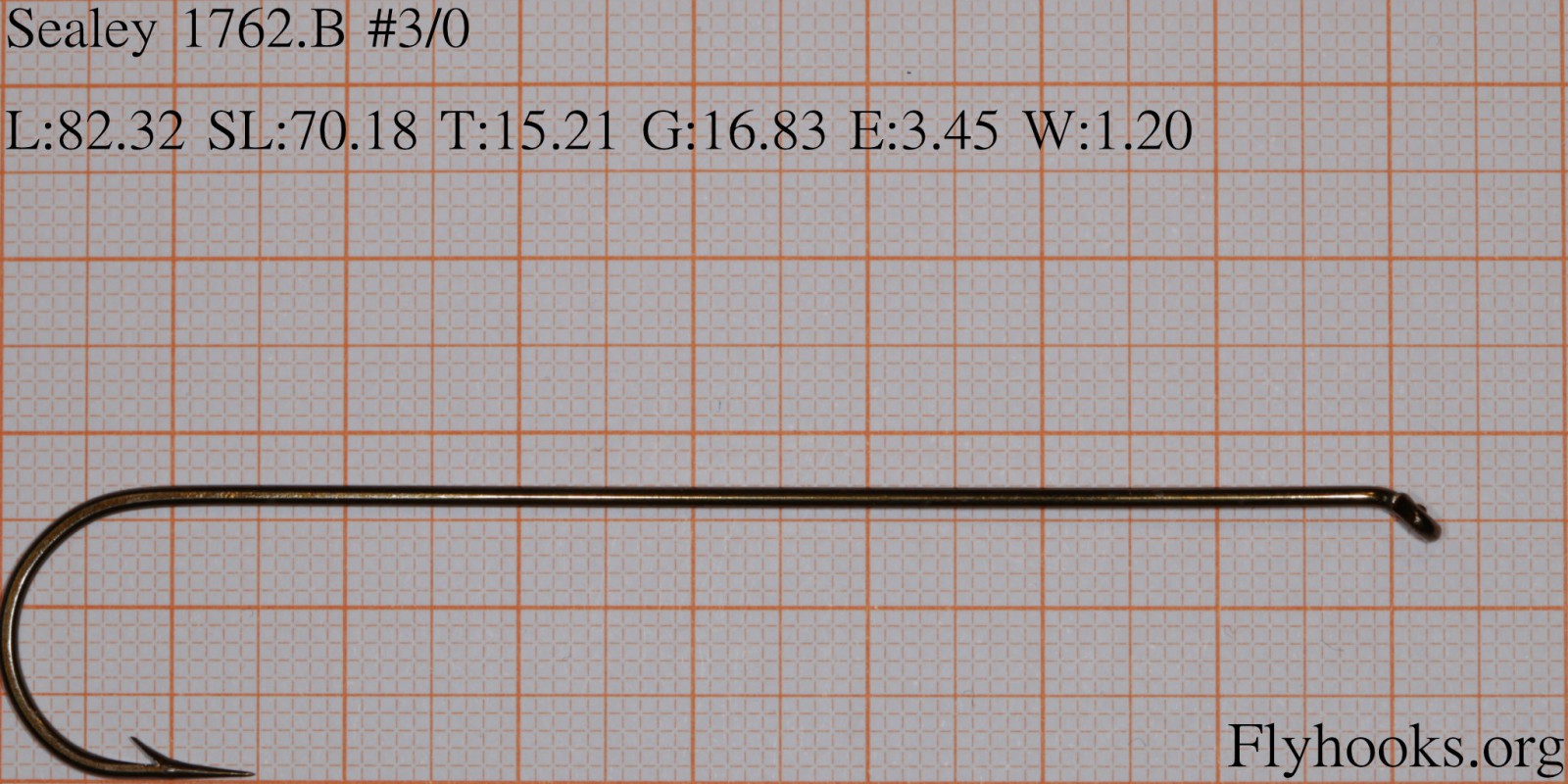

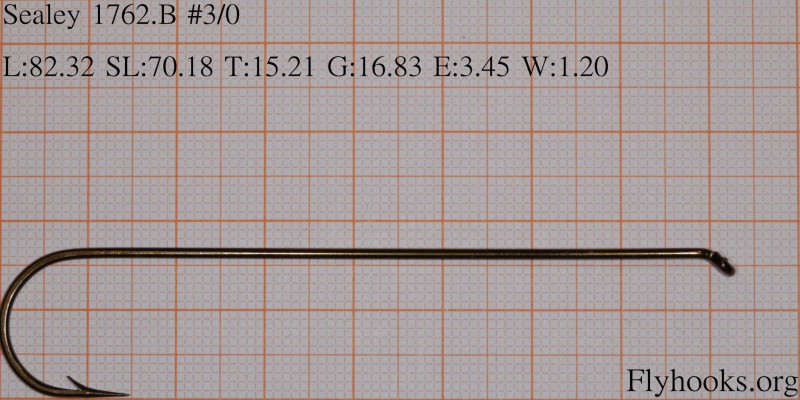

Length	82.32 mm
Shank Length	70.18 mm
Throat	15.21 mm
Gape	16.83 mm
Eye Width	3.45 mm
Wire Thickness	1.20 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
4	L87-3665 A	40.70 -> 43.03	32.85 -> 31.73	9.84 -> 9.62	10.46 -> 10.09	0.86 -> 1.02
2/0	B-17	72.32 -> 78.72	60.57 -> 59.85	14.72 -> 16.69	13.53 -> 14.92	1.12 -> 1.63
