Ahrex: FW 500 - Dry Fly Traditional

Company Ahrex
Type Single
Strength Fine wire
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Microbarb
Color Black Nickel
Usages Dry
Trout
Grayling
Freshwater
Soft Hackle
Emerger
Midge
Sizes 18 16 14 12 10 8

Sizes

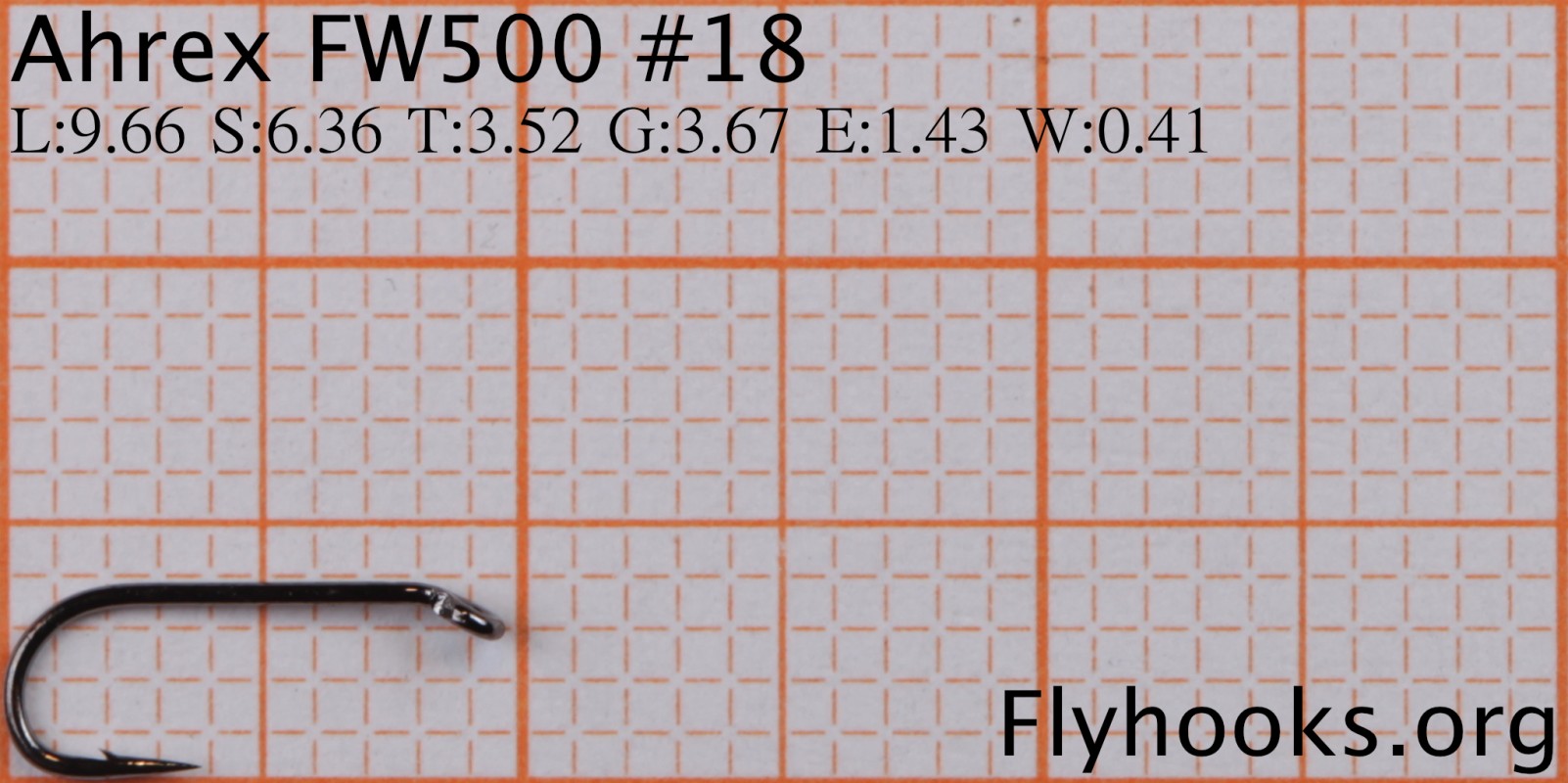

Length9.66 mm
Shank Length6.36 mm
Throat3.52 mm
Gape3.67 mm
Eye Width1.43 mm
Wire Thickness0.41 mm

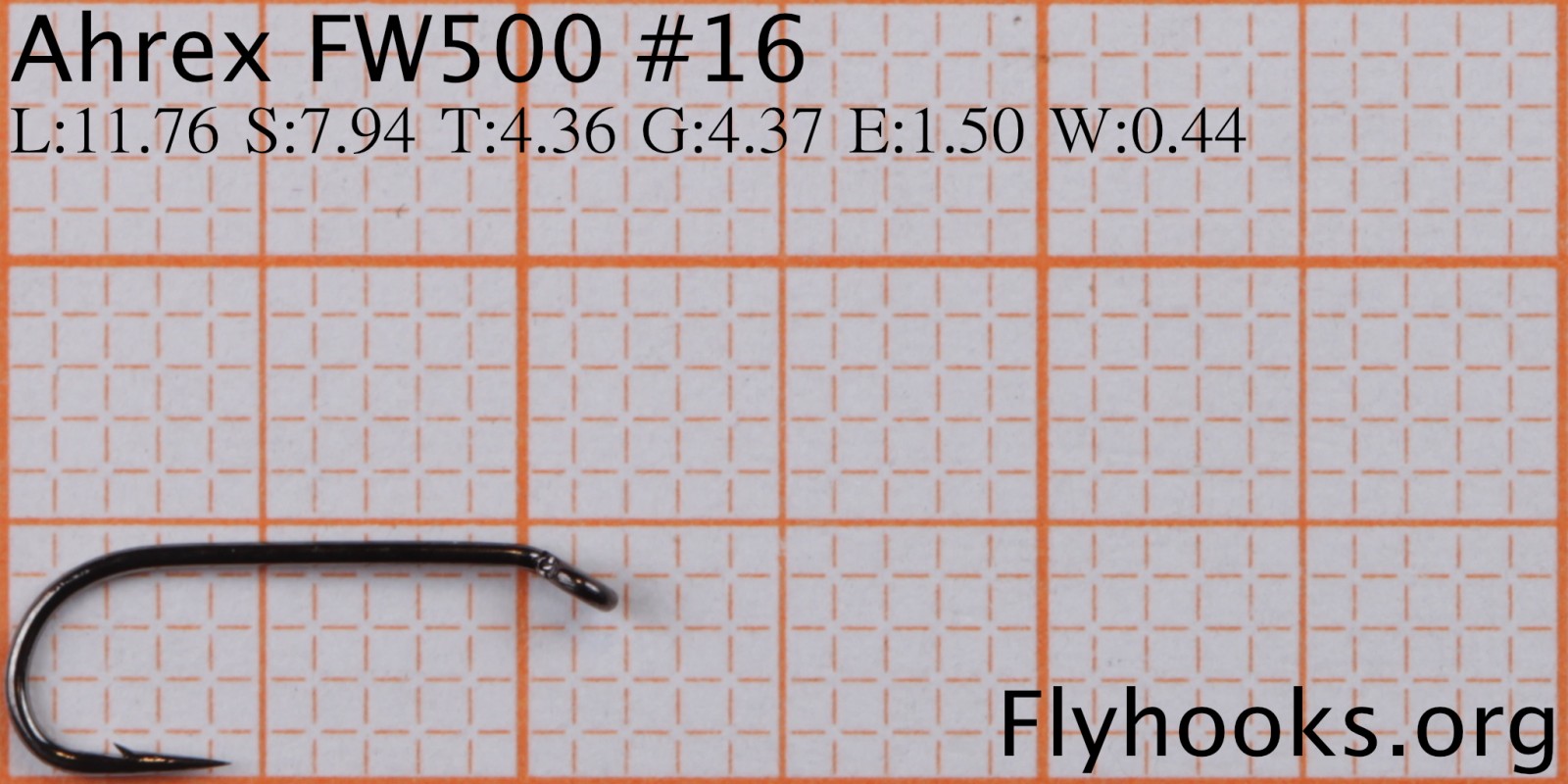

Length11.76 mm
Shank Length7.94 mm
Throat4.36 mm
Gape4.37 mm
Eye Width1.50 mm
Wire Thickness0.44 mm

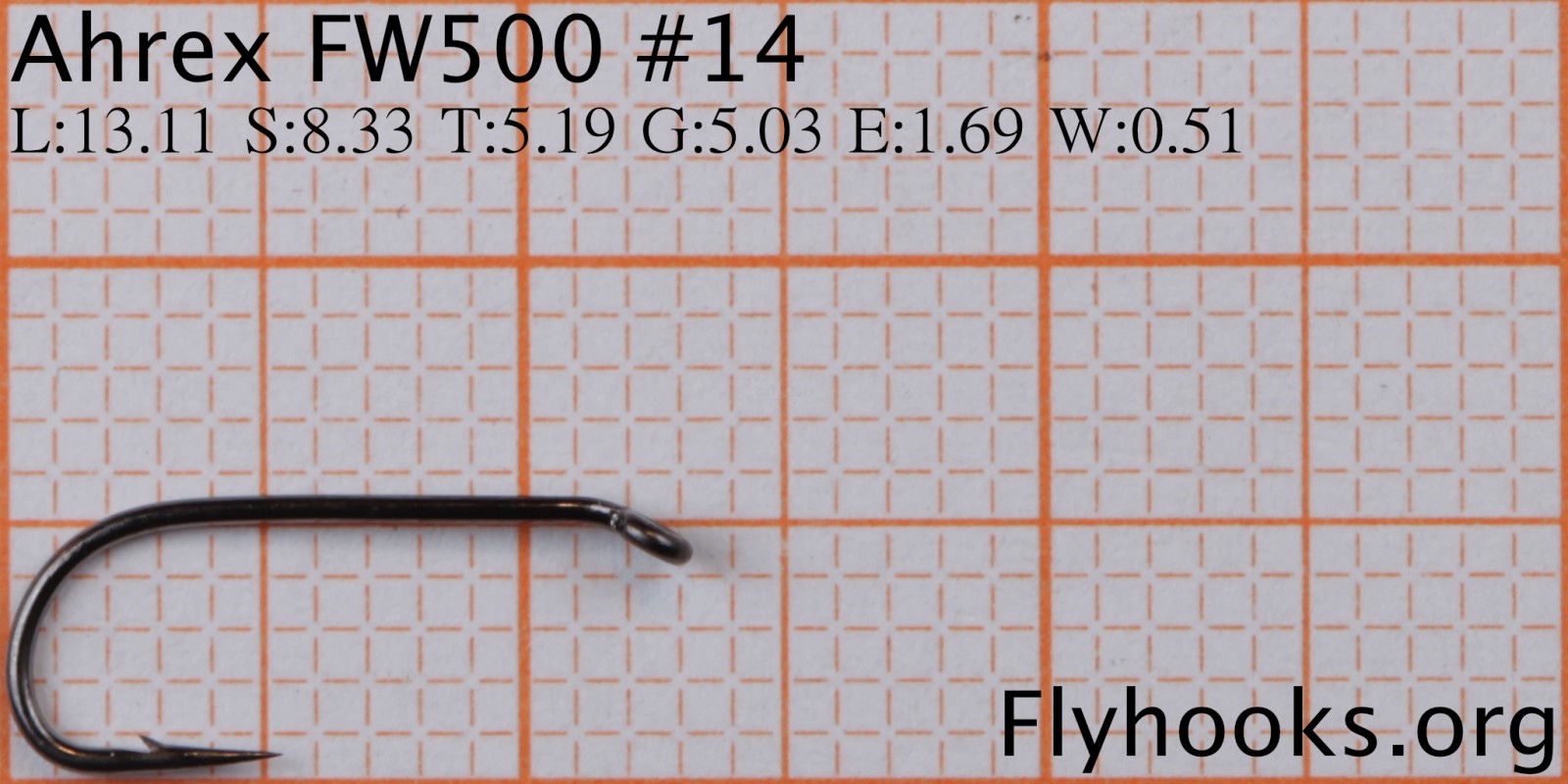

Length13.11 mm
Shank Length8.33 mm
Throat5.19 mm
Gape5.03 mm
Eye Width1.69 mm
Wire Thickness0.51 mm

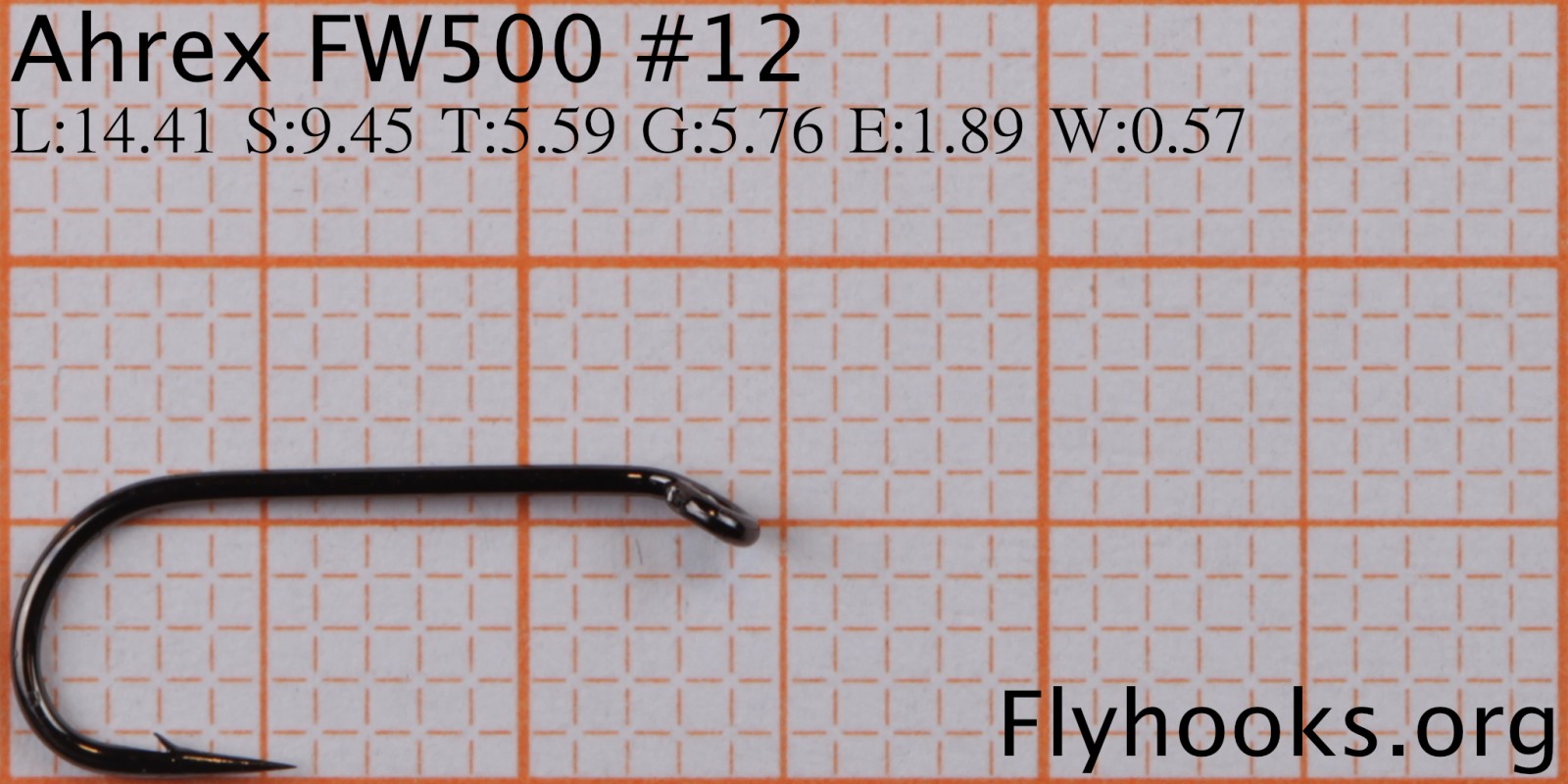

Length14.41 mm
Shank Length9.45 mm
Throat5.59 mm
Gape5.76 mm
Eye Width1.89 mm
Wire Thickness0.57 mm

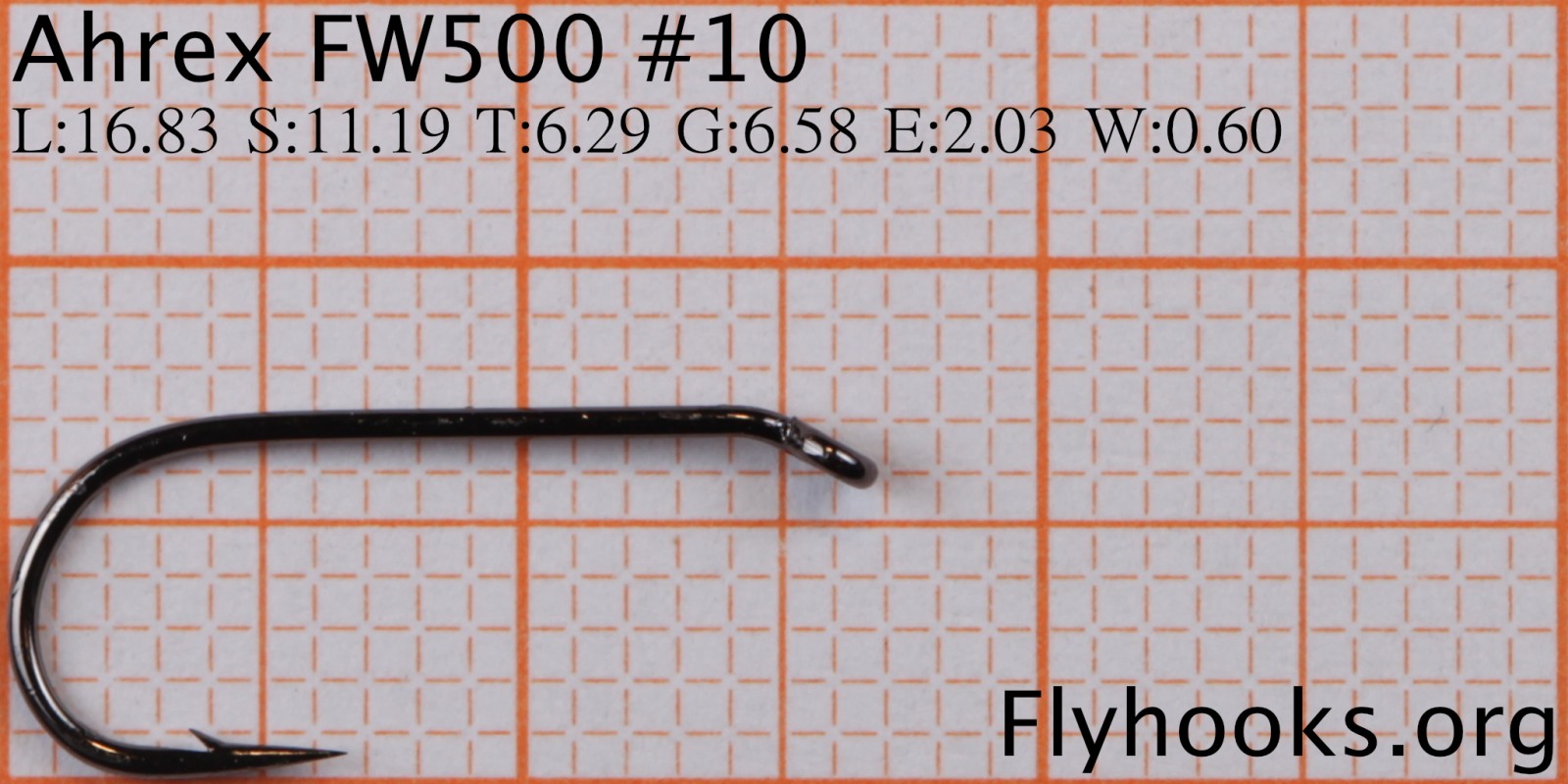

Length16.83 mm
Shank Length11.19 mm
Throat6.29 mm
Gape6.58 mm
Eye Width2.03 mm
Wire Thickness0.60 mm

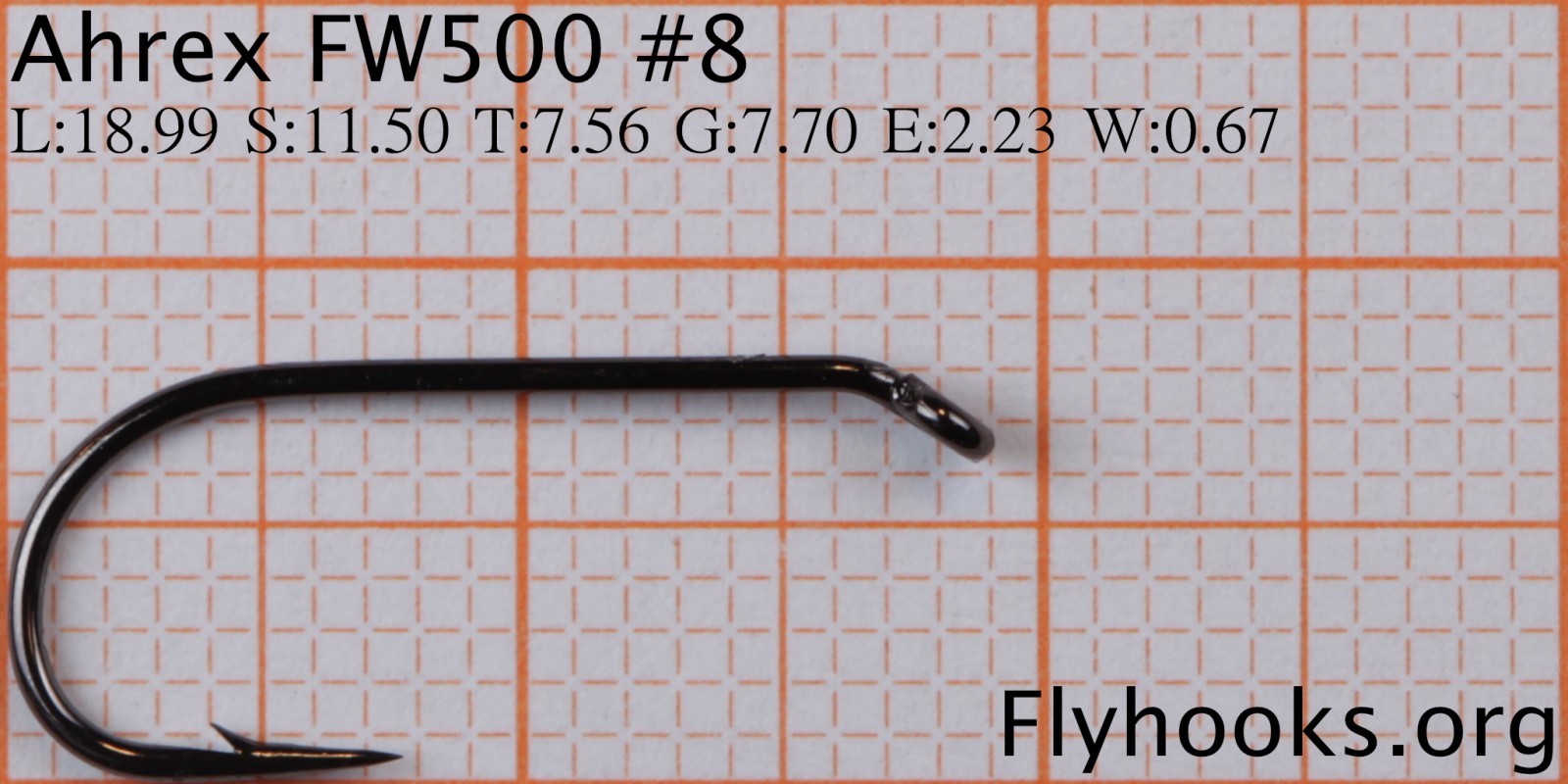

Length18.99 mm
Shank Length11.50 mm
Throat7.56 mm
Gape7.70 mm
Eye Width2.23 mm
Wire Thickness0.67 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 TMC108SP-BL 9.66 -> 9.48 6.36 -> 6.12 3.67 -> 3.67 3.52 -> 3.83 0.41 -> 0.42
18 FW 501 9.66 -> 9.65 6.36 -> 6.26 3.67 -> 3.66 3.52 -> 3.59 0.41 -> 0.42
18 R72 9.66 -> 9.95 6.36 -> 6.43 3.67 -> 3.70 3.52 -> 3.62 0.41 -> 0.38
16 FW 501 11.76 -> 11.76 7.94 -> 7.81 4.37 -> 4.34 4.36 -> 4.46 0.44 -> 0.46
16 FW 561 11.76 -> 12.98 7.94 -> 8.59 4.37 -> 4.19 4.36 -> 4.57 0.44 -> 0.46
16 FW 560 - Traditional Nymph 11.76 -> 13.15 7.94 -> 8.89 4.37 -> 4.33 4.36 -> 4.62 0.44 -> 0.50
14 C 220 13.11 -> 13.10 8.33 -> 8.03 5.03 -> 5.27 5.19 -> 5.79 0.51 -> 0.50
14 FW 501 13.11 -> 13.25 8.33 -> 8.78 5.03 -> 4.99 5.19 -> 5.23 0.51 -> 0.51
14 C 231 13.11 -> 13.69 8.33 -> 9.40 5.03 -> 4.84 5.19 -> 5.30 0.51 -> 0.49
12 TMC9300 14.41 -> 13.98 9.45 -> 9.15 5.76 -> 5.60 5.59 -> 5.69 0.57 -> 0.49
12 H230BL 14.41 -> 14.01 9.45 -> 9.17 5.76 -> 5.97 5.59 -> 5.99 0.57 -> 0.56
12 H200BL 14.41 -> 14.10 9.45 -> 9.06 5.76 -> 5.90 5.59 -> 5.89 0.57 -> 0.63
12 FW 501 14.41 -> 14.38 9.45 -> 9.54 5.76 -> 5.86 5.59 -> 5.74 0.57 -> 0.56
12 AK501 14.41 -> 14.53 9.45 -> 10.00 5.76 -> 5.68 5.59 -> 5.44 0.57 -> 0.50
12 TMC100SP-BL 14.41 -> 14.91 9.45 -> 10.14 5.76 -> 5.55 5.59 -> 5.69 0.57 -> 0.53
12 R72 14.41 -> 15.88 9.45 -> 10.35 5.76 -> 5.82 5.59 -> 5.44 0.57 -> 0.59
12 FW 560 - Traditional Nymph 14.41 -> 15.96 9.45 -> 10.80 5.76 -> 5.74 5.59 -> 5.72 0.57 -> 0.59
12 FW 561 14.41 -> 16.21 9.45 -> 10.82 5.76 -> 5.84 5.59 -> 5.61 0.57 -> 0.60
10 C 211 16.83 -> 16.38 11.19 -> 10.71 6.58 -> 6.34 6.29 -> 6.68 0.60 -> 0.55
10 H230BL 16.83 -> 16.42 11.19 -> 10.82 6.58 -> 6.82 6.29 -> 6.85 0.60 -> 0.61
10 TMC9300 16.83 -> 16.54 11.19 -> 11.49 6.58 -> 6.69 6.29 -> 6.71 0.60 -> 0.56
10 TMC900BL 16.83 -> 16.58 11.19 -> 10.73 6.58 -> 6.33 6.29 -> 6.44 0.60 -> 0.54
10 FW 501 16.83 -> 16.89 11.19 -> 11.48 6.58 -> 6.60 6.29 -> 6.85 0.60 -> 0.60
10 F35 16.83 -> 16.90 11.19 -> 11.04 6.58 -> 6.62 6.29 -> 6.53 0.60 -> 0.61
10 7029 16.83 -> 18.19 11.19 -> 12.58 6.58 -> 6.39 6.29 -> 6.08 0.60 -> 0.50
10 FW 561 16.83 -> 18.66 11.19 -> 12.40 6.58 -> 6.70 6.29 -> 6.53 0.60 -> 0.66
10 CK52SNP-BR 16.83 -> 18.82 11.19 -> 12.61 6.58 -> 6.96 6.29 -> 7.02 0.60 -> 0.61
8 H280BL 18.99 -> 18.07 11.50 -> 11.15 7.70 -> 7.94 7.56 -> 8.06 0.67 -> 0.72
8 Br 2200 18.99 -> 18.14 11.50 -> 10.98 7.70 -> 7.46 7.56 -> 8.46 0.67 -> 0.64
8 R90 18.99 -> 18.69 11.50 -> 11.23 7.70 -> 7.87 7.56 -> 8.30 0.67 -> 0.83
8 F35 18.99 -> 18.79 11.50 -> 11.87 7.70 -> 7.49 7.56 -> 7.33 0.67 -> 0.72
8 G3A/L - Wet Heavy Supreme 18.99 -> 18.82 11.50 -> 11.73 7.70 -> 7.83 7.56 -> 7.80 0.67 -> 0.83
8 FW 501 18.99 -> 19.08 11.50 -> 12.87 7.70 -> 7.91 7.56 -> 7.40 0.67 -> 0.68
8 AK482 BL 18.99 -> 19.15 11.50 -> 12.44 7.70 -> 7.37 7.56 -> 7.86 0.67 -> 0.71
8 TMC9300 18.99 -> 19.66 11.50 -> 12.55 7.70 -> 7.42 7.56 -> 7.40 0.67 -> 0.63
8 FW 580 - Wet Fly 18.99 -> 19.88 11.50 -> 11.09 7.70 -> 7.90 7.56 -> 7.52 0.67 -> 0.77
8 FW 581 18.99 -> 20.03 11.50 -> 11.15 7.70 -> 7.99 7.56 -> 7.97 0.67 -> 0.75
8 73100 18.99 -> 21.29 11.50 -> 12.98 7.70 -> 7.82 7.56 -> 7.71 0.67 -> 0.70
