Tiemco: TMC900BL

Company Tiemco
www www.tiemco.co.jp
Type Single
Strength 1xf
Gape 1xw
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Black
Usages Dry
Nymph
Trout
Grayling
Freshwater
Spider
Soft Hackle
Emerger
Midge
Sizes 20 18 16 14 12 10

Sizes

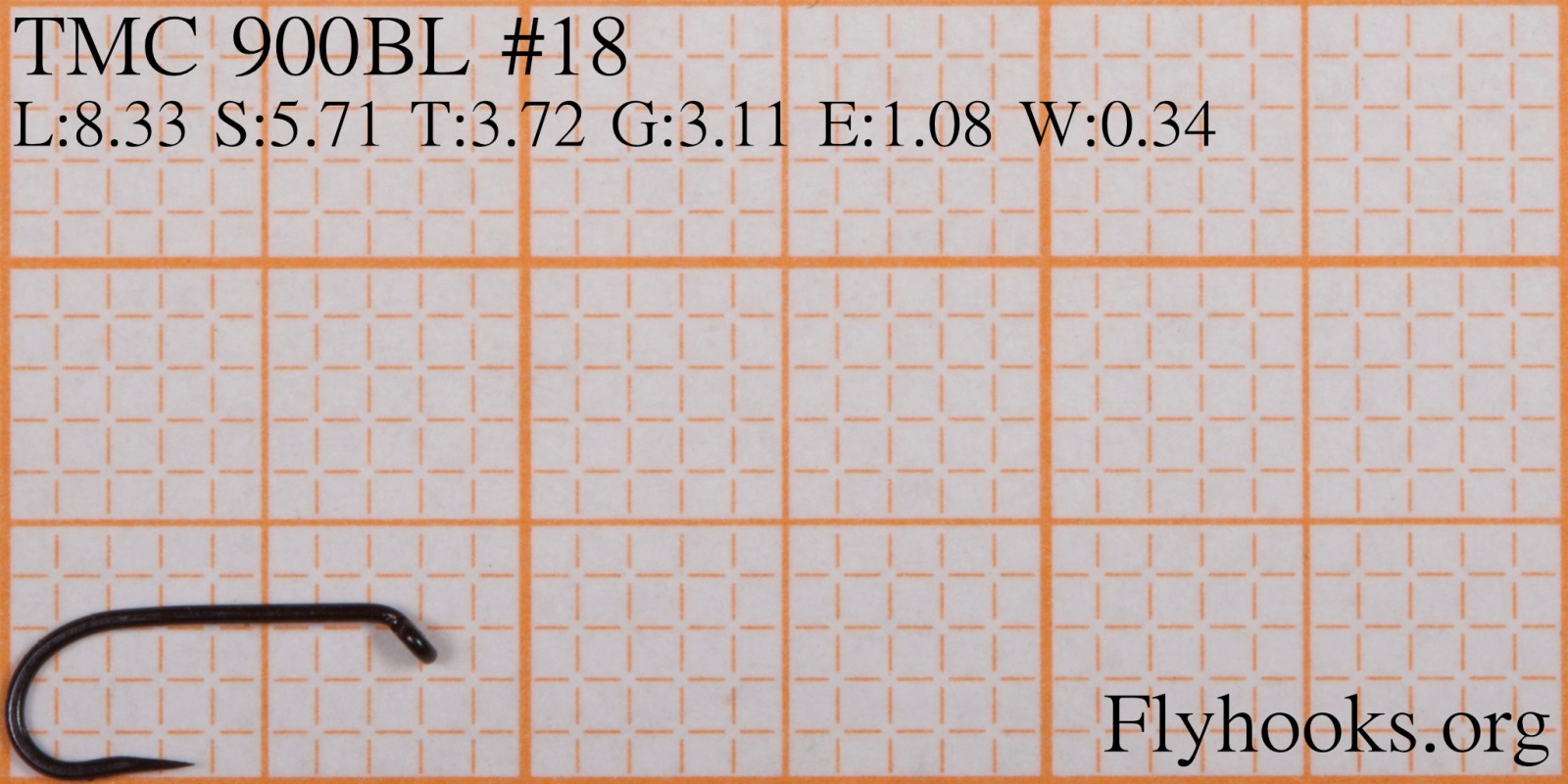

Length8.33 mm
Shank Length5.71 mm
Throat3.72 mm
Gape3.11 mm
Eye Width1.08 mm
Wire Thickness0.34 mm

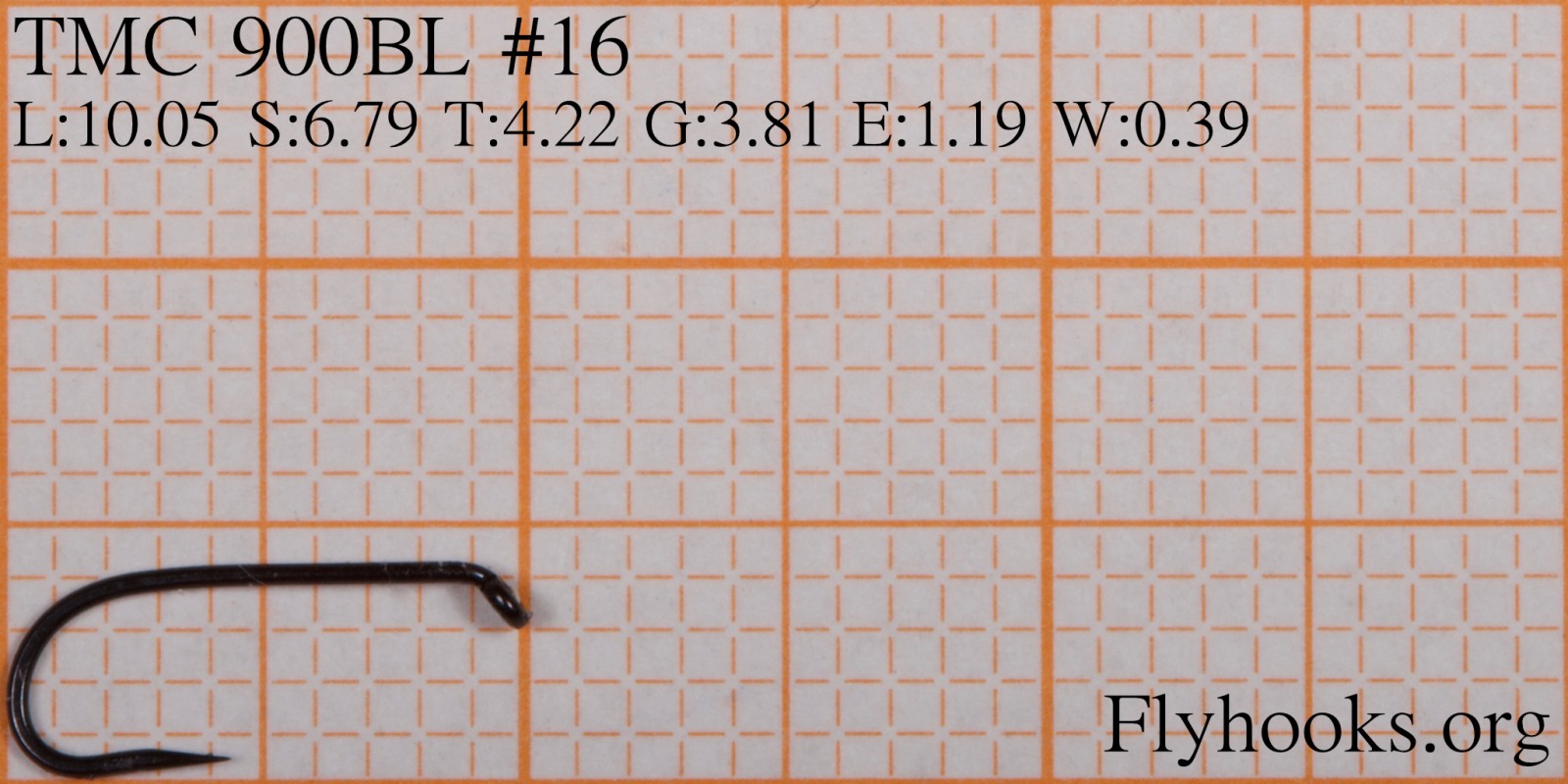

Length10.05 mm
Shank Length6.79 mm
Throat4.22 mm
Gape3.81 mm
Eye Width1.19 mm
Wire Thickness0.39 mm

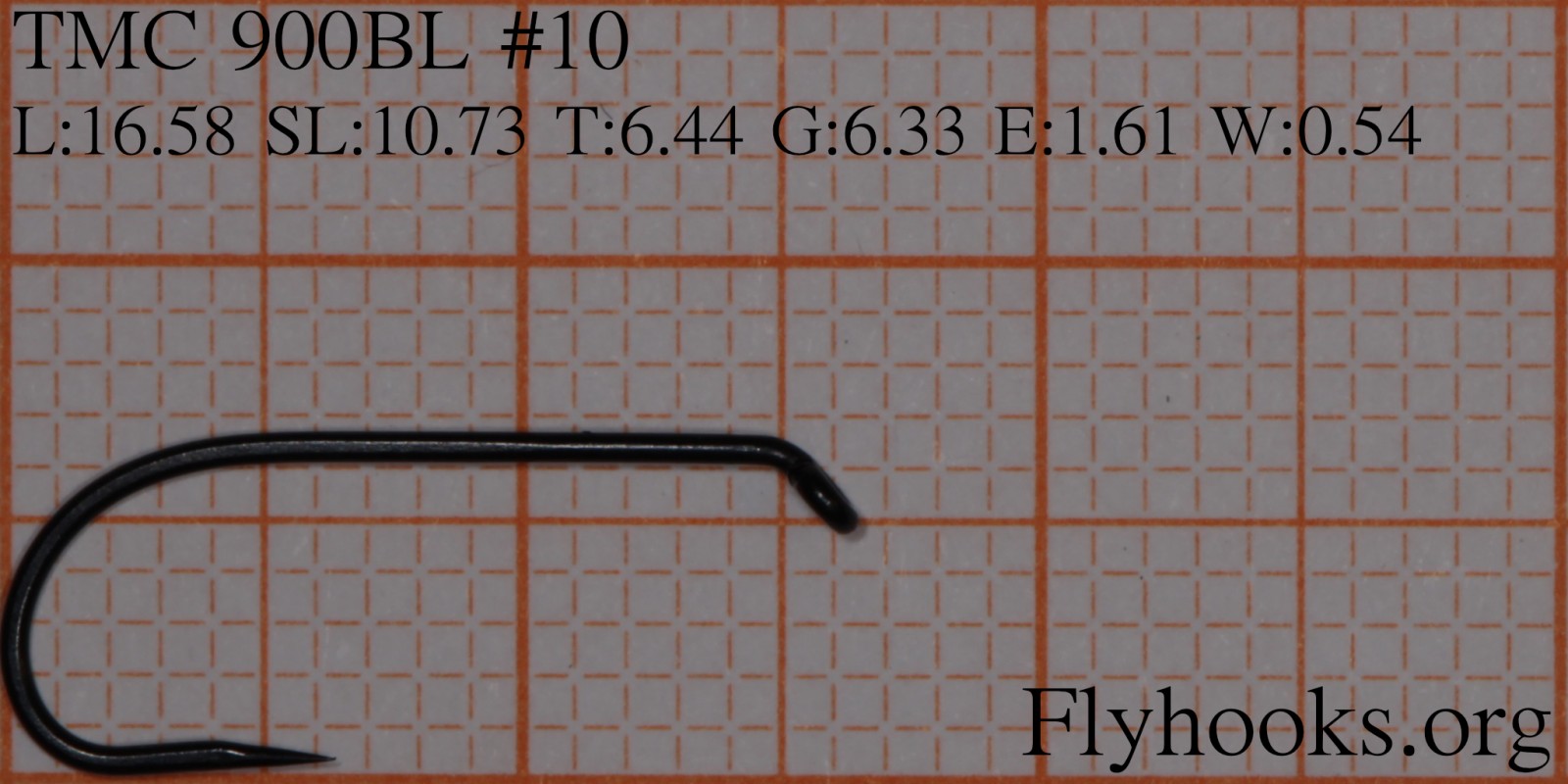

Length16.58 mm
Shank Length10.73 mm
Throat6.44 mm
Gape6.33 mm
Eye Width1.61 mm
Wire Thickness0.54 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 AK503BL 8.33 -> 8.28 5.71 -> 5.62 3.11 -> 3.32 3.72 -> 3.56 0.34 -> 0.35
18 R50XNP-BR 8.33 -> 8.47 5.71 -> 5.51 3.11 -> 3.32 3.72 -> 4.09 0.34 -> 0.33
18 BL 300 8.33 -> 9.11 5.71 -> 6.48 3.11 -> 3.08 3.72 -> 3.63 0.34 -> 0.35
18 80000BR 8.33 -> 9.35 5.71 -> 5.92 3.11 -> 3.42 3.72 -> 3.82 0.34 -> 0.35
16 R50X-94845 10.05 -> 9.79 6.79 -> 6.73 3.81 -> 4.01 4.22 -> 4.23 0.39 -> 0.37
16 Br 103 10.05 -> 9.89 6.79 -> 6.73 3.81 -> 4.11 4.22 -> 4.20 0.39 -> 0.38
16 R70NP-BR 10.05 -> 9.96 6.79 -> 6.61 3.81 -> 4.12 4.22 -> 4.84 0.39 -> 0.47
16 H230BL 10.05 -> 10.08 6.79 -> 6.64 3.81 -> 4.29 4.22 -> 4.78 0.39 -> 0.46
16 94845 10.05 -> 10.21 6.79 -> 6.60 3.81 -> 3.79 4.22 -> 4.32 0.39 -> 0.37
16 130BL 10.05 -> 10.21 6.79 -> 6.77 3.81 -> 4.16 4.22 -> 4.30 0.39 -> 0.38
16 Dry Fly 10.05 -> 10.36 6.79 -> 7.13 3.81 -> 3.79 4.22 -> 4.22 0.39 -> 0.38
16 120 BL 10.05 -> 10.67 6.79 -> 7.65 3.81 -> 3.87 4.22 -> 4.75 0.39 -> 0.40
16 BL 300 10.05 -> 10.67 6.79 -> 7.02 3.81 -> 3.78 4.22 -> 4.69 0.39 -> 0.40
16 N 10.05 -> 10.73 6.79 -> 7.41 3.81 -> 3.84 4.22 -> 4.63 0.39 -> 0.46
16 H290BL 10.05 -> 10.94 6.79 -> 7.21 3.81 -> 4.20 4.22 -> 4.11 0.39 -> 0.37
16 TMC100BL 10.05 -> 10.95 6.79 -> 7.40 3.81 -> 4.08 4.22 -> 4.20 0.39 -> 0.45
16 7368 B 10.05 -> 11.04 6.79 -> 6.74 3.81 -> 4.16 4.22 -> 4.63 0.39 -> 0.50
16 TMC108SP-BL 10.05 -> 11.52 6.79 -> 6.74 3.81 -> 4.15 4.22 -> 4.49 0.39 -> 0.45
16 AK501 10.05 -> 11.55 6.79 -> 7.65 3.81 -> 3.96 4.22 -> 4.20 0.39 -> 0.41
10 94841 16.58 -> 15.83 10.73 -> 10.20 6.33 -> 6.19 6.44 -> 6.70 0.54 -> 0.59
10 73227 16.58 -> 15.89 10.73 -> 10.59 6.33 -> 6.35 6.44 -> 7.13 0.54 -> 0.61
10 R50XNP-BR 16.58 -> 15.92 10.73 -> 10.59 6.33 -> 6.30 6.44 -> 7.26 0.54 -> 0.58
10 R70 - 7957 16.58 -> 15.95 10.73 -> 10.27 6.33 -> 6.64 6.44 -> 6.84 0.54 -> 0.69
10 C 211 16.58 -> 16.38 10.73 -> 10.71 6.33 -> 6.34 6.44 -> 6.68 0.54 -> 0.55
10 H230BL 16.58 -> 16.42 10.73 -> 10.82 6.33 -> 6.82 6.44 -> 6.85 0.54 -> 0.61
10 TMC9300 16.58 -> 16.54 10.73 -> 11.49 6.33 -> 6.69 6.44 -> 6.71 0.54 -> 0.56
10 FW 500 - Dry Fly Traditional 16.58 -> 16.83 10.73 -> 11.19 6.33 -> 6.58 6.44 -> 6.29 0.54 -> 0.60
10 FW 501 16.58 -> 16.89 10.73 -> 11.48 6.33 -> 6.60 6.44 -> 6.85 0.54 -> 0.60
10 F35 16.58 -> 16.90 10.73 -> 11.04 6.33 -> 6.62 6.44 -> 6.53 0.54 -> 0.61
10 AK482 BL 16.58 -> 17.10 10.73 -> 11.84 6.33 -> 6.06 6.44 -> 7.30 0.54 -> 0.60
10 AK721 16.58 -> 17.28 10.73 -> 11.49 6.33 -> 6.07 6.44 -> 6.92 0.54 -> 0.68
10 TMC3761SP-BL 16.58 -> 17.76 10.73 -> 11.59 6.33 -> 6.11 6.44 -> 6.71 0.54 -> 0.61
