Knapek: N

Nymph hook

Company Knapek
www www.knapek-hooks.com
Type Single
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Black
Usages Dry
Wet
Caddis
Nymph
Trout
Grayling
Freshwater
Soft Hackle
Sizes 16 14 12 10 8 6 4

Sizes

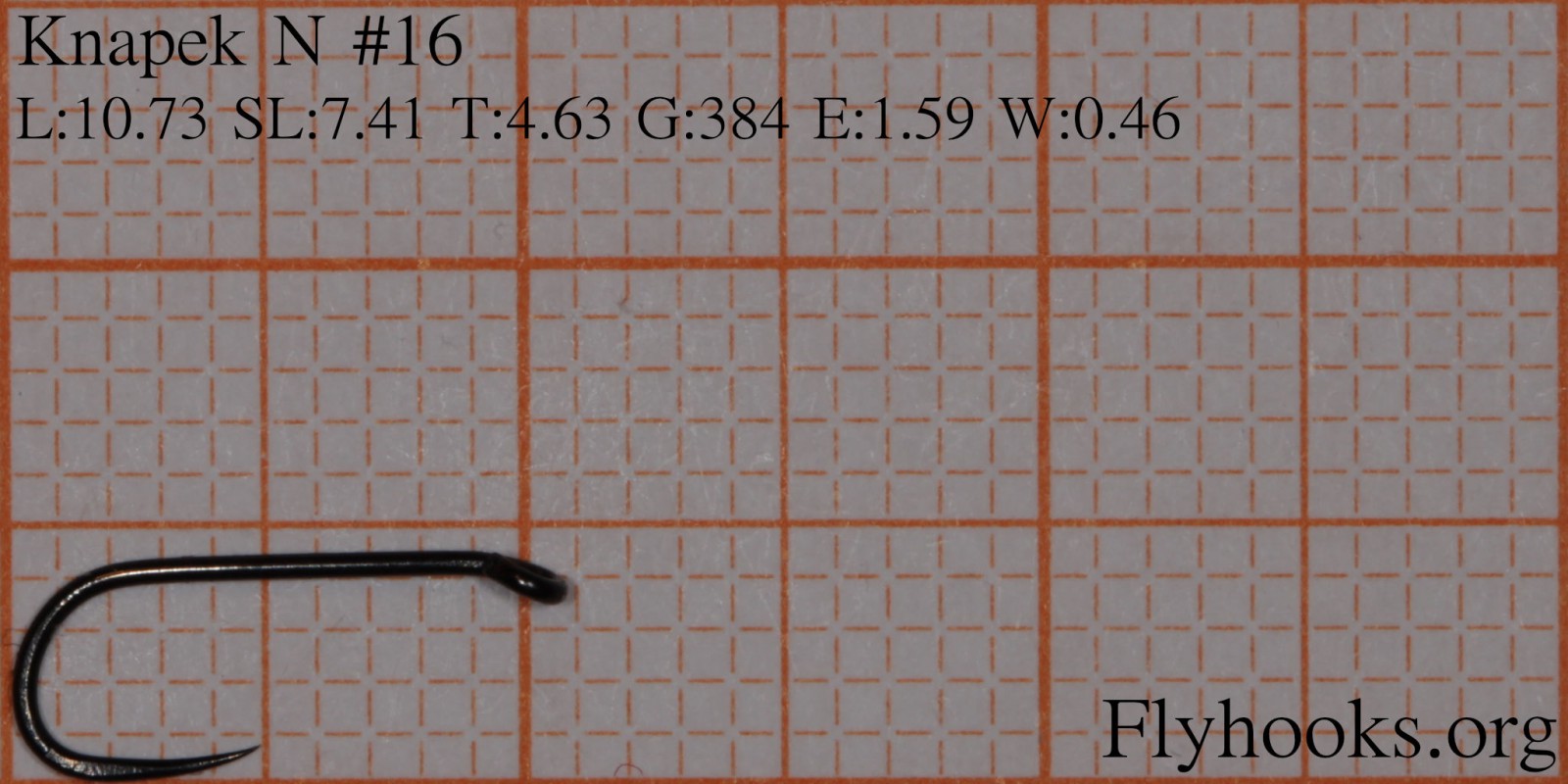

Length10.73 mm
Shank Length7.41 mm
Throat4.63 mm
Gape3.84 mm
Eye Width1.59 mm
Wire Thickness0.46 mm

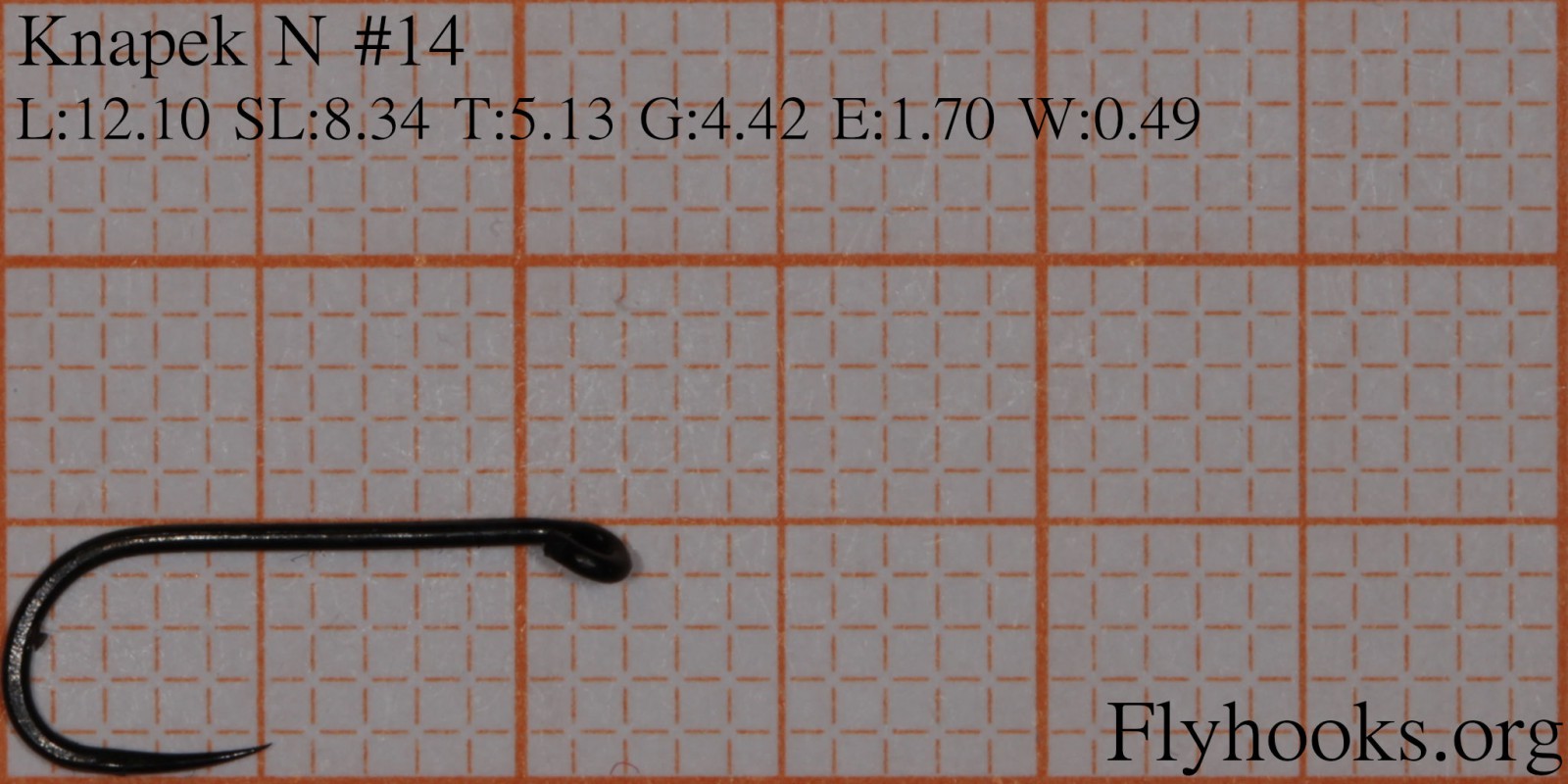

Length12.10 mm
Shank Length8.34 mm
Throat5.13 mm
Gape4.42 mm
Eye Width1.70 mm
Wire Thickness0.49 mm
Length13.03 mm
Shank Length8.78 mm
Throat6.10 mm
Gape4.74 mm
Eye Width1.62 mm
Wire Thickness0.53 mm

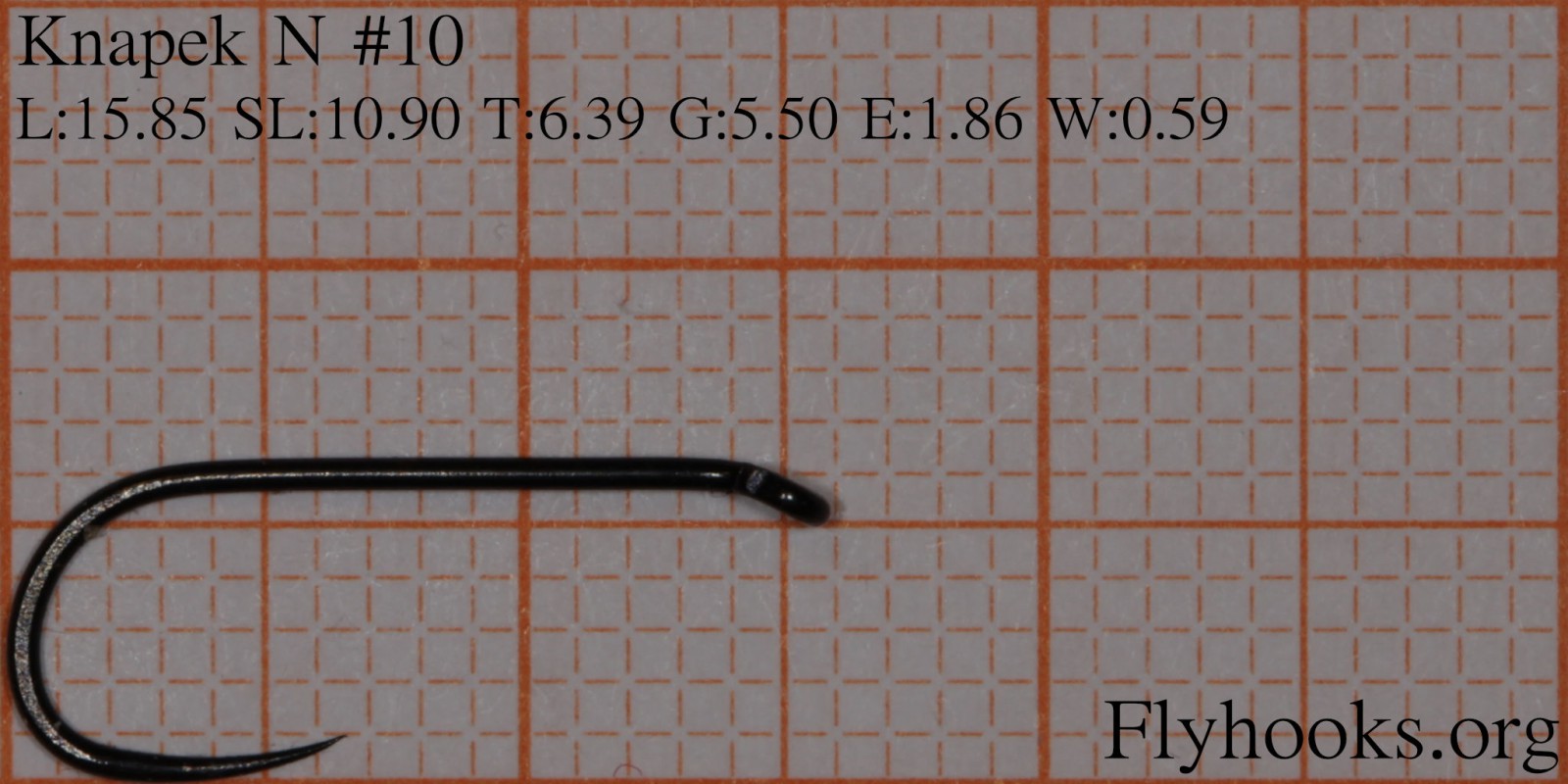

Length15.85 mm
Shank Length10.90 mm
Throat6.39 mm
Gape5.50 mm
Eye Width1.86 mm
Wire Thickness0.59 mm

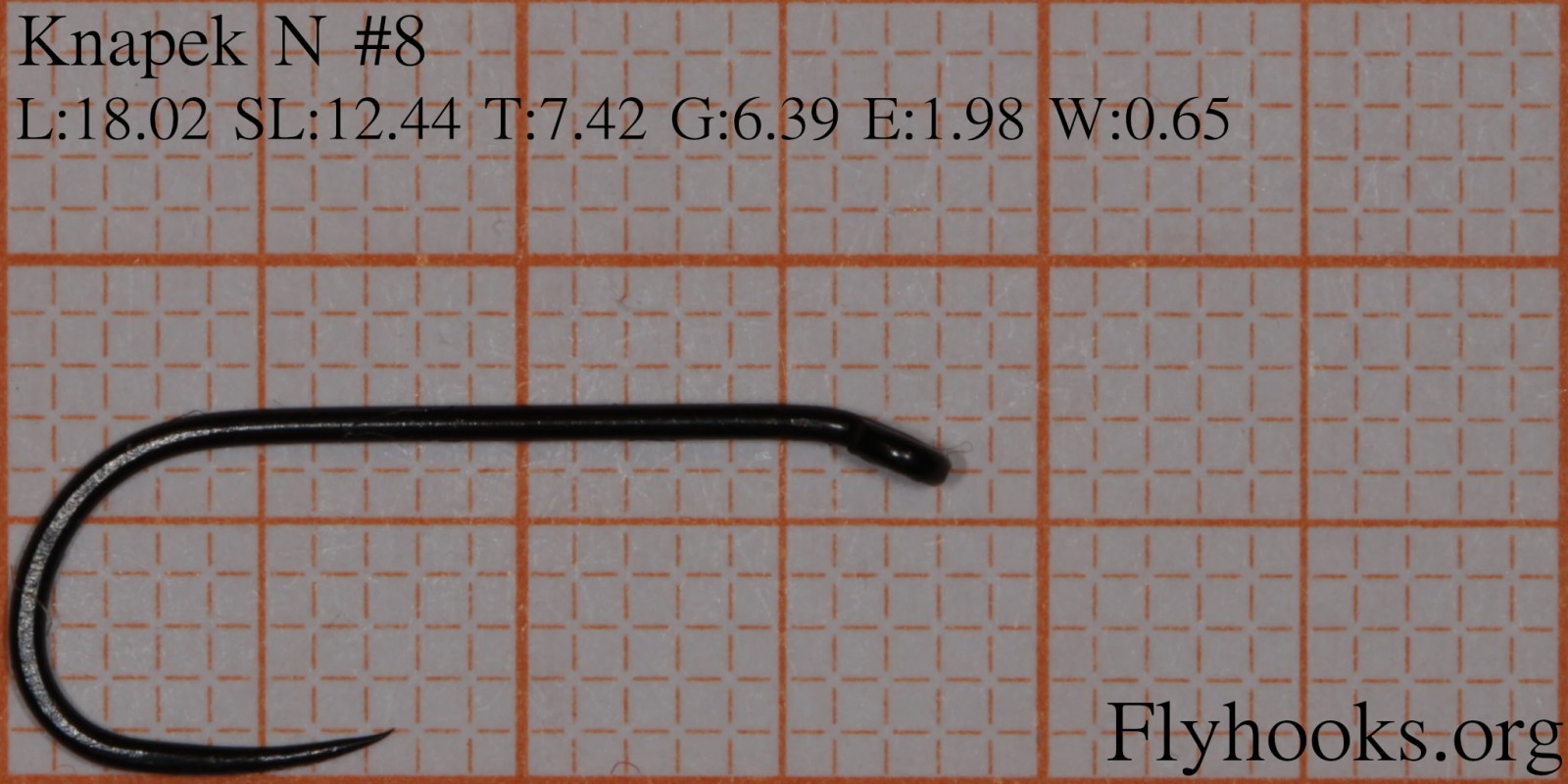

Length18.02 mm
Shank Length12.44 mm
Throat7.42 mm
Gape6.39 mm
Eye Width1.98 mm
Wire Thickness0.65 mm
Length20.79 mm
Shank Length14.62 mm
Throat8.95 mm
Gape7.97 mm
Eye Width2.19 mm
Wire Thickness0.68 mm

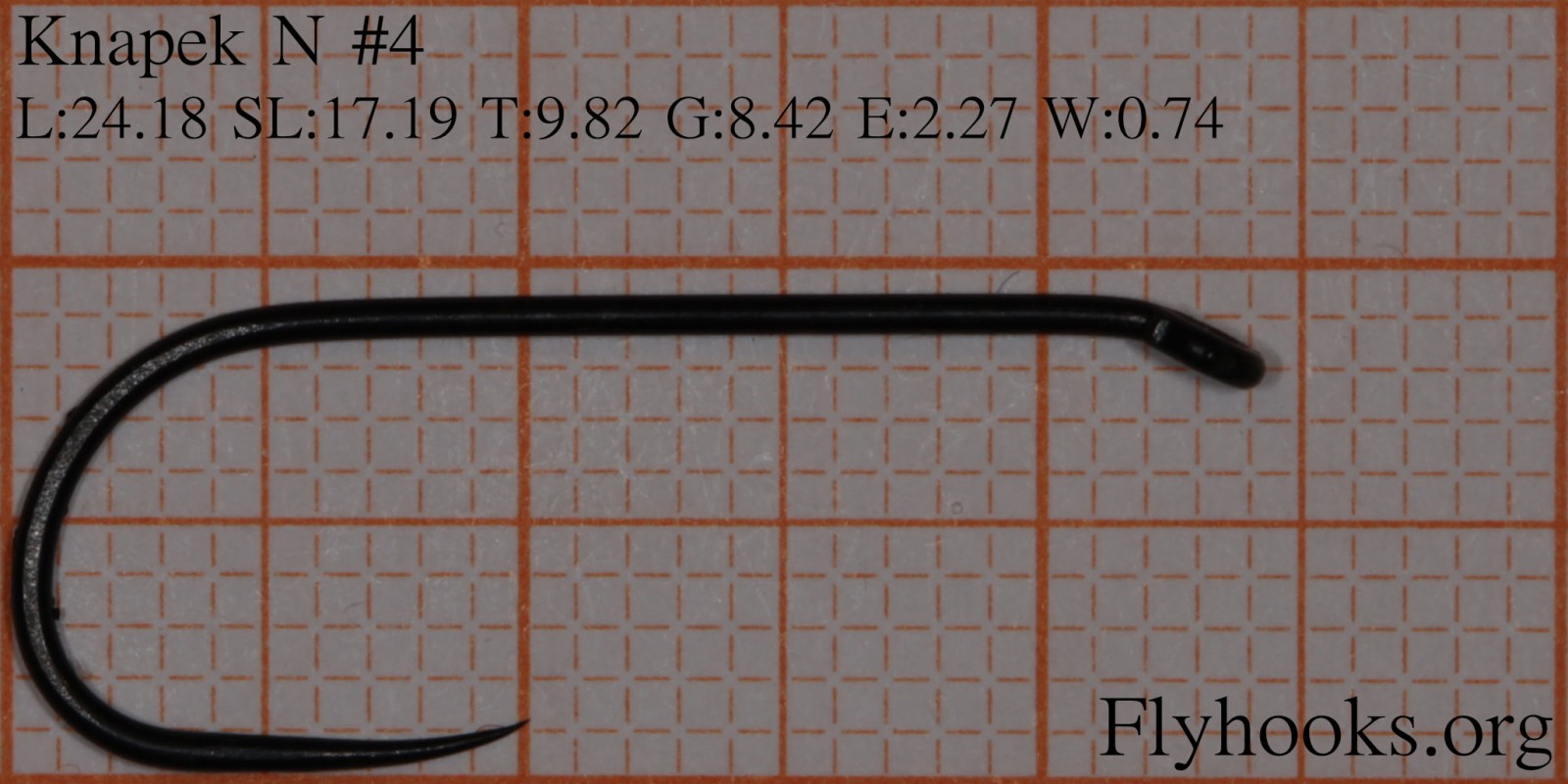

Length24.18 mm
Shank Length17.19 mm
Throat9.82 mm
Gape8.42 mm
Eye Width2.27 mm
Wire Thickness0.74 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 120 BL 10.73 -> 10.67 7.41 -> 7.65 3.84 -> 3.87 4.63 -> 4.75 0.46 -> 0.40
16 FW 501 10.73 -> 11.76 7.41 -> 7.81 3.84 -> 4.34 4.63 -> 4.46 0.46 -> 0.46
14 R50X-94845 12.10 -> 11.68 8.34 -> 8.23 4.42 -> 4.69 5.13 -> 5.60 0.49 -> 0.44
14 TMC9300 12.10 -> 12.09 8.34 -> 8.36 4.42 -> 4.53 5.13 -> 5.01 0.49 -> 0.45
14 G3A/LY - Sproat Nymph 12.10 -> 12.25 8.34 -> 8.49 4.42 -> 4.27 5.13 -> 4.90 0.49 -> 0.50
14 C 211 12.10 -> 12.48 8.34 -> 8.18 4.42 -> 4.70 5.13 -> 5.15 0.49 -> 0.43
14 IN - Ideal Nymph 12.10 -> 12.57 8.34 -> 9.04 4.42 -> 4.28 5.13 -> 5.25 0.49 -> 0.43
14 BL 300 12.10 -> 12.82 8.34 -> 8.65 4.42 -> 4.76 5.13 -> 4.91 0.49 -> 0.45
14 120 BL 12.10 -> 12.83 8.34 -> 8.98 4.42 -> 4.75 5.13 -> 5.12 0.49 -> 0.46
14 FW 500 - Dry Fly Traditional 12.10 -> 13.11 8.34 -> 8.33 4.42 -> 5.03 5.13 -> 5.19 0.49 -> 0.51
14 TMC108SP-BL 12.10 -> 13.12 8.34 -> 8.05 4.42 -> 4.73 5.13 -> 5.00 0.49 -> 0.47
14 AK501 12.10 -> 13.22 8.34 -> 9.23 4.42 -> 4.61 5.13 -> 4.98 0.49 -> 0.44
14 FW 501 12.10 -> 13.25 8.34 -> 8.78 4.42 -> 4.99 5.13 -> 5.23 0.49 -> 0.51
14 11001 12.10 -> 13.40 8.34 -> 8.88 4.42 -> 4.61 5.13 -> 4.88 0.49 -> 0.44
14 730 12.10 -> 13.61 8.34 -> 9.14 4.42 -> 4.86 5.13 -> 4.91 0.49 -> 0.51
14 C 231 12.10 -> 13.69 8.34 -> 9.40 4.42 -> 4.84 5.13 -> 5.30 0.49 -> 0.49
14 AK482 BL 12.10 -> 13.78 8.34 -> 9.19 4.42 -> 4.66 5.13 -> 5.73 0.49 -> 0.51
12 D101BL 13.03 -> 12.54 8.78 -> 8.45 4.74 -> 5.27 6.10 -> 5.92 0.53 -> 0.54
12 2120 WB 13.03 -> 13.01 8.78 -> 8.55 4.74 -> 4.90 6.10 -> 6.34 0.53 -> 0.42
12 Barbless 13.03 -> 13.02 8.78 -> 9.07 4.74 -> 4.83 6.10 -> 5.95 0.53 -> 0.56
10 SUD - Patriot Ideal Dry 15.85 -> 15.23 10.90 -> 10.53 5.50 -> 5.71 6.39 -> 6.43 0.59 -> 0.48
10 AK831BL 15.85 -> 15.31 10.90 -> 10.76 5.50 -> 5.52 6.39 -> 6.22 0.59 -> 0.47
10 TMC3769 15.85 -> 15.68 10.90 -> 10.46 5.50 -> 6.15 6.39 -> 6.67 0.59 -> 0.64
10 1-605 BR 15.85 -> 15.83 10.90 -> 10.65 5.50 -> 5.64 6.39 -> 6.12 0.59 -> 0.58
10 R50XNP-BR 15.85 -> 15.92 10.90 -> 10.59 5.50 -> 6.30 6.39 -> 7.26 0.59 -> 0.58
10 73100 15.85 -> 16.41 10.90 -> 11.15 5.50 -> 5.71 6.39 -> 6.11 0.59 -> 0.56
10 AK482 BL 15.85 -> 17.10 10.90 -> 11.84 5.50 -> 6.06 6.39 -> 7.30 0.59 -> 0.60
10 AK721 15.85 -> 17.28 10.90 -> 11.49 5.50 -> 6.07 6.39 -> 6.92 0.59 -> 0.68
10 075 15.85 -> 17.69 10.90 -> 11.54 5.50 -> 5.70 6.39 -> 6.16 0.59 -> 0.60
10 TMC3761 15.85 -> 17.76 10.90 -> 11.59 5.50 -> 6.11 6.39 -> 6.71 0.59 -> 0.61
8 AK831BL 18.02 -> 17.35 12.44 -> 12.24 6.39 -> 6.42 7.42 -> 8.22 0.65 -> 0.49
8 H200BL 18.02 -> 18.00 12.44 -> 11.92 6.39 -> 7.34 7.42 -> 8.39 0.65 -> 0.73
8 H230BL 18.02 -> 18.15 12.44 -> 11.86 6.39 -> 6.77 7.42 -> 8.28 0.65 -> 0.71
8 TMC3769 18.02 -> 18.24 12.44 -> 12.39 6.39 -> 7.00 7.42 -> 7.29 0.65 -> 0.72
8 94840 18.02 -> 18.42 12.44 -> 12.71 6.39 -> 7.17 7.42 -> 7.45 0.65 -> 0.67
8 AK881 18.02 -> 18.77 12.44 -> 12.46 6.39 -> 7.14 7.42 -> 7.38 0.65 -> 0.77
8 G3AY - Sproat Wet 18.02 -> 18.80 12.44 -> 12.54 6.39 -> 6.80 7.42 -> 7.36 0.65 -> 0.76
8 AK865BL 18.02 -> 18.83 12.44 -> 12.13 6.39 -> 6.75 7.42 -> 7.43 0.65 -> 0.76
8 S 18.02 -> 18.94 12.44 -> 13.22 6.39 -> 6.08 7.42 -> 7.72 0.65 -> 0.69
8 C71SNP-SS 18.02 -> 19.90 12.44 -> 12.40 6.39 -> 6.69 7.42 -> 8.35 0.65 -> 0.78
6 S71DT-34007 20.79 -> 22.87 14.62 -> 14.84 7.97 -> 8.63 8.95 -> 8.57 0.68 -> 0.78
6 SS15 20.79 -> 23.13 14.62 -> 15.18 7.97 -> 8.86 8.95 -> 8.55 0.68 -> 0.75
6 FW 580 - Wet Fly 20.79 -> 23.47 14.62 -> 14.09 7.97 -> 9.01 8.95 -> 9.27 0.68 -> 0.81
6 NS115 - Deep Streamer 20.79 -> 23.51 14.62 -> 14.76 7.97 -> 8.98 8.95 -> 9.95 0.68 -> 0.93
6 FW 581 20.79 -> 23.65 14.62 -> 15.62 7.97 -> 8.74 8.95 -> 9.06 0.68 -> 0.79
4 9143 24.18 -> 26.25 17.19 -> 18.43 8.42 -> 8.96 9.82 -> 9.91 0.74 -> 0.84
4 S71DT-34007 24.18 -> 26.48 17.19 -> 16.45 8.42 -> 9.59 9.82 -> 9.76 0.74 -> 0.97
4 C71SNP-SS 24.18 -> 26.61 17.19 -> 17.09 8.42 -> 8.88 9.82 -> 10.71 0.74 -> 0.93
