Tiemco: TMC100

Company Tiemco
www www.tiemco.co.jp
Type Single
Strength 1xf
Gape Wide
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Usages Dry
Wet
Caddis
Nymph
Trout
Grayling
Freshwater
Sizes 26 24 22 20 18 16 14 12 10 8

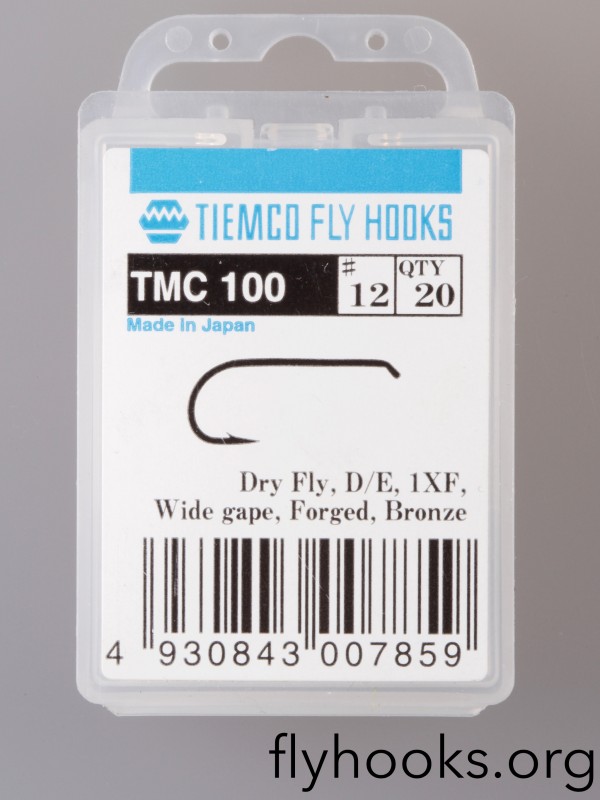

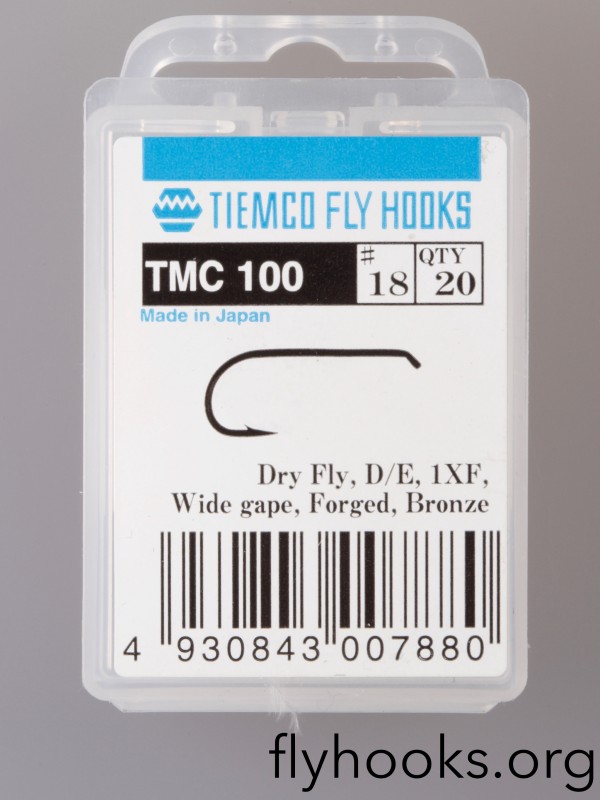

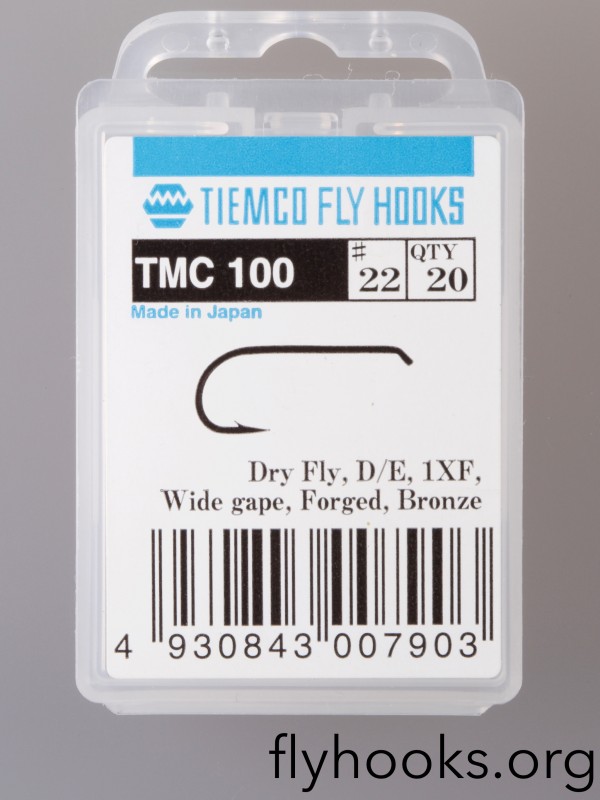

Boxes

Sizes

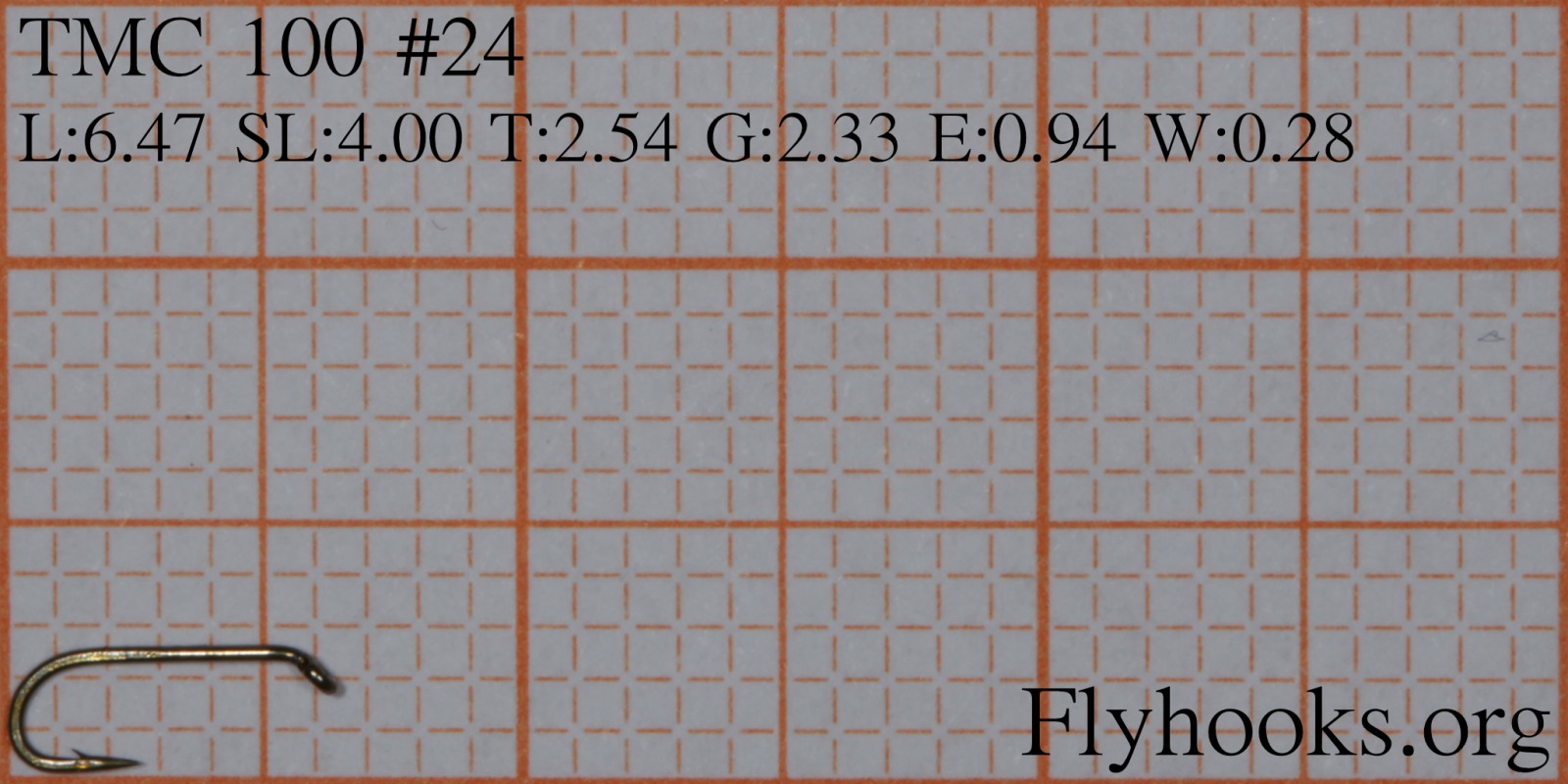

Length6.47 mm
Shank Length4.00 mm
Throat2.54 mm
Gape2.33 mm
Eye Width0.94 mm
Wire Thickness0.28 mm

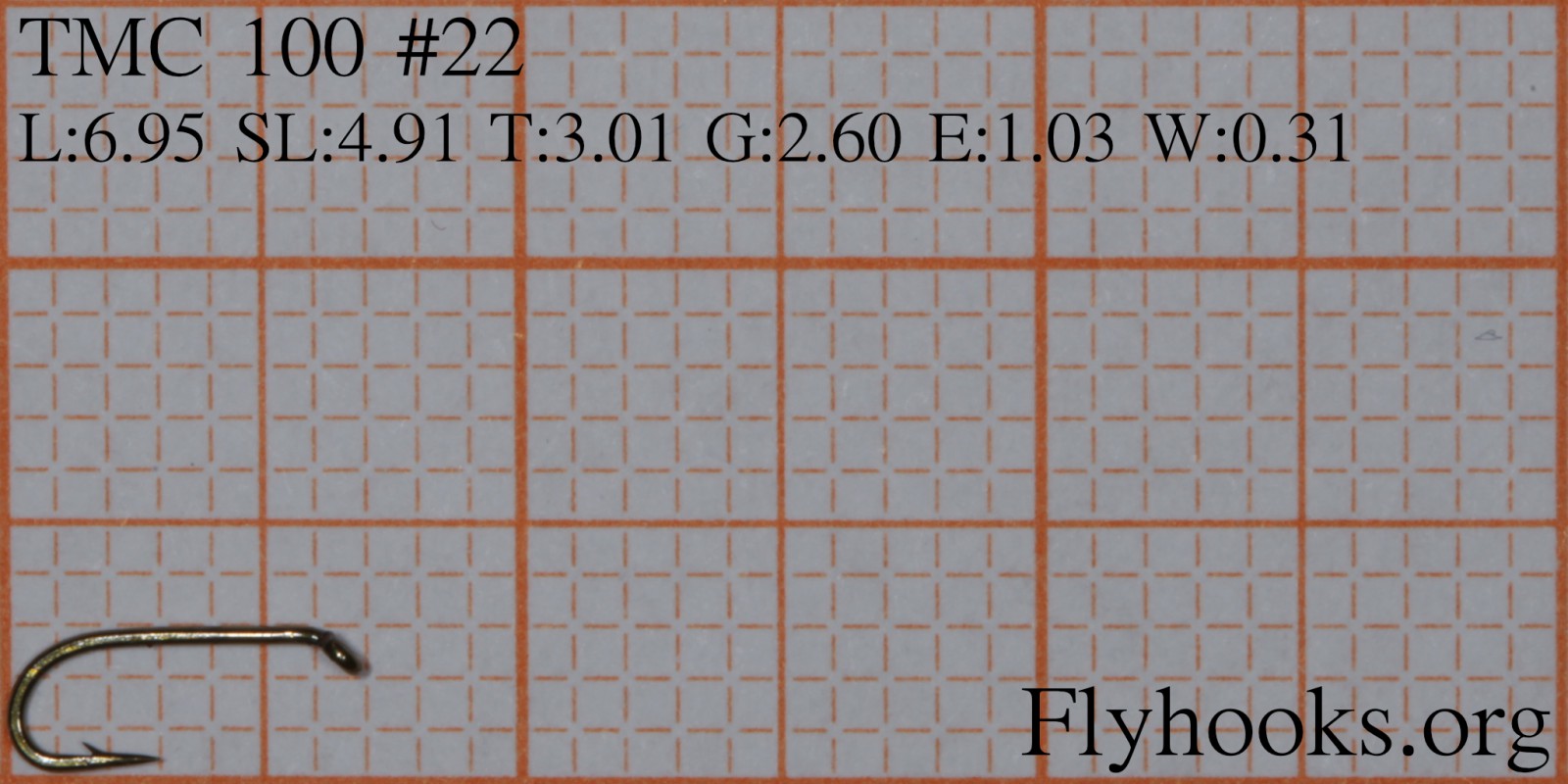

Length6.95 mm
Shank Length4.91 mm
Throat3.01 mm
Gape2.60 mm
Eye Width1.03 mm
Wire Thickness0.31 mm

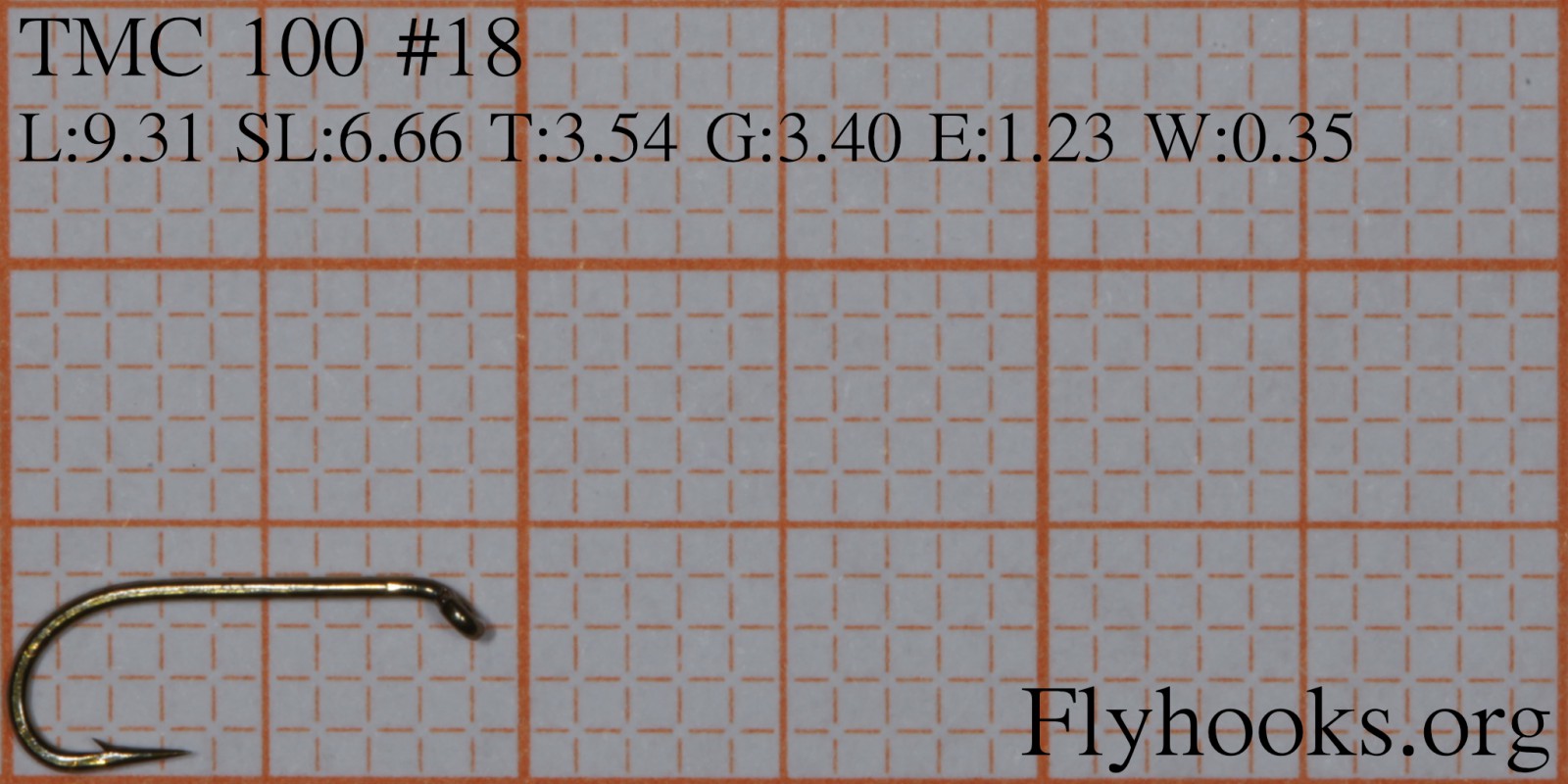

Length9.31 mm
Shank Length6.66 mm
Throat3.54 mm
Gape3.40 mm
Eye Width1.23 mm
Wire Thickness0.35 mm

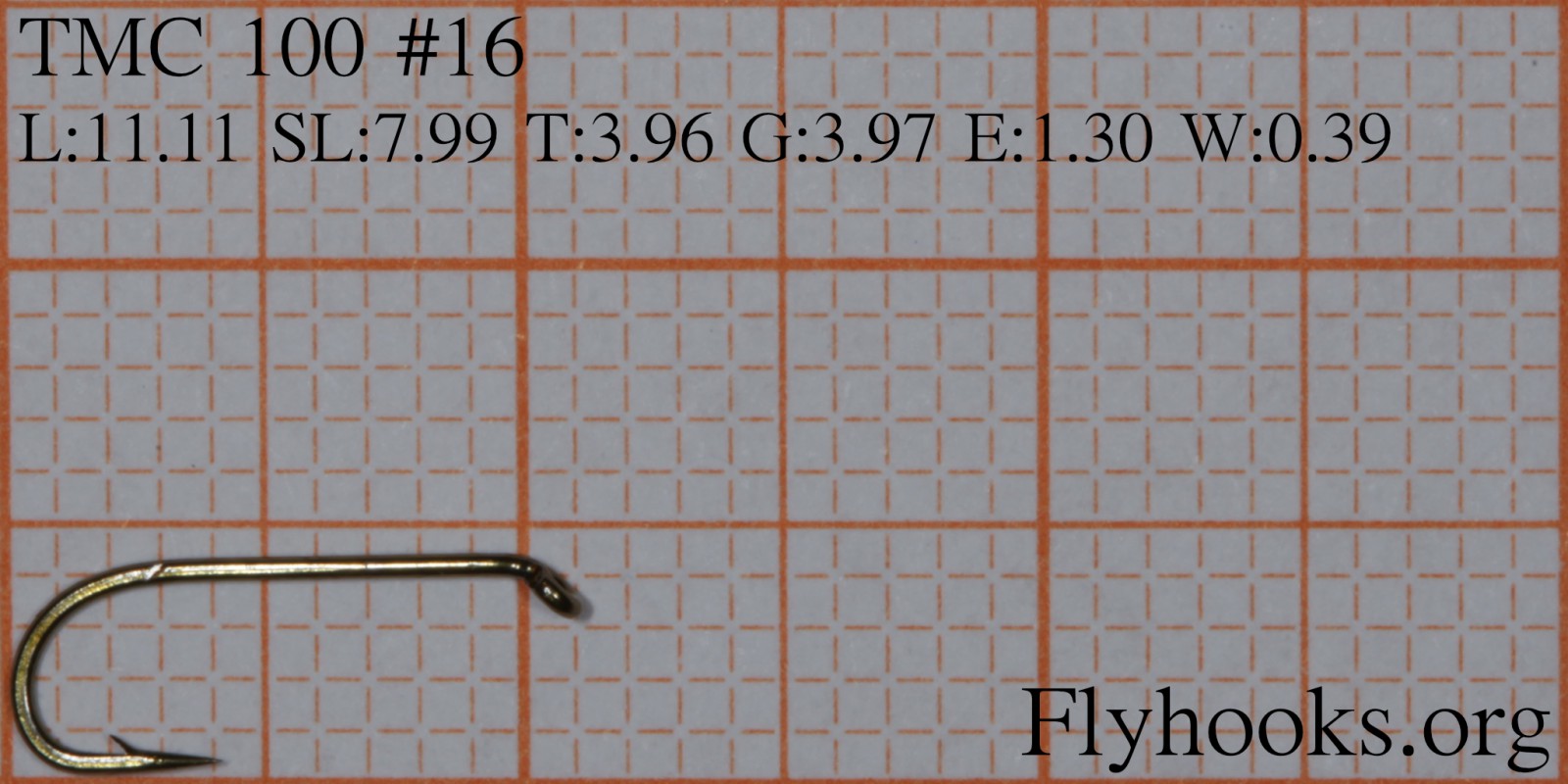

Length11.11 mm
Shank Length7.99 mm
Throat3.96 mm
Gape3.97 mm
Eye Width1.30 mm
Wire Thickness0.39 mm

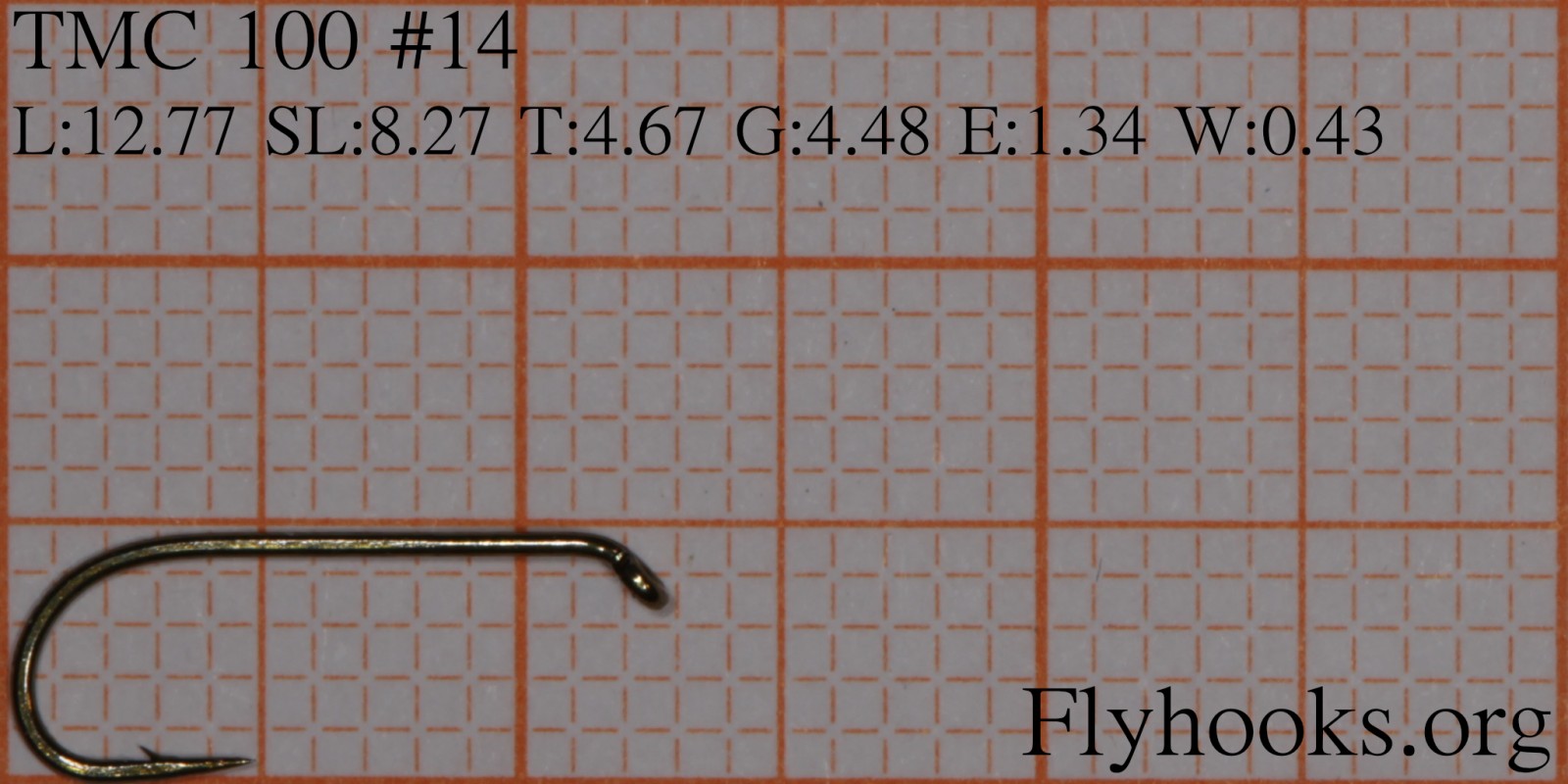

Length12.77 mm
Shank Length8.27 mm
Throat4.67 mm
Gape4.48 mm
Eye Width1.34 mm
Wire Thickness0.43 mm

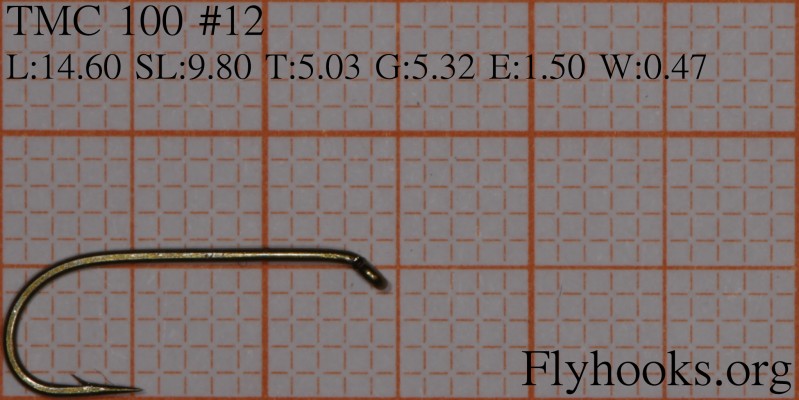

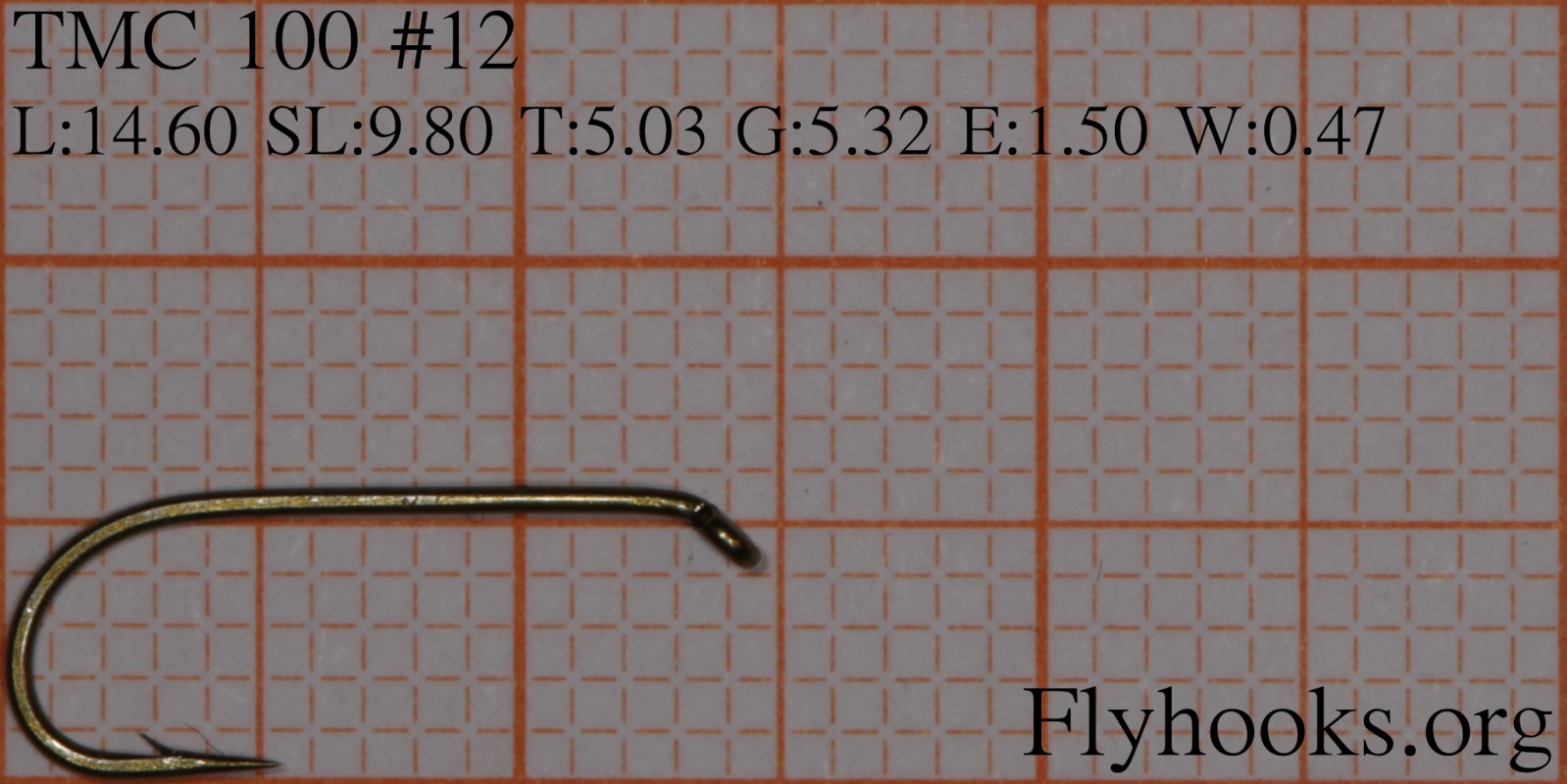

Length14.60 mm
Shank Length9.80 mm
Throat5.03 mm
Gape5.32 mm
Eye Width1.50 mm
Wire Thickness0.47 mm

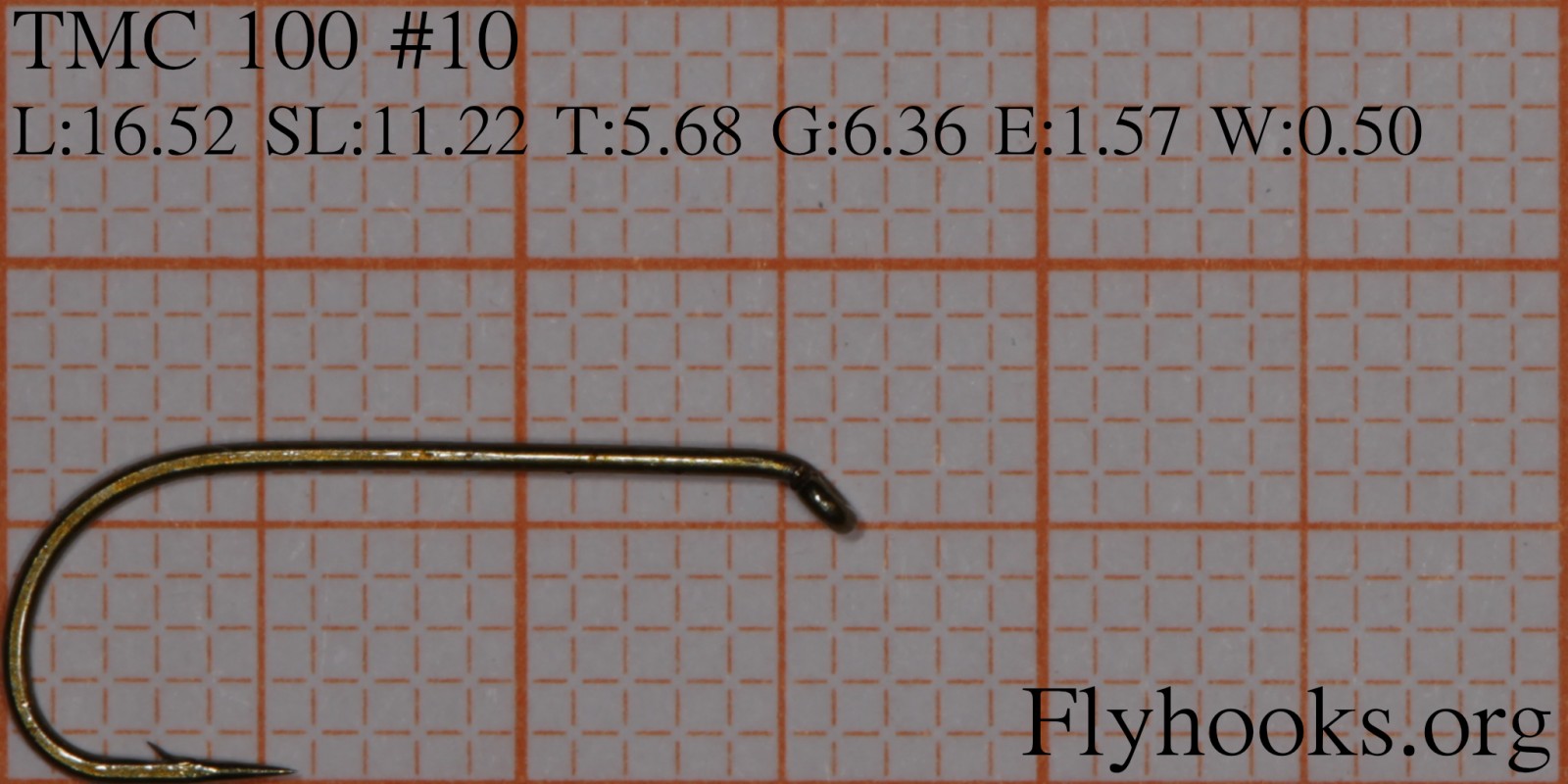

Length16.52 mm
Shank Length11.22 mm
Throat5.68 mm
Gape6.36 mm
Eye Width1.57 mm
Wire Thickness0.50 mm

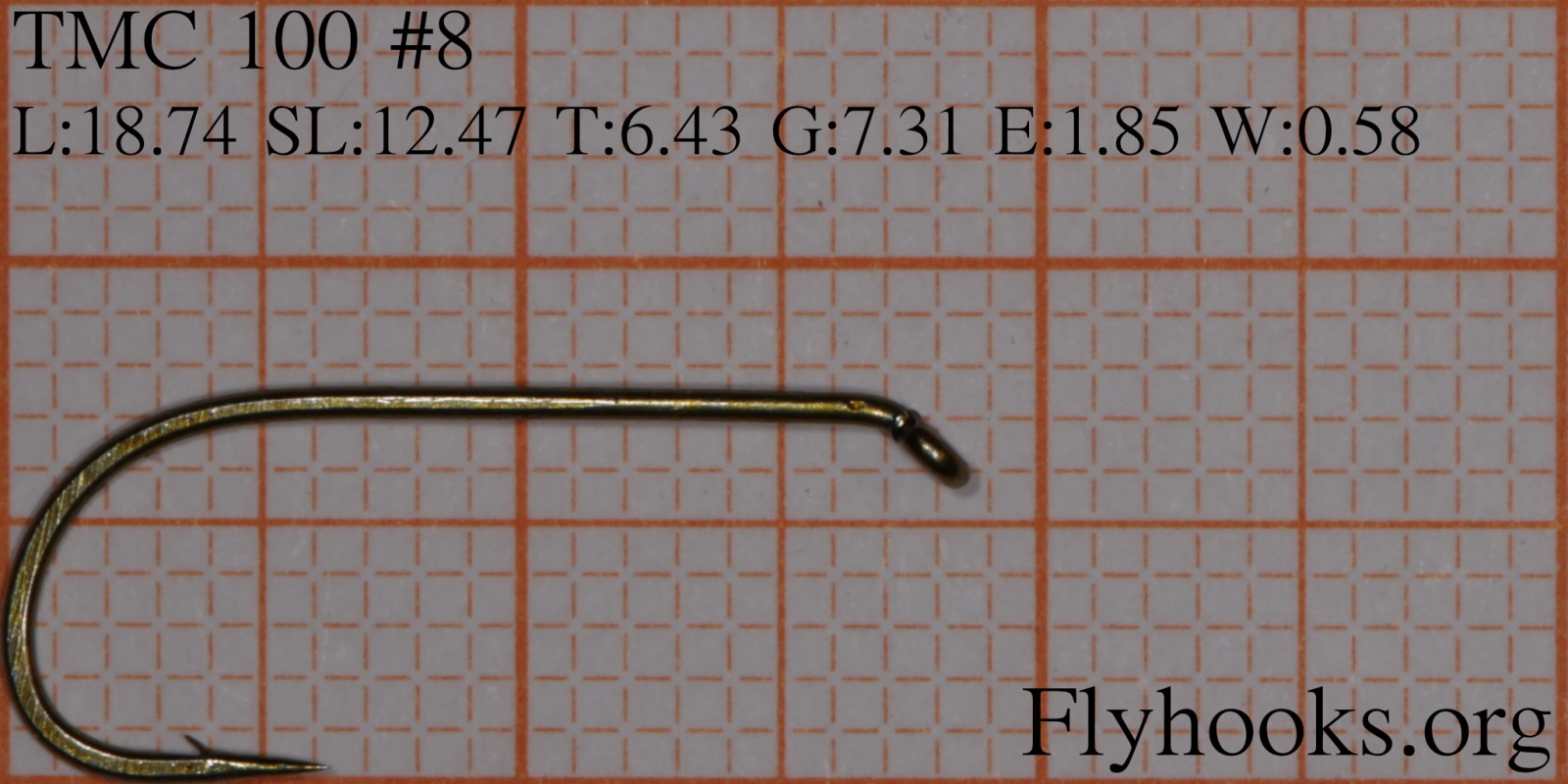

Length18.74 mm
Shank Length12.47 mm
Throat6.43 mm
Gape7.31 mm
Eye Width1.85 mm
Wire Thickness0.58 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
22 FW 507 6.95 -> 7.61 4.91 -> 4.80 2.60 -> 2.87 3.01 -> 3.27 0.31 -> 0.34
22 FW 506 - Dry Fly Mini 6.95 -> 7.77 4.91 -> 5.04 2.60 -> 2.80 3.01 -> 3.21 0.31 -> 0.37
18 FW 500 - Dry Fly Traditional 9.31 -> 9.66 6.66 -> 6.36 3.40 -> 3.67 3.54 -> 3.52 0.35 -> 0.41
18 R72 9.31 -> 9.95 6.66 -> 6.43 3.40 -> 3.70 3.54 -> 3.62 0.35 -> 0.38
16 80000BR 11.11 -> 11.29 7.99 -> 7.65 3.97 -> 3.86 3.96 -> 3.87 0.39 -> 0.40
16 AK501 11.11 -> 11.55 7.99 -> 7.65 3.97 -> 3.96 3.96 -> 4.20 0.39 -> 0.41
16 FW 500 - Dry Fly Traditional 11.11 -> 11.76 7.99 -> 7.94 3.97 -> 4.37 3.96 -> 4.36 0.39 -> 0.44
16 FW 501 11.11 -> 11.76 7.99 -> 7.81 3.97 -> 4.34 3.96 -> 4.46 0.39 -> 0.46
16 730 11.11 -> 12.22 7.99 -> 8.09 3.97 -> 4.13 3.96 -> 4.08 0.39 -> 0.46
14 G3A/LY - Sproat Nymph 12.77 -> 12.25 8.27 -> 8.49 4.48 -> 4.27 4.67 -> 4.90 0.43 -> 0.50
14 C 211 12.77 -> 12.48 8.27 -> 8.18 4.48 -> 4.70 4.67 -> 5.15 0.43 -> 0.43
14 IN - Ideal Nymph 12.77 -> 12.57 8.27 -> 9.04 4.48 -> 4.28 4.67 -> 5.25 0.43 -> 0.43
14 d24BL 12.77 -> 12.57 8.27 -> 8.35 4.48 -> 4.38 4.67 -> 4.45 0.43 -> 0.41
14 TMC100BL 12.77 -> 12.72 8.27 -> 8.58 4.48 -> 4.92 4.67 -> 4.71 0.43 -> 0.45
14 H290BL 12.77 -> 12.74 8.27 -> 8.59 4.48 -> 4.58 4.67 -> 4.74 0.43 -> 0.42
14 1222 12.77 -> 12.77 8.27 -> 8.97 4.48 -> 4.60 4.67 -> 4.68 0.43 -> 0.50
14 BL 300 12.77 -> 12.82 8.27 -> 8.65 4.48 -> 4.76 4.67 -> 4.91 0.43 -> 0.45
14 120 BL 12.77 -> 12.83 8.27 -> 8.98 4.48 -> 4.75 4.67 -> 5.12 0.43 -> 0.46
14 FW 500 - Dry Fly Traditional 12.77 -> 13.11 8.27 -> 8.33 4.48 -> 5.03 4.67 -> 5.19 0.43 -> 0.51
14 TMC108SP-BL 12.77 -> 13.12 8.27 -> 8.05 4.48 -> 4.73 4.67 -> 5.00 0.43 -> 0.47
14 AK501 12.77 -> 13.22 8.27 -> 9.23 4.48 -> 4.61 4.67 -> 4.98 0.43 -> 0.44
14 FW 501 12.77 -> 13.25 8.27 -> 8.78 4.48 -> 4.99 4.67 -> 5.23 0.43 -> 0.51
14 11001 12.77 -> 13.40 8.27 -> 8.88 4.48 -> 4.61 4.67 -> 4.88 0.43 -> 0.44
14 d31 12.77 -> 13.42 8.27 -> 8.64 4.48 -> 4.68 4.67 -> 4.66 0.43 -> 0.41
14 730 12.77 -> 13.61 8.27 -> 9.14 4.48 -> 4.86 4.67 -> 4.91 0.43 -> 0.51
14 C 231 12.77 -> 13.69 8.27 -> 9.40 4.48 -> 4.84 4.67 -> 5.30 0.43 -> 0.49
14 FW 561 12.77 -> 14.37 8.27 -> 9.40 4.48 -> 4.77 4.67 -> 4.88 0.43 -> 0.57
12 d24BL 14.60 -> 14.05 9.80 -> 10.03 5.32 -> 5.17 5.03 -> 5.11 0.47 -> 0.47
12 IN - Ideal Nymph 14.60 -> 14.05 9.80 -> 10.54 5.32 -> 5.31 5.03 -> 5.39 0.47 -> 0.52
12 BIN - Patriot Ideal Nymph 14.60 -> 14.12 9.80 -> 10.64 5.32 -> 5.22 5.03 -> 5.76 0.47 -> 0.47
12 H290BL 14.60 -> 14.16 9.80 -> 9.79 5.32 -> 5.19 5.03 -> 5.27 0.47 -> 0.48
12 AK761BL 14.60 -> 14.19 9.80 -> 9.31 5.32 -> 5.06 5.03 -> 5.39 0.47 -> 0.49
12 TMC100BL 14.60 -> 14.37 9.80 -> 9.77 5.32 -> 5.47 5.03 -> 5.51 0.47 -> 0.50
12 FW 501 14.60 -> 14.38 9.80 -> 9.54 5.32 -> 5.86 5.03 -> 5.74 0.47 -> 0.56
12 FW 500 - Dry Fly Traditional 14.60 -> 14.41 9.80 -> 9.45 5.32 -> 5.76 5.03 -> 5.59 0.47 -> 0.57
12 d31 14.60 -> 14.51 9.80 -> 9.82 5.32 -> 5.26 5.03 -> 5.27 0.47 -> 0.48
12 AK501 14.60 -> 14.53 9.80 -> 10.00 5.32 -> 5.68 5.03 -> 5.44 0.47 -> 0.50
12 120 BL 14.60 -> 14.76 9.80 -> 10.50 5.32 -> 5.23 5.03 -> 5.65 0.47 -> 0.49
12 F11 14.60 -> 14.76 9.80 -> 9.74 5.32 -> 5.28 5.03 -> 5.16 0.47 -> 0.47
12 D103BL 14.60 -> 14.89 9.80 -> 10.91 5.32 -> 5.21 5.03 -> 5.67 0.47 -> 0.54
12 TMC100SP-BL 14.60 -> 14.91 9.80 -> 10.14 5.32 -> 5.55 5.03 -> 5.69 0.47 -> 0.53
12 C 211 14.60 -> 14.95 9.80 -> 10.40 5.32 -> 5.34 5.03 -> 5.60 0.47 -> 0.51
12 R72 14.60 -> 15.88 9.80 -> 10.35 5.32 -> 5.82 5.03 -> 5.44 0.47 -> 0.59
12 FW 560 - Traditional Nymph 14.60 -> 15.96 9.80 -> 10.80 5.32 -> 5.74 5.03 -> 5.72 0.47 -> 0.59
12 TMC5262 14.60 -> 16.18 9.80 -> 10.88 5.32 -> 5.47 5.03 -> 5.67 0.47 -> 0.56
12 FW 561 14.60 -> 16.21 9.80 -> 10.82 5.32 -> 5.84 5.03 -> 5.61 0.47 -> 0.60
12 33903 14.60 -> 16.33 9.80 -> 11.06 5.32 -> 5.17 5.03 -> 5.11 0.47 -> 0.54
10 94833 16.52 -> 16.02 11.22 -> 11.48 6.36 -> 6.11 5.68 -> 6.04 0.50 -> 0.54
10 80000BR 16.52 -> 16.20 11.22 -> 10.87 6.36 -> 6.36 5.68 -> 5.73 0.50 -> 0.53
10 TMC900BL 16.52 -> 16.58 11.22 -> 10.73 6.36 -> 6.33 5.68 -> 6.44 0.50 -> 0.54
10 FW 500 - Dry Fly Traditional 16.52 -> 16.83 11.22 -> 11.19 6.36 -> 6.58 5.68 -> 6.29 0.50 -> 0.60
10 F35 16.52 -> 16.90 11.22 -> 11.04 6.36 -> 6.62 5.68 -> 6.53 0.50 -> 0.61
10 7029 16.52 -> 18.19 11.22 -> 12.58 6.36 -> 6.39 5.68 -> 6.08 0.50 -> 0.50
10 FW 561 16.52 -> 18.66 11.22 -> 12.40 6.36 -> 6.70 5.68 -> 6.53 0.50 -> 0.66
8 TMC3769 18.74 -> 18.24 12.47 -> 12.39 7.31 -> 7.00 6.43 -> 7.29 0.58 -> 0.72
8 AK881 18.74 -> 18.77 12.47 -> 12.46 7.31 -> 7.14 6.43 -> 7.38 0.58 -> 0.77
8 F35 18.74 -> 18.79 12.47 -> 11.87 7.31 -> 7.49 6.43 -> 7.33 0.58 -> 0.72
8 3670 18.74 -> 19.04 12.47 -> 12.13 7.31 -> 7.23 6.43 -> 6.69 0.58 -> 0.75
8 Dry Fly - Salmon 18.74 -> 19.30 12.47 -> 12.48 7.31 -> 7.73 6.43 -> 6.70 0.58 -> 0.80
8 W205 18.74 -> 19.64 12.47 -> 12.38 7.31 -> 7.27 6.43 -> 7.00 0.58 -> 0.69
