Tiemco: TMC112Y

Company	Tiemco
www	www.tiemco.co.jp
Type	Single
Size	2.5xs
Strength	4xf
Gape	2xw
Eye Position	Turned down
Shank Style	Straigth
Barb	Barb
Color	Black Nickel
Usages	Dry Trout Grayling Freshwater Emerger Midge
Sizes	23 21 19 17 15 13 11

Sizes

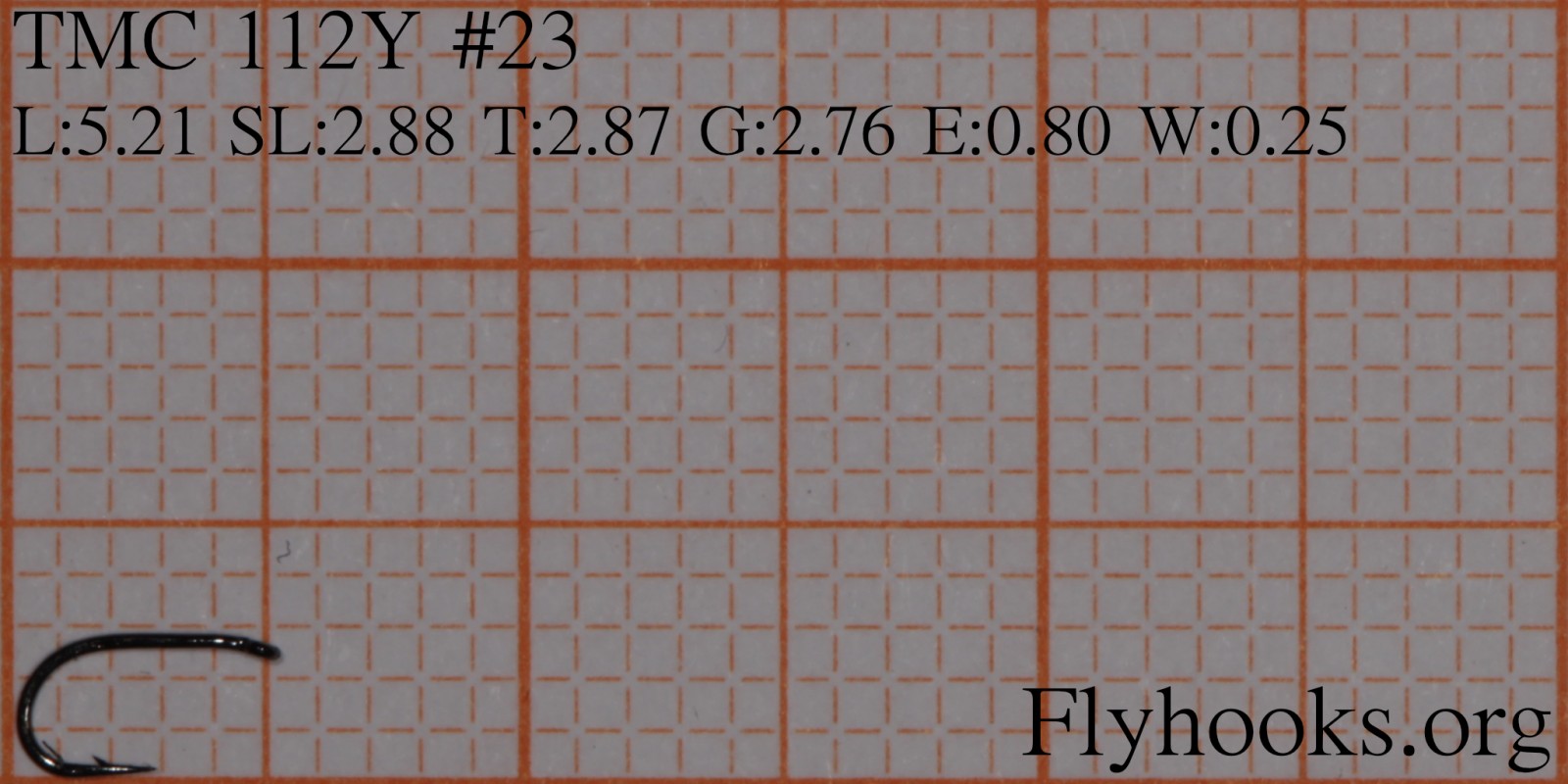

Length	5.21 mm
Shank Length	2.88 mm
Throat	2.87 mm
Gape	2.76 mm
Eye Width	0.80 mm
Wire Thickness	0.25 mm

#21

Length	6.35 mm
Shank Length	3.45 mm
Throat	3.10 mm
Gape	3.07 mm
Eye Width	0.92 mm
Wire Thickness	0.29 mm

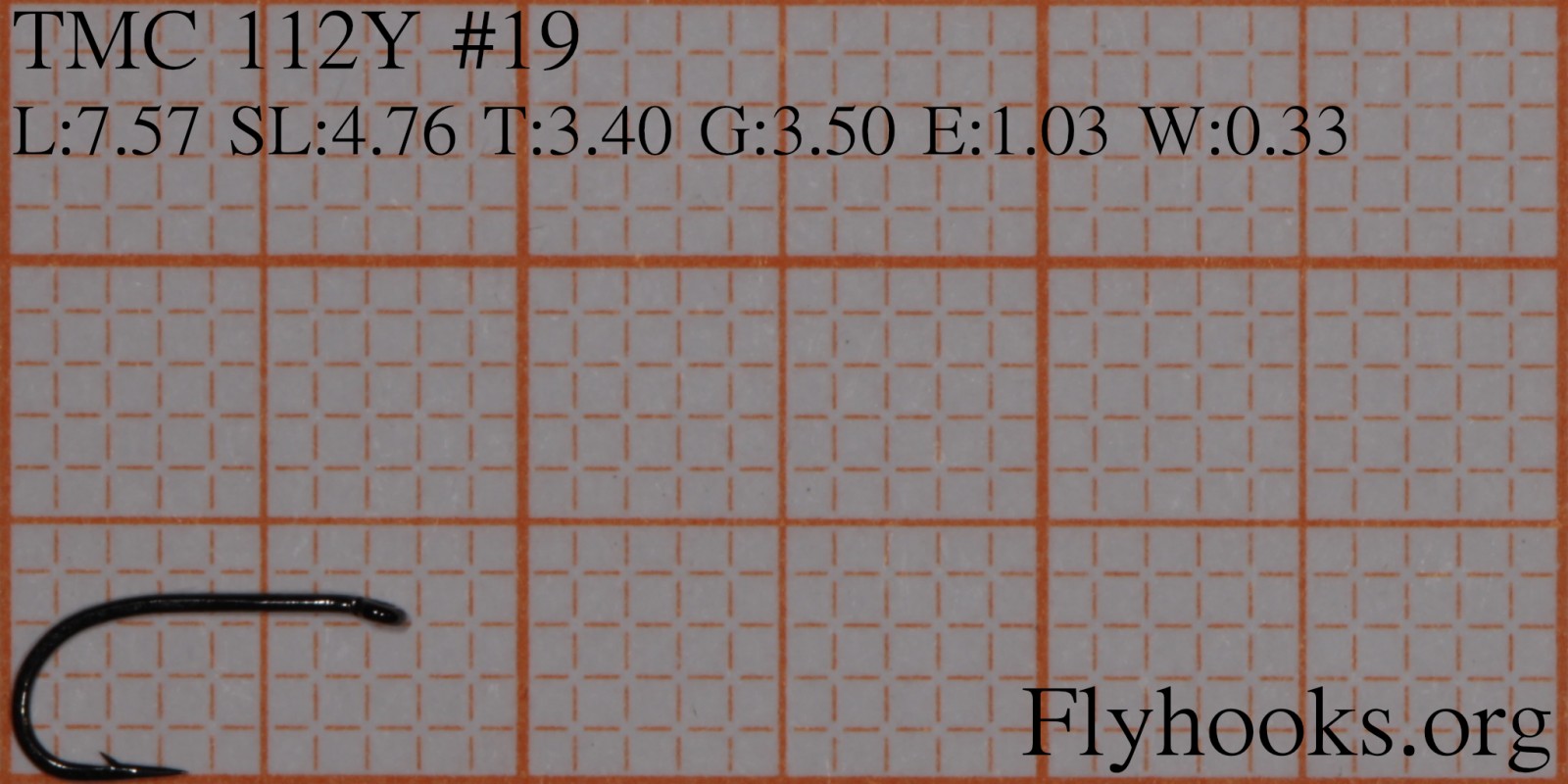

Length	7.57 mm
Shank Length	4.76 mm
Throat	3.40 mm
Gape	3.50 mm
Eye Width	1.03 mm
Wire Thickness	0.33 mm

Length	8.83 mm
Shank Length	5.39 mm
Throat	3.76 mm
Gape	4.05 mm
Eye Width	1.10 mm
Wire Thickness	0.34 mm

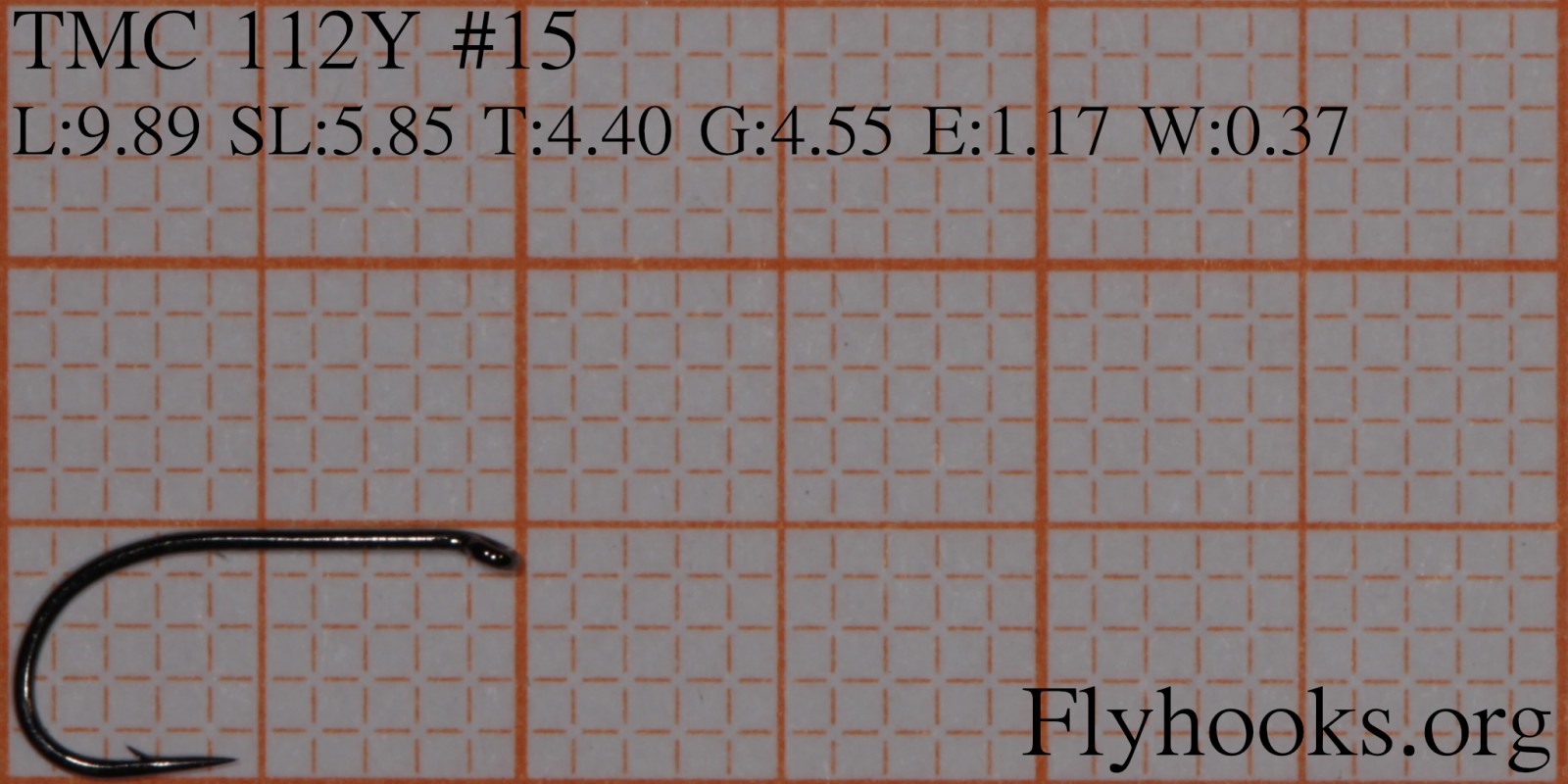

Length	9.89 mm
Shank Length	5.85 mm
Throat	4.40 mm
Gape	4.55 mm
Eye Width	1.17 mm
Wire Thickness	0.37 mm

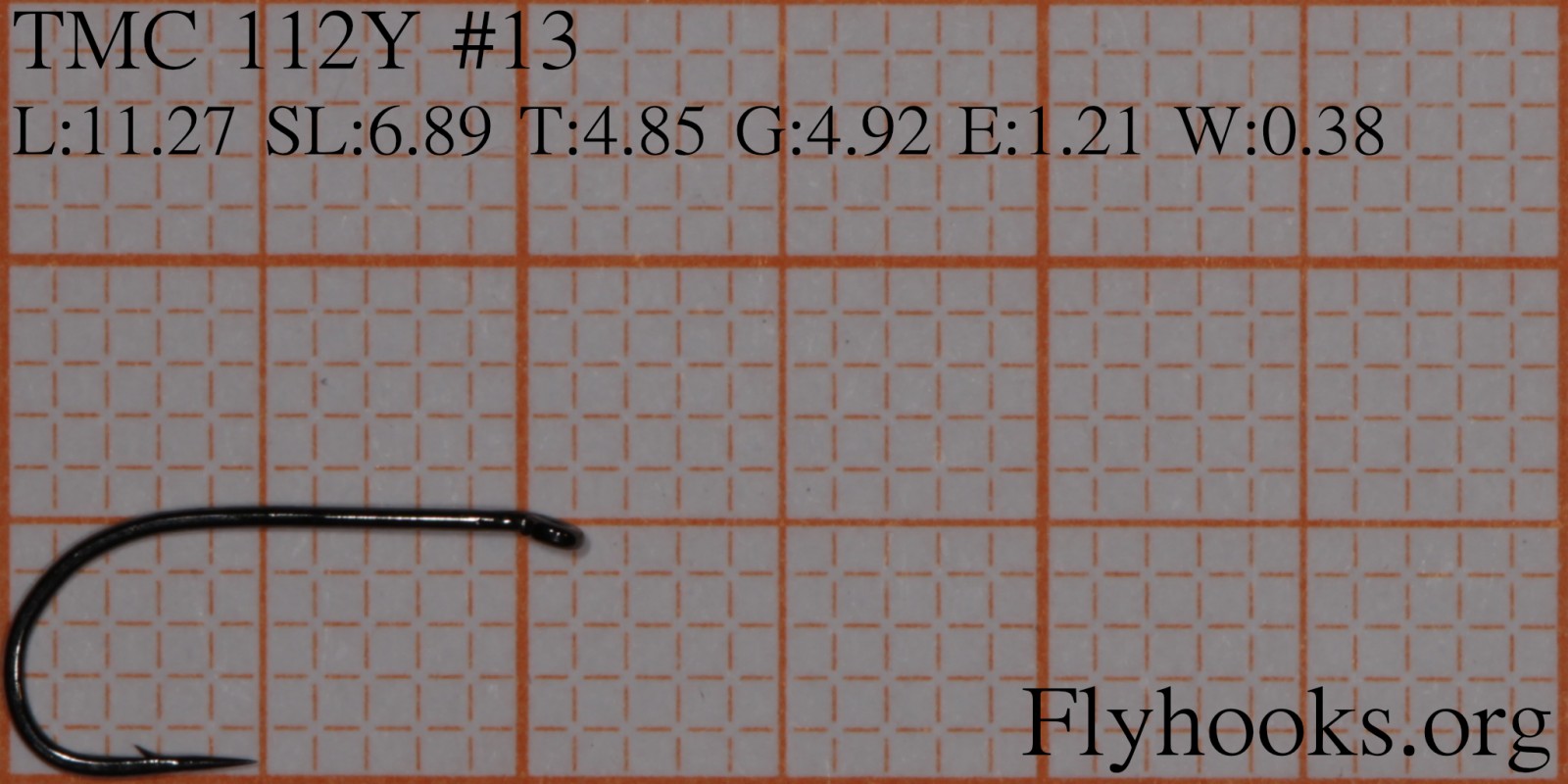

Length	11.27 mm
Shank Length	6.89 mm
Throat	4.85 mm
Gape	4.92 mm
Eye Width	1.21 mm
Wire Thickness	0.38 mm

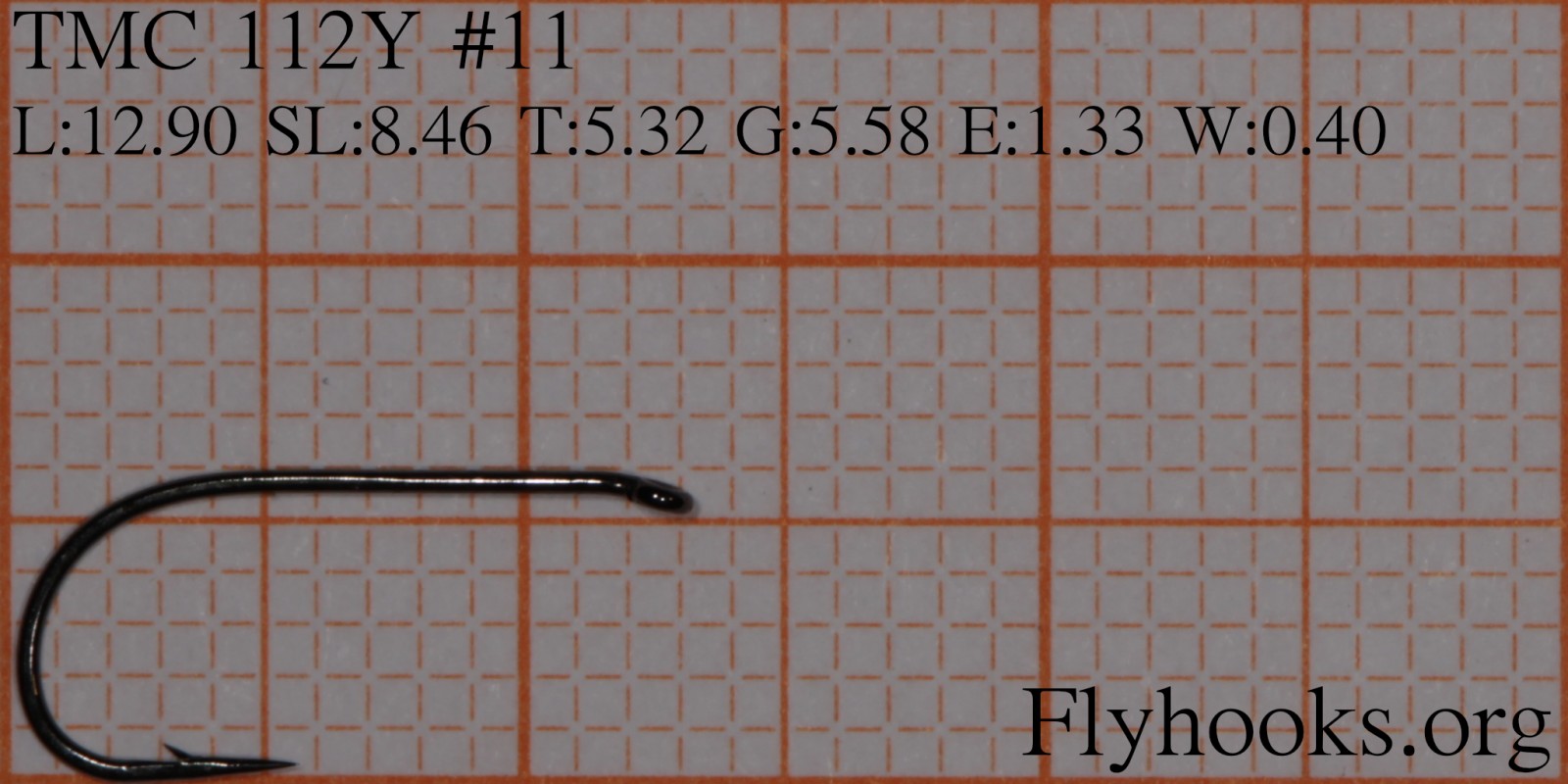

Length	12.90 mm
Shank Length	8.46 mm
Throat	5.32 mm
Gape	5.58 mm
Eye Width	1.33 mm
Wire Thickness	0.40 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
19	TMC103BL	7.57 -> 8.01	4.76 -> 4.98	3.50 -> 3.73	3.40 -> 3.74	0.33 -> 0.36
19	TMC102Y	7.57 -> 8.21	4.76 -> 5.34	3.50 -> 3.39	3.40 -> 3.45	0.33 -> 0.37
17	TMC102Y	8.83 -> 9.73	5.39 -> 6.12	4.05 -> 4.02	3.76 -> 3.95	0.34 -> 0.38
15	TMC112TR	9.89 -> 10.16	5.85 -> 6.06	4.55 -> 4.58	4.40 -> 4.42	0.37 -> 0.04
13	79589	11.27 -> 11.60	6.89 -> 7.70	4.92 -> 4.81	4.85 -> 5.36	0.38 -> 0.40
11	72500	12.90 -> 12.53	8.46 -> 8.39	5.58 -> 5.45	5.32 -> 5.16	0.40 -> 0.50
11	539E-BR	12.90 -> 13.91	8.46 -> 8.79	5.58 -> 5.53	5.32 -> 5.21	0.40 -> 0.40
