Akita: AK503BL

Company Akita
Type Single
Strength Fine wire
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Black Nickel
Usages Dry
Trout
Grayling
Freshwater
Midge
Sizes 20 18 16 14 12 10

Sizes

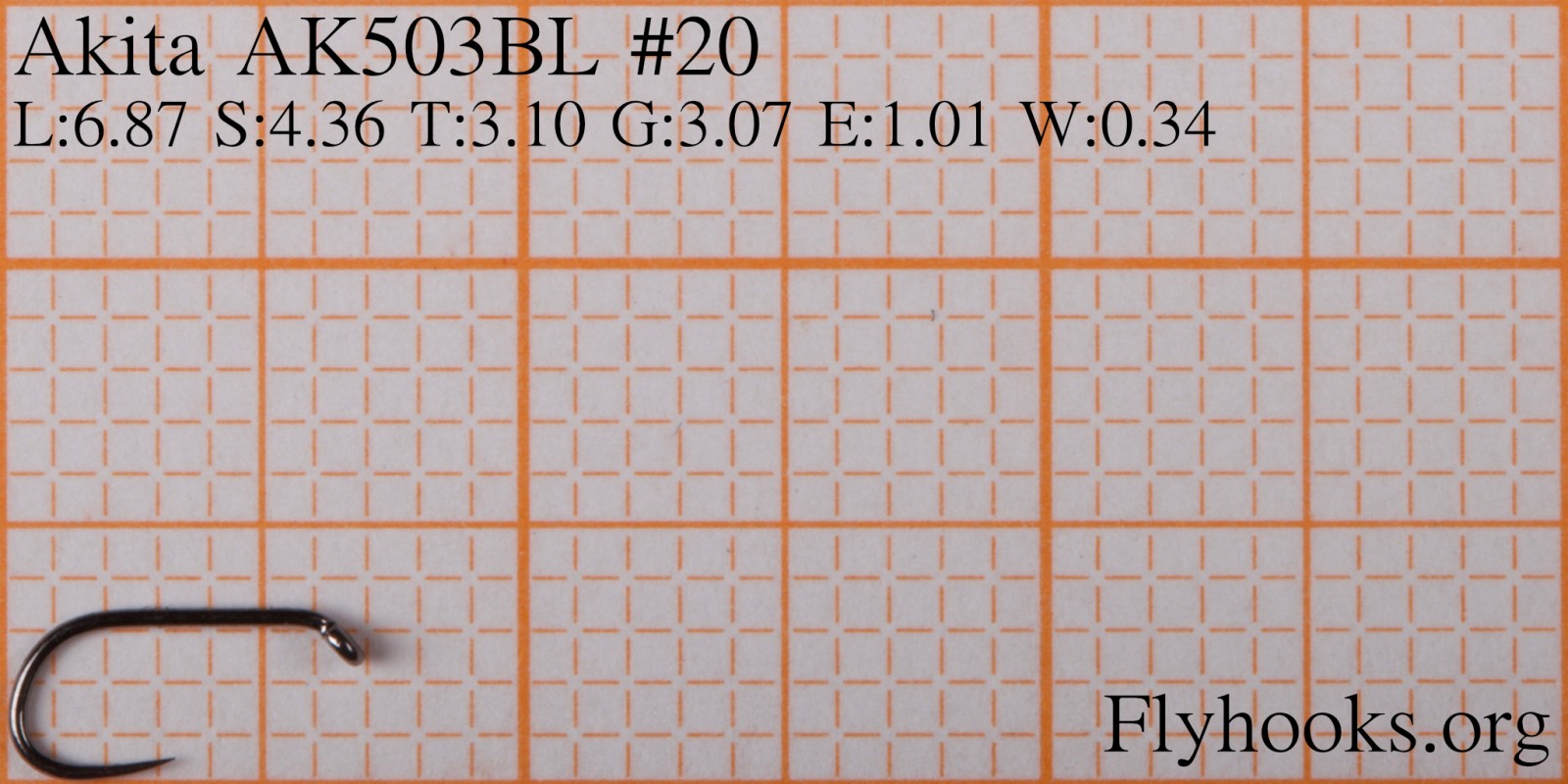

Length6.87 mm
Shank Length4.36 mm
Throat3.10 mm
Gape3.07 mm
Eye Width1.01 mm
Wire Thickness0.34 mm

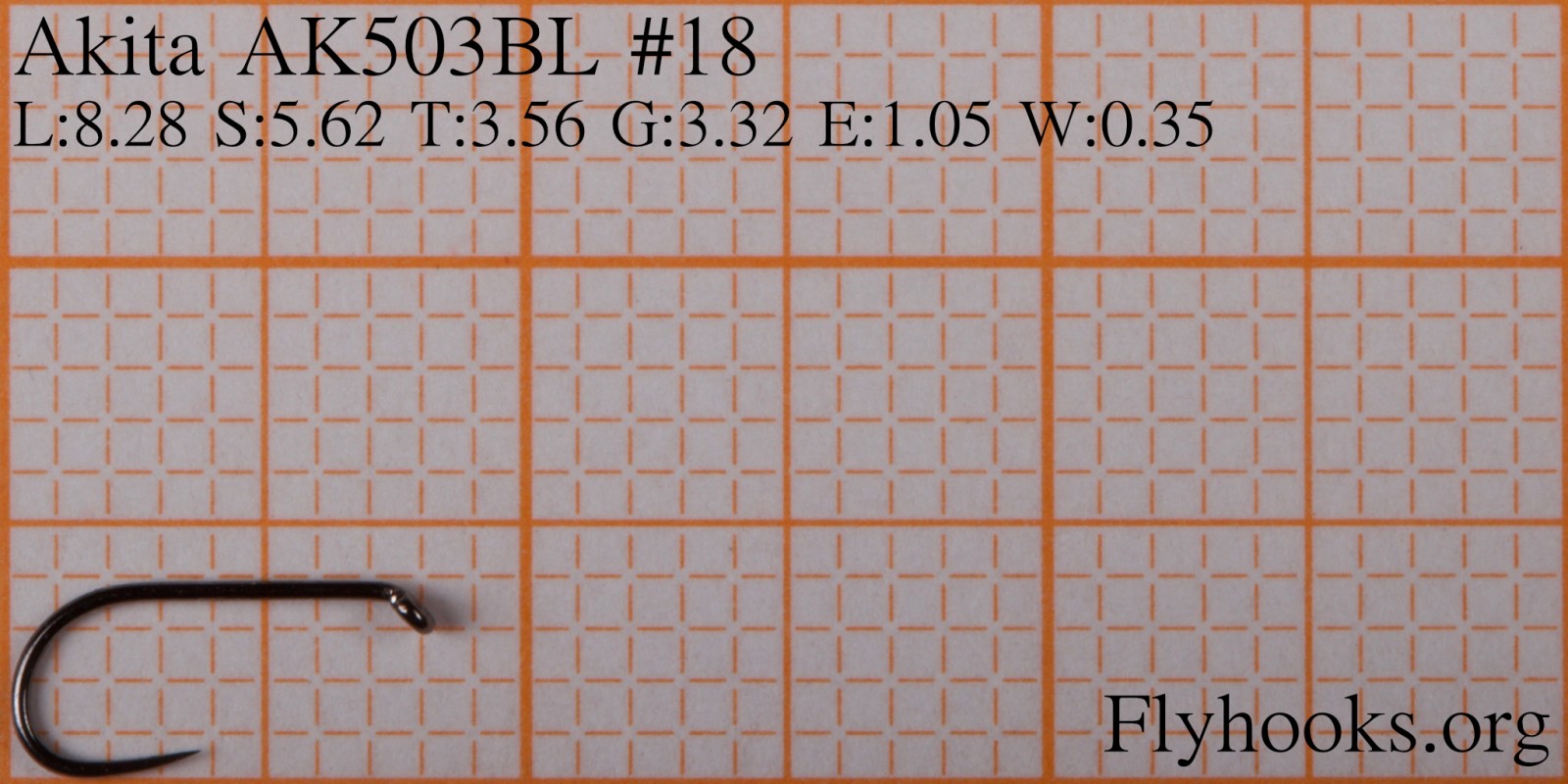

Length8.28 mm
Shank Length5.62 mm
Throat3.56 mm
Gape3.32 mm
Eye Width1.05 mm
Wire Thickness0.35 mm

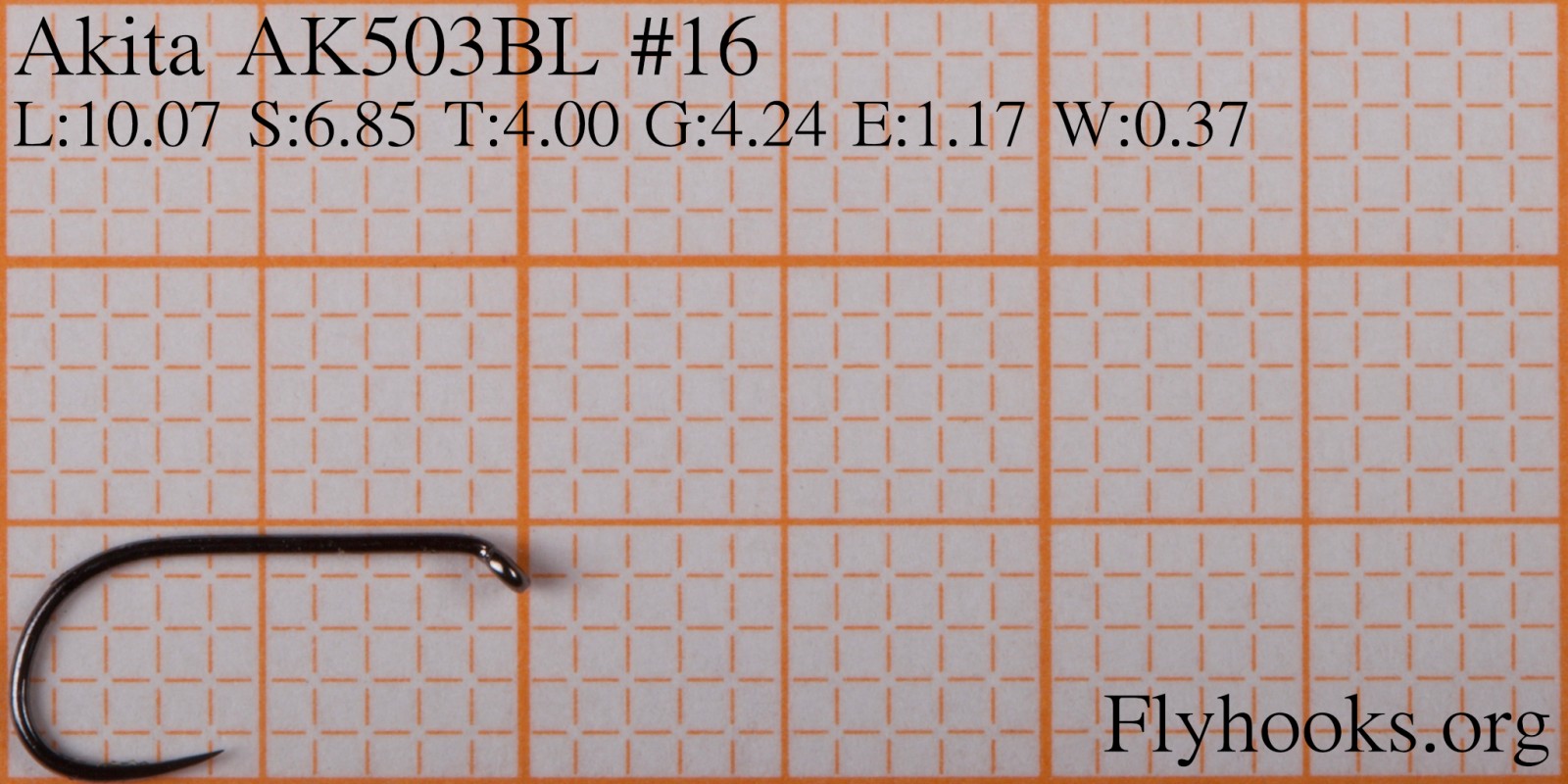

Length10.07 mm
Shank Length6.85 mm
Throat4.00 mm
Gape4.24 mm
Eye Width1.17 mm
Wire Thickness0.37 mm

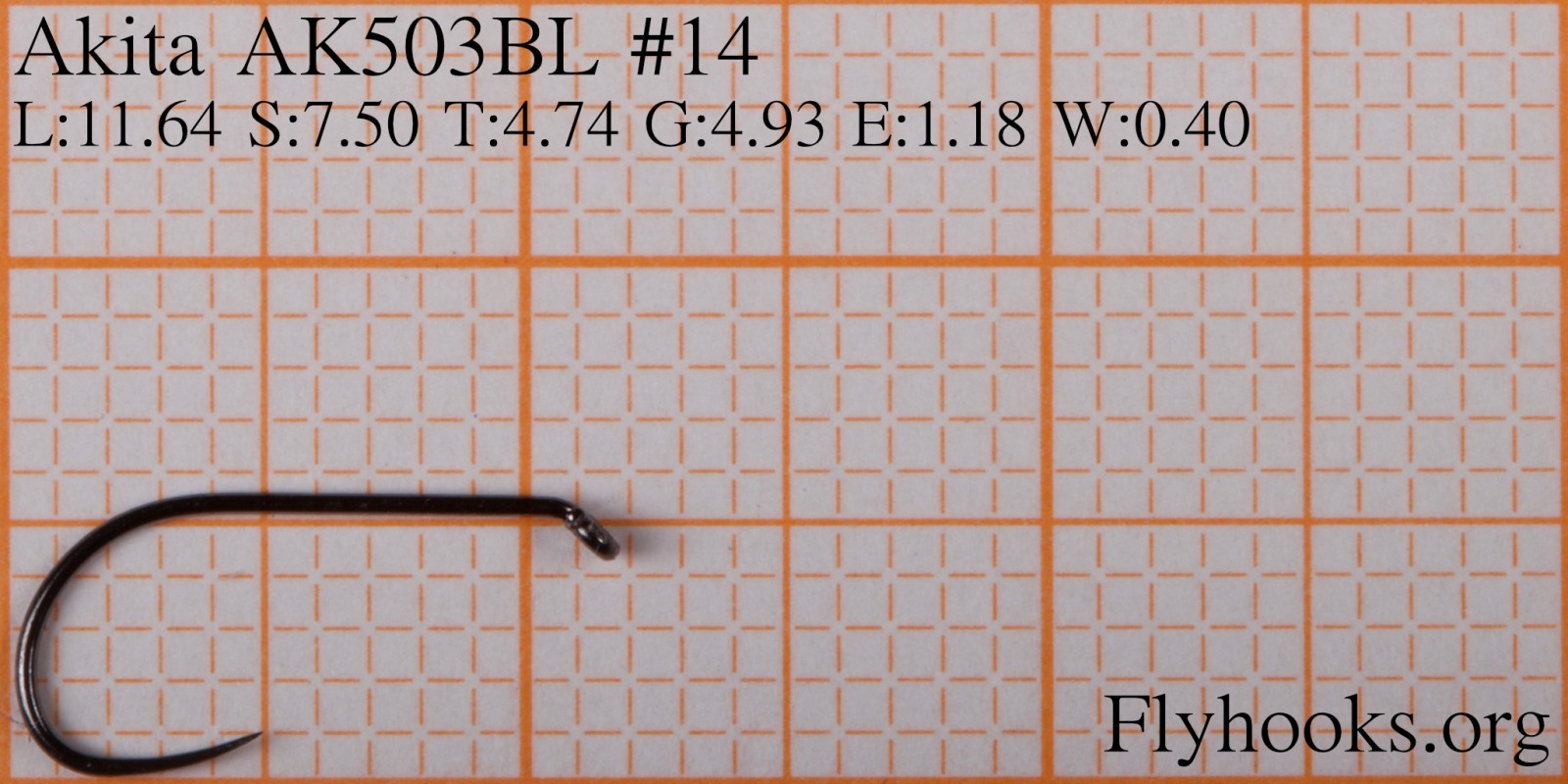

Length11.64 mm
Shank Length7.50 mm
Throat4.74 mm
Gape4.93 mm
Eye Width1.18 mm
Wire Thickness0.40 mm

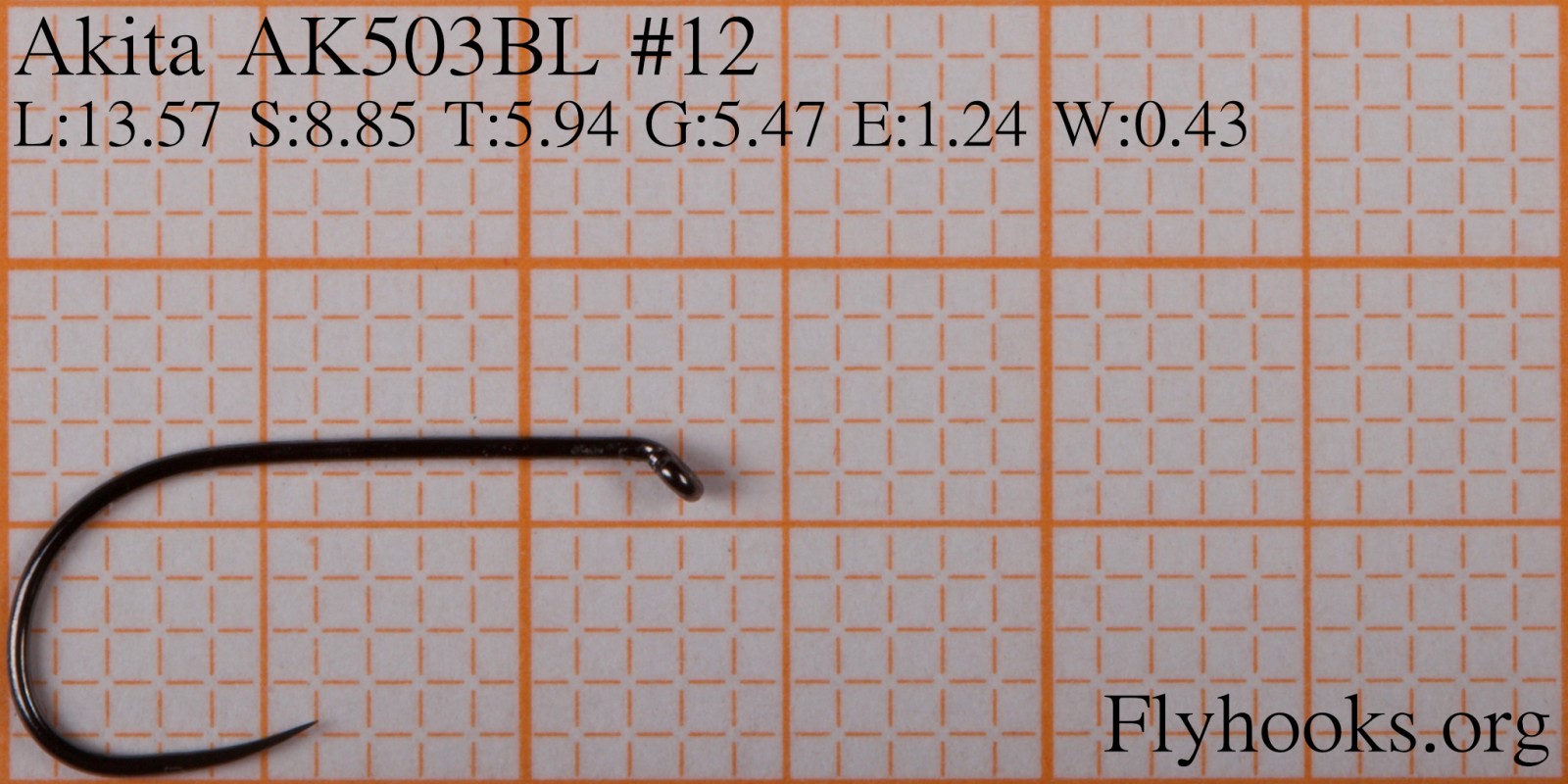

Length13.57 mm
Shank Length8.85 mm
Throat5.94 mm
Gape5.47 mm
Eye Width1.24 mm
Wire Thickness0.43 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
20 Br 103 6.87 -> 6.86 4.36 -> 4.16 3.07 -> 3.01 3.10 -> 3.40 0.34 -> 0.34
20 H130BL 6.87 -> 7.00 4.36 -> 4.20 3.07 -> 3.05 3.10 -> 3.30 0.34 -> 0.32
20 SLD2 - Patriot Standard Dry 6.87 -> 7.11 4.36 -> 4.60 3.07 -> 3.00 3.10 -> 3.22 0.34 -> 0.37
18 R50XNP-BR 8.28 -> 8.47 5.62 -> 5.51 3.32 -> 3.32 3.56 -> 4.09 0.35 -> 0.33
18 H130BL 8.28 -> 8.74 5.62 -> 5.44 3.32 -> 3.62 3.56 -> 3.79 0.35 -> 0.34
18 80000BR 8.28 -> 9.35 5.62 -> 5.92 3.32 -> 3.42 3.56 -> 3.82 0.35 -> 0.35
18 TMC108SP-BL 8.28 -> 9.48 5.62 -> 6.12 3.32 -> 3.67 3.56 -> 3.83 0.35 -> 0.42
16 Br 103 10.07 -> 9.89 6.85 -> 6.73 4.24 -> 4.11 4.00 -> 4.20 0.37 -> 0.38
16 130BL 10.07 -> 10.21 6.85 -> 6.77 4.24 -> 4.16 4.00 -> 4.30 0.37 -> 0.38
16 H290BL 10.07 -> 10.94 6.85 -> 7.21 4.24 -> 4.20 4.00 -> 4.11 0.37 -> 0.37
16 TMC100BL 10.07 -> 10.95 6.85 -> 7.40 4.24 -> 4.08 4.00 -> 4.20 0.37 -> 0.45
16 TMC108SP-BL 10.07 -> 11.52 6.85 -> 6.74 4.24 -> 4.15 4.00 -> 4.49 0.37 -> 0.45
14 d14 11.64 -> 11.35 7.50 -> 8.10 4.93 -> 4.72 4.74 -> 4.67 0.40 -> 0.44
14 SLD - Patriot Fine Dry 11.64 -> 11.38 7.50 -> 7.63 4.93 -> 4.86 4.74 -> 4.75 0.40 -> 0.43
14 BL 154 11.64 -> 11.42 7.50 -> 7.92 4.93 -> 5.10 4.74 -> 5.21 0.40 -> 0.44
14 94840 11.64 -> 11.42 7.50 -> 7.85 4.93 -> 4.77 4.74 -> 5.09 0.40 -> 0.44
14 H130BL 11.64 -> 11.46 7.50 -> 7.58 4.93 -> 4.79 4.74 -> 4.80 0.40 -> 0.40
14 Br 103 11.64 -> 11.58 7.50 -> 7.79 4.93 -> 4.71 4.74 -> 4.83 0.40 -> 0.40
14 130BL 11.64 -> 11.59 7.50 -> 7.43 4.93 -> 4.80 4.74 -> 5.05 0.40 -> 0.42
14 C 214 11.64 -> 11.69 7.50 -> 7.42 4.93 -> 5.01 4.74 -> 5.09 0.40 -> 0.44
14 H280BL 11.64 -> 11.87 7.50 -> 7.50 4.93 -> 5.39 4.74 -> 5.44 0.40 -> 0.54
14 H470BL 11.64 -> 11.90 7.50 -> 8.09 4.93 -> 5.18 4.74 -> 5.03 0.40 -> 0.48
14 Nymph 11.64 -> 12.05 7.50 -> 7.20 4.93 -> 5.18 4.74 -> 5.31 0.40 -> 0.57
14 H550BL 11.64 -> 12.21 7.50 -> 7.16 4.93 -> 5.45 4.74 -> 5.13 0.40 -> 0.51
14 C 211 11.64 -> 12.48 7.50 -> 8.18 4.93 -> 4.70 4.74 -> 5.15 0.40 -> 0.43
14 TMC100BL 11.64 -> 12.72 7.50 -> 8.58 4.93 -> 4.92 4.74 -> 4.71 0.40 -> 0.45
14 FW 500 - Dry Fly Traditional 11.64 -> 13.11 7.50 -> 8.33 4.93 -> 5.03 4.74 -> 5.19 0.40 -> 0.51
14 TMC108SP-BL 11.64 -> 13.12 7.50 -> 8.05 4.93 -> 4.73 4.74 -> 5.00 0.40 -> 0.47
12 TMC3769SP-BL 13.57 -> 13.26 8.85 -> 9.25 5.47 -> 5.30 5.94 -> 5.74 0.43 -> 0.55
12 11011 BL 13.57 -> 13.45 8.85 -> 8.55 5.47 -> 5.61 5.94 -> 5.91 0.43 -> 0.42
12 R50XNP-BR 13.57 -> 13.48 8.85 -> 8.65 5.47 -> 5.62 5.94 -> 6.50 0.43 -> 0.54
12 R50X-94845 13.57 -> 13.63 8.85 -> 9.57 5.47 -> 5.51 5.94 -> 6.38 0.43 -> 0.53
12 H130BL 13.57 -> 13.70 8.85 -> 8.95 5.47 -> 5.46 5.94 -> 6.35 0.43 -> 0.47
12 Br 2140 13.57 -> 13.79 8.85 -> 8.48 5.47 -> 6.18 5.94 -> 5.97 0.43 -> 0.51
12 TMC9300 13.57 -> 13.98 8.85 -> 9.15 5.47 -> 5.60 5.94 -> 5.69 0.43 -> 0.49
12 H230BL 13.57 -> 14.01 8.85 -> 9.17 5.47 -> 5.97 5.94 -> 5.99 0.43 -> 0.56
12 H200BL 13.57 -> 14.10 8.85 -> 9.06 5.47 -> 5.90 5.94 -> 5.89 0.43 -> 0.63
12 H400BL 13.57 -> 14.16 8.85 -> 8.47 5.47 -> 5.87 5.94 -> 6.20 0.43 -> 0.64
12 H280BL 13.57 -> 14.23 8.85 -> 8.97 5.47 -> 6.27 5.94 -> 6.15 0.43 -> 0.55
12 C 220 13.57 -> 14.28 8.85 -> 8.43 5.47 -> 5.76 5.94 -> 6.03 0.43 -> 0.53
12 FW 501 13.57 -> 14.38 8.85 -> 9.54 5.47 -> 5.86 5.94 -> 5.74 0.43 -> 0.56
12 AK651BL 13.57 -> 14.58 8.85 -> 8.61 5.47 -> 5.46 5.94 -> 6.29 0.43 -> 0.57
12 TMC100SP-BL 13.57 -> 14.91 8.85 -> 10.14 5.47 -> 5.55 5.94 -> 5.69 0.43 -> 0.53
12 AK482 BL 13.57 -> 15.03 8.85 -> 9.76 5.47 -> 5.51 5.94 -> 6.79 0.43 -> 0.56
