Ahrex: FW 511

Company Ahrex
www ahrexhooks.com
Type Single
Eye Position Parallell
Shank Style Curved
Barb Barbless
Color Black Nickel
Usages Dry
Shrimp
Caddis
Nymph
Trout
Grayling
Freshwater
Soft Hackle
Scud
Emerger
Midge
Sizes 18 16 14 12 10

Sizes

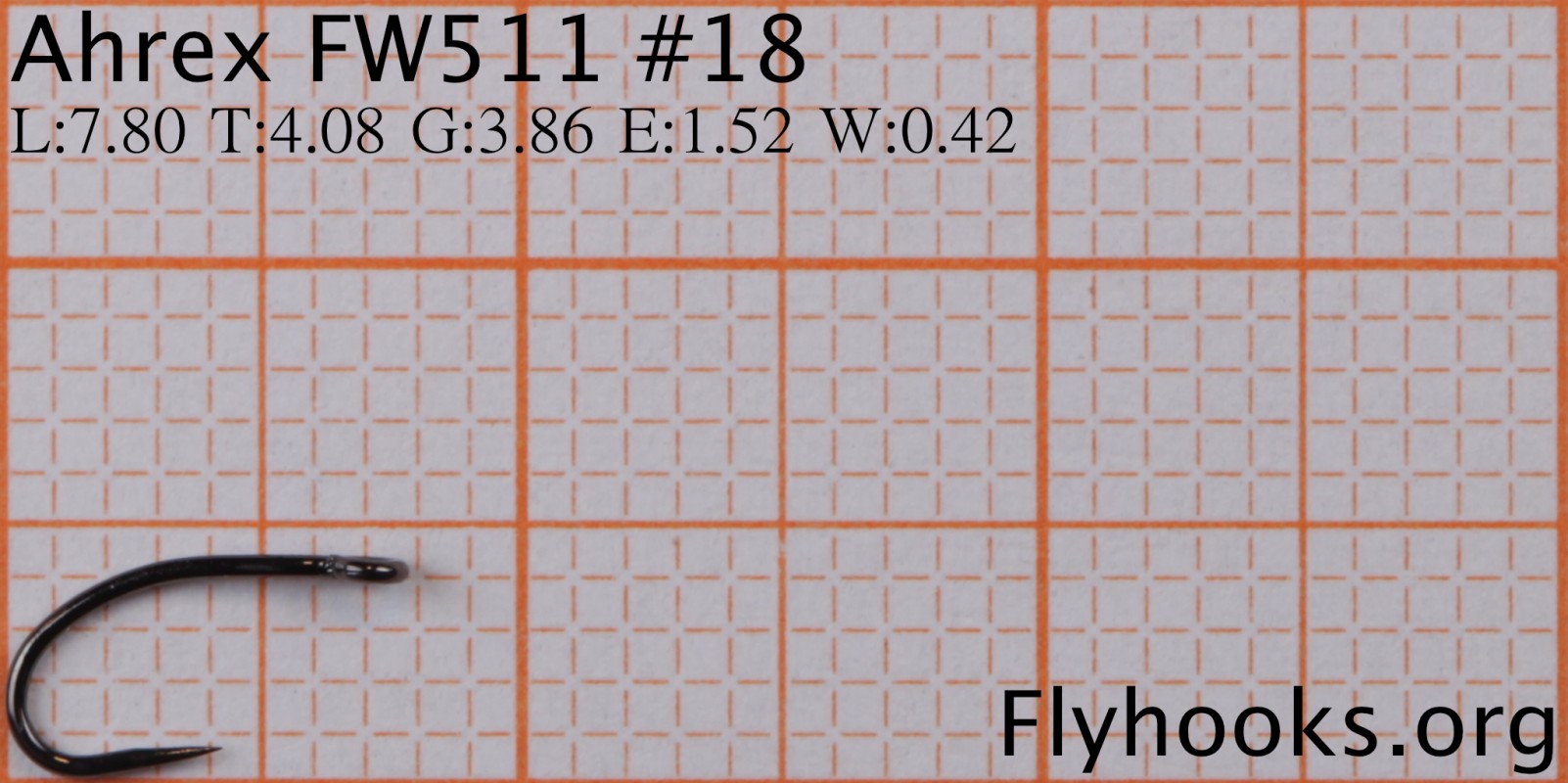

Length7.80 mm
Throat4.08 mm
Gape3.86 mm
Eye Width1.52 mm
Wire Thickness0.42 mm

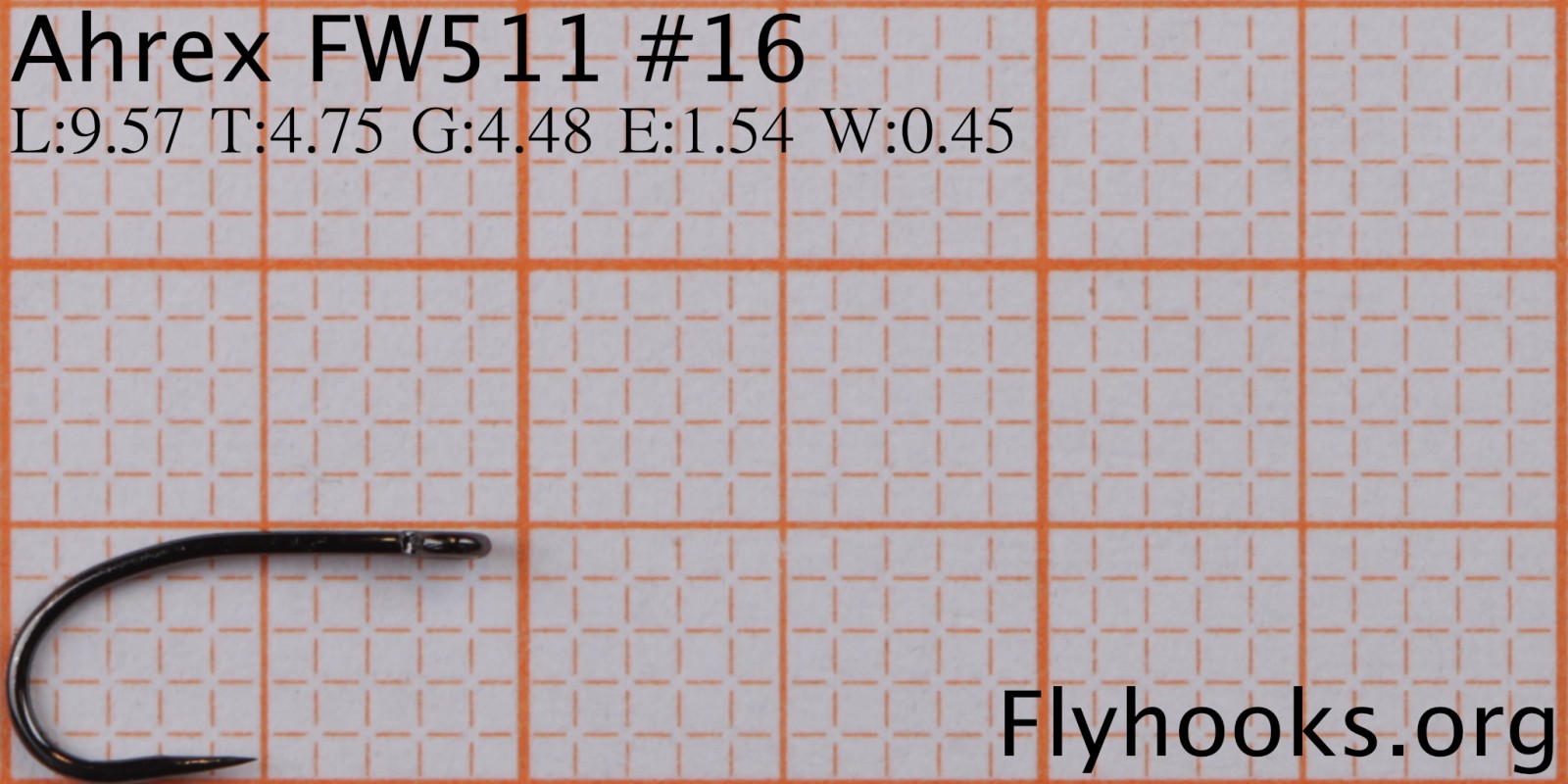

Length9.57 mm
Throat4.75 mm
Gape4.48 mm
Eye Width1.54 mm
Wire Thickness0.45 mm

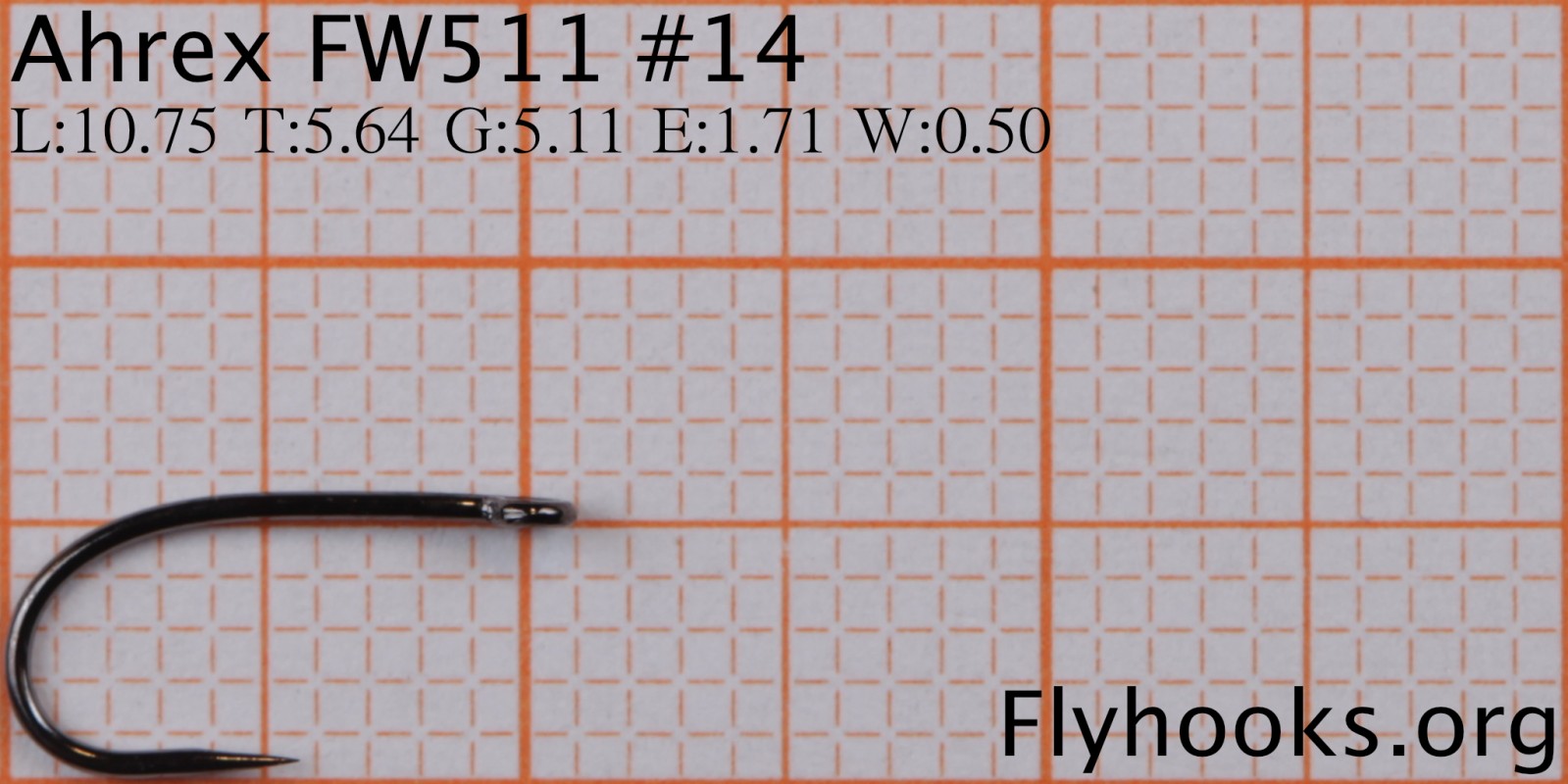

Length10.75 mm
Throat5.64 mm
Gape5.11 mm
Eye Width1.71 mm
Wire Thickness0.50 mm

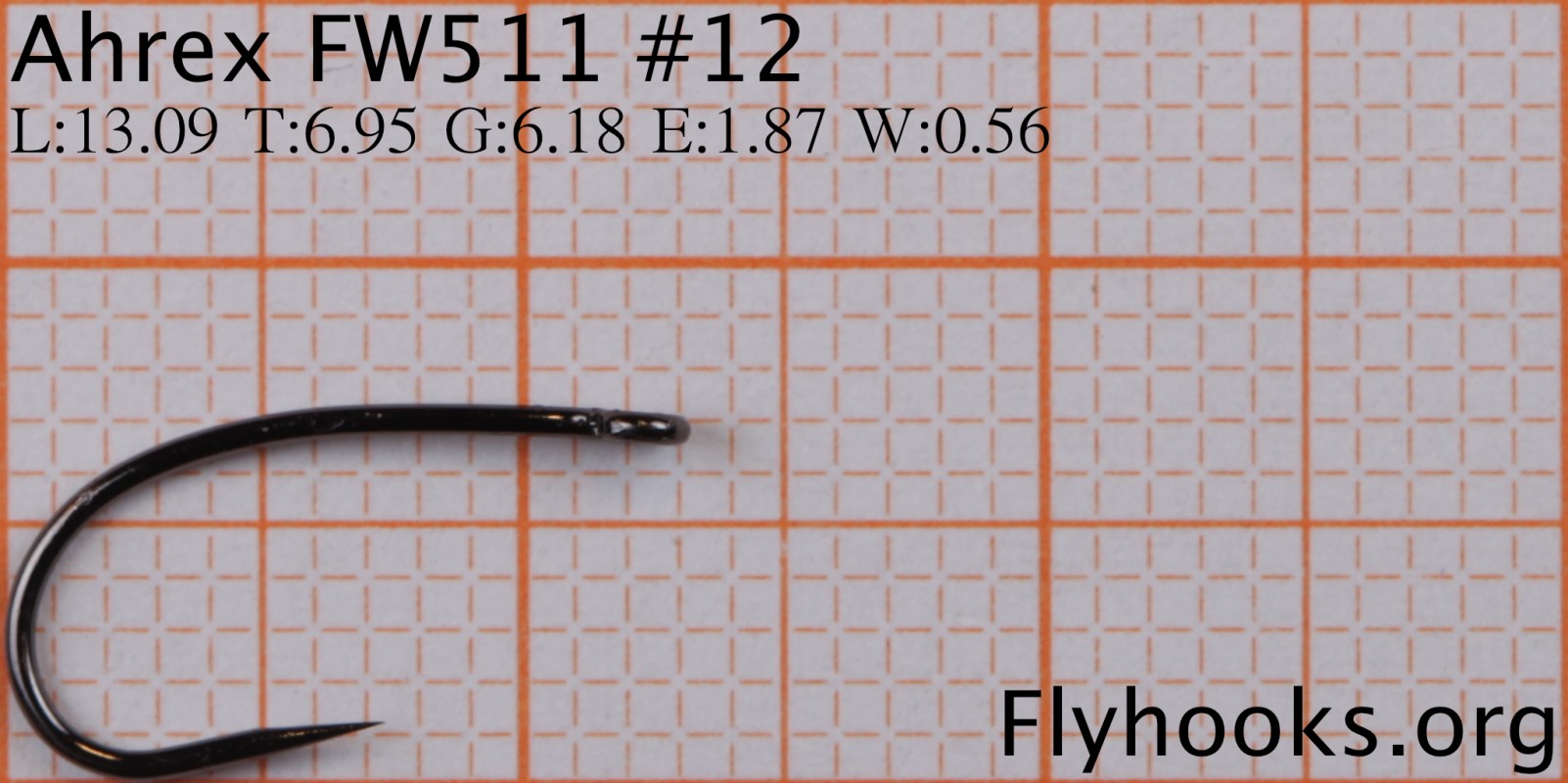

Length13.09 mm
Throat6.95 mm
Gape6.18 mm
Eye Width1.87 mm
Wire Thickness0.56 mm

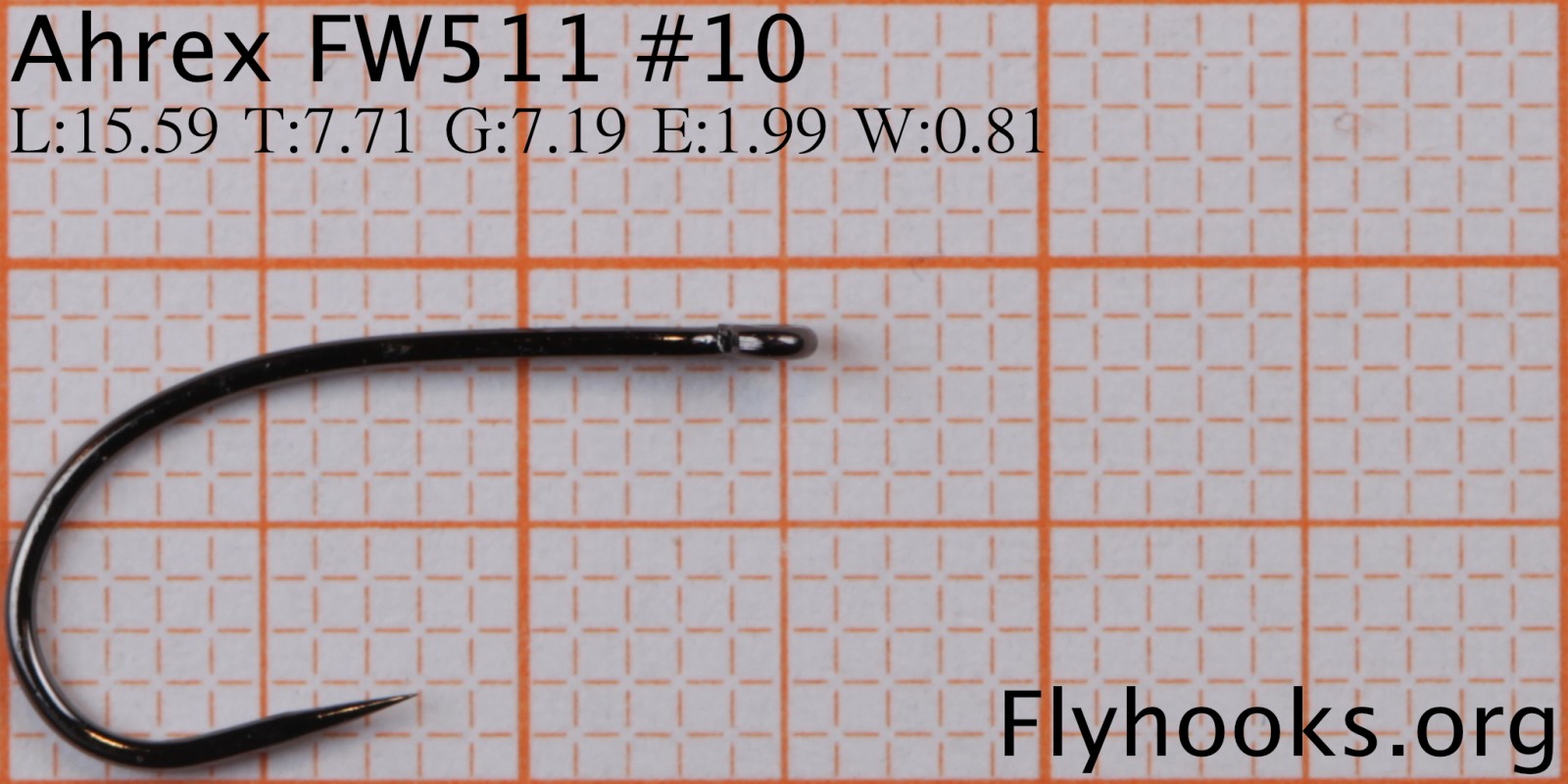

Length15.59 mm
Throat7.71 mm
Gape7.19 mm
Eye Width1.99 mm
Wire Thickness0.61 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 FW 517 7.80 -> 7.58   3.86 -> 3.89 4.08 -> 3.92 0.42 -> 0.42
18 FW 516 - Curved Dry Mini 7.80 -> 7.89   3.86 -> 3.84 4.08 -> 4.14 0.42 -> 0.43
18 HDD 301 7.80 -> 8.33   3.86 -> 3.70 4.08 -> 4.19 0.42 -> 0.37
18 HDG 611 7.80 -> 8.39   3.86 -> 4.27 4.08 -> 4.11 0.42 -> 0.34
18 AK751BL 7.80 -> 8.43   3.86 -> 4.02 4.08 -> 4.18 0.42 -> 0.42
18 FW 520 - Emerger 7.80 -> 8.86   3.86 -> 4.18 4.08 -> 4.04 0.42 -> 0.41
16 HDG 644 9.57 -> 9.21   4.48 -> 4.99 4.75 -> 4.97 0.45 -> 0.48
16 FW 510 - Curved Dry 9.57 -> 9.39   4.48 -> 4.59 4.75 -> 4.75 0.45 -> 0.45
16 H300BL 9.57 -> 9.66   4.48 -> 4.92 4.75 -> 5.04 0.45 -> 0.43
16 AK751BL 9.57 -> 9.76   4.48 -> 4.85 4.75 -> 4.76 0.45 -> 0.44
16 H400BL 9.57 -> 9.96   4.48 -> 4.34 4.75 -> 4.71 0.45 -> 0.48
16 H470BL 9.57 -> 9.97   4.48 -> 4.46 4.75 -> 4.71 0.45 -> 0.45
16 HDA 254 9.57 -> 10.04   4.48 -> 4.64 4.75 -> 4.73 0.45 -> 0.33
16 H230BL 9.57 -> 10.08   4.48 -> 4.29 4.75 -> 4.78 0.45 -> 0.46
16 DGE 300 BL 9.57 -> 10.25   4.48 -> 4.77 4.75 -> 4.92 0.45 -> 0.44
16 H280BL 9.57 -> 10.31   4.48 -> 4.42 4.75 -> 4.79 0.45 -> 0.48
16 H450BL 9.57 -> 10.32   4.48 -> 5.14 4.75 -> 5.03 0.45 -> 0.46
16 HDN 302 SP 9.57 -> 10.48   4.48 -> 4.59 4.75 -> 5.05 0.45 -> 0.47
16 HDN 302 9.57 -> 10.70   4.48 -> 4.50 4.75 -> 4.90 0.45 -> 0.42
16 Nymph 9.57 -> 10.73   4.48 -> 4.50 4.75 -> 4.65 0.45 -> 0.50
16 HDN 302 SPR 9.57 -> 10.76   4.48 -> 4.74 4.75 -> 4.62 0.45 -> 0.32
16 H480BL 9.57 -> 10.81   4.48 -> 4.76 4.75 -> 5.10 0.45 -> 0.47
16 C 220 9.57 -> 10.86   4.48 -> 4.46 4.75 -> 4.87 0.45 -> 0.48
14 L3A/S - Spider 10.75 -> 10.29   5.11 -> 5.05 5.64 -> 5.38 0.50 -> 0.41
14 7958 10.75 -> 10.52   5.11 -> 5.42 5.64 -> 6.12 0.50 -> 0.51
14 FW 510 - Curved Dry 10.75 -> 10.84   5.11 -> 5.39 5.64 -> 5.87 0.50 -> 0.50
14 1167 10.75 -> 10.86   5.11 -> 5.84 5.64 -> 5.52 0.50 -> 0.45
14 HDG 644 10.75 -> 10.90   5.11 -> 5.34 5.64 -> 5.45 0.50 -> 0.41
14 L3A,TDH - The Dry 10.75 -> 10.97   5.11 -> 5.12 5.64 -> 5.48 0.50 -> 0.43
14 TMC206BL 10.75 -> 11.08   5.11 -> 5.19 5.64 -> 5.47 0.50 -> 0.43
14 HDA 254 10.75 -> 11.24   5.11 -> 5.75 5.64 -> 5.60 0.50 -> 0.37
14 H250BL 10.75 -> 11.66   5.11 -> 5.80 5.64 -> 6.00 0.50 -> 0.56
14 H280BL 10.75 -> 11.87   5.11 -> 5.39 5.64 -> 5.44 0.50 -> 0.54
14 DGE 300 BL 10.75 -> 11.95   5.11 -> 5.51 5.64 -> 5.41 0.50 -> 0.51
14 H450BL 10.75 -> 11.99   5.11 -> 5.69 5.64 -> 5.44 0.50 -> 0.53
14 AK751BL 10.75 -> 11.99   5.11 -> 5.60 5.64 -> 5.81 0.50 -> 0.50
14 H400BL 10.75 -> 12.04   5.11 -> 5.07 5.64 -> 5.58 0.50 -> 0.50
14 H480BL 10.75 -> 12.04   5.11 -> 5.62 5.64 -> 5.67 0.50 -> 0.52
14 H200BL 10.75 -> 12.16   5.11 -> 4.99 5.64 -> 5.70 0.50 -> 0.54
12 DGE 300 BL 13.09 -> 12.66   6.18 -> 6.04 6.95 -> 6.82 0.56 -> 0.54
12 Br 644 13.09 -> 12.74   6.18 -> 6.11 6.95 -> 6.98 0.56 -> 0.51
12 FW 510 - Curved Dry 13.09 -> 12.96   6.18 -> 6.04 6.95 -> 6.87 0.56 -> 0.59
12 HDU 13.09 -> 13.23   6.18 -> 6.31 6.95 -> 6.62 0.56 -> 0.60
12 AK539BL 13.09 -> 13.30   6.18 -> 5.93 6.95 -> 7.56 0.56 -> 0.50
12 HDP 13.09 -> 13.65   6.18 -> 6.28 6.95 -> 7.54 0.56 -> 0.46
12 HDJ 13.09 -> 13.68   6.18 -> 6.19 6.95 -> 6.78 0.56 -> 0.49
12 HDB 13.09 -> 14.17   6.18 -> 7.10 6.95 -> 6.96 0.56 -> 0.69
12 G 13.09 -> 14.22   6.18 -> 6.34 6.95 -> 6.67 0.56 -> 0.53
12 H550BL 13.09 -> 14.26   6.18 -> 6.63 6.95 -> 6.61 0.56 -> 0.55
12 HDW 13.09 -> 14.61   6.18 -> 6.08 6.95 -> 7.14 0.56 -> 0.62
12 AK755BL 13.09 -> 14.87   6.18 -> 6.63 6.95 -> 7.05 0.56 -> 0.48
10 14723 BL 15.59 -> 15.27   7.19 -> 7.26 7.71 -> 7.44 0.61 -> 0.55
10 FW 510 - Curved Dry 15.59 -> 15.58   7.19 -> 6.97 7.71 -> 7.81 0.61 -> 0.61
10 HDB 15.59 -> 15.87   7.19 -> 7.97 7.71 -> 8.06 0.61 -> 0.75
10 HDG 611 15.59 -> 15.88   7.19 -> 7.85 7.71 -> 7.40 0.61 -> 0.62
10 H490BL 15.59 -> 16.05   7.19 -> 7.48 7.71 -> 7.34 0.61 -> 0.71
10 G 15.59 -> 16.98   7.19 -> 8.11 7.71 -> 7.38 0.61 -> 0.58
10 HDW 15.59 -> 17.12   7.19 -> 6.99 7.71 -> 8.25 0.61 -> 0.69
