Knapek: D

Dry fly hook

Company Knapek
www www.knapek-hooks.com
Type Single
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Black
Usages Dry
Trout
Grayling
Freshwater
Emerger
Sizes 16 14 12 10 8

Sizes

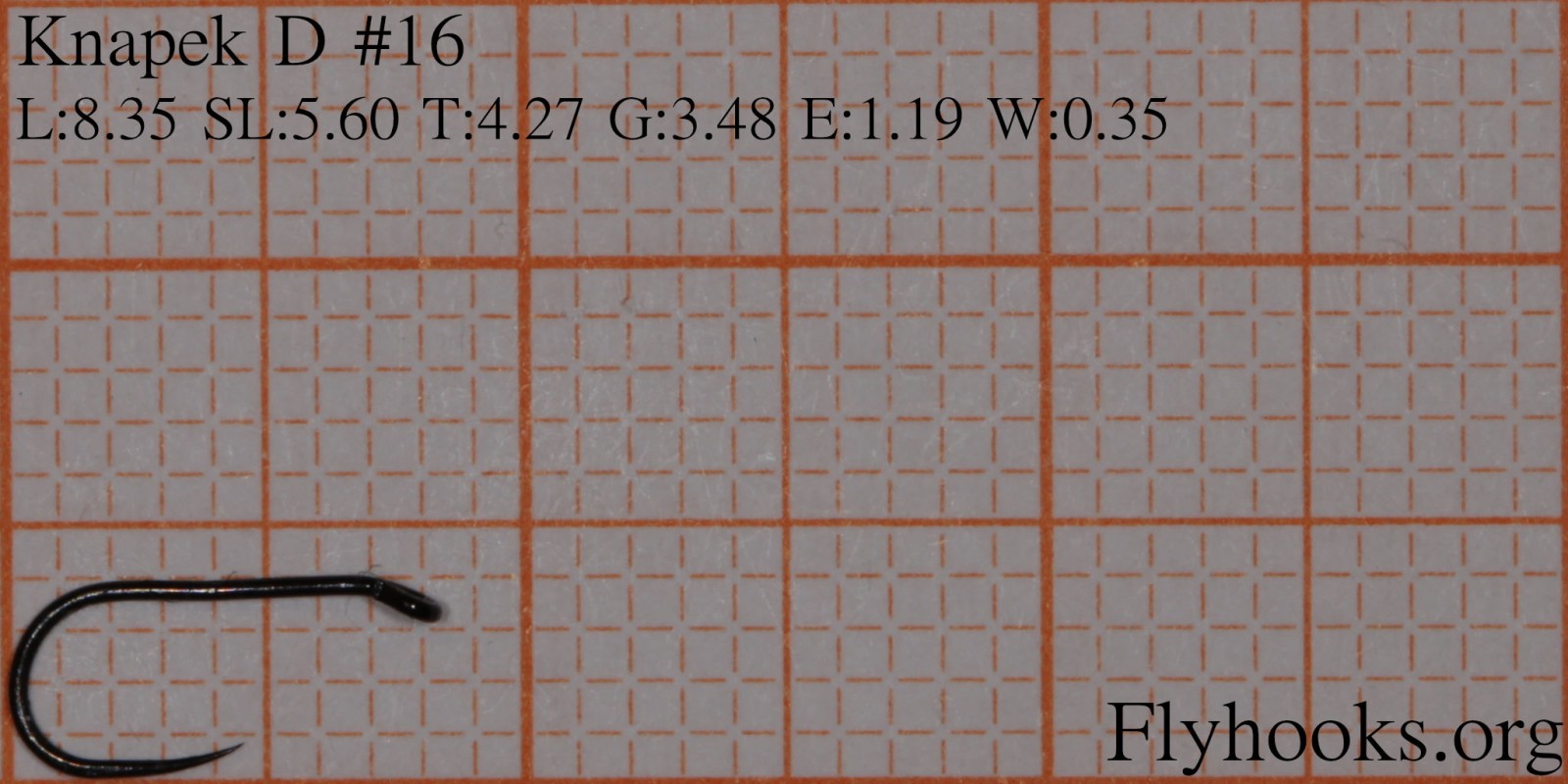

Length8.35 mm
Shank Length5.60 mm
Throat4.27 mm
Gape3.48 mm
Eye Width1.19 mm
Wire Thickness0.35 mm

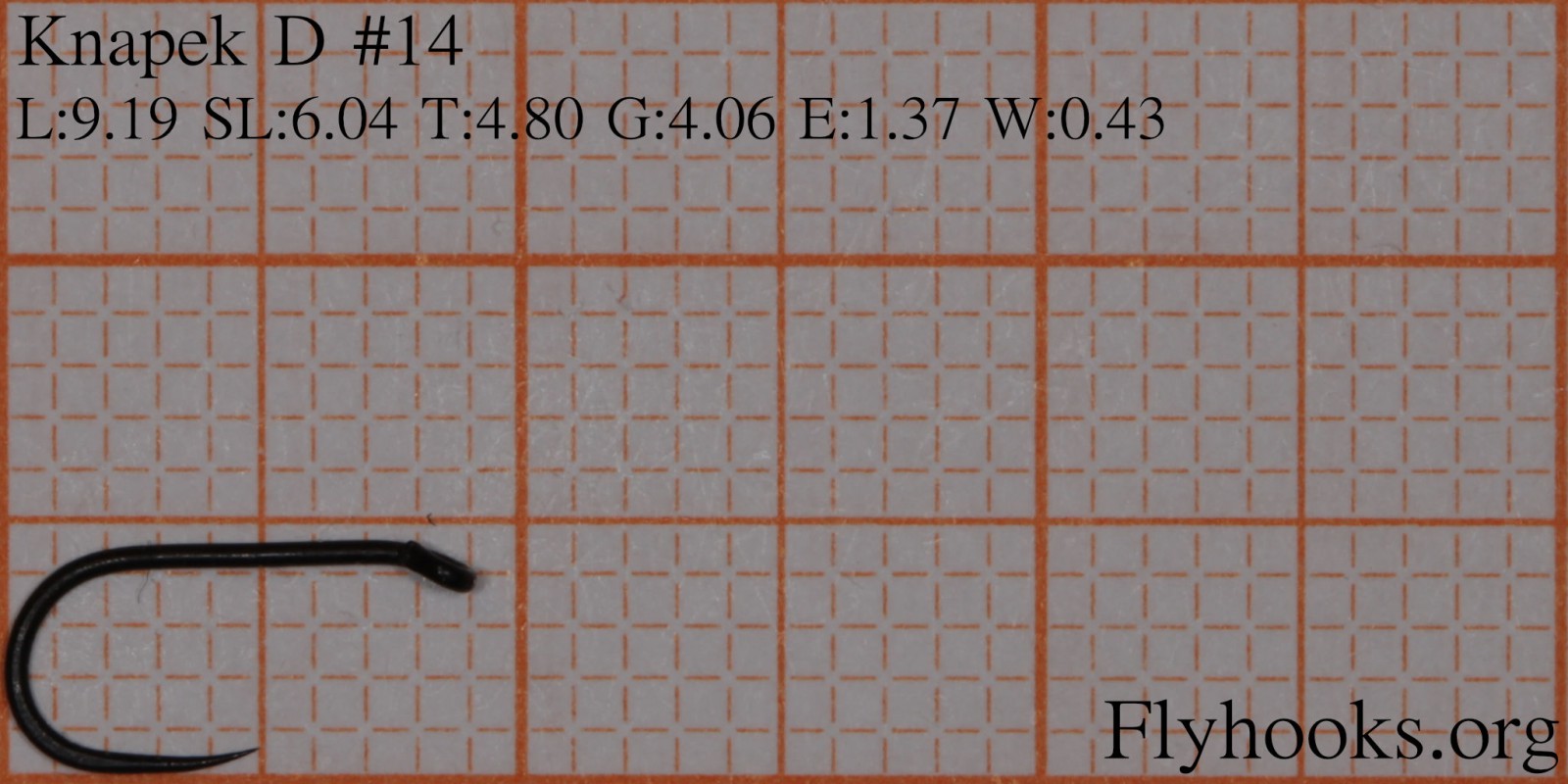

Length9.19 mm
Shank Length6.04 mm
Throat4.80 mm
Gape4.06 mm
Eye Width1.37 mm
Wire Thickness0.43 mm

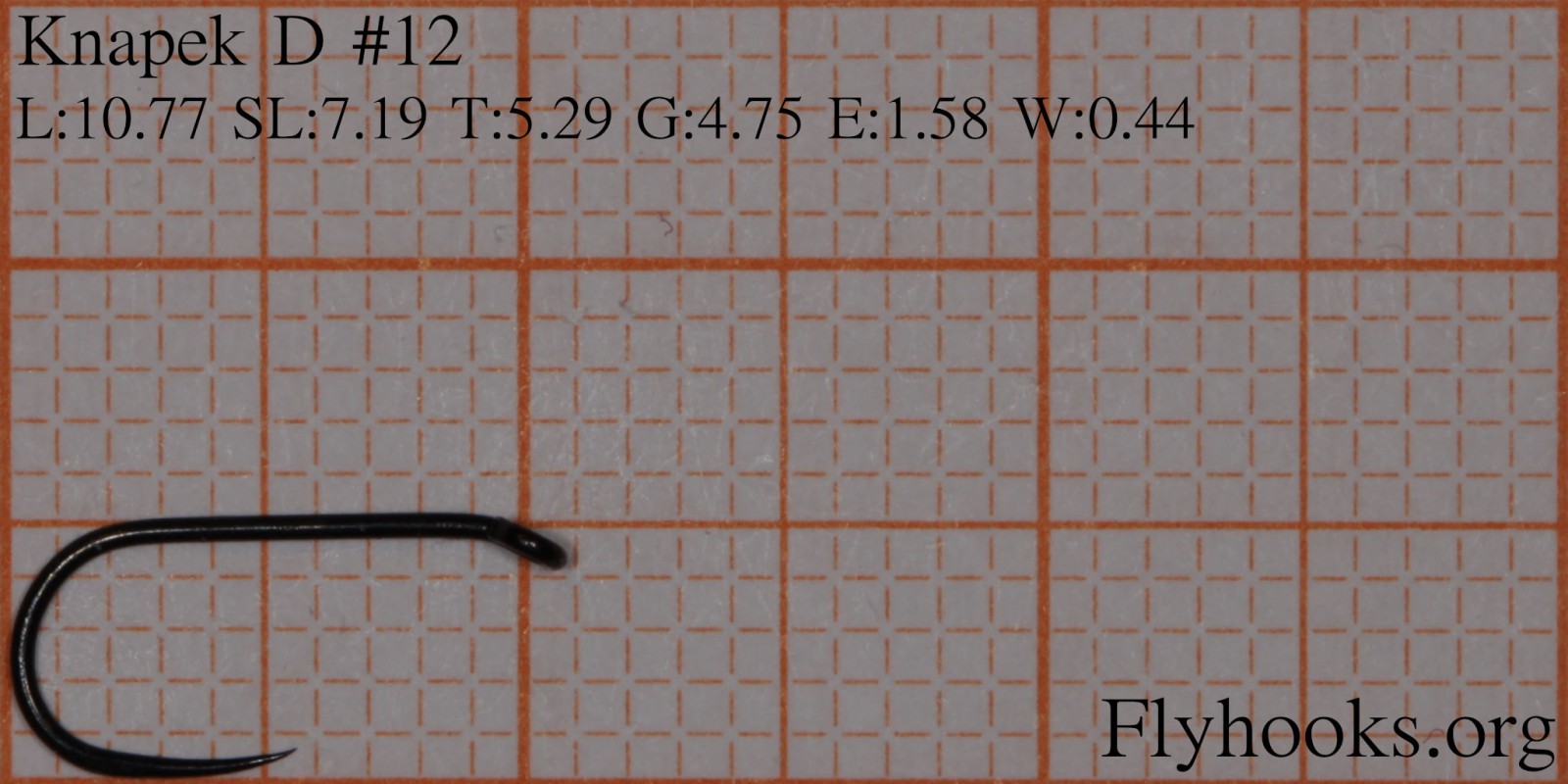

Length10.77 mm
Shank Length7.19 mm
Throat5.29 mm
Gape4.75 mm
Eye Width1.58 mm
Wire Thickness0.44 mm

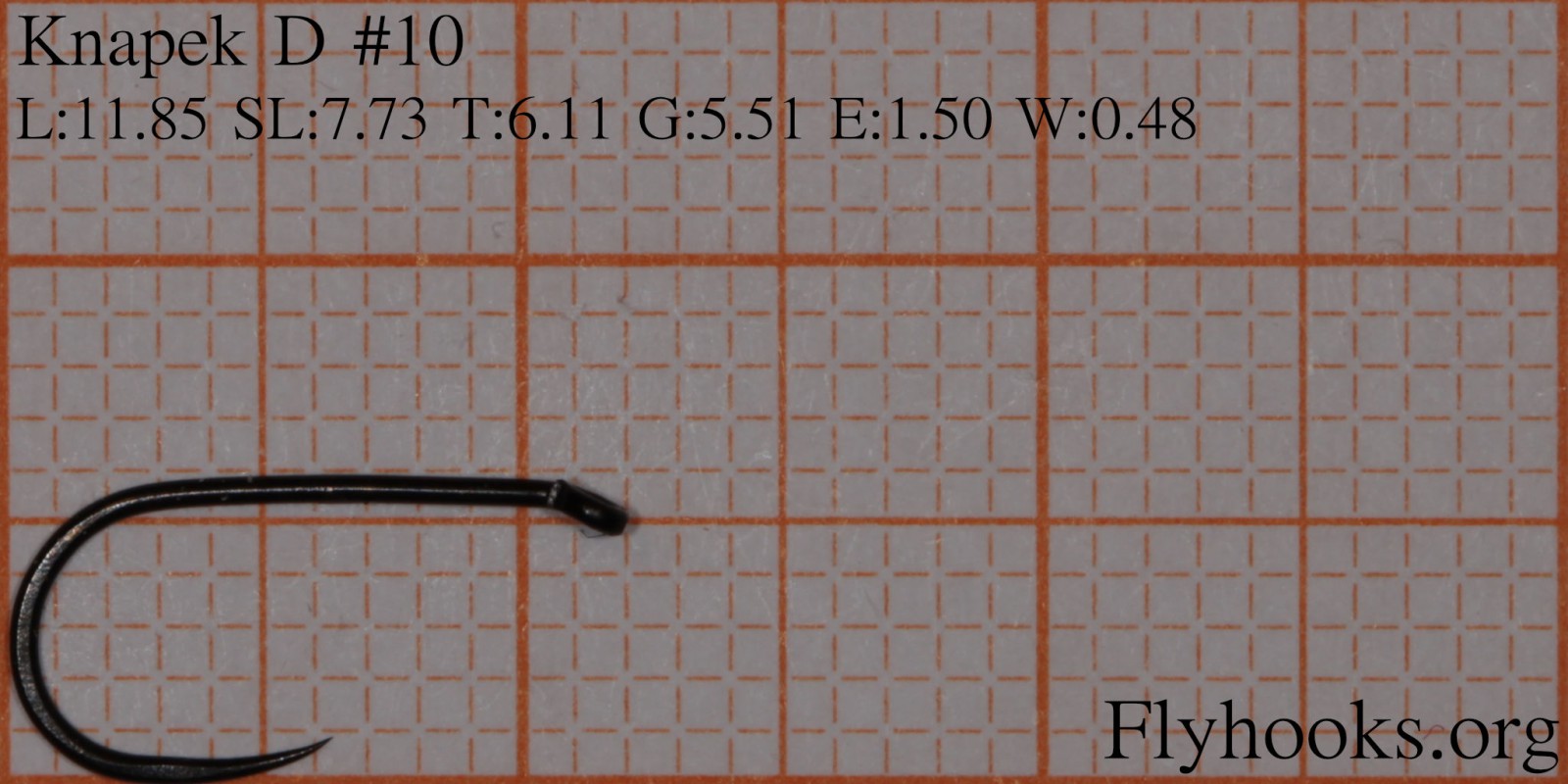

Length11.85 mm
Shank Length7.73 mm
Throat6.11 mm
Gape5.51 mm
Eye Width1.50 mm
Wire Thickness0.48 mm

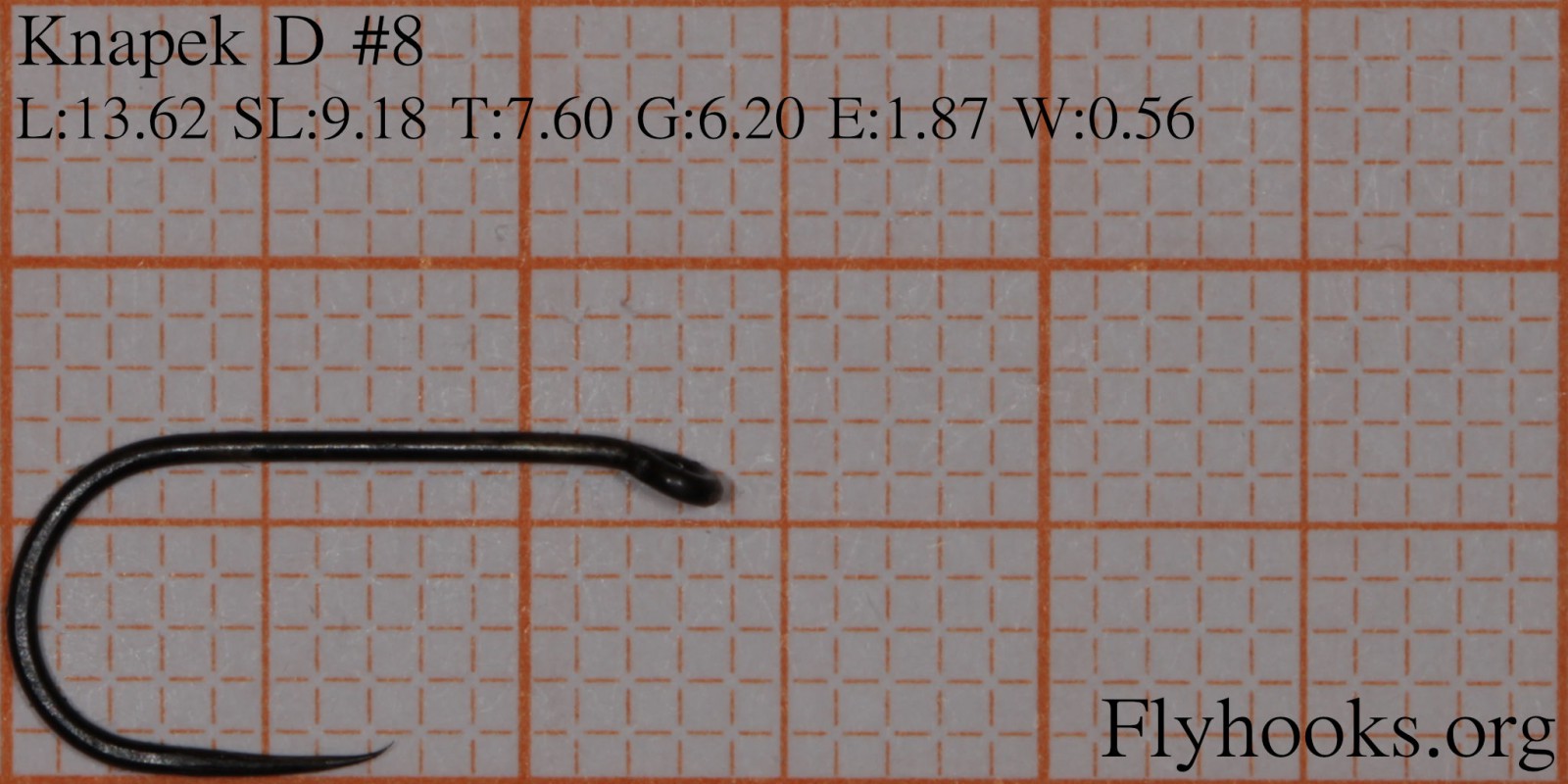

Length13.62 mm
Shank Length9.18 mm
Throat7.60 mm
Gape6.20 mm
Eye Width1.87 mm
Wire Thickness0.56 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 TMC508 8.35 -> 8.63 5.60 -> 6.04 3.48 -> 3.90 4.27 -> 4.47 0.35 -> 0.39
16 79589 8.35 -> 8.67 5.60 -> 5.61 3.48 -> 3.74 4.27 -> 4.69 0.35 -> 0.38
16 3906 8.35 -> 8.93 5.60 -> 5.45 3.48 -> 3.44 4.27 -> 4.15 0.35 -> 0.42
16 TMC531 8.35 -> 8.98 5.60 -> 5.97 3.48 -> 3.64 4.27 -> 4.39 0.35 -> 0.33
16 TMC3769SP-BL 8.35 -> 9.03 5.60 -> 6.09 3.48 -> 3.51 4.27 -> 4.23 0.35 -> 0.43
16 T902BL 8.35 -> 9.22 5.60 -> 6.24 3.48 -> 3.51 4.27 -> 4.19 0.35 -> 0.33
16 W 8.35 -> 9.36 5.60 -> 6.34 3.48 -> 3.46 4.27 -> 4.32 0.35 -> 0.38
16 S-2000 8.35 -> 9.38 5.60 -> 6.11 3.48 -> 3.80 4.27 -> 4.36 0.35 -> 0.36
14 79589 9.19 -> 9.48 6.04 -> 6.06 4.06 -> 4.05 4.80 -> 5.34 0.43 -> 0.39
14 W 9.19 -> 10.27 6.04 -> 6.68 4.06 -> 4.03 4.80 -> 4.82 0.43 -> 0.45
14 3906 9.19 -> 10.53 6.04 -> 6.63 4.06 -> 4.21 4.80 -> 4.84 0.43 -> 0.51
12 R48 10.77 -> 11.47 7.19 -> 6.88 4.75 -> 5.39 5.29 -> 5.65 0.44 -> 0.53
12 L 10.77 -> 11.81 7.19 -> 7.63 4.75 -> 5.32 5.29 -> 6.05 0.44 -> 0.52
12 TMC921 10.77 -> 12.11 7.19 -> 7.85 4.75 -> 5.10 5.29 -> 5.24 0.44 -> 0.45
12 W 10.77 -> 12.16 7.19 -> 8.09 4.75 -> 4.81 5.29 -> 5.39 0.44 -> 0.50
10 1-105 BR 11.85 -> 11.75 7.73 -> 7.44 5.51 -> 5.63 6.11 -> 5.99 0.48 -> 0.45
