Tiemco: TMC3769SP-BL

Company Tiemco
www www.tiemco.co.jp
Type Single
Strength 2xh
Eye Position Turned down
Shank Style Straigth
Bend Sproat bend
Barb Barbless
Color Bronze
Usages Dry
Wet
Nymph
Trout
Grayling
Freshwater
Spider
Soft Hackle
Midge
Sizes 18 16 14 12 10

Sizes

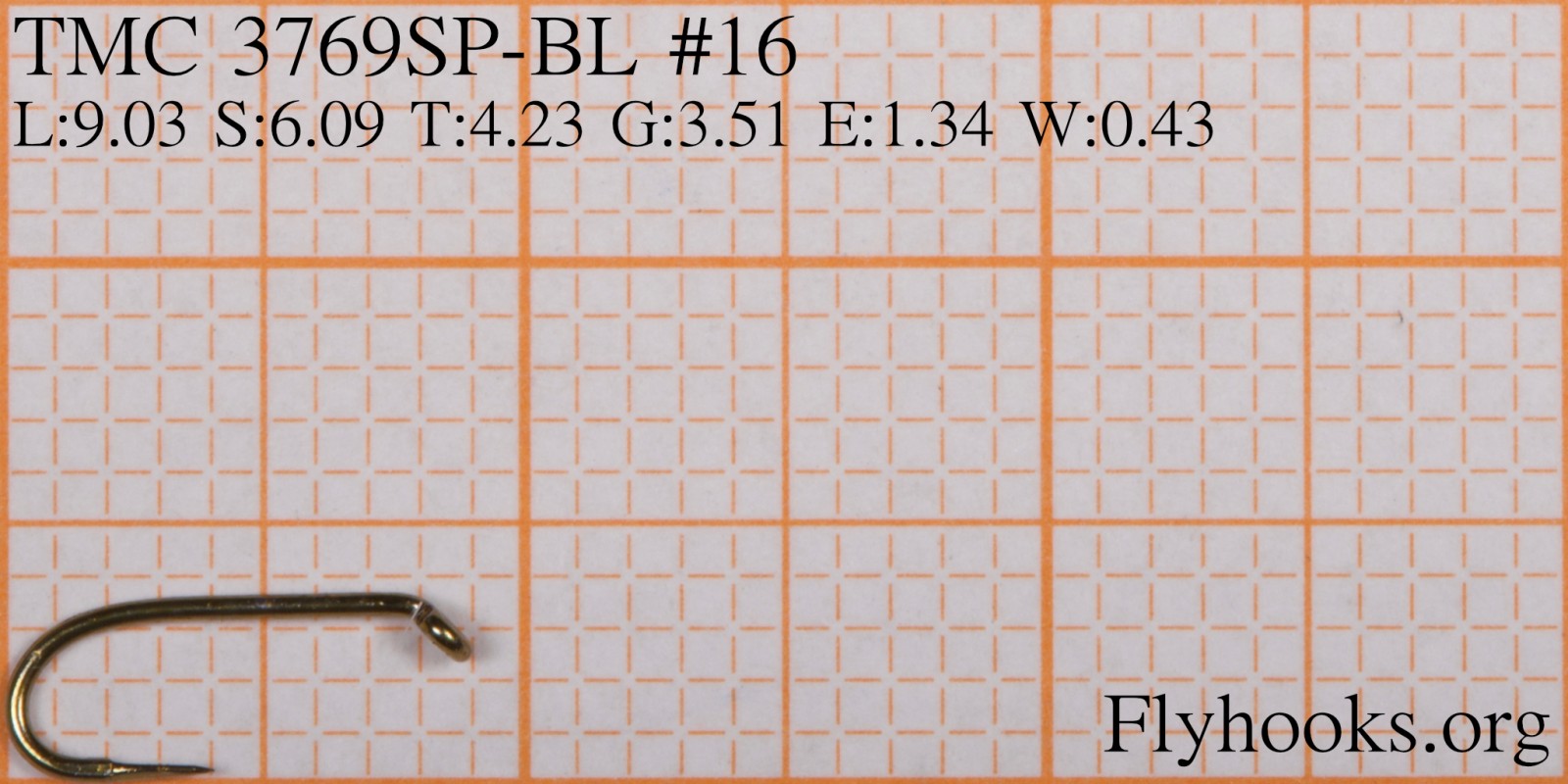

Length9.03 mm
Shank Length6.09 mm
Throat4.23 mm
Gape3.51 mm
Eye Width1.34 mm
Wire Thickness0.43 mm

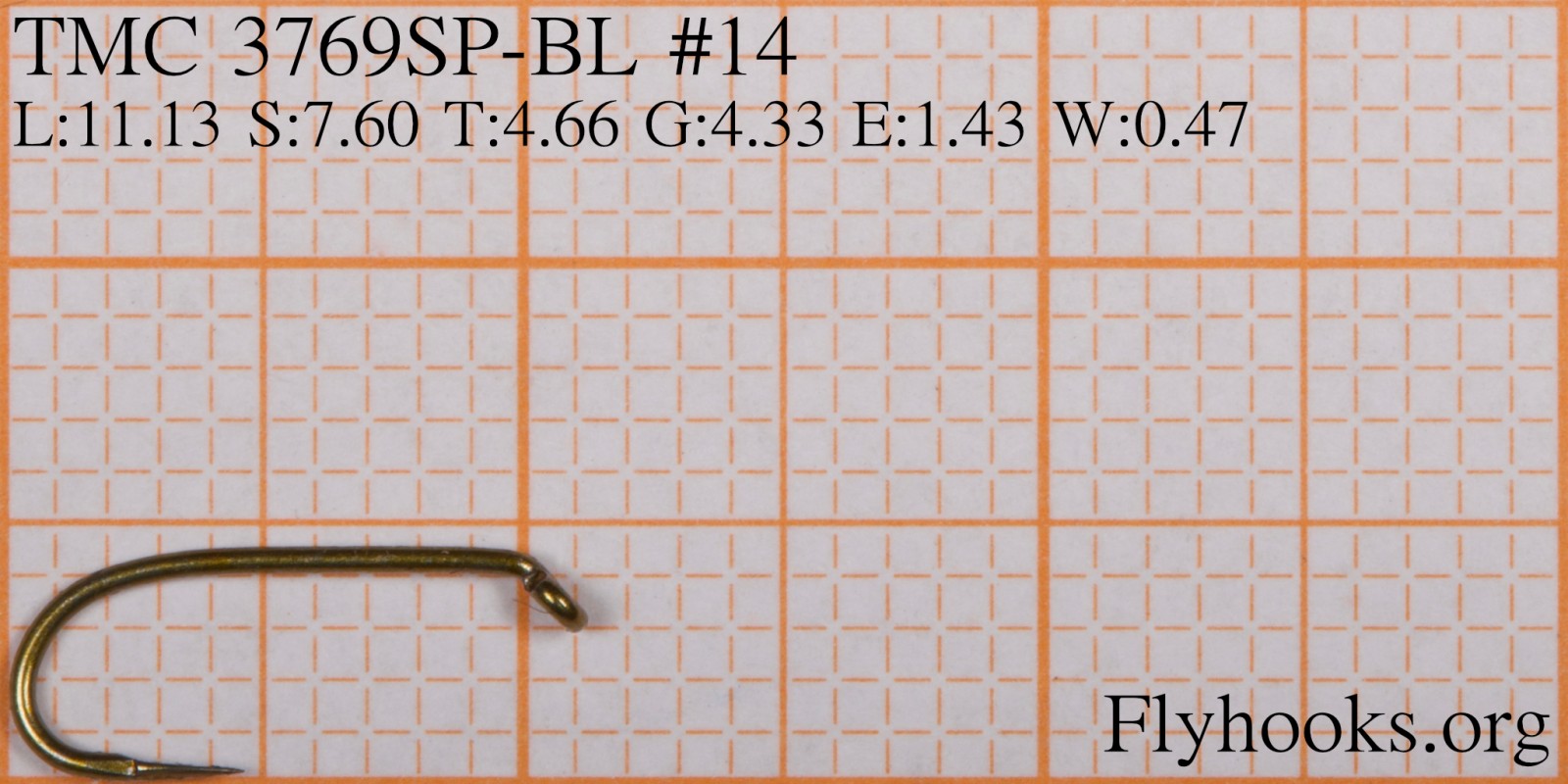

Length11.13 mm
Shank Length7.60 mm
Throat4.66 mm
Gape4.33 mm
Eye Width1.43 mm
Wire Thickness0.47 mm

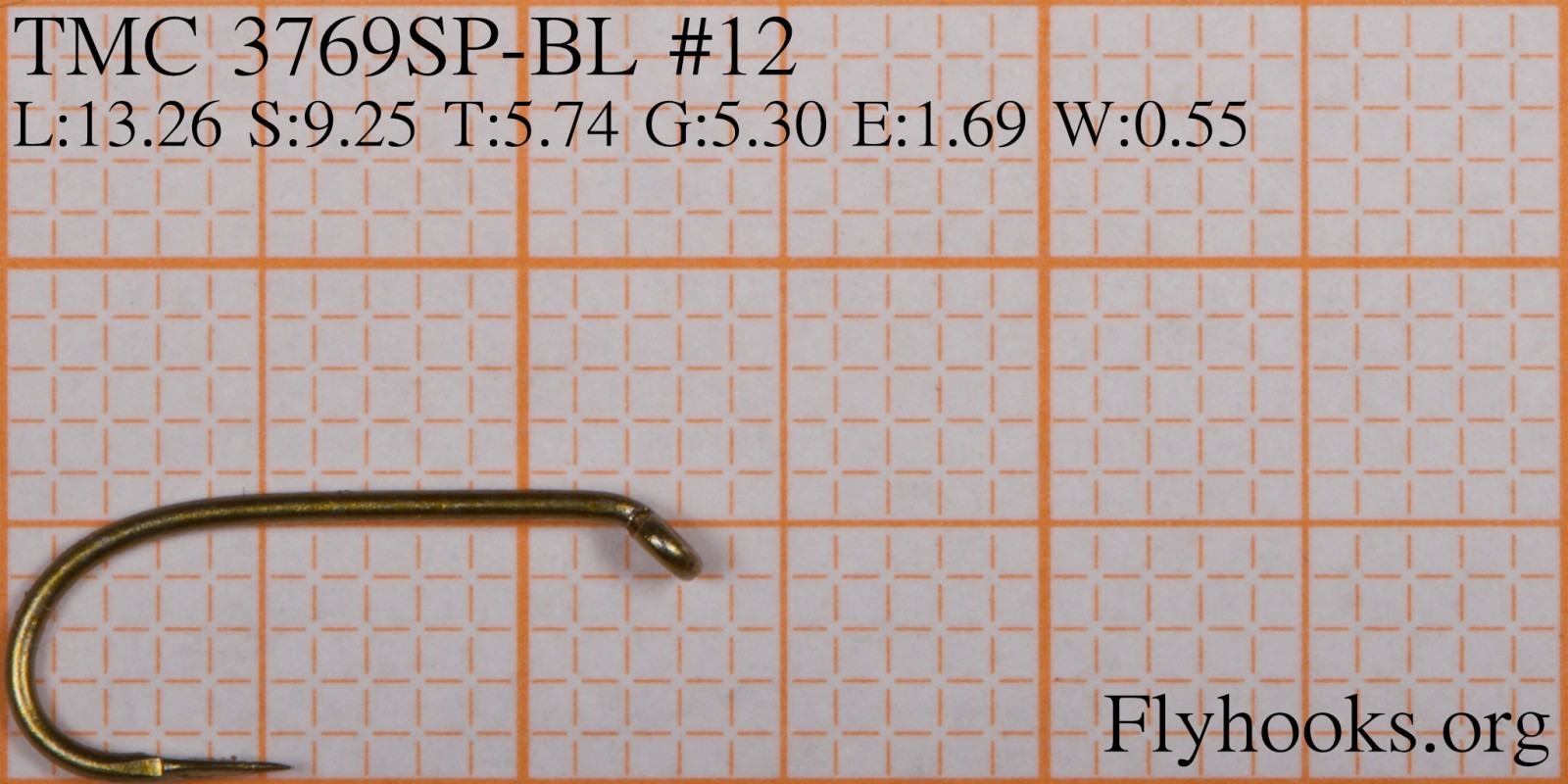

Length13.26 mm
Shank Length9.25 mm
Throat5.74 mm
Gape5.30 mm
Eye Width1.69 mm
Wire Thickness0.55 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 TMC508 9.03 -> 8.63 6.09 -> 6.04 3.51 -> 3.90 4.23 -> 4.47 0.43 -> 0.39
16 TMC531 9.03 -> 8.98 6.09 -> 5.97 3.51 -> 3.64 4.23 -> 4.39 0.43 -> 0.33
16 73100 9.03 -> 9.15 6.09 -> 6.05 3.51 -> 3.52 4.23 -> 4.03 0.43 -> 0.37
16 B405 9.03 -> 9.20 6.09 -> 6.13 3.51 -> 3.55 4.23 -> 4.04 0.43 -> 0.38
16 T902BL 9.03 -> 9.22 6.09 -> 6.24 3.51 -> 3.51 4.23 -> 4.19 0.43 -> 0.33
16 W 9.03 -> 9.36 6.09 -> 6.34 3.51 -> 3.46 4.23 -> 4.32 0.43 -> 0.38
16 S-2000 9.03 -> 9.38 6.09 -> 6.11 3.51 -> 3.80 4.23 -> 4.36 0.43 -> 0.36
16 R50X-94845 9.03 -> 9.79 6.09 -> 6.73 3.51 -> 4.01 4.23 -> 4.23 0.43 -> 0.37
16 SLD - Patriot Fine Dry 9.03 -> 9.93 6.09 -> 6.07 3.51 -> 3.94 4.23 -> 4.05 0.43 -> 0.36
16 TMC900BL 9.03 -> 10.05 6.09 -> 6.79 3.51 -> 3.81 4.23 -> 4.22 0.43 -> 0.39
16 94845 9.03 -> 10.21 6.09 -> 6.60 3.51 -> 3.79 4.23 -> 4.32 0.43 -> 0.37
16 J 9.03 -> 10.23 6.09 -> 6.25 3.51 -> 4.01 4.23 -> 4.55 0.43 -> 0.44
14 G3AY - Sproat Wet 11.13 -> 10.98 7.60 -> 7.37 4.33 -> 4.55 4.66 -> 4.86 0.47 -> 0.50
14 T902BL 11.13 -> 11.32 7.60 -> 8.04 4.33 -> 4.21 4.66 -> 4.86 0.47 -> 0.37
14 d14 11.13 -> 11.35 7.60 -> 8.10 4.33 -> 4.72 4.66 -> 4.67 0.47 -> 0.44
14 SLD - Patriot Fine Dry 11.13 -> 11.38 7.60 -> 7.63 4.33 -> 4.86 4.66 -> 4.75 0.47 -> 0.43
14 w13 11.13 -> 11.42 7.60 -> 7.67 4.33 -> 4.39 4.66 -> 4.62 0.47 -> 0.47
14 94840 11.13 -> 11.42 7.60 -> 7.85 4.33 -> 4.77 4.66 -> 5.09 0.47 -> 0.44
14 H130BL 11.13 -> 11.46 7.60 -> 7.58 4.33 -> 4.79 4.66 -> 4.80 0.47 -> 0.40
14 Br 103 11.13 -> 11.58 7.60 -> 7.79 4.33 -> 4.71 4.66 -> 4.83 0.47 -> 0.40
14 130BL 11.13 -> 11.59 7.60 -> 7.43 4.33 -> 4.80 4.66 -> 5.05 0.47 -> 0.42
14 AK503BL 11.13 -> 11.64 7.60 -> 7.50 4.33 -> 4.93 4.66 -> 4.74 0.47 -> 0.40
14 73207 11.13 -> 11.71 7.60 -> 7.65 4.33 -> 4.67 4.66 -> 5.22 0.47 -> 0.43
14 HDN 302 11.13 -> 11.88 7.60 -> 7.29 4.33 -> 4.68 4.66 -> 5.31 0.47 -> 0.48
14 TMC9300 11.13 -> 12.09 7.60 -> 8.36 4.33 -> 4.53 4.66 -> 5.01 0.47 -> 0.45
14 N 11.13 -> 12.10 7.60 -> 8.34 4.33 -> 4.42 4.66 -> 5.13 0.47 -> 0.49
14 G3A/LY - Sproat Nymph 11.13 -> 12.25 7.60 -> 8.49 4.33 -> 4.27 4.66 -> 4.90 0.47 -> 0.50
14 C 211 11.13 -> 12.48 7.60 -> 8.18 4.33 -> 4.70 4.66 -> 5.15 0.47 -> 0.43
14 d24BL 11.13 -> 12.57 7.60 -> 8.35 4.33 -> 4.38 4.66 -> 4.45 0.47 -> 0.41
14 3906B 11.13 -> 12.62 7.60 -> 8.14 4.33 -> 4.18 4.66 -> 5.04 0.47 -> 0.55
14 TMC100BL 11.13 -> 12.72 7.60 -> 8.58 4.33 -> 4.92 4.66 -> 4.71 0.47 -> 0.45
14 H290BL 11.13 -> 12.74 7.60 -> 8.59 4.33 -> 4.58 4.66 -> 4.74 0.47 -> 0.42
14 TMC100 11.13 -> 12.77 7.60 -> 8.27 4.33 -> 4.48 4.66 -> 4.67 0.47 -> 0.43
12 73231 13.26 -> 13.31 9.25 -> 9.71 5.30 -> 5.06 5.74 -> 5.69 0.55 -> 0.41
12 9002 13.26 -> 13.34 9.25 -> 9.12 5.30 -> 5.31 5.74 -> 5.56 0.55 -> 0.55
12 94833 13.26 -> 13.51 9.25 -> 10.15 5.30 -> 5.12 5.74 -> 5.47 0.55 -> 0.43
12 9485 13.26 -> 13.55 9.25 -> 9.33 5.30 -> 5.36 5.74 -> 5.57 0.55 -> 0.54
12 AK503BL 13.26 -> 13.57 9.25 -> 8.85 5.30 -> 5.47 5.74 -> 5.94 0.55 -> 0.43
12 R50X-94845 13.26 -> 13.63 9.25 -> 9.57 5.30 -> 5.51 5.74 -> 6.38 0.55 -> 0.53
12 H130BL 13.26 -> 13.70 9.25 -> 8.95 5.30 -> 5.46 5.74 -> 6.35 0.55 -> 0.47
12 TMC9300 13.26 -> 13.98 9.25 -> 9.15 5.30 -> 5.60 5.74 -> 5.69 0.55 -> 0.49
12 H230BL 13.26 -> 14.01 9.25 -> 9.17 5.30 -> 5.97 5.74 -> 5.99 0.55 -> 0.56
12 H200BL 13.26 -> 14.10 9.25 -> 9.06 5.30 -> 5.90 5.74 -> 5.89 0.55 -> 0.63
12 TMC100BL 13.26 -> 14.37 9.25 -> 9.77 5.30 -> 5.47 5.74 -> 5.51 0.55 -> 0.50
12 FW 501 13.26 -> 14.38 9.25 -> 9.54 5.30 -> 5.86 5.74 -> 5.74 0.55 -> 0.56
12 FW 500 - Dry Fly Traditional 13.26 -> 14.41 9.25 -> 9.45 5.30 -> 5.76 5.74 -> 5.59 0.55 -> 0.57
12 120 BL 13.26 -> 14.76 9.25 -> 10.50 5.30 -> 5.23 5.74 -> 5.65 0.55 -> 0.49
12 TMC100SP-BL 13.26 -> 14.91 9.25 -> 10.14 5.30 -> 5.55 5.74 -> 5.69 0.55 -> 0.53
12 C 211 13.26 -> 14.95 9.25 -> 10.40 5.30 -> 5.34 5.74 -> 5.60 0.55 -> 0.51
12 TMC3761SP-BL 13.26 -> 15.20 9.25 -> 10.49 5.30 -> 5.22 5.74 -> 5.80 0.55 -> 0.55
