Ahrex: FW 501

Company Ahrex
www ahrexhooks.com
Type Single
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Black Nickel
Usages Dry
Trout
Grayling
Freshwater
Soft Hackle
Midge
Sizes 18 16 14 12 10 8

Sizes

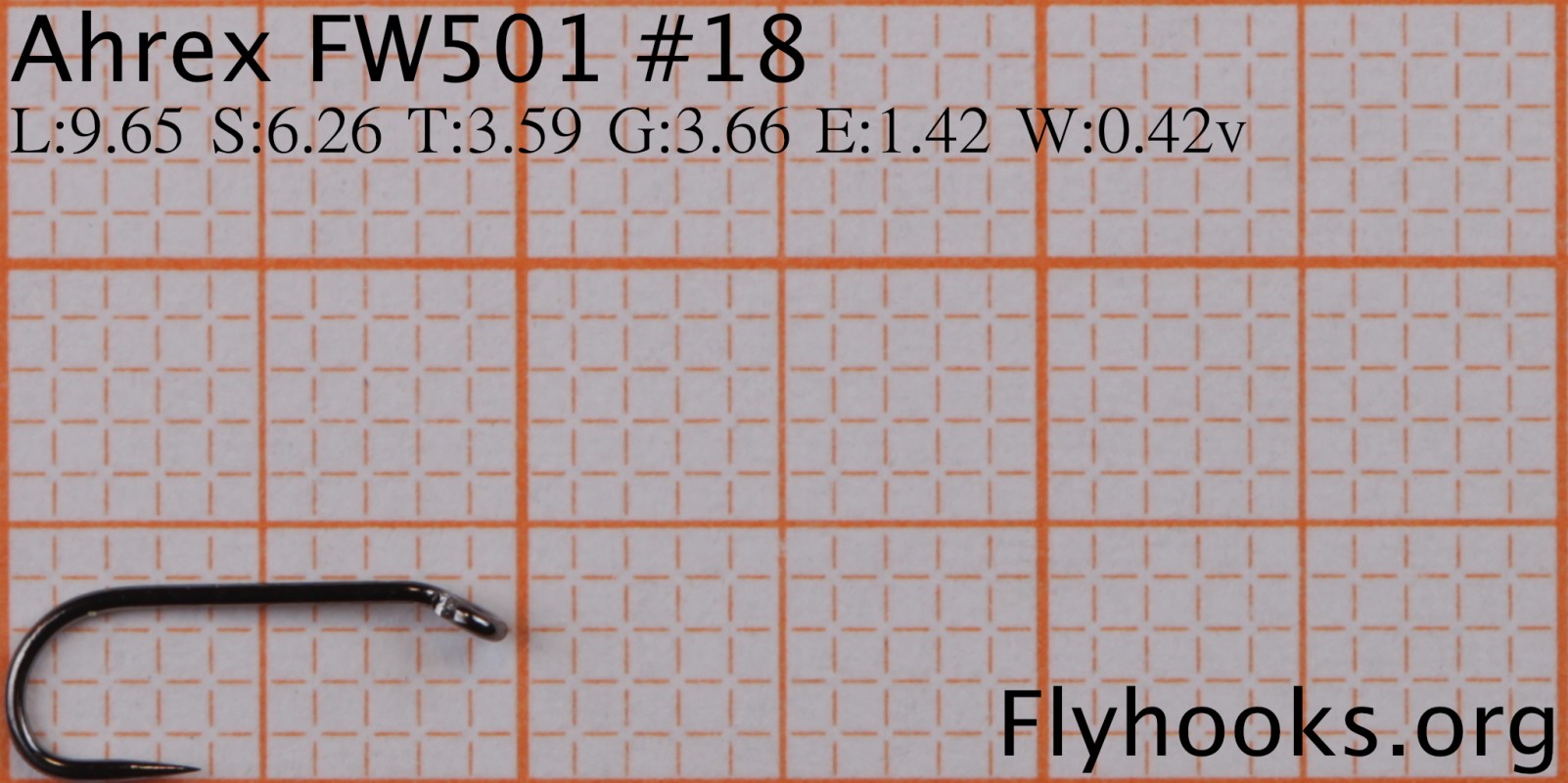

Length9.65 mm
Shank Length6.26 mm
Throat3.59 mm
Gape3.66 mm
Eye Width1.42 mm
Wire Thickness0.42 mm

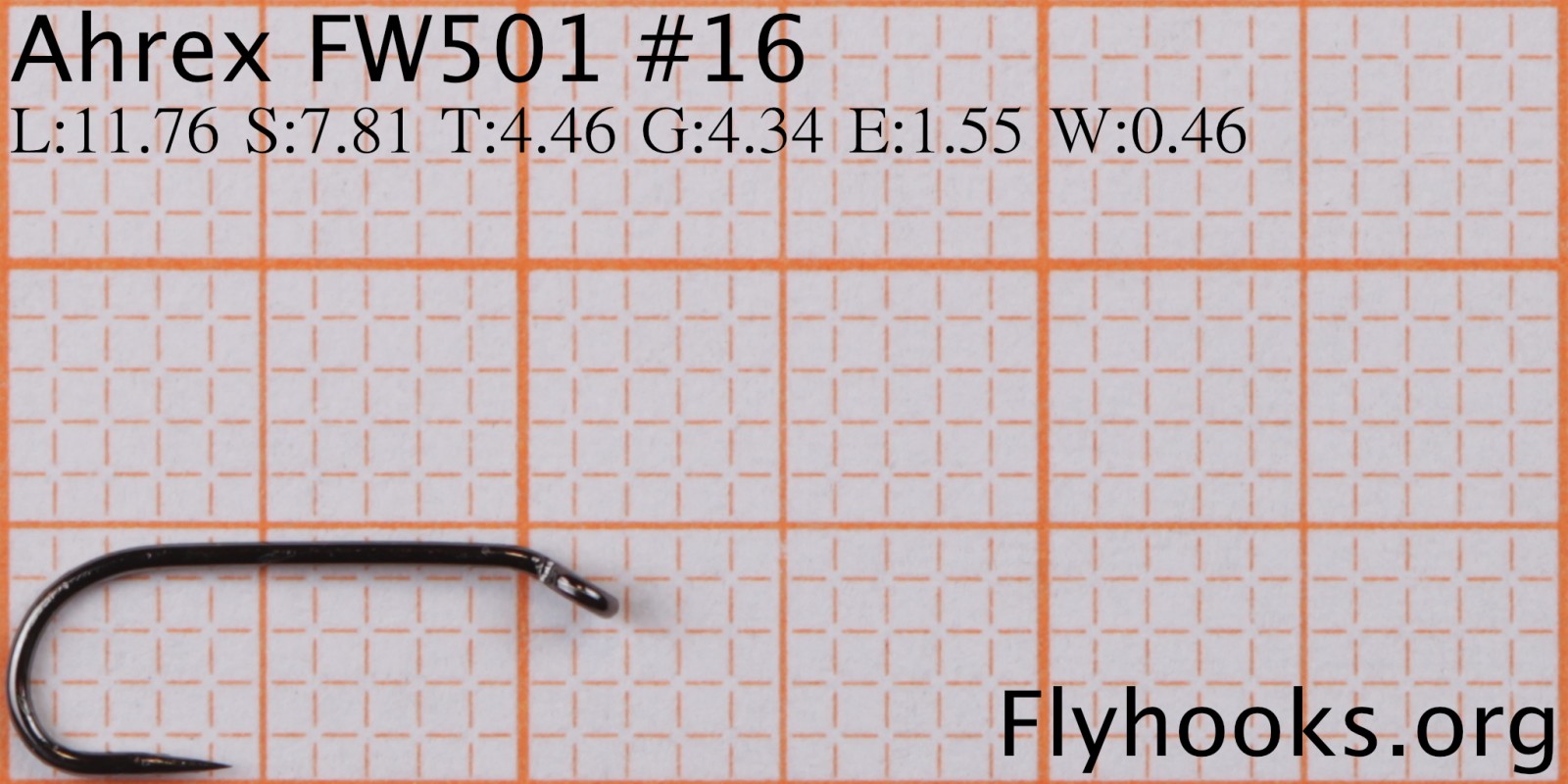

Length11.76 mm
Shank Length7.81 mm
Throat4.46 mm
Gape4.34 mm
Eye Width1.55 mm
Wire Thickness0.46 mm

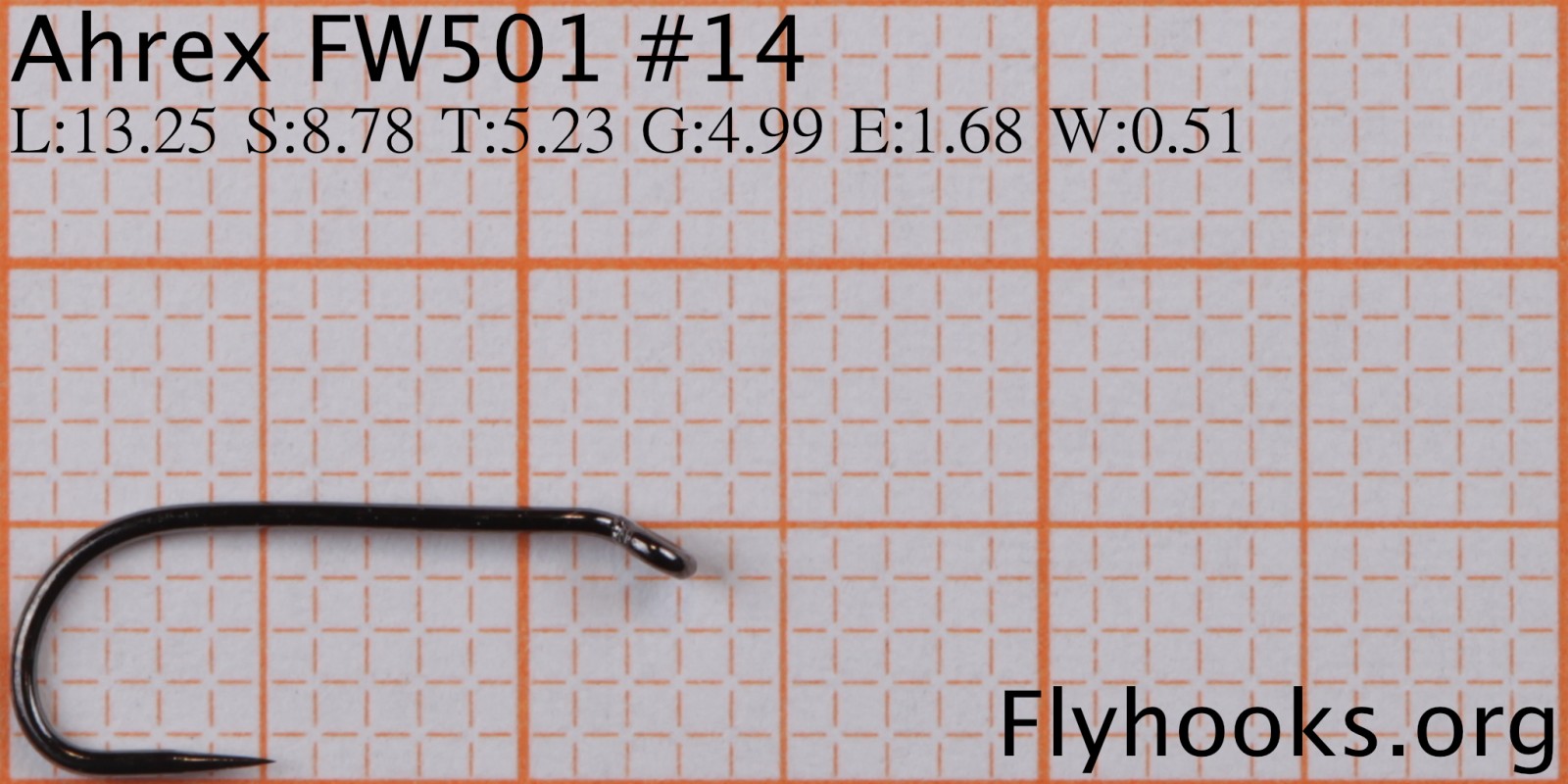

Length13.25 mm
Shank Length8.78 mm
Throat5.23 mm
Gape4.99 mm
Eye Width1.68 mm
Wire Thickness0.51 mm

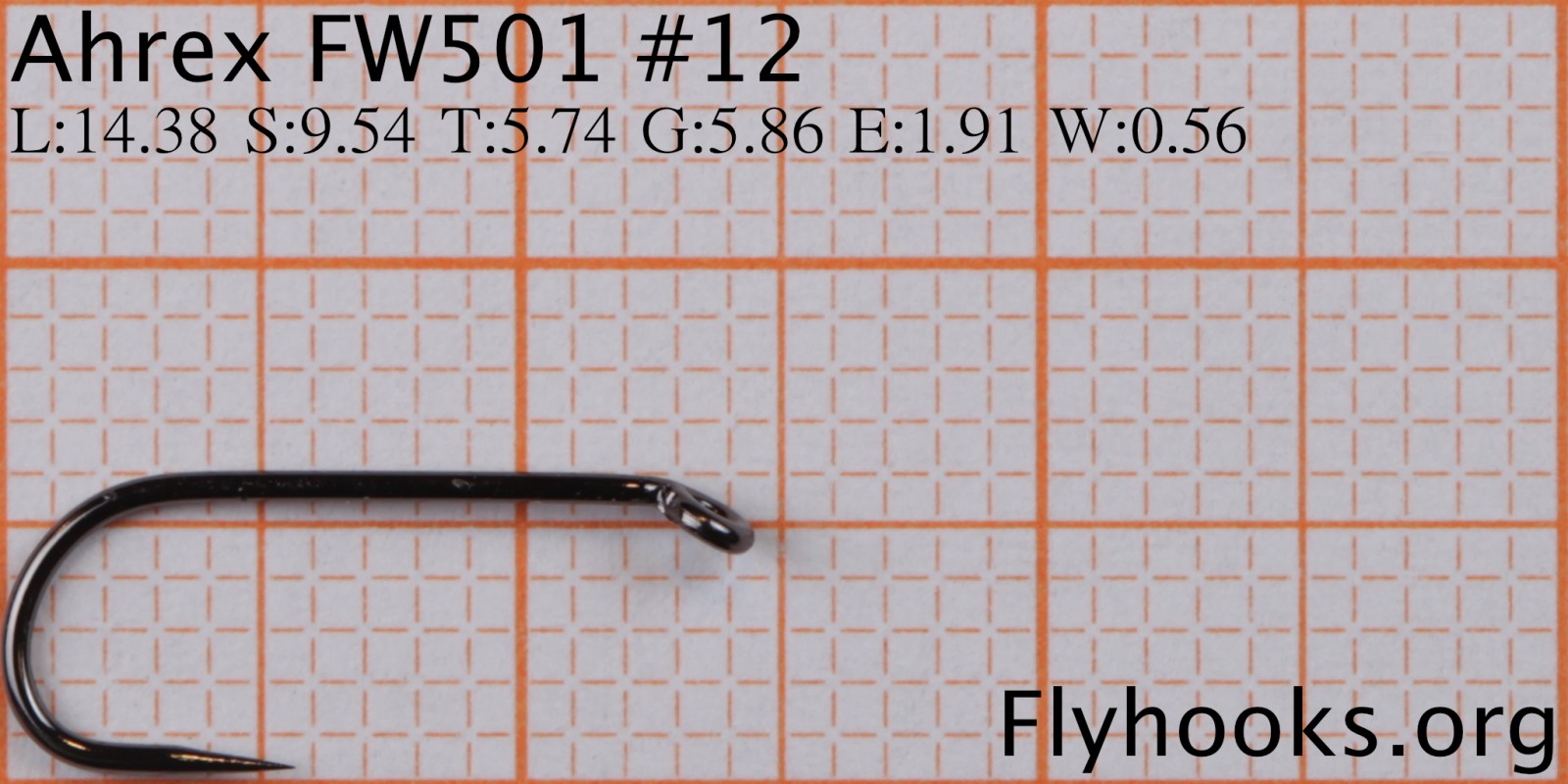

Length14.38 mm
Shank Length9.54 mm
Throat5.74 mm
Gape5.86 mm
Eye Width1.92 mm
Wire Thickness0.56 mm

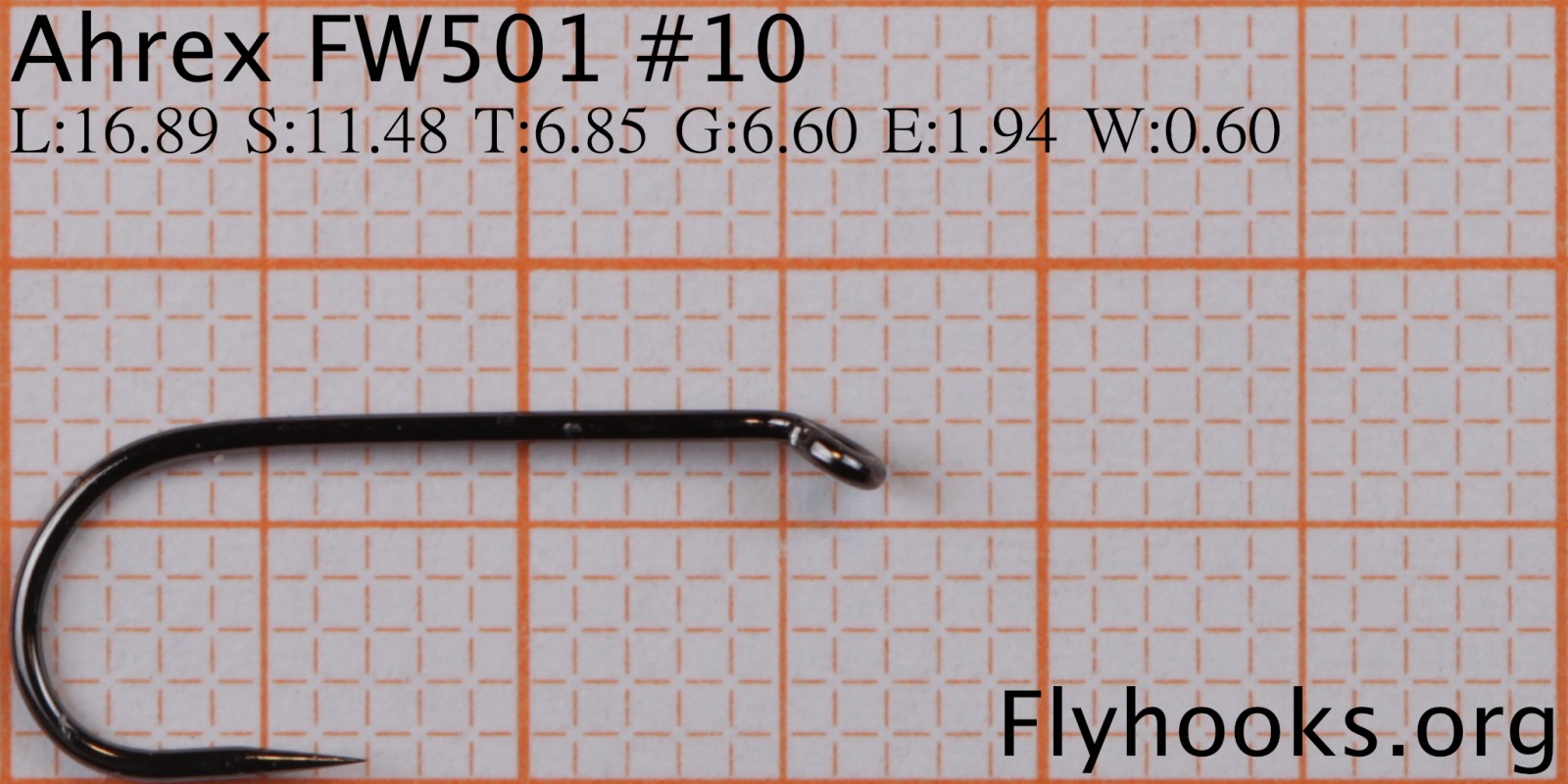

Length16.89 mm
Shank Length11.48 mm
Throat6.85 mm
Gape6.60 mm
Eye Width1.94 mm
Wire Thickness0.60 mm

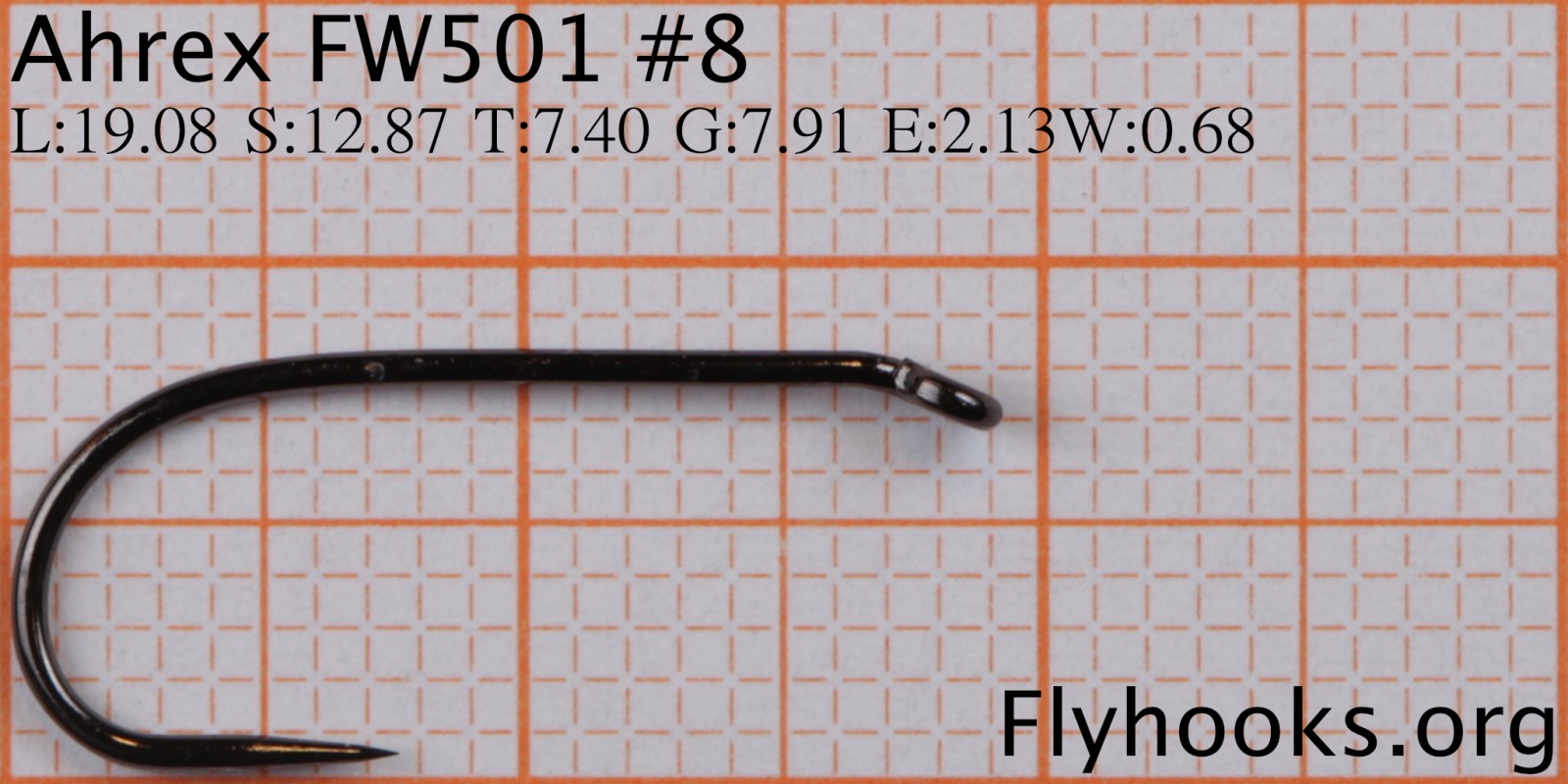

Length19.08 mm
Shank Length12.87 mm
Throat7.40 mm
Gape7.91 mm
Eye Width2.13 mm
Wire Thickness0.68 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 TMC108SP-BL 9.65 -> 9.48 6.26 -> 6.12 3.66 -> 3.67 3.59 -> 3.83 0.42 -> 0.42
18 FW 500 - Dry Fly Traditional 9.65 -> 9.66 6.26 -> 6.36 3.66 -> 3.67 3.59 -> 3.52 0.42 -> 0.41
18 R72 9.65 -> 9.95 6.26 -> 6.43 3.66 -> 3.70 3.59 -> 3.62 0.42 -> 0.38
16 FW 500 - Dry Fly Traditional 11.76 -> 11.76 7.81 -> 7.94 4.34 -> 4.37 4.46 -> 4.36 0.46 -> 0.44
16 FW 561 11.76 -> 12.98 7.81 -> 8.59 4.34 -> 4.19 4.46 -> 4.57 0.46 -> 0.46
16 FW 560 - Traditional Nymph 11.76 -> 13.15 7.81 -> 8.89 4.34 -> 4.33 4.46 -> 4.62 0.46 -> 0.50
14 120 BL 13.25 -> 12.83 8.78 -> 8.98 4.99 -> 4.75 5.23 -> 5.12 0.51 -> 0.46
14 C 231 13.25 -> 13.69 8.78 -> 9.40 4.99 -> 4.84 5.23 -> 5.30 0.51 -> 0.49
14 FW 560 - Traditional Nymph 13.25 -> 14.46 8.78 -> 9.71 4.99 -> 4.93 5.23 -> 5.22 0.51 -> 0.57
12 TMC9300 14.38 -> 13.98 9.54 -> 9.15 5.86 -> 5.60 5.74 -> 5.69 0.56 -> 0.49
12 H230BL 14.38 -> 14.01 9.54 -> 9.17 5.86 -> 5.97 5.74 -> 5.99 0.56 -> 0.56
12 FW 500 - Dry Fly Traditional 14.38 -> 14.41 9.54 -> 9.45 5.86 -> 5.76 5.74 -> 5.59 0.56 -> 0.57
12 FW 560 - Traditional Nymph 14.38 -> 15.96 9.54 -> 10.80 5.86 -> 5.74 5.74 -> 5.72 0.56 -> 0.59
12 FW 561 14.38 -> 16.21 9.54 -> 10.82 5.86 -> 5.84 5.74 -> 5.61 0.56 -> 0.60
10 TMC9300 16.89 -> 16.54 11.48 -> 11.49 6.60 -> 6.69 6.85 -> 6.71 0.60 -> 0.56
10 AK562BL 16.89 -> 16.64 11.48 -> 11.89 6.60 -> 6.32 6.85 -> 7.64 0.60 -> 0.56
10 F35 16.89 -> 16.90 11.48 -> 11.04 6.60 -> 6.62 6.85 -> 6.53 0.60 -> 0.61
10 FW 561 16.89 -> 18.66 11.48 -> 12.40 6.60 -> 6.70 6.85 -> 6.53 0.60 -> 0.66
10 CK52SNP-BR 16.89 -> 18.82 11.48 -> 12.61 6.60 -> 6.96 6.85 -> 7.02 0.60 -> 0.61
8 FW 560 - Traditional Nymph 19.08 -> 21.29 12.87 -> 14.49 7.91 -> 7.83 7.40 -> 7.06 0.68 -> 0.71
8 73100 19.08 -> 21.29 12.87 -> 12.98 7.91 -> 7.82 7.40 -> 7.71 0.68 -> 0.70
8 FW 561 19.08 -> 21.42 12.87 -> 14.15 7.91 -> 7.97 7.40 -> 7.62 0.68 -> 0.71
8 SS15 19.08 -> 21.94 12.87 -> 14.23 7.91 -> 7.95 7.40 -> 8.34 0.68 -> 0.71
