Ahrex: FW 520 - Emerger

Company Ahrex
Type Single
Gape Wide
Eye Ringed eye
Eye Position Parallell
Shank Style Curved
Barb Microbarb
Color Black Nickel
Usages Dry
Trout
Grayling
Freshwater
Emerger
Sizes 18 16 14 12 10 8 6

Sizes

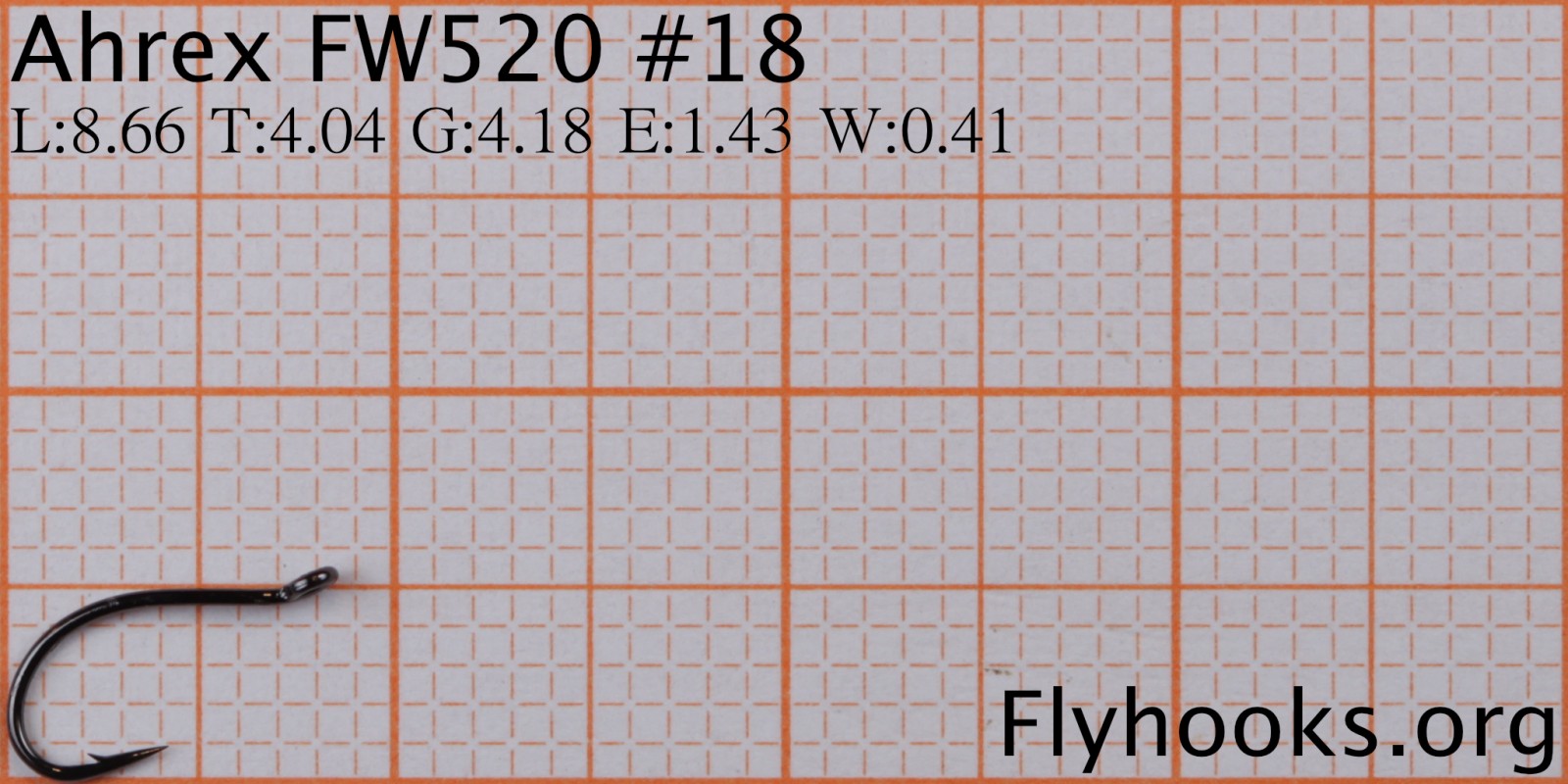

Length8.86 mm
Throat4.04 mm
Gape4.18 mm
Eye Width1.43 mm
Wire Thickness0.41 mm

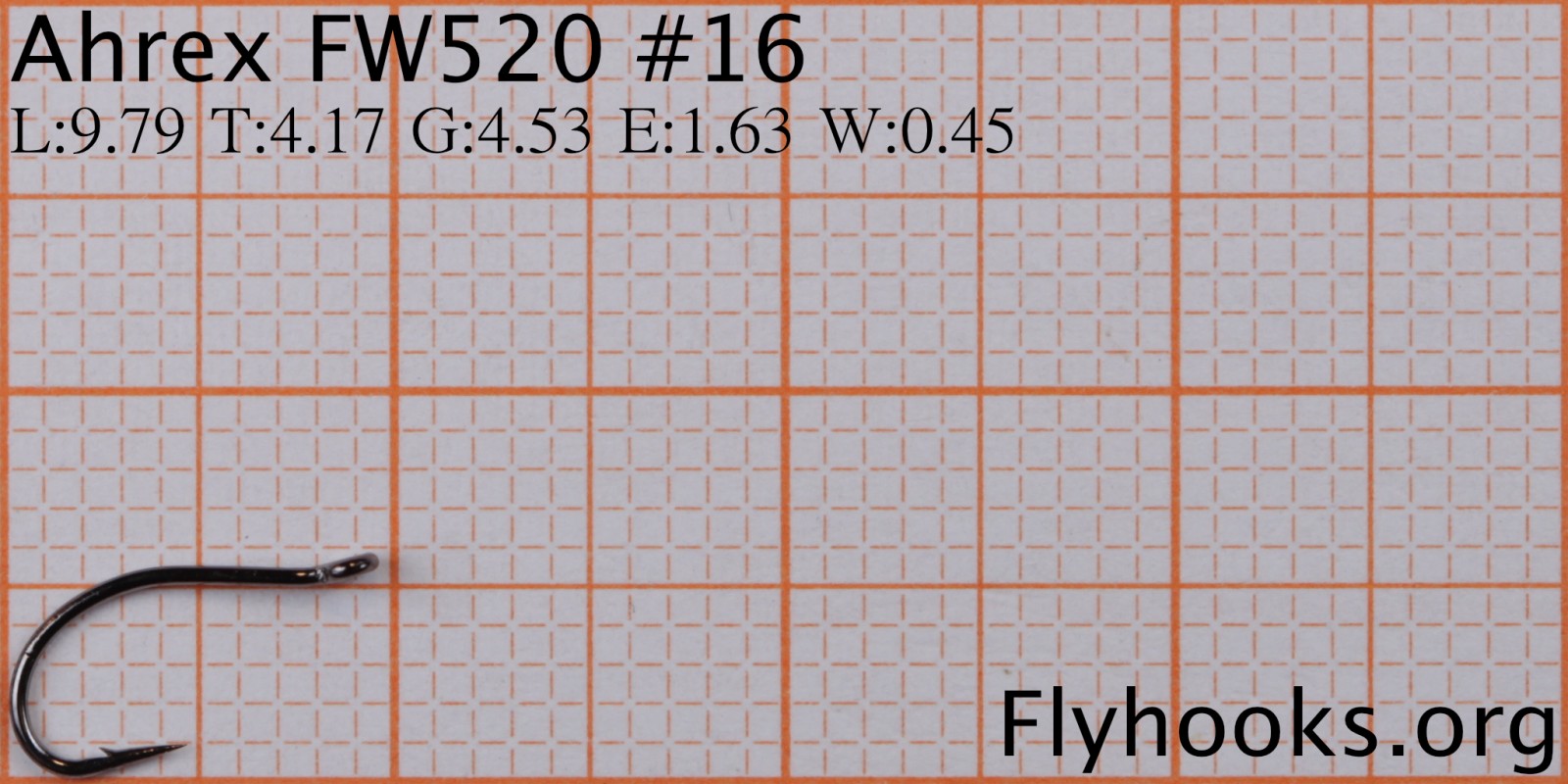

Length9.79 mm
Throat4.17 mm
Gape4.53 mm
Eye Width1.63 mm
Wire Thickness0.45 mm

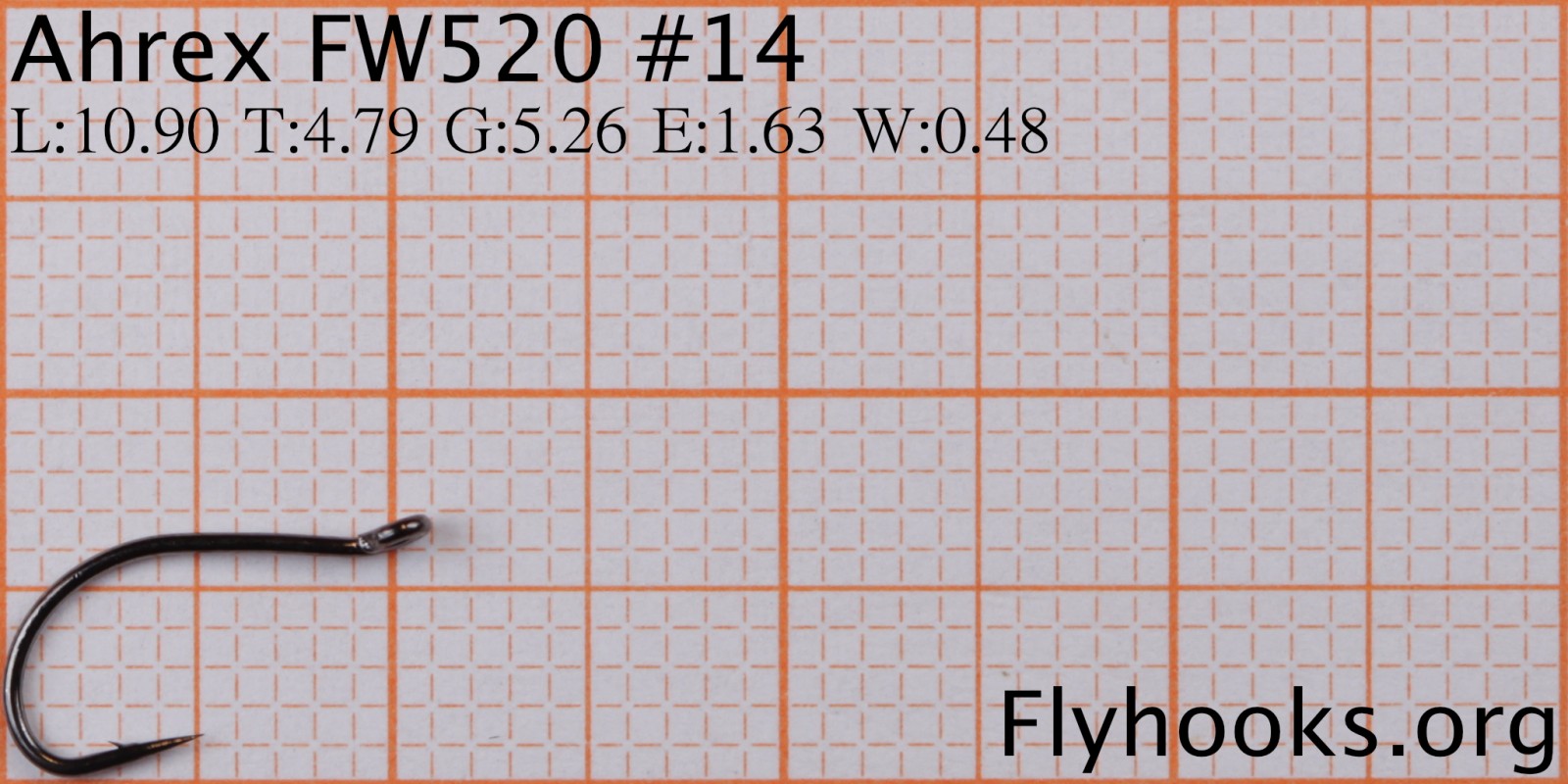

Length10.90 mm
Throat4.79 mm
Gape5.26 mm
Eye Width1.63 mm
Wire Thickness0.48 mm

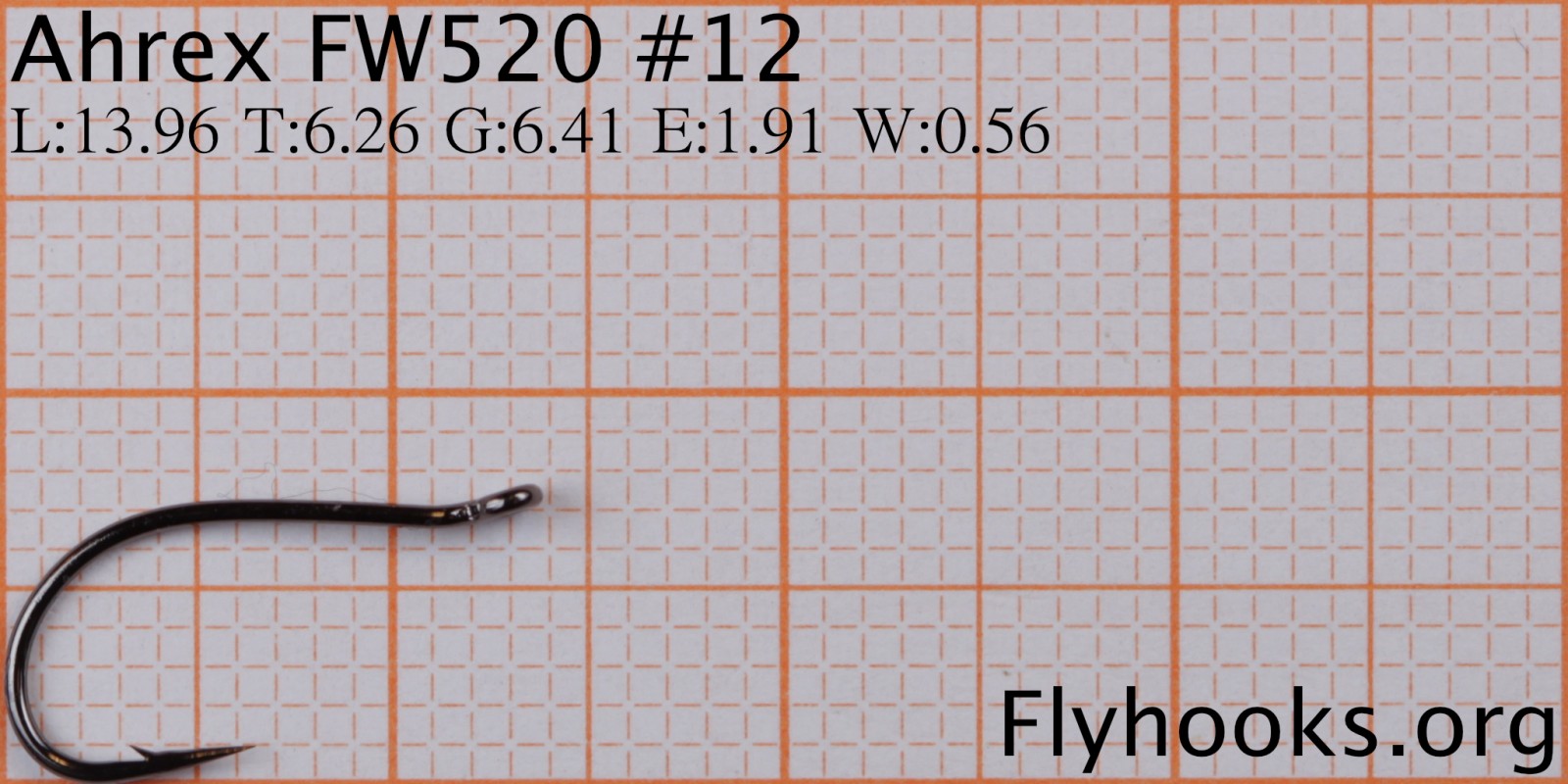

Length13.96 mm
Throat6.26 mm
Gape6.41 mm
Eye Width1.91 mm
Wire Thickness0.56 mm

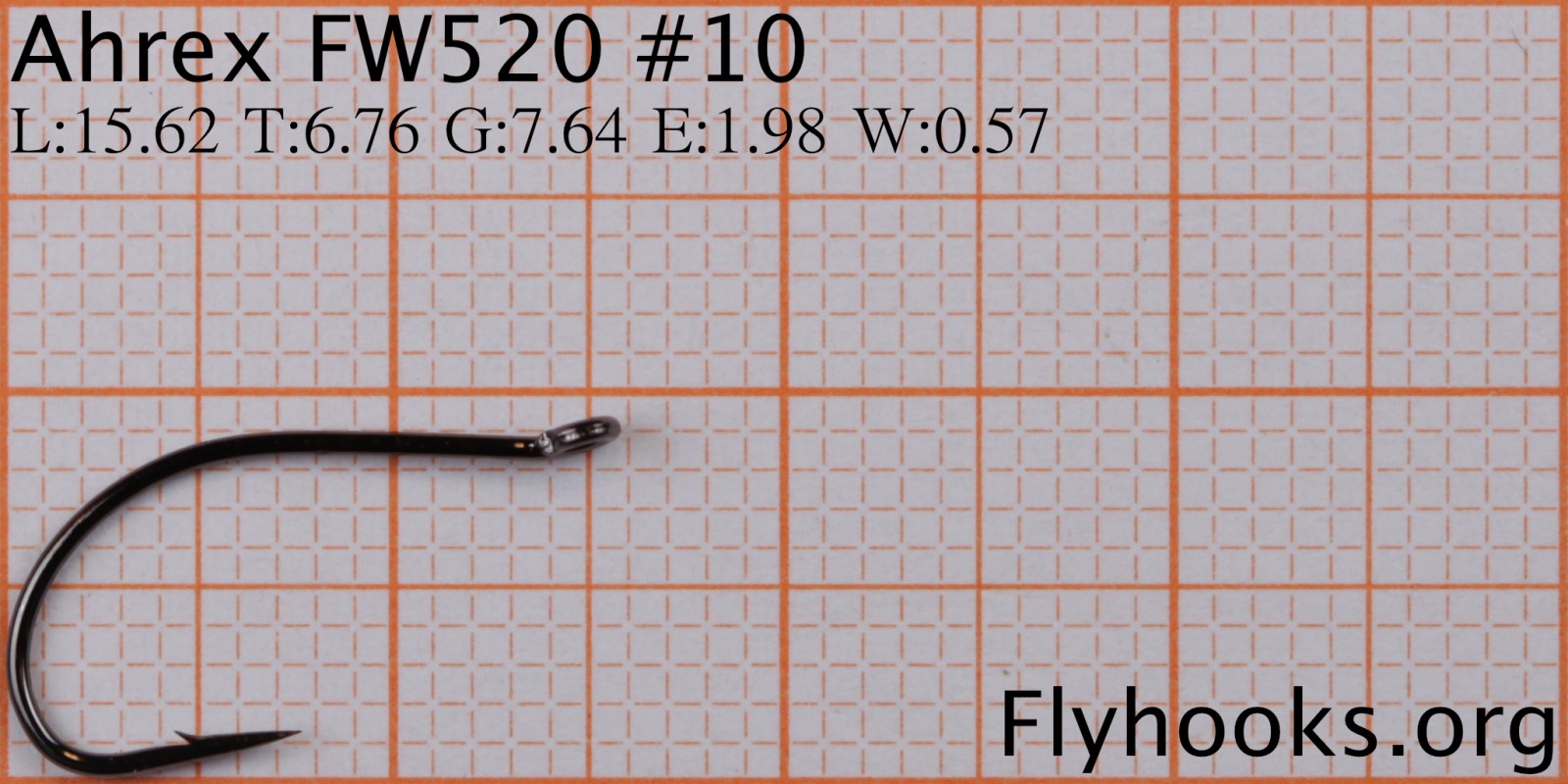

Length15.62 mm
Throat6.76 mm
Gape7.64 mm
Eye Width1.98 mm
Wire Thickness0.57 mm

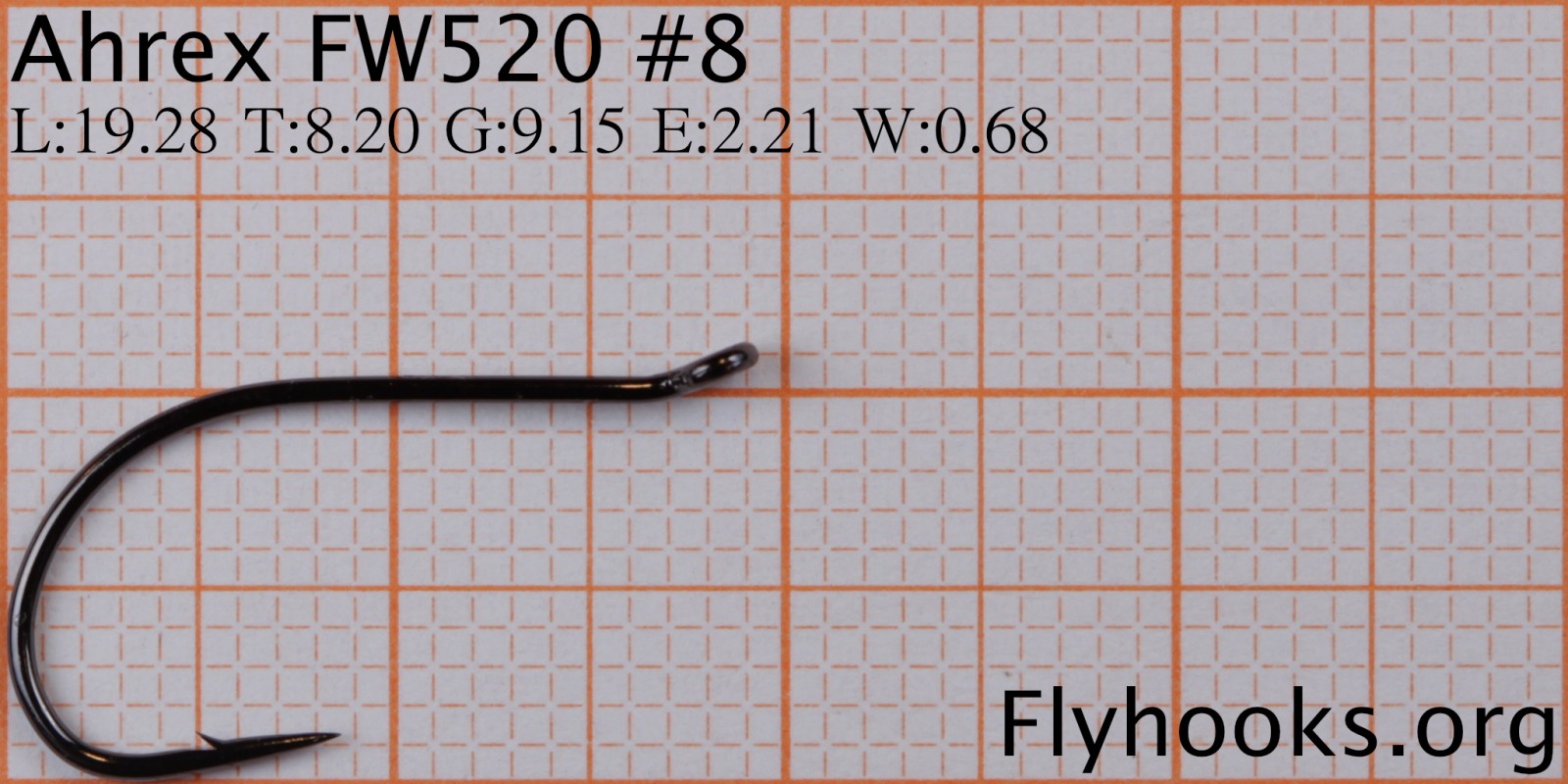

Length19.28 mm
Throat8.20 mm
Gape9.15 mm
Eye Width2.21 mm
Wire Thickness0.68 mm

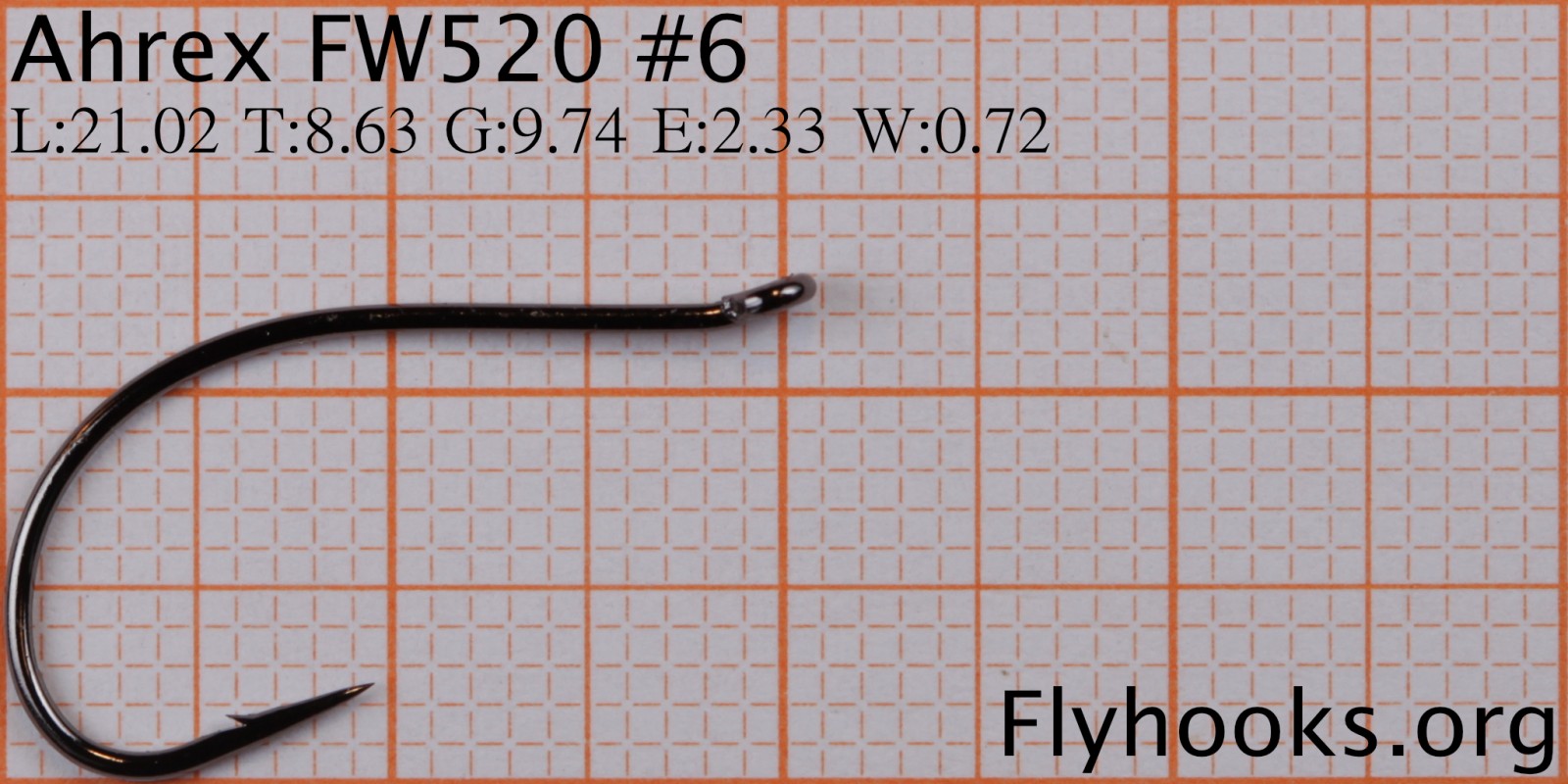

Length21.02 mm
Throat8.63 mm
Gape9.74 mm
Eye Width2.33 mm
Wire Thickness0.72 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 AK751BL 8.86 -> 8.43   4.18 -> 4.02 4.04 -> 4.18 0.41 -> 0.42
18 Nymph 8.86 -> 9.53   4.18 -> 4.11 4.04 -> 4.37 0.41 -> 0.48
18 H250BL 8.86 -> 9.83   4.18 -> 4.57 4.04 -> 4.63 0.41 -> 0.47
18 BL 120 8.86 -> 9.99   4.18 -> 4.42 4.04 -> 4.57 0.41 -> 0.39
16 FW 510 - Curved Dry 9.79 -> 9.39   4.53 -> 4.59 4.17 -> 4.75 0.45 -> 0.45
16 TMC206BL 9.79 -> 9.39   4.53 -> 4.36 4.17 -> 4.48 0.45 -> 0.39
16 250BL 9.79 -> 9.43   4.53 -> 4.40 4.17 -> 4.51 0.45 -> 0.33
16 YK4AL 9.79 -> 9.48   4.53 -> 4.92 4.17 -> 4.38 0.45 -> 0.38
16 FW 511 9.79 -> 9.57   4.53 -> 4.48 4.17 -> 4.75 0.45 -> 0.45
16 FW 521 9.79 -> 9.65   4.53 -> 4.62 4.17 -> 4.03 0.45 -> 0.45
16 TMC113BLH 9.79 -> 9.69   4.53 -> 4.34 4.17 -> 4.16 0.45 -> 0.47
16 AK751BL 9.79 -> 9.76   4.53 -> 4.85 4.17 -> 4.76 0.45 -> 0.44
16 H550BL 9.79 -> 9.87   4.53 -> 4.80 4.17 -> 4.47 0.45 -> 0.45
16 H400BL 9.79 -> 9.96   4.53 -> 4.34 4.17 -> 4.71 0.45 -> 0.48
16 H470BL 9.79 -> 9.97   4.53 -> 4.46 4.17 -> 4.71 0.45 -> 0.45
16 HDA 254 9.79 -> 10.04   4.53 -> 4.64 4.17 -> 4.73 0.45 -> 0.33
16 H130BL 9.79 -> 10.12   4.53 -> 4.35 4.17 -> 4.20 0.45 -> 0.38
16 H280BL 9.79 -> 10.31   4.53 -> 4.42 4.17 -> 4.79 0.45 -> 0.48
16 C 214 9.79 -> 10.33   4.53 -> 4.33 4.17 -> 4.34 0.45 -> 0.37
16 220BL 9.79 -> 10.49   4.53 -> 4.43 4.17 -> 4.50 0.45 -> 0.38
16 Nymph 9.79 -> 10.73   4.53 -> 4.50 4.17 -> 4.65 0.45 -> 0.50
16 HDN 302 SPR 9.79 -> 10.76   4.53 -> 4.74 4.17 -> 4.62 0.45 -> 0.32
14 B110 Grubber 10.90 -> 10.65   5.26 -> 5.38 4.79 -> 5.09 0.48 -> 0.57
14 TMC2487 10.90 -> 10.76   5.26 -> 5.23 4.79 -> 4.77 0.48 -> 0.55
14 HDG 644 10.90 -> 10.90   5.26 -> 5.34 4.79 -> 5.45 0.48 -> 0.41
14 AK539BL 10.90 -> 10.92   5.26 -> 5.05 4.79 -> 5.30 0.48 -> 0.44
14 L3A,TDH - The Dry 10.90 -> 10.97   5.26 -> 5.12 4.79 -> 5.48 0.48 -> 0.43
14 TMC206BL 10.90 -> 11.08   5.26 -> 5.19 4.79 -> 5.47 0.48 -> 0.43
14 250BL 10.90 -> 11.19   5.26 -> 5.70 4.79 -> 5.19 0.48 -> 0.37
14 FW 521 10.90 -> 11.28   5.26 -> 5.13 4.79 -> 4.90 0.48 -> 0.49
14 H133BL 10.90 -> 11.35   5.26 -> 5.06 4.79 -> 4.56 0.48 -> 0.44
14 BL 154 10.90 -> 11.42   5.26 -> 5.10 4.79 -> 5.21 0.48 -> 0.44
14 C 214 10.90 -> 11.69   5.26 -> 5.01 4.79 -> 5.09 0.48 -> 0.44
14 H280BL 10.90 -> 11.87   5.26 -> 5.39 4.79 -> 5.44 0.48 -> 0.54
14 H470BL 10.90 -> 11.90   5.26 -> 5.18 4.79 -> 5.03 0.48 -> 0.48
14 DGE 300 BL 10.90 -> 11.95   5.26 -> 5.51 4.79 -> 5.41 0.48 -> 0.51
14 H450BL 10.90 -> 11.99   5.26 -> 5.69 4.79 -> 5.44 0.48 -> 0.53
14 Nymph 10.90 -> 12.05   5.26 -> 5.18 4.79 -> 5.31 0.48 -> 0.57
14 1250 10.90 -> 12.10   5.26 -> 5.29 4.79 -> 4.60 0.48 -> 0.43
14 H550BL 10.90 -> 12.21   5.26 -> 5.45 4.79 -> 5.13 0.48 -> 0.51
14 P 10.90 -> 12.25   5.26 -> 5.00 4.79 -> 5.13 0.48 -> 0.44
14 HDJ 10.90 -> 12.42   5.26 -> 5.23 4.79 -> 5.46 0.48 -> 0.47
12 AK751BL 13.96 -> 13.42   6.41 -> 6.80 6.26 -> 6.12 0.56 -> 0.53
12 FW 521 13.96 -> 13.48   6.41 -> 6.27 6.26 -> 6.04 0.56 -> 0.56
12 HDJ 13.96 -> 13.68   6.41 -> 6.19 6.26 -> 6.78 0.56 -> 0.49
12 BL 454 13.96 -> 13.69   6.41 -> 6.58 6.26 -> 6.12 0.56 -> 0.52
12 H450BL 13.96 -> 13.70   6.41 -> 7.01 6.26 -> 6.24 0.56 -> 0.62
12 Br 2140 13.96 -> 13.79   6.41 -> 6.18 6.26 -> 5.97 0.56 -> 0.51
12 H490BL 13.96 -> 13.83   6.41 -> 6.75 6.26 -> 6.39 0.56 -> 0.69
12 HDB 13.96 -> 14.17   6.41 -> 7.10 6.26 -> 6.96 0.56 -> 0.69
12 31160 13.96 -> 14.18   6.41 -> 7.27 6.26 -> 6.51 0.56 -> 0.60
12 G 13.96 -> 14.22   6.41 -> 6.34 6.26 -> 6.67 0.56 -> 0.53
12 H280BL 13.96 -> 14.23   6.41 -> 6.27 6.26 -> 6.15 0.56 -> 0.55
12 H550BL 13.96 -> 14.26   6.41 -> 6.63 6.26 -> 6.61 0.56 -> 0.55
12 AK755BL 13.96 -> 14.87   6.41 -> 6.63 6.26 -> 7.05 0.56 -> 0.48
12 15BNX - Klinkhamer X-Treme 13.96 -> 15.35   6.41 -> 7.27 6.26 -> 6.85 0.56 -> 0.61
12 FW 530 - Sedge/Caddis 13.96 -> 15.91   6.41 -> 6.23 6.26 -> 6.46 0.56 -> 0.56
10 14723 BL 15.62 -> 15.27   7.64 -> 7.26 6.76 -> 7.44 0.57 -> 0.55
10 AK751BL 15.62 -> 15.41   7.64 -> 7.45 6.76 -> 6.94 0.57 -> 0.59
10 FW 521 15.62 -> 15.62   7.64 -> 7.42 6.76 -> 6.51 0.57 -> 0.59
10 HDG 611 15.62 -> 15.88   7.64 -> 7.85 6.76 -> 7.40 0.57 -> 0.62
10 H450BL 15.62 -> 15.96   7.64 -> 7.95 6.76 -> 7.12 0.57 -> 0.68
10 H490BL 15.62 -> 16.05   7.64 -> 7.48 6.76 -> 7.34 0.57 -> 0.71
10 G 15.62 -> 16.98   7.64 -> 8.11 6.76 -> 7.38 0.57 -> 0.58
8 AK755BL 19.28 -> 18.36   9.15 -> 8.92 8.20 -> 9.28 0.68 -> 0.64
8 G 19.28 -> 18.46   9.15 -> 8.95 8.20 -> 8.10 0.68 -> 0.65
8 FW 541 19.28 -> 18.74   9.15 -> 8.84 8.20 -> 8.92 0.68 -> 0.77
8 FW 540 - Curved Nymph 19.28 -> 18.93   9.15 -> 8.98 8.20 -> 8.86 0.68 -> 0.77
8 FW 521 19.28 -> 19.42   9.15 -> 8.79 8.20 -> 8.37 0.68 -> 0.67
8 2255 19.28 -> 21.73   9.15 -> 10.31 8.20 -> 8.65 0.68 -> 0.92
6 FW 521 21.02 -> 21.16   9.74 -> 9.74 8.63 -> 8.63 0.72 -> 0.72
6 FW 540 - Curved Nymph 21.02 -> 21.48   9.74 -> 10.12 8.63 -> 9.73 0.72 -> 0.90
6 M2050 21.02 -> 23.41   9.74 -> 10.27 8.63 -> 9.65 0.72 -> 0.97
