Ahrex: FW 541

Company Ahrex
www ahrexhooks.com
Type Single
Eye Position Turned down
Shank Style Curved
Barb Barbless
Color Black Nickel
Usages Nymph
Trout
Grayling
Freshwater
Scud
Sizes 16 14 12 10 8 6

Sizes

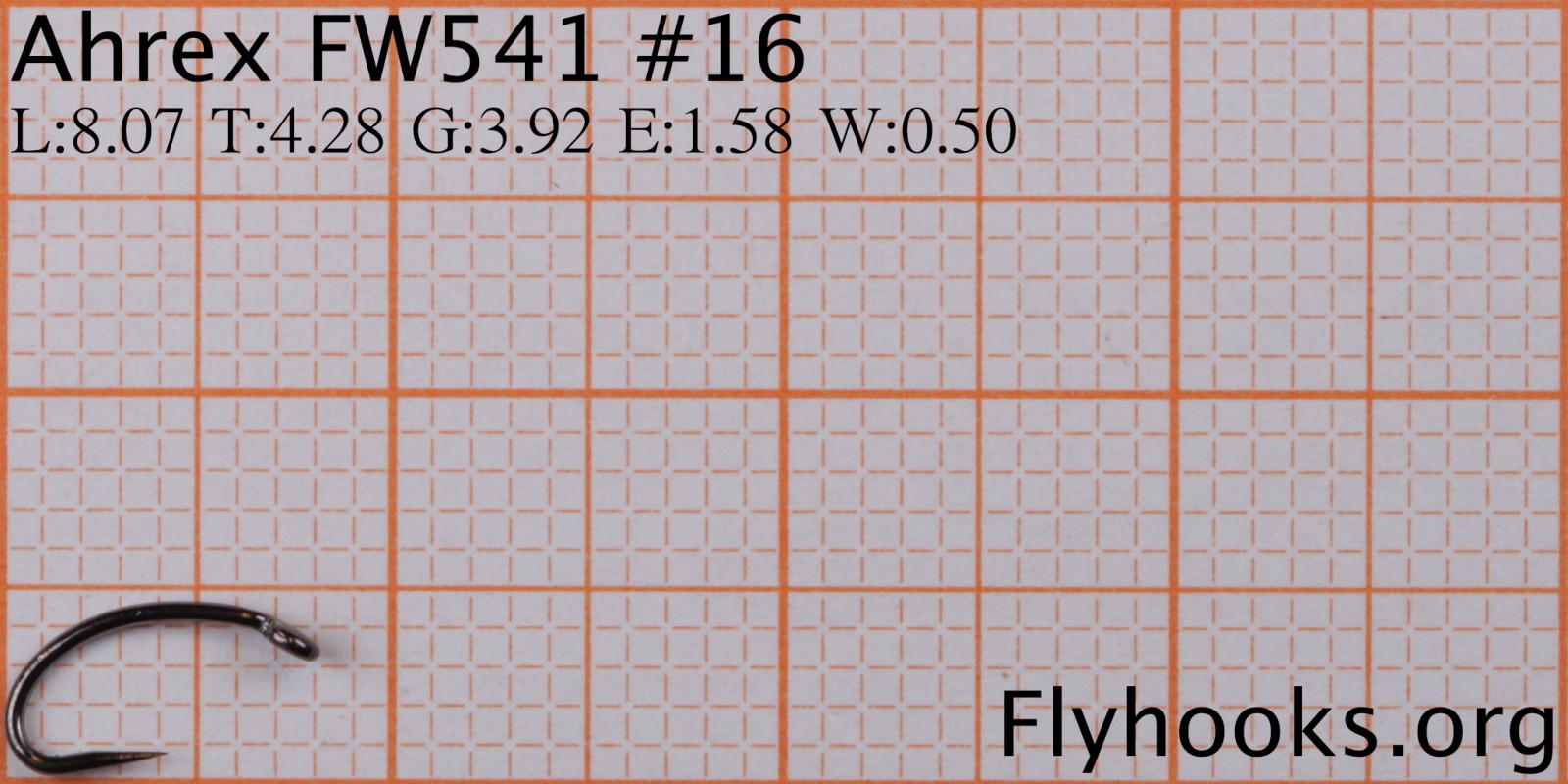

Length8.07 mm
Throat4.28 mm
Gape3.92 mm
Eye Width1.58 mm
Wire Thickness0.50 mm

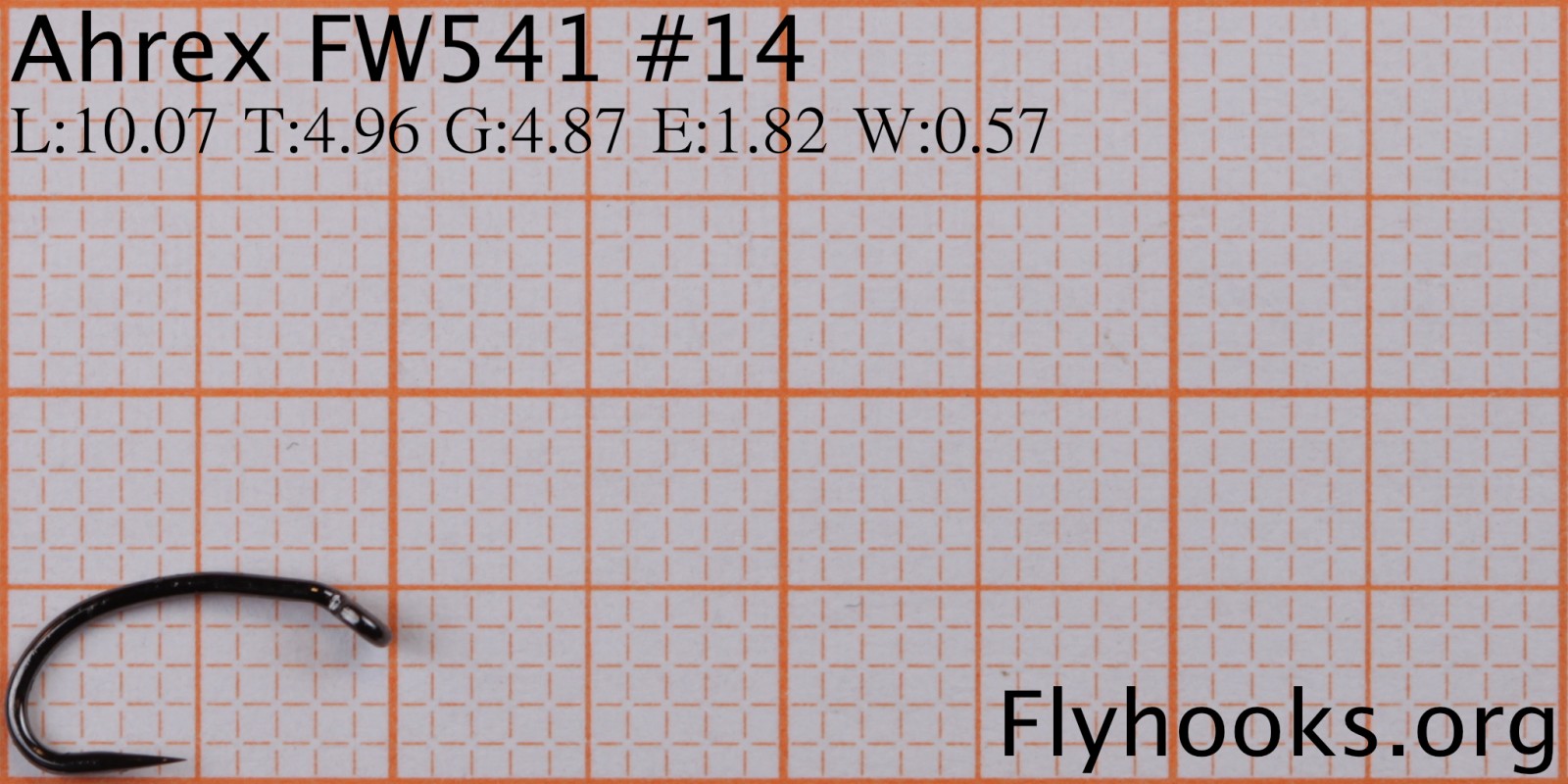

Length10.07 mm
Throat4.96 mm
Gape4.87 mm
Eye Width1.82 mm
Wire Thickness0.57 mm

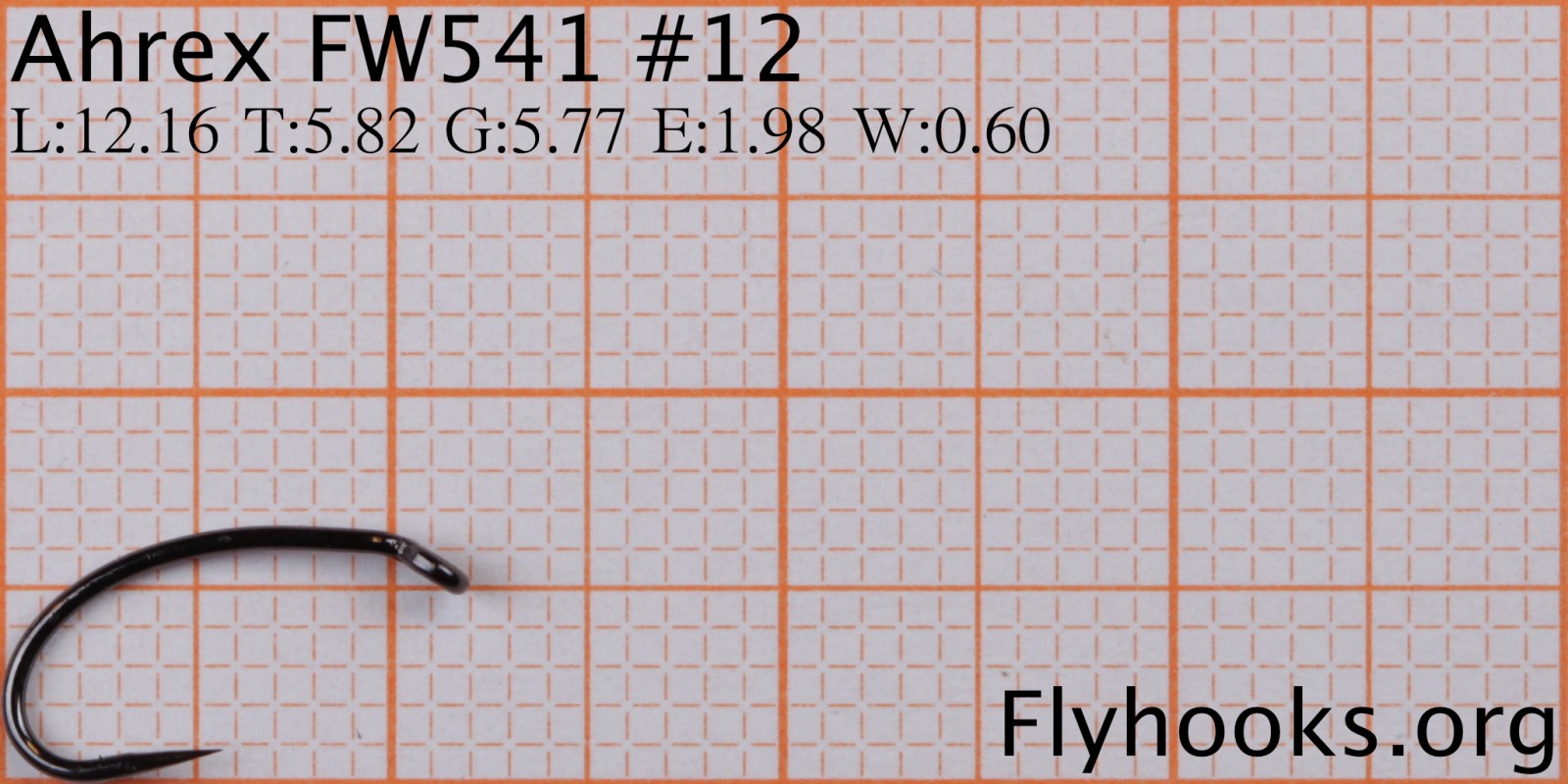

Length12.16 mm
Throat5.82 mm
Gape5.77 mm
Eye Width1.98 mm
Wire Thickness0.60 mm

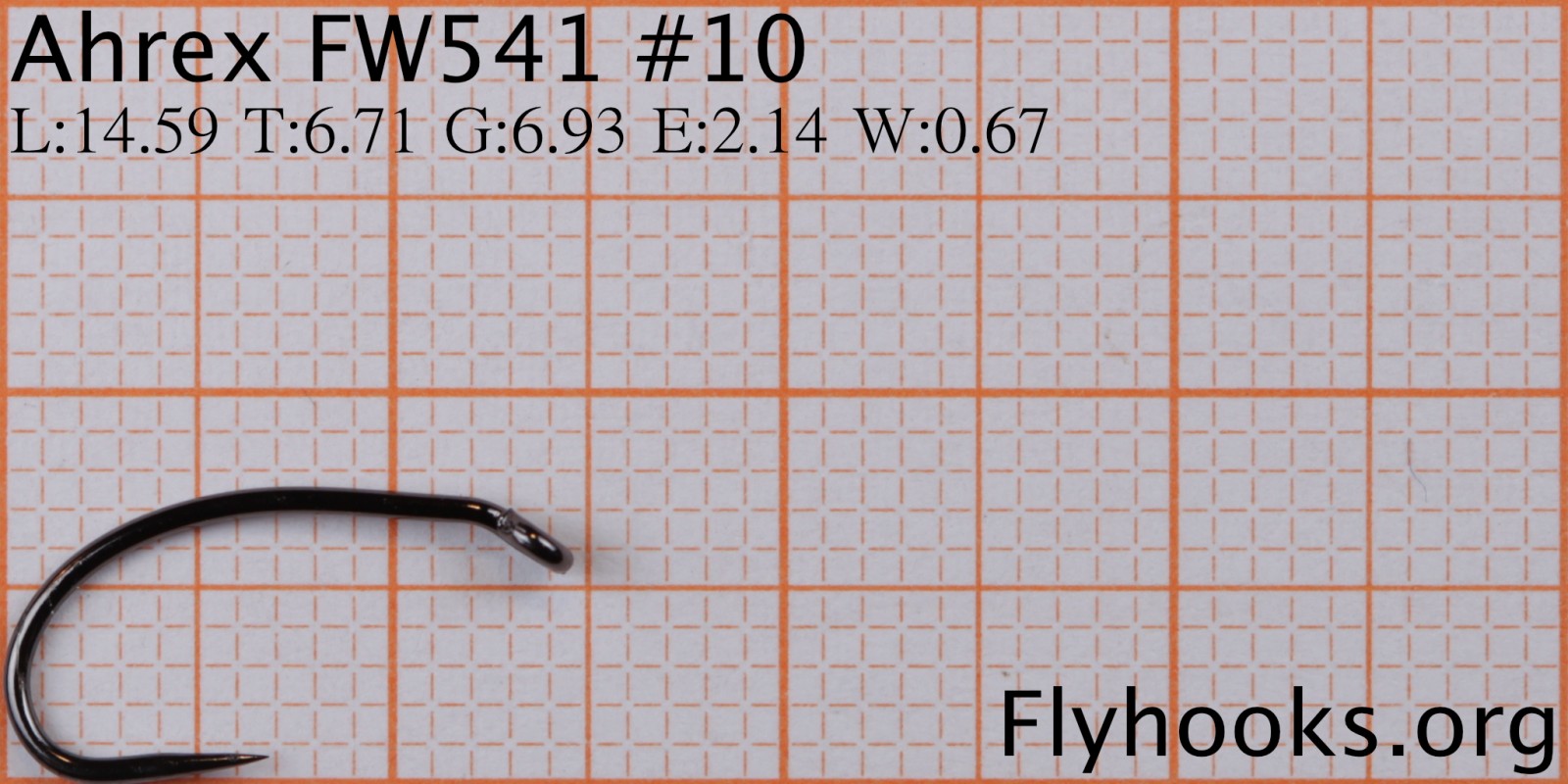

Length14.59 mm
Throat6.71 mm
Gape6.93 mm
Eye Width2.14 mm
Wire Thickness0.67 mm

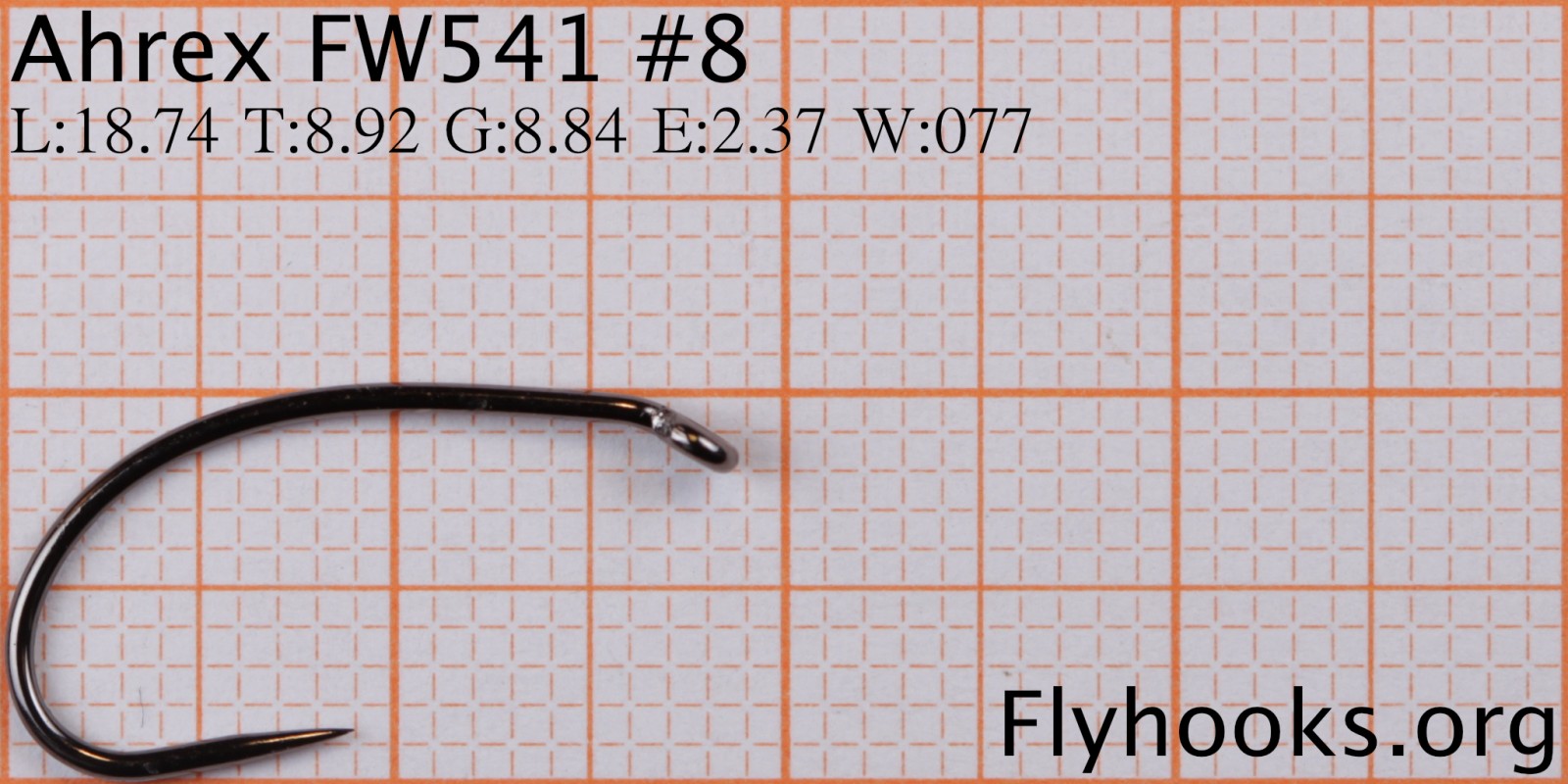

Length18.74 mm
Throat8.92 mm
Gape8.84 mm
Eye Width2.37 mm
Wire Thickness0.77 mm

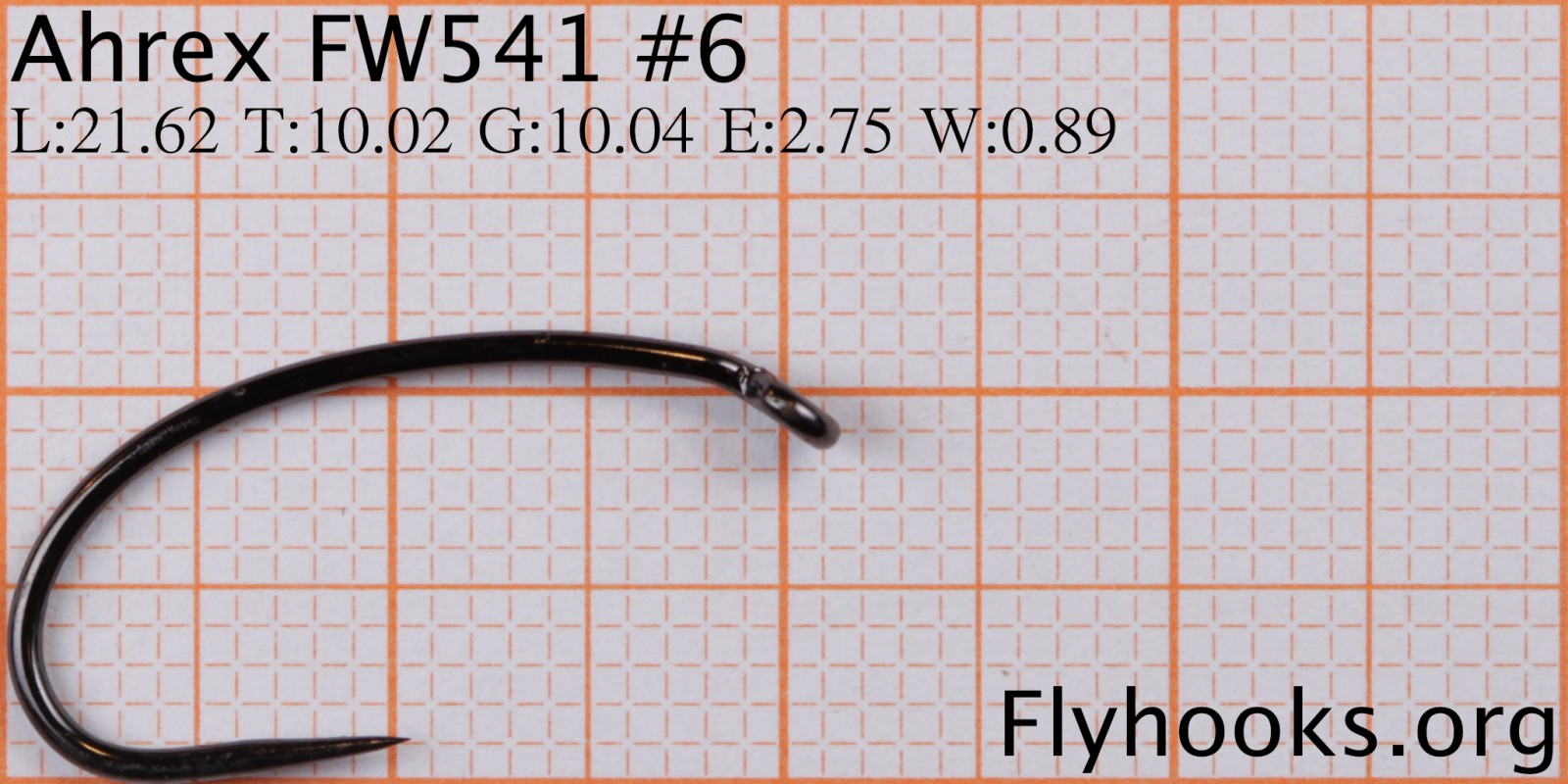

Length21.62 mm
Throat10.02 mm
Gape10.04 mm
Eye Width2.75 mm
Wire Thickness0.89 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 FW 540 - Curved Nymph 8.07 -> 7.96   3.92 -> 3.91 4.28 -> 4.23 0.50 -> 0.50
16 Emerger 8.07 -> 8.09   3.92 -> 4.44 4.28 -> 4.24 0.50 -> 0.39
16 125 8.07 -> 8.11   3.92 -> 4.24 4.28 -> 4.44 0.50 -> 0.39
16 C 251 8.07 -> 8.28   3.92 -> 4.28 4.28 -> 4.54 0.50 -> 0.34
16 900 BL 8.07 -> 8.32   3.92 -> 4.17 4.28 -> 4.17 0.50 -> 0.36
16 C46 8.07 -> 8.41   3.92 -> 4.11 4.28 -> 4.17 0.50 -> 0.40
16 AK539BL 8.07 -> 8.42   3.92 -> 4.25 4.28 -> 4.58 0.50 -> 0.39
16 H260BL 8.07 -> 8.43   3.92 -> 4.24 4.28 -> 4.40 0.50 -> 0.47
16 TMC2488 8.07 -> 8.46   3.92 -> 4.23 4.28 -> 4.13 0.50 -> 0.35
16 80250BR 8.07 -> 8.57   3.92 -> 4.14 4.28 -> 4.57 0.50 -> 0.40
16 TMC2457 8.07 -> 8.57   3.92 -> 4.15 4.28 -> 4.30 0.50 -> 0.47
16 TMC508 8.07 -> 8.63   3.92 -> 3.90 4.28 -> 4.47 0.50 -> 0.39
16 79589 8.07 -> 8.67   3.92 -> 3.74 4.28 -> 4.69 0.50 -> 0.38
16 H270BL 8.07 -> 8.68   3.92 -> 4.12 4.28 -> 4.25 0.50 -> 0.45
16 C49S 8.07 -> 8.77   3.92 -> 4.12 4.28 -> 4.14 0.50 -> 0.37
16 H333BL 8.07 -> 8.80   3.92 -> 3.99 4.28 -> 4.15 0.50 -> 0.43
16 H530BL 8.07 -> 8.93   3.92 -> 4.15 4.28 -> 4.42 0.50 -> 0.42
14 520BL 10.07 -> 9.62   4.87 -> 5.17 4.96 -> 5.20 0.57 -> 0.38
14 TMC111 10.07 -> 9.66   4.87 -> 5.09 4.96 -> 4.98 0.57 -> 0.48
14 C 251 10.07 -> 9.75   4.87 -> 5.15 4.96 -> 4.90 0.57 -> 0.44
14 125 10.07 -> 9.77   4.87 -> 4.79 4.96 -> 5.21 0.57 -> 0.44
14 H530BL 10.07 -> 9.82   4.87 -> 4.80 4.96 -> 4.72 0.57 -> 0.45
14 R48 10.07 -> 9.84   4.87 -> 4.94 4.96 -> 4.93 0.57 -> 0.45
14 H333BL 10.07 -> 9.87   4.87 -> 4.75 4.96 -> 4.74 0.57 -> 0.46
14 135 10.07 -> 9.91   4.87 -> 5.17 4.96 -> 4.99 0.57 -> 0.51
14 FW 540 - Curved Nymph 10.07 -> 9.91   4.87 -> 4.82 4.96 -> 5.17 0.57 -> 0.59
14 590BL 10.07 -> 9.92   4.87 -> 5.14 4.96 -> 5.68 0.57 -> 0.48
14 Scud 10.07 -> 9.94   4.87 -> 5.16 4.96 -> 4.98 0.57 -> 0.43
14 TMC2488 10.07 -> 9.98   4.87 -> 4.92 4.96 -> 5.12 0.57 -> 0.47
14 HDG 645 10.07 -> 10.00   4.87 -> 5.56 4.96 -> 5.37 0.57 -> 0.47
14 80250BR 10.07 -> 10.03   4.87 -> 5.01 4.96 -> 5.17 0.57 -> 0.54
14 Emerger 10.07 -> 10.04   4.87 -> 4.77 4.96 -> 5.06 0.57 -> 0.45
14 H260BL 10.07 -> 10.06   4.87 -> 4.85 4.96 -> 5.28 0.57 -> 0.51
14 TMC2457 10.07 -> 10.15   4.87 -> 5.29 4.96 -> 5.01 0.57 -> 0.51
14 80200BR 10.07 -> 10.27   4.87 -> 5.13 4.96 -> 5.27 0.57 -> 0.51
14 L3A/S - Spider 10.07 -> 10.29   4.87 -> 5.05 4.96 -> 5.38 0.57 -> 0.41
14 H270BL 10.07 -> 10.33   4.87 -> 5.12 4.96 -> 5.17 0.57 -> 0.50
14 B110 Grubber 10.07 -> 10.65   4.87 -> 5.38 4.96 -> 5.09 0.57 -> 0.57
14 L 10.07 -> 10.69   4.87 -> 4.74 4.96 -> 5.29 0.57 -> 0.49
14 FW 511 10.07 -> 10.75   4.87 -> 5.11 4.96 -> 5.64 0.57 -> 0.50
14 TMC2487 10.07 -> 10.76   4.87 -> 5.23 4.96 -> 4.77 0.57 -> 0.55
14 H360BL 10.07 -> 10.83   4.87 -> 4.63 4.96 -> 5.31 0.57 -> 0.43
14 FW 520 - Emerger 10.07 -> 10.90   4.87 -> 5.26 4.96 -> 4.79 0.57 -> 0.48
14 HDG 644 10.07 -> 10.90   4.87 -> 5.34 4.96 -> 5.45 0.57 -> 0.41
14 AK539BL 10.07 -> 10.92   4.87 -> 5.05 4.96 -> 5.30 0.57 -> 0.44
14 L3A,TDH - The Dry 10.07 -> 10.97   4.87 -> 5.12 4.96 -> 5.48 0.57 -> 0.43
14 Dry Fly 10.07 -> 10.99   4.87 -> 4.74 4.96 -> 4.79 0.57 -> 0.45
14 TMC206BL 10.07 -> 11.08   4.87 -> 5.19 4.96 -> 5.47 0.57 -> 0.43
14 c47 10.07 -> 11.11   4.87 -> 4.77 4.96 -> 5.19 0.57 -> 0.44
14 AK706BL 10.07 -> 11.27   4.87 -> 4.69 4.96 -> 5.23 0.57 -> 0.44
14 FW 521 10.07 -> 11.28   4.87 -> 5.13 4.96 -> 4.90 0.57 -> 0.49
14 SLD - Patriot Fine Dry 10.07 -> 11.38   4.87 -> 4.86 4.96 -> 4.75 0.57 -> 0.43
14 BL 154 10.07 -> 11.42   4.87 -> 5.10 4.96 -> 5.21 0.57 -> 0.44
14 94840 10.07 -> 11.42   4.87 -> 4.77 4.96 -> 5.09 0.57 -> 0.44
14 H130BL 10.07 -> 11.46   4.87 -> 4.79 4.96 -> 4.80 0.57 -> 0.40
14 11011 BL 10.07 -> 11.48   4.87 -> 4.78 4.96 -> 4.83 0.57 -> 0.38
14 R50XNP-BR 10.07 -> 11.51   4.87 -> 4.63 4.96 -> 5.45 0.57 -> 0.46
14 Br 103 10.07 -> 11.58   4.87 -> 4.71 4.96 -> 4.83 0.57 -> 0.40
12 AK711BL 12.16 -> 11.58   5.77 -> 6.37 5.82 -> 6.59 0.60 -> 0.59
12 Scud 12.16 -> 11.60   5.77 -> 5.97 5.82 -> 5.65 0.60 -> 0.56
12 C 251 12.16 -> 11.61   5.77 -> 6.23 5.82 -> 5.88 0.60 -> 0.54
12 HDG 645 12.16 -> 11.68   5.77 -> 6.29 5.82 -> 5.97 0.60 -> 0.58
12 H330BL 12.16 -> 11.72   5.77 -> 5.58 5.82 -> 5.58 0.60 -> 0.48
12 TMC2457 12.16 -> 11.74   5.77 -> 5.98 5.82 -> 5.70 0.60 -> 0.58
12 L3A/S - Spider 12.16 -> 11.96   5.77 -> 5.78 5.82 -> 6.06 0.60 -> 0.46
12 H333BL 12.16 -> 11.97   5.77 -> 5.76 5.82 -> 5.58 0.60 -> 0.52
12 AK708 12.16 -> 12.00   5.77 -> 5.59 5.82 -> 5.78 0.60 -> 0.61
12 Carp 12.16 -> 12.01   5.77 -> 6.41 5.82 -> 5.95 0.60 -> 0.66
12 H260BL 12.16 -> 12.06   5.77 -> 6.26 5.82 -> 6.05 0.60 -> 0.60
12 TMC2488 12.16 -> 12.19   5.77 -> 6.26 5.82 -> 5.90 0.60 -> 0.51
12 B110 Grubber 12.16 -> 12.67   5.77 -> 6.10 5.82 -> 5.73 0.60 -> 0.61
12 T206BL 12.16 -> 12.73   5.77 -> 5.87 5.82 -> 6.23 0.60 -> 0.47
12 HDA 254 12.16 -> 12.78   5.77 -> 6.40 5.82 -> 6.26 0.60 -> 0.42
12 w10 12.16 -> 12.82   5.77 -> 5.79 5.82 -> 5.53 0.60 -> 0.60
12 H360BL 12.16 -> 12.83   5.77 -> 6.09 5.82 -> 6.28 0.60 -> 0.47
12 AK881 12.16 -> 12.83   5.77 -> 5.86 5.82 -> 5.73 0.60 -> 0.60
12 c47 12.16 -> 12.90   5.77 -> 5.90 5.82 -> 6.13 0.60 -> 0.51
12 H250BL 12.16 -> 12.90   5.77 -> 6.13 5.82 -> 6.00 0.60 -> 0.62
12 250BL 12.16 -> 12.97   5.77 -> 6.33 5.82 -> 6.26 0.60 -> 0.43
12 C 214 12.16 -> 12.98   5.77 -> 5.64 5.82 -> 5.55 0.60 -> 0.48
12 130BL 12.16 -> 13.11   5.77 -> 5.82 5.82 -> 5.57 0.60 -> 0.48
12 HDU 12.16 -> 13.23   5.77 -> 6.31 5.82 -> 6.62 0.60 -> 0.60
12 W145 12.16 -> 13.25   5.77 -> 5.71 5.82 -> 5.86 0.60 -> 0.42
12 H480BL 12.16 -> 13.39   5.77 -> 6.00 5.82 -> 6.39 0.60 -> 0.61
12 HDG 611 12.16 -> 13.41   5.77 -> 6.60 5.82 -> 5.57 0.60 -> 0.48
12 R90 12.16 -> 13.43   5.77 -> 5.88 5.82 -> 6.57 0.60 -> 0.68
12 HDN 302 12.16 -> 13.44   5.77 -> 5.82 5.82 -> 6.19 0.60 -> 0.52
12 11011 BL 12.16 -> 13.45   5.77 -> 5.61 5.82 -> 5.91 0.60 -> 0.42
12 R50XNP-BR 12.16 -> 13.48   5.77 -> 5.62 5.82 -> 6.50 0.60 -> 0.54
12 FW 521 12.16 -> 13.48   5.77 -> 6.27 5.82 -> 6.04 0.60 -> 0.56
12 R70 - 7957 12.16 -> 13.53   5.77 -> 5.64 5.82 -> 5.61 0.60 -> 0.60
12 R50X-94845 12.16 -> 13.63   5.77 -> 5.51 5.82 -> 6.38 0.60 -> 0.53
12 H470BL 12.16 -> 13.67   5.77 -> 5.80 5.82 -> 6.37 0.60 -> 0.60
12 BL 454 12.16 -> 13.69   5.77 -> 6.58 5.82 -> 6.12 0.60 -> 0.52
12 Br 2140 12.16 -> 13.79   5.77 -> 6.18 5.82 -> 5.97 0.60 -> 0.51
12 HDN 302 SP 12.16 -> 13.87   5.77 -> 5.86 5.82 -> 6.37 0.60 -> 0.59
12 3901 12.16 -> 13.90   5.77 -> 5.85 5.82 -> 5.63 0.60 -> 0.64
12 FW 520 - Emerger 12.16 -> 13.96   5.77 -> 6.41 5.82 -> 6.26 0.60 -> 0.56
12 TMC9300 12.16 -> 13.98   5.77 -> 5.60 5.82 -> 5.69 0.60 -> 0.49
10 H333BL 14.59 -> 13.87   6.93 -> 7.00 6.71 -> 6.47 0.67 -> 0.57
10 C 251 14.59 -> 13.94   6.93 -> 7.19 6.71 -> 6.90 0.67 -> 0.62
10 H250BL 14.59 -> 14.01   6.93 -> 6.82 6.71 -> 6.98 0.67 -> 0.67
10 Carp 14.59 -> 14.01   6.93 -> 7.05 6.71 -> 6.53 0.67 -> 0.77
10 Scud 14.59 -> 14.17   6.93 -> 7.11 6.71 -> 6.97 0.67 -> 0.66
10 FW 540 - Curved Nymph 14.59 -> 14.17   6.93 -> 7.02 6.71 -> 6.83 0.67 -> 0.67
10 B110 Grubber 14.59 -> 14.18   6.93 -> 7.07 6.71 -> 6.61 0.67 -> 0.70
10 TMC2499SP-BL 14.59 -> 14.29   6.93 -> 7.54 6.71 -> 7.00 0.67 -> 0.61
10 DGE 300 BL 14.59 -> 14.41   6.93 -> 6.59 6.71 -> 6.88 0.67 -> 0.59
10 HDA 254 14.59 -> 14.78   6.93 -> 7.65 6.71 -> 7.04 0.67 -> 0.53
10 2410V 14.59 -> 15.14   6.93 -> 6.94 6.71 -> 6.77 0.67 -> 0.57
10 14723 BL 14.59 -> 15.27   6.93 -> 7.26 6.71 -> 7.44 0.67 -> 0.55
10 AK751BL 14.59 -> 15.41   6.93 -> 7.45 6.71 -> 6.94 0.67 -> 0.59
10 H360BL 14.59 -> 15.57   6.93 -> 7.15 6.71 -> 7.18 0.67 -> 0.55
10 FW 511 14.59 -> 15.59   6.93 -> 7.19 6.71 -> 7.71 0.67 -> 0.61
10 FW 521 14.59 -> 15.62   6.93 -> 7.42 6.71 -> 6.51 0.67 -> 0.59
10 FW 520 - Emerger 14.59 -> 15.62   6.93 -> 7.64 6.71 -> 6.76 0.67 -> 0.57
10 H470BL 14.59 -> 15.69   6.93 -> 6.80 6.71 -> 7.00 0.67 -> 0.65
10 H480BL 14.59 -> 15.77   6.93 -> 7.20 6.71 -> 6.79 0.67 -> 0.66
10 H200BL 14.59 -> 15.81   6.93 -> 6.78 6.71 -> 7.44 0.67 -> 0.66
10 HDG 611 14.59 -> 15.88   6.93 -> 7.85 6.71 -> 7.40 0.67 -> 0.62
10 H280BL 14.59 -> 15.92   6.93 -> 7.00 6.71 -> 6.91 0.67 -> 0.59
10 R70 - 7957 14.59 -> 15.95   6.93 -> 6.64 6.71 -> 6.84 0.67 -> 0.69
10 H450BL 14.59 -> 15.96   6.93 -> 7.95 6.71 -> 7.12 0.67 -> 0.68
10 H400BL 14.59 -> 15.97   6.93 -> 6.69 6.71 -> 6.91 0.67 -> 0.68
10 G3A/L - Wet Heavy Supreme 14.59 -> 16.03   6.93 -> 6.70 6.71 -> 7.26 0.67 -> 0.74
10 H490BL 14.59 -> 16.05   6.93 -> 7.48 6.71 -> 7.34 0.67 -> 0.71
10 R90 14.59 -> 16.08   6.93 -> 6.70 6.71 -> 7.33 0.67 -> 0.75
10 H230BL 14.59 -> 16.42   6.93 -> 6.82 6.71 -> 6.85 0.67 -> 0.61
10 TMC9300 14.59 -> 16.54   6.93 -> 6.69 6.71 -> 6.71 0.67 -> 0.56
8 HDB 18.74 -> 17.81   8.84 -> 8.48 8.92 -> 8.62 0.77 -> 0.74
8 AK755BL 18.74 -> 18.36   8.84 -> 8.92 8.92 -> 9.28 0.77 -> 0.64
8 FW 540 - Curved Nymph 18.74 -> 18.93   8.84 -> 8.98 8.92 -> 8.86 0.77 -> 0.77
8 M2030 18.74 -> 19.98   8.84 -> 9.36 8.92 -> 9.71 0.77 -> 0.87
6 FW 540 - Curved Nymph 21.62 -> 21.48   10.04 -> 10.12 10.02 -> 9.73 0.89 -> 0.90
6 M2030 21.62 -> 22.60   10.04 -> 10.05 10.02 -> 10.07 0.89 -> 0.97
6 SS-7711 21.62 -> 22.81   10.04 -> 9.92 10.02 -> 10.79 0.89 -> 1.07
6 TMC800S 21.62 -> 23.17   10.04 -> 10.49 10.02 -> 10.74 0.89 -> 1.06
6 M2050 21.62 -> 23.41   10.04 -> 10.27 10.02 -> 9.65 0.89 -> 0.97
6 H900BL 21.62 -> 23.82   10.04 -> 10.20 10.02 -> 11.10 0.89 -> 0.96
