Ahrex: FW 560 - Traditional Nymph

Company	Ahrex
Type	Single
Eye	Ringed eye
Eye Position	Turned down
Shank Style	Straigth
Barb	Microbarb
Color	Black Nickel
Usages	Wet Streamer Caddis Nymph Trout Grayling Freshwater Soft Hackle
Sizes	18 16 14 12 10 8

Sizes

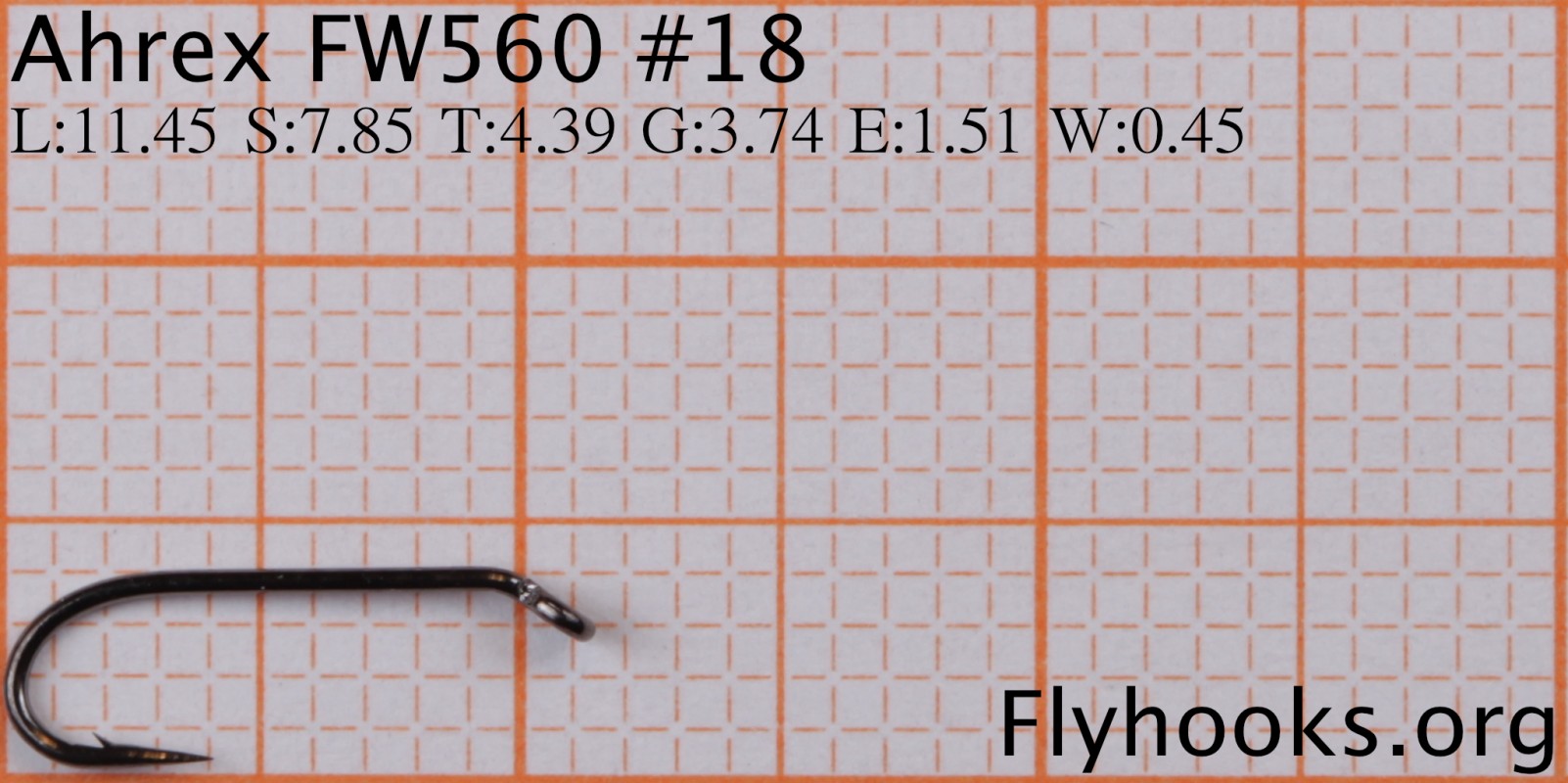

Length	11.45 mm
Shank Length	7.85 mm
Throat	4.39 mm
Gape	3.74 mm
Eye Width	1.51 mm
Wire Thickness	0.45 mm

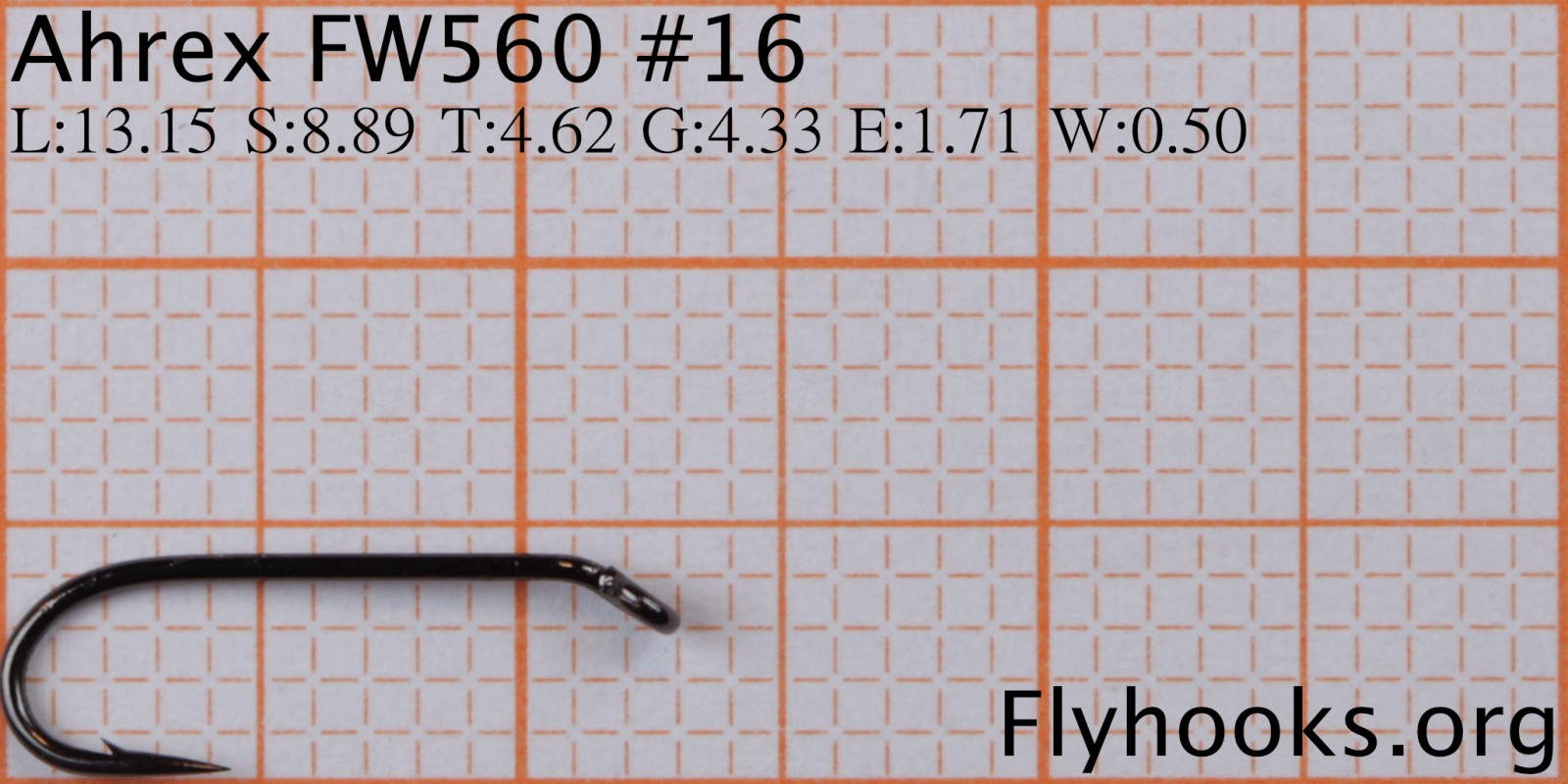

Length	13.15 mm
Shank Length	8.89 mm
Throat	4.62 mm
Gape	4.33 mm
Eye Width	1.71 mm
Wire Thickness	0.50 mm

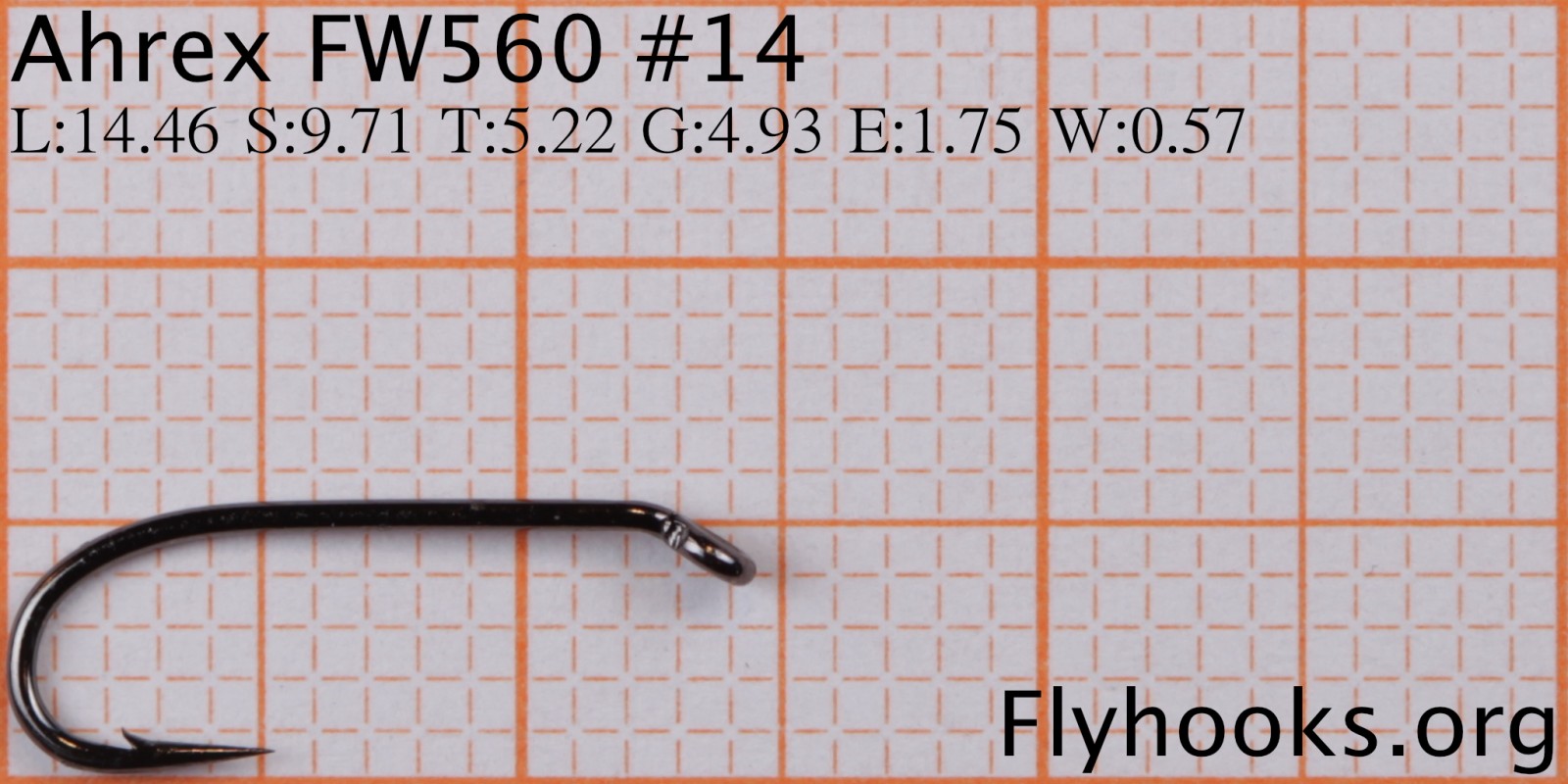

Length	14.46 mm
Shank Length	9.71 mm
Throat	5.22 mm
Gape	4.93 mm
Eye Width	1.75 mm
Wire Thickness	0.57 mm

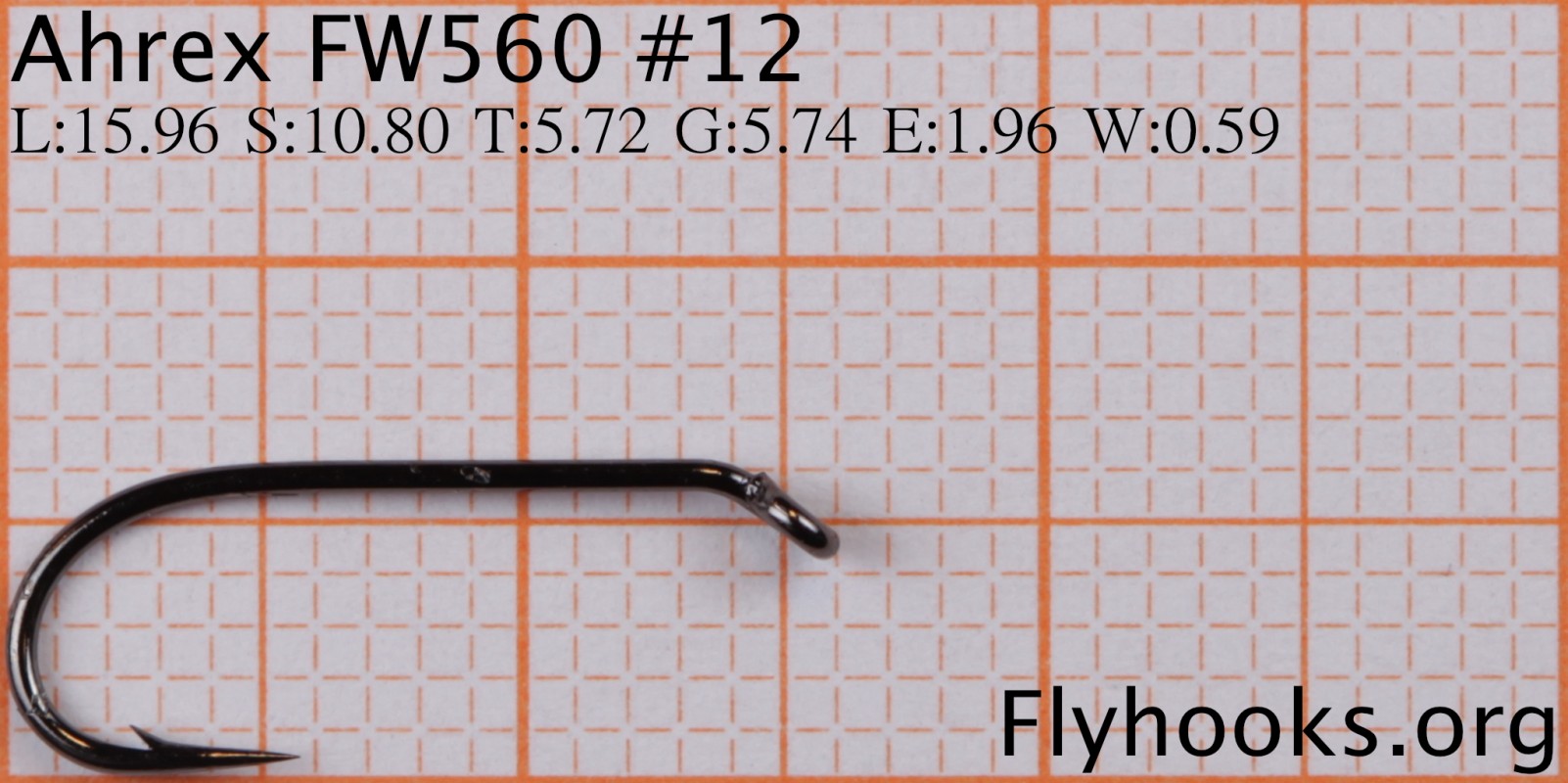

Length	15.96 mm
Shank Length	10.80 mm
Throat	5.72 mm
Gape	5.74 mm
Eye Width	1.96 mm
Wire Thickness	0.59 mm

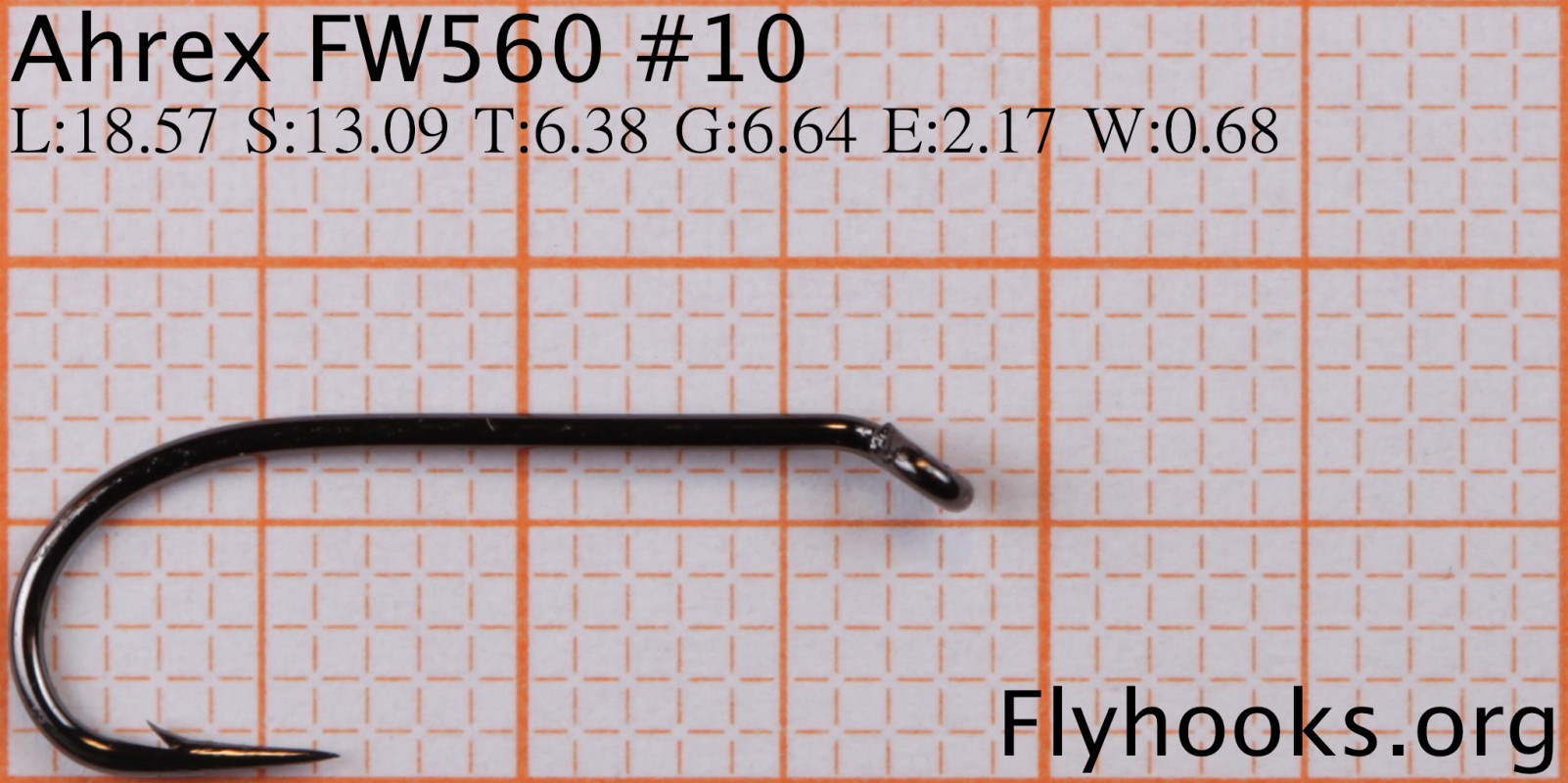

Length	18.57 mm
Shank Length	13.09 mm
Throat	6.38 mm
Gape	6.64 mm
Eye Width	2.17 mm
Wire Thickness	0.68 mm

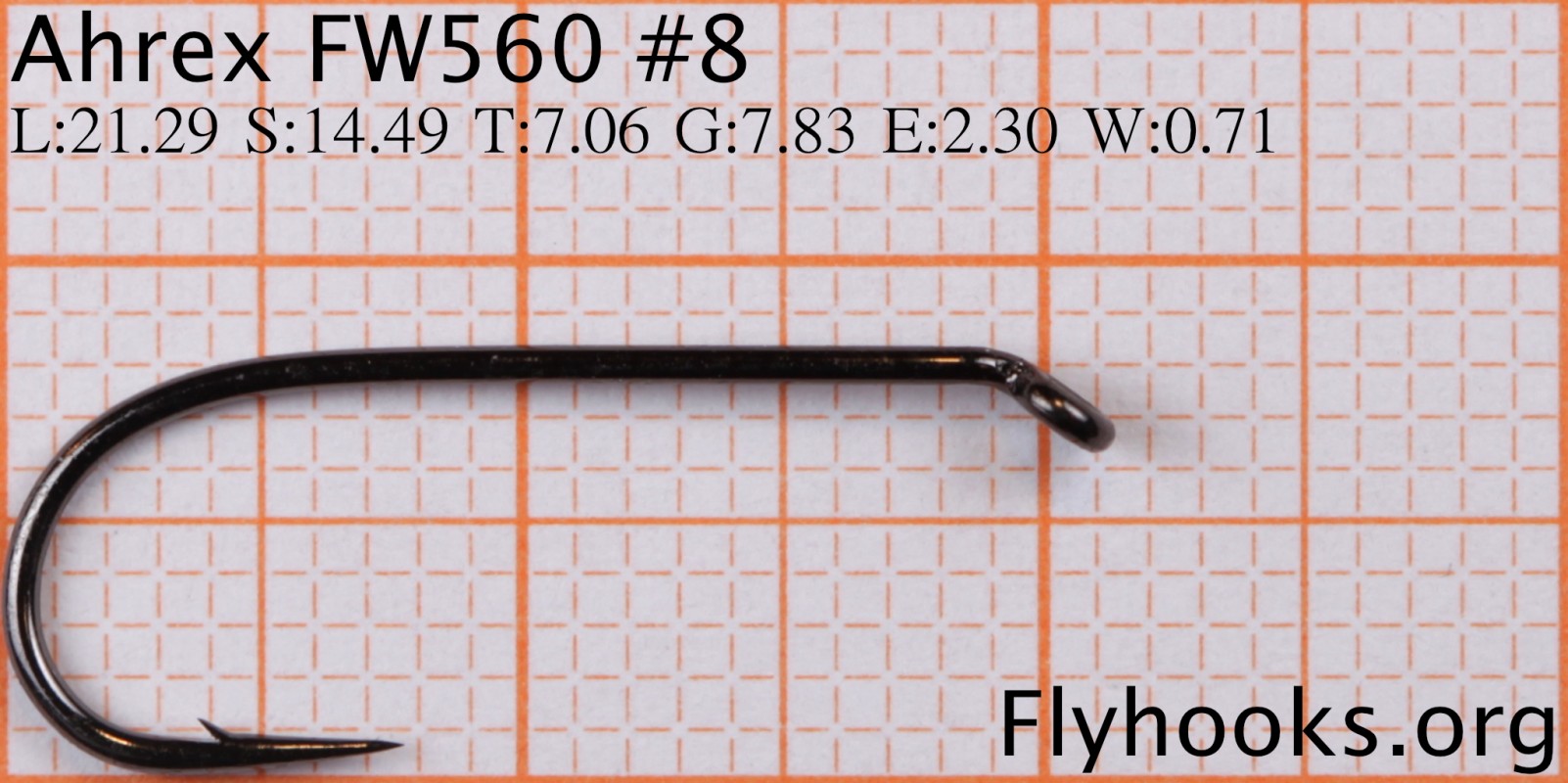

Length	21.29 mm
Shank Length	14.49 mm
Throat	7.06 mm
Gape	7.83 mm
Eye Width	2.30 mm
Wire Thickness	0.71 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
16	FW 561	13.15 -> 12.98	8.89 -> 8.59	4.33 -> 4.19	4.62 -> 4.57	0.50 -> 0.46
12	R72	15.96 -> 15.88	10.80 -> 10.35	5.74 -> 5.82	5.72 -> 5.44	0.59 -> 0.59
12	TMC5262	15.96 -> 16.18	10.80 -> 10.88	5.74 -> 5.47	5.72 -> 5.67	0.59 -> 0.56
12	FW 561	15.96 -> 16.21	10.80 -> 10.82	5.74 -> 5.84	5.72 -> 5.61	0.59 -> 0.60
12	C 231	15.96 -> 16.73	10.80 -> 11.66	5.74 -> 5.92	5.72 -> 5.89	0.59 -> 0.55
12	S212	15.96 -> 16.75	10.80 -> 11.13	5.74 -> 5.59	5.72 -> 6.19	0.59 -> 0.48
12	S402BL	15.96 -> 16.97	10.80 -> 11.93	5.74 -> 5.70	5.72 -> 6.33	0.59 -> 0.58
12	AK507BL	15.96 -> 17.00	10.80 -> 11.98	5.74 -> 6.01	5.72 -> 5.78	0.59 -> 0.47
12	Nymph	15.96 -> 17.11	10.80 -> 11.91	5.74 -> 5.74	5.72 -> 6.54	0.59 -> 0.57
12	F-007	15.96 -> 17.18	10.80 -> 11.99	5.74 -> 5.83	5.72 -> 5.95	0.59 -> 0.54
10	7029	18.57 -> 18.19	13.09 -> 12.58	6.64 -> 6.39	6.38 -> 6.08	0.68 -> 0.50
10	CK52SNP-BR	18.57 -> 18.82	13.09 -> 12.61	6.64 -> 6.96	6.38 -> 7.02	0.68 -> 0.61
10	C 231	18.57 -> 19.47	13.09 -> 13.58	6.64 -> 6.44	6.38 -> 6.78	0.68 -> 0.62
10	D4AY - Streamer	18.57 -> 19.74	13.09 -> 14.13	6.64 -> 6.45	6.38 -> 7.18	0.68 -> 0.60
10	Nymph	18.57 -> 19.94	13.09 -> 14.28	6.64 -> 6.71	6.38 -> 7.06	0.68 -> 0.62
10	M2 - Heavy Salmon Single	18.57 -> 20.38	13.09 -> 13.34	6.64 -> 6.67	6.38 -> 7.21	0.68 -> 0.61
10	9672	18.57 -> 20.68	13.09 -> 14.41	6.64 -> 6.32	6.38 -> 6.83	0.68 -> 0.65
10	Streamer	18.57 -> 21.23	13.09 -> 14.82	6.64 -> 6.49	6.38 -> 6.97	0.68 -> 0.61
8	FW 561	21.29 -> 21.42	14.49 -> 14.15	7.83 -> 7.97	7.06 -> 7.62	0.71 -> 0.71
