Ahrex: FW 507

Company	Ahrex
www	ahrexhooks.com
Type	Single
Eye Position	Parallell
Shank Style	Straigth
Barb	Barbless
Color	Black Nickel
Usages	Dry Nymph Trout Grayling Freshwater Spider Soft Hackle Midge
Sizes	22 20 18

Sizes

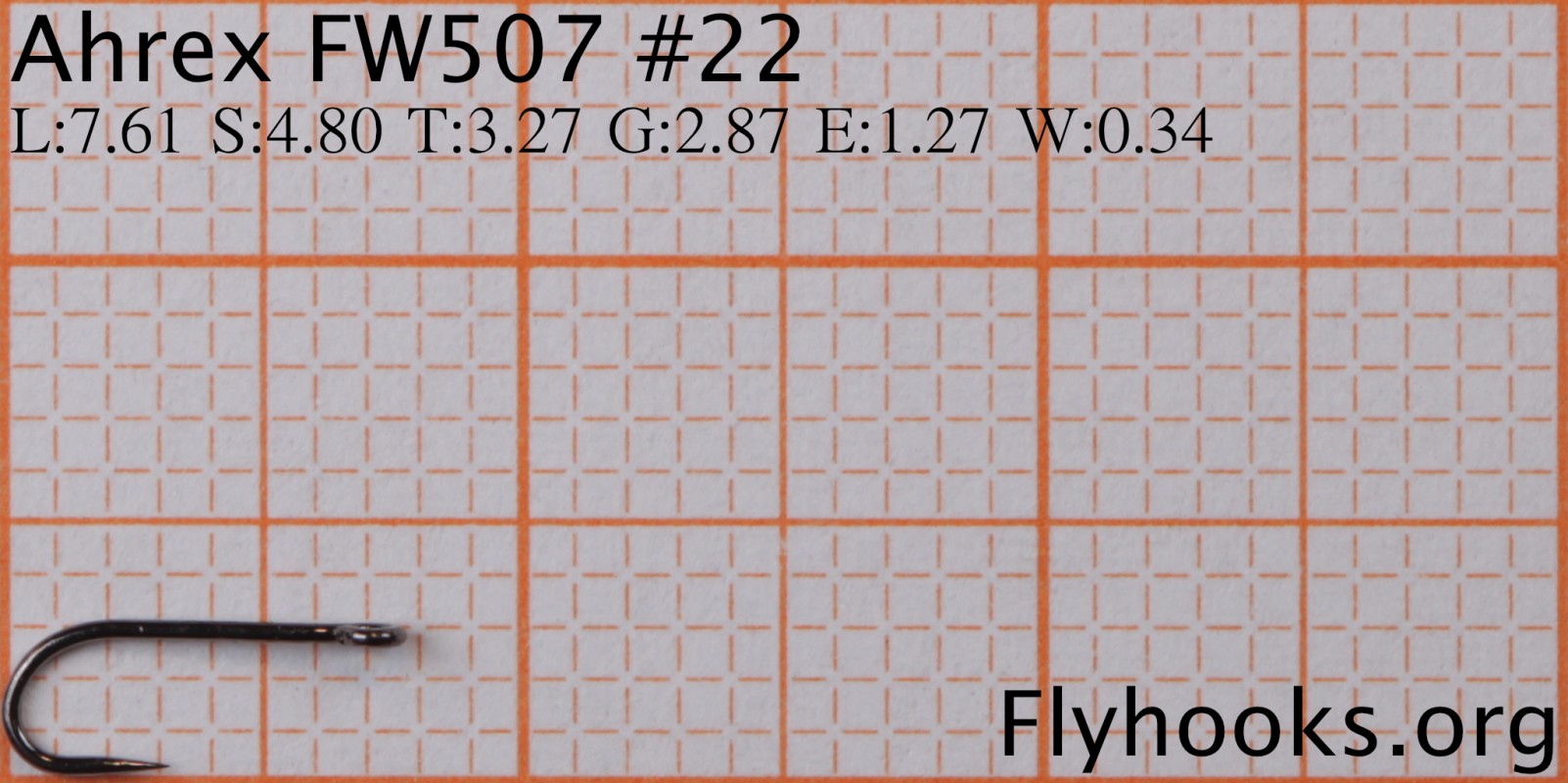

Length	7.61 mm
Shank Length	4.80 mm
Throat	3.27 mm
Gape	2.87 mm
Eye Width	1.27 mm
Wire Thickness	0.34 mm

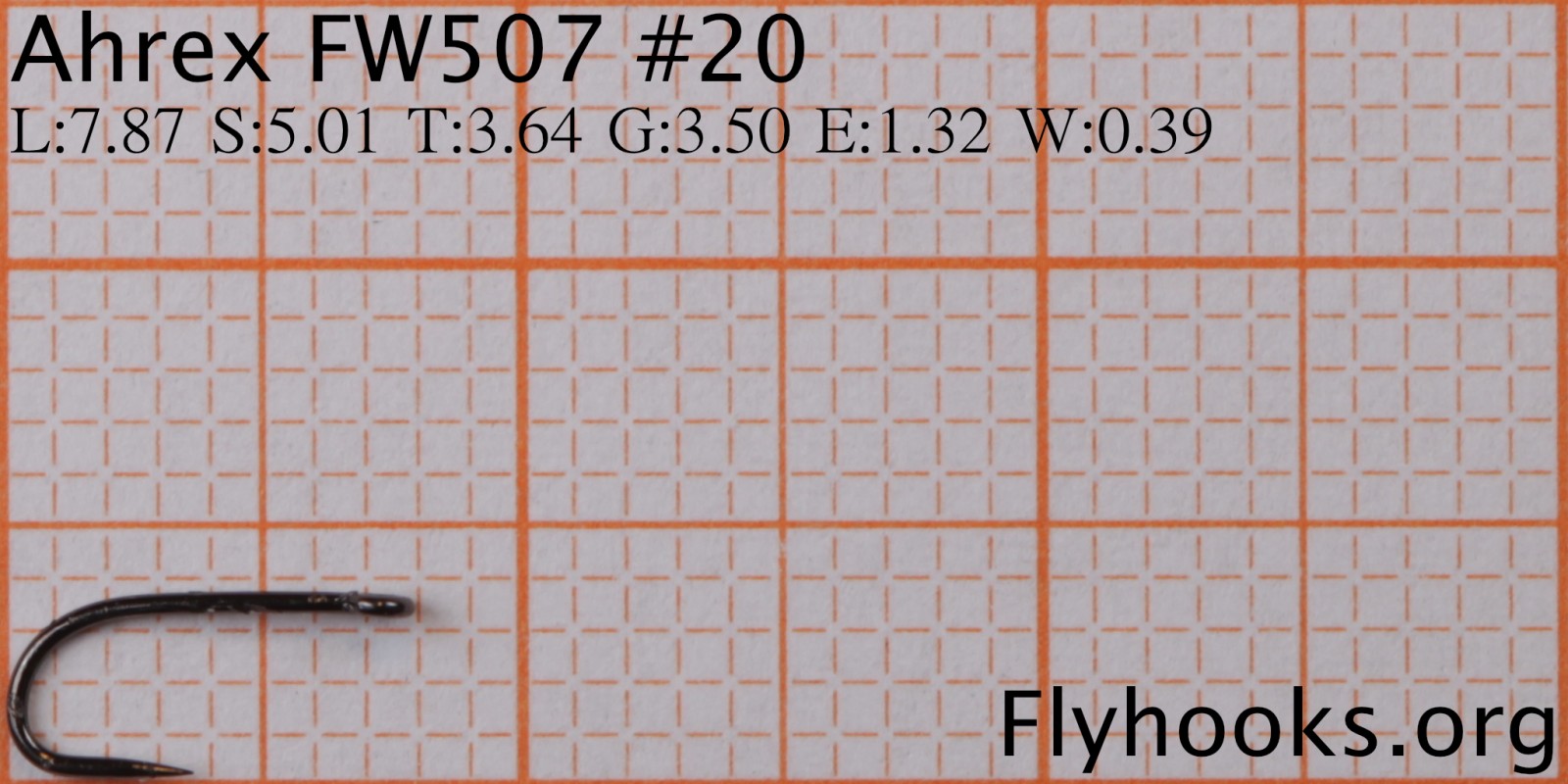

Length	7.87 mm
Shank Length	5.01 mm
Throat	3.64 mm
Gape	3.50 mm
Eye Width	1.32 mm
Wire Thickness	0.39 mm

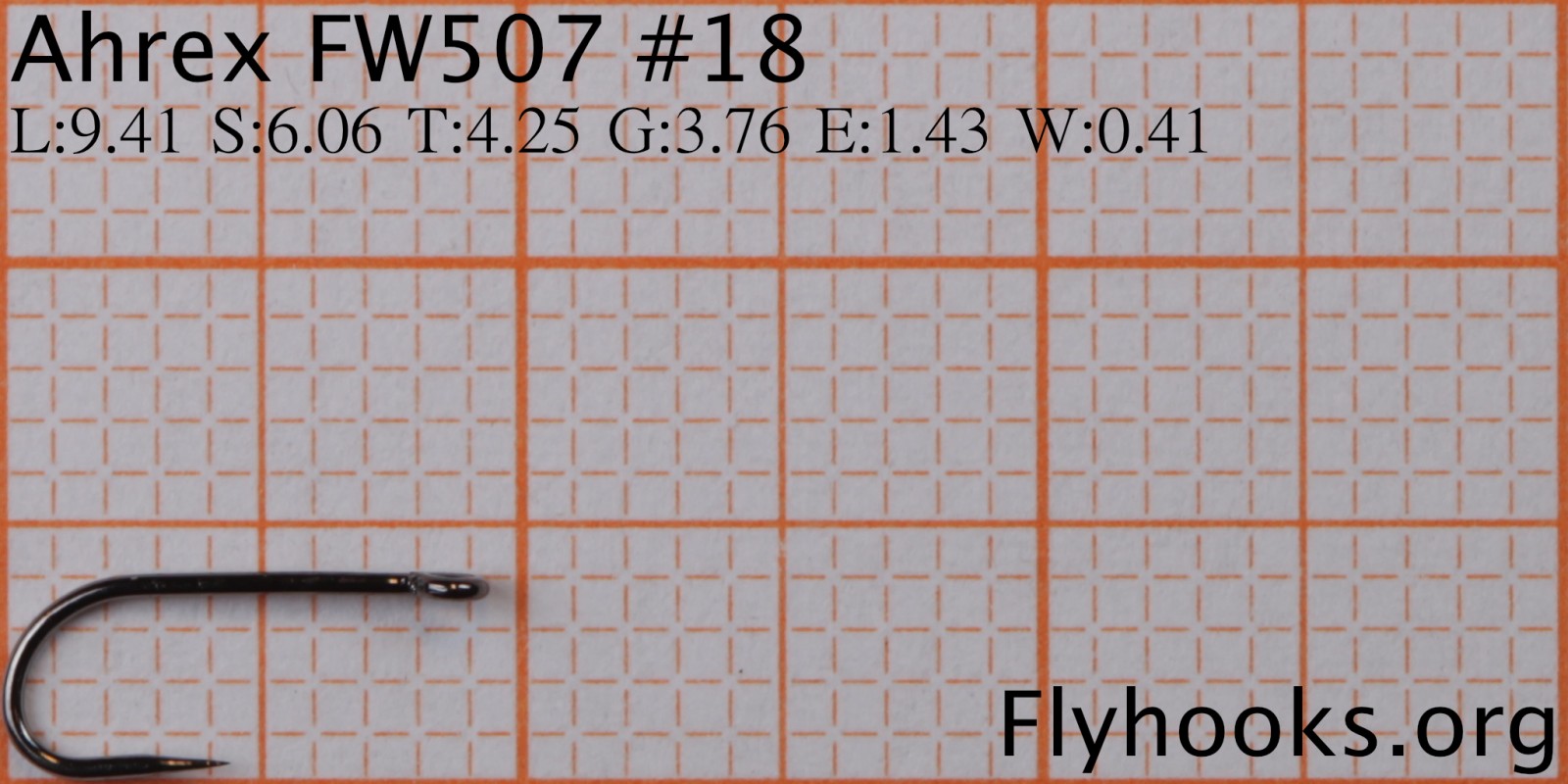

Length	9.41 mm
Shank Length	6.06 mm
Throat	4.25 mm
Gape	3.76 mm
Eye Width	1.43 mm
Wire Thickness	0.41 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
22	FW 506 - Dry Fly Mini	7.61 -> 7.77	4.80 -> 5.04	2.87 -> 2.80	3.27 -> 3.21	0.34 -> 0.37
18	2120 WB	9.41 -> 9.36	6.06 -> 5.85	3.76 -> 3.72	4.25 -> 4.61	0.41 -> 0.33
18	FW 506 - Dry Fly Mini	9.41 -> 9.47	6.06 -> 6.27	3.76 -> 3.69	4.25 -> 4.45	0.41 -> 0.42
18	C 220	9.41 -> 10.23	6.06 -> 5.77	3.76 -> 4.29	4.25 -> 4.32	0.41 -> 0.43
