Ahrex: FW 540 - Curved Nymph

Company Ahrex
Type Single
Gape Wide
Eye Ringed eye
Eye Position Turned down
Shank Style Curved
Barb Microbarb
Color Black Nickel
Usages Wet
Nymph
Trout
Grayling
Freshwater
Soft Hackle
Sizes 16 14 12 10 8 6

Sizes

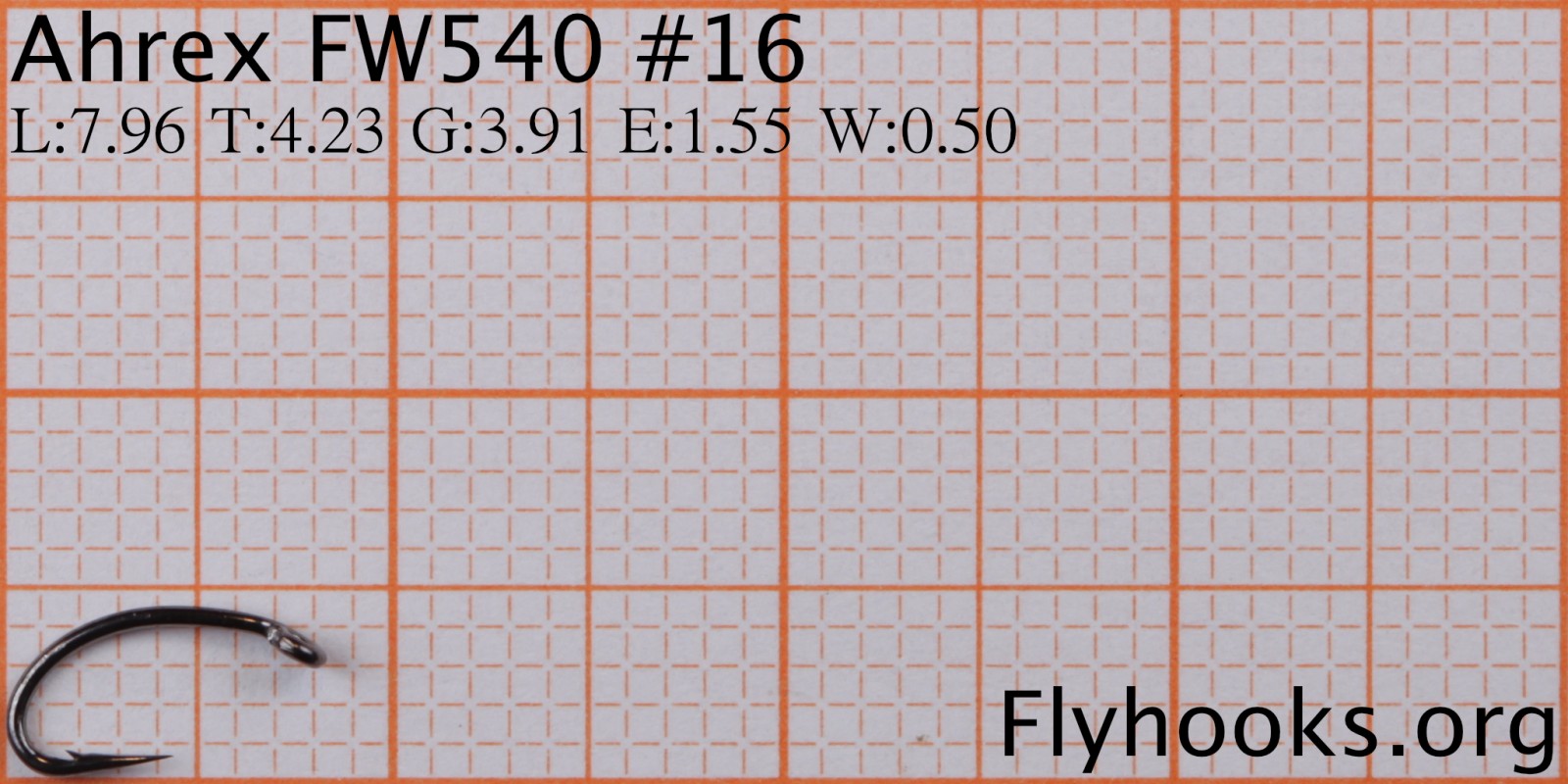

Length7.96 mm
Throat4.23 mm
Gape3.91 mm
Eye Width1.55 mm
Wire Thickness0.50 mm

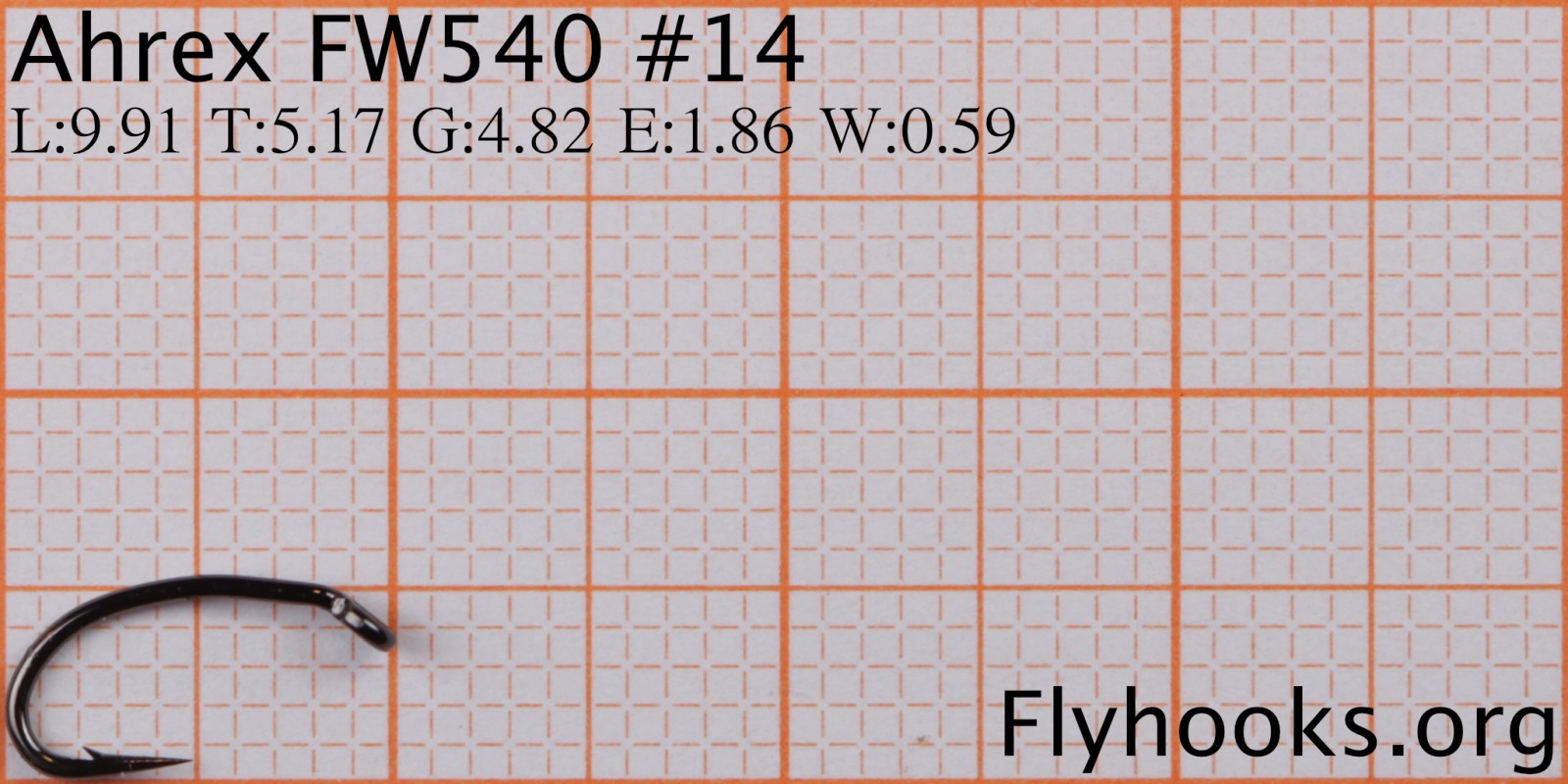

Length9.91 mm
Throat5.17 mm
Gape4.82 mm
Eye Width1.86 mm
Wire Thickness0.59 mm

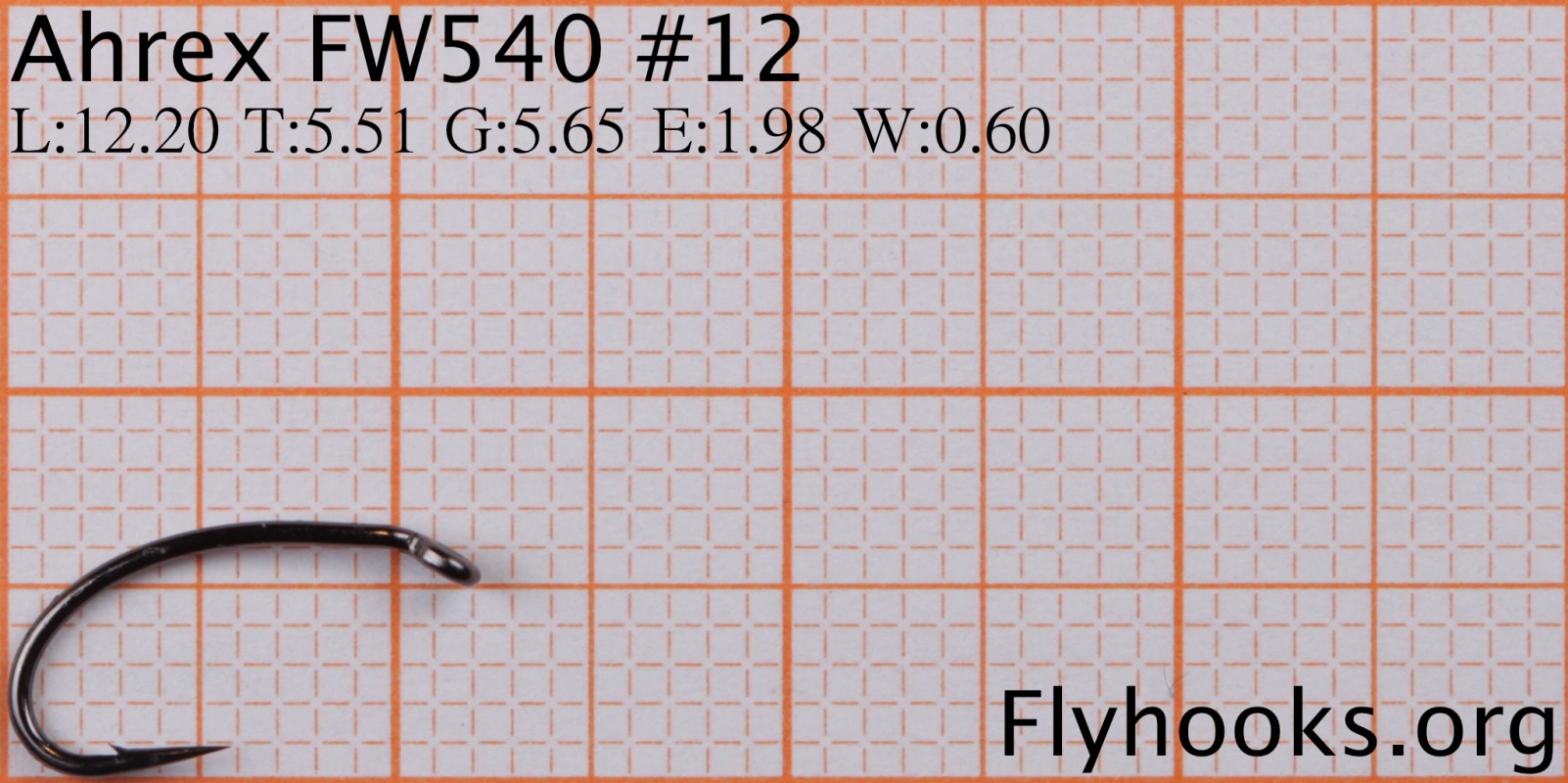

Length12.20 mm
Throat5.51 mm
Gape5.65 mm
Eye Width1.98 mm
Wire Thickness0.60 mm

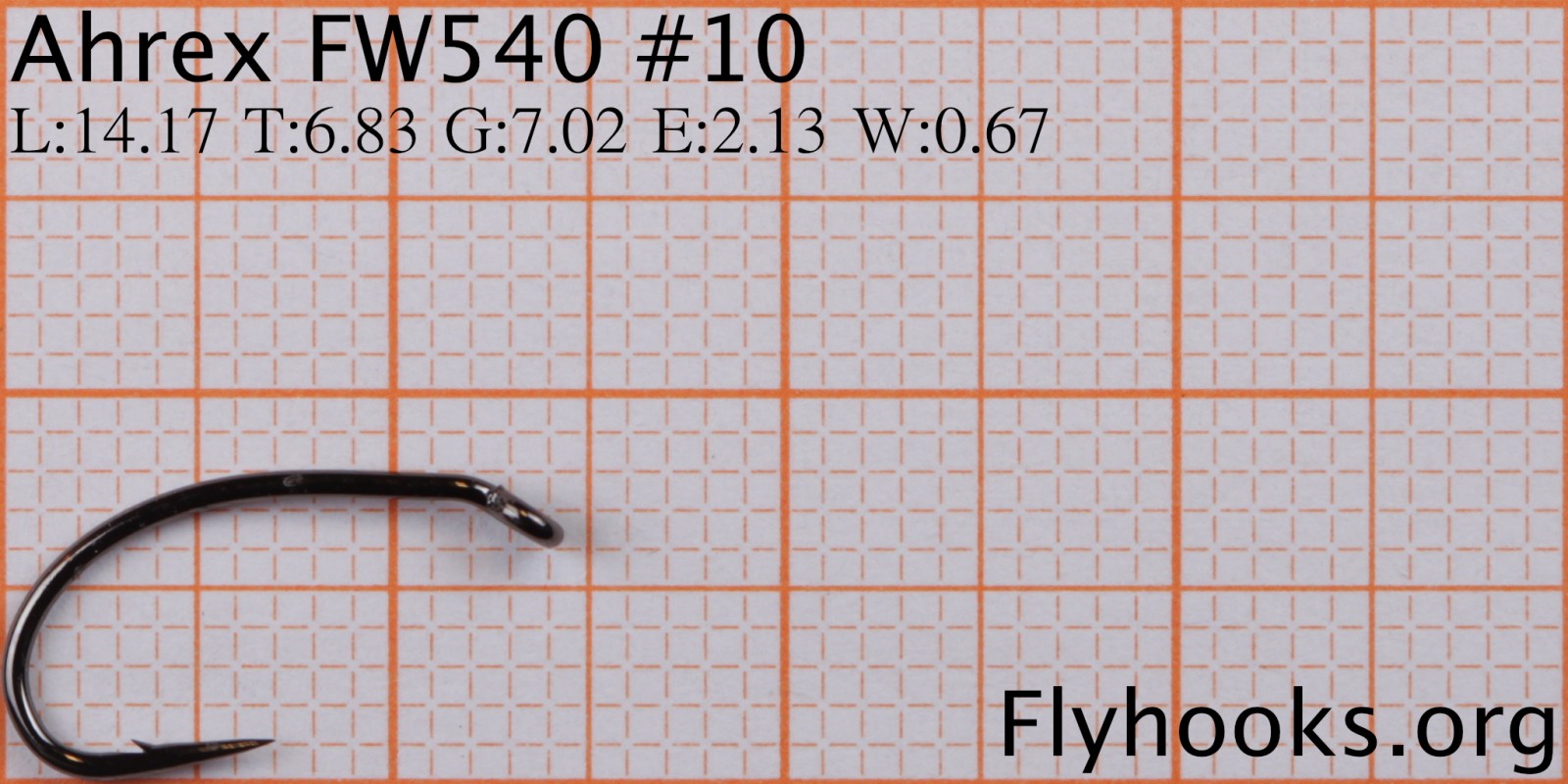

Length14.17 mm
Throat6.83 mm
Gape7.02 mm
Eye Width2.13 mm
Wire Thickness0.67 mm

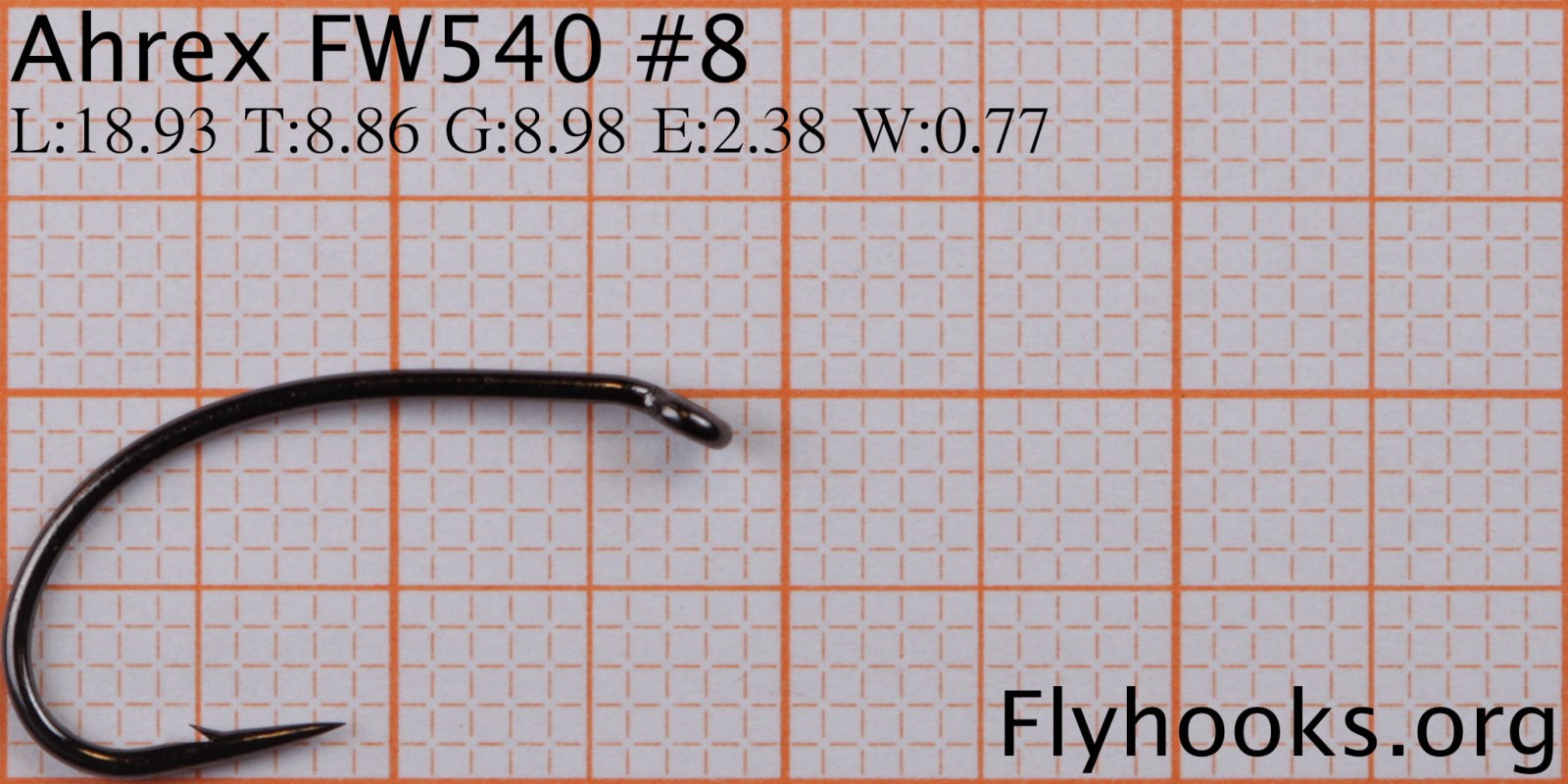

Length18.93 mm
Throat8.86 mm
Gape8.98 mm
Eye Width2.38 mm
Wire Thickness0.77 mm

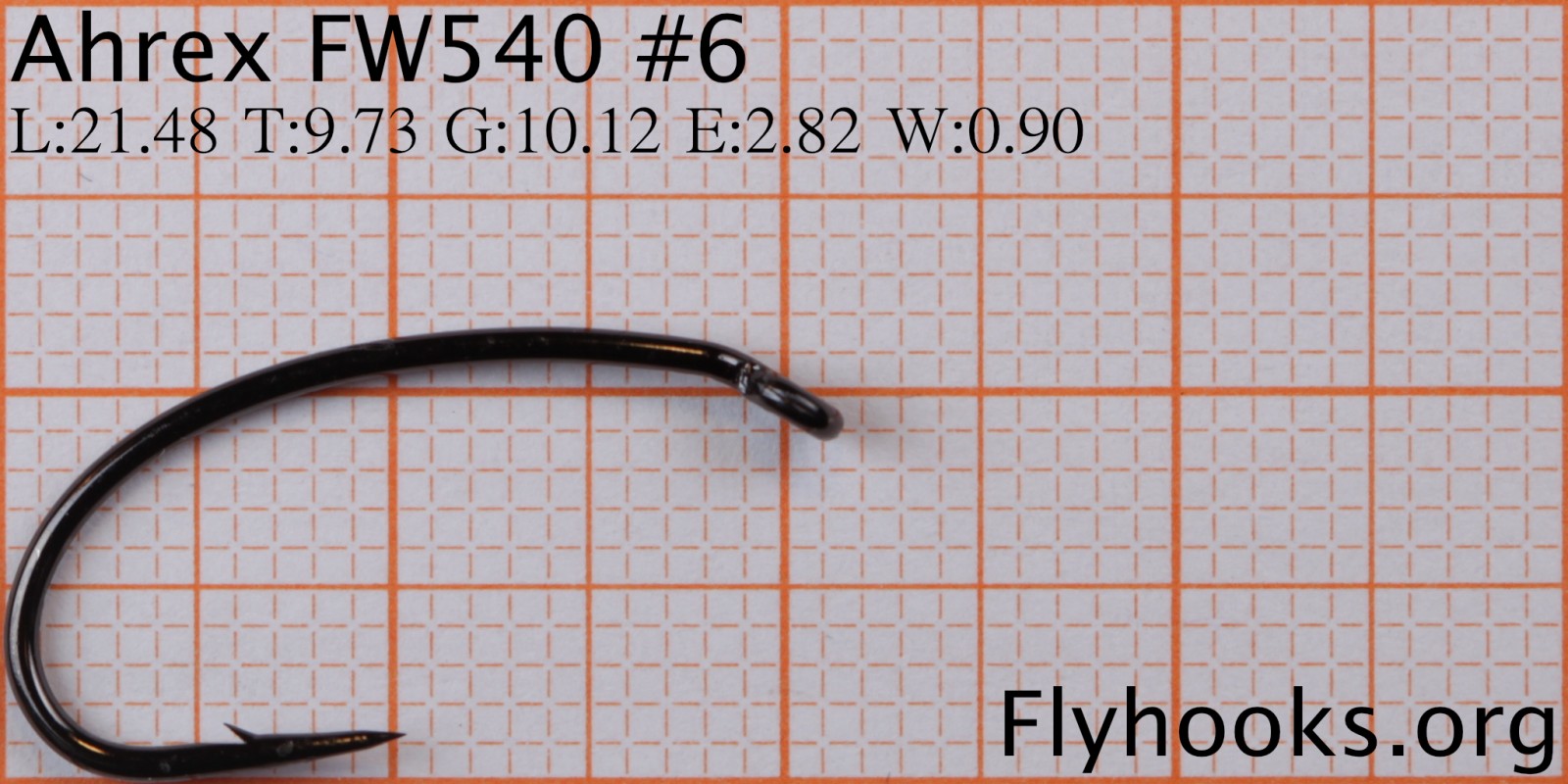

Length21.48 mm
Throat9.73 mm
Gape10.12 mm
Eye Width2.82 mm
Wire Thickness0.90 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 FW 541 7.96 -> 8.07   3.91 -> 3.92 4.23 -> 4.28 0.50 -> 0.50
16 Emerger 7.96 -> 8.09   3.91 -> 4.44 4.23 -> 4.24 0.50 -> 0.39
16 125 7.96 -> 8.11   3.91 -> 4.24 4.23 -> 4.44 0.50 -> 0.39
16 C 251 7.96 -> 8.28   3.91 -> 4.28 4.23 -> 4.54 0.50 -> 0.34
16 900 BL 7.96 -> 8.32   3.91 -> 4.17 4.23 -> 4.17 0.50 -> 0.36
16 C46 7.96 -> 8.41   3.91 -> 4.11 4.23 -> 4.17 0.50 -> 0.40
16 AK539BL 7.96 -> 8.42   3.91 -> 4.25 4.23 -> 4.58 0.50 -> 0.39
16 H260BL 7.96 -> 8.43   3.91 -> 4.24 4.23 -> 4.40 0.50 -> 0.47
16 TMC2488 7.96 -> 8.46   3.91 -> 4.23 4.23 -> 4.13 0.50 -> 0.35
16 80250BR 7.96 -> 8.57   3.91 -> 4.14 4.23 -> 4.57 0.50 -> 0.40
16 TMC2457 7.96 -> 8.57   3.91 -> 4.15 4.23 -> 4.30 0.50 -> 0.47
16 TMC508 7.96 -> 8.63   3.91 -> 3.90 4.23 -> 4.47 0.50 -> 0.39
16 79589 7.96 -> 8.67   3.91 -> 3.74 4.23 -> 4.69 0.50 -> 0.38
16 H270BL 7.96 -> 8.68   3.91 -> 4.12 4.23 -> 4.25 0.50 -> 0.45
16 C49S 7.96 -> 8.77   3.91 -> 4.12 4.23 -> 4.14 0.50 -> 0.37
16 H333BL 7.96 -> 8.80   3.91 -> 3.99 4.23 -> 4.15 0.50 -> 0.43
16 H530BL 7.96 -> 8.93   3.91 -> 4.15 4.23 -> 4.42 0.50 -> 0.42
14 520BL 9.91 -> 9.62   4.82 -> 5.17 5.17 -> 5.20 0.59 -> 0.38
14 TMC111 9.91 -> 9.66   4.82 -> 5.09 5.17 -> 4.98 0.59 -> 0.48
14 125 9.91 -> 9.77   4.82 -> 4.79 5.17 -> 5.21 0.59 -> 0.44
14 R48 9.91 -> 9.84   4.82 -> 4.94 5.17 -> 4.93 0.59 -> 0.45
14 135 9.91 -> 9.91   4.82 -> 5.17 5.17 -> 4.99 0.59 -> 0.51
14 590BL 9.91 -> 9.92   4.82 -> 5.14 5.17 -> 5.68 0.59 -> 0.48
14 Scud 9.91 -> 9.94   4.82 -> 5.16 5.17 -> 4.98 0.59 -> 0.43
14 TMC2488 9.91 -> 9.98   4.82 -> 4.92 5.17 -> 5.12 0.59 -> 0.47
14 80250BR 9.91 -> 10.03   4.82 -> 5.01 5.17 -> 5.17 0.59 -> 0.54
14 Emerger 9.91 -> 10.04   4.82 -> 4.77 5.17 -> 5.06 0.59 -> 0.45
14 H260BL 9.91 -> 10.06   4.82 -> 4.85 5.17 -> 5.28 0.59 -> 0.51
14 FW 541 9.91 -> 10.07   4.82 -> 4.87 5.17 -> 4.96 0.59 -> 0.57
14 TMC2457 9.91 -> 10.15   4.82 -> 5.29 5.17 -> 5.01 0.59 -> 0.51
14 80200BR 9.91 -> 10.27   4.82 -> 5.13 5.17 -> 5.27 0.59 -> 0.51
14 L3A/S - Spider 9.91 -> 10.29   4.82 -> 5.05 5.17 -> 5.38 0.59 -> 0.41
14 H270BL 9.91 -> 10.33   4.82 -> 5.12 5.17 -> 5.17 0.59 -> 0.50
14 B110 Grubber 9.91 -> 10.65   4.82 -> 5.38 5.17 -> 5.09 0.59 -> 0.57
14 L 9.91 -> 10.69   4.82 -> 4.74 5.17 -> 5.29 0.59 -> 0.49
14 FW 511 9.91 -> 10.75   4.82 -> 5.11 5.17 -> 5.64 0.59 -> 0.50
14 H360BL 9.91 -> 10.83   4.82 -> 4.63 5.17 -> 5.31 0.59 -> 0.43
14 FW 510 - Curved Dry 9.91 -> 10.84   4.82 -> 5.39 5.17 -> 5.87 0.59 -> 0.50
14 HDG 644 9.91 -> 10.90   4.82 -> 5.34 5.17 -> 5.45 0.59 -> 0.41
14 AK539BL 9.91 -> 10.92   4.82 -> 5.05 5.17 -> 5.30 0.59 -> 0.44
14 L3A,TDH - The Dry 9.91 -> 10.97   4.82 -> 5.12 5.17 -> 5.48 0.59 -> 0.43
14 T206BL 9.91 -> 11.02   4.82 -> 4.62 5.17 -> 5.25 0.59 -> 0.39
14 TMC206BL 9.91 -> 11.08   4.82 -> 5.19 5.17 -> 5.47 0.59 -> 0.43
14 c47 9.91 -> 11.11   4.82 -> 4.77 5.17 -> 5.19 0.59 -> 0.44
14 AK706BL 9.91 -> 11.27   4.82 -> 4.69 5.17 -> 5.23 0.59 -> 0.44
12 TMC2487 12.20 -> 11.60   5.65 -> 5.85 5.51 -> 5.52 0.60 -> 0.48
12 Scud 12.20 -> 11.60   5.65 -> 5.97 5.51 -> 5.65 0.60 -> 0.56
12 C 251 12.20 -> 11.61   5.65 -> 6.23 5.51 -> 5.88 0.60 -> 0.54
12 HDG 645 12.20 -> 11.68   5.65 -> 6.29 5.51 -> 5.97 0.60 -> 0.58
12 H330BL 12.20 -> 11.72   5.65 -> 5.58 5.51 -> 5.58 0.60 -> 0.48
12 TMC2457 12.20 -> 11.74   5.65 -> 5.98 5.51 -> 5.70 0.60 -> 0.58
12 L3A/S - Spider 12.20 -> 11.96   5.65 -> 5.78 5.51 -> 6.06 0.60 -> 0.46
12 H333BL 12.20 -> 11.97   5.65 -> 5.76 5.51 -> 5.58 0.60 -> 0.52
12 AK708 12.20 -> 12.00   5.65 -> 5.59 5.51 -> 5.78 0.60 -> 0.61
12 Carp 12.20 -> 12.01   5.65 -> 6.41 5.51 -> 5.95 0.60 -> 0.66
12 H260BL 12.20 -> 12.06   5.65 -> 6.26 5.51 -> 6.05 0.60 -> 0.60
12 FW 541 12.20 -> 12.16   5.65 -> 5.77 5.51 -> 5.82 0.60 -> 0.60
12 TMC2488 12.20 -> 12.19   5.65 -> 6.26 5.51 -> 5.90 0.60 -> 0.51
12 B405 Round Bend 12.20 -> 12.56   5.65 -> 5.61 5.51 -> 5.35 0.60 -> 0.50
12 B110 Grubber 12.20 -> 12.67   5.65 -> 6.10 5.51 -> 5.73 0.60 -> 0.61
12 SUD2 - Ideal Standard Dry 12.20 -> 12.69   5.65 -> 5.38 5.51 -> 5.40 0.60 -> 0.51
12 T206BL 12.20 -> 12.73   5.65 -> 5.87 5.51 -> 6.23 0.60 -> 0.47
12 305 12.20 -> 12.75   5.65 -> 5.39 5.51 -> 5.44 0.60 -> 0.47
12 HDA 254 12.20 -> 12.78   5.65 -> 6.40 5.51 -> 6.26 0.60 -> 0.42
12 Br 2100 12.20 -> 12.79   5.65 -> 5.46 5.51 -> 5.78 0.60 -> 0.49
12 w10 12.20 -> 12.82   5.65 -> 5.79 5.51 -> 5.53 0.60 -> 0.60
12 AK881 12.20 -> 12.83   5.65 -> 5.86 5.51 -> 5.73 0.60 -> 0.60
12 H360BL 12.20 -> 12.83   5.65 -> 6.09 5.51 -> 6.28 0.60 -> 0.47
12 c47 12.20 -> 12.90   5.65 -> 5.90 5.51 -> 6.13 0.60 -> 0.51
12 H250BL 12.20 -> 12.90   5.65 -> 6.13 5.51 -> 6.00 0.60 -> 0.62
12 Dry Fly 12.20 -> 12.91   5.65 -> 5.48 5.51 -> 5.33 0.60 -> 0.51
12 TMC113BLH 12.20 -> 12.95   5.65 -> 5.56 5.51 -> 5.40 0.60 -> 0.54
12 250BL 12.20 -> 12.97   5.65 -> 6.33 5.51 -> 6.26 0.60 -> 0.43
12 C 214 12.20 -> 12.98   5.65 -> 5.64 5.51 -> 5.55 0.60 -> 0.48
12 D101 12.20 -> 13.02   5.65 -> 5.55 5.51 -> 5.32 0.60 -> 0.55
12 J 12.20 -> 13.03   5.65 -> 5.40 5.51 -> 5.86 0.60 -> 0.53
12 130BL 12.20 -> 13.11   5.65 -> 5.82 5.51 -> 5.57 0.60 -> 0.48
12 W145 12.20 -> 13.25   5.65 -> 5.71 5.51 -> 5.86 0.60 -> 0.42
12 Dry Fly 12.20 -> 13.27   5.65 -> 5.47 5.51 -> 5.32 0.60 -> 0.49
12 1250 12.20 -> 13.27   5.65 -> 6.00 5.51 -> 5.25 0.60 -> 0.48
12 HDN 302 12.20 -> 13.44   5.65 -> 5.82 5.51 -> 6.19 0.60 -> 0.52
12 G3A/L - Wet Heavy Supreme 12.20 -> 13.45   5.65 -> 5.43 5.51 -> 6.27 0.60 -> 0.66
12 11011 BL 12.20 -> 13.45   5.65 -> 5.61 5.51 -> 5.91 0.60 -> 0.42
12 FW 521 12.20 -> 13.48   5.65 -> 6.27 5.51 -> 6.04 0.60 -> 0.56
12 R70 - 7957 12.20 -> 13.53   5.65 -> 5.64 5.51 -> 5.61 0.60 -> 0.60
12 AK503BL 12.20 -> 13.57   5.65 -> 5.47 5.51 -> 5.94 0.60 -> 0.43
12 Br 2140 12.20 -> 13.79   5.65 -> 6.18 5.51 -> 5.97 0.60 -> 0.51
12 3901 12.20 -> 13.90   5.65 -> 5.85 5.51 -> 5.63 0.60 -> 0.64
12 FW 520 - Emerger 12.20 -> 13.96   5.65 -> 6.41 5.51 -> 6.26 0.60 -> 0.56
12 TMC9300 12.20 -> 13.98   5.65 -> 5.60 5.51 -> 5.69 0.60 -> 0.49
12 H230BL 12.20 -> 14.01   5.65 -> 5.97 5.51 -> 5.99 0.60 -> 0.56
10 H530BL 14.17 -> 13.66   7.02 -> 6.87 6.83 -> 6.49 0.67 -> 0.55
10 K4A - Grub/Shrimp Down-eye 14.17 -> 13.67   7.02 -> 7.28 6.83 -> 6.68 0.67 -> 0.61
10 TMC2457 14.17 -> 13.71   7.02 -> 6.73 6.83 -> 6.49 0.67 -> 0.67
10 TMC2488 14.17 -> 13.72   7.02 -> 7.37 6.83 -> 7.11 0.67 -> 0.49
10 CS52 - Sea Prince 14.17 -> 13.74   7.02 -> 6.93 6.83 -> 6.84 0.67 -> 0.76
10 C 251 14.17 -> 13.94   7.02 -> 7.19 6.83 -> 6.90 0.67 -> 0.62
10 H250BL 14.17 -> 14.01   7.02 -> 6.82 6.83 -> 6.98 0.67 -> 0.67
10 Carp 14.17 -> 14.01   7.02 -> 7.05 6.83 -> 6.53 0.67 -> 0.77
10 Scud 14.17 -> 14.17   7.02 -> 7.11 6.83 -> 6.97 0.67 -> 0.66
10 B110 Grubber 14.17 -> 14.18   7.02 -> 7.07 6.83 -> 6.61 0.67 -> 0.70
10 TMC2499SP-BL 14.17 -> 14.29   7.02 -> 7.54 6.83 -> 7.00 0.67 -> 0.61
10 FW 541 14.17 -> 14.59   7.02 -> 6.93 6.83 -> 6.71 0.67 -> 0.67
10 HDA 254 14.17 -> 14.78   7.02 -> 7.65 6.83 -> 7.04 0.67 -> 0.53
10 2410V 14.17 -> 15.14   7.02 -> 6.94 6.83 -> 6.77 0.67 -> 0.57
10 14723 BL 14.17 -> 15.27   7.02 -> 7.26 6.83 -> 7.44 0.67 -> 0.55
10 AK751BL 14.17 -> 15.41   7.02 -> 7.45 6.83 -> 6.94 0.67 -> 0.59
10 H360BL 14.17 -> 15.57   7.02 -> 7.15 6.83 -> 7.18 0.67 -> 0.55
10 FW 510 - Curved Dry 14.17 -> 15.58   7.02 -> 6.97 6.83 -> 7.81 0.67 -> 0.61
10 FW 511 14.17 -> 15.59   7.02 -> 7.19 6.83 -> 7.71 0.67 -> 0.61
10 FW 520 - Emerger 14.17 -> 15.62   7.02 -> 7.64 6.83 -> 6.76 0.67 -> 0.57
10 FW 521 14.17 -> 15.62   7.02 -> 7.42 6.83 -> 6.51 0.67 -> 0.59
10 H470BL 14.17 -> 15.69   7.02 -> 6.80 6.83 -> 7.00 0.67 -> 0.65
10 H480BL 14.17 -> 15.77   7.02 -> 7.20 6.83 -> 6.79 0.67 -> 0.66
10 H200BL 14.17 -> 15.81   7.02 -> 6.78 6.83 -> 7.44 0.67 -> 0.66
10 HDG 611 14.17 -> 15.88   7.02 -> 7.85 6.83 -> 7.40 0.67 -> 0.62
10 H280BL 14.17 -> 15.92   7.02 -> 7.00 6.83 -> 6.91 0.67 -> 0.59
10 H450BL 14.17 -> 15.96   7.02 -> 7.95 6.83 -> 7.12 0.67 -> 0.68
10 H400BL 14.17 -> 15.97   7.02 -> 6.69 6.83 -> 6.91 0.67 -> 0.68
10 G3A/L - Wet Heavy Supreme 14.17 -> 16.03   7.02 -> 6.70 6.83 -> 7.26 0.67 -> 0.74
10 H490BL 14.17 -> 16.05   7.02 -> 7.48 6.83 -> 7.34 0.67 -> 0.71
10 R90 14.17 -> 16.08   7.02 -> 6.70 6.83 -> 7.33 0.67 -> 0.75
8 AK755BL 18.93 -> 18.36   8.98 -> 8.92 8.86 -> 9.28 0.77 -> 0.64
8 FW 541 18.93 -> 18.74   8.98 -> 8.84 8.86 -> 8.92 0.77 -> 0.77
8 M2030 18.93 -> 19.98   8.98 -> 9.36 8.86 -> 9.71 0.77 -> 0.87
8 2255 18.93 -> 21.73   8.98 -> 10.31 8.86 -> 8.65 0.77 -> 0.92
6 FW 541 21.48 -> 21.62   10.12 -> 10.04 9.73 -> 10.02 0.90 -> 0.89
6 M2030 21.48 -> 22.60   10.12 -> 10.05 9.73 -> 10.07 0.90 -> 0.97
6 SS-7711 21.48 -> 22.81   10.12 -> 9.92 9.73 -> 10.79 0.90 -> 1.07
6 TMC800S 21.48 -> 23.17   10.12 -> 10.49 9.73 -> 10.74 0.90 -> 1.06
6 M2050 21.48 -> 23.41   10.12 -> 10.27 9.73 -> 9.65 0.90 -> 0.97
6 H900BL 21.48 -> 23.82   10.12 -> 10.20 9.73 -> 11.10 0.90 -> 0.96
