Ellipse: 130BL
Company | Ellipse |
Type | Single |
Eye | Ringed eye |
Eye Position | Turned down |
Shank Style | Straigth |
Barb | Barbless |
Color |
Black Nickel
|
Usages |
Dry
Trout Grayling Freshwater |
Sizes | 18 16 14 12 |
Sizes

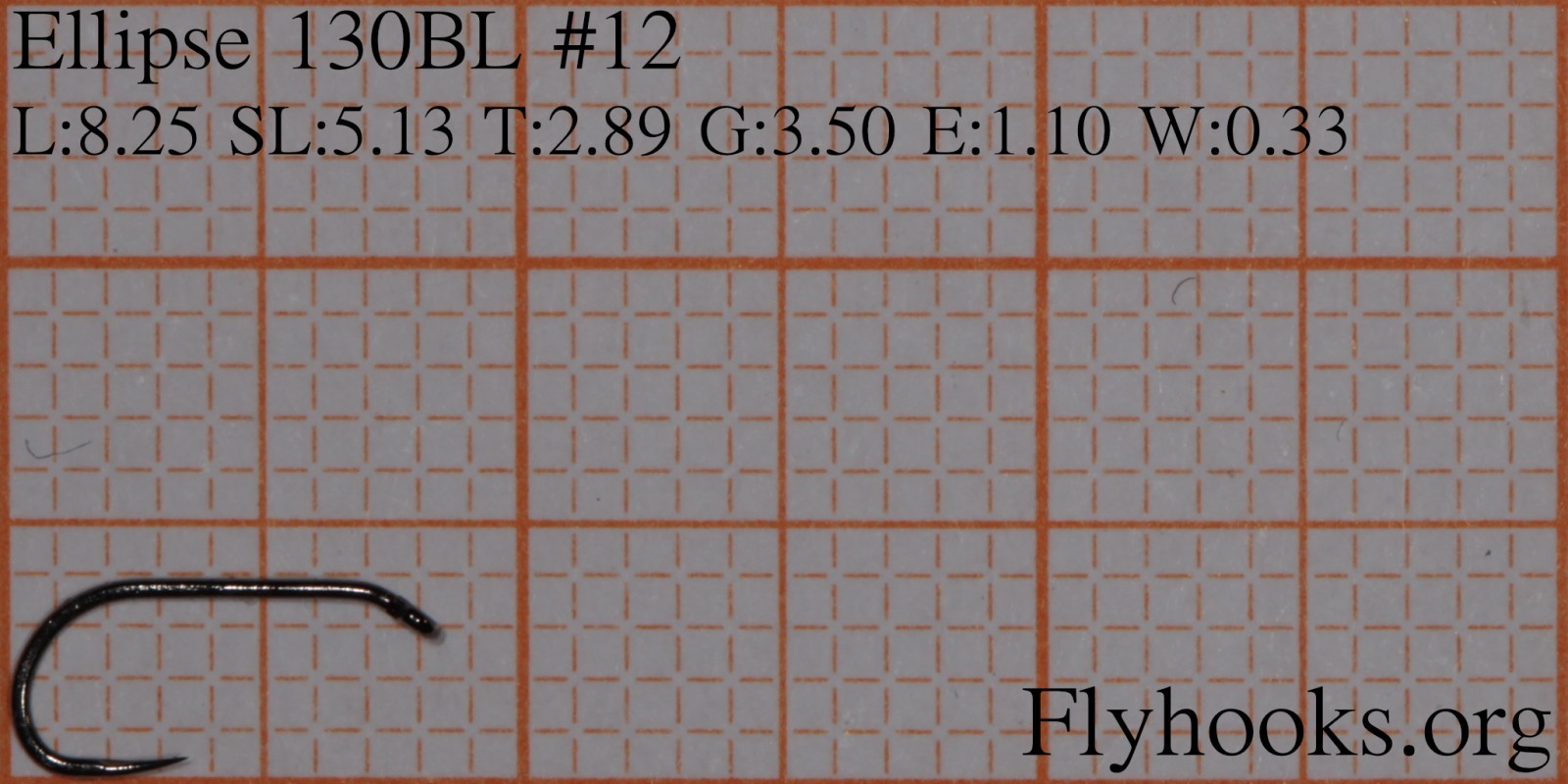

Length | 8.25 mm |
Shank Length | 5.13 mm |
Throat | 2.89 mm |
Gape | 3.50 mm |
Eye Width | 1.10 mm |
Wire Thickness | 0.33 mm |

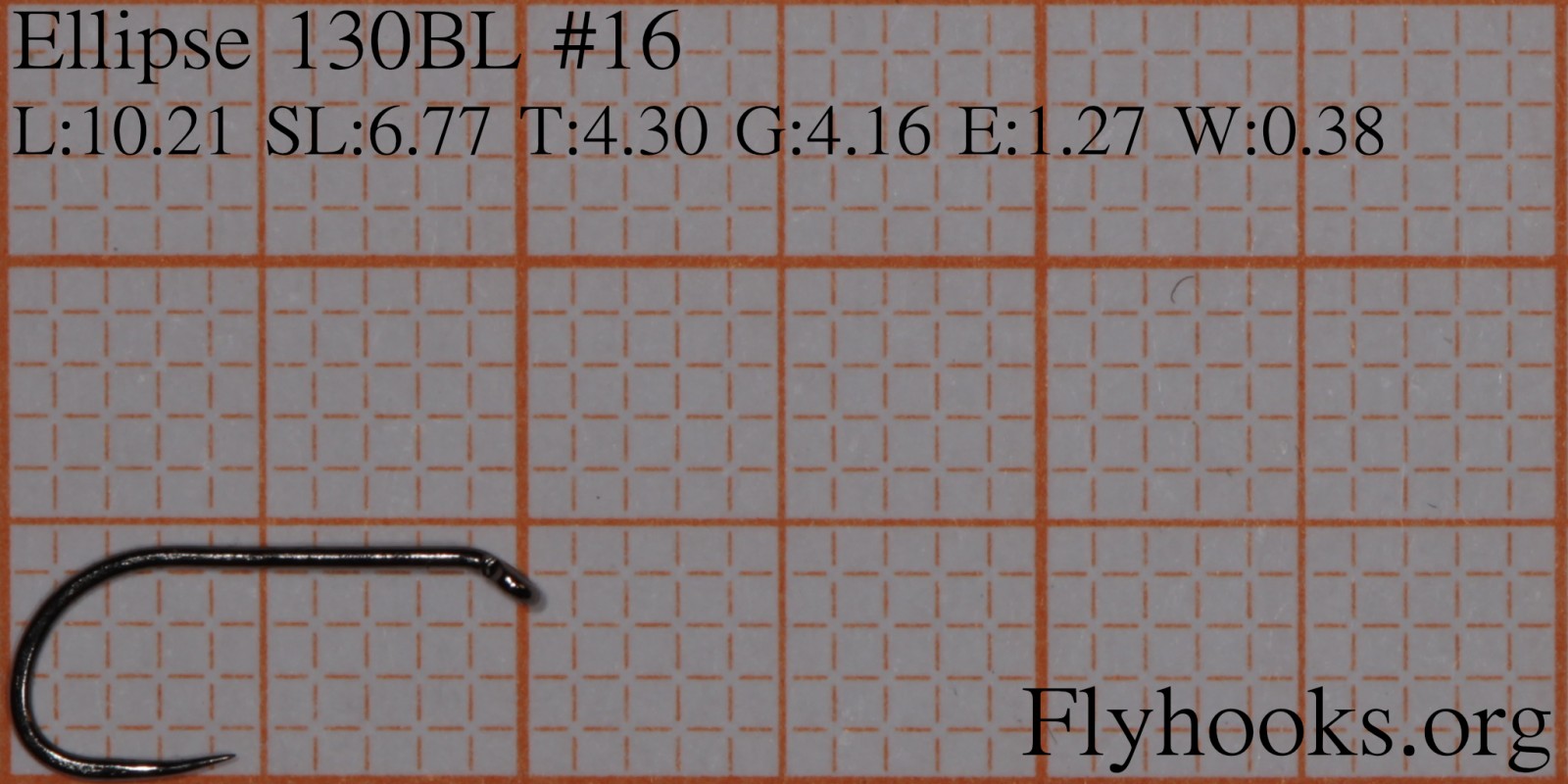

Length | 10.21 mm |
Shank Length | 6.77 mm |
Throat | 4.30 mm |
Gape | 4.16 mm |
Eye Width | 1.27 mm |
Wire Thickness | 0.38 mm |

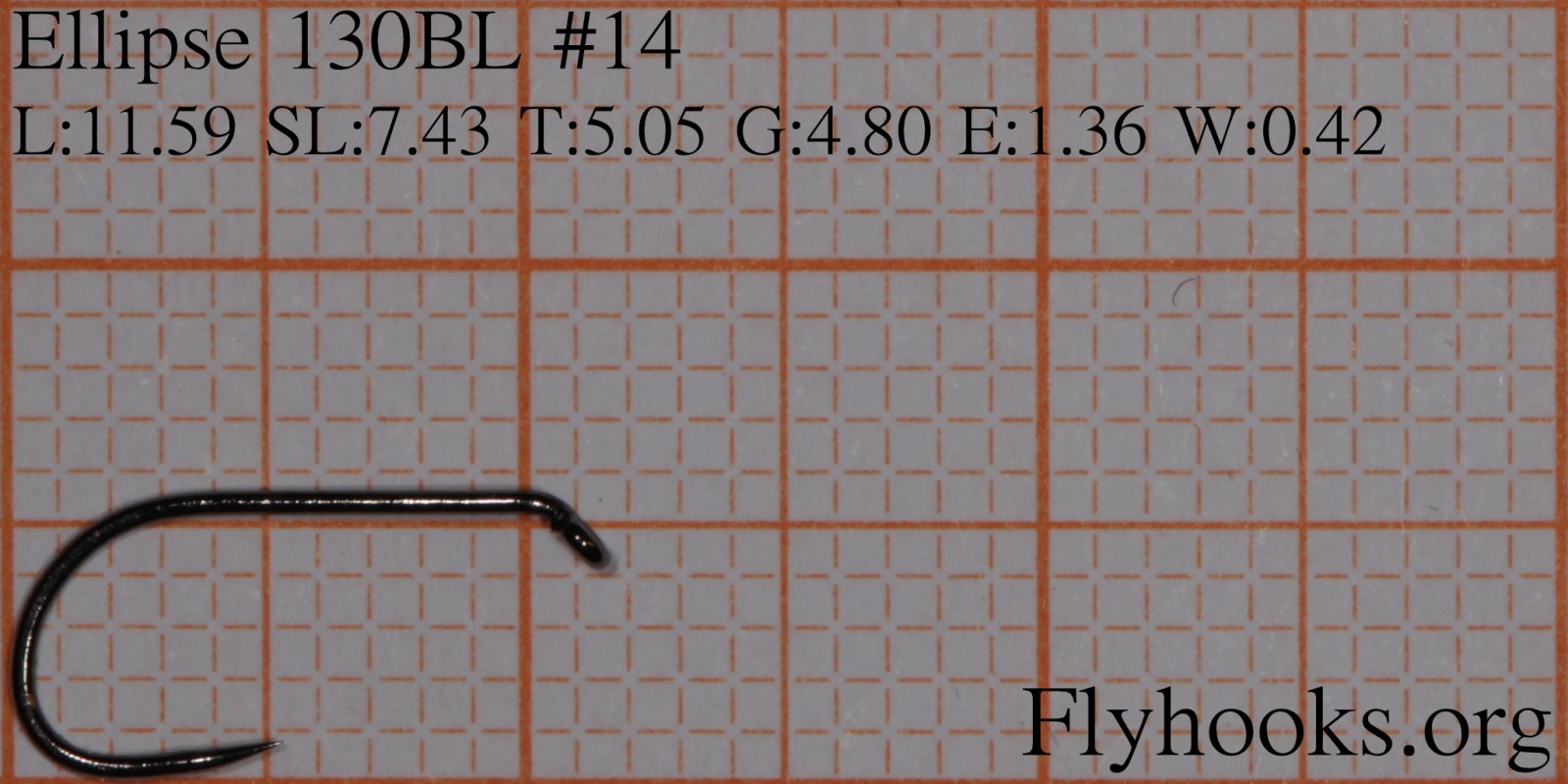

Length | 11.59 mm |
Shank Length | 7.43 mm |
Throat | 5.05 mm |
Gape | 4.80 mm |
Eye Width | 1.36 mm |
Wire Thickness | 0.42 mm |

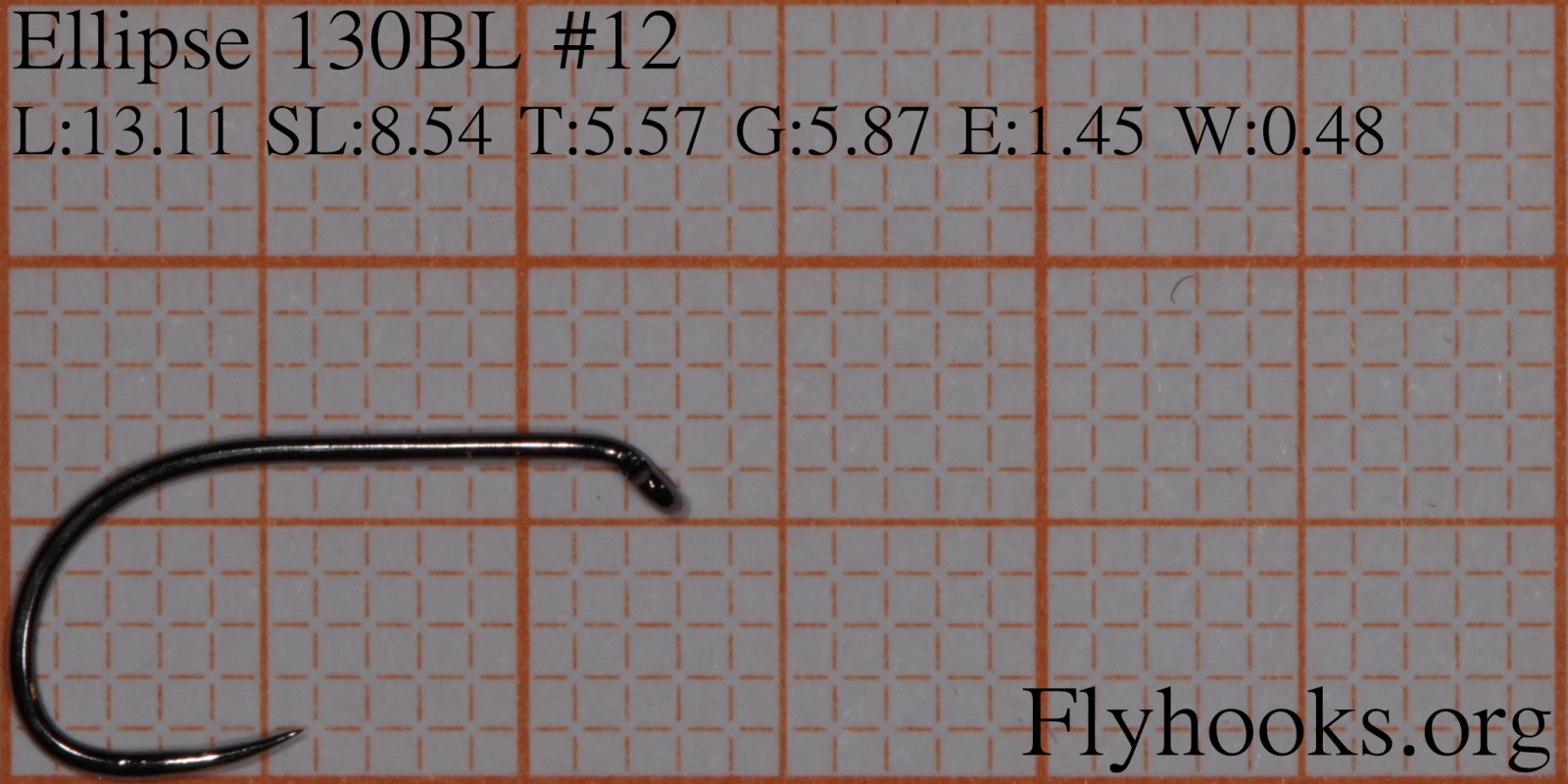

Length | 13.11 mm |
Shank Length | 8.54 mm |
Throat | 5.57 mm |
Gape | 5.82 mm |
Eye Width | 1.45 mm |
Wire Thickness | 0.48 mm |
Similar hooks
Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.
Size | Hook | Length | Shank Length | Gape | Throat | Wire |
---|---|---|---|---|---|---|
18 | 313 | 8.25 -> 8.51 | 5.13 -> 5.81 | 3.50 -> 3.45 | 2.89 -> 2.75 | 0.33 -> 0.28 |
16 | R50X-94845 | 10.21 -> 9.79 | 6.77 -> 6.73 | 4.16 -> 4.01 | 4.30 -> 4.23 | 0.38 -> 0.37 |
16 | Br 103 | 10.21 -> 9.89 | 6.77 -> 6.73 | 4.16 -> 4.11 | 4.30 -> 4.20 | 0.38 -> 0.38 |
16 | R70NP-BR | 10.21 -> 9.96 | 6.77 -> 6.61 | 4.16 -> 4.12 | 4.30 -> 4.84 | 0.38 -> 0.47 |
16 | H230BL | 10.21 -> 10.08 | 6.77 -> 6.64 | 4.16 -> 4.29 | 4.30 -> 4.78 | 0.38 -> 0.46 |
16 | H280BL | 10.21 -> 10.31 | 6.77 -> 7.09 | 4.16 -> 4.42 | 4.30 -> 4.79 | 0.38 -> 0.48 |
16 | HDN 302 | 10.21 -> 10.70 | 6.77 -> 6.48 | 4.16 -> 4.50 | 4.30 -> 4.90 | 0.38 -> 0.42 |
16 | Nymph | 10.21 -> 10.73 | 6.77 -> 6.66 | 4.16 -> 4.50 | 4.30 -> 4.65 | 0.38 -> 0.50 |
16 | H290BL | 10.21 -> 10.94 | 6.77 -> 7.21 | 4.16 -> 4.20 | 4.30 -> 4.11 | 0.38 -> 0.37 |
16 | TMC100BL | 10.21 -> 10.95 | 6.77 -> 7.40 | 4.16 -> 4.08 | 4.30 -> 4.20 | 0.38 -> 0.45 |
16 | 7368 B | 10.21 -> 11.04 | 6.77 -> 6.74 | 4.16 -> 4.16 | 4.30 -> 4.63 | 0.38 -> 0.50 |
16 | TMC108SP-BL | 10.21 -> 11.52 | 6.77 -> 6.74 | 4.16 -> 4.15 | 4.30 -> 4.49 | 0.38 -> 0.45 |
16 | AK501 | 10.21 -> 11.55 | 6.77 -> 7.65 | 4.16 -> 3.96 | 4.30 -> 4.20 | 0.38 -> 0.41 |
14 | BL 154 | 11.59 -> 11.42 | 7.43 -> 7.92 | 4.80 -> 5.10 | 5.05 -> 5.21 | 0.42 -> 0.44 |
14 | 94840 | 11.59 -> 11.42 | 7.43 -> 7.85 | 4.80 -> 4.77 | 5.05 -> 5.09 | 0.42 -> 0.44 |
14 | H130BL | 11.59 -> 11.46 | 7.43 -> 7.58 | 4.80 -> 4.79 | 5.05 -> 4.80 | 0.42 -> 0.40 |
14 | R50XNP-BR | 11.59 -> 11.51 | 7.43 -> 7.73 | 4.80 -> 4.63 | 5.05 -> 5.45 | 0.42 -> 0.46 |
14 | Br 103 | 11.59 -> 11.58 | 7.43 -> 7.79 | 4.80 -> 4.71 | 5.05 -> 4.83 | 0.42 -> 0.40 |
14 | 73227 | 11.59 -> 11.67 | 7.43 -> 7.06 | 4.80 -> 4.58 | 5.05 -> 5.17 | 0.42 -> 0.45 |
14 | R50X-94845 | 11.59 -> 11.68 | 7.43 -> 8.23 | 4.80 -> 4.69 | 5.05 -> 5.60 | 0.42 -> 0.44 |
14 | C 214 | 11.59 -> 11.69 | 7.43 -> 7.42 | 4.80 -> 5.01 | 5.05 -> 5.09 | 0.42 -> 0.44 |
14 | 73207 | 11.59 -> 11.71 | 7.43 -> 7.65 | 4.80 -> 4.67 | 5.05 -> 5.22 | 0.42 -> 0.43 |
14 | H230BL | 11.59 -> 11.74 | 7.43 -> 7.37 | 4.80 -> 4.63 | 5.05 -> 5.67 | 0.42 -> 0.52 |
14 | H280BL | 11.59 -> 11.87 | 7.43 -> 7.50 | 4.80 -> 5.39 | 5.05 -> 5.44 | 0.42 -> 0.54 |
14 | HDN 302 | 11.59 -> 11.88 | 7.43 -> 7.29 | 4.80 -> 4.68 | 5.05 -> 5.31 | 0.42 -> 0.48 |
14 | H470BL | 11.59 -> 11.90 | 7.43 -> 8.09 | 4.80 -> 5.18 | 5.05 -> 5.03 | 0.42 -> 0.48 |
14 | H400BL | 11.59 -> 12.04 | 7.43 -> 7.07 | 4.80 -> 5.07 | 5.05 -> 5.58 | 0.42 -> 0.50 |
14 | Nymph | 11.59 -> 12.05 | 7.43 -> 7.20 | 4.80 -> 5.18 | 5.05 -> 5.31 | 0.42 -> 0.57 |
14 | HDN 302 SPR | 11.59 -> 12.11 | 7.43 -> 7.25 | 4.80 -> 4.64 | 5.05 -> 5.63 | 0.42 -> 0.37 |
14 | H200BL | 11.59 -> 12.16 | 7.43 -> 7.60 | 4.80 -> 4.99 | 5.05 -> 5.70 | 0.42 -> 0.54 |
14 | H550BL | 11.59 -> 12.21 | 7.43 -> 7.16 | 4.80 -> 5.45 | 5.05 -> 5.13 | 0.42 -> 0.51 |
14 | C 211 | 11.59 -> 12.48 | 7.43 -> 8.18 | 4.80 -> 4.70 | 5.05 -> 5.15 | 0.42 -> 0.43 |
14 | C 220 | 11.59 -> 13.10 | 7.43 -> 8.03 | 4.80 -> 5.27 | 5.05 -> 5.79 | 0.42 -> 0.50 |
14 | FW 500 - Dry Fly Traditional | 11.59 -> 13.11 | 7.43 -> 8.33 | 4.80 -> 5.03 | 5.05 -> 5.19 | 0.42 -> 0.51 |
14 | TMC108SP-BL | 11.59 -> 13.12 | 7.43 -> 8.05 | 4.80 -> 4.73 | 5.05 -> 5.00 | 0.42 -> 0.47 |
12 | C 214 | 13.11 -> 12.98 | 8.54 -> 8.16 | 5.82 -> 5.64 | 5.57 -> 5.55 | 0.48 -> 0.48 |
12 | D101 | 13.11 -> 13.02 | 8.54 -> 8.50 | 5.82 -> 5.55 | 5.57 -> 5.32 | 0.48 -> 0.55 |
12 | W145 | 13.11 -> 13.25 | 8.54 -> 8.27 | 5.82 -> 5.71 | 5.57 -> 5.86 | 0.48 -> 0.42 |
12 | 11011 BL | 13.11 -> 13.45 | 8.54 -> 8.55 | 5.82 -> 5.61 | 5.57 -> 5.91 | 0.48 -> 0.42 |
12 | R70 - 7957 | 13.11 -> 13.53 | 8.54 -> 8.44 | 5.82 -> 5.64 | 5.57 -> 5.61 | 0.48 -> 0.60 |
12 | BL 454 | 13.11 -> 13.69 | 8.54 -> 8.66 | 5.82 -> 6.58 | 5.57 -> 6.12 | 0.48 -> 0.52 |
12 | Br 2140 | 13.11 -> 13.79 | 8.54 -> 8.48 | 5.82 -> 6.18 | 5.57 -> 5.97 | 0.48 -> 0.51 |
12 | TMC9300 | 13.11 -> 13.98 | 8.54 -> 9.15 | 5.82 -> 5.60 | 5.57 -> 5.69 | 0.48 -> 0.49 |
12 | H230BL | 13.11 -> 14.01 | 8.54 -> 9.17 | 5.82 -> 5.97 | 5.57 -> 5.99 | 0.48 -> 0.56 |
12 | H200BL | 13.11 -> 14.10 | 8.54 -> 9.06 | 5.82 -> 5.90 | 5.57 -> 5.89 | 0.48 -> 0.63 |
12 | H400BL | 13.11 -> 14.16 | 8.54 -> 8.47 | 5.82 -> 5.87 | 5.57 -> 6.20 | 0.48 -> 0.64 |
12 | H280BL | 13.11 -> 14.23 | 8.54 -> 8.97 | 5.82 -> 6.27 | 5.57 -> 6.15 | 0.48 -> 0.55 |
12 | C 220 | 13.11 -> 14.28 | 8.54 -> 8.43 | 5.82 -> 5.76 | 5.57 -> 6.03 | 0.48 -> 0.53 |
12 | FW 501 | 13.11 -> 14.38 | 8.54 -> 9.54 | 5.82 -> 5.86 | 5.57 -> 5.74 | 0.48 -> 0.56 |
12 | FW 500 - Dry Fly Traditional | 13.11 -> 14.41 | 8.54 -> 9.45 | 5.82 -> 5.76 | 5.57 -> 5.59 | 0.48 -> 0.57 |
