Allen: D101

Company Allen
www www.allenflyfishing.com
Type Single
Strength 1xf
Gape Wide
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Usages Dry
Trout
Grayling
Freshwater
Spider
Soft Hackle
Midge
Sizes 20 18 16 14 12 10 8 6

Sizes

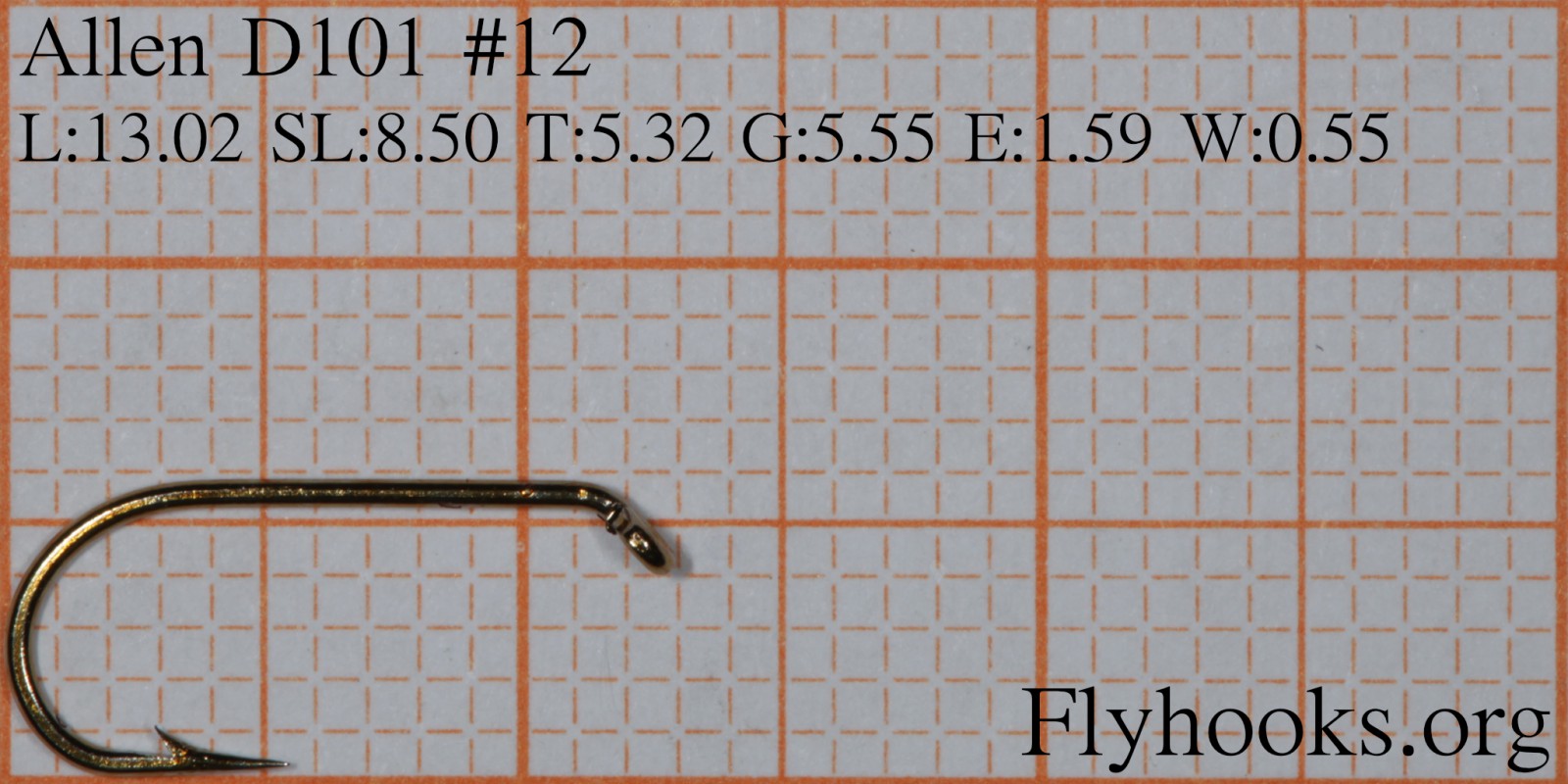

Length13.02 mm
Shank Length8.50 mm
Throat5.32 mm
Gape5.55 mm
Eye Width1.59 mm
Wire Thickness0.55 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
12 SUD2 - Ideal Standard Dry 13.02 -> 12.69 8.50 -> 8.45 5.55 -> 5.38 5.32 -> 5.40 0.55 -> 0.51
12 Br 2100 13.02 -> 12.79 8.50 -> 8.51 5.55 -> 5.46 5.32 -> 5.78 0.55 -> 0.49
12 Dry Fly 13.02 -> 12.91 8.50 -> 8.28 5.55 -> 5.48 5.32 -> 5.33 0.55 -> 0.51
12 94836 13.02 -> 12.92 8.50 -> 8.55 5.55 -> 5.34 5.32 -> 5.32 0.55 -> 0.46
12 C 214 13.02 -> 12.98 8.50 -> 8.16 5.55 -> 5.64 5.32 -> 5.55 0.55 -> 0.48
12 130BL 13.02 -> 13.11 8.50 -> 8.54 5.55 -> 5.82 5.32 -> 5.57 0.55 -> 0.48
12 W145 13.02 -> 13.25 8.50 -> 8.27 5.55 -> 5.71 5.32 -> 5.86 0.55 -> 0.42
12 TMC3769SP-BL 13.02 -> 13.26 8.50 -> 9.25 5.55 -> 5.30 5.32 -> 5.74 0.55 -> 0.55
12 Dry Fly 13.02 -> 13.27 8.50 -> 8.53 5.55 -> 5.47 5.32 -> 5.32 0.55 -> 0.49
12 9002 13.02 -> 13.34 8.50 -> 9.12 5.55 -> 5.31 5.32 -> 5.56 0.55 -> 0.55
12 11011 BL 13.02 -> 13.45 8.50 -> 8.55 5.55 -> 5.61 5.32 -> 5.91 0.55 -> 0.42
12 D102BL 13.02 -> 13.46 8.50 -> 8.33 5.55 -> 5.83 5.32 -> 5.13 0.55 -> 0.52
12 R70 - 7957 13.02 -> 13.53 8.50 -> 8.44 5.55 -> 5.64 5.32 -> 5.61 0.55 -> 0.60
12 9485 13.02 -> 13.55 8.50 -> 9.33 5.55 -> 5.36 5.32 -> 5.57 0.55 -> 0.54
12 AK503BL 13.02 -> 13.57 8.50 -> 8.85 5.55 -> 5.47 5.32 -> 5.94 0.55 -> 0.43
12 94840 13.02 -> 13.65 8.50 -> 9.68 5.55 -> 5.35 5.32 -> 5.32 0.55 -> 0.50
12 Br 2140 13.02 -> 13.79 8.50 -> 8.48 5.55 -> 6.18 5.32 -> 5.97 0.55 -> 0.51
12 TMC9300 13.02 -> 13.98 8.50 -> 9.15 5.55 -> 5.60 5.32 -> 5.69 0.55 -> 0.49
12 H230BL 13.02 -> 14.01 8.50 -> 9.17 5.55 -> 5.97 5.32 -> 5.99 0.55 -> 0.56
12 H200BL 13.02 -> 14.10 8.50 -> 9.06 5.55 -> 5.90 5.32 -> 5.89 0.55 -> 0.63
12 C 220 13.02 -> 14.28 8.50 -> 8.43 5.55 -> 5.76 5.32 -> 6.03 0.55 -> 0.53
12 TMC100BL 13.02 -> 14.37 8.50 -> 9.77 5.55 -> 5.47 5.32 -> 5.51 0.55 -> 0.50
12 FW 501 13.02 -> 14.38 8.50 -> 9.54 5.55 -> 5.86 5.32 -> 5.74 0.55 -> 0.56
12 FW 500 - Dry Fly Traditional 13.02 -> 14.41 8.50 -> 9.45 5.55 -> 5.76 5.32 -> 5.59 0.55 -> 0.57
12 F11 13.02 -> 14.76 8.50 -> 9.74 5.55 -> 5.28 5.32 -> 5.16 0.55 -> 0.47
