Tiemco: TMC100BL

Company Tiemco
www www.tiemco.co.jp
Type Single
Strength 1xf
Gape Wide
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Bronze
Usages Dry
Nymph
Trout
Grayling
Freshwater
Emerger
Midge
Sizes 22 20 18 16 14 12 10

Sizes

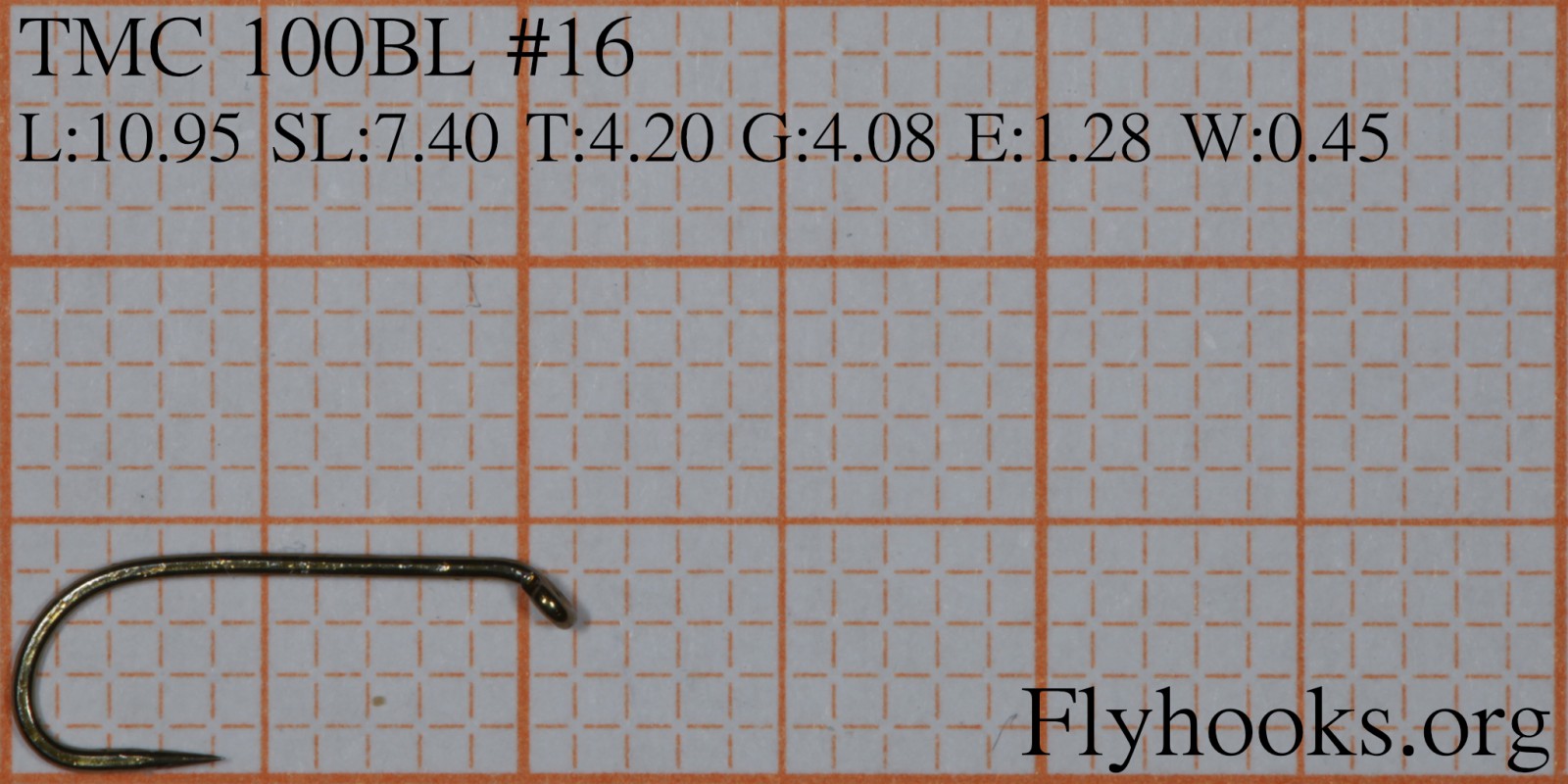

Length10.95 mm
Shank Length7.40 mm
Throat4.20 mm
Gape4.08 mm
Eye Width1.28 mm
Wire Thickness0.45 mm

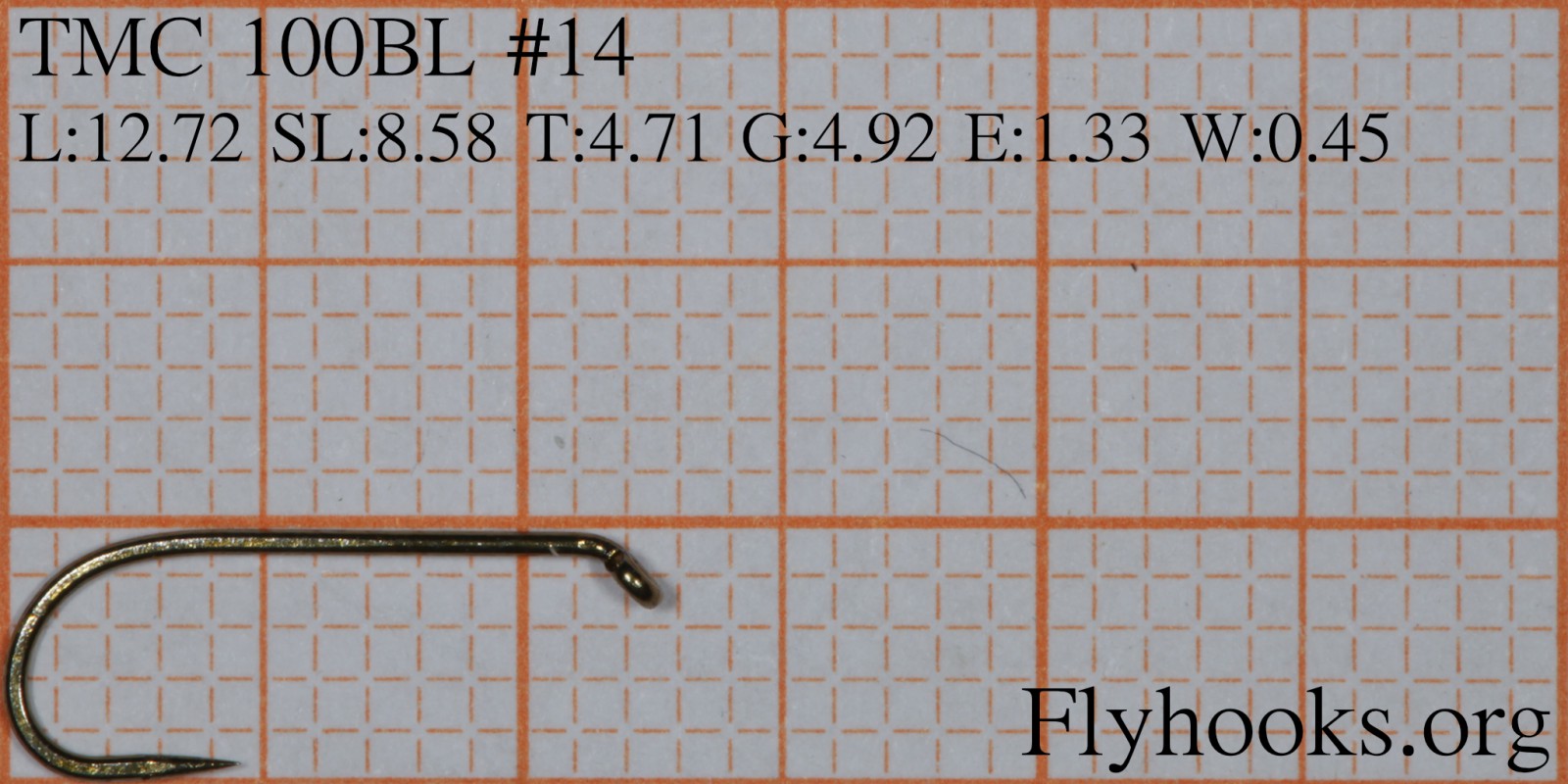

Length12.72 mm
Shank Length8.58 mm
Throat4.71 mm
Gape4.92 mm
Eye Width1.33 mm
Wire Thickness0.45 mm

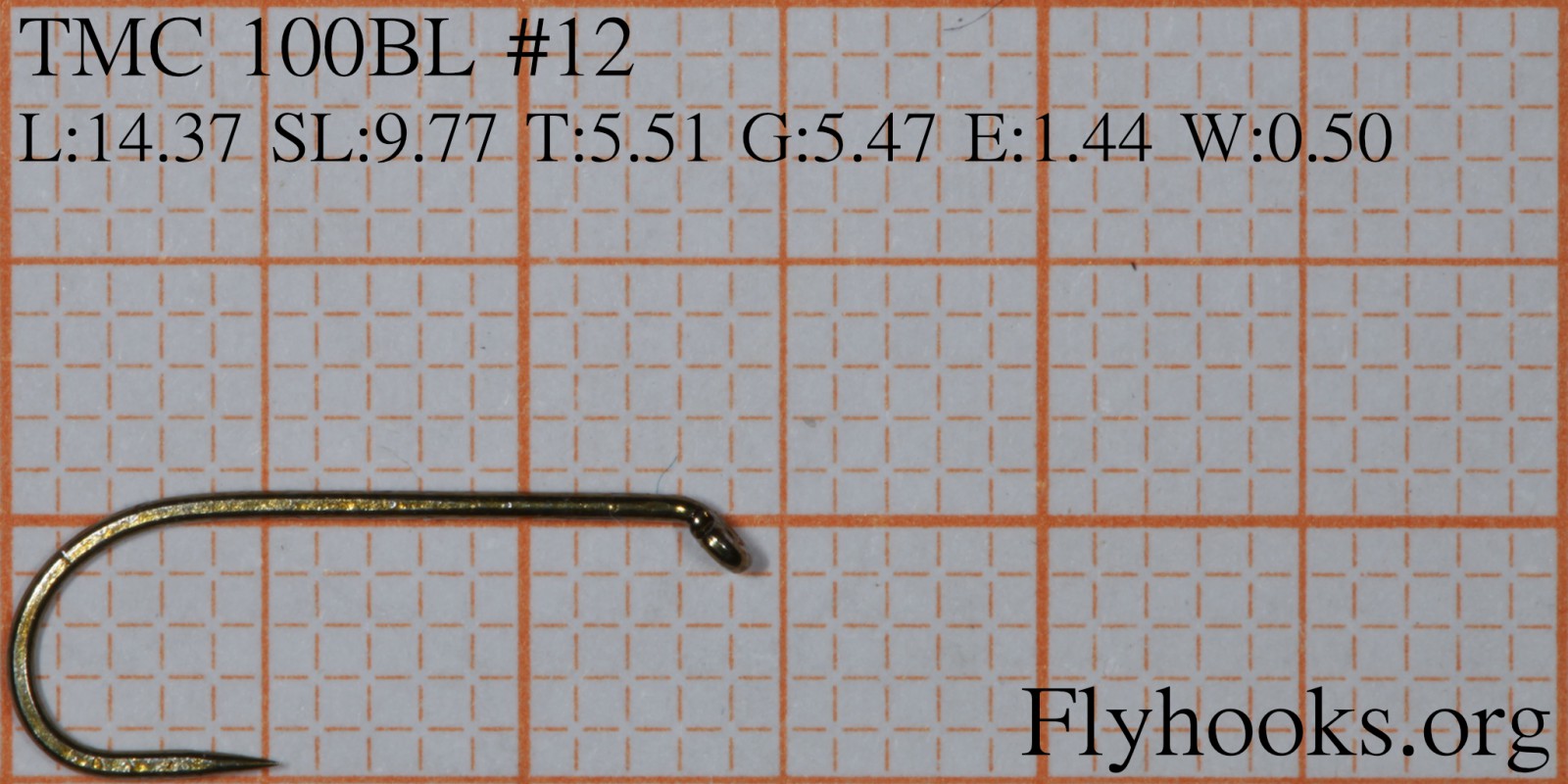

Length14.37 mm
Shank Length9.77 mm
Throat5.51 mm
Gape5.47 mm
Eye Width1.44 mm
Wire Thickness0.50 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 H290BL 10.95 -> 10.94 7.40 -> 7.21 4.08 -> 4.20 4.20 -> 4.11 0.45 -> 0.37
16 AK501 10.95 -> 11.55 7.40 -> 7.65 4.08 -> 3.96 4.20 -> 4.20 0.45 -> 0.41
16 FW 500 - Dry Fly Traditional 10.95 -> 11.76 7.40 -> 7.94 4.08 -> 4.37 4.20 -> 4.36 0.45 -> 0.44
16 FW 501 10.95 -> 11.76 7.40 -> 7.81 4.08 -> 4.34 4.20 -> 4.46 0.45 -> 0.46
16 730 10.95 -> 12.22 7.40 -> 8.09 4.08 -> 4.13 4.20 -> 4.08 0.45 -> 0.46
14 C 211 12.72 -> 12.48 8.58 -> 8.18 4.92 -> 4.70 4.71 -> 5.15 0.45 -> 0.43
14 BL 300 12.72 -> 12.82 8.58 -> 8.65 4.92 -> 4.76 4.71 -> 4.91 0.45 -> 0.45
14 120 BL 12.72 -> 12.83 8.58 -> 8.98 4.92 -> 4.75 4.71 -> 5.12 0.45 -> 0.46
14 FW 500 - Dry Fly Traditional 12.72 -> 13.11 8.58 -> 8.33 4.92 -> 5.03 4.71 -> 5.19 0.45 -> 0.51
14 FW 501 12.72 -> 13.25 8.58 -> 8.78 4.92 -> 4.99 4.71 -> 5.23 0.45 -> 0.51
14 d31 12.72 -> 13.42 8.58 -> 8.64 4.92 -> 4.68 4.71 -> 4.66 0.45 -> 0.41
14 730 12.72 -> 13.61 8.58 -> 9.14 4.92 -> 4.86 4.71 -> 4.91 0.45 -> 0.51
14 C 231 12.72 -> 13.69 8.58 -> 9.40 4.92 -> 4.84 4.71 -> 5.30 0.45 -> 0.49
14 FW 561 12.72 -> 14.37 8.58 -> 9.40 4.92 -> 4.77 4.71 -> 4.88 0.45 -> 0.57
14 FW 560 - Traditional Nymph 12.72 -> 14.46 8.58 -> 9.71 4.92 -> 4.93 4.71 -> 5.22 0.45 -> 0.57
12 IN - Ideal Nymph 14.37 -> 14.05 9.77 -> 10.54 5.47 -> 5.31 5.51 -> 5.39 0.50 -> 0.52
12 BIN - Patriot Ideal Nymph 14.37 -> 14.12 9.77 -> 10.64 5.47 -> 5.22 5.51 -> 5.76 0.50 -> 0.47
12 FW 501 14.37 -> 14.38 9.77 -> 9.54 5.47 -> 5.86 5.51 -> 5.74 0.50 -> 0.56
12 FW 500 - Dry Fly Traditional 14.37 -> 14.41 9.77 -> 9.45 5.47 -> 5.76 5.51 -> 5.59 0.50 -> 0.57
12 d31 14.37 -> 14.51 9.77 -> 9.82 5.47 -> 5.26 5.51 -> 5.27 0.50 -> 0.48
12 AK501 14.37 -> 14.53 9.77 -> 10.00 5.47 -> 5.68 5.51 -> 5.44 0.50 -> 0.50
12 120 BL 14.37 -> 14.76 9.77 -> 10.50 5.47 -> 5.23 5.51 -> 5.65 0.50 -> 0.49
12 D103BL 14.37 -> 14.89 9.77 -> 10.91 5.47 -> 5.21 5.51 -> 5.67 0.50 -> 0.54
12 TMC100SP-BL 14.37 -> 14.91 9.77 -> 10.14 5.47 -> 5.55 5.51 -> 5.69 0.50 -> 0.53
12 C 211 14.37 -> 14.95 9.77 -> 10.40 5.47 -> 5.34 5.51 -> 5.60 0.50 -> 0.51
12 TMC3761SP-BL 14.37 -> 15.20 9.77 -> 10.49 5.47 -> 5.22 5.51 -> 5.80 0.50 -> 0.55
12 R72 14.37 -> 15.88 9.77 -> 10.35 5.47 -> 5.82 5.51 -> 5.44 0.50 -> 0.59
12 FW 560 - Traditional Nymph 14.37 -> 15.96 9.77 -> 10.80 5.47 -> 5.74 5.51 -> 5.72 0.50 -> 0.59
12 TMC5262 14.37 -> 16.18 9.77 -> 10.88 5.47 -> 5.47 5.51 -> 5.67 0.50 -> 0.56
12 FW 561 14.37 -> 16.21 9.77 -> 10.82 5.47 -> 5.84 5.51 -> 5.61 0.50 -> 0.60
