Tiemco: TMC9394

Company	Tiemco
Type	Single
Size	4xl
Strength	3xh
Eye	Ringed eye
Eye Position	Parallell
Shank Style	Straigth
Barb	Barb
Color	Nickel
Usages	Streamer Salmon Saltwater Freshwater Pike Bass Seatrout Steelhead
Sizes	10 8 6 4 2

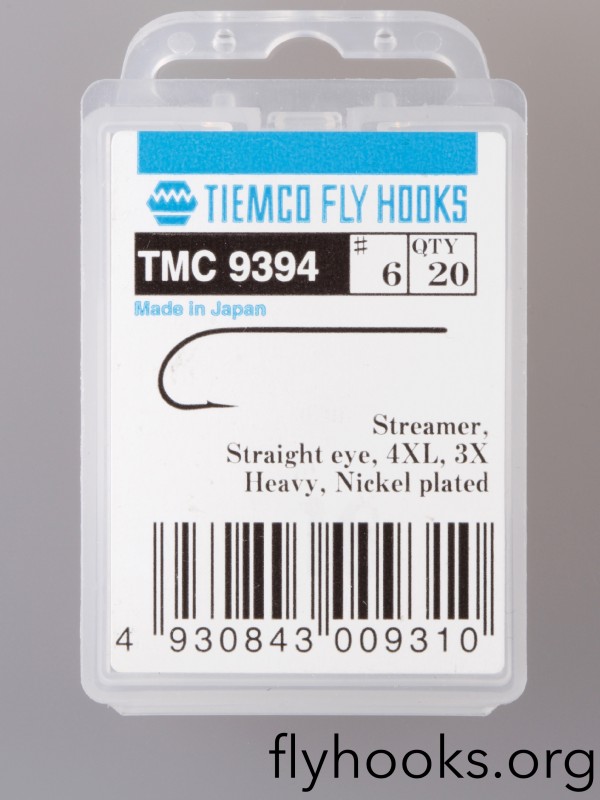

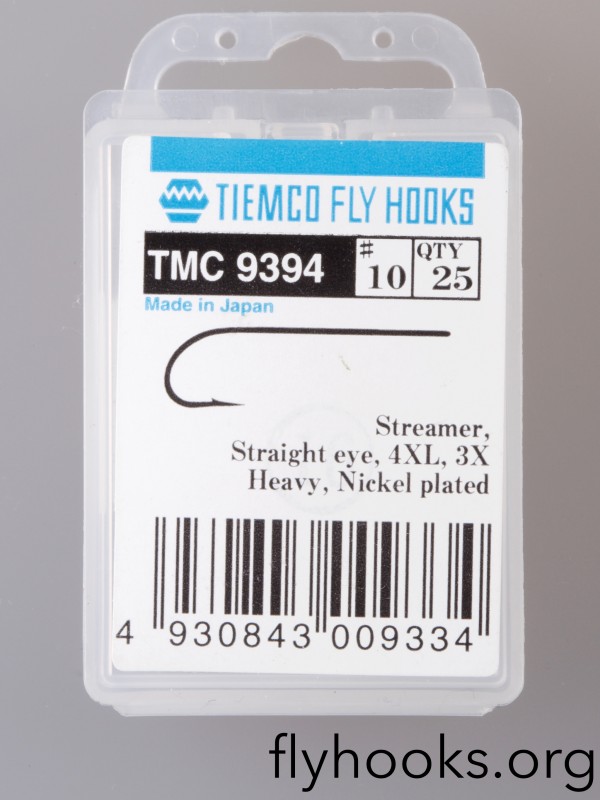

Boxes

Sizes

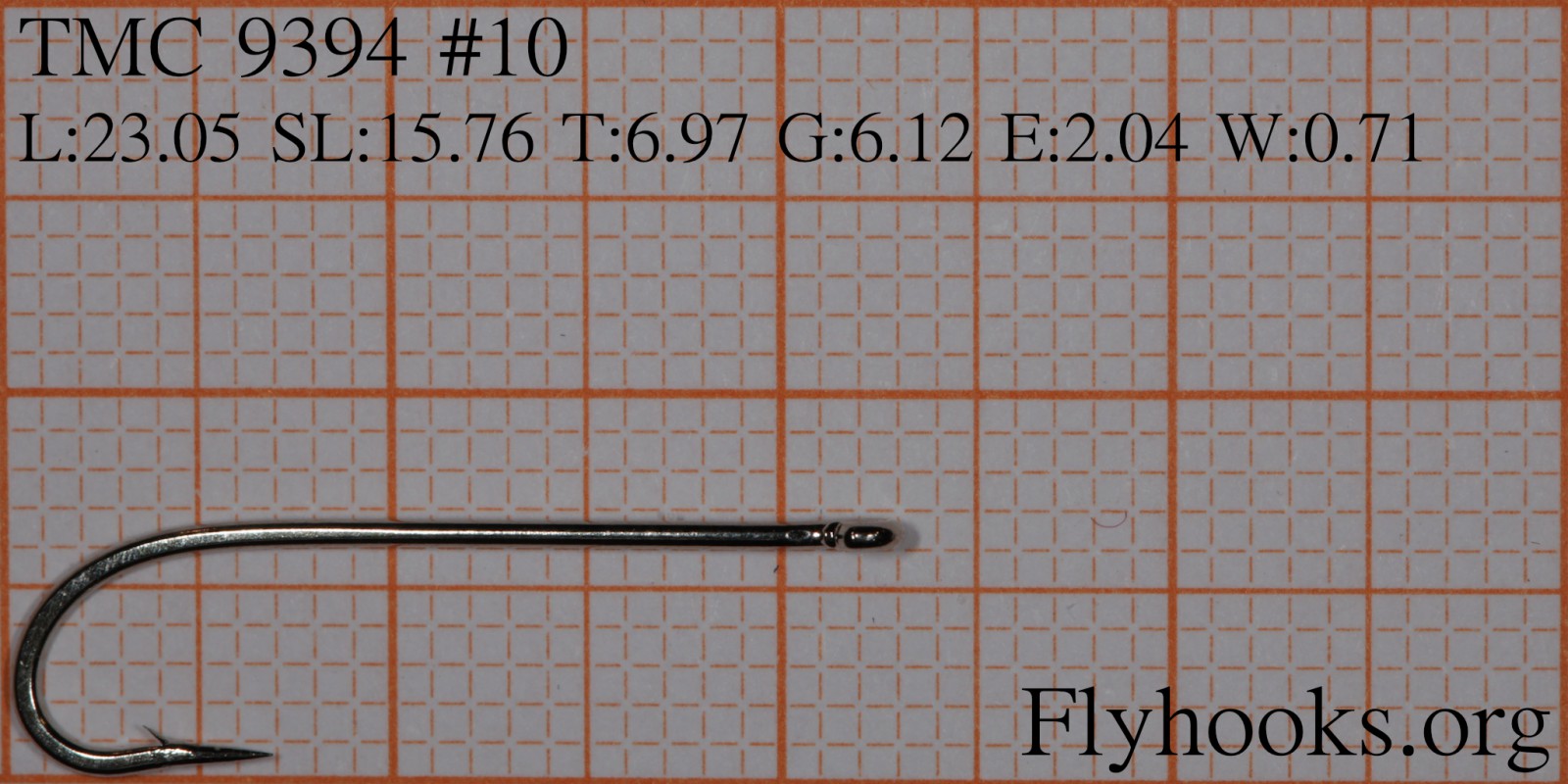

Length	23.05 mm
Shank Length	15.76 mm
Throat	6.97 mm
Gape	6.12 mm
Eye Width	2.04 mm
Wire Thickness	0.71 mm

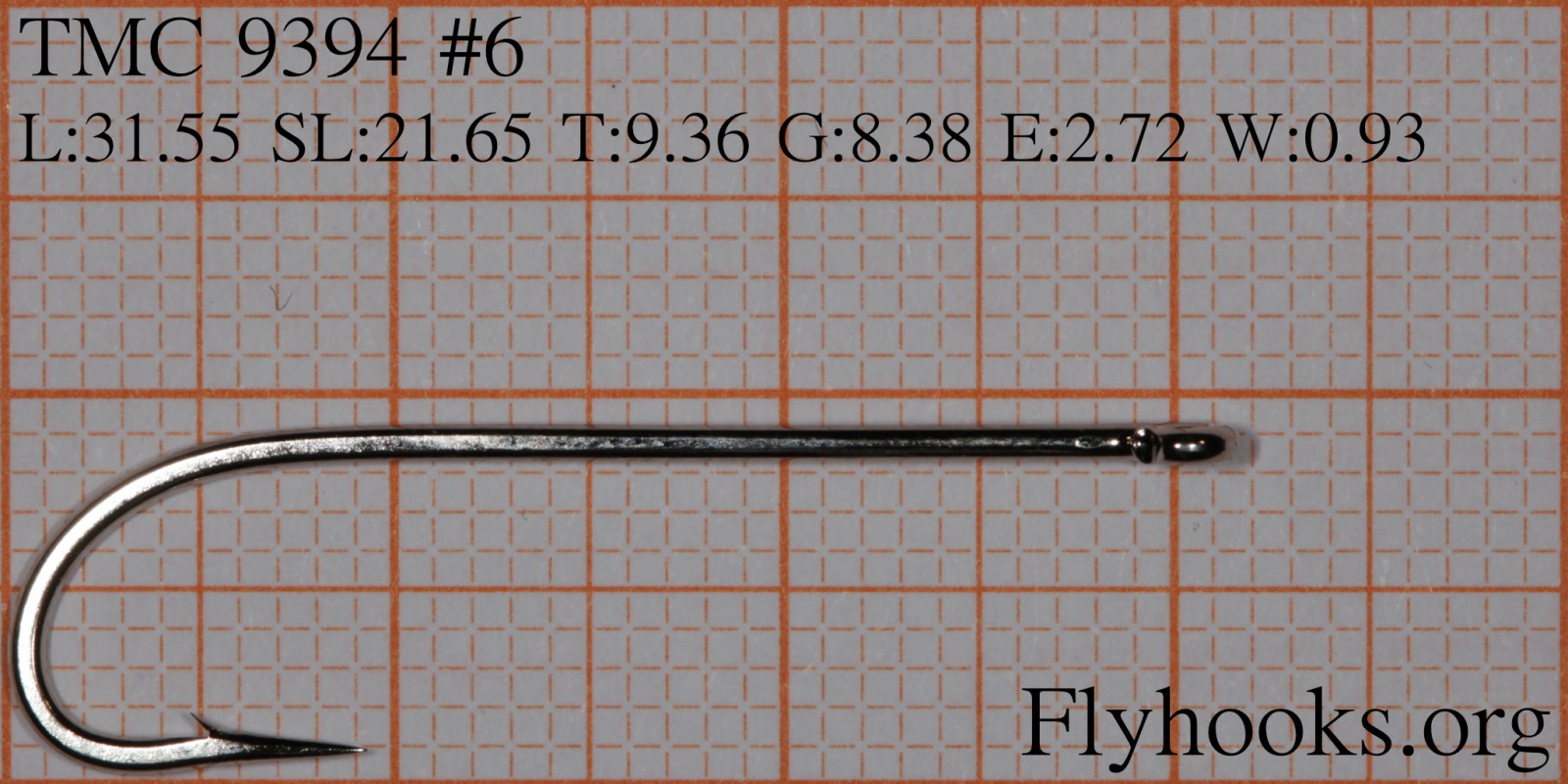

Length	31.55 mm
Shank Length	21.65 mm
Throat	9.36 mm
Gape	8.38 mm
Eye Width	2.72 mm
Wire Thickness	0.93 mm

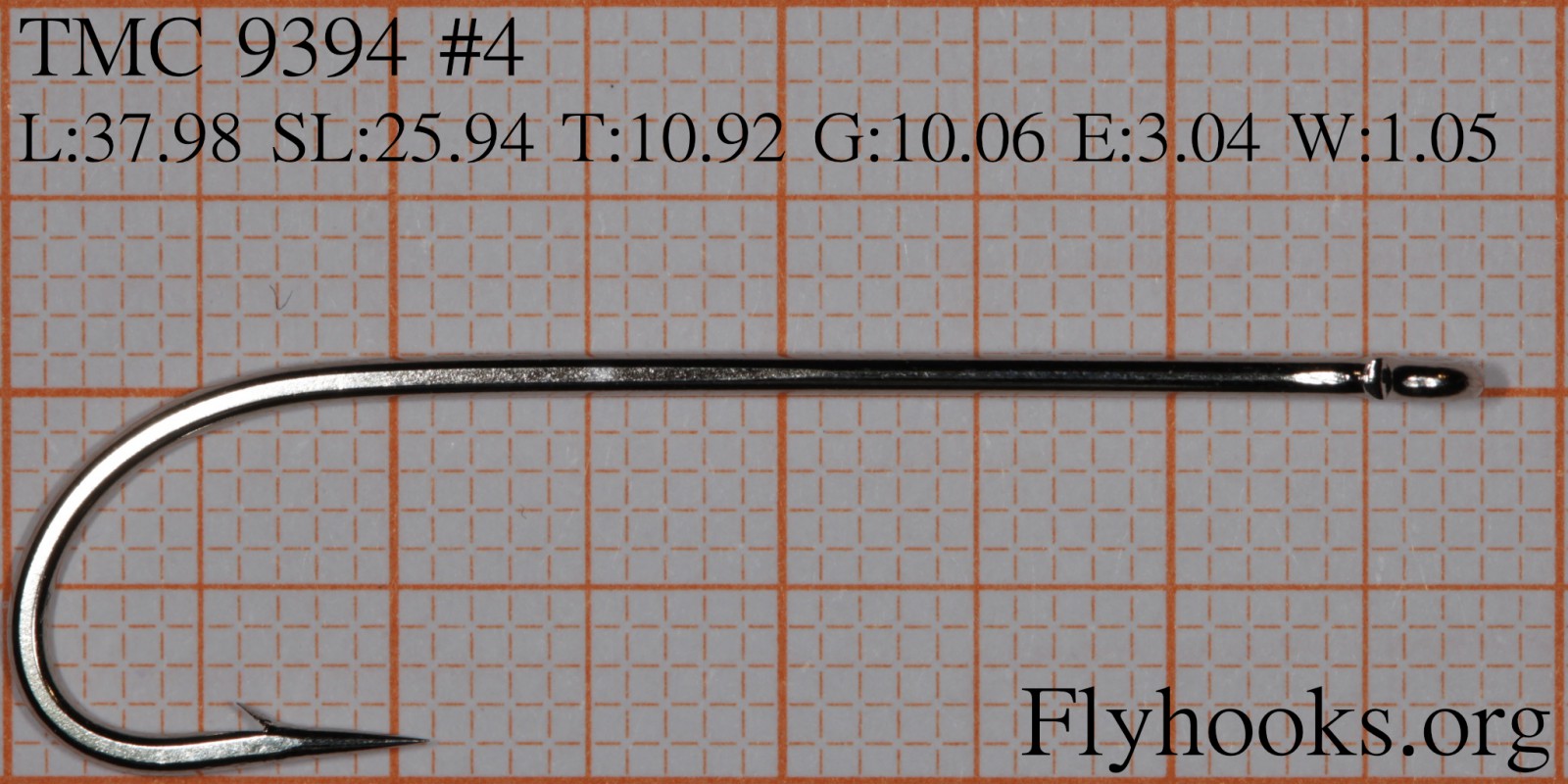

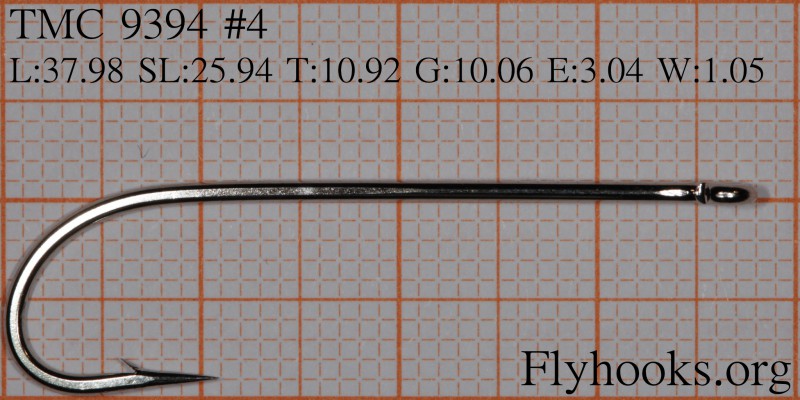

Length	37.98 mm
Shank Length	25.94 mm
Throat	10.92 mm
Gape	10.06 mm
Eye Width	3.04 mm
Wire Thickness	1.05 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
10	R74NP-BR	23.05 -> 21.93	15.76 -> 15.85	6.12 -> 6.49	6.97 -> 7.15	0.71 -> 0.68
10	79580	23.05 -> 22.21	15.76 -> 17.26	6.12 -> 6.34	6.97 -> 7.20	0.71 -> 0.63
10	B800 Round Bend Lure	23.05 -> 22.54	15.76 -> 16.85	6.12 -> 6.94	6.97 -> 6.75	0.71 -> 0.61
10	R75-79580	23.05 -> 23.18	15.76 -> 17.14	6.12 -> 6.42	6.97 -> 6.89	0.71 -> 0.69
6	38941	31.55 -> 30.76	21.65 -> 22.06	8.38 -> 8.75	9.36 -> 9.39	0.93 -> 0.80
4	CS5 Thunder Creek	37.98 -> 37.50	25.94 -> 28.51	10.06 -> 9.76	10.92 -> 10.40	1.05 -> 0.96
4	B820	37.98 -> 38.03	25.94 -> 27.73	10.06 -> 9.83	10.92 -> 10.46	1.05 -> 0.95
4	80400 BLN	37.98 -> 40.40	25.94 -> 28.77	10.06 -> 10.10	10.92 -> 10.77	1.05 -> 0.90
