Tiemco: TMC5263

Company Tiemco
www www.tiemco.co.jp
Type Single
Size 3xl
Strength 2xh
Eye Position Turned down
Barb Barb
Color Bronze
Usages Wet
Streamer
Nymph
Salmon
Trout
Grayling
Freshwater
Bass
Seatrout
Steelhead
Sizes 14 12 10 8 6 4 2

Boxes

Sizes

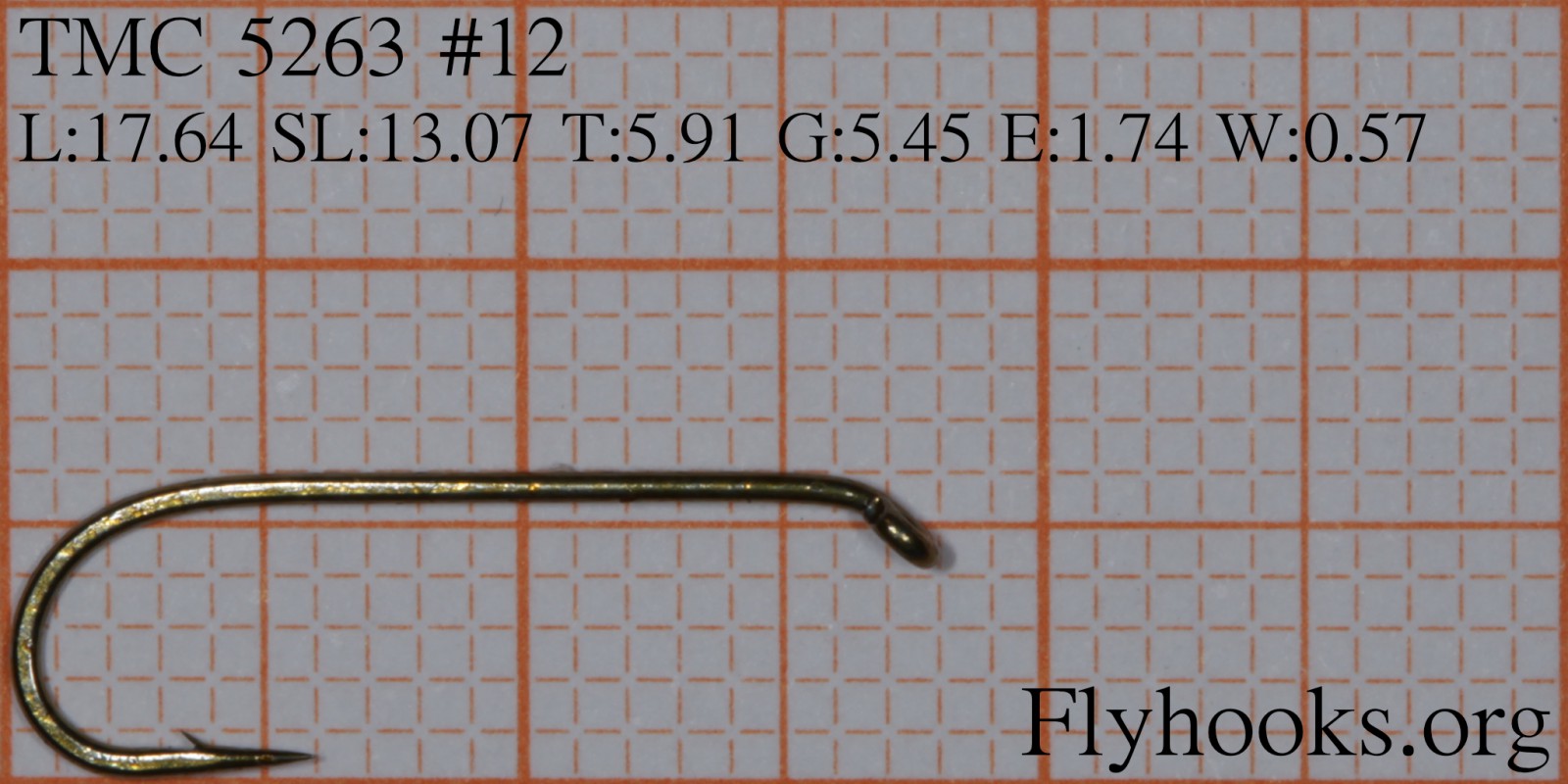

Length17.64 mm
Shank Length13.07 mm
Throat5.91 mm
Gape5.45 mm
Eye Width1.74 mm
Wire Thickness0.57 mm

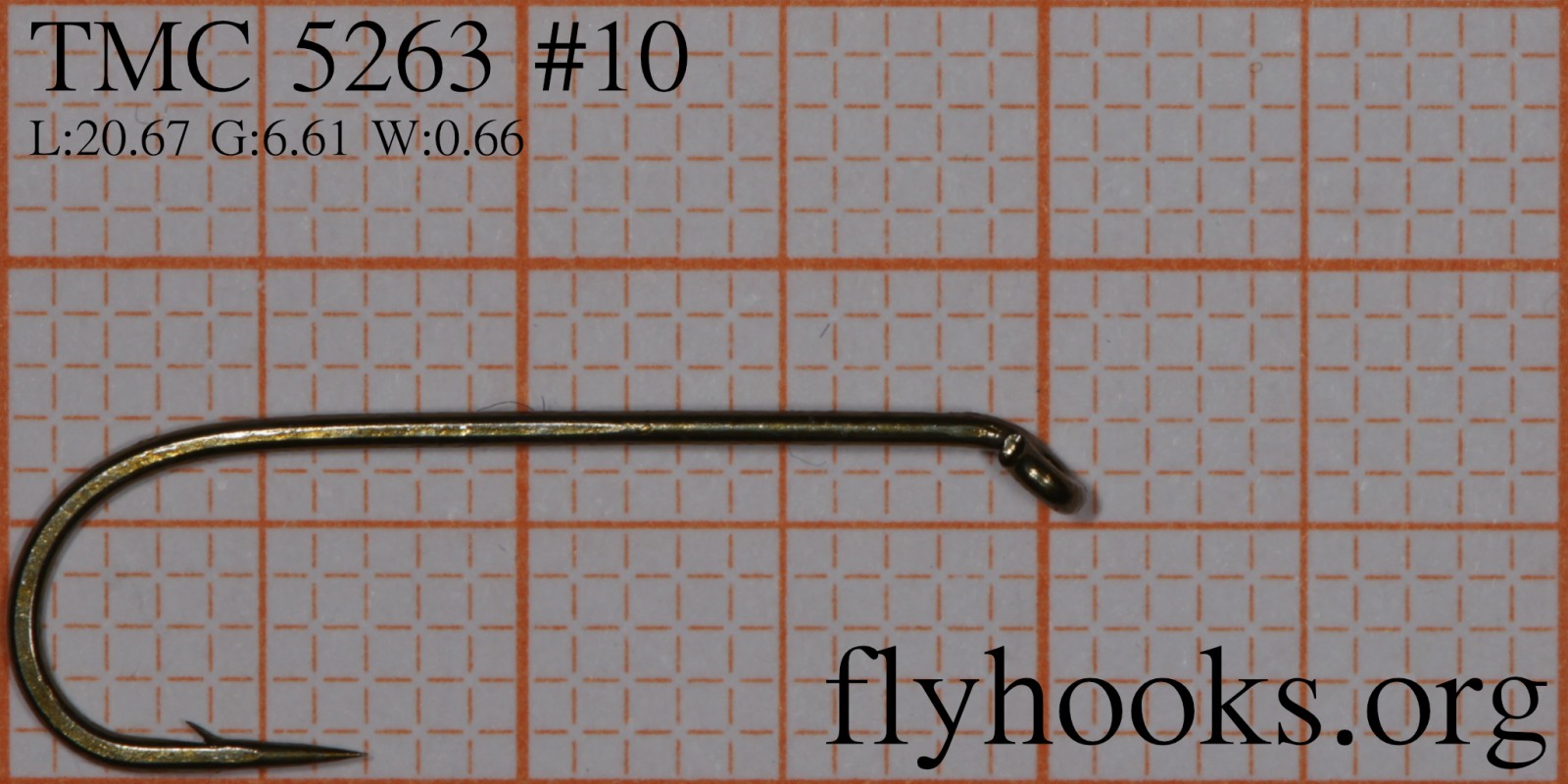

Length20.67 mm
Gape6.61 mm
Wire Thickness0.66 mm

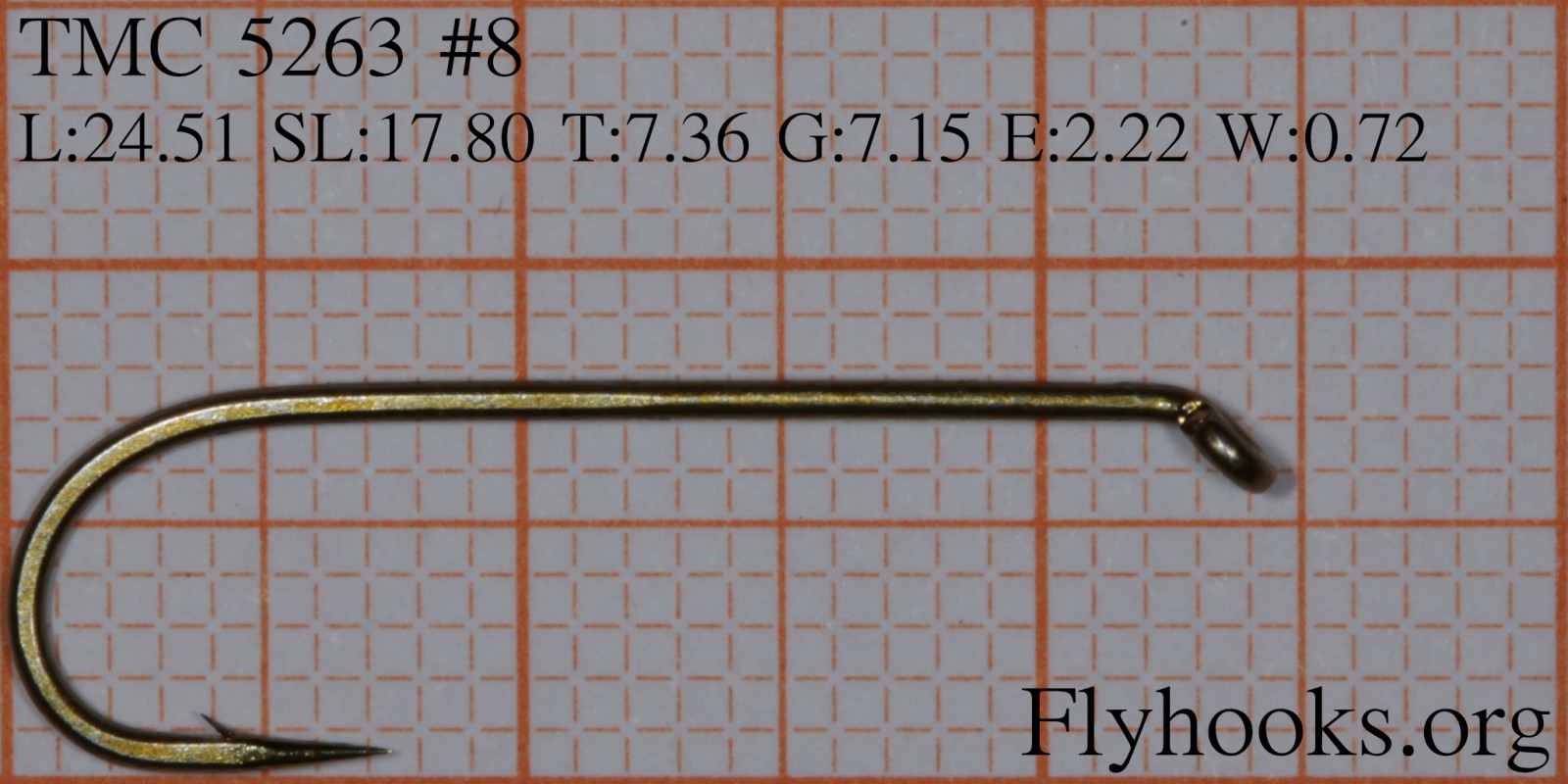

Length24.51 mm
Shank Length17.80 mm
Throat7.36 mm
Gape7.15 mm
Eye Width2.22 mm
Wire Thickness0.72 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
12 H1A - Nymph Long 17.64 -> 17.16 13.07 -> 12.77 5.45 -> 5.92 5.91 -> 5.67 0.57 -> 0.53
12 Streamer 17.64 -> 17.53 13.07 -> 12.77 5.45 -> 5.61 5.91 -> 5.80 0.57 -> 0.58
12 R73NP-BR 17.64 -> 18.91 13.07 -> 14.42 5.45 -> 5.30 5.91 -> 6.71 0.57 -> 0.60
12 B800 Round Bend Lure 17.64 -> 19.13 13.07 -> 14.40 5.45 -> 5.83 5.91 -> 6.00 0.57 -> 0.53
12 R75-79580 17.64 -> 19.77 13.07 -> 14.07 5.45 -> 5.52 5.91 -> 5.88 0.57 -> 0.59
10 D4AY - Streamer 20.67 -> 19.74   6.61 -> 6.45   0.66 -> 0.60
10 C53S 20.67 -> 19.78   6.61 -> 6.50   0.66 -> 0.60
10 Nymph 20.67 -> 19.94   6.61 -> 6.71   0.66 -> 0.62
10 FW 531 20.67 -> 20.14   6.61 -> 6.85   0.66 -> 0.58
10 M2 - Heavy Salmon Single 20.67 -> 20.38   6.61 -> 6.67   0.66 -> 0.61
10 9672 20.67 -> 20.68   6.61 -> 6.32   0.66 -> 0.65
10 Streamer 20.67 -> 21.23   6.61 -> 6.49   0.66 -> 0.61
10 R74NP-BR 20.67 -> 21.93   6.61 -> 6.49   0.66 -> 0.68
10 79580 20.67 -> 22.21   6.61 -> 6.34   0.66 -> 0.63
10 K10 20.67 -> 22.41   6.61 -> 6.47   0.66 -> 0.51
10 B800 Round Bend Lure 20.67 -> 22.54   6.61 -> 6.94   0.66 -> 0.61
10 D4A - Streamer 20.67 -> 22.89   6.61 -> 7.43   0.66 -> 0.63
10 72548 20.67 -> 23.07   6.61 -> 6.77   0.66 -> 0.63
10 R75-79580 20.67 -> 23.18   6.61 -> 6.42   0.66 -> 0.69
10 36812 20.67 -> 23.60   6.61 -> 6.83   0.66 -> 0.59
8 Streamer 24.51 -> 24.16 17.80 -> 17.41 7.15 -> 6.98 7.36 -> 7.81 0.72 -> 0.71
8 36890 24.51 -> 25.13 17.80 -> 17.11 7.15 -> 7.91 7.36 -> 7.94 0.72 -> 0.81
8 R75NP-BR 24.51 -> 26.29 17.80 -> 19.72 7.15 -> 7.70 7.36 -> 7.94 0.72 -> 0.80
8 R75-79580 24.51 -> 26.48 17.80 -> 19.42 7.15 -> 7.55 7.36 -> 7.85 0.72 -> 0.77
8 1-630 BR 24.51 -> 27.10 17.80 -> 20.22 7.15 -> 7.61 7.36 -> 7.76 0.72 -> 0.66
