Tiemco: TMC103BL

Company	Tiemco
www	www.tiemco.co.jp
Type	Single
Strength	1xf
Gape	Wide
Eye Position	Turned down
Shank Style	Straigth
Barb	Barbless
Color	Black
Usages	Dry Trout Grayling Spider Soft Hackle Emerger Midge
Sizes	21 19 17 15 13 11

Sizes

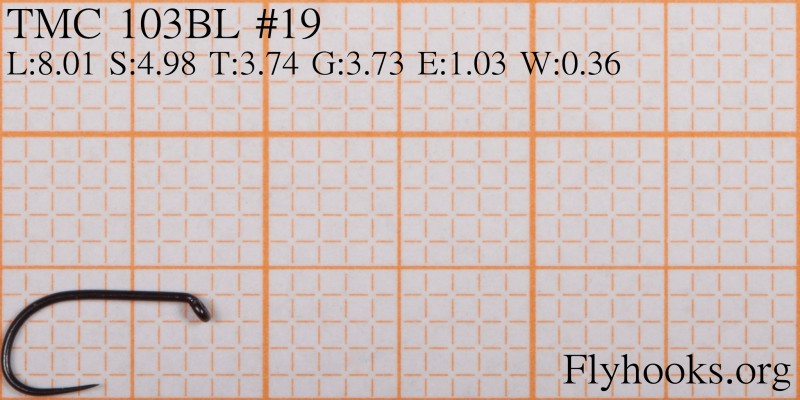

Length	8.01 mm
Shank Length	4.98 mm
Throat	3.74 mm
Gape	3.73 mm
Eye Width	1.03 mm
Wire Thickness	0.36 mm

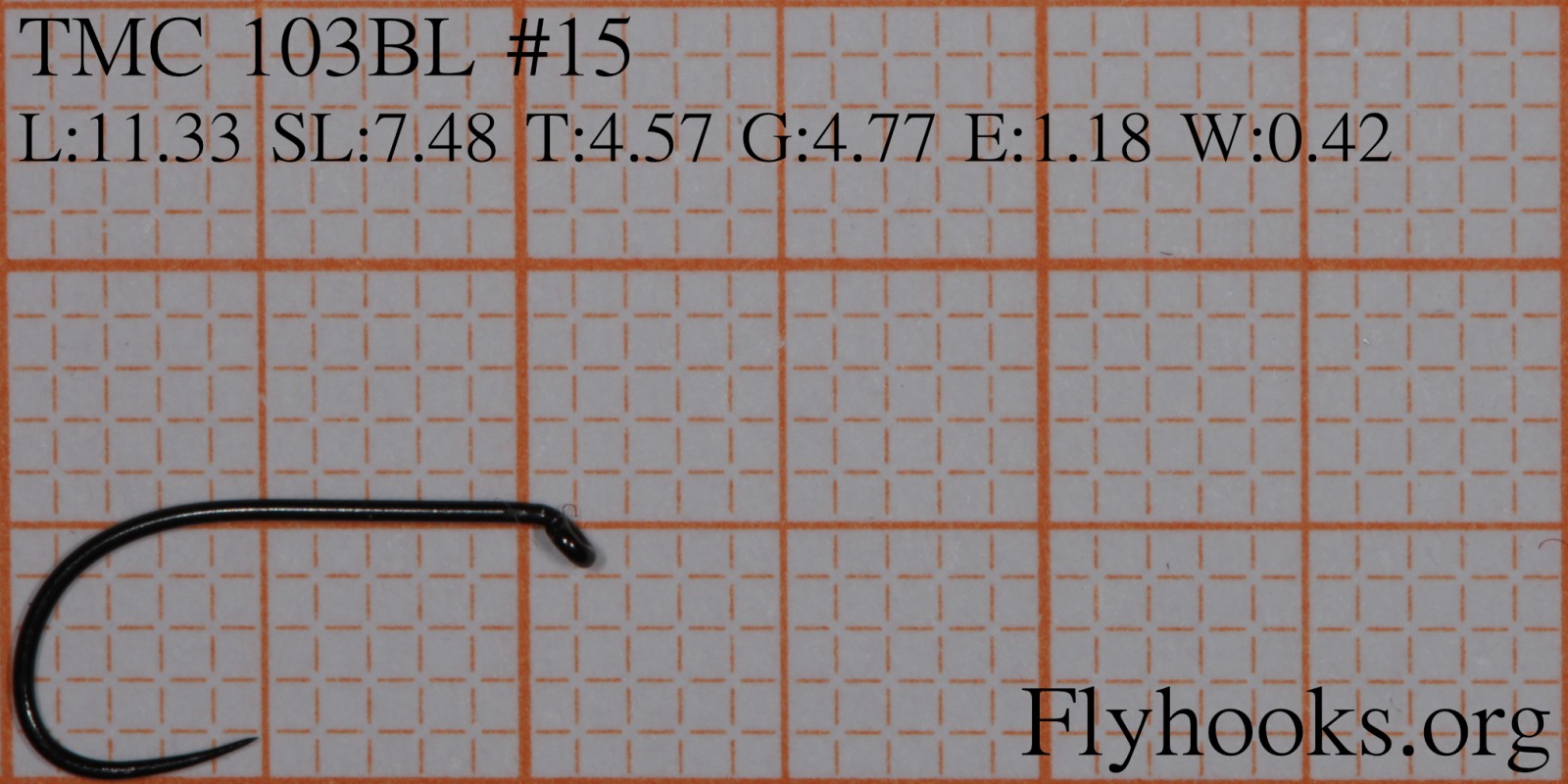

Length	11.33 mm
Shank Length	7.48 mm
Throat	4.57 mm
Gape	4.77 mm
Eye Width	1.18 mm
Wire Thickness	0.42 mm

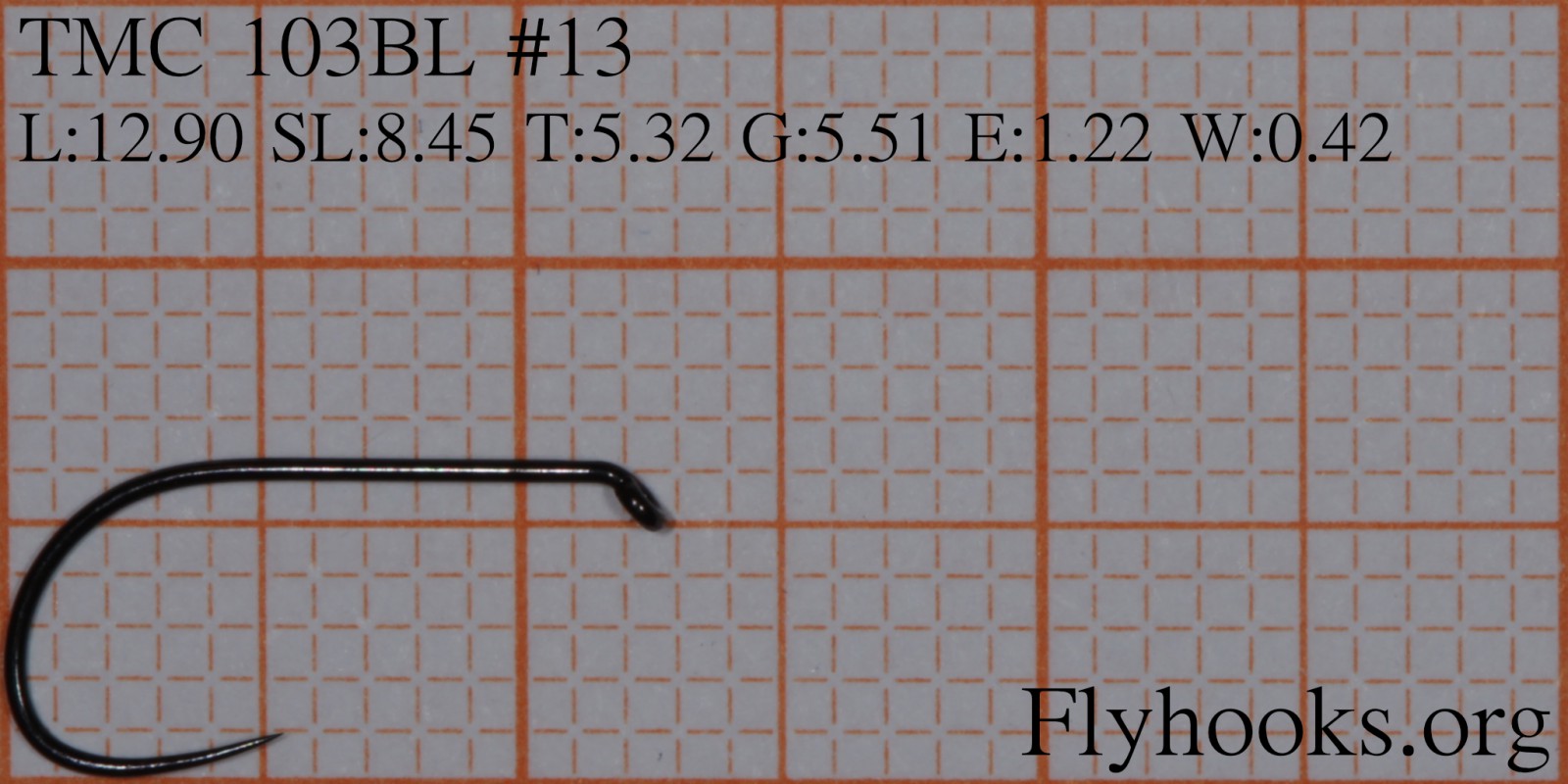

Length	12.90 mm
Shank Length	8.45 mm
Throat	5.32 mm
Gape	5.51 mm
Eye Width	1.22 mm
Wire Thickness	0.42 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
13	TMC102Y	12.90 -> 12.97	8.45 -> 8.45	5.51 -> 5.44	5.32 -> 5.10	0.42 -> 0.42
