Tiemco: TMC3769

Company Tiemco
www www.tiemco.co.jp
Type Single
Strength 2xh
Eye Position Turned down
Shank Style Straigth
Bend Sproat bend
Barb Barb
Color Bronze
Usages Dry
Wet
Nymph
Trout
Grayling
Freshwater
Spider
Soft Hackle
Emerger
Midge
Sizes 16 14 12 10 8 6

Sizes

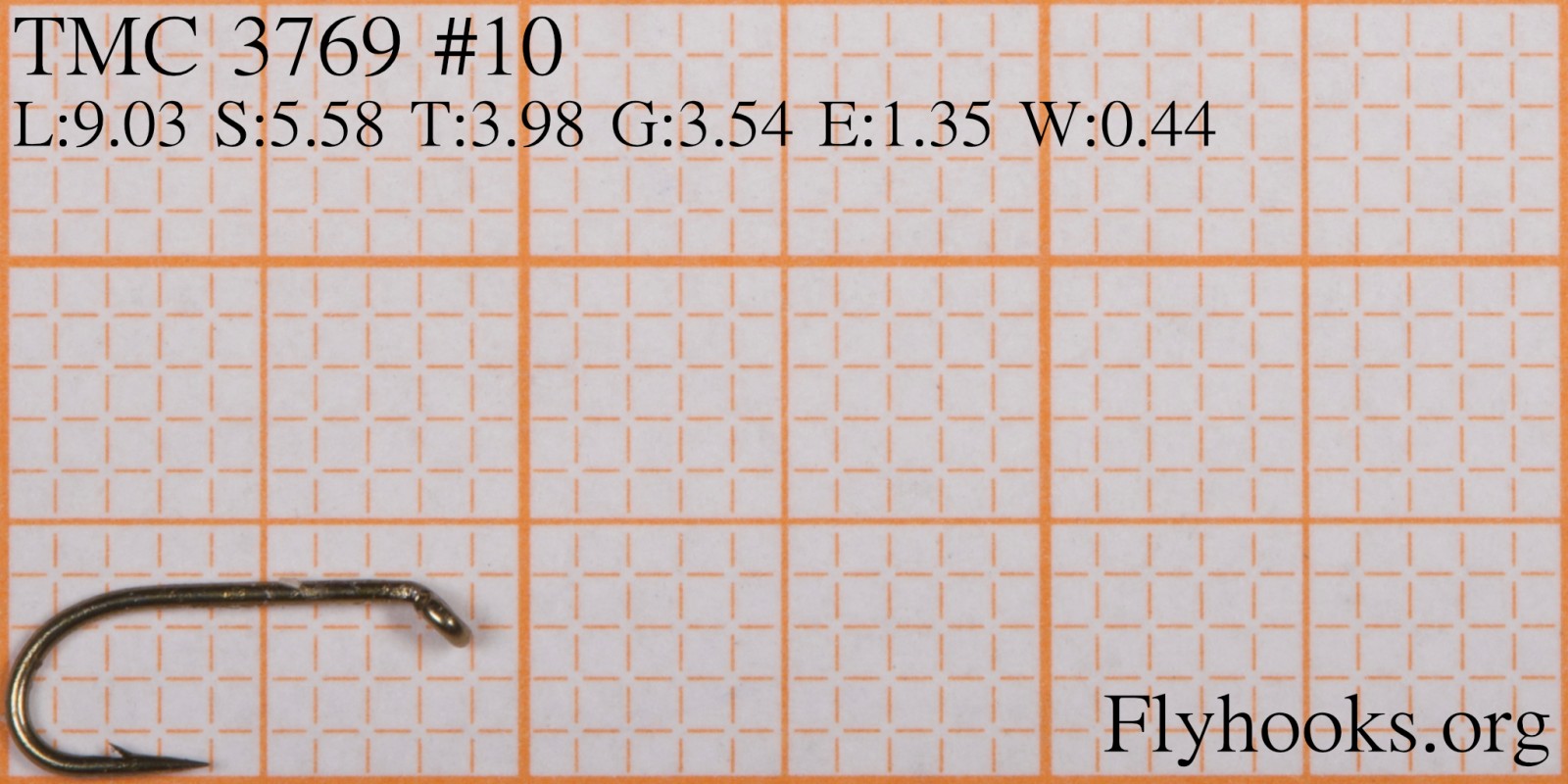

Length9.03 mm
Shank Length5.58 mm
Throat3.98 mm
Gape3.54 mm
Eye Width1.35 mm
Wire Thickness0.44 mm

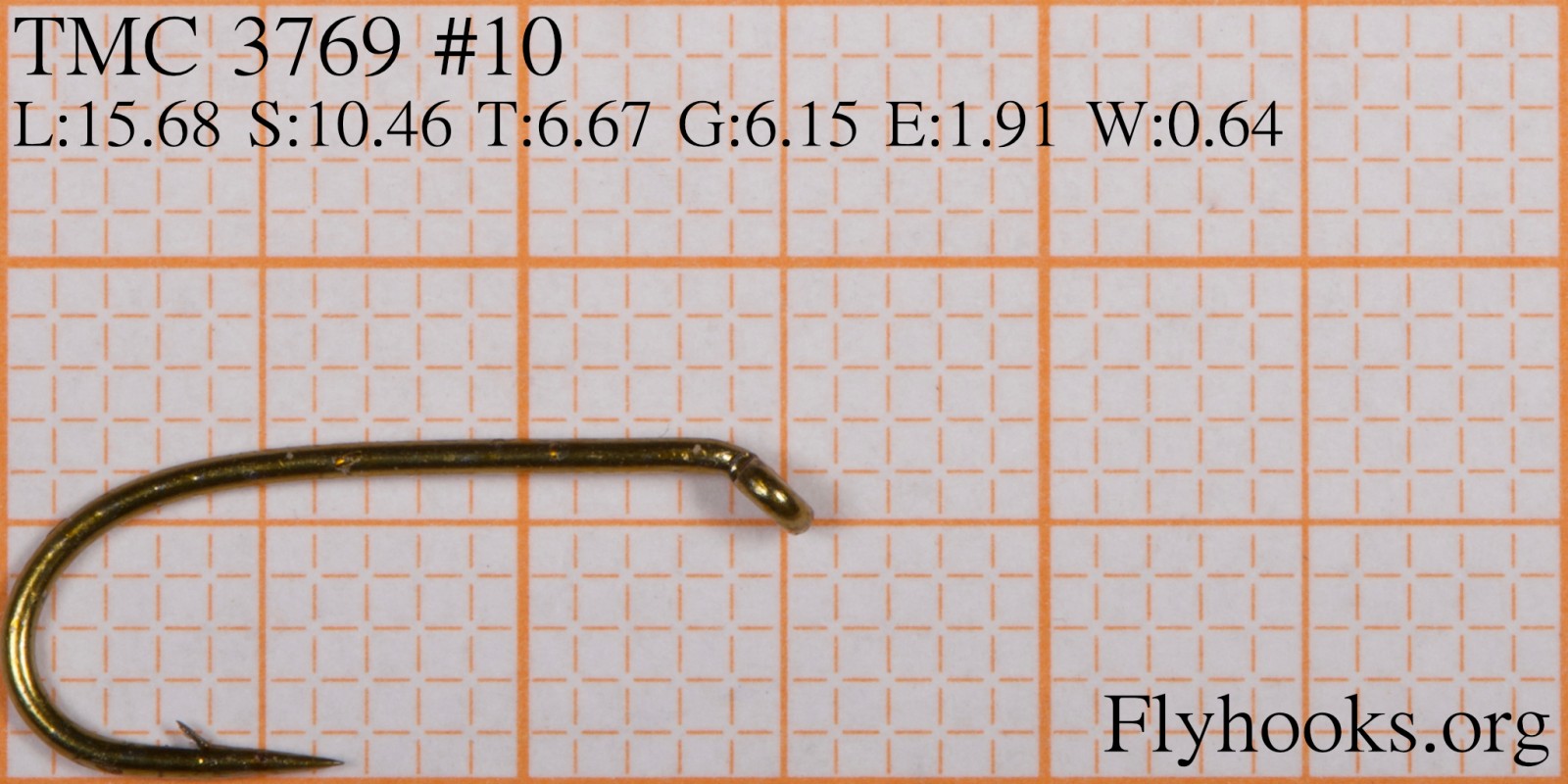

Length15.68 mm
Shank Length10.46 mm
Throat6.67 mm
Gape6.15 mm
Eye Width1.91 mm
Wire Thickness0.64 mm

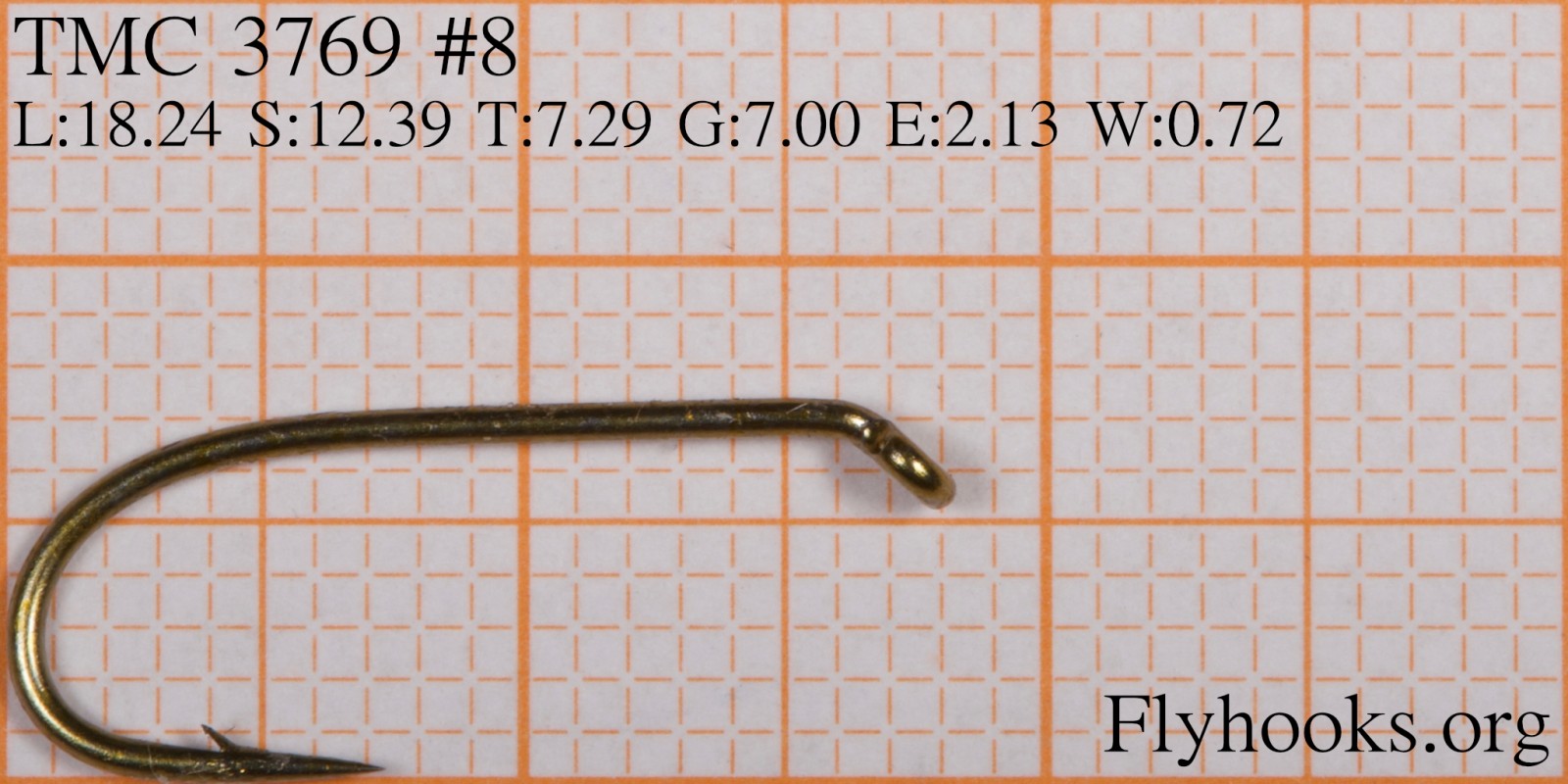

Length18.24 mm
Shank Length12.39 mm
Throat7.29 mm
Gape7.00 mm
Eye Width2.13 mm
Wire Thickness0.72 mm

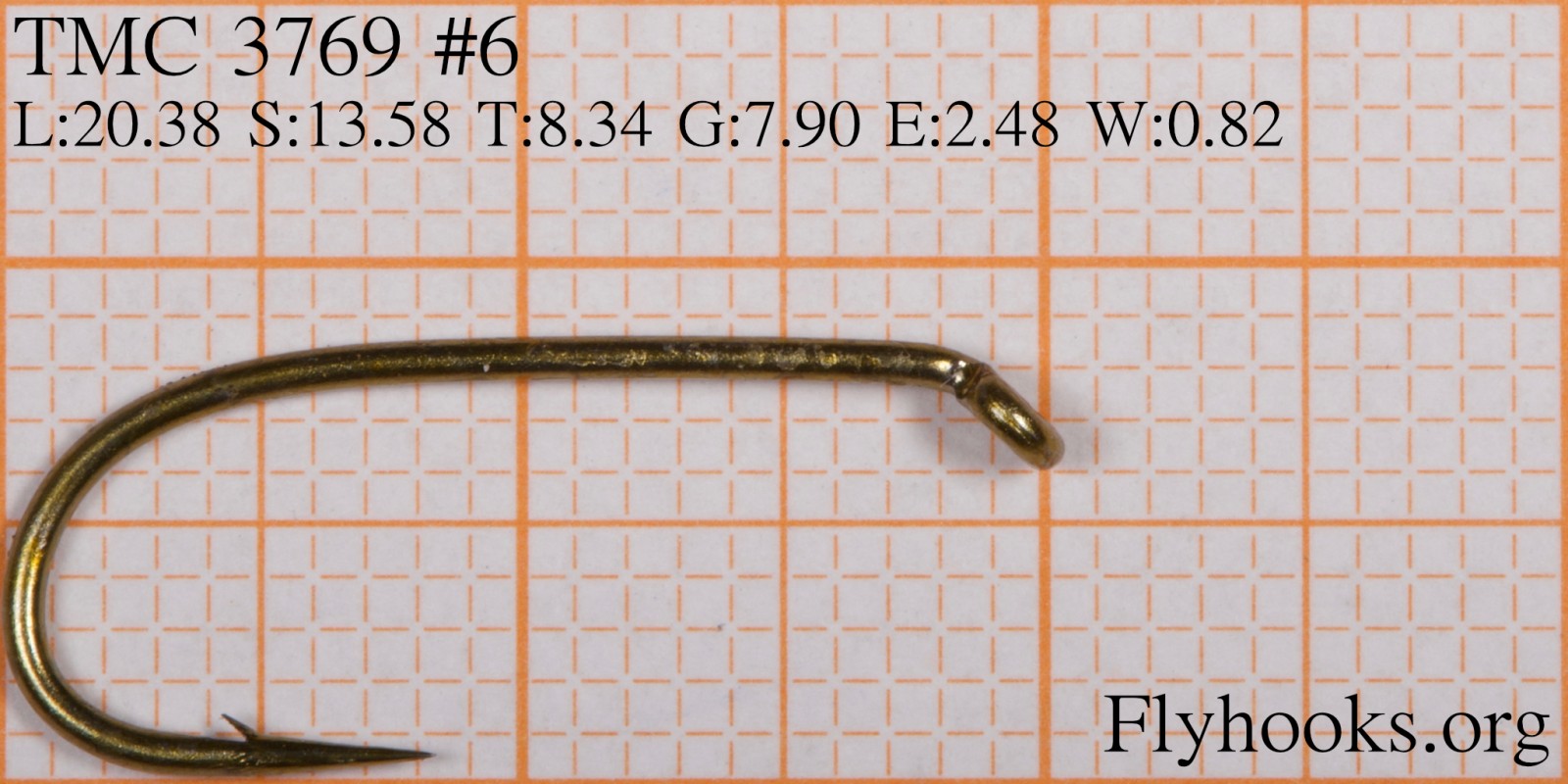

Length20.38 mm
Shank Length13.58 mm
Throat8.34 mm
Gape7.90 mm
Eye Width2.48 mm
Wire Thickness0.82 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 TMC508 9.03 -> 8.63 5.58 -> 6.04 3.54 -> 3.90 3.98 -> 4.47 0.44 -> 0.39
16 3906 9.03 -> 8.93 5.58 -> 5.45 3.54 -> 3.44 3.98 -> 4.15 0.44 -> 0.42
16 G3AY - Sproat Wet 9.03 -> 8.94 5.58 -> 5.86 3.54 -> 3.67 3.98 -> 3.99 0.44 -> 0.44
16 305 9.03 -> 8.98 5.58 -> 5.79 3.54 -> 3.87 3.98 -> 3.97 0.44 -> 0.39
16 TMC531 9.03 -> 8.98 5.58 -> 5.97 3.54 -> 3.64 3.98 -> 4.39 0.44 -> 0.33
16 TMC3769SP-BL 9.03 -> 9.03 5.58 -> 6.09 3.54 -> 3.51 3.98 -> 4.23 0.44 -> 0.43
16 73100 9.03 -> 9.15 5.58 -> 6.05 3.54 -> 3.52 3.98 -> 4.03 0.44 -> 0.37
16 B405 9.03 -> 9.20 5.58 -> 6.13 3.54 -> 3.55 3.98 -> 4.04 0.44 -> 0.38
16 T902BL 9.03 -> 9.22 5.58 -> 6.24 3.54 -> 3.51 3.98 -> 4.19 0.44 -> 0.33
16 W 9.03 -> 9.36 5.58 -> 6.34 3.54 -> 3.46 3.98 -> 4.32 0.44 -> 0.38
16 S-2000 9.03 -> 9.38 5.58 -> 6.11 3.54 -> 3.80 3.98 -> 4.36 0.44 -> 0.36
16 Br 2100 9.03 -> 9.46 5.58 -> 6.26 3.54 -> 3.72 3.98 -> 3.85 0.44 -> 0.42
16 110 BL 9.03 -> 9.53 5.58 -> 6.16 3.54 -> 3.80 3.98 -> 3.85 0.44 -> 0.43
16 SLD - Patriot Fine Dry 9.03 -> 9.93 5.58 -> 6.07 3.54 -> 3.94 3.98 -> 4.05 0.44 -> 0.36
16 J 9.03 -> 10.23 5.58 -> 6.25 3.54 -> 4.01 3.98 -> 4.55 0.44 -> 0.44
10 G3AY - Sproat Wet 15.68 -> 15.39 10.46 -> 10.04 6.15 -> 6.05 6.67 -> 6.63 0.64 -> 0.64
10 H200BL 15.68 -> 15.81 10.46 -> 9.97 6.15 -> 6.78 6.67 -> 7.44 0.64 -> 0.66
10 94841 15.68 -> 15.83 10.46 -> 10.20 6.15 -> 6.19 6.67 -> 6.70 0.64 -> 0.59
10 73227 15.68 -> 15.89 10.46 -> 10.59 6.15 -> 6.35 6.67 -> 7.13 0.64 -> 0.61
10 R50XNP-BR 15.68 -> 15.92 10.46 -> 10.59 6.15 -> 6.30 6.67 -> 7.26 0.64 -> 0.58
10 R70 - 7957 15.68 -> 15.95 10.46 -> 10.27 6.15 -> 6.64 6.67 -> 6.84 0.64 -> 0.69
10 R50X-94845 15.68 -> 16.19 10.46 -> 11.32 6.15 -> 6.27 6.67 -> 7.51 0.64 -> 0.59
10 C 211 15.68 -> 16.38 10.46 -> 10.71 6.15 -> 6.34 6.67 -> 6.68 0.64 -> 0.55
10 H230BL 15.68 -> 16.42 10.46 -> 10.82 6.15 -> 6.82 6.67 -> 6.85 0.64 -> 0.61
10 TMC9300 15.68 -> 16.54 10.46 -> 11.49 6.15 -> 6.69 6.67 -> 6.71 0.64 -> 0.56
10 TMC900BL 15.68 -> 16.58 10.46 -> 10.73 6.15 -> 6.33 6.67 -> 6.44 0.64 -> 0.54
10 AK562BL 15.68 -> 16.64 10.46 -> 11.89 6.15 -> 6.32 6.67 -> 7.64 0.64 -> 0.56
10 FW 501 15.68 -> 16.89 10.46 -> 11.48 6.15 -> 6.60 6.67 -> 6.85 0.64 -> 0.60
10 F35 15.68 -> 16.90 10.46 -> 11.04 6.15 -> 6.62 6.67 -> 6.53 0.64 -> 0.61
10 AK482 BL 15.68 -> 17.10 10.46 -> 11.84 6.15 -> 6.06 6.67 -> 7.30 0.64 -> 0.60
10 AK721 15.68 -> 17.28 10.46 -> 11.49 6.15 -> 6.07 6.67 -> 6.92 0.64 -> 0.68
10 TMC3761SP-BL 15.68 -> 17.76 10.46 -> 11.59 6.15 -> 6.11 6.67 -> 6.71 0.64 -> 0.61
8 H230BL 18.24 -> 18.15 12.39 -> 11.86 7.00 -> 6.77 7.29 -> 8.28 0.72 -> 0.71
8 AK720 18.24 -> 18.29 12.39 -> 12.33 7.00 -> 6.78 7.29 -> 7.03 0.72 -> 0.72
8 94840 18.24 -> 18.42 12.39 -> 12.71 7.00 -> 7.17 7.29 -> 7.45 0.72 -> 0.67
8 AK881 18.24 -> 18.77 12.39 -> 12.46 7.00 -> 7.14 7.29 -> 7.38 0.72 -> 0.77
8 F35 18.24 -> 18.79 12.39 -> 11.87 7.00 -> 7.49 7.29 -> 7.33 0.72 -> 0.72
8 G3AY - Sproat Wet 18.24 -> 18.80 12.39 -> 12.54 7.00 -> 6.80 7.29 -> 7.36 0.72 -> 0.76
8 AK865BL 18.24 -> 18.83 12.39 -> 12.13 7.00 -> 6.75 7.29 -> 7.43 0.72 -> 0.76
8 FW 501 18.24 -> 19.08 12.39 -> 12.87 7.00 -> 7.91 7.29 -> 7.40 0.72 -> 0.68
8 AK482 BL 18.24 -> 19.15 12.39 -> 12.44 7.00 -> 7.37 7.29 -> 7.86 0.72 -> 0.71
8 W205 18.24 -> 19.64 12.39 -> 12.38 7.00 -> 7.27 7.29 -> 7.00 0.72 -> 0.69
8 TMC9300 18.24 -> 19.66 12.39 -> 12.55 7.00 -> 7.42 7.29 -> 7.40 0.72 -> 0.63
8 C71SNP-SS 18.24 -> 19.90 12.39 -> 12.40 7.00 -> 6.69 7.29 -> 8.35 0.72 -> 0.78
8 AK721 18.24 -> 20.75 12.39 -> 13.35 7.00 -> 7.00 7.29 -> 8.00 0.72 -> 0.72
6 3411 A 20.38 -> 19.64 13.58 -> 13.47 7.90 -> 8.26 8.34 -> 8.00 0.82 -> 0.89
6 540 20.38 -> 20.48 13.58 -> 13.40 7.90 -> 8.18 8.34 -> 8.28 0.82 -> 0.79
6 AK881 20.38 -> 20.78 13.58 -> 13.64 7.90 -> 8.43 8.34 -> 8.75 0.82 -> 0.90
6 N 20.38 -> 20.79 13.58 -> 14.62 7.90 -> 7.97 8.34 -> 8.95 0.82 -> 0.68
6 B175 Sproat 20.38 -> 21.06 13.58 -> 13.03 7.90 -> 7.79 8.34 -> 8.29 0.82 -> 0.91
6 AK482 BL 20.38 -> 21.22 13.58 -> 13.36 7.90 -> 8.18 8.34 -> 9.53 0.82 -> 0.81
6 3435 20.38 -> 21.28 13.58 -> 14.10 7.90 -> 7.99 8.34 -> 8.11 0.82 -> 0.71
6 R70 20.38 -> 21.45 13.58 -> 13.31 7.90 -> 8.74 8.34 -> 8.99 0.82 -> 0.86
6 R90 20.38 -> 21.64 13.58 -> 12.97 7.90 -> 8.77 8.34 -> 9.48 0.82 -> 0.93
6 S71DT-34007 20.38 -> 22.87 13.58 -> 14.84 7.90 -> 8.63 8.34 -> 8.57 0.82 -> 0.78
6 C71SNP-SS 20.38 -> 23.03 13.58 -> 13.79 7.90 -> 7.87 8.34 -> 9.02 0.82 -> 0.88
6 S71SNP-DT 20.38 -> 23.07 13.58 -> 13.10 7.90 -> 8.58 8.34 -> 8.72 0.82 -> 0.85
6 SS15 20.38 -> 23.13 13.58 -> 15.18 7.90 -> 8.86 8.34 -> 8.55 0.82 -> 0.75
6 73100 20.38 -> 23.31 13.58 -> 14.41 7.90 -> 8.61 8.34 -> 8.40 0.82 -> 0.73
