Mustad: R50XNP-BR

Old reference: R50X-94845

Company Mustad
www www.mustad.no
Type Single
Eye Ringed eye
Eye Position Turned down
Barb Barbless
Usages Dry
Sizes 18 16 14 12 10

Sizes

#18
Length8.47 mm
Shank Length5.51 mm
Throat4.09 mm
Gape3.32 mm
Eye Width1.23 mm
Wire Thickness0.33 mm

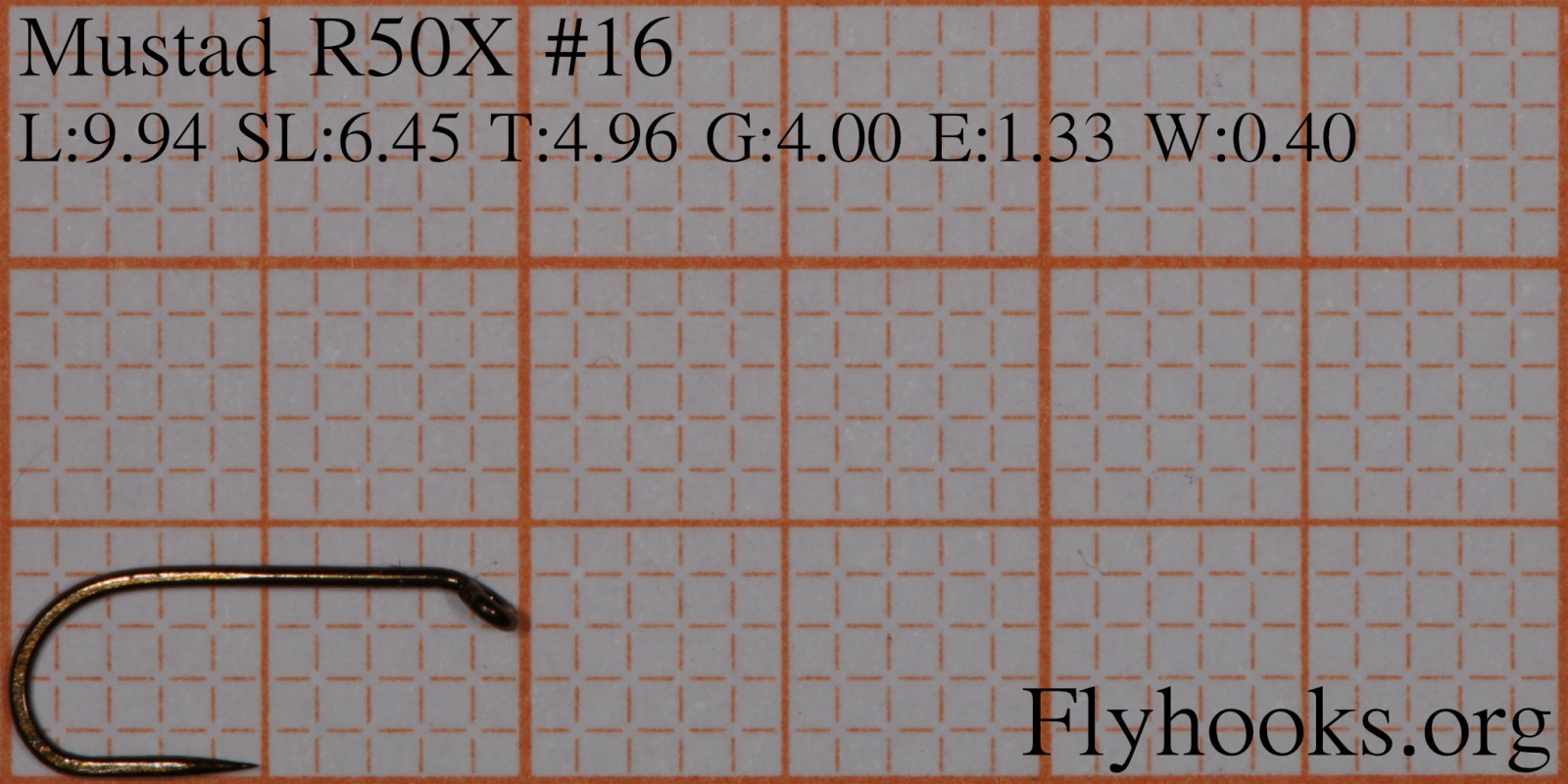

Length9.94 mm
Shank Length6.45 mm
Throat4.96 mm
Gape4.00 mm
Eye Width1.33 mm
Wire Thickness0.40 mm

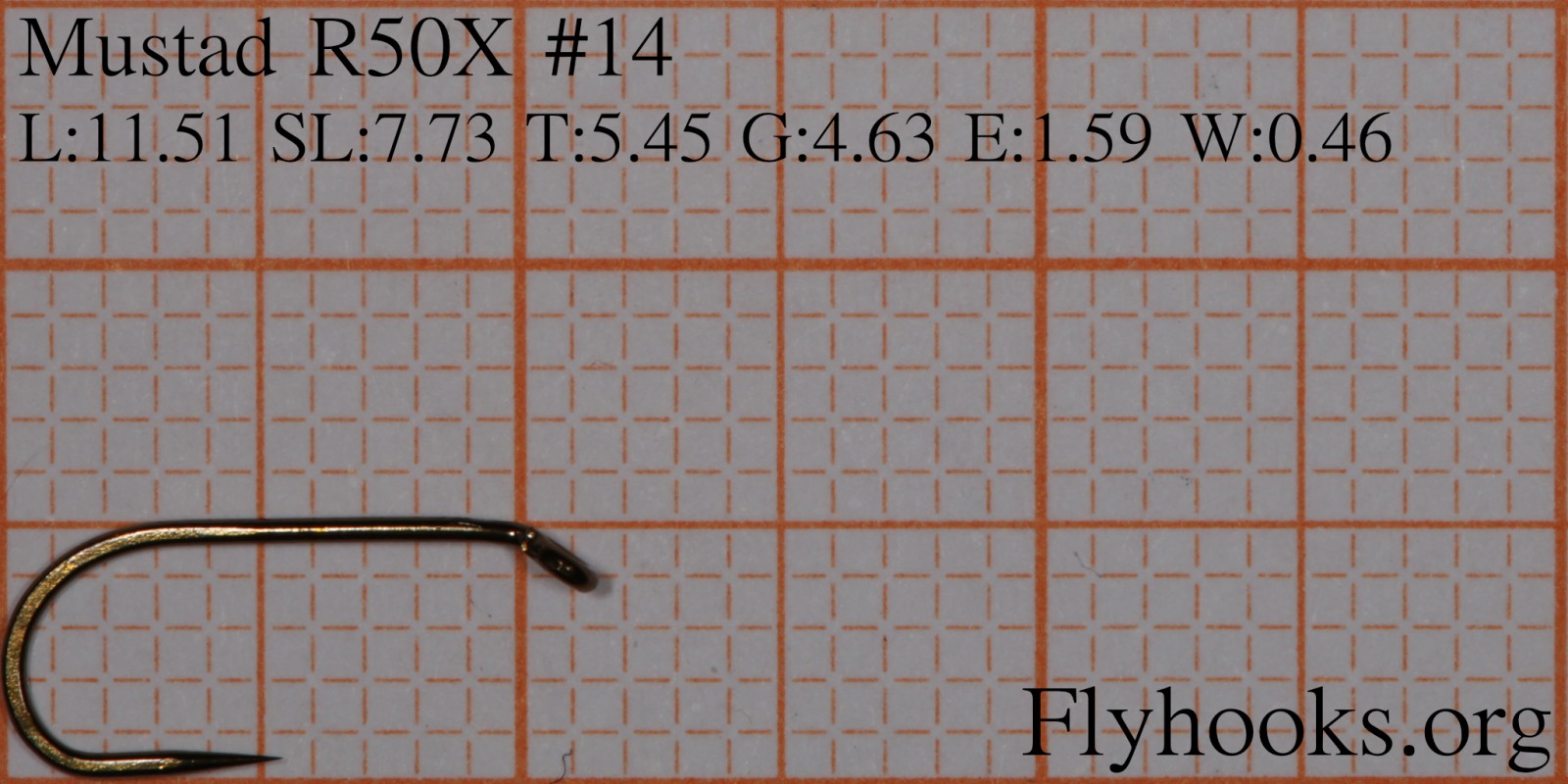

Length11.51 mm
Shank Length7.73 mm
Throat5.45 mm
Gape4.63 mm
Eye Width1.59 mm
Wire Thickness0.46 mm
#12
Length13.48 mm
Shank Length8.65 mm
Throat6.50 mm
Gape5.62 mm
Eye Width1.82 mm
Wire Thickness0.54 mm

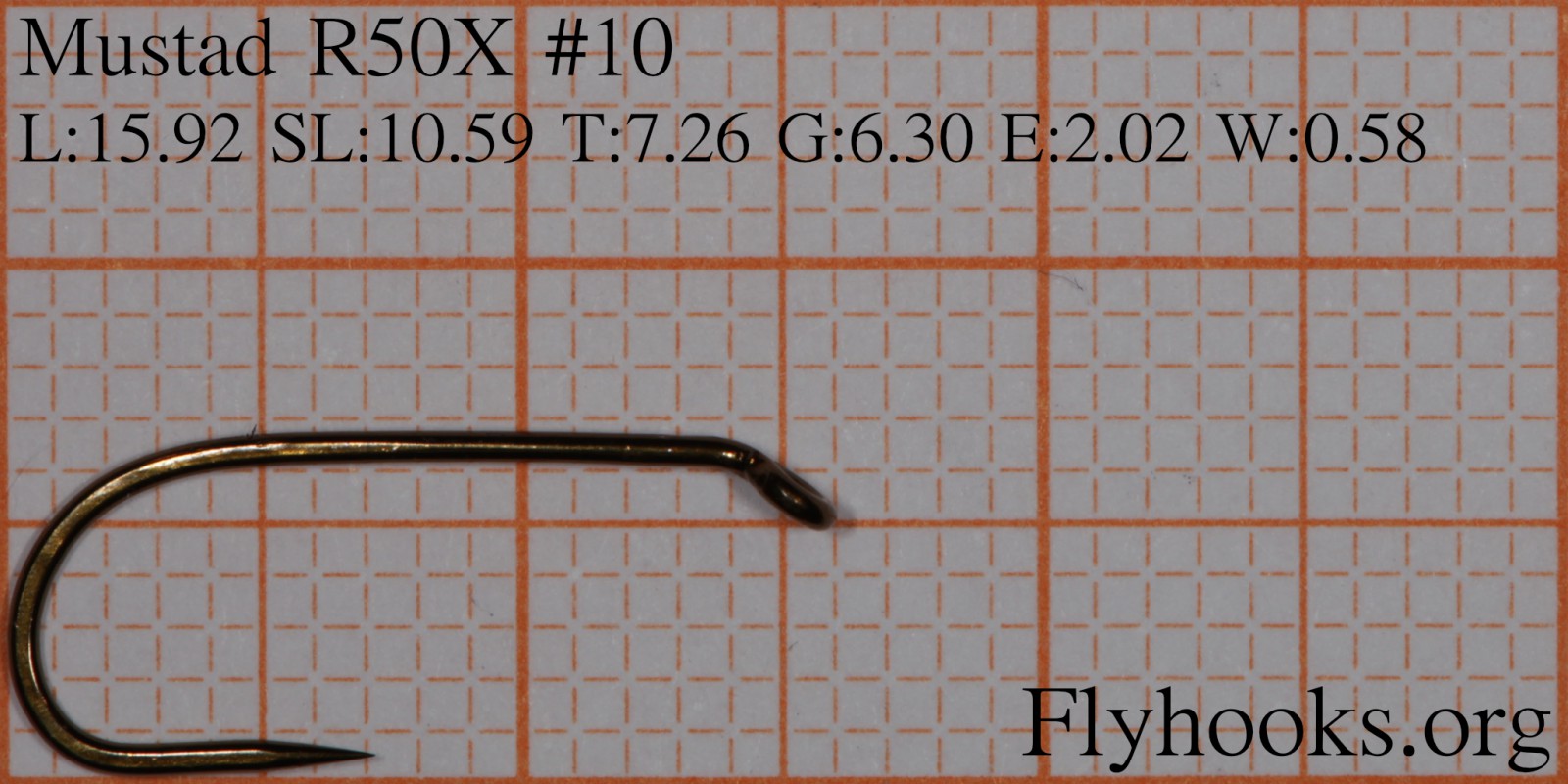

Length15.92 mm
Shank Length10.59 mm
Throat7.26 mm
Gape6.30 mm
Eye Width2.02 mm
Wire Thickness0.58 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 2120 WB 8.47 -> 9.36 5.51 -> 5.85 3.32 -> 3.72 4.09 -> 4.61 0.33 -> 0.33
18 FW 507 8.47 -> 9.41 5.51 -> 6.06 3.32 -> 3.76 4.09 -> 4.25 0.33 -> 0.41
18 FW 506 - Dry Fly Mini 8.47 -> 9.47 5.51 -> 6.27 3.32 -> 3.69 4.09 -> 4.45 0.33 -> 0.42
16 R10-B 9.94 -> 9.70 6.45 -> 6.74 4.00 -> 4.12 4.96 -> 5.30 0.40 -> 0.38
16 R70NP-BR 9.94 -> 9.96 6.45 -> 6.61 4.00 -> 4.12 4.96 -> 4.84 0.40 -> 0.47
16 H200BL 9.94 -> 9.97 6.45 -> 6.25 4.00 -> 4.19 4.96 -> 4.75 0.40 -> 0.47
16 H230BL 9.94 -> 10.08 6.45 -> 6.64 4.00 -> 4.29 4.96 -> 4.78 0.40 -> 0.46
16 H280BL 9.94 -> 10.31 6.45 -> 7.09 4.00 -> 4.42 4.96 -> 4.79 0.40 -> 0.48
16 HDN 302 9.94 -> 10.70 6.45 -> 6.48 4.00 -> 4.50 4.96 -> 4.90 0.40 -> 0.42
14 BL 154 11.51 -> 11.42 7.73 -> 7.92 4.63 -> 5.10 5.45 -> 5.21 0.46 -> 0.44
14 R50X-94845 11.51 -> 11.68 7.73 -> 8.23 4.63 -> 4.69 5.45 -> 5.60 0.46 -> 0.44
14 73207 11.51 -> 11.71 7.73 -> 7.65 4.63 -> 4.67 5.45 -> 5.22 0.46 -> 0.43
14 H230BL 11.51 -> 11.74 7.73 -> 7.37 4.63 -> 4.63 5.45 -> 5.67 0.46 -> 0.52
14 H200BL 11.51 -> 12.16 7.73 -> 7.60 4.63 -> 4.99 5.45 -> 5.70 0.46 -> 0.54
14 HDD 301 11.51 -> 12.43 7.73 -> 7.63 4.63 -> 5.06 5.45 -> 5.99 0.46 -> 0.42
14 C 220 11.51 -> 13.10 7.73 -> 8.03 4.63 -> 5.27 5.45 -> 5.79 0.46 -> 0.50
14 FW 500 - Dry Fly Traditional 11.51 -> 13.11 7.73 -> 8.33 4.63 -> 5.03 5.45 -> 5.19 0.46 -> 0.51
12 G3A/L - Wet Heavy Supreme 13.48 -> 13.45 8.65 -> 8.24 5.62 -> 5.43 6.50 -> 6.27 0.54 -> 0.66

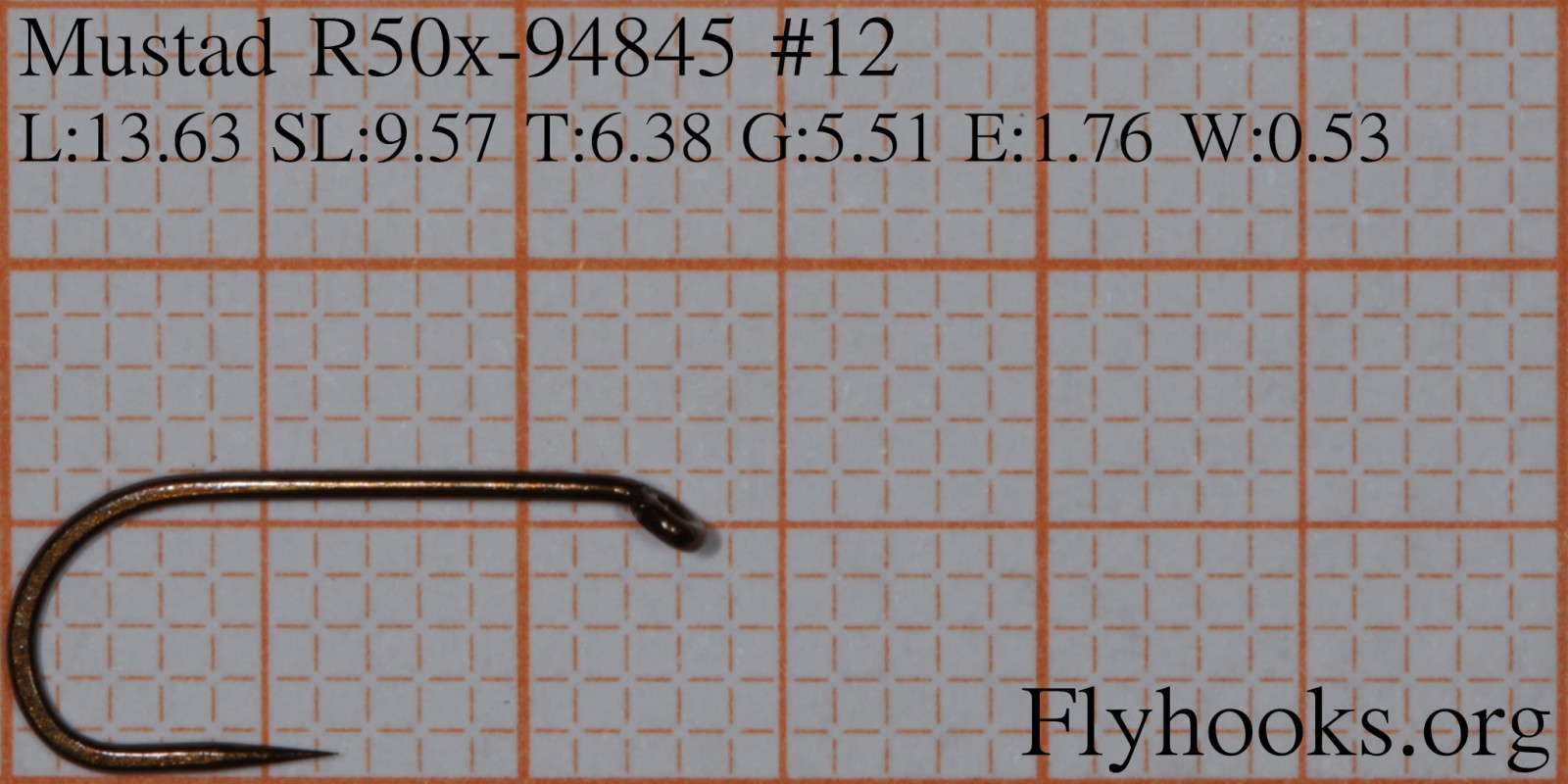

12 R50X-94845 13.48 -> 13.63 8.65 -> 9.57 5.62 -> 5.51 6.50 -> 6.38 0.54 -> 0.53
12 H130BL 13.48 -> 13.70 8.65 -> 8.95 5.62 -> 5.46 6.50 -> 6.35 0.54 -> 0.47
12 H400BL 13.48 -> 14.16 8.65 -> 8.47 5.62 -> 5.87 6.50 -> 6.20 0.54 -> 0.64
12 HDD 301 13.48 -> 14.51 8.65 -> 8.69 5.62 -> 5.61 6.50 -> 6.87 0.54 -> 0.51
12 AK651BL 13.48 -> 14.58 8.65 -> 8.61 5.62 -> 5.46 6.50 -> 6.29 0.54 -> 0.57
12 HDW 13.48 -> 14.61 8.65 -> 8.80 5.62 -> 6.08 6.50 -> 7.14 0.54 -> 0.62
12 AK482 BL 13.48 -> 15.03 8.65 -> 9.76 5.62 -> 5.51 6.50 -> 6.79 0.54 -> 0.56
10 73227 15.92 -> 15.89 10.59 -> 10.59 6.30 -> 6.35 7.26 -> 7.13 0.58 -> 0.61
10 R50X-94845 15.92 -> 16.19 10.59 -> 11.32 6.30 -> 6.27 7.26 -> 7.51 0.58 -> 0.59
10 AK562BL 15.92 -> 16.64 10.59 -> 11.89 6.30 -> 6.32 7.26 -> 7.64 0.58 -> 0.56
10 AK482 BL 15.92 -> 17.10 10.59 -> 11.84 6.30 -> 6.06 7.26 -> 7.30 0.58 -> 0.60
10 HDW 15.92 -> 17.12 10.59 -> 10.18 6.30 -> 6.99 7.26 -> 8.25 0.58 -> 0.69
10 AK721 15.92 -> 17.28 10.59 -> 11.49 6.30 -> 6.07 7.26 -> 6.92 0.58 -> 0.68

Tagged as similar

Hooks tagged as similar and/or that can be used as a alternative to this hook:

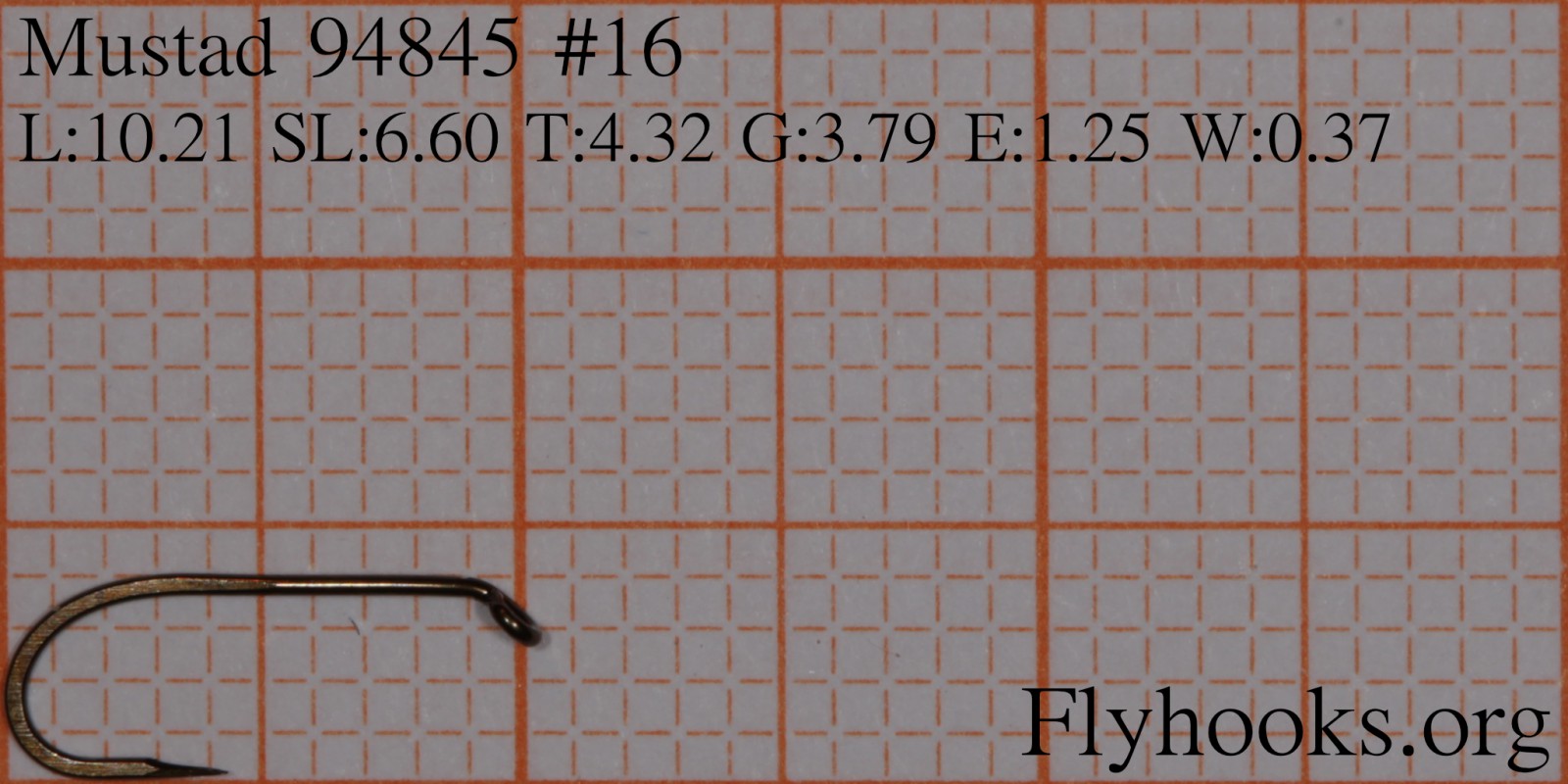

Mustad: 94845
Mustad: R50X-94845

Hooks for Mustad
