Mustad: 506

Company Mustad
Type Single
Strength Heavy wire
Eye Position Turned down
Shank Style Straigth
Bend Limerick bend
Barb Barb
Color Bronze
Usages Wet
Streamer
Salmon
Trout
Grayling
Freshwater
Seatrout
Sizes 18 16 14 12 10 8 6 4 2 1 1/0

Sizes

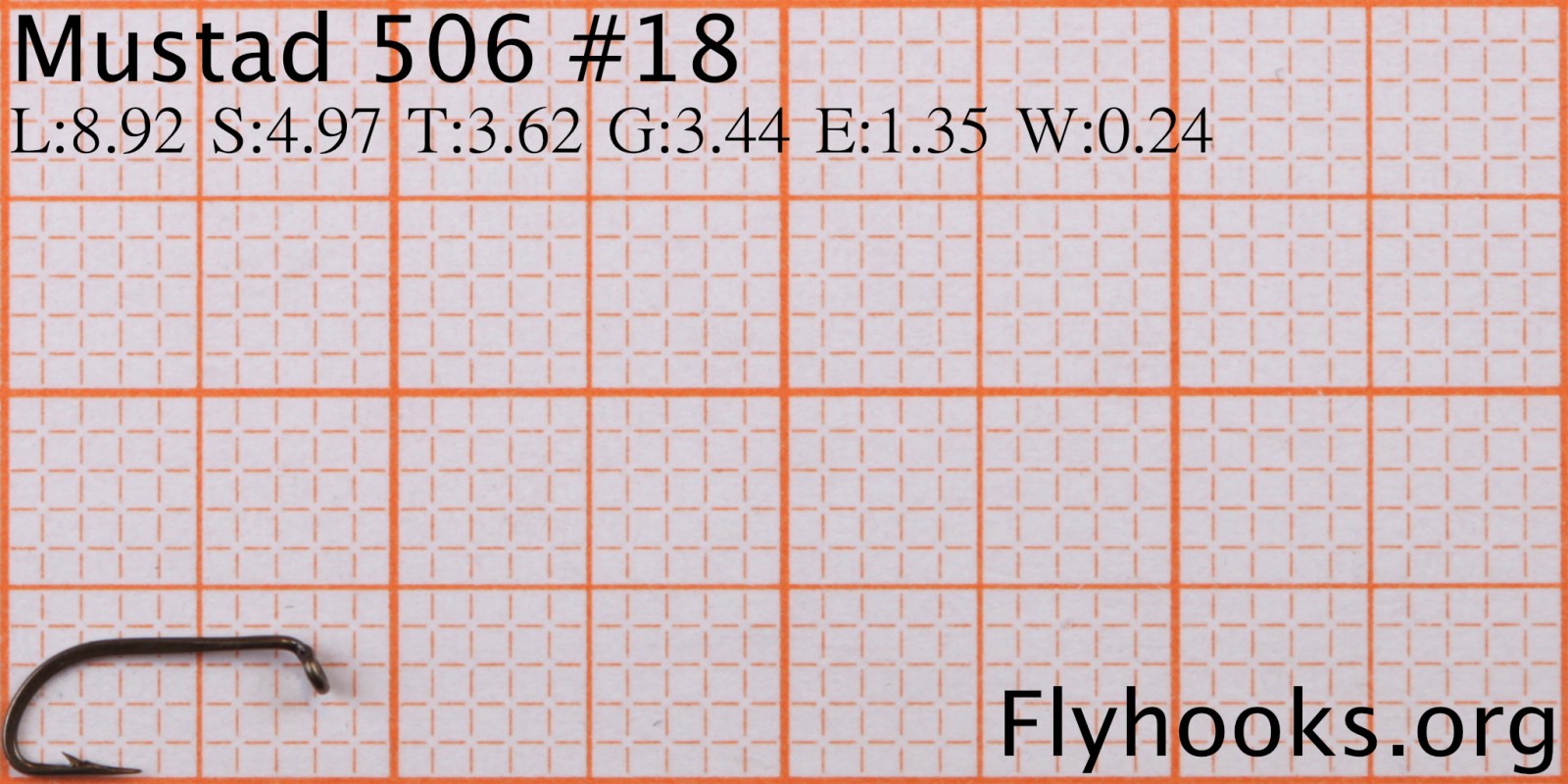

Length8.92 mm
Shank Length4.97 mm
Throat3.62 mm
Gape3.44 mm
Eye Width1.35 mm
Wire Thickness0.24 mm

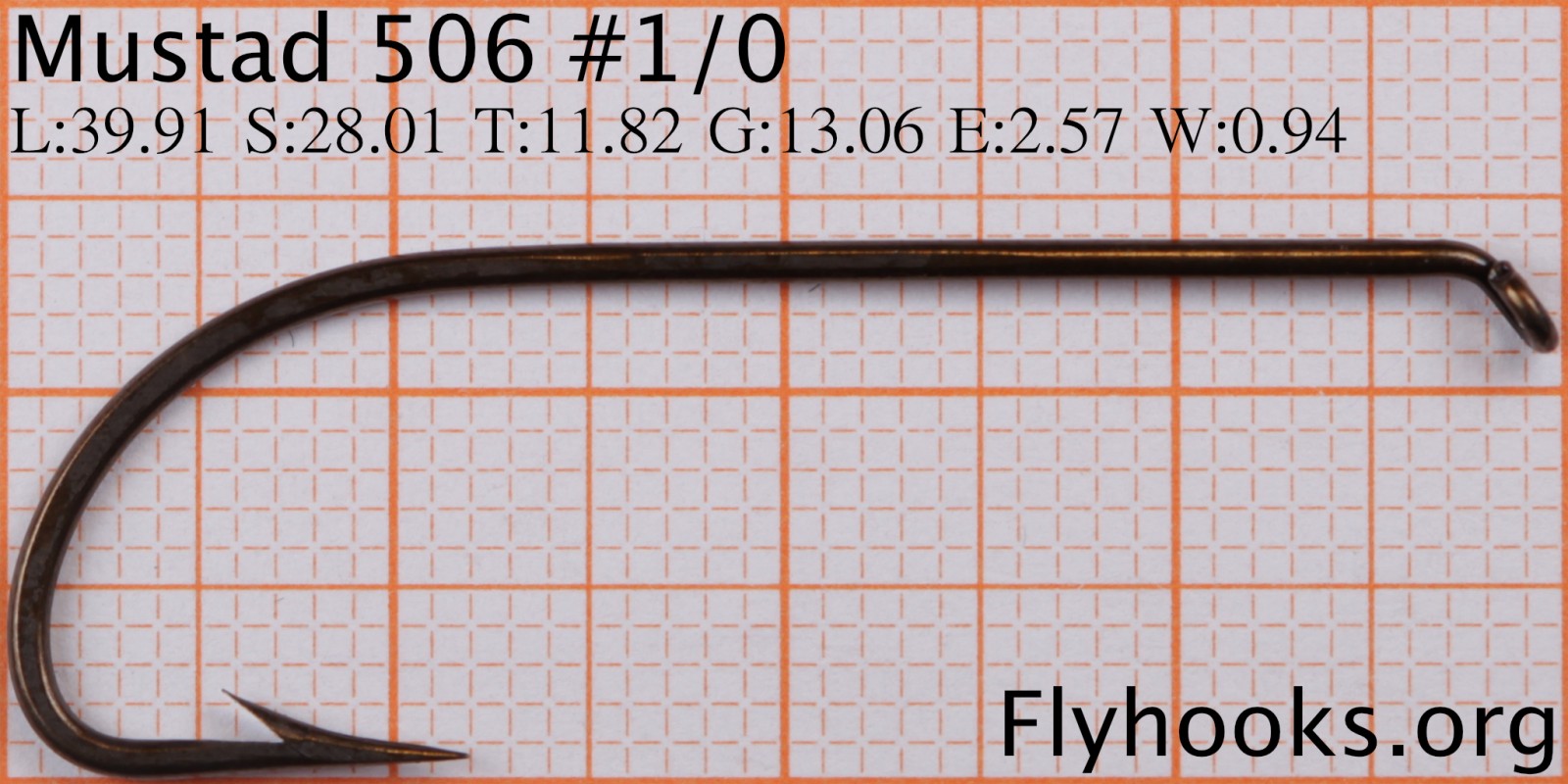

Length39.91 mm
Shank Length28.01 mm
Throat11.82 mm
Gape13.06 mm
Eye Width2.57 mm
Wire Thickness0.94 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 H130BL 8.92 -> 8.74 4.97 -> 5.44 3.44 -> 3.62 3.62 -> 3.79 0.24 -> 0.34
1/0 3261 39.91 -> 39.92 28.01 -> 28.92 13.06 -> 12.77 11.82 -> 12.21 0.94 -> 0.87
1/0 80501 BL 39.91 -> 44.52 28.01 -> 27.21 13.06 -> 13.46 11.82 -> 12.48 0.94 -> 1.07
1/0 80500-NPBL 39.91 -> 44.69 28.01 -> 28.24 13.06 -> 13.72 11.82 -> 12.13 0.94 -> 1.17
