Mustad: 80000BR

Company Mustad
www www.mustad.no
Type Single
Strength Fine wire
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Usages Dry
Trout
Grayling
Freshwater
Emerger
Midge
Sizes 20 18 16 14 12 10 8

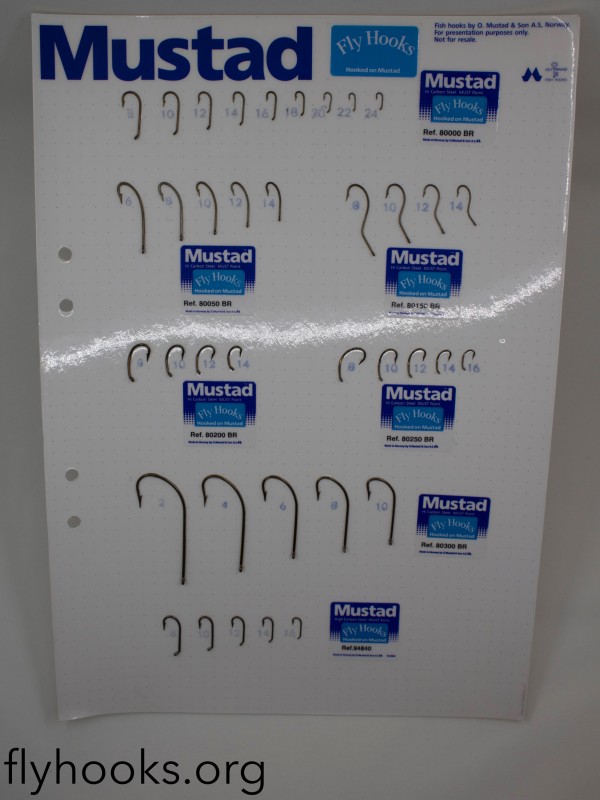

Sale card

Sizes

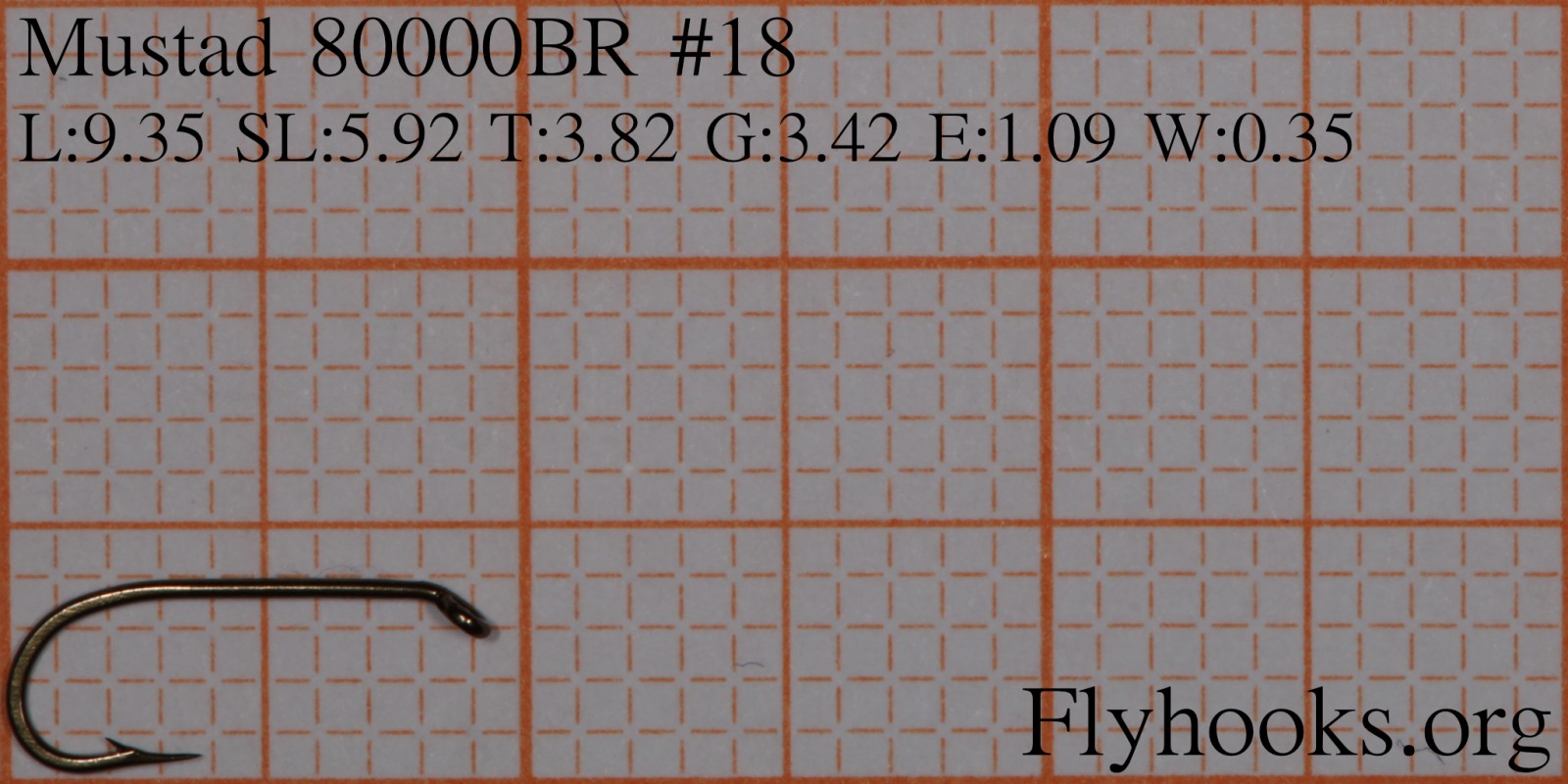

Length9.35 mm
Shank Length5.92 mm
Throat3.82 mm
Gape3.42 mm
Eye Width1.09 mm
Wire Thickness0.35 mm

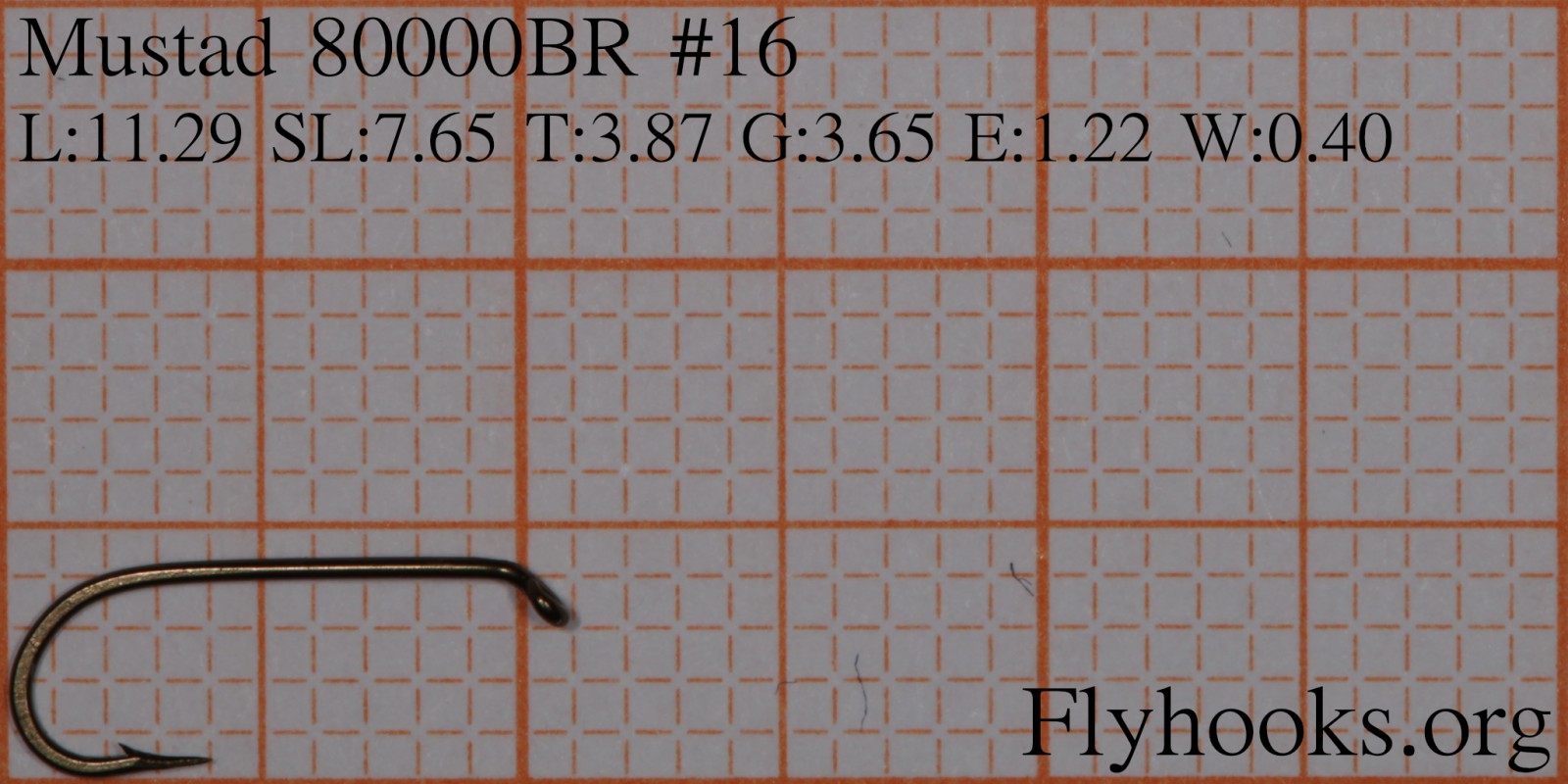

Length11.29 mm
Shank Length7.65 mm
Throat3.87 mm
Gape3.86 mm
Eye Width1.22 mm
Wire Thickness0.40 mm

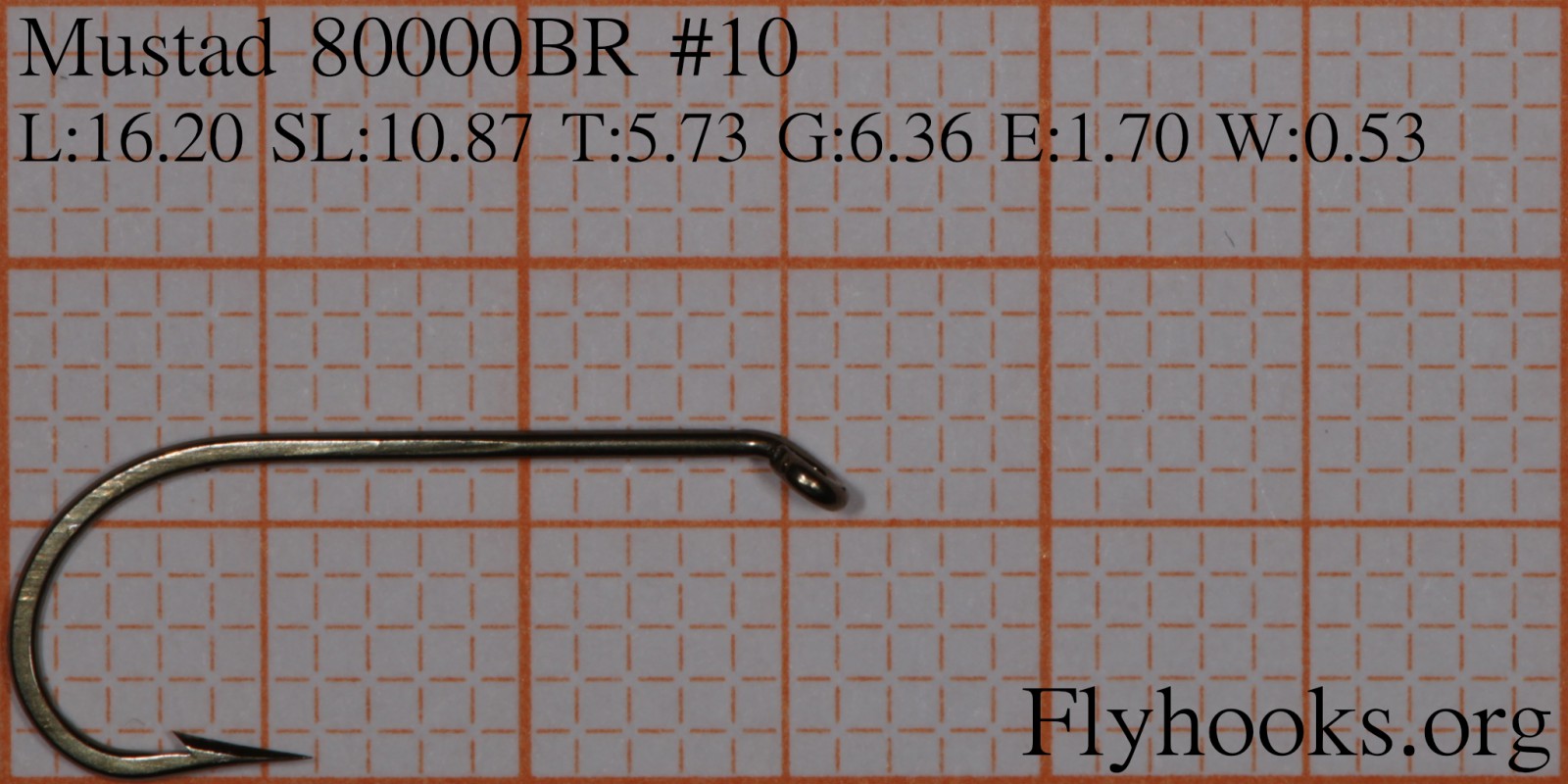

Length16.20 mm
Shank Length10.87 mm
Throat5.73 mm
Gape6.36 mm
Eye Width1.70 mm
Wire Thickness0.53 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 FW 507 9.35 -> 9.41 5.92 -> 6.06 3.42 -> 3.76 3.82 -> 4.25 0.35 -> 0.41
18 TMC108SP-BL 9.35 -> 9.48 5.92 -> 6.12 3.42 -> 3.67 3.82 -> 3.83 0.35 -> 0.42
16 C 211 11.29 -> 10.88 7.65 -> 7.31 3.86 -> 3.86 3.87 -> 3.88 0.40 -> 0.41
16 TMC100BL 11.29 -> 10.95 7.65 -> 7.40 3.86 -> 4.08 3.87 -> 4.20 0.40 -> 0.45
16 TMC100 11.29 -> 11.11 7.65 -> 7.99 3.86 -> 3.97 3.87 -> 3.96 0.40 -> 0.39
16 AK501 11.29 -> 11.55 7.65 -> 7.65 3.86 -> 3.96 3.87 -> 4.20 0.40 -> 0.41
16 FW 500 - Dry Fly Traditional 11.29 -> 11.76 7.65 -> 7.94 3.86 -> 4.37 3.87 -> 4.36 0.40 -> 0.44
16 730 11.29 -> 12.22 7.65 -> 8.09 3.86 -> 4.13 3.87 -> 4.08 0.40 -> 0.46
10 94833 16.20 -> 16.02 10.87 -> 11.48 6.36 -> 6.11 5.73 -> 6.04 0.53 -> 0.54
10 W172 16.20 -> 16.11 10.87 -> 10.48 6.36 -> 6.44 5.73 -> 5.99 0.53 -> 0.57
10 TMC100 16.20 -> 16.52 10.87 -> 11.22 6.36 -> 6.36 5.73 -> 5.68 0.53 -> 0.50
10 TMC900BL 16.20 -> 16.58 10.87 -> 10.73 6.36 -> 6.33 5.73 -> 6.44 0.53 -> 0.54
10 FW 500 - Dry Fly Traditional 16.20 -> 16.83 10.87 -> 11.19 6.36 -> 6.58 5.73 -> 6.29 0.53 -> 0.60
10 F35 16.20 -> 16.90 10.87 -> 11.04 6.36 -> 6.62 5.73 -> 6.53 0.53 -> 0.61
