Mustad: R70NP-BR

Old reference: R70-7957

Company Mustad
www www.mustad.no
Type Single
Strength 2xh
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Microbarb
Usages Dry
Wet
Caddis
Nymph
Trout
Grayling
Freshwater
Sizes 16 14 12 10 8 6

Sizes

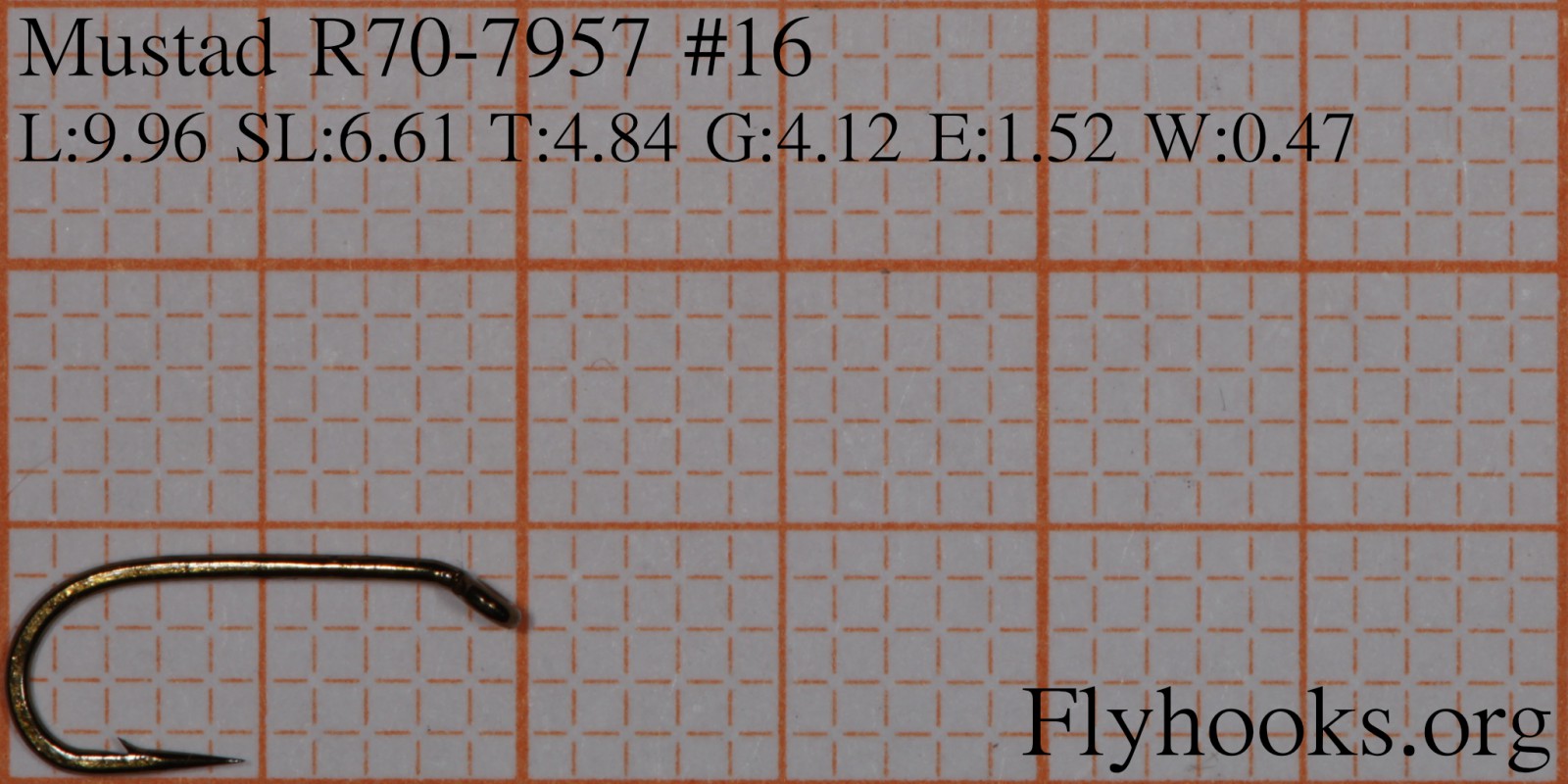

Length9.96 mm
Shank Length6.61 mm
Throat4.84 mm
Gape4.12 mm
Eye Width1.52 mm
Wire Thickness0.47 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 R10-B 9.96 -> 9.70 6.61 -> 6.74 4.12 -> 4.12 4.84 -> 5.30 0.47 -> 0.38
16 R50XNP-BR 9.96 -> 9.94 6.61 -> 6.45 4.12 -> 4.00 4.84 -> 4.96 0.47 -> 0.40
16 H230BL 9.96 -> 10.08 6.61 -> 6.64 4.12 -> 4.29 4.84 -> 4.78 0.47 -> 0.46
16 H280BL 9.96 -> 10.31 6.61 -> 7.09 4.12 -> 4.42 4.84 -> 4.79 0.47 -> 0.48
16 HDN 302 9.96 -> 10.70 6.61 -> 6.48 4.12 -> 4.50 4.84 -> 4.90 0.47 -> 0.42
16 Nymph 9.96 -> 10.73 6.61 -> 6.66 4.12 -> 4.50 4.84 -> 4.65 0.47 -> 0.50
16 7368 B 9.96 -> 11.04 6.61 -> 6.74 4.12 -> 4.16 4.84 -> 4.63 0.47 -> 0.50
