Mustad: 539E-BR

Company Mustad
www www.mustad.no
Type Single
Strength 3xf
Eye Tapered eye
Eye Position Turned down
Shank Style Straigth
Barb Barb
Usages Dry
Wet
Nymph
Trout
Grayling
Sizes 16 15 14 13 12 11 10 8 6 4

Sizes

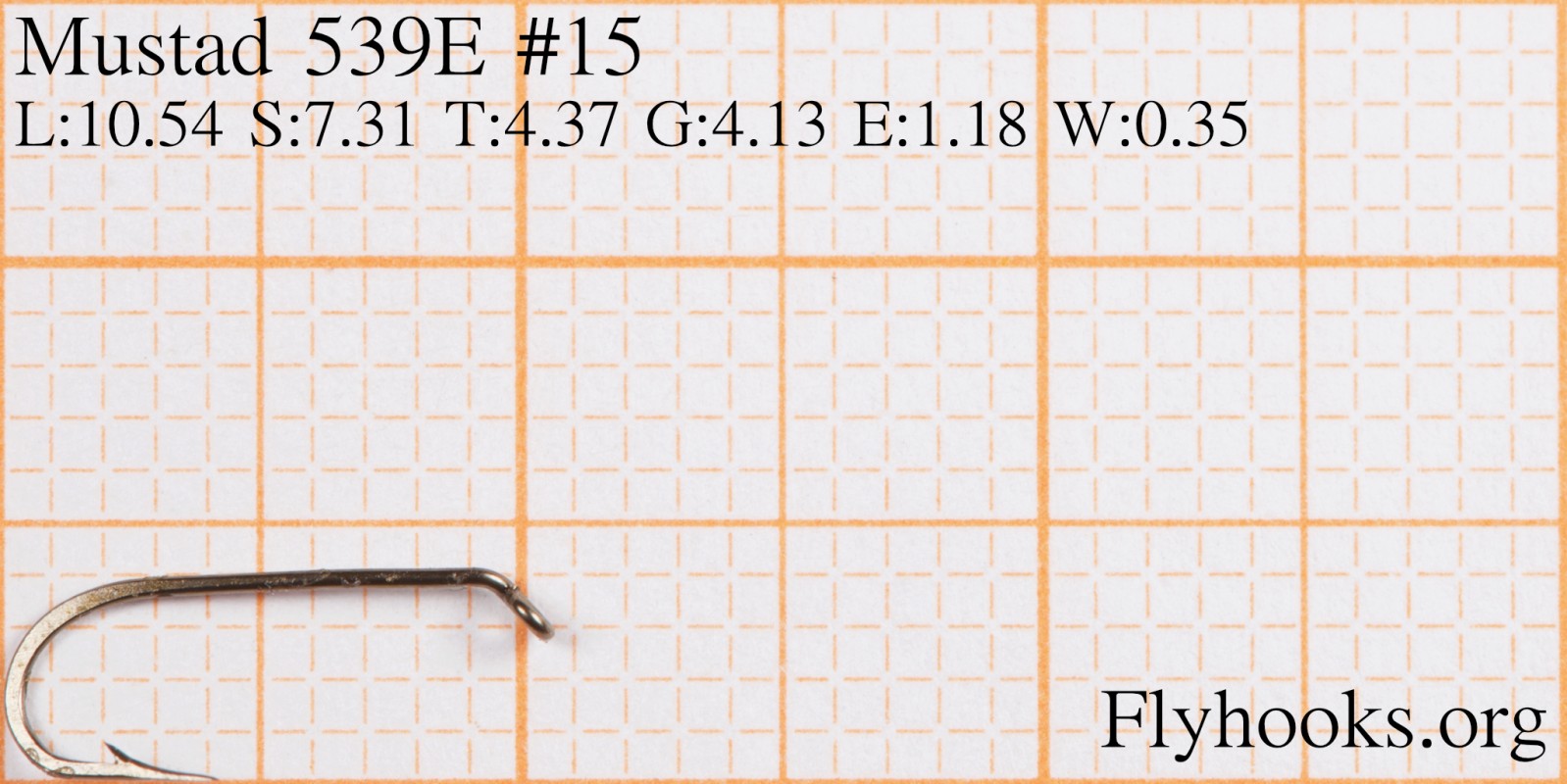

Length10.54 mm
Shank Length7.31 mm
Throat4.37 mm
Gape4.13 mm
Eye Width1.18 mm
Wire Thickness0.35 mm

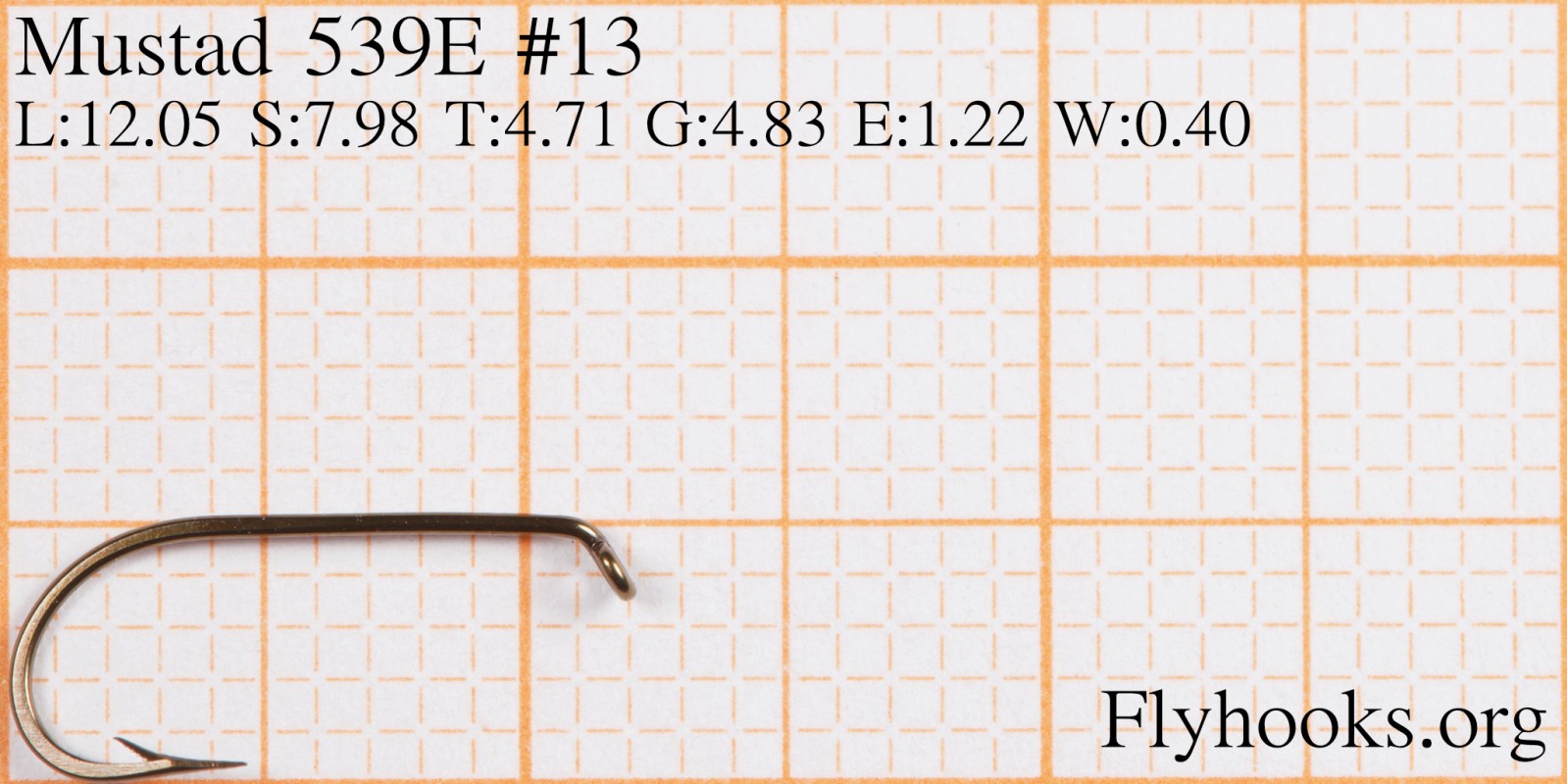

Length12.05 mm
Shank Length7.98 mm
Throat4.71 mm
Gape4.83 mm
Eye Width1.22 mm
Wire Thickness0.40 mm

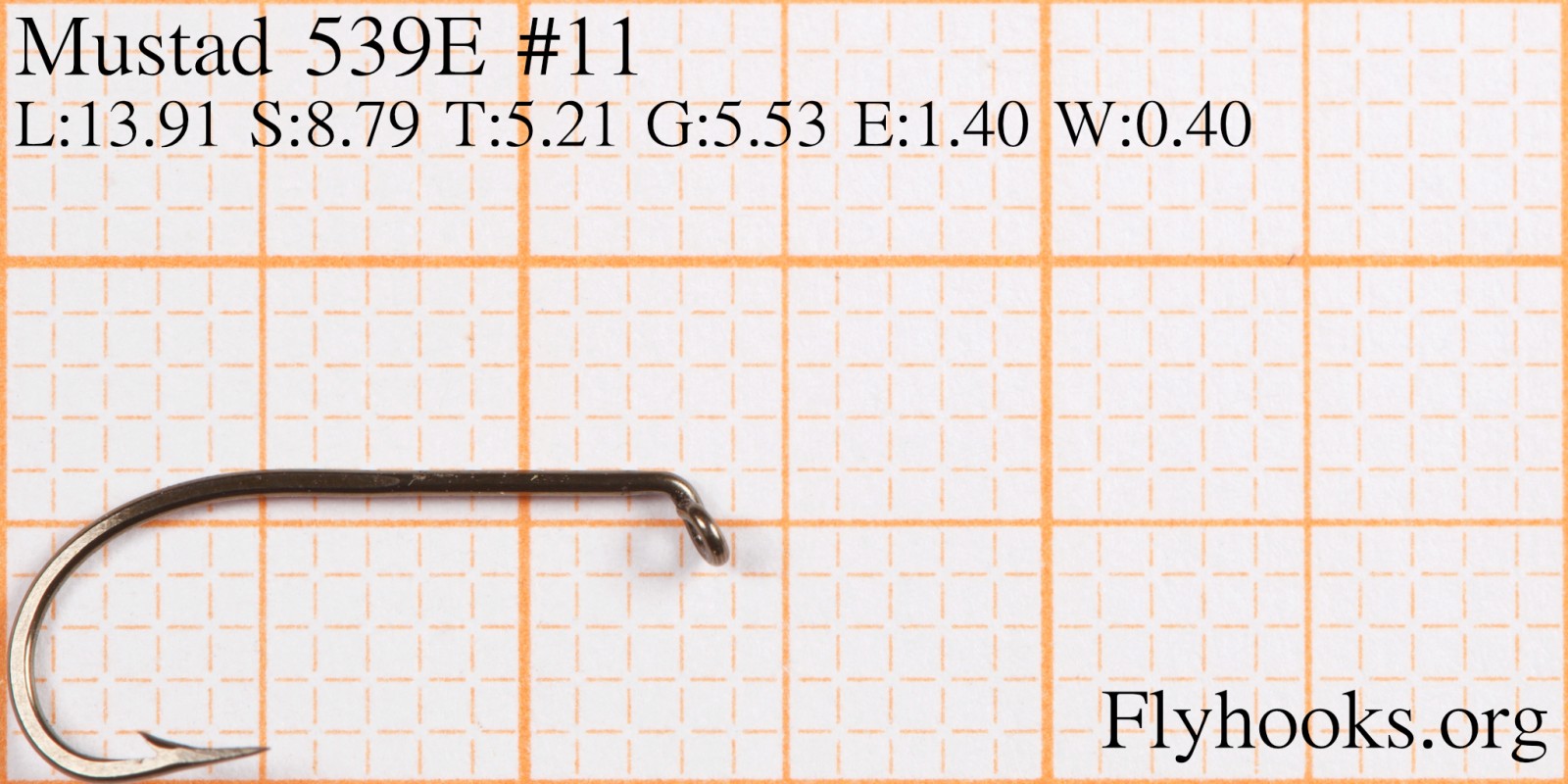

Length13.91 mm
Shank Length8.79 mm
Throat5.21 mm
Gape5.53 mm
Eye Width1.40 mm
Wire Thickness0.40 mm

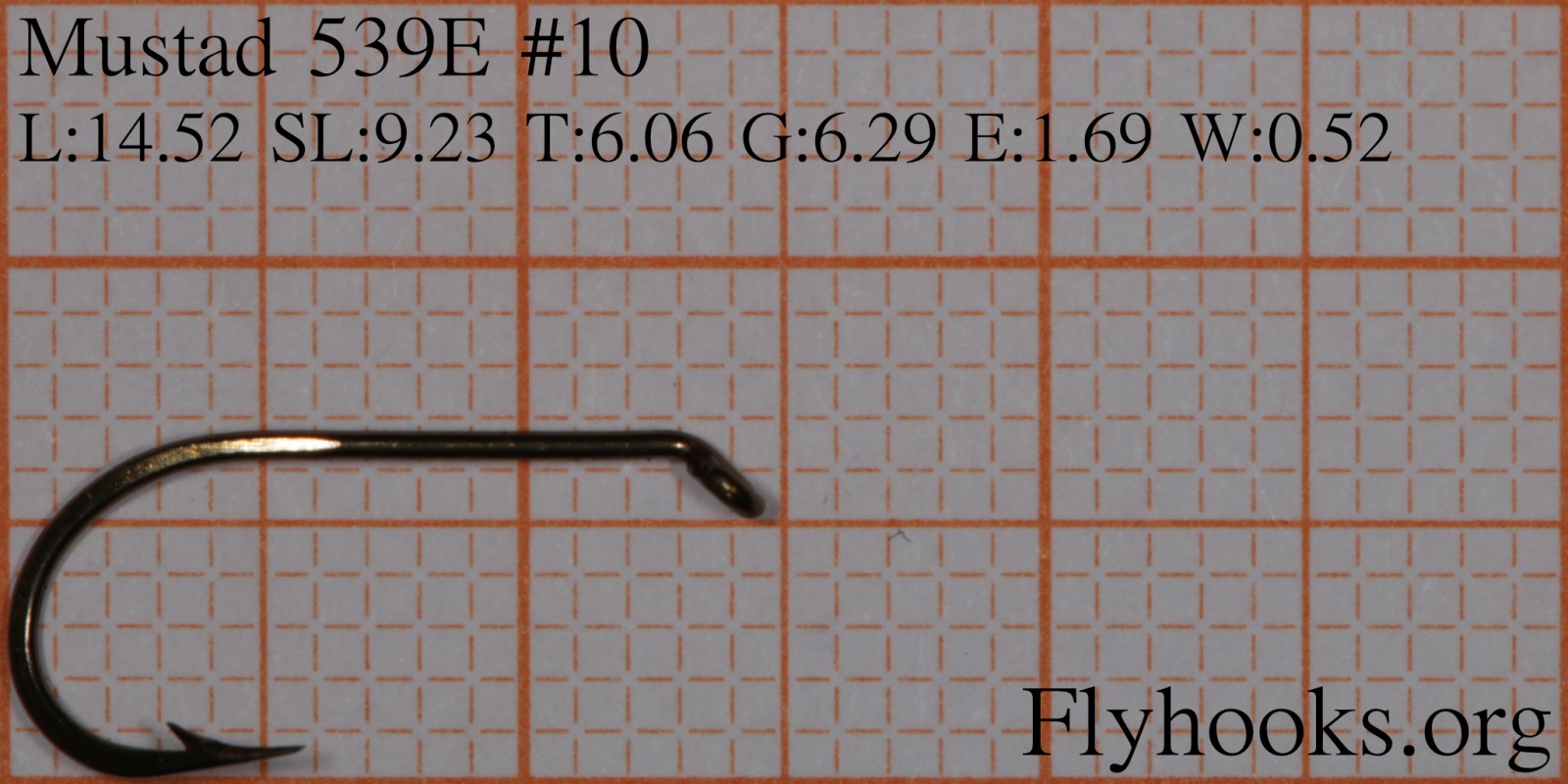

Length14.52 mm
Shank Length9.23 mm
Throat6.06 mm
Gape6.29 mm
Eye Width1.69 mm
Wire Thickness0.52 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
15 TMC102Y 10.54 -> 11.21 7.31 -> 7.39 4.13 -> 4.71 4.37 -> 4.34 0.35 -> 0.41
13 79589 12.05 -> 11.60 7.98 -> 7.70 4.83 -> 4.81 4.71 -> 5.36 0.40 -> 0.40
13 TMC103BL 12.05 -> 12.90 7.98 -> 8.45 4.83 -> 5.51 4.71 -> 5.32 0.40 -> 0.42
13 TMC102Y 12.05 -> 12.97 7.98 -> 8.45 4.83 -> 5.44 4.71 -> 5.10 0.40 -> 0.42
10 TMC921 14.52 -> 14.26 9.23 -> 9.61 6.29 -> 6.23 6.06 -> 6.03 0.52 -> 0.50
10 Dry Fly 14.52 -> 14.52 9.23 -> 9.09 6.29 -> 6.00 6.06 -> 6.41 0.52 -> 0.51
10 305 14.52 -> 14.81 9.23 -> 10.15 6.29 -> 6.23 6.06 -> 6.13 0.52 -> 0.53
10 H130BL 14.52 -> 14.96 9.23 -> 10.48 6.29 -> 5.99 6.06 -> 6.32 0.52 -> 0.49
10 540 14.52 -> 15.06 9.23 -> 9.23 6.29 -> 6.50 6.06 -> 6.91 0.52 -> 0.65
10 Br 2140 14.52 -> 15.26 9.23 -> 9.71 6.29 -> 6.55 6.06 -> 6.87 0.52 -> 0.49
10 C 214 14.52 -> 15.27 9.23 -> 9.72 6.29 -> 6.55 6.06 -> 6.46 0.52 -> 0.51
10 J 14.52 -> 15.33 9.23 -> 9.31 6.29 -> 6.25 6.06 -> 6.20 0.52 -> 0.59
10 9002 14.52 -> 15.35 9.23 -> 9.94 6.29 -> 6.06 6.06 -> 6.12 0.52 -> 0.62
10 L2A - Wet 14.52 -> 15.37 9.23 -> 10.11 6.29 -> 6.72 6.06 -> 5.92 0.52 -> 0.58
10 G3AY - Sproat Wet 14.52 -> 15.39 9.23 -> 10.04 6.29 -> 6.05 6.06 -> 6.63 0.52 -> 0.64
10 AK865BL 14.52 -> 15.50 9.23 -> 9.55 6.29 -> 6.09 6.06 -> 6.66 0.52 -> 0.67
10 Br 2210 14.52 -> 15.58 9.23 -> 10.23 6.29 -> 6.09 6.06 -> 6.17 0.52 -> 0.64
10 FW 581 14.52 -> 15.64 9.23 -> 9.37 6.29 -> 6.91 6.06 -> 6.15 0.52 -> 0.71
10 AK881 14.52 -> 15.66 9.23 -> 10.22 6.29 -> 6.22 6.06 -> 6.10 0.52 -> 0.67
10 w10 14.52 -> 15.68 9.23 -> 9.06 6.29 -> 6.37 6.06 -> 6.27 0.52 -> 0.66
10 TMC3769 14.52 -> 15.68 9.23 -> 10.46 6.29 -> 6.15 6.06 -> 6.67 0.52 -> 0.64
10 H480BL 14.52 -> 15.77 9.23 -> 9.79 6.29 -> 7.20 6.06 -> 6.79 0.52 -> 0.66
10 FW 580 - Wet Fly 14.52 -> 15.81 9.23 -> 8.98 6.29 -> 6.99 6.06 -> 5.98 0.52 -> 0.72
10 94841 14.52 -> 15.83 9.23 -> 10.20 6.29 -> 6.19 6.06 -> 6.70 0.52 -> 0.59
10 H280BL 14.52 -> 15.92 9.23 -> 9.70 6.29 -> 7.00 6.06 -> 6.91 0.52 -> 0.59
10 R70 - 7957 14.52 -> 15.95 9.23 -> 10.27 6.29 -> 6.64 6.06 -> 6.84 0.52 -> 0.69
10 H400BL 14.52 -> 15.97 9.23 -> 9.84 6.29 -> 6.69 6.06 -> 6.91 0.52 -> 0.68
10 W172 14.52 -> 16.11 9.23 -> 10.48 6.29 -> 6.44 6.06 -> 5.99 0.52 -> 0.57
10 3399A 14.52 -> 16.53 9.23 -> 9.93 6.29 -> 6.32 6.06 -> 6.31 0.52 -> 0.59
