A.Jensen: Dry Fly

Company A.Jensen
www ajensenflyfishing.com
Type Single
Strength 1xf
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Usages Dry
Wet
Nymph
Trout
Grayling
Freshwater
Spider
Midge
Sizes 20 18 16 14 12 10 8

Sizes

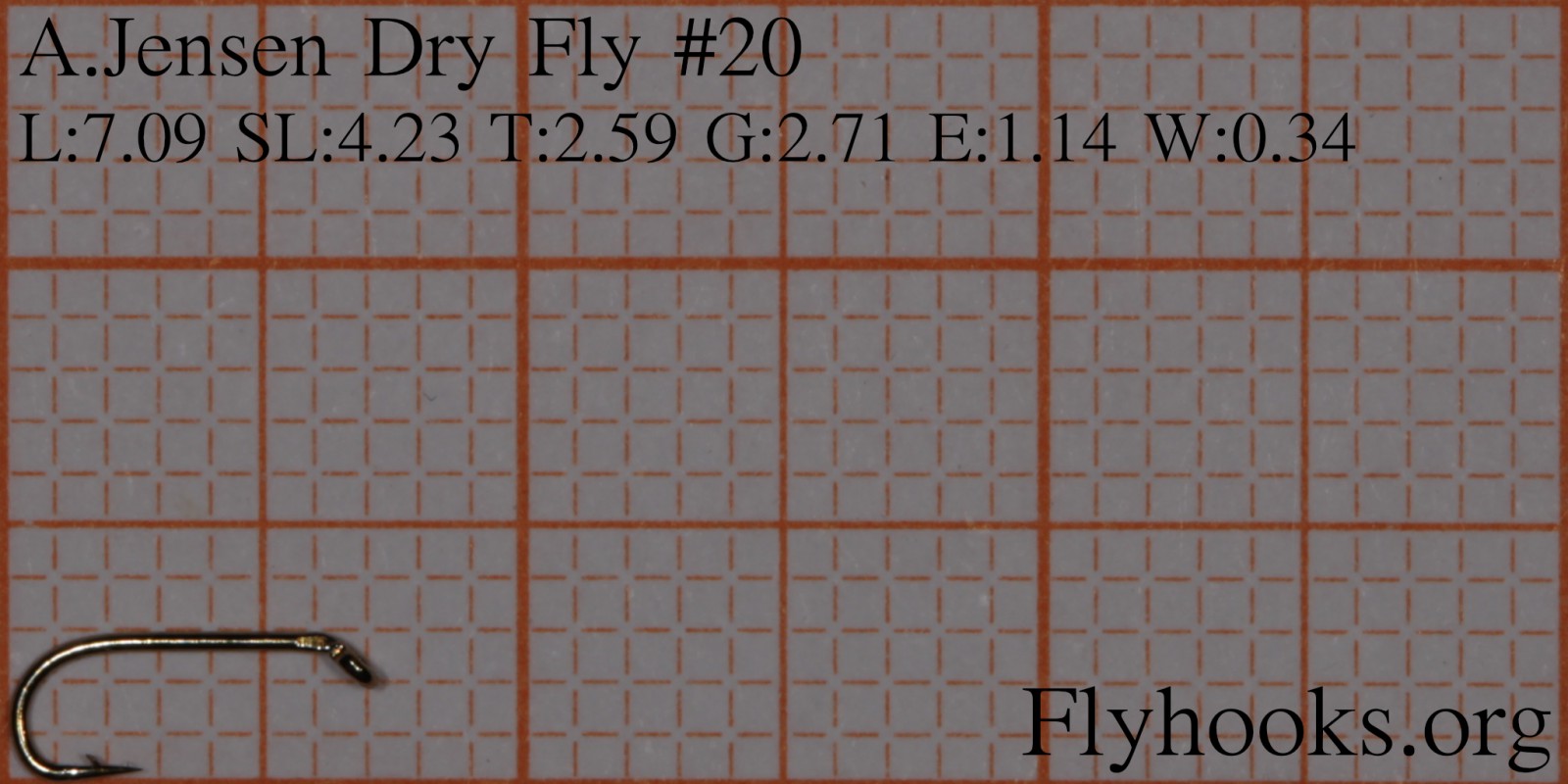

Length7.09 mm
Shank Length4.23 mm
Throat2.59 mm
Gape2.71 mm
Eye Width1.14 mm
Wire Thickness0.34 mm

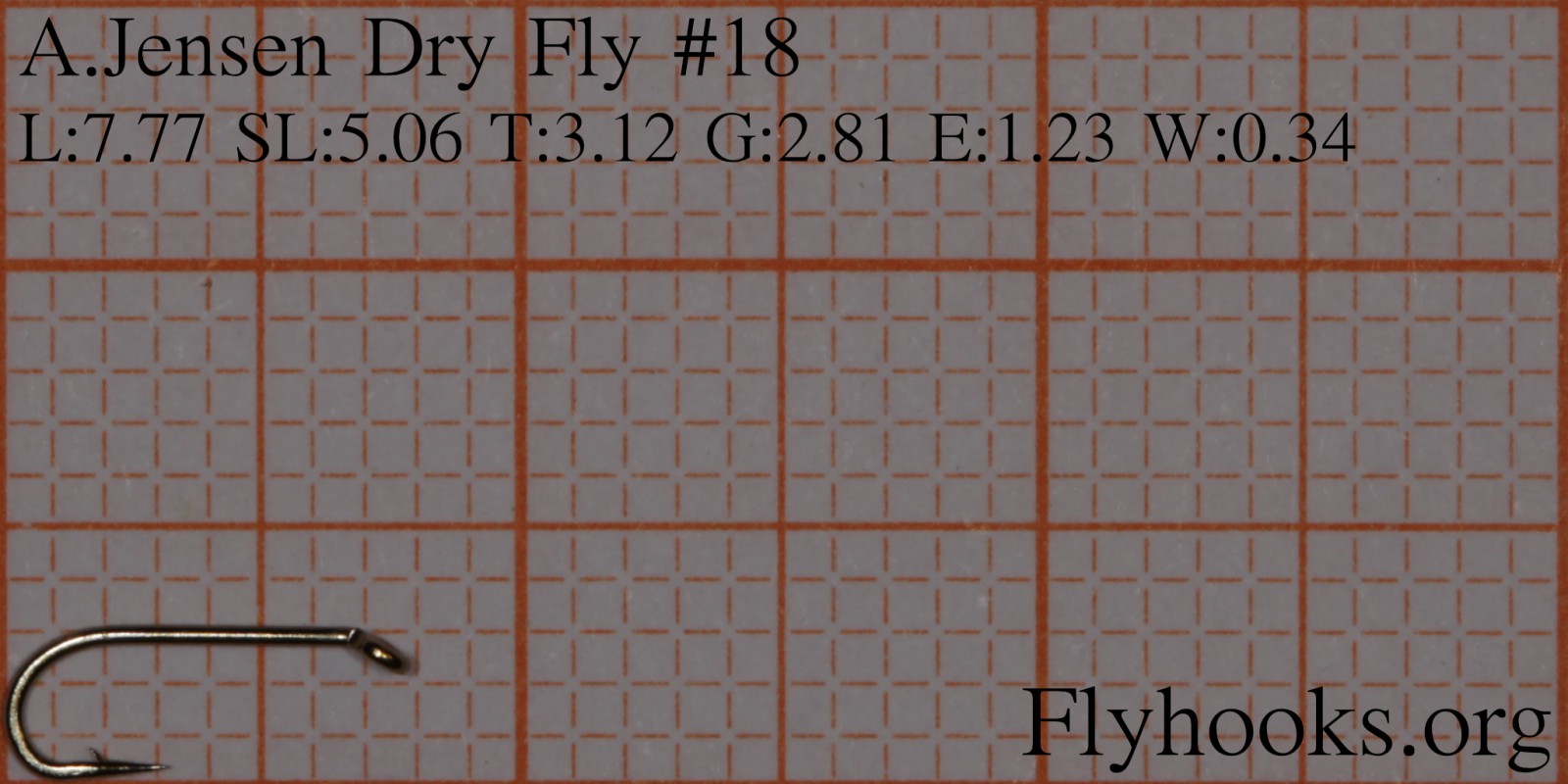

Length7.77 mm
Shank Length5.06 mm
Throat3.12 mm
Gape2.81 mm
Eye Width1.23 mm
Wire Thickness0.34 mm

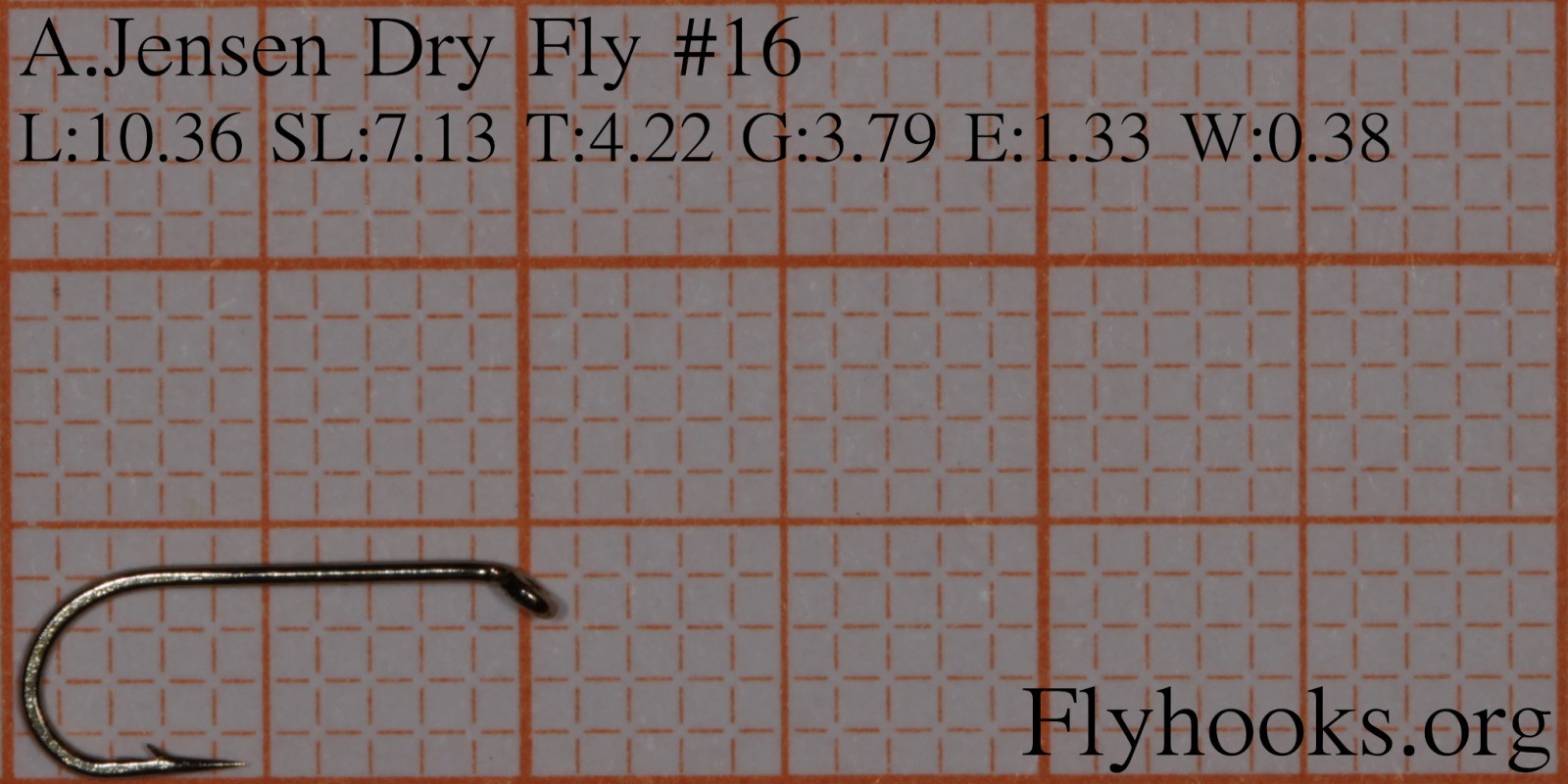

Length10.36 mm
Shank Length7.13 mm
Throat4.22 mm
Gape3.79 mm
Eye Width1.33 mm
Wire Thickness0.38 mm

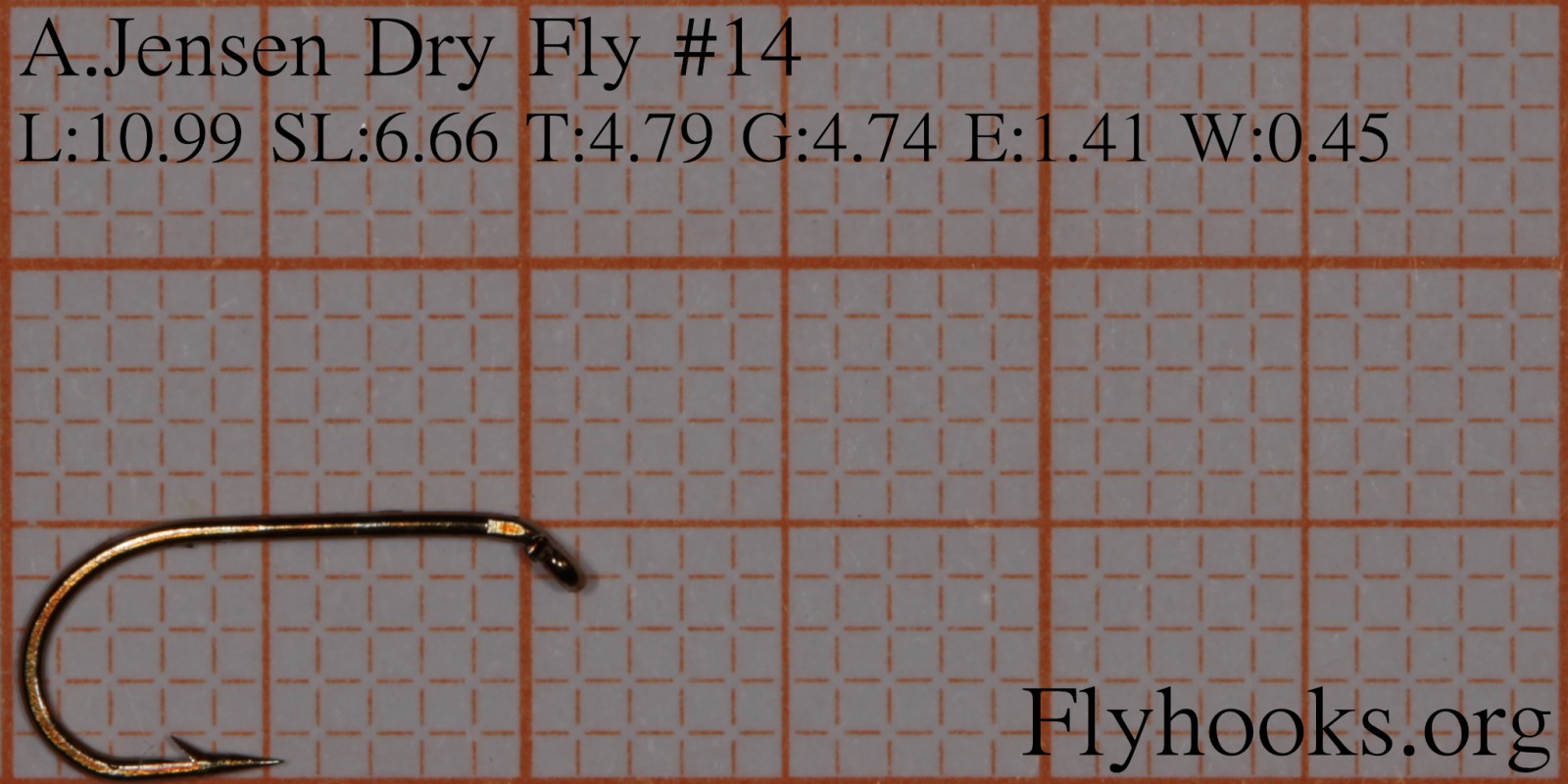

Length10.99 mm
Shank Length6.66 mm
Throat4.79 mm
Gape4.74 mm
Eye Width1.41 mm
Wire Thickness0.45 mm

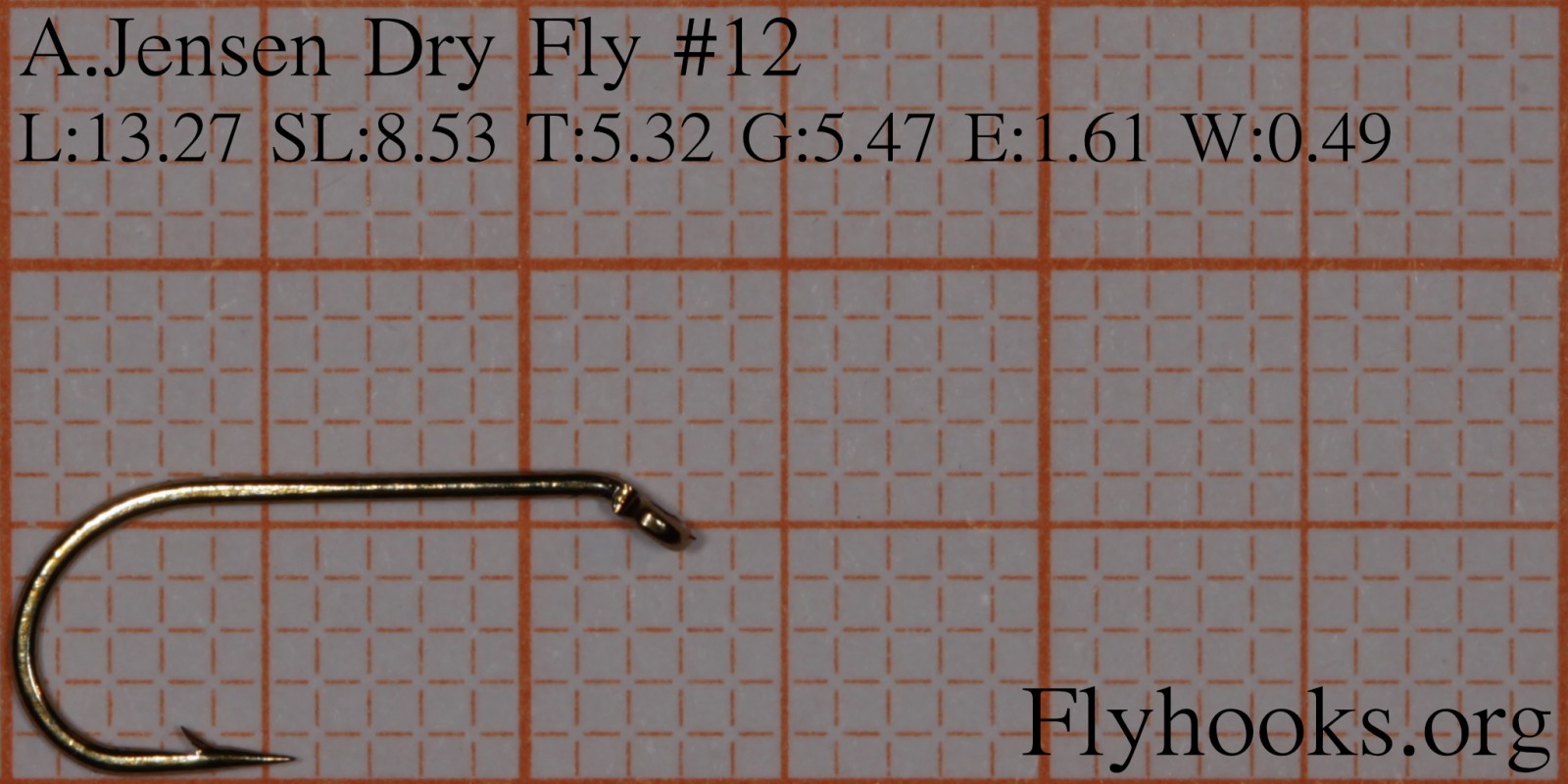

Length13.27 mm
Shank Length8.53 mm
Throat5.32 mm
Gape5.47 mm
Eye Width1.61 mm
Wire Thickness0.49 mm

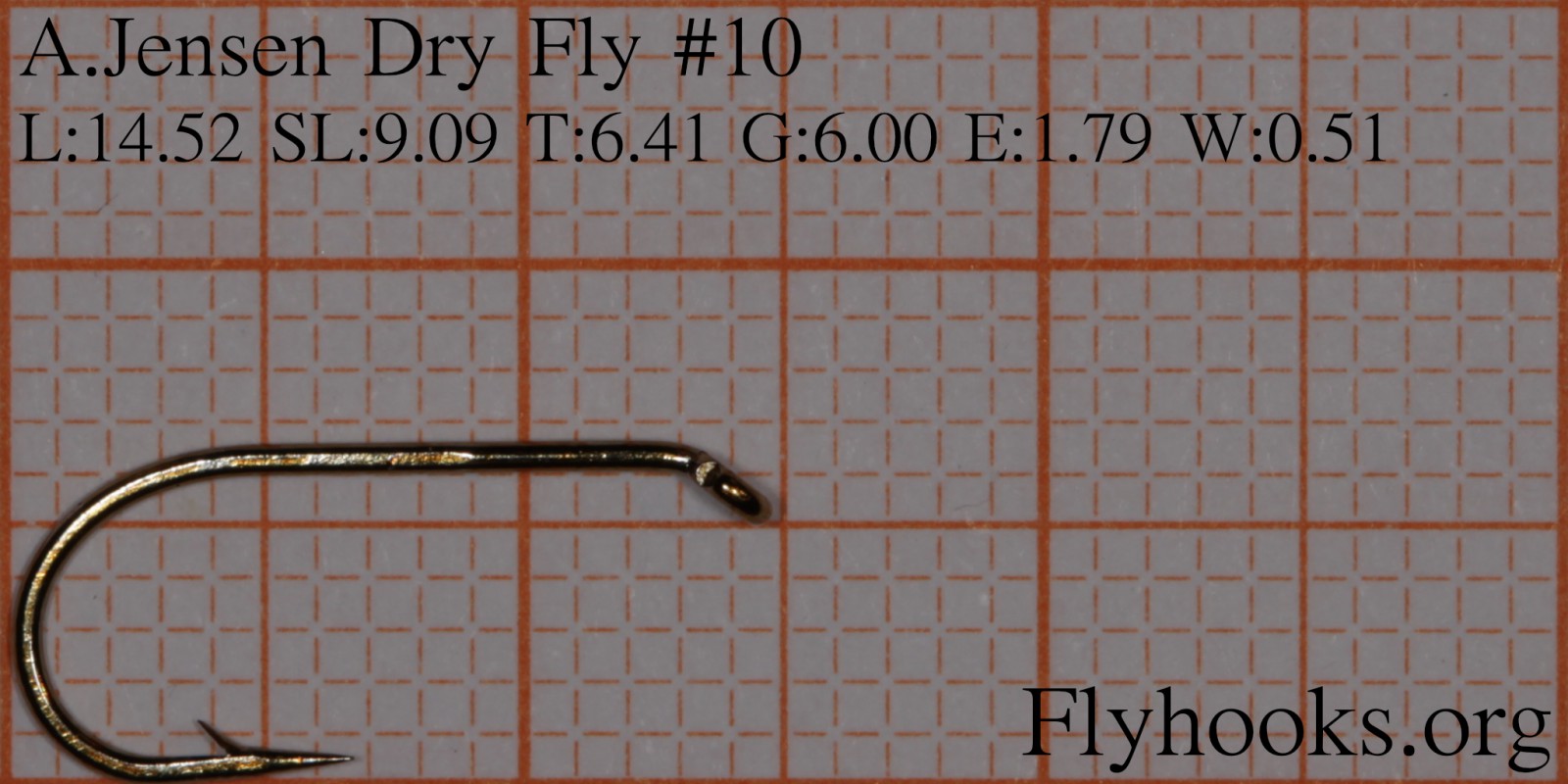

Length14.52 mm
Shank Length9.09 mm
Throat6.41 mm
Gape6.00 mm
Eye Width1.79 mm
Wire Thickness0.51 mm

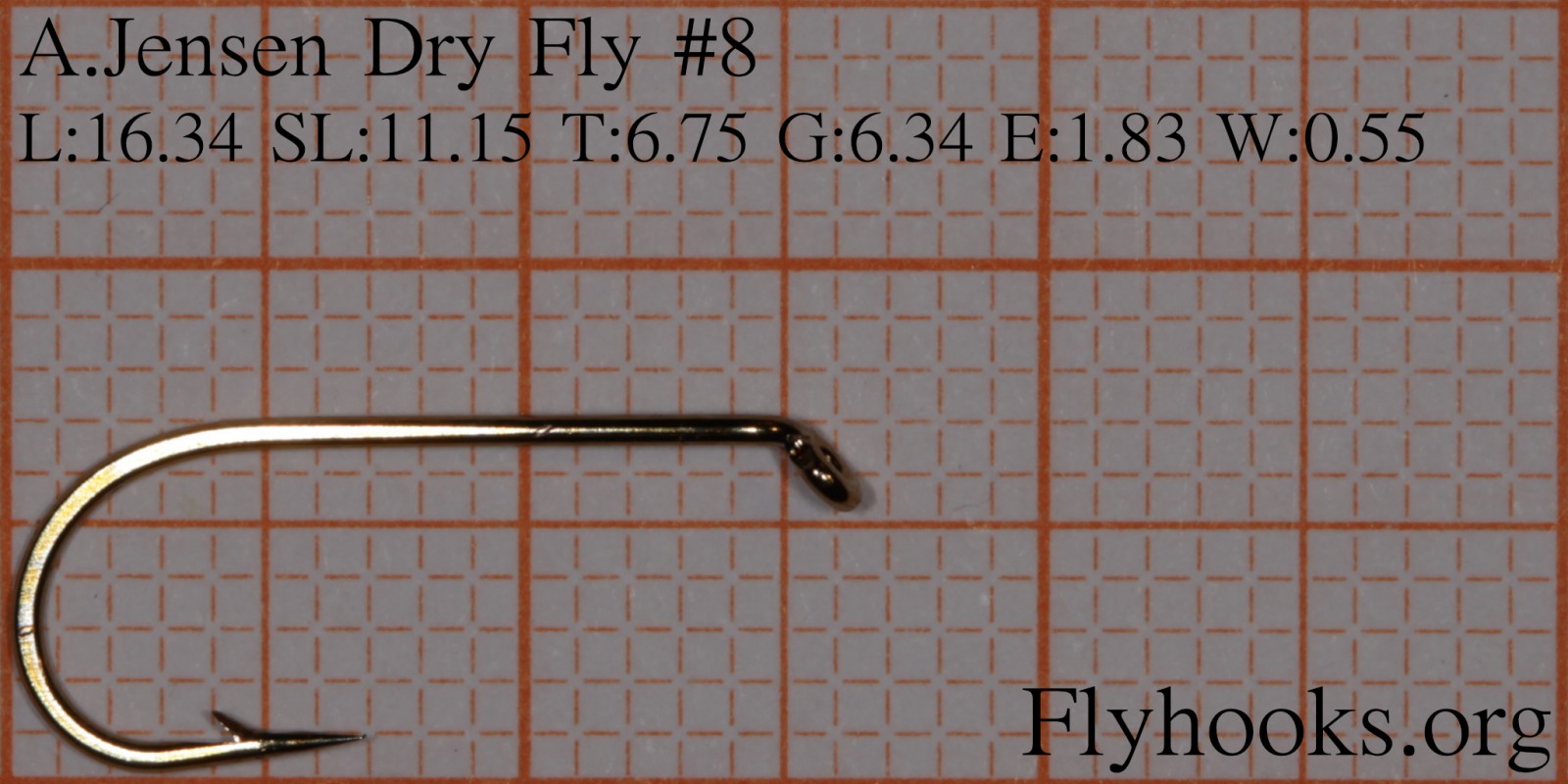

Length16.34 mm
Shank Length11.15 mm
Throat6.75 mm
Gape6.34 mm
Eye Width1.83 mm
Wire Thickness0.55 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 SUD - Patriot Ideal Dry 7.77 -> 7.45 5.06 -> 5.27 2.81 -> 2.89 3.12 -> 3.54 0.34 -> 0.28
18 110 BL 7.77 -> 7.79 5.06 -> 5.28 2.81 -> 2.88 3.12 -> 3.33 0.34 -> 0.36
18 AK502 7.77 -> 7.84 5.06 -> 5.50 2.81 -> 2.90 3.12 -> 3.31 0.34 -> 0.35
18 SUD2 - Ideal Standard Dry 7.77 -> 7.88 5.06 -> 5.12 2.81 -> 2.88 3.12 -> 3.31 0.34 -> 0.38
16 TMC900BL 10.36 -> 10.05 7.13 -> 6.79 3.79 -> 3.81 4.22 -> 4.22 0.38 -> 0.39
16 120 BL 10.36 -> 10.67 7.13 -> 7.65 3.79 -> 3.87 4.22 -> 4.75 0.38 -> 0.40
16 BL 300 10.36 -> 10.67 7.13 -> 7.02 3.79 -> 3.78 4.22 -> 4.69 0.38 -> 0.40
16 N 10.36 -> 10.73 7.13 -> 7.41 3.79 -> 3.84 4.22 -> 4.63 0.38 -> 0.46
16 H290BL 10.36 -> 10.94 7.13 -> 7.21 3.79 -> 4.20 4.22 -> 4.11 0.38 -> 0.37
16 TMC100BL 10.36 -> 10.95 7.13 -> 7.40 3.79 -> 4.08 4.22 -> 4.20 0.38 -> 0.45
16 AK501 10.36 -> 11.55 7.13 -> 7.65 3.79 -> 3.96 4.22 -> 4.20 0.38 -> 0.41
16 FW 501 10.36 -> 11.76 7.13 -> 7.81 3.79 -> 4.34 4.22 -> 4.46 0.38 -> 0.46
14 L 10.99 -> 10.69 6.66 -> 6.86 4.74 -> 4.74 4.79 -> 5.29 0.45 -> 0.49
14 L3A,TDH - The Dry 10.99 -> 10.97 6.66 -> 7.12 4.74 -> 5.12 4.79 -> 5.48 0.45 -> 0.43
14 G3AY - Sproat Wet 10.99 -> 10.98 6.66 -> 7.37 4.74 -> 4.55 4.79 -> 4.86 0.45 -> 0.50
14 S-2000 10.99 -> 11.31 6.66 -> 7.09 4.74 -> 4.55 4.79 -> 4.89 0.45 -> 0.38
14 H133BL 10.99 -> 11.35 6.66 -> 7.04 4.74 -> 5.06 4.79 -> 4.56 0.45 -> 0.44
14 SLD - Patriot Fine Dry 10.99 -> 11.38 6.66 -> 7.63 4.74 -> 4.86 4.79 -> 4.75 0.45 -> 0.43
14 H130BL 10.99 -> 11.46 6.66 -> 7.58 4.74 -> 4.79 4.79 -> 4.80 0.45 -> 0.40
14 11011 BL 10.99 -> 11.48 6.66 -> 7.01 4.74 -> 4.78 4.79 -> 4.83 0.45 -> 0.38
14 130BL 10.99 -> 11.59 6.66 -> 7.43 4.74 -> 4.80 4.79 -> 5.05 0.45 -> 0.42
14 AK503BL 10.99 -> 11.64 6.66 -> 7.50 4.74 -> 4.93 4.79 -> 4.74 0.45 -> 0.40
14 C 214 10.99 -> 11.69 6.66 -> 7.42 4.74 -> 5.01 4.79 -> 5.09 0.45 -> 0.44
14 73207 10.99 -> 11.71 6.66 -> 7.65 4.74 -> 4.67 4.79 -> 5.22 0.45 -> 0.43
14 H280BL 10.99 -> 11.87 6.66 -> 7.50 4.74 -> 5.39 4.79 -> 5.44 0.45 -> 0.54
14 HDN 302 10.99 -> 11.88 6.66 -> 7.29 4.74 -> 4.68 4.79 -> 5.31 0.45 -> 0.48
14 Nymph 10.99 -> 12.05 6.66 -> 7.20 4.74 -> 5.18 4.79 -> 5.31 0.45 -> 0.57
14 H550BL 10.99 -> 12.21 6.66 -> 7.16 4.74 -> 5.45 4.79 -> 5.13 0.45 -> 0.51
14 HDJ 10.99 -> 12.42 6.66 -> 6.69 4.74 -> 5.23 4.79 -> 5.46 0.45 -> 0.47
12 SUD2 - Ideal Standard Dry 13.27 -> 12.69 8.53 -> 8.45 5.47 -> 5.38 5.32 -> 5.40 0.49 -> 0.51
12 Br 2100 13.27 -> 12.79 8.53 -> 8.51 5.47 -> 5.46 5.32 -> 5.78 0.49 -> 0.49
12 C 214 13.27 -> 12.98 8.53 -> 8.16 5.47 -> 5.64 5.32 -> 5.55 0.49 -> 0.48
12 D101 13.27 -> 13.02 8.53 -> 8.50 5.47 -> 5.55 5.32 -> 5.32 0.49 -> 0.55
12 130BL 13.27 -> 13.11 8.53 -> 8.54 5.47 -> 5.82 5.32 -> 5.57 0.49 -> 0.48
12 W145 13.27 -> 13.25 8.53 -> 8.27 5.47 -> 5.71 5.32 -> 5.86 0.49 -> 0.42
12 TMC3769SP-BL 13.27 -> 13.26 8.53 -> 9.25 5.47 -> 5.30 5.32 -> 5.74 0.49 -> 0.55
12 9002 13.27 -> 13.34 8.53 -> 9.12 5.47 -> 5.31 5.32 -> 5.56 0.49 -> 0.55
12 11011 BL 13.27 -> 13.45 8.53 -> 8.55 5.47 -> 5.61 5.32 -> 5.91 0.49 -> 0.42
12 D102BL 13.27 -> 13.46 8.53 -> 8.33 5.47 -> 5.83 5.32 -> 5.13 0.49 -> 0.52
12 R30NP-BR 13.27 -> 13.52 8.53 -> 8.63 5.47 -> 5.26 5.32 -> 5.10 0.49 -> 0.46
12 R70 - 7957 13.27 -> 13.53 8.53 -> 8.44 5.47 -> 5.64 5.32 -> 5.61 0.49 -> 0.60
12 9485 13.27 -> 13.55 8.53 -> 9.33 5.47 -> 5.36 5.32 -> 5.57 0.49 -> 0.54
12 AK503BL 13.27 -> 13.57 8.53 -> 8.85 5.47 -> 5.47 5.32 -> 5.94 0.49 -> 0.43
12 94840 13.27 -> 13.65 8.53 -> 9.68 5.47 -> 5.35 5.32 -> 5.32 0.49 -> 0.50
12 Br 2140 13.27 -> 13.79 8.53 -> 8.48 5.47 -> 6.18 5.32 -> 5.97 0.49 -> 0.51
12 TMC9300 13.27 -> 13.98 8.53 -> 9.15 5.47 -> 5.60 5.32 -> 5.69 0.49 -> 0.49
12 H230BL 13.27 -> 14.01 8.53 -> 9.17 5.47 -> 5.97 5.32 -> 5.99 0.49 -> 0.56
12 H200BL 13.27 -> 14.10 8.53 -> 9.06 5.47 -> 5.90 5.32 -> 5.89 0.49 -> 0.63
12 C 220 13.27 -> 14.28 8.53 -> 8.43 5.47 -> 5.76 5.32 -> 6.03 0.49 -> 0.53
12 TMC100BL 13.27 -> 14.37 8.53 -> 9.77 5.47 -> 5.47 5.32 -> 5.51 0.49 -> 0.50
12 FW 501 13.27 -> 14.38 8.53 -> 9.54 5.47 -> 5.86 5.32 -> 5.74 0.49 -> 0.56
12 FW 500 - Dry Fly Traditional 13.27 -> 14.41 8.53 -> 9.45 5.47 -> 5.76 5.32 -> 5.59 0.49 -> 0.57
12 F11 13.27 -> 14.76 8.53 -> 9.74 5.47 -> 5.28 5.32 -> 5.16 0.49 -> 0.47
10 H250BL 14.52 -> 14.01 9.09 -> 8.87 6.00 -> 6.82 6.41 -> 6.98 0.51 -> 0.67
10 L 14.52 -> 14.31 9.09 -> 9.59 6.00 -> 5.97 6.41 -> 7.08 0.51 -> 0.57
10 SUD2 - Ideal Standard Dry 14.52 -> 14.49 9.09 -> 9.36 6.00 -> 5.96 6.41 -> 6.32 0.51 -> 0.55
10 HDN 302 14.52 -> 14.73 9.09 -> 8.74 6.00 -> 6.20 6.41 -> 7.04 0.51 -> 0.55
10 305 14.52 -> 14.81 9.09 -> 10.15 6.00 -> 6.23 6.41 -> 6.13 0.51 -> 0.53
10 540 14.52 -> 15.06 9.09 -> 9.23 6.00 -> 6.50 6.41 -> 6.91 0.51 -> 0.65
10 Br 2140 14.52 -> 15.26 9.09 -> 9.71 6.00 -> 6.55 6.41 -> 6.87 0.51 -> 0.49
10 C 214 14.52 -> 15.27 9.09 -> 9.72 6.00 -> 6.55 6.41 -> 6.46 0.51 -> 0.51
10 J 14.52 -> 15.33 9.09 -> 9.31 6.00 -> 6.25 6.41 -> 6.20 0.51 -> 0.59
10 9002 14.52 -> 15.35 9.09 -> 9.94 6.00 -> 6.06 6.41 -> 6.12 0.51 -> 0.62
10 G3AY - Sproat Wet 14.52 -> 15.39 9.09 -> 10.04 6.00 -> 6.05 6.41 -> 6.63 0.51 -> 0.64
10 AK865BL 14.52 -> 15.50 9.09 -> 9.55 6.00 -> 6.09 6.41 -> 6.66 0.51 -> 0.67
10 Br 2210 14.52 -> 15.58 9.09 -> 10.23 6.00 -> 6.09 6.41 -> 6.17 0.51 -> 0.64
10 C 220 14.52 -> 15.58 9.09 -> 9.15 6.00 -> 6.05 6.41 -> 7.03 0.51 -> 0.55
10 AK881 14.52 -> 15.66 9.09 -> 10.22 6.00 -> 6.22 6.41 -> 6.10 0.51 -> 0.67
10 w10 14.52 -> 15.68 9.09 -> 9.06 6.00 -> 6.37 6.41 -> 6.27 0.51 -> 0.66
10 Barbless 14.52 -> 15.68 9.09 -> 9.03 6.00 -> 5.83 6.41 -> 7.12 0.51 -> 0.64
10 H470BL 14.52 -> 15.69 9.09 -> 9.57 6.00 -> 6.80 6.41 -> 7.00 0.51 -> 0.65
10 Br 2200 14.52 -> 15.78 9.09 -> 9.11 6.00 -> 6.43 6.41 -> 7.37 0.51 -> 0.61
10 R70 - 7957 14.52 -> 15.95 9.09 -> 10.27 6.00 -> 6.64 6.41 -> 6.84 0.51 -> 0.69
10 H400BL 14.52 -> 15.97 9.09 -> 9.84 6.00 -> 6.69 6.41 -> 6.91 0.51 -> 0.68
10 G3A/L - Wet Heavy Supreme 14.52 -> 16.03 9.09 -> 9.17 6.00 -> 6.70 6.41 -> 7.26 0.51 -> 0.74
10 R90 14.52 -> 16.08 9.09 -> 9.60 6.00 -> 6.70 6.41 -> 7.33 0.51 -> 0.75
10 3399A 14.52 -> 16.53 9.09 -> 9.93 6.00 -> 6.32 6.41 -> 6.31 0.51 -> 0.59
8 W 16.34 -> 15.91 11.15 -> 10.66 6.34 -> 6.62 6.75 -> 7.04 0.55 -> 0.60
8 3411 A 16.34 -> 17.25 11.15 -> 11.96 6.34 -> 7.18 6.75 -> 7.29 0.55 -> 0.64
8 J 16.34 -> 17.46 11.15 -> 10.89 6.34 -> 6.63 6.75 -> 7.14 0.55 -> 0.65
8 N 16.34 -> 18.02 11.15 -> 12.44 6.34 -> 6.39 6.75 -> 7.42 0.55 -> 0.65
8 TMC3769 16.34 -> 18.24 11.15 -> 12.39 6.34 -> 7.00 6.75 -> 7.29 0.55 -> 0.72
8 AK720 16.34 -> 18.29 11.15 -> 12.33 6.34 -> 6.78 6.75 -> 7.03 0.55 -> 0.72
8 B170 Sproat 16.34 -> 18.36 11.15 -> 11.42 6.34 -> 7.25 6.75 -> 6.83 0.55 -> 0.65
8 94840 16.34 -> 18.42 11.15 -> 12.71 6.34 -> 7.17 6.75 -> 7.45 0.55 -> 0.67
8 AK881 16.34 -> 18.77 11.15 -> 12.46 6.34 -> 7.14 6.75 -> 7.38 0.55 -> 0.77
