Akita: AK502

Company Akita
Type Single
Size 1xs
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Usages Dry
Wet
Nymph
Trout
Grayling
Freshwater
Spider
Soft Hackle
Emerger
Midge
Sizes 20 18 16 14 12 10

Sizes

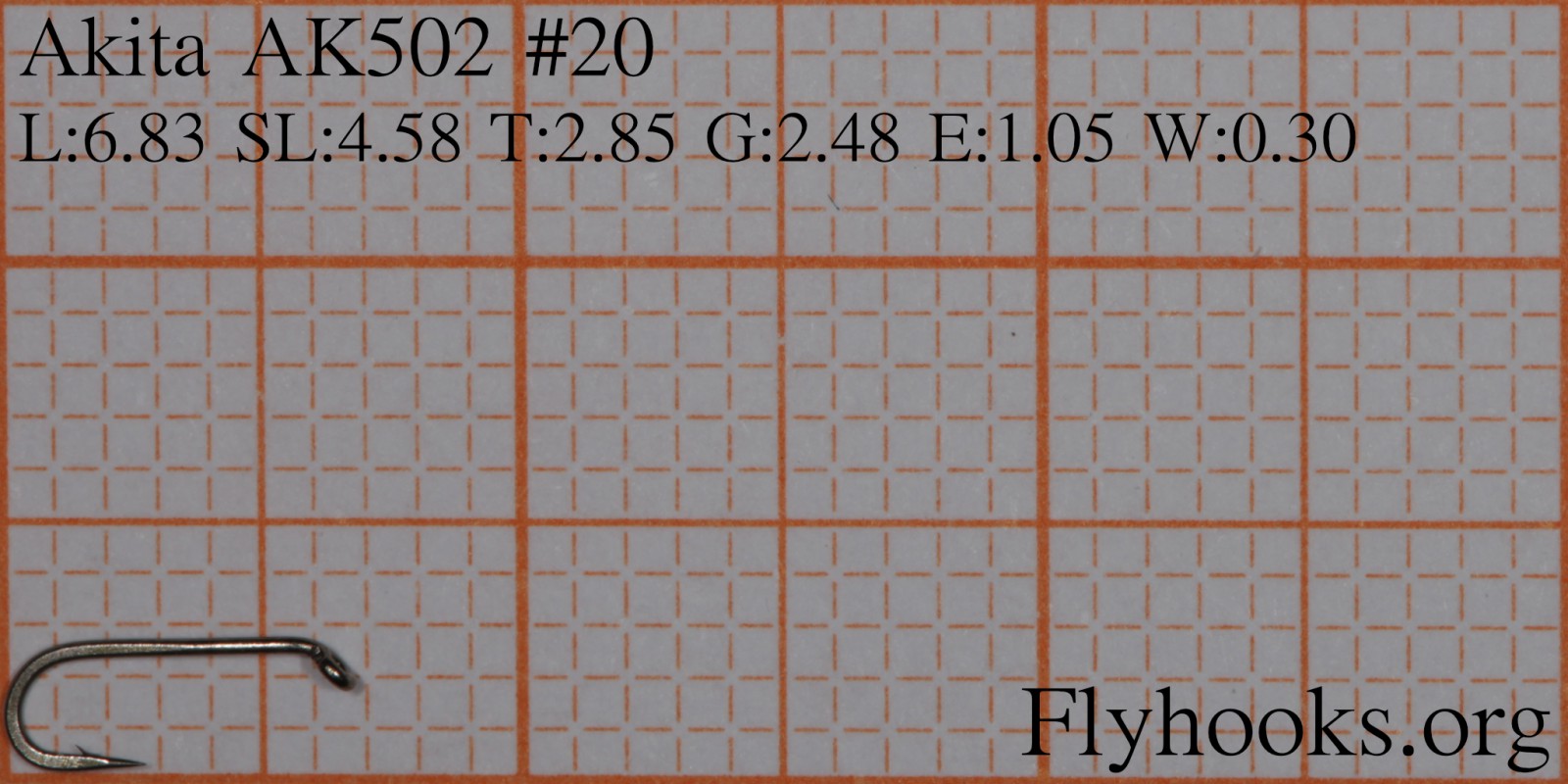

Length6.83 mm
Shank Length4.58 mm
Throat2.85 mm
Gape2.48 mm
Eye Width1.05 mm
Wire Thickness0.30 mm

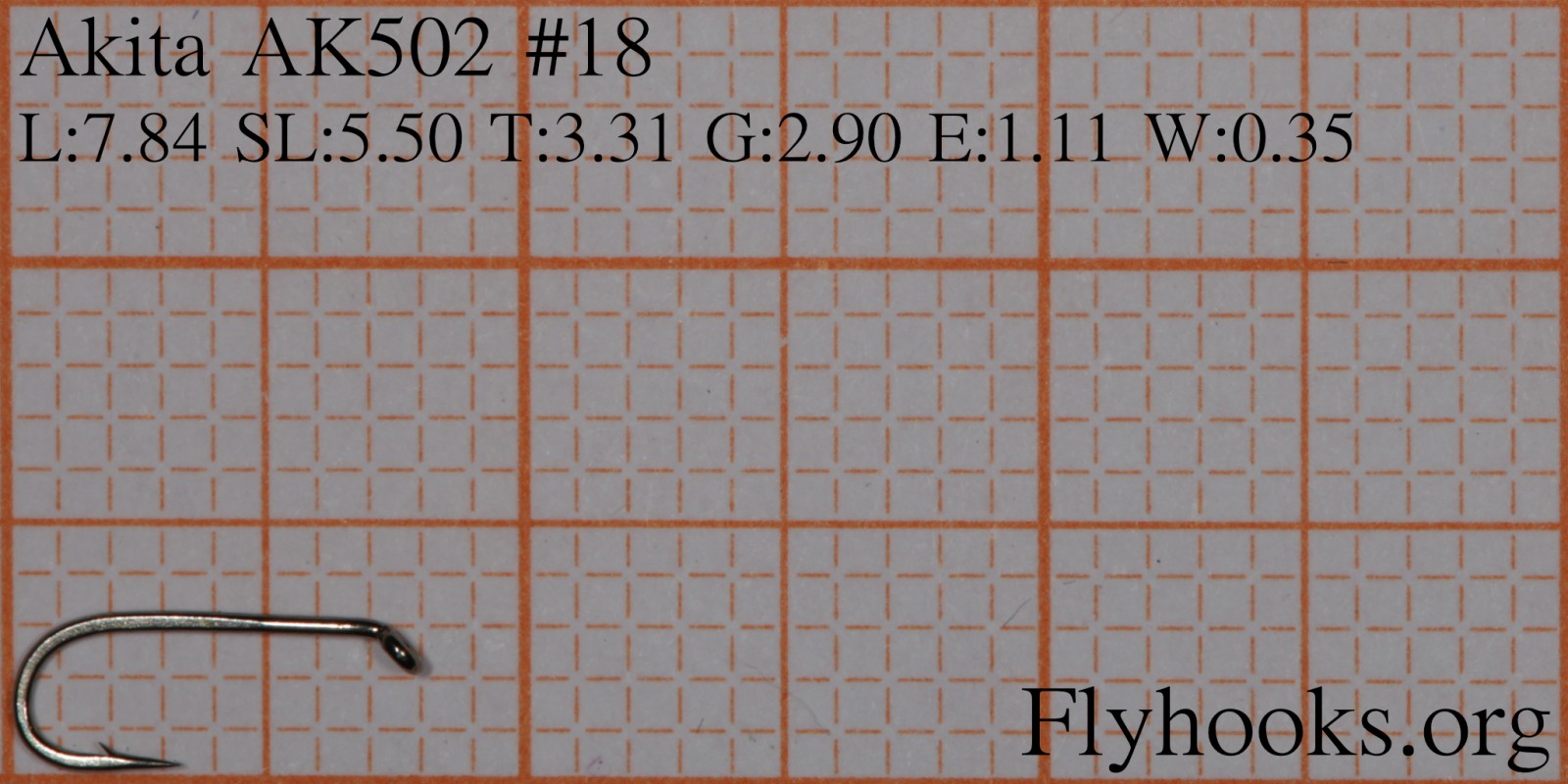

Length7.84 mm
Shank Length5.50 mm
Throat3.31 mm
Gape2.90 mm
Eye Width1.11 mm
Wire Thickness0.35 mm

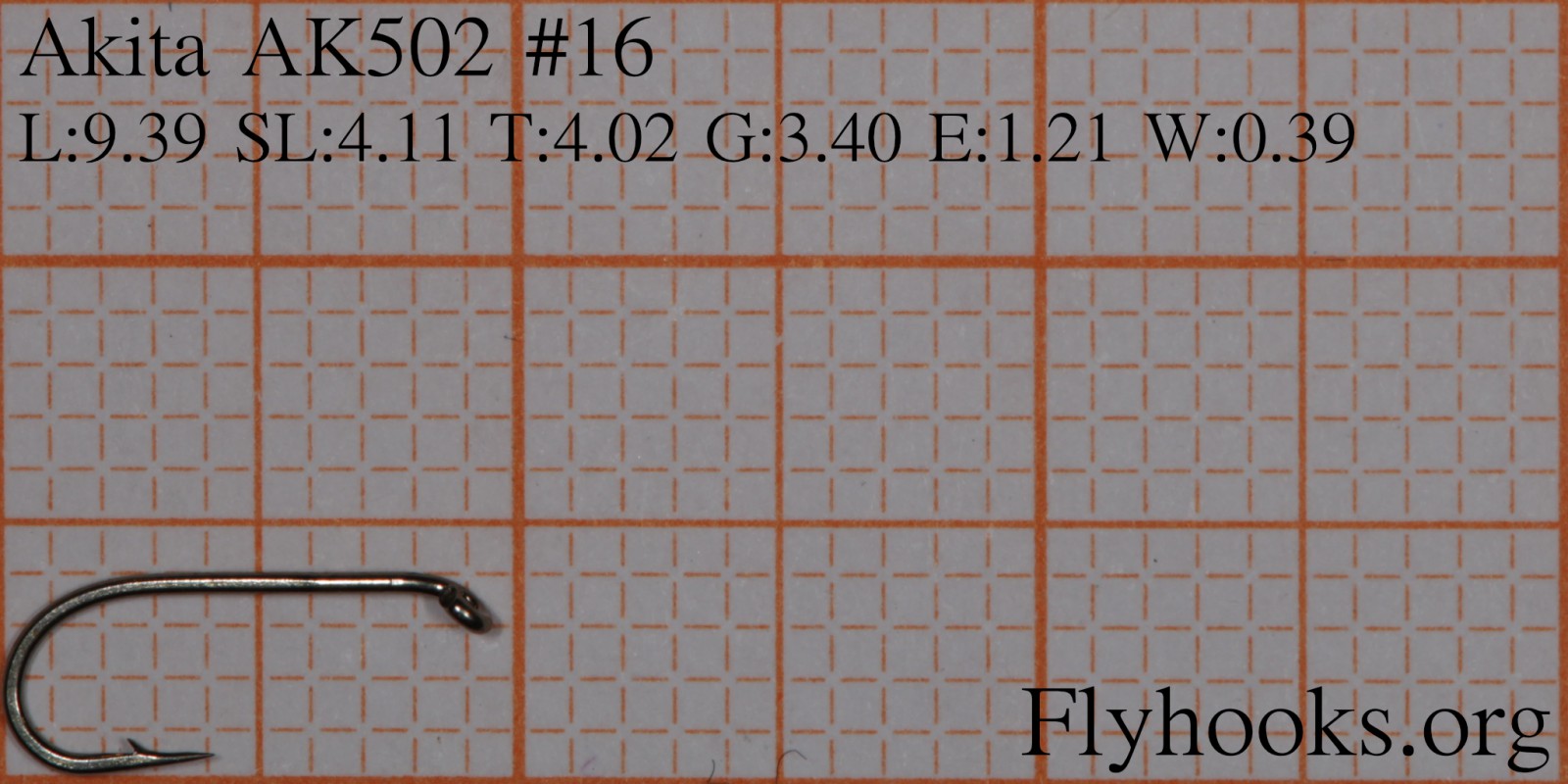

Length9.39 mm
Shank Length4.11 mm
Throat4.02 mm
Gape3.40 mm
Eye Width1.21 mm
Wire Thickness0.39 mm

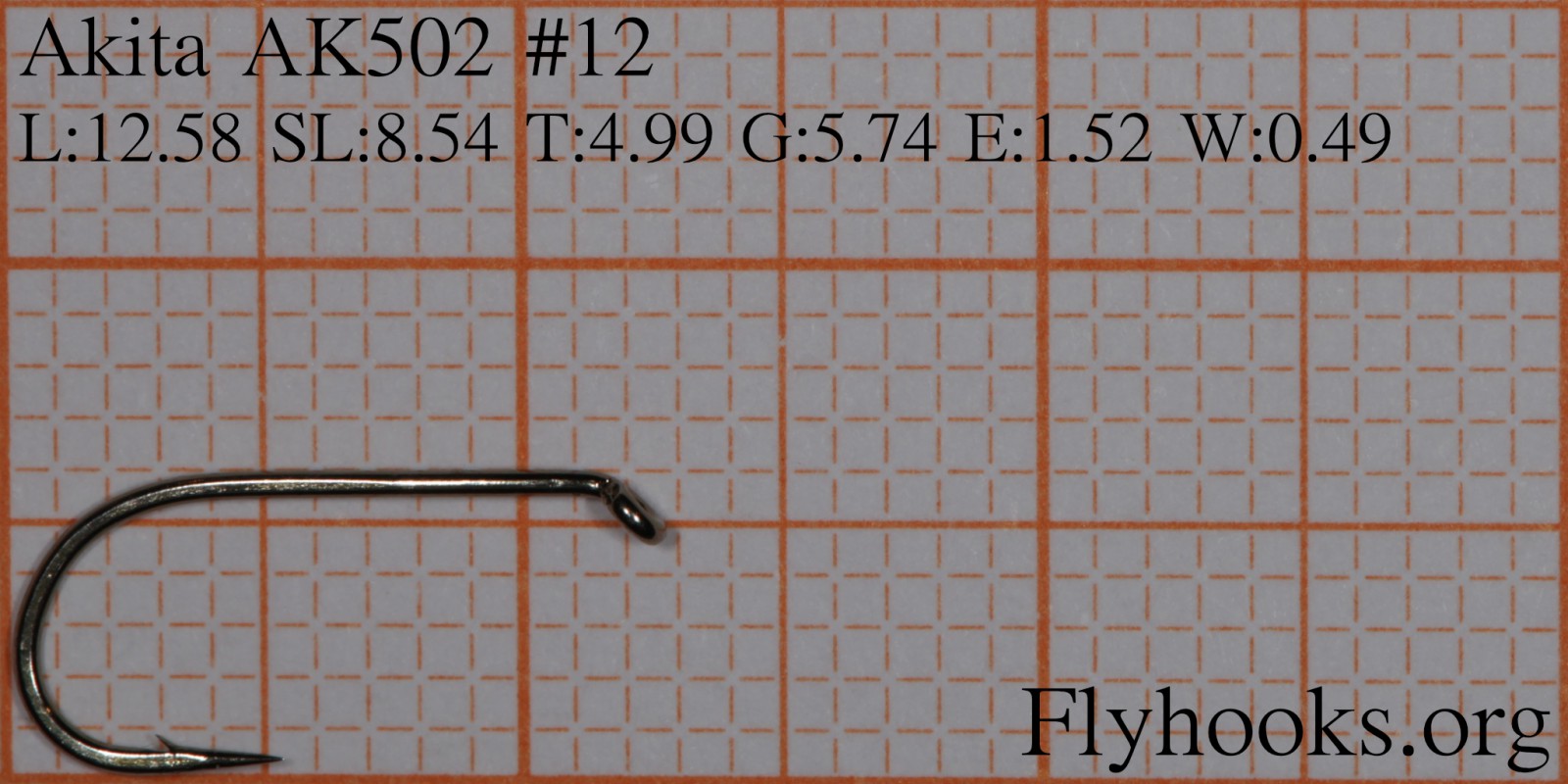

Length12.58 mm
Shank Length8.54 mm
Throat4.99 mm
Gape5.74 mm
Eye Width1.52 mm
Wire Thickness0.49 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
20 94836 6.83 -> 6.91 4.58 -> 4.75 2.48 -> 2.46 2.85 -> 3.07 0.30 -> 0.29
18 SUD - Patriot Ideal Dry 7.84 -> 7.45 5.50 -> 5.27 2.90 -> 2.89 3.31 -> 3.54 0.35 -> 0.28
18 110 BL 7.84 -> 7.79 5.50 -> 5.28 2.90 -> 2.88 3.31 -> 3.33 0.35 -> 0.36
18 S-2000 7.84 -> 7.94 5.50 -> 5.27 2.90 -> 3.27 3.31 -> 3.61 0.35 -> 0.33
18 AK503BL 7.84 -> 8.28 5.50 -> 5.62 2.90 -> 3.32 3.31 -> 3.56 0.35 -> 0.35
18 TMC900BL 7.84 -> 8.33 5.50 -> 5.71 2.90 -> 3.11 3.31 -> 3.72 0.35 -> 0.34
18 C 211 7.84 -> 8.82 5.50 -> 6.07 2.90 -> 3.06 3.31 -> 3.42 0.35 -> 0.32
12 C 214 12.58 -> 12.98 8.54 -> 8.16 5.74 -> 5.64 4.99 -> 5.55 0.49 -> 0.48
12 D101 12.58 -> 13.02 8.54 -> 8.50 5.74 -> 5.55 4.99 -> 5.32 0.49 -> 0.55
12 130BL 12.58 -> 13.11 8.54 -> 8.54 5.74 -> 5.82 4.99 -> 5.57 0.49 -> 0.48
12 Dry Fly 12.58 -> 13.27 8.54 -> 8.53 5.74 -> 5.47 4.99 -> 5.32 0.49 -> 0.49
12 D102BL 12.58 -> 13.46 8.54 -> 8.33 5.74 -> 5.83 4.99 -> 5.13 0.49 -> 0.52
12 R70 - 7957 12.58 -> 13.53 8.54 -> 8.44 5.74 -> 5.64 4.99 -> 5.61 0.49 -> 0.60
12 TMC9300 12.58 -> 13.98 8.54 -> 9.15 5.74 -> 5.60 4.99 -> 5.69 0.49 -> 0.49
12 TMC100BL 12.58 -> 14.37 8.54 -> 9.77 5.74 -> 5.47 4.99 -> 5.51 0.49 -> 0.50
12 FW 500 - Dry Fly Traditional 12.58 -> 14.41 8.54 -> 9.45 5.74 -> 5.76 4.99 -> 5.59 0.49 -> 0.57
