Akita: AK501

Company Akita
Type Single
Strength Fine wire
Gape Wide
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Sizes 24 22 20 18 16 14 12 10 8

Sizes

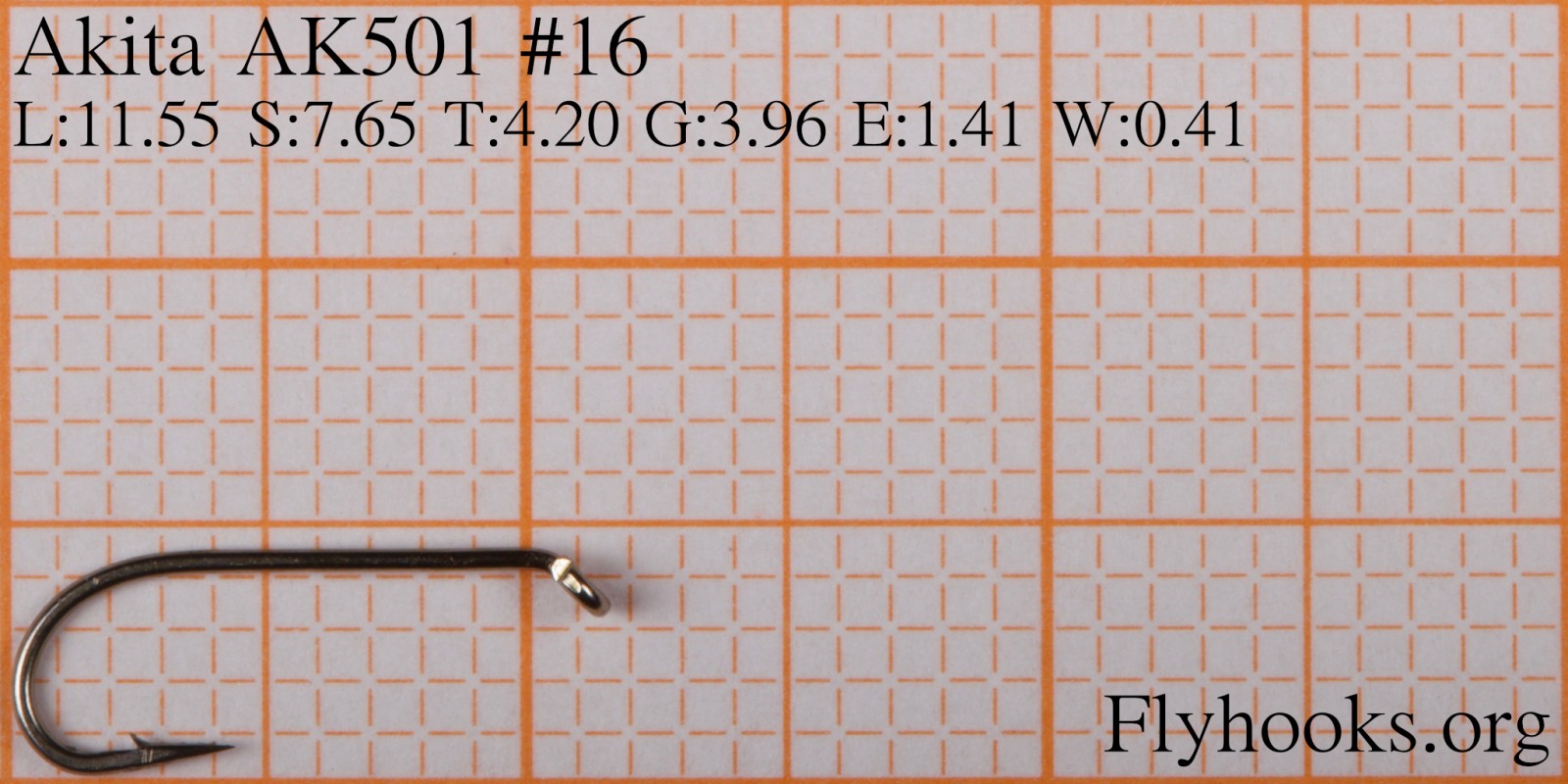

Length11.55 mm
Shank Length7.65 mm
Throat4.20 mm
Gape3.96 mm
Eye Width1.41 mm
Wire Thickness0.41 mm

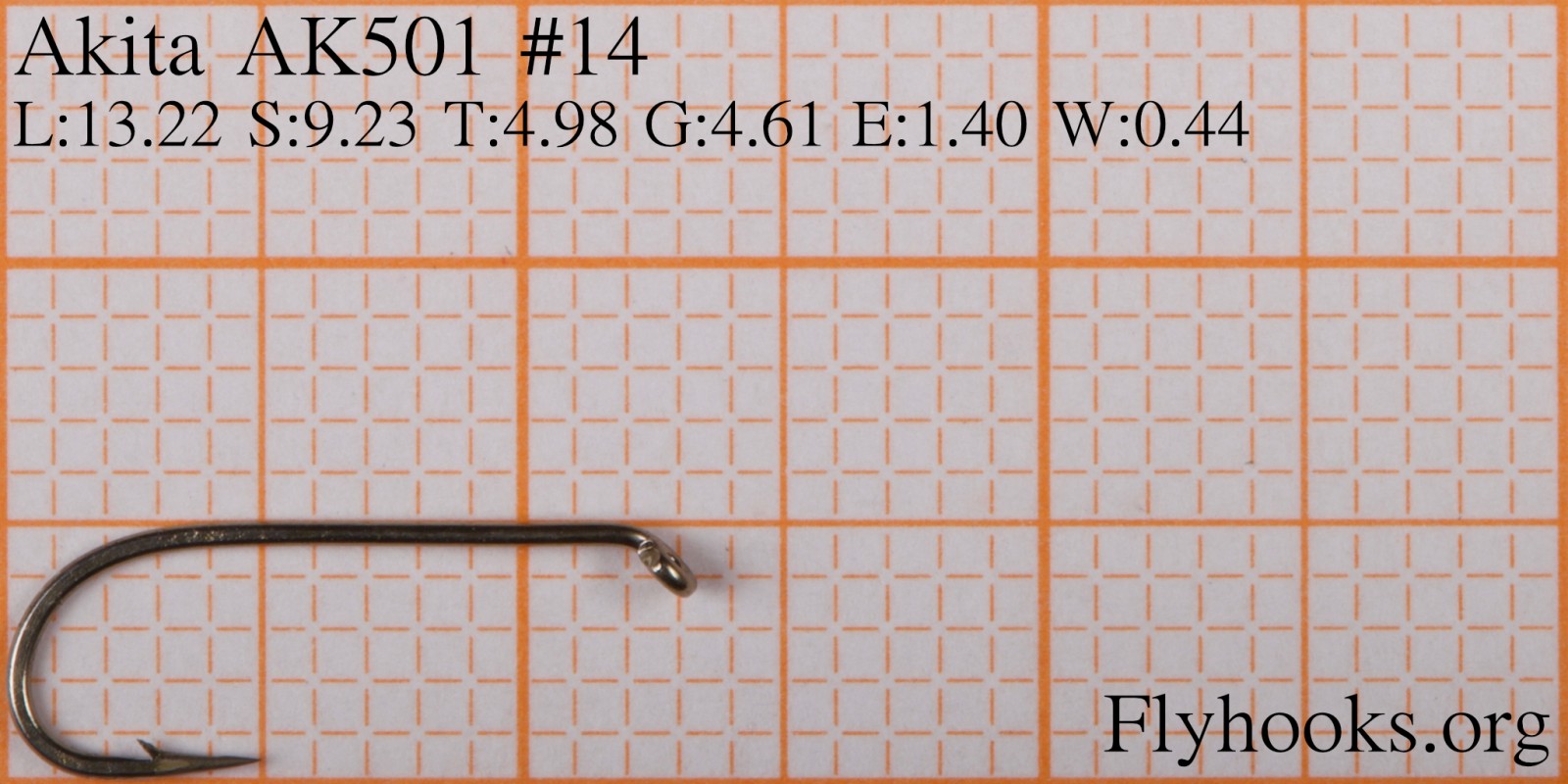

Length13.22 mm
Shank Length9.23 mm
Throat4.98 mm
Gape4.61 mm
Eye Width1.40 mm
Wire Thickness0.44 mm

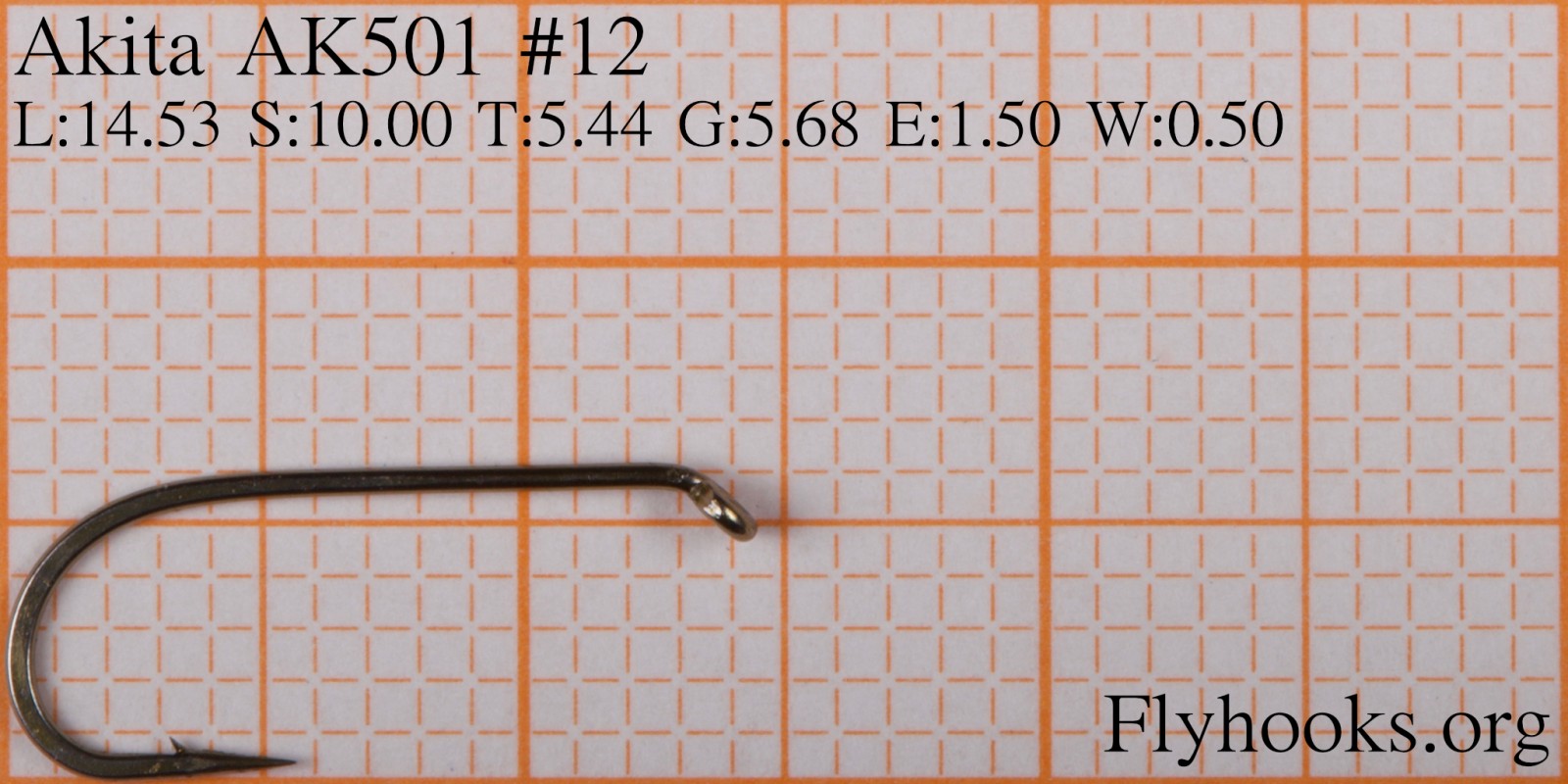

Length14.53 mm
Shank Length10.00 mm
Throat5.44 mm
Gape5.68 mm
Eye Width1.50 mm
Wire Thickness0.50 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 FW 501 11.55 -> 11.76 7.65 -> 7.81 3.96 -> 4.34 4.20 -> 4.46 0.41 -> 0.46
16 FW 500 - Dry Fly Traditional 11.55 -> 11.76 7.65 -> 7.94 3.96 -> 4.37 4.20 -> 4.36 0.41 -> 0.44
16 730 11.55 -> 12.22 7.65 -> 8.09 3.96 -> 4.13 4.20 -> 4.08 0.41 -> 0.46
16 FW 561 11.55 -> 12.98 7.65 -> 8.59 3.96 -> 4.19 4.20 -> 4.57 0.41 -> 0.46
14 120 BL 13.22 -> 12.83 9.23 -> 8.98 4.61 -> 4.75 4.98 -> 5.12 0.44 -> 0.46
14 FW 501 13.22 -> 13.25 9.23 -> 8.78 4.61 -> 4.99 4.98 -> 5.23 0.44 -> 0.51
14 11001 13.22 -> 13.40 9.23 -> 8.88 4.61 -> 4.61 4.98 -> 4.88 0.44 -> 0.44
14 730 13.22 -> 13.61 9.23 -> 9.14 4.61 -> 4.86 4.98 -> 4.91 0.44 -> 0.51
14 C 231 13.22 -> 13.69 9.23 -> 9.40 4.61 -> 4.84 4.98 -> 5.30 0.44 -> 0.49
14 FW 561 13.22 -> 14.37 9.23 -> 9.40 4.61 -> 4.77 4.98 -> 4.88 0.44 -> 0.57
14 FW 560 - Traditional Nymph 13.22 -> 14.46 9.23 -> 9.71 4.61 -> 4.93 4.98 -> 5.22 0.44 -> 0.57
12 TMC100BL 14.53 -> 14.37 10.00 -> 9.77 5.68 -> 5.47 5.44 -> 5.51 0.50 -> 0.50
12 FW 501 14.53 -> 14.38 10.00 -> 9.54 5.68 -> 5.86 5.44 -> 5.74 0.50 -> 0.56
12 TMC100SP-BL 14.53 -> 14.91 10.00 -> 10.14 5.68 -> 5.55 5.44 -> 5.69 0.50 -> 0.53
12 R72 14.53 -> 15.88 10.00 -> 10.35 5.68 -> 5.82 5.44 -> 5.44 0.50 -> 0.59
12 FW 560 - Traditional Nymph 14.53 -> 15.96 10.00 -> 10.80 5.68 -> 5.74 5.44 -> 5.72 0.50 -> 0.59
12 TMC5262 14.53 -> 16.18 10.00 -> 10.88 5.68 -> 5.47 5.44 -> 5.67 0.50 -> 0.56
12 FW 561 14.53 -> 16.21 10.00 -> 10.82 5.68 -> 5.84 5.44 -> 5.61 0.50 -> 0.60
