Partridge: SUD - Patriot Ideal Dry

Company Partridge
www www.partridge-of-redditch.co.uk
Type Single
Eye Position Turned down
Shank Style Straigth
Bend Captain Hamilton bend
Barb Barbless
Color Black Nickel
Usages Dry
Trout
Grayling
Freshwater
Emerger
Sizes 20 18 16 14 12 10 8

Sizes

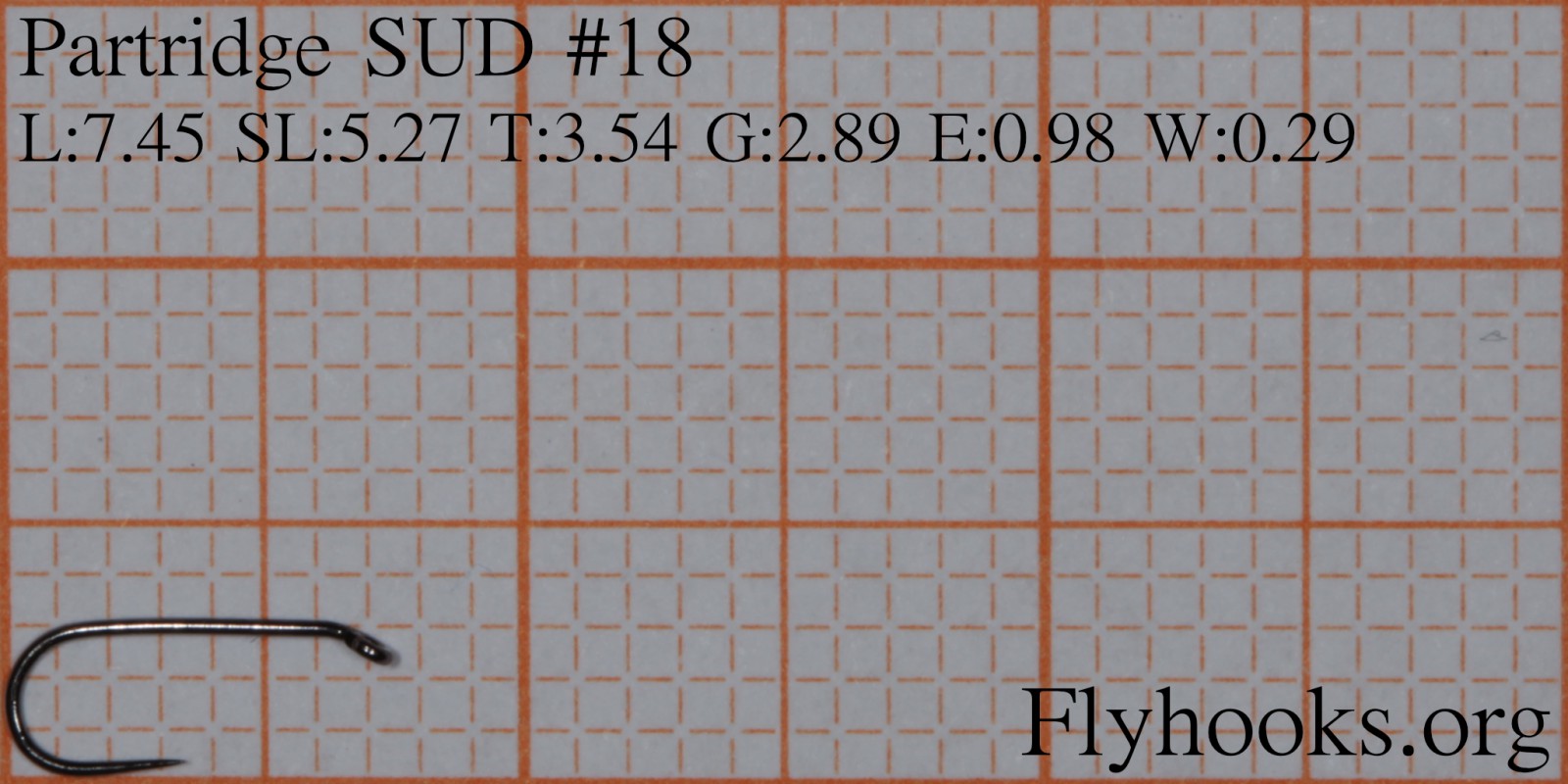

Length7.45 mm
Shank Length5.27 mm
Throat3.54 mm
Gape2.89 mm
Eye Width0.98 mm
Wire Thickness0.28 mm

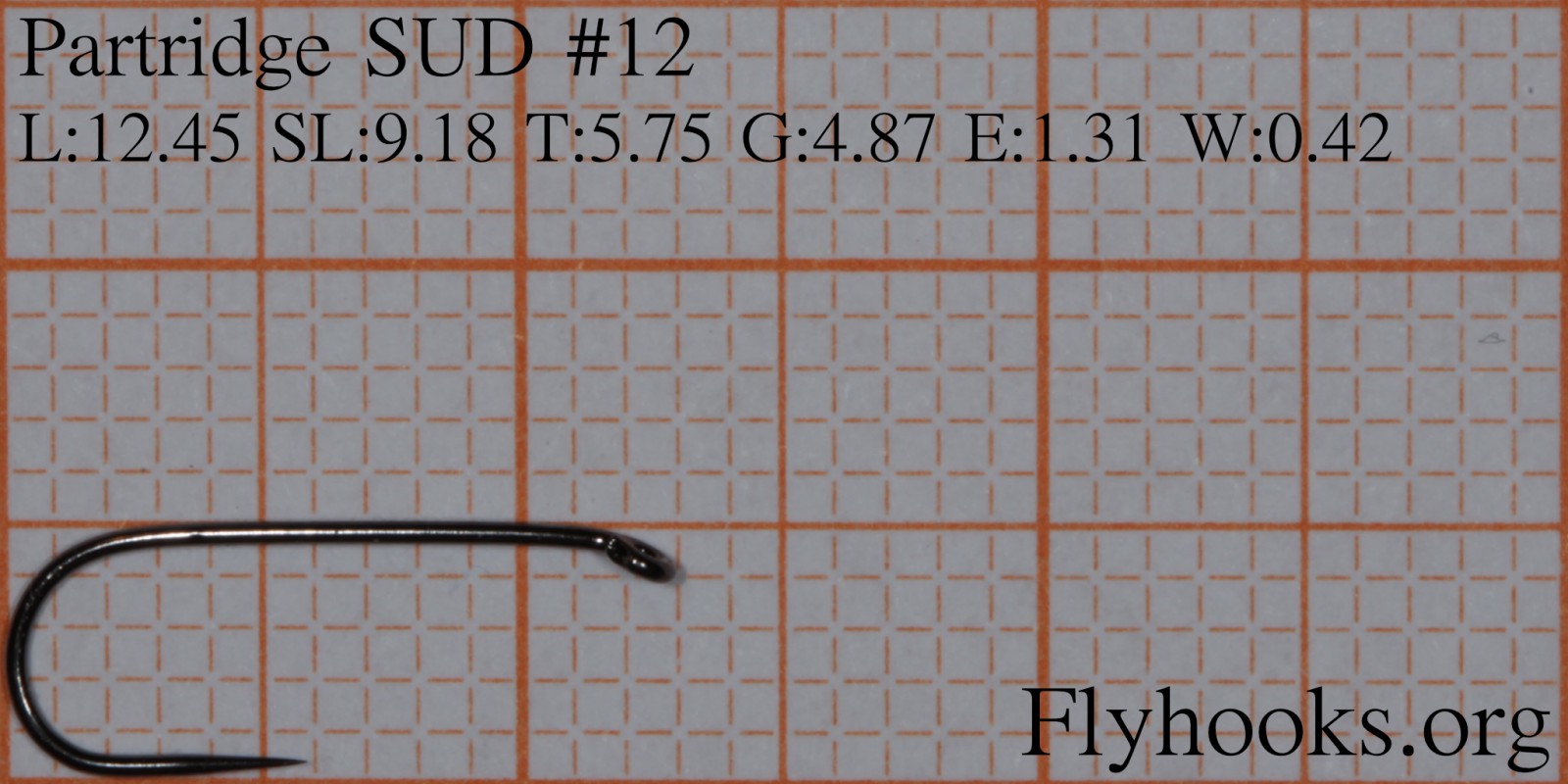

Length12.45 mm
Shank Length9.18 mm
Throat5.75 mm
Gape4.87 mm
Eye Width1.31 mm
Wire Thickness0.42 mm

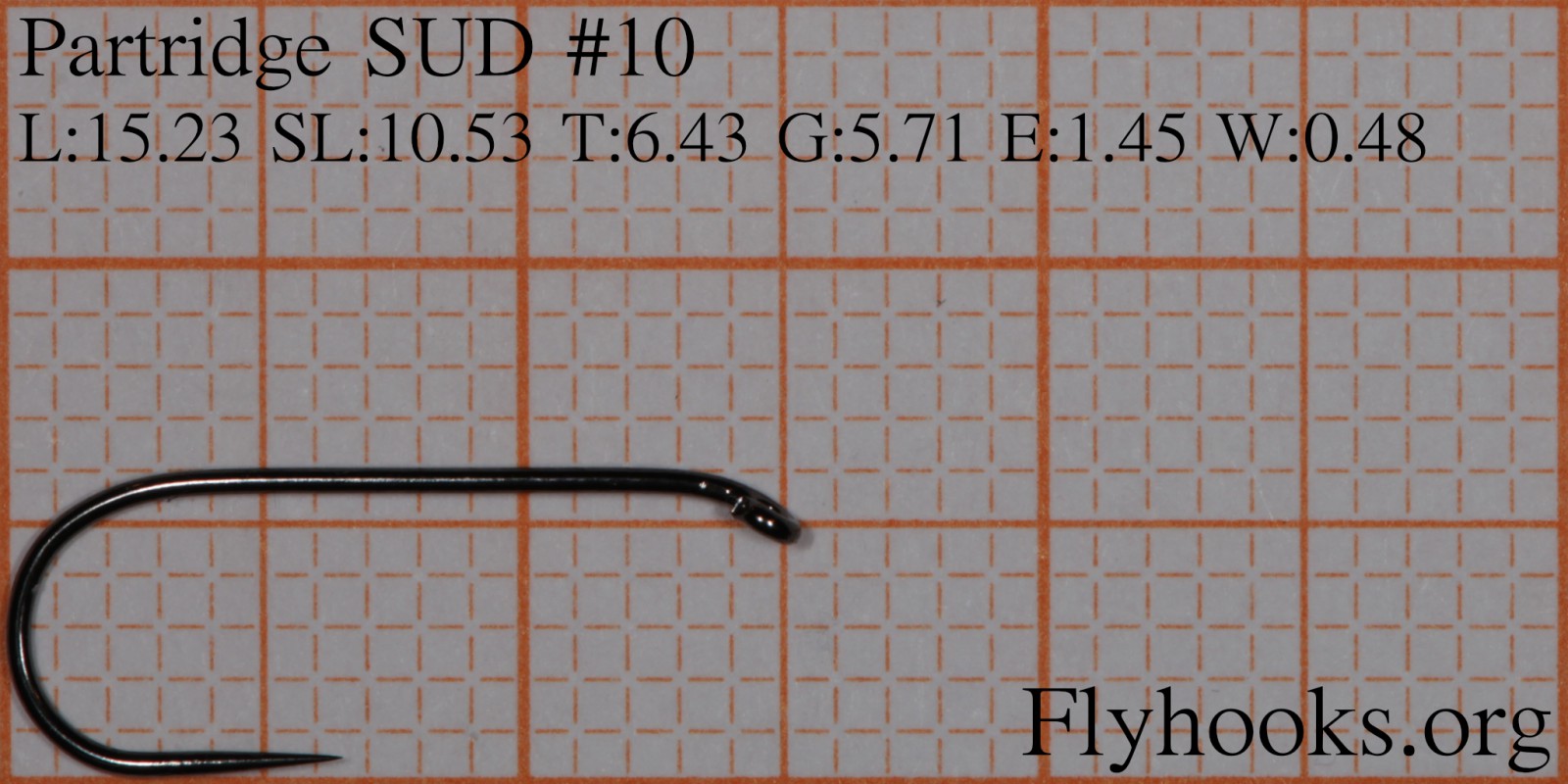

Length15.23 mm
Shank Length10.53 mm
Throat6.43 mm
Gape5.71 mm
Eye Width1.45 mm
Wire Thickness0.48 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 S-2000 7.45 -> 7.94 5.27 -> 5.27 2.89 -> 3.27 3.54 -> 3.61 0.28 -> 0.33
18 AK503BL 7.45 -> 8.28 5.27 -> 5.62 2.89 -> 3.32 3.54 -> 3.56 0.28 -> 0.35
18 TMC900BL 7.45 -> 8.33 5.27 -> 5.71 2.89 -> 3.11 3.54 -> 3.72 0.28 -> 0.34
12 Barbless 12.45 -> 13.02 9.18 -> 9.07 4.87 -> 4.83 5.75 -> 5.95 0.42 -> 0.56
12 N 12.45 -> 13.03 9.18 -> 8.78 4.87 -> 4.74 5.75 -> 6.10 0.42 -> 0.53
12 TMC3769SP-BL 12.45 -> 13.26 9.18 -> 9.25 4.87 -> 5.30 5.75 -> 5.74 0.42 -> 0.55
12 73231 12.45 -> 13.31 9.18 -> 9.71 4.87 -> 5.06 5.75 -> 5.69 0.42 -> 0.41
12 9002 12.45 -> 13.34 9.18 -> 9.12 4.87 -> 5.31 5.75 -> 5.56 0.42 -> 0.55
12 94833 12.45 -> 13.51 9.18 -> 10.15 4.87 -> 5.12 5.75 -> 5.47 0.42 -> 0.43
12 9485 12.45 -> 13.55 9.18 -> 9.33 4.87 -> 5.36 5.75 -> 5.57 0.42 -> 0.54
12 AK503BL 12.45 -> 13.57 9.18 -> 8.85 4.87 -> 5.47 5.75 -> 5.94 0.42 -> 0.43
12 R50X-94845 12.45 -> 13.63 9.18 -> 9.57 4.87 -> 5.51 5.75 -> 6.38 0.42 -> 0.53
12 H130BL 12.45 -> 13.70 9.18 -> 8.95 4.87 -> 5.46 5.75 -> 6.35 0.42 -> 0.47
12 TMC9300 12.45 -> 13.98 9.18 -> 9.15 4.87 -> 5.60 5.75 -> 5.69 0.42 -> 0.49
10 305 15.23 -> 14.81 10.53 -> 10.15 5.71 -> 6.23 6.43 -> 6.13 0.48 -> 0.53
10 H130BL 15.23 -> 14.96 10.53 -> 10.48 5.71 -> 5.99 6.43 -> 6.32 0.48 -> 0.49
10 432 15.23 -> 15.04 10.53 -> 11.14 5.71 -> 5.84 6.43 -> 6.60 0.48 -> 0.42
10 AK831BL 15.23 -> 15.31 10.53 -> 10.76 5.71 -> 5.52 6.43 -> 6.22 0.48 -> 0.47
10 G3AY - Sproat Wet 15.23 -> 15.39 10.53 -> 10.04 5.71 -> 6.05 6.43 -> 6.63 0.48 -> 0.64
10 Br 2210 15.23 -> 15.58 10.53 -> 10.23 5.71 -> 6.09 6.43 -> 6.17 0.48 -> 0.64
10 TMC3769 15.23 -> 15.68 10.53 -> 10.46 5.71 -> 6.15 6.43 -> 6.67 0.48 -> 0.64
10 AK720 15.23 -> 15.76 10.53 -> 10.15 5.71 -> 5.60 6.43 -> 6.38 0.48 -> 0.66
10 1-605 BR 15.23 -> 15.83 10.53 -> 10.65 5.71 -> 5.64 6.43 -> 6.12 0.48 -> 0.58
10 N 15.23 -> 15.85 10.53 -> 10.90 5.71 -> 5.50 6.43 -> 6.39 0.48 -> 0.59
10 73227 15.23 -> 15.89 10.53 -> 10.59 5.71 -> 6.35 6.43 -> 7.13 0.48 -> 0.61
10 R50XNP-BR 15.23 -> 15.92 10.53 -> 10.59 5.71 -> 6.30 6.43 -> 7.26 0.48 -> 0.58
10 C 211 15.23 -> 16.38 10.53 -> 10.71 5.71 -> 6.34 6.43 -> 6.68 0.48 -> 0.55
10 73100 15.23 -> 16.41 10.53 -> 11.15 5.71 -> 5.71 6.43 -> 6.11 0.48 -> 0.56
10 TMC900BL 15.23 -> 16.58 10.53 -> 10.73 5.71 -> 6.33 6.43 -> 6.44 0.48 -> 0.54
10 AK482 BL 15.23 -> 17.10 10.53 -> 11.84 5.71 -> 6.06 6.43 -> 7.30 0.48 -> 0.60
10 AK721 15.23 -> 17.28 10.53 -> 11.49 5.71 -> 6.07 6.43 -> 6.92 0.48 -> 0.68
