Mustad: R50X-94845

Company Mustad
Type Single
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Bronze
Usages Dry
Wet
Nymph
Trout
Grayling
Freshwater
Emerger
Midge
Sizes 18 16 14 12 10

Sizes

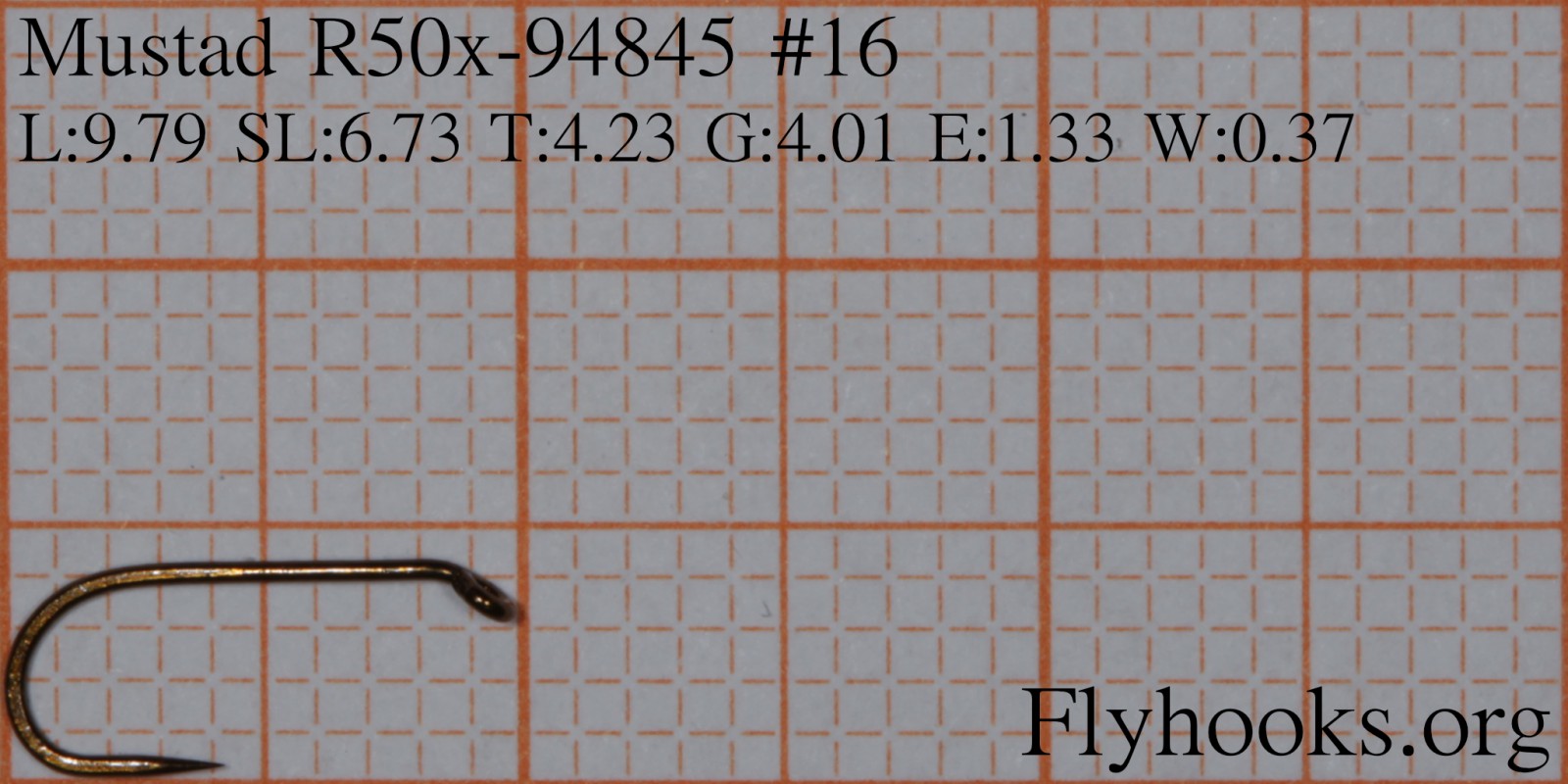

Length9.79 mm
Shank Length6.73 mm
Throat4.23 mm
Gape4.01 mm
Eye Width1.33 mm
Wire Thickness0.37 mm

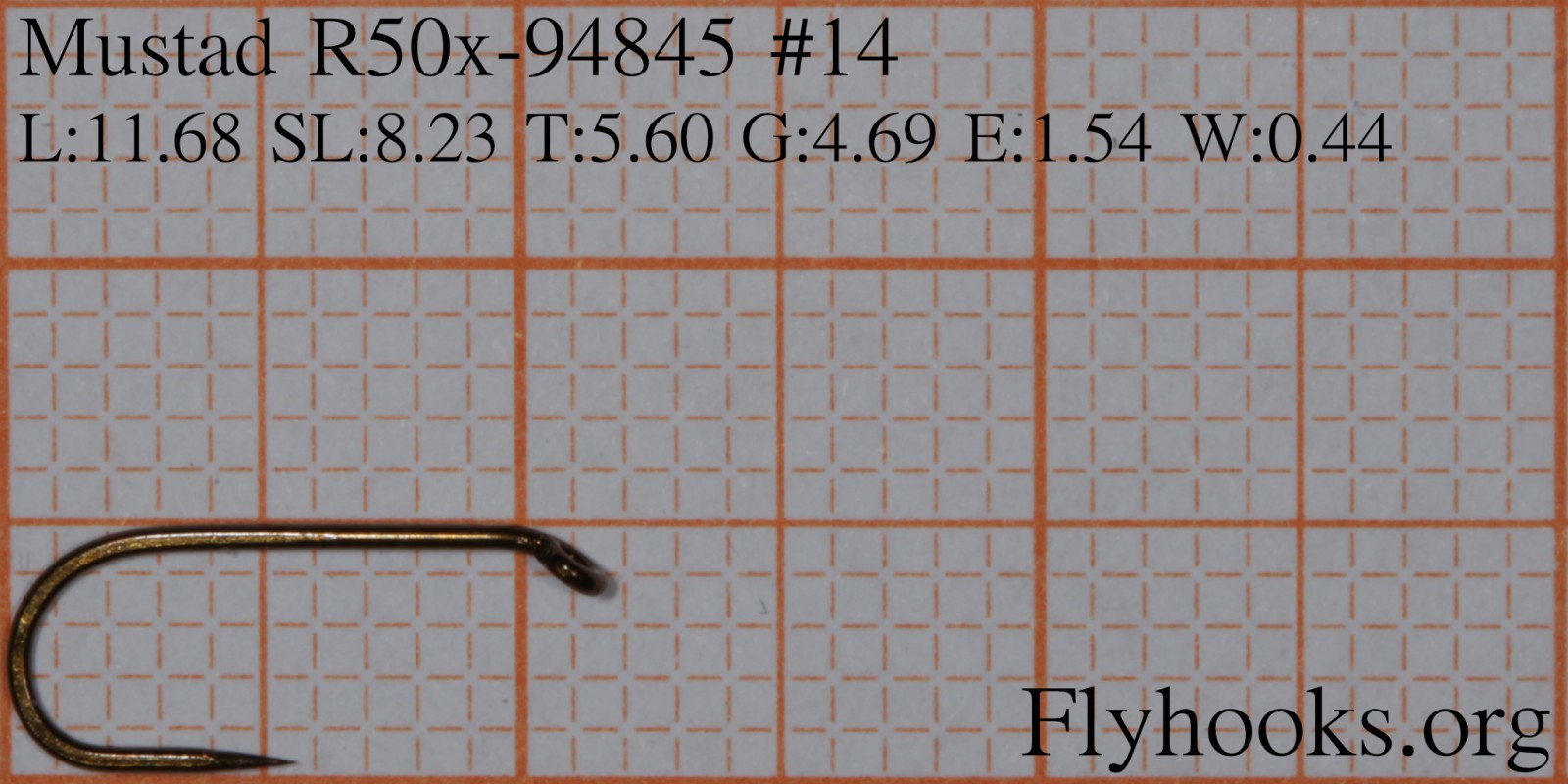

Length11.68 mm
Shank Length8.23 mm
Throat5.60 mm
Gape4.69 mm
Eye Width1.54 mm
Wire Thickness0.44 mm

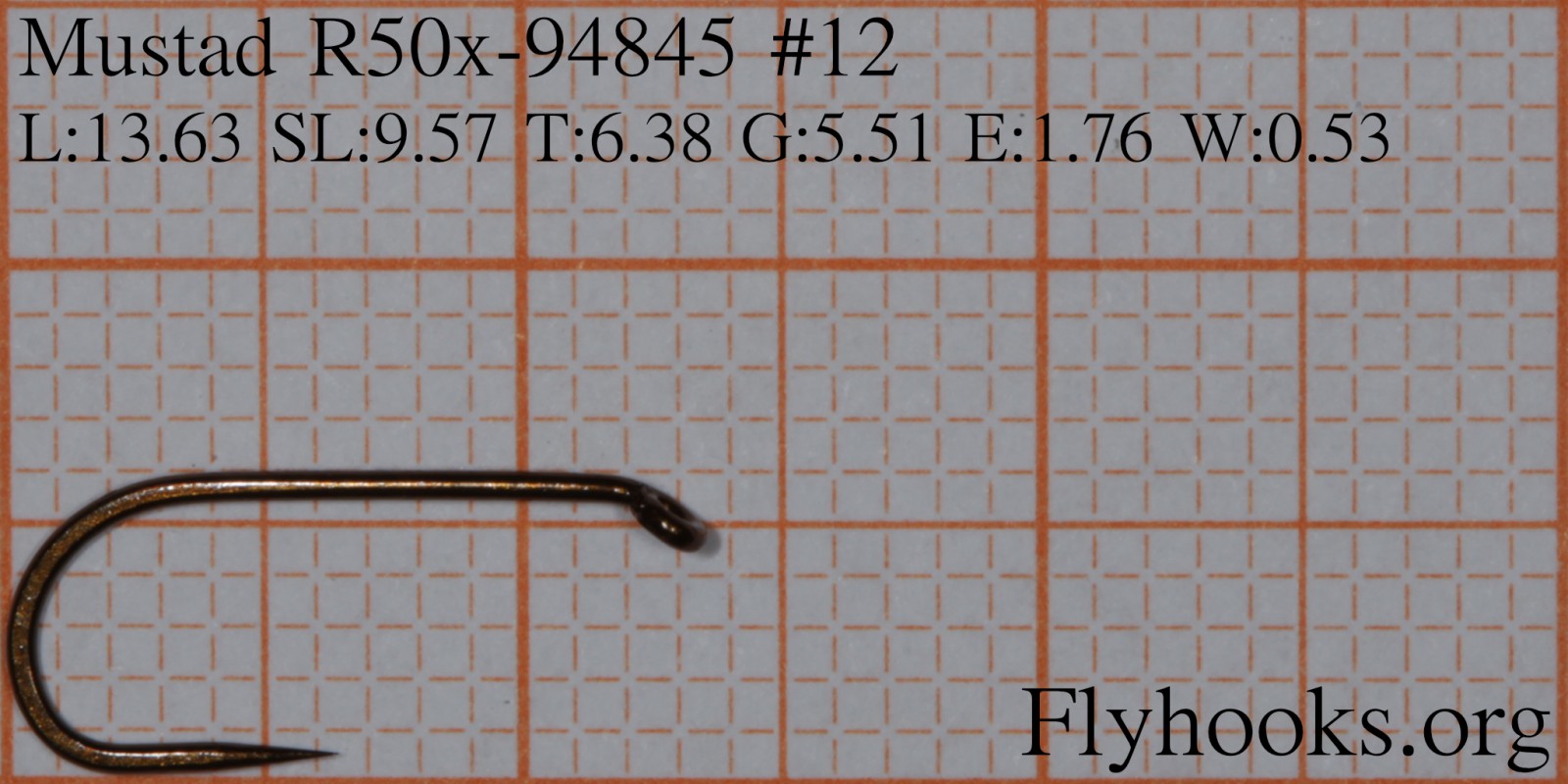

Length13.63 mm
Shank Length9.57 mm
Throat6.38 mm
Gape5.51 mm
Eye Width1.76 mm
Wire Thickness0.53 mm

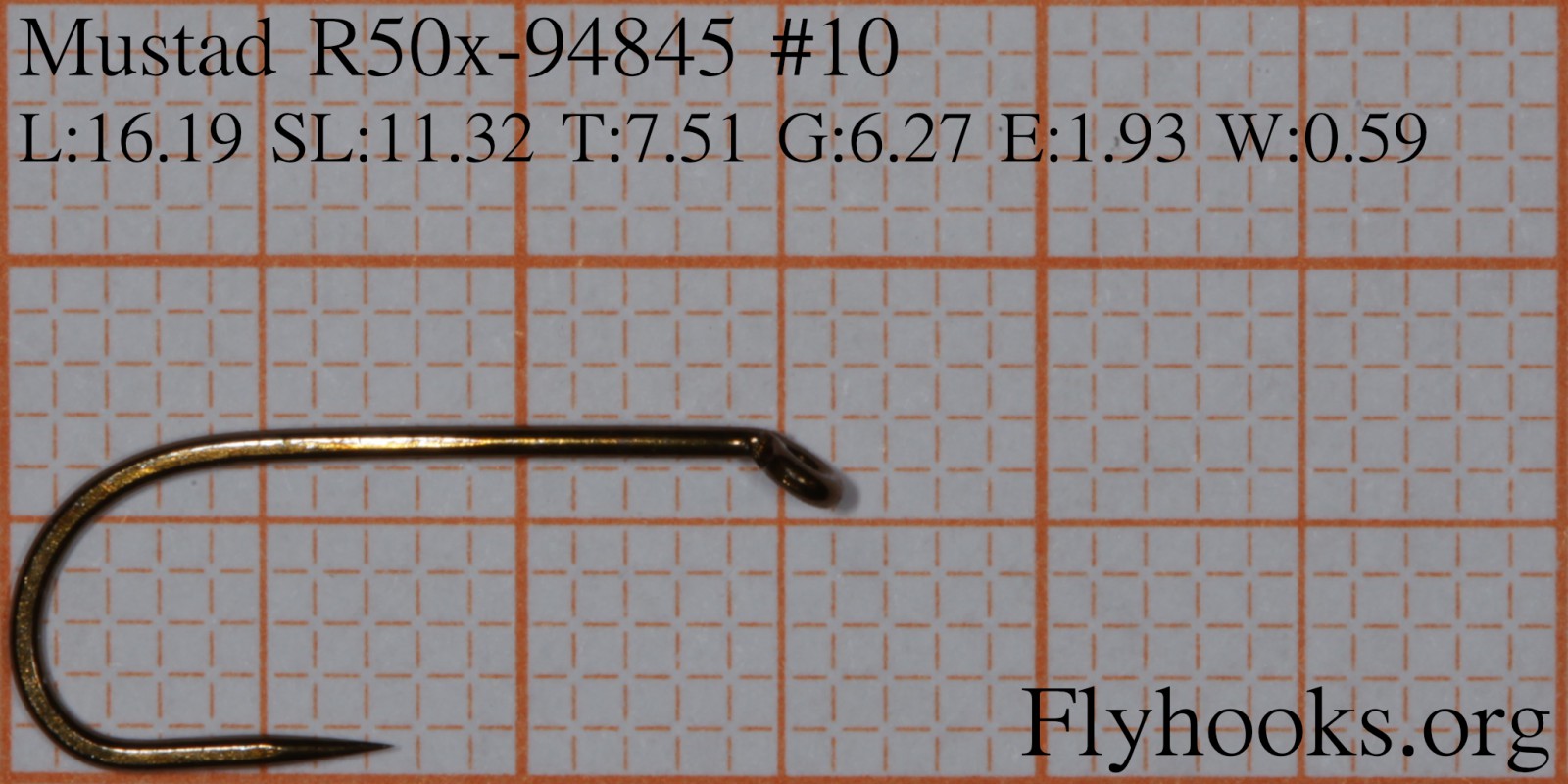

Length16.19 mm
Shank Length11.32 mm
Throat7.51 mm
Gape6.27 mm
Eye Width1.93 mm
Wire Thickness0.59 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 Br 103 9.79 -> 9.89 6.73 -> 6.73 4.01 -> 4.11 4.23 -> 4.20 0.37 -> 0.38
16 R70NP-BR 9.79 -> 9.96 6.73 -> 6.61 4.01 -> 4.12 4.23 -> 4.84 0.37 -> 0.47
16 TMC900BL 9.79 -> 10.05 6.73 -> 6.79 4.01 -> 3.81 4.23 -> 4.22 0.37 -> 0.39
16 H230BL 9.79 -> 10.08 6.73 -> 6.64 4.01 -> 4.29 4.23 -> 4.78 0.37 -> 0.46
16 130BL 9.79 -> 10.21 6.73 -> 6.77 4.01 -> 4.16 4.23 -> 4.30 0.37 -> 0.38
16 H280BL 9.79 -> 10.31 6.73 -> 7.09 4.01 -> 4.42 4.23 -> 4.79 0.37 -> 0.48
16 120 BL 9.79 -> 10.67 6.73 -> 7.65 4.01 -> 3.87 4.23 -> 4.75 0.37 -> 0.40
16 N 9.79 -> 10.73 6.73 -> 7.41 4.01 -> 3.84 4.23 -> 4.63 0.37 -> 0.46
16 Nymph 9.79 -> 10.73 6.73 -> 6.66 4.01 -> 4.50 4.23 -> 4.65 0.37 -> 0.50
16 H290BL 9.79 -> 10.94 6.73 -> 7.21 4.01 -> 4.20 4.23 -> 4.11 0.37 -> 0.37
16 TMC100BL 9.79 -> 10.95 6.73 -> 7.40 4.01 -> 4.08 4.23 -> 4.20 0.37 -> 0.45
16 7368 B 9.79 -> 11.04 6.73 -> 6.74 4.01 -> 4.16 4.23 -> 4.63 0.37 -> 0.50
14 C 220 11.68 -> 13.10 8.23 -> 8.03 4.69 -> 5.27 5.60 -> 5.79 0.44 -> 0.50
12 AK562BL 13.63 -> 15.02 9.57 -> 10.48 5.51 -> 5.51 6.38 -> 6.95 0.53 -> 0.52
12 AK482 BL 13.63 -> 15.03 9.57 -> 9.76 5.51 -> 5.51 6.38 -> 6.79 0.53 -> 0.56
10 AK562BL 16.19 -> 16.64 11.32 -> 11.89 6.27 -> 6.32 7.51 -> 7.64 0.59 -> 0.56
10 AK482 BL 16.19 -> 17.10 11.32 -> 11.84 6.27 -> 6.06 7.51 -> 7.30 0.59 -> 0.60
