Top Fly: Br 103

Company Top Fly
Type Single
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Black Nickel
Usages Dry
Nymph
Trout
Grayling
Freshwater
Sizes 20 18 16 14 12 10

Sizes

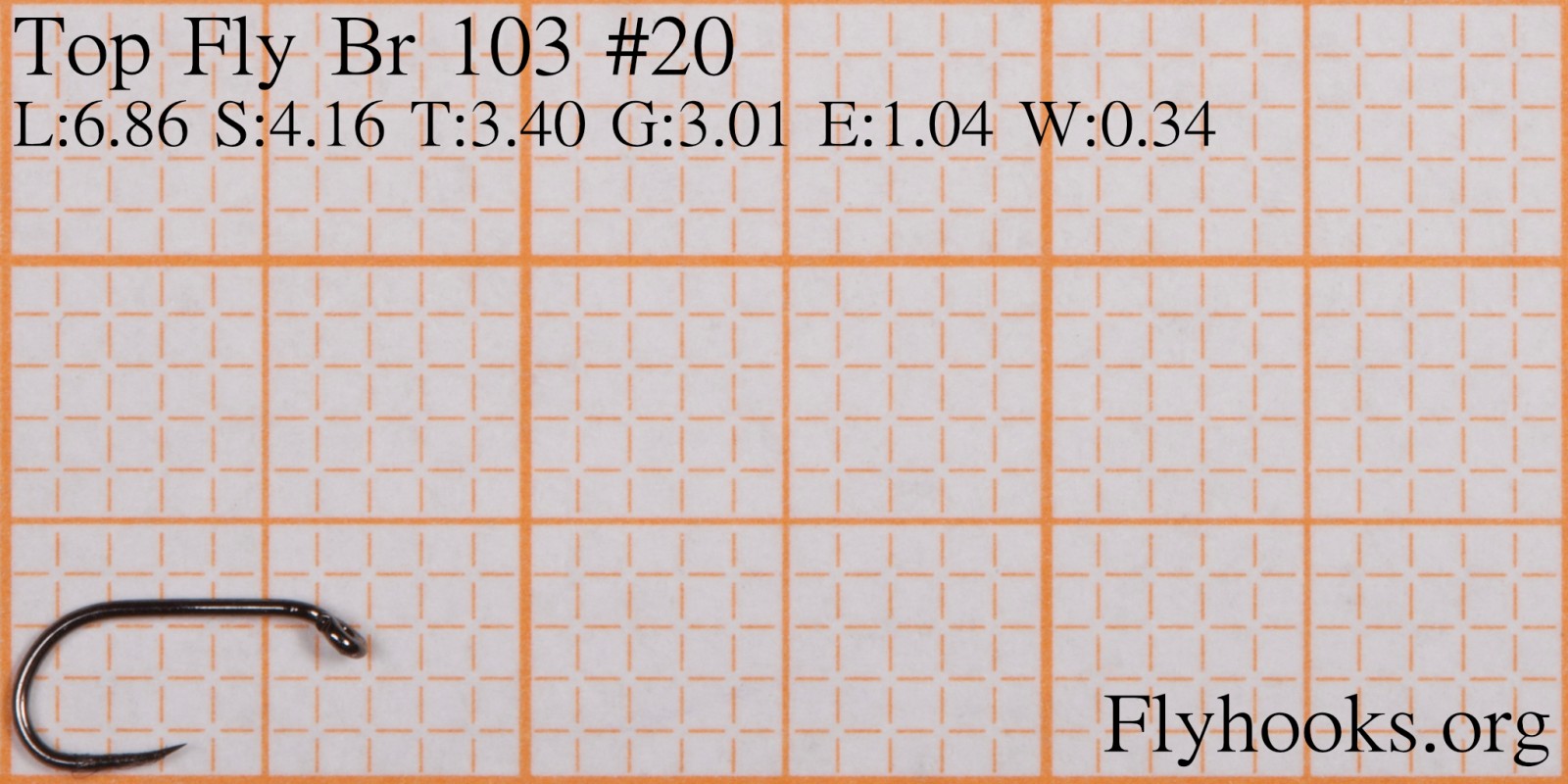

Length6.86 mm
Shank Length4.16 mm
Throat3.40 mm
Gape3.01 mm
Eye Width1.04 mm
Wire Thickness0.34 mm

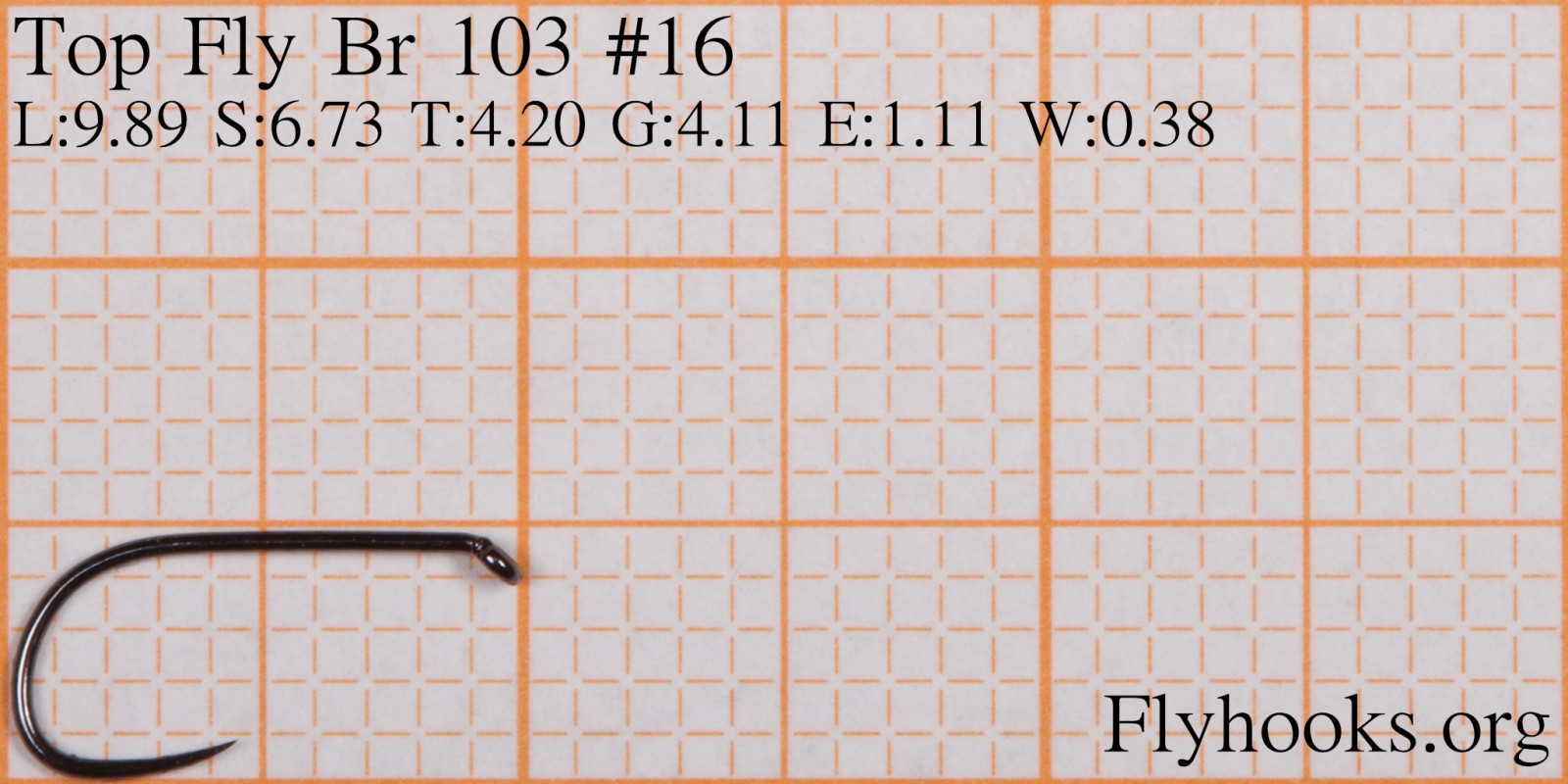

Length9.89 mm
Shank Length6.73 mm
Throat4.20 mm
Gape4.11 mm
Eye Width1.11 mm
Wire Thickness0.38 mm

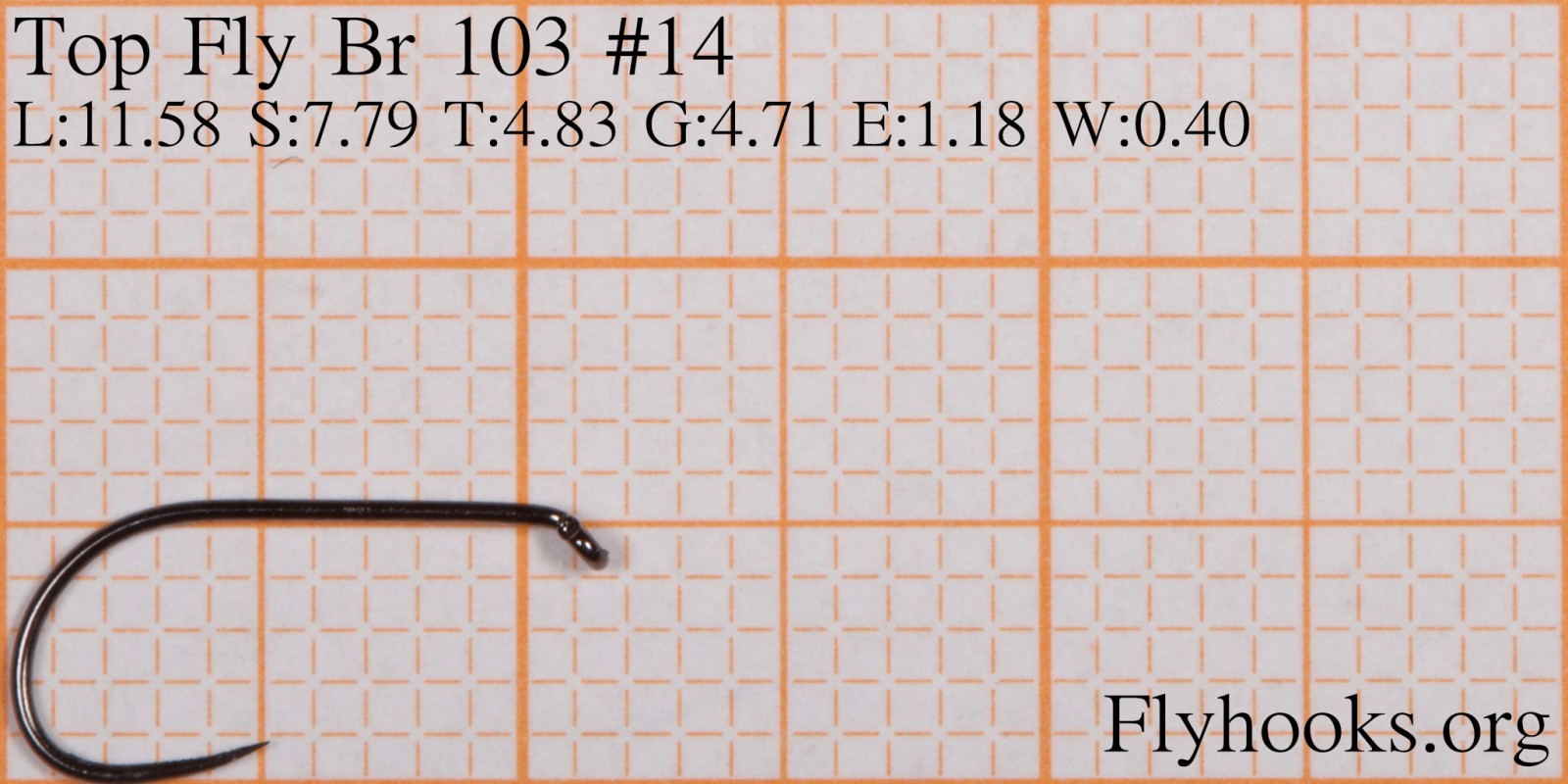

Length11.58 mm
Shank Length7.79 mm
Throat4.83 mm
Gape4.71 mm
Eye Width1.18 mm
Wire Thickness0.40 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
20 2110 6.86 -> 6.74 4.16 -> 4.00 3.01 -> 3.33 3.40 -> 3.60 0.34 -> 0.26
20 S-2000 6.86 -> 6.92 4.16 -> 4.43 3.01 -> 2.88 3.40 -> 3.25 0.34 -> 0.32
20 H130BL 6.86 -> 7.00 4.16 -> 4.20 3.01 -> 3.05 3.40 -> 3.30 0.34 -> 0.32
16 R50X-94845 9.89 -> 9.79 6.73 -> 6.73 4.11 -> 4.01 4.20 -> 4.23 0.38 -> 0.37
16 AK503BL 9.89 -> 10.07 6.73 -> 6.85 4.11 -> 4.24 4.20 -> 4.00 0.38 -> 0.37
16 H230BL 9.89 -> 10.08 6.73 -> 6.64 4.11 -> 4.29 4.20 -> 4.78 0.38 -> 0.46
16 130BL 9.89 -> 10.21 6.73 -> 6.77 4.11 -> 4.16 4.20 -> 4.30 0.38 -> 0.38
16 H280BL 9.89 -> 10.31 6.73 -> 7.09 4.11 -> 4.42 4.20 -> 4.79 0.38 -> 0.48
16 Nymph 9.89 -> 10.73 6.73 -> 6.66 4.11 -> 4.50 4.20 -> 4.65 0.38 -> 0.50
16 H290BL 9.89 -> 10.94 6.73 -> 7.21 4.11 -> 4.20 4.20 -> 4.11 0.38 -> 0.37
16 TMC100BL 9.89 -> 10.95 6.73 -> 7.40 4.11 -> 4.08 4.20 -> 4.20 0.38 -> 0.45
16 7368 B 9.89 -> 11.04 6.73 -> 6.74 4.11 -> 4.16 4.20 -> 4.63 0.38 -> 0.50
14 d14 11.58 -> 11.35 7.79 -> 8.10 4.71 -> 4.72 4.83 -> 4.67 0.40 -> 0.44
14 SLD - Patriot Fine Dry 11.58 -> 11.38 7.79 -> 7.63 4.71 -> 4.86 4.83 -> 4.75 0.40 -> 0.43
14 94840 11.58 -> 11.42 7.79 -> 7.85 4.71 -> 4.77 4.83 -> 5.09 0.40 -> 0.44
14 BL 154 11.58 -> 11.42 7.79 -> 7.92 4.71 -> 5.10 4.83 -> 5.21 0.40 -> 0.44
14 H130BL 11.58 -> 11.46 7.79 -> 7.58 4.71 -> 4.79 4.83 -> 4.80 0.40 -> 0.40
14 R50XNP-BR 11.58 -> 11.51 7.79 -> 7.73 4.71 -> 4.63 4.83 -> 5.45 0.40 -> 0.46
14 130BL 11.58 -> 11.59 7.79 -> 7.43 4.71 -> 4.80 4.83 -> 5.05 0.40 -> 0.42
14 AK503BL 11.58 -> 11.64 7.79 -> 7.50 4.71 -> 4.93 4.83 -> 4.74 0.40 -> 0.40
14 C 214 11.58 -> 11.69 7.79 -> 7.42 4.71 -> 5.01 4.83 -> 5.09 0.40 -> 0.44
14 73207 11.58 -> 11.71 7.79 -> 7.65 4.71 -> 4.67 4.83 -> 5.22 0.40 -> 0.43
14 H280BL 11.58 -> 11.87 7.79 -> 7.50 4.71 -> 5.39 4.83 -> 5.44 0.40 -> 0.54
14 H470BL 11.58 -> 11.90 7.79 -> 8.09 4.71 -> 5.18 4.83 -> 5.03 0.40 -> 0.48
14 TMC9300 11.58 -> 12.09 7.79 -> 8.36 4.71 -> 4.53 4.83 -> 5.01 0.40 -> 0.45
14 C 211 11.58 -> 12.48 7.79 -> 8.18 4.71 -> 4.70 4.83 -> 5.15 0.40 -> 0.43
14 TMC100BL 11.58 -> 12.72 7.79 -> 8.58 4.71 -> 4.92 4.83 -> 4.71 0.40 -> 0.45
14 H290BL 11.58 -> 12.74 7.79 -> 8.59 4.71 -> 4.58 4.83 -> 4.74 0.40 -> 0.42
14 TMC100 11.58 -> 12.77 7.79 -> 8.27 4.71 -> 4.48 4.83 -> 4.67 0.40 -> 0.43
14 BL 300 11.58 -> 12.82 7.79 -> 8.65 4.71 -> 4.76 4.83 -> 4.91 0.40 -> 0.45
14 FW 500 - Dry Fly Traditional 11.58 -> 13.11 7.79 -> 8.33 4.71 -> 5.03 4.83 -> 5.19 0.40 -> 0.51
14 TMC108SP-BL 11.58 -> 13.12 7.79 -> 8.05 4.71 -> 4.73 4.83 -> 5.00 0.40 -> 0.47
14 FW 501 11.58 -> 13.25 7.79 -> 8.78 4.71 -> 4.99 4.83 -> 5.23 0.40 -> 0.51
