Ellipse: 540

Company Ellipse
Type Single
Strength Heavy wire
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Usages Wet
Streamer
Nymph
Trout
Grayling
Freshwater
Sizes 10 8 6

Sizes

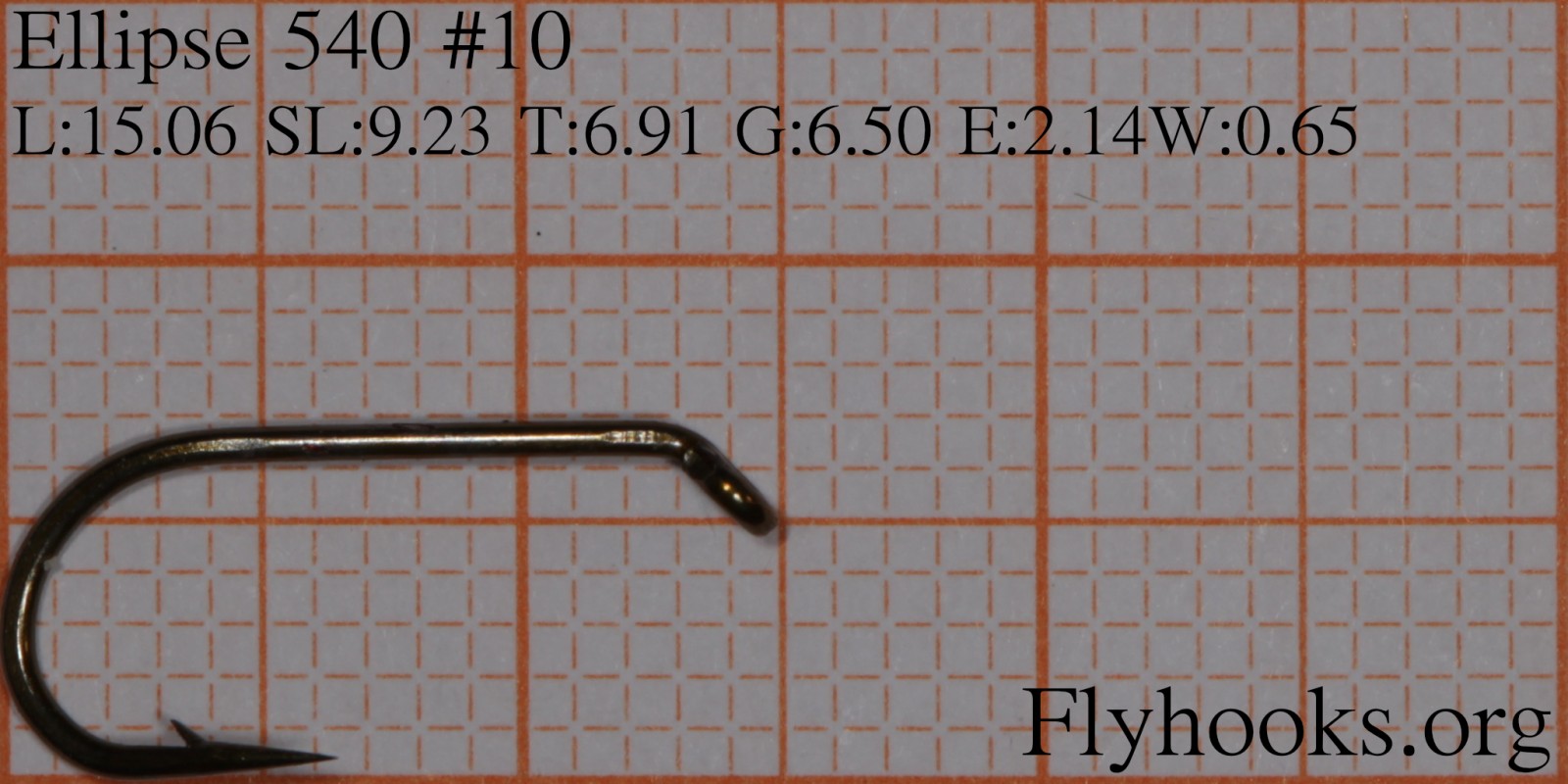

Length15.06 mm
Shank Length9.23 mm
Throat6.91 mm
Gape6.50 mm
Eye Width2.14 mm
Wire Thickness0.65 mm

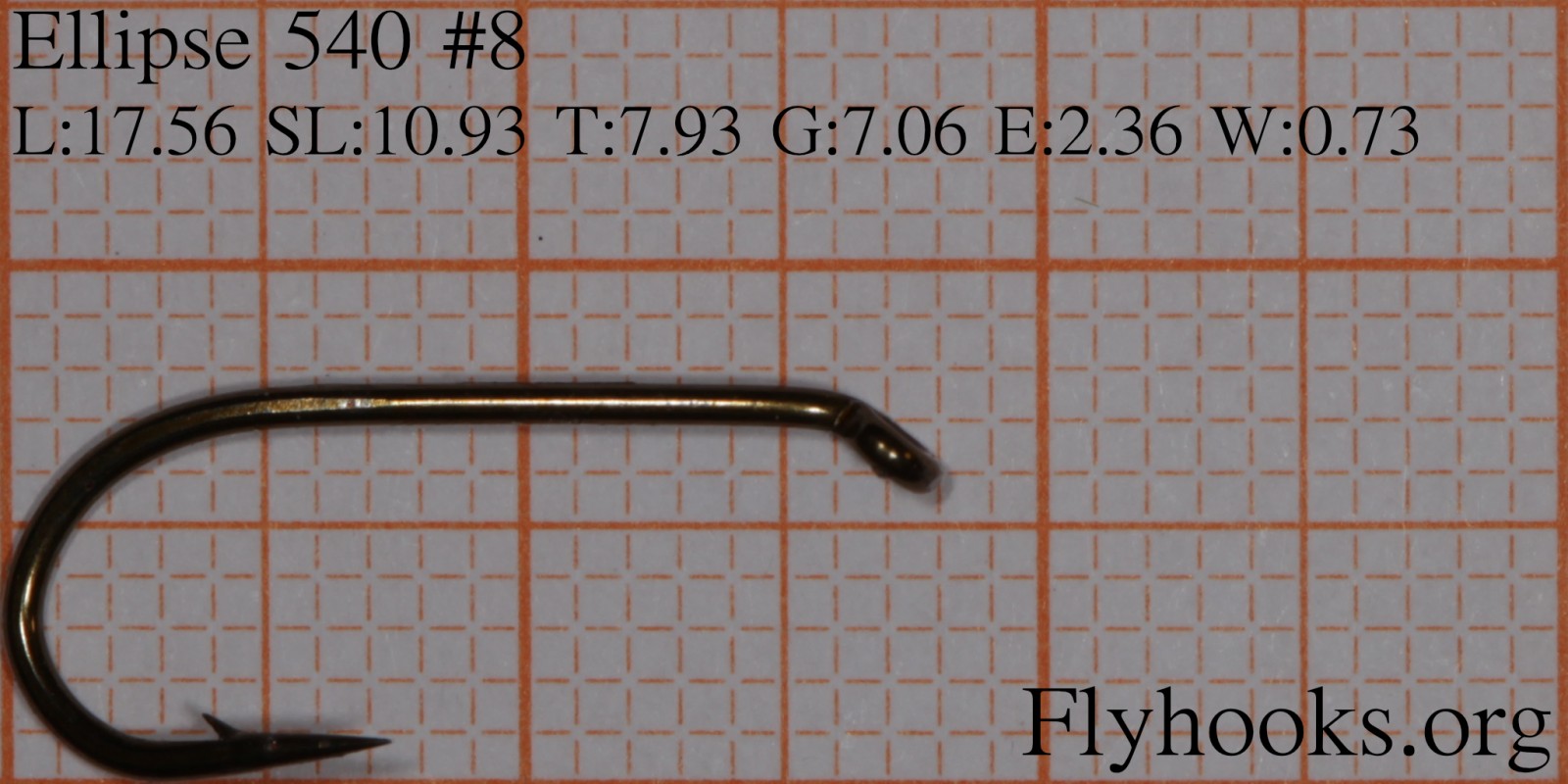

Length17.56 mm
Shank Length10.93 mm
Throat7.93 mm
Gape7.06 mm
Eye Width2.36 mm
Wire Thickness0.73 mm

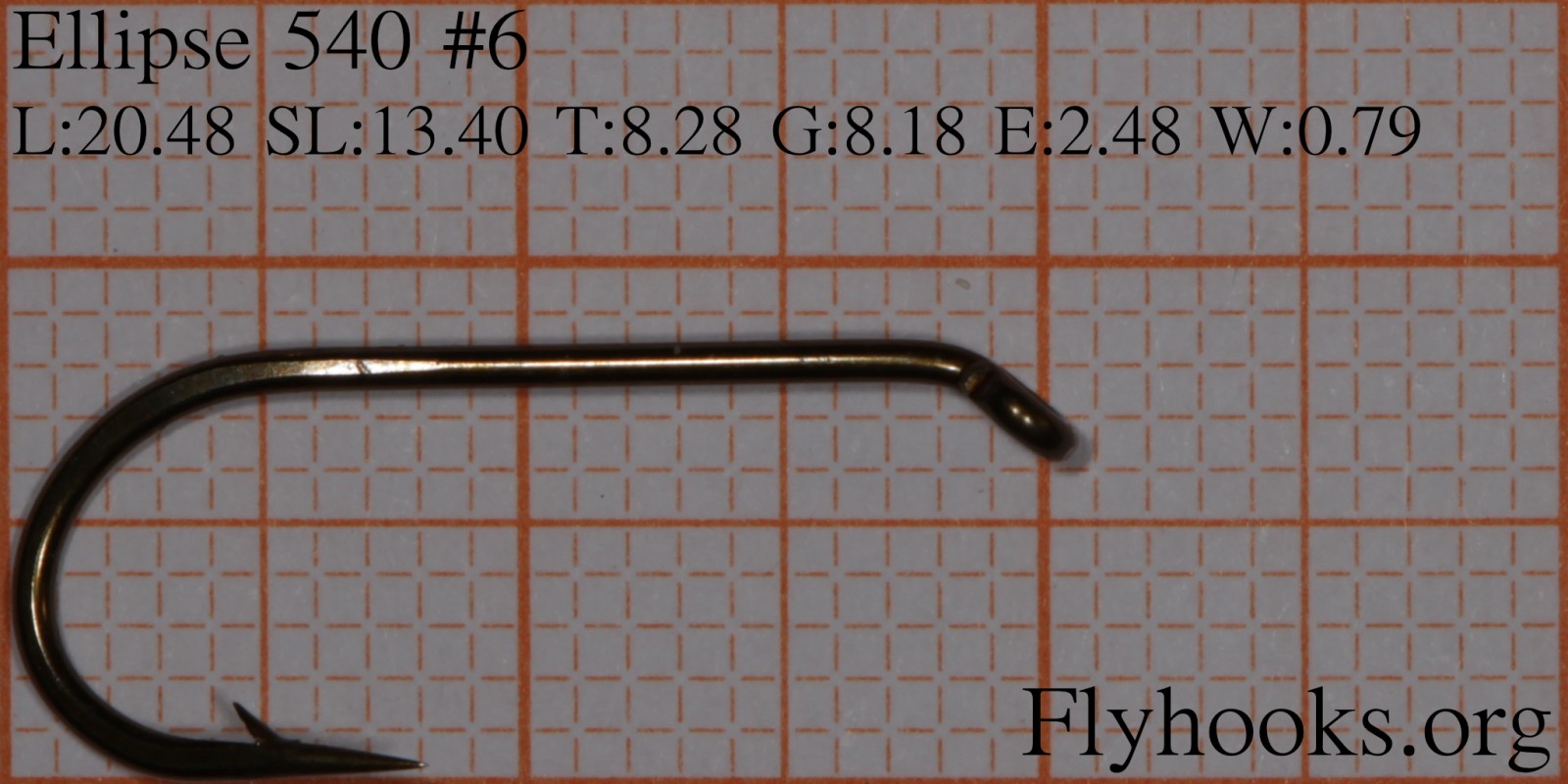

Length20.48 mm
Shank Length13.40 mm
Throat8.28 mm
Gape8.18 mm
Eye Width2.48 mm
Wire Thickness0.79 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
10 Br 2140 15.06 -> 15.26 9.23 -> 9.71 6.50 -> 6.55 6.91 -> 6.87 0.65 -> 0.49
10 H470BL 15.06 -> 15.69 9.23 -> 9.57 6.50 -> 6.80 6.91 -> 7.00 0.65 -> 0.65
10 H480BL 15.06 -> 15.77 9.23 -> 9.79 6.50 -> 7.20 6.91 -> 6.79 0.65 -> 0.66
10 Br 2200 15.06 -> 15.78 9.23 -> 9.11 6.50 -> 6.43 6.91 -> 7.37 0.65 -> 0.61
10 H200BL 15.06 -> 15.81 9.23 -> 9.97 6.50 -> 6.78 6.91 -> 7.44 0.65 -> 0.66
10 94841 15.06 -> 15.83 9.23 -> 10.20 6.50 -> 6.19 6.91 -> 6.70 0.65 -> 0.59
10 73227 15.06 -> 15.89 9.23 -> 10.59 6.50 -> 6.35 6.91 -> 7.13 0.65 -> 0.61
10 R50XNP-BR 15.06 -> 15.92 9.23 -> 10.59 6.50 -> 6.30 6.91 -> 7.26 0.65 -> 0.58
10 H280BL 15.06 -> 15.92 9.23 -> 9.70 6.50 -> 7.00 6.91 -> 6.91 0.65 -> 0.59
10 R70 - 7957 15.06 -> 15.95 9.23 -> 10.27 6.50 -> 6.64 6.91 -> 6.84 0.65 -> 0.69
10 H400BL 15.06 -> 15.97 9.23 -> 9.84 6.50 -> 6.69 6.91 -> 6.91 0.65 -> 0.68
10 G3A/L - Wet Heavy Supreme 15.06 -> 16.03 9.23 -> 9.17 6.50 -> 6.70 6.91 -> 7.26 0.65 -> 0.74
10 R90 15.06 -> 16.08 9.23 -> 9.60 6.50 -> 6.70 6.91 -> 7.33 0.65 -> 0.75
8 540 17.56 -> 17.41 10.93 -> 11.11 7.06 -> 7.04 7.93 -> 7.98 0.73 -> 0.67
8 H480BL 17.56 -> 17.53 10.93 -> 11.16 7.06 -> 7.42 7.93 -> 8.01 0.73 -> 0.69
8 H400BL 17.56 -> 17.88 10.93 -> 10.59 7.06 -> 7.40 7.93 -> 7.75 0.73 -> 0.72
8 H200BL 17.56 -> 18.00 10.93 -> 11.92 7.06 -> 7.34 7.93 -> 8.39 0.73 -> 0.73
8 H280BL 17.56 -> 18.07 10.93 -> 11.15 7.06 -> 7.94 7.93 -> 8.06 0.73 -> 0.72
8 Br 2200 17.56 -> 18.14 10.93 -> 10.98 7.06 -> 7.46 7.93 -> 8.46 0.73 -> 0.64
8 H230BL 17.56 -> 18.15 10.93 -> 11.86 7.06 -> 6.77 7.93 -> 8.28 0.73 -> 0.71
8 R90 17.56 -> 18.69 10.93 -> 11.23 7.06 -> 7.87 7.93 -> 8.30 0.73 -> 0.83
8 G3A/L - Wet Heavy Supreme 17.56 -> 18.82 10.93 -> 11.73 7.06 -> 7.83 7.93 -> 7.80 0.73 -> 0.83
8 FW 500 - Dry Fly Traditional 17.56 -> 18.99 10.93 -> 11.50 7.06 -> 7.70 7.93 -> 7.56 0.73 -> 0.67
8 AK482 BL 17.56 -> 19.15 10.93 -> 12.44 7.06 -> 7.37 7.93 -> 7.86 0.73 -> 0.71
8 FW 581 17.56 -> 20.03 10.93 -> 11.15 7.06 -> 7.99 7.93 -> 7.97 0.73 -> 0.75
6 3411 A 20.48 -> 19.64 13.40 -> 13.47 8.18 -> 8.26 8.28 -> 8.00 0.79 -> 0.89
6 TMC3769 20.48 -> 20.38 13.40 -> 13.58 8.18 -> 7.90 8.28 -> 8.34 0.79 -> 0.82
6 AK881 20.48 -> 20.78 13.40 -> 13.64 8.18 -> 8.43 8.28 -> 8.75 0.79 -> 0.90
6 N 20.48 -> 20.79 13.40 -> 14.62 8.18 -> 7.97 8.28 -> 8.95 0.79 -> 0.68
6 B175 Sproat 20.48 -> 21.06 13.40 -> 13.03 8.18 -> 7.79 8.28 -> 8.29 0.79 -> 0.91
6 3435 20.48 -> 21.28 13.40 -> 14.10 8.18 -> 7.99 8.28 -> 8.11 0.79 -> 0.71
6 R70 20.48 -> 21.45 13.40 -> 13.31 8.18 -> 8.74 8.28 -> 8.99 0.79 -> 0.86
6 R90 20.48 -> 21.64 13.40 -> 12.97 8.18 -> 8.77 8.28 -> 9.48 0.79 -> 0.93
6 S71DT-34007 20.48 -> 22.87 13.40 -> 14.84 8.18 -> 8.63 8.28 -> 8.57 0.79 -> 0.78
6 C71SNP-SS 20.48 -> 23.03 13.40 -> 13.79 8.18 -> 7.87 8.28 -> 9.02 0.79 -> 0.88
6 S71SNP-DT 20.48 -> 23.07 13.40 -> 13.10 8.18 -> 8.58 8.28 -> 8.72 0.79 -> 0.85
6 SS15 20.48 -> 23.13 13.40 -> 15.18 8.18 -> 8.86 8.28 -> 8.55 0.79 -> 0.75
6 73100 20.48 -> 23.31 13.40 -> 14.41 8.18 -> 8.61 8.28 -> 8.40 0.79 -> 0.73
6 3670 20.48 -> 23.46 13.40 -> 15.24 8.18 -> 8.38 8.28 -> 8.26 0.79 -> 0.82
6 FW 580 - Wet Fly 20.48 -> 23.47 13.40 -> 14.09 8.18 -> 9.01 8.28 -> 9.27 0.79 -> 0.81
6 3399A 20.48 -> 23.47 13.40 -> 14.34 8.18 -> 8.95 8.28 -> 8.58 0.79 -> 0.74
