Ellipse: 590BL

Company Ellipse
Type Single
Strength Heavy wire
Eye Ringed eye
Eye Position Parallell
Shank Style Curved
Barb Barbless
Color Black Nickel
Usages Wet
Larva
Pupa
Caddis
Nymph
Salmon
Trout
Grayling
Freshwater
Seatrout
Tube
Steelhead
Scud
Sizes 16 14 12 10 8

Sizes

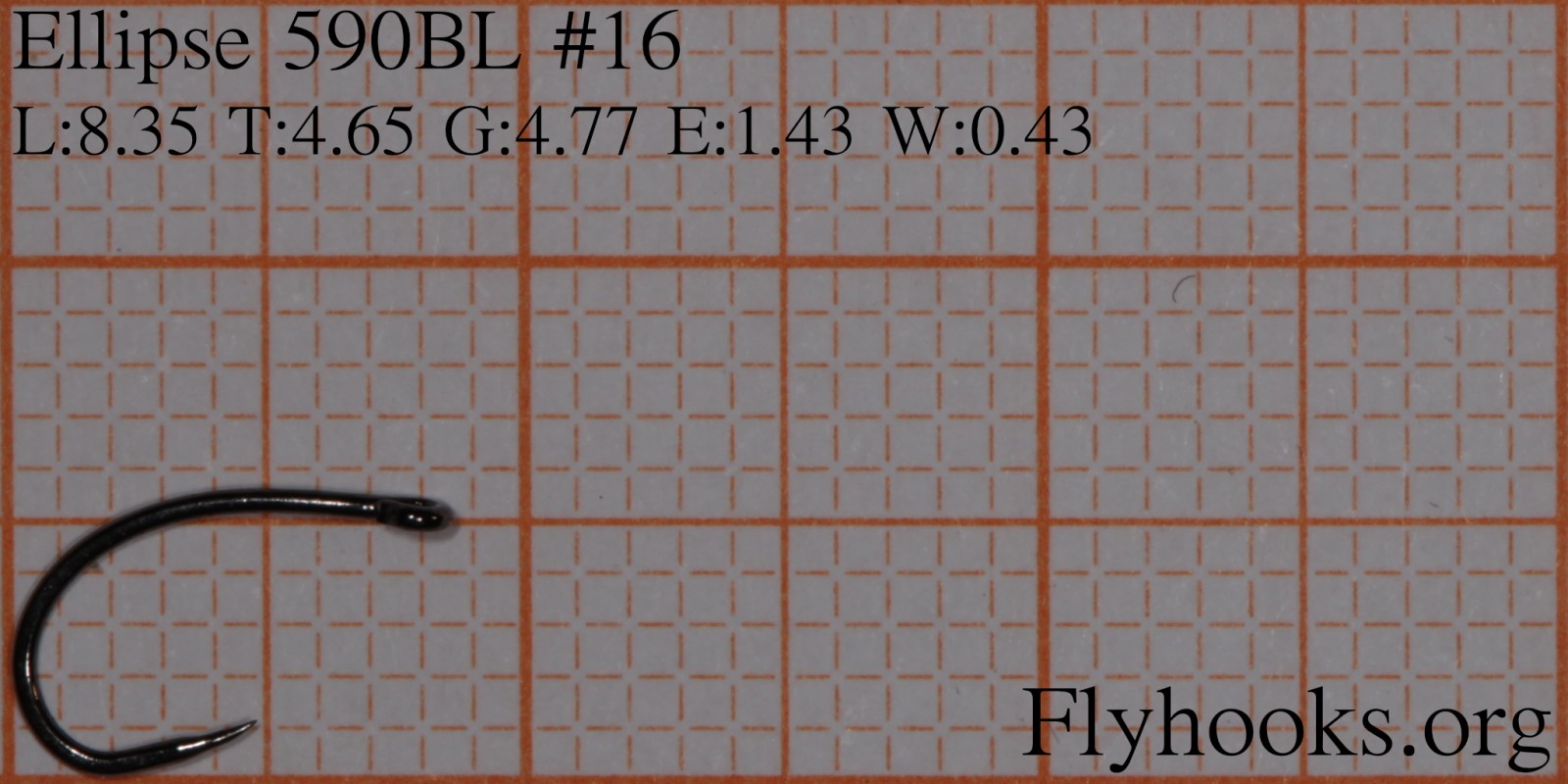

Length8.35 mm
Throat4.65 mm
Gape4.77 mm
Eye Width1.43 mm
Wire Thickness0.43 mm

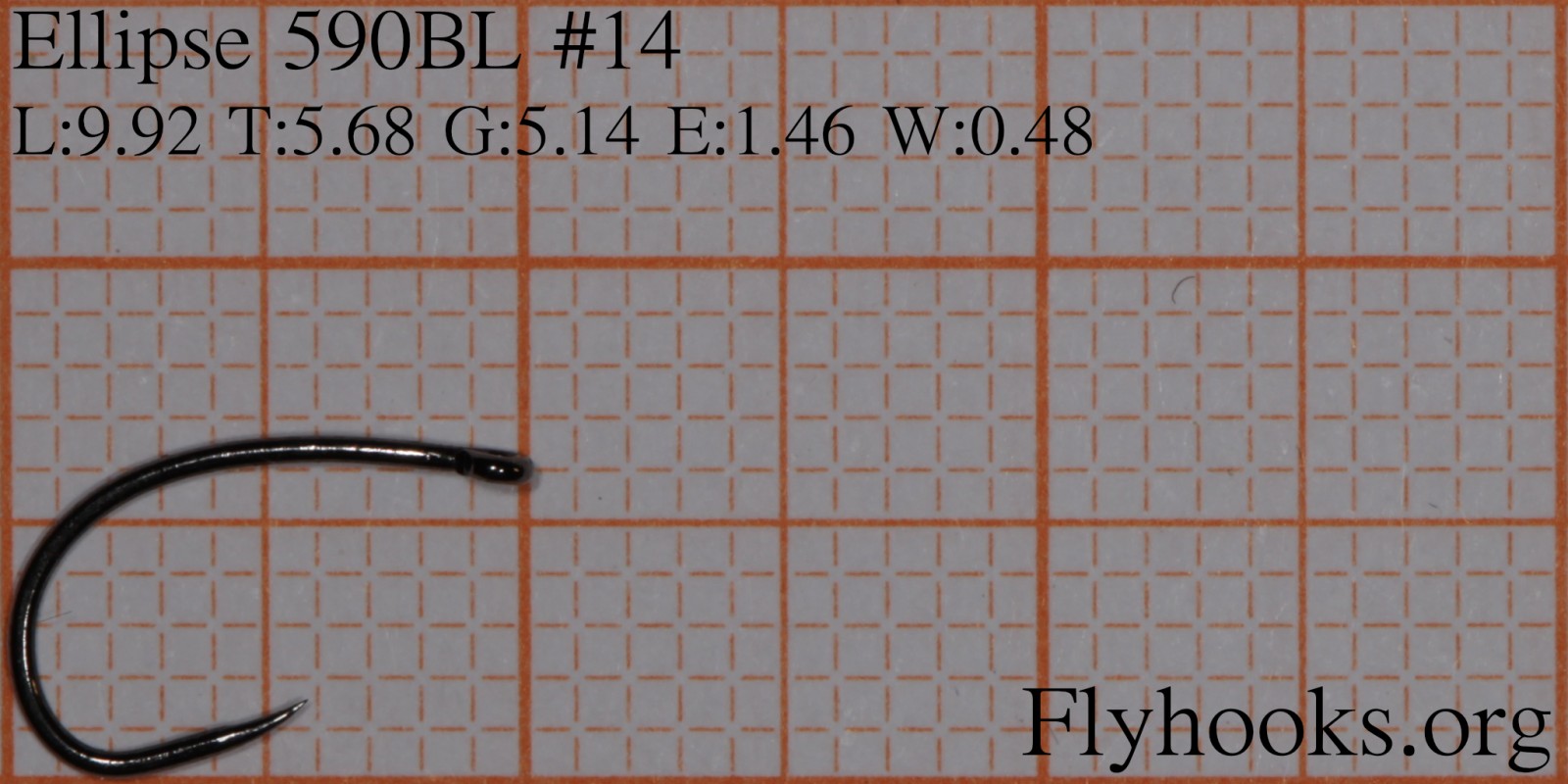

Length9.92 mm
Throat5.68 mm
Gape5.14 mm
Eye Width1.46 mm
Wire Thickness0.48 mm

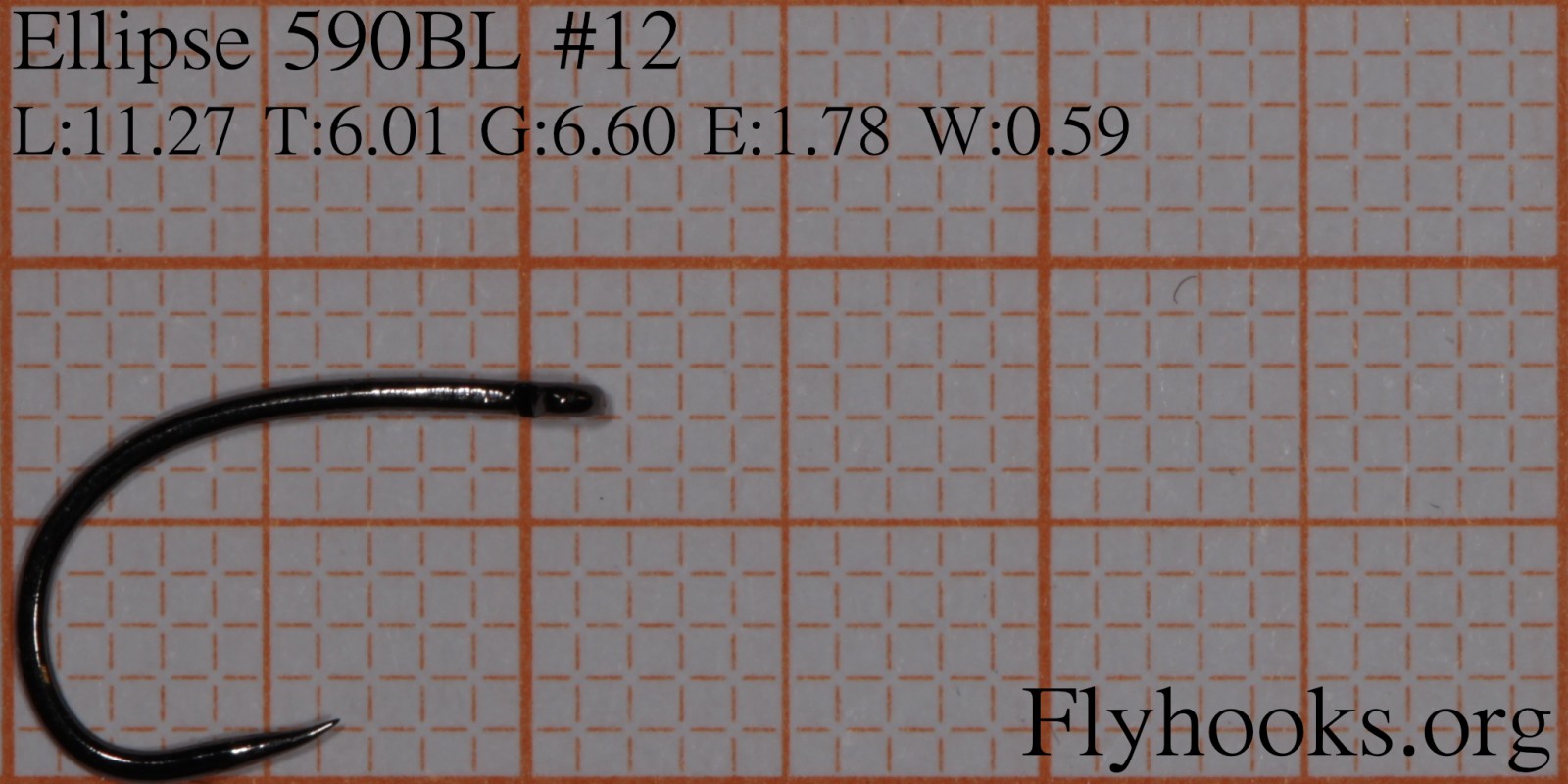

Length11.27 mm
Throat6.01 mm
Gape6.60 mm
Eye Width1.78 mm
Wire Thickness0.59 mm

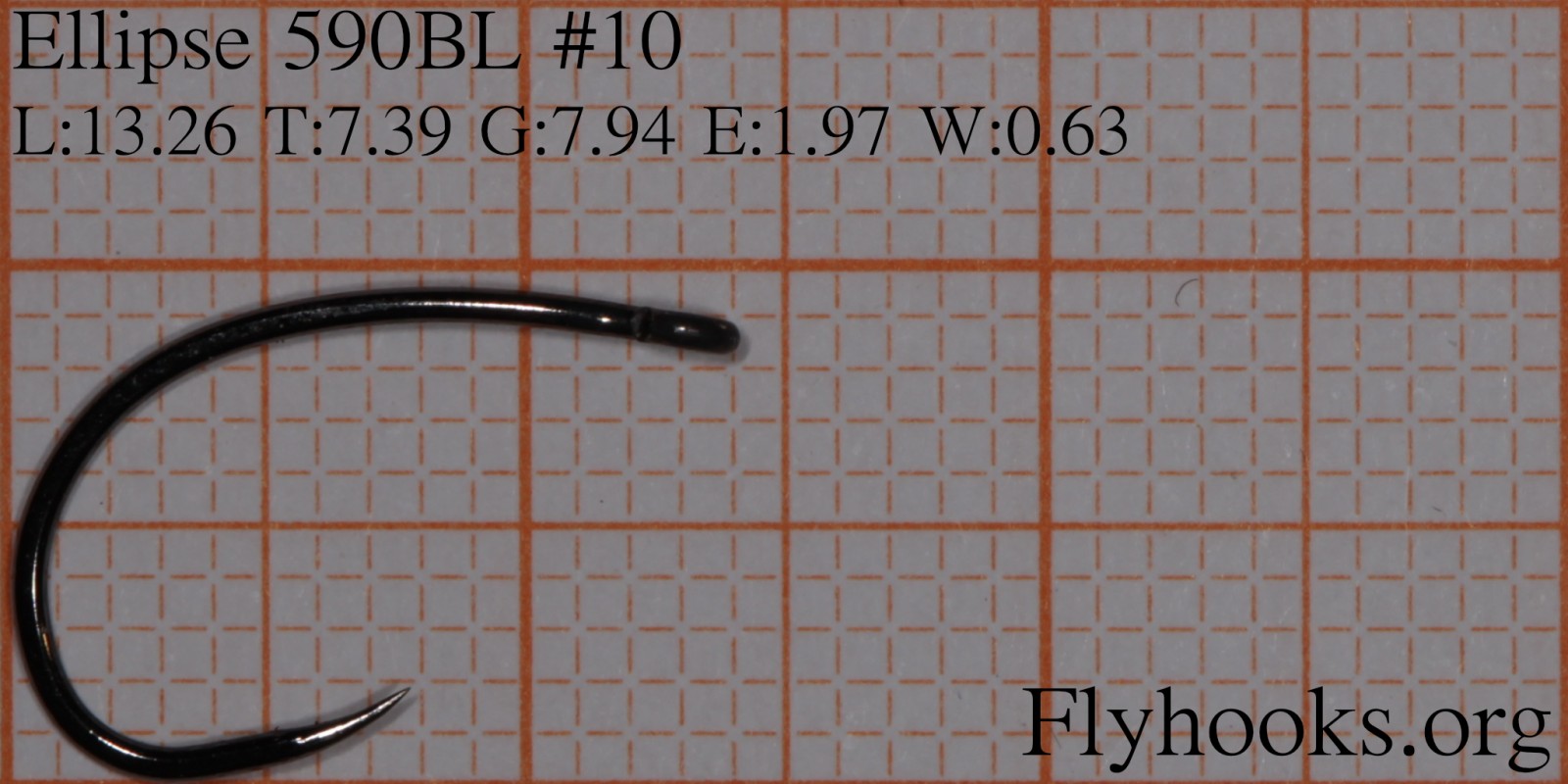

Length13.26 mm
Throat7.39 mm
Gape7.94 mm
Eye Width1.97 mm
Wire Thickness0.63 mm

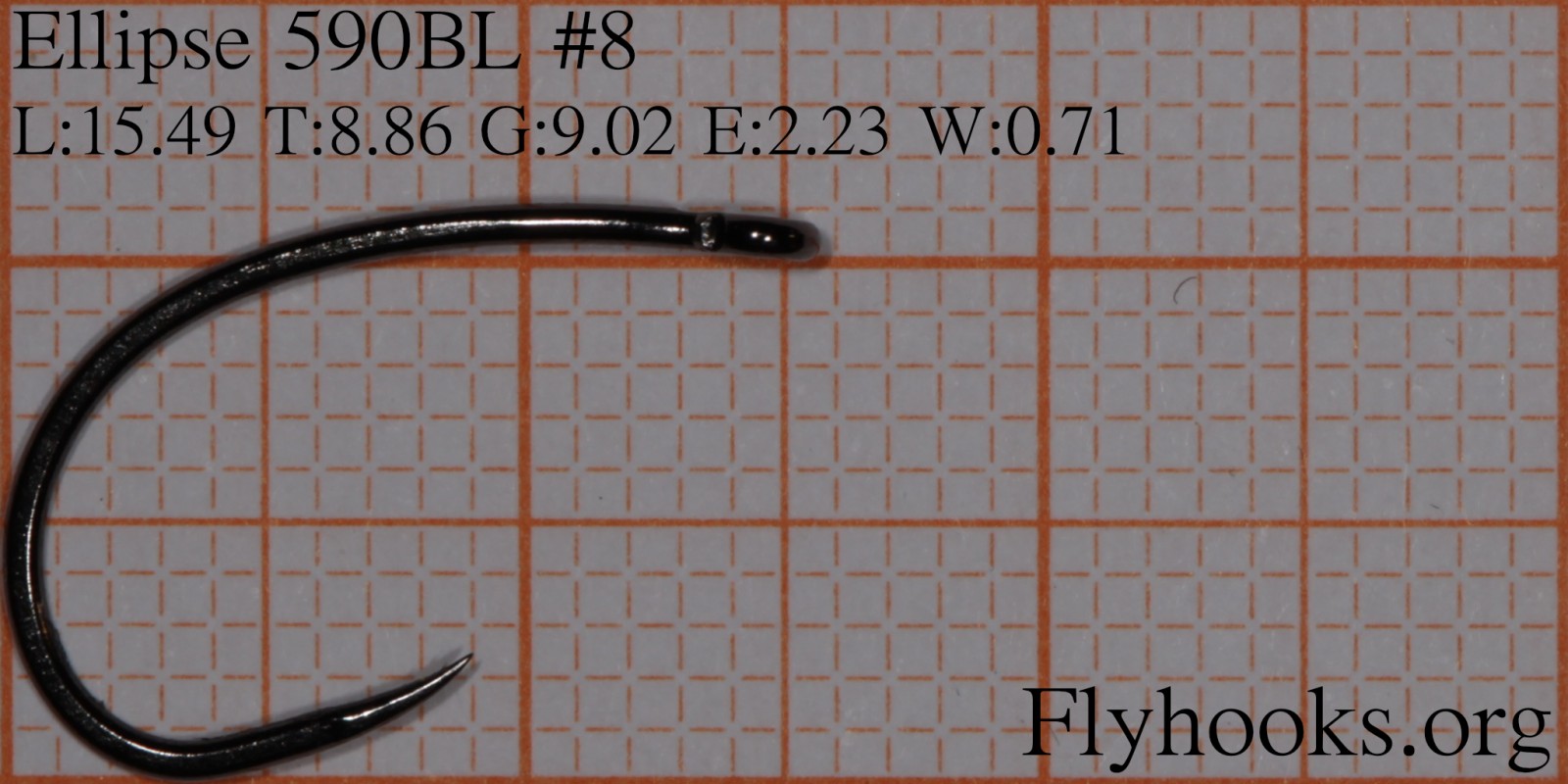

Length15.49 mm
Throat8.86 mm
Gape9.02 mm
Eye Width2.23 mm
Wire Thickness0.71 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 H390BL 8.35 -> 8.11   4.77 -> 5.28 4.65 -> 4.97 0.43 -> 0.43
16 HDG 645 8.35 -> 8.26   4.77 -> 4.85 4.65 -> 4.49 0.43 -> 0.42
16 2200 8.35 -> 8.31   4.77 -> 5.17 4.65 -> 4.68 0.43 -> 0.36
16 TMC2499SP-BL 8.35 -> 8.45   4.77 -> 4.85 4.65 -> 4.68 0.43 -> 0.42
16 TMC111 8.35 -> 8.50   4.77 -> 4.74 4.65 -> 4.74 0.43 -> 0.46
16 135 8.35 -> 8.67   4.77 -> 4.67 4.65 -> 4.93 0.43 -> 0.46
16 HDG 611 8.35 -> 9.04   4.77 -> 4.96 4.65 -> 4.97 0.43 -> 0.37
16 HDG 644 8.35 -> 9.21   4.77 -> 4.99 4.65 -> 4.97 0.43 -> 0.48
16 FW 510 - Curved Dry 8.35 -> 9.39   4.77 -> 4.59 4.65 -> 4.75 0.43 -> 0.45
14 H500BL 9.92 -> 10.10   5.14 -> 5.70 5.68 -> 5.53 0.48 -> 0.53
14 7958 9.92 -> 10.52   5.14 -> 5.42 5.68 -> 6.12 0.48 -> 0.51
14 FW 511 9.92 -> 10.75   5.14 -> 5.11 5.68 -> 5.64 0.48 -> 0.50
14 FW 510 - Curved Dry 9.92 -> 10.84   5.14 -> 5.39 5.68 -> 5.87 0.48 -> 0.50
14 1167 9.92 -> 10.86   5.14 -> 5.84 5.68 -> 5.52 0.48 -> 0.45
14 HDG 644 9.92 -> 10.90   5.14 -> 5.34 5.68 -> 5.45 0.48 -> 0.41
14 L3A,TDH - The Dry 9.92 -> 10.97   5.14 -> 5.12 5.68 -> 5.48 0.48 -> 0.43
14 HDP 9.92 -> 11.02   5.14 -> 5.59 5.68 -> 6.52 0.48 -> 0.43
14 TMC206BL 9.92 -> 11.08   5.14 -> 5.19 5.68 -> 5.47 0.48 -> 0.43
14 HDA 254 9.92 -> 11.24   5.14 -> 5.75 5.68 -> 5.60 0.48 -> 0.37
12 2000 11.27 -> 11.51   6.60 -> 7.04 6.01 -> 6.84 0.59 -> 0.50
12 AK711BL 11.27 -> 11.58   6.60 -> 6.37 6.01 -> 6.59 0.59 -> 0.59
12 HDG 645 11.27 -> 11.68   6.60 -> 6.29 6.01 -> 5.97 0.59 -> 0.58
12 H500BL 11.27 -> 11.76   6.60 -> 6.70 6.01 -> 6.18 0.59 -> 0.56
12 Carp 11.27 -> 12.01   6.60 -> 6.41 6.01 -> 5.95 0.59 -> 0.66
12 TMC2499SP-BL 11.27 -> 12.44   6.60 -> 7.01 6.01 -> 6.26 0.59 -> 0.56
12 HDG 644 11.27 -> 12.47   6.60 -> 6.75 6.01 -> 6.49 0.59 -> 0.52
12 HDA 254 11.27 -> 12.78   6.60 -> 6.40 6.01 -> 6.26 0.59 -> 0.42
10 HDG 645 13.26 -> 13.45   7.94 -> 7.78 7.39 -> 7.58 0.63 -> 0.63
10 H310BL 13.26 -> 14.67   7.94 -> 7.81 7.39 -> 8.28 0.63 -> 0.75
10 HDA 254 13.26 -> 14.78   7.94 -> 7.65 7.39 -> 7.04 0.63 -> 0.53
8 H310BL 15.49 -> 15.62   9.02 -> 8.90 8.86 -> 9.30 0.71 -> 0.83
8 HDG 644 15.49 -> 15.99   9.02 -> 8.90 8.86 -> 9.26 0.71 -> 0.63
8 AK745BL 15.49 -> 16.80   9.02 -> 9.64 8.86 -> 9.86 0.71 -> 0.64
8 37160 15.49 -> 17.07   9.02 -> 9.55 8.86 -> 8.68 0.71 -> 0.75
8 H300BL 15.49 -> 17.64   9.02 -> 9.19 8.86 -> 8.78 0.71 -> 0.65
