Ahrex: FW 510 - Curved Dry

Company Ahrex
Type Single
Eye Ringed eye
Eye Position Parallell
Shank Style Curved
Barb Microbarb
Color Black Nickel
Usages Dry
Trout
Freshwater
Emerger
Sizes 18 16 14 12 10

Sizes

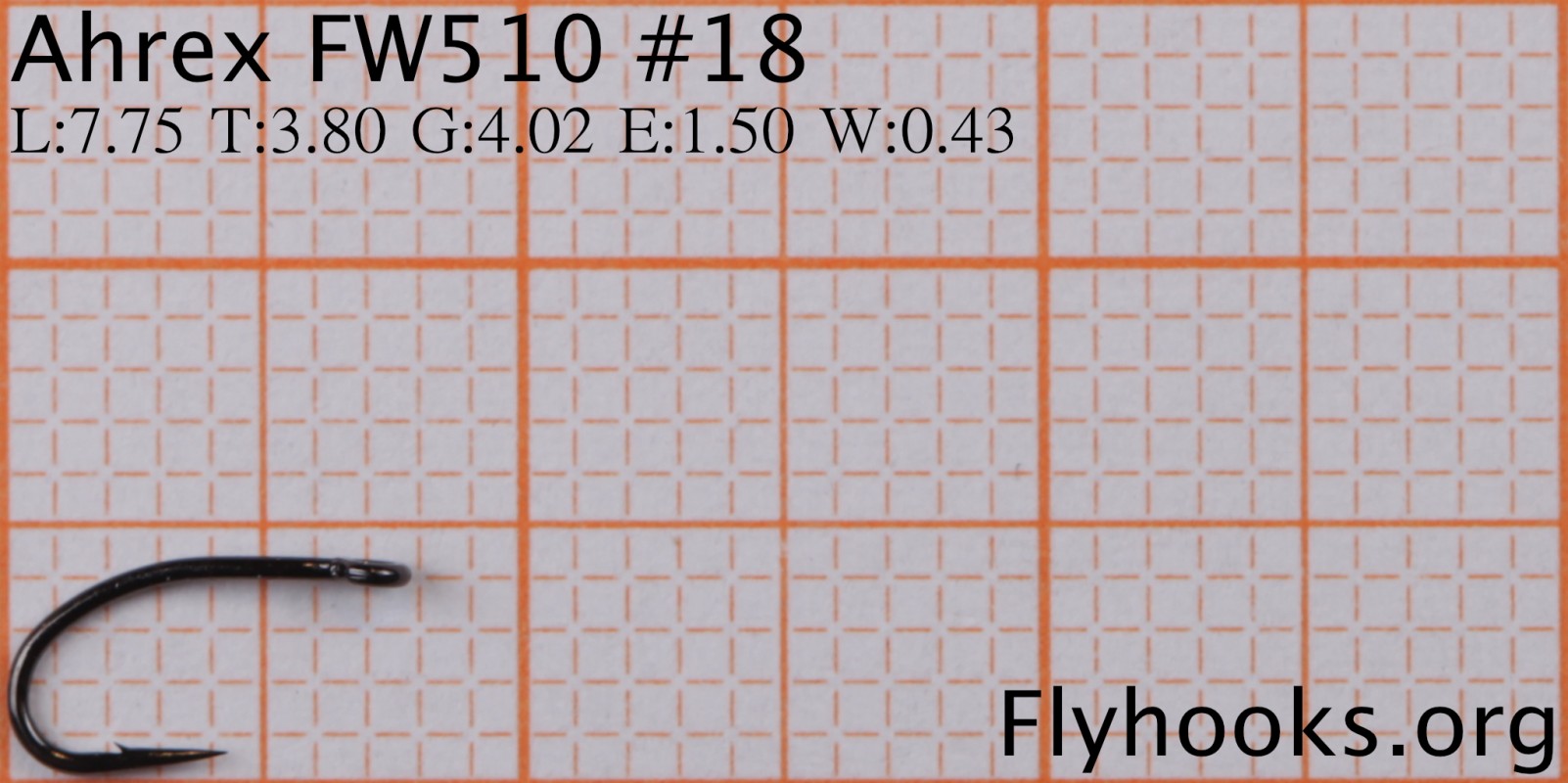

Length7.75 mm
Throat3.80 mm
Gape4.02 mm
Eye Width1.50 mm
Wire Thickness0.43 mm

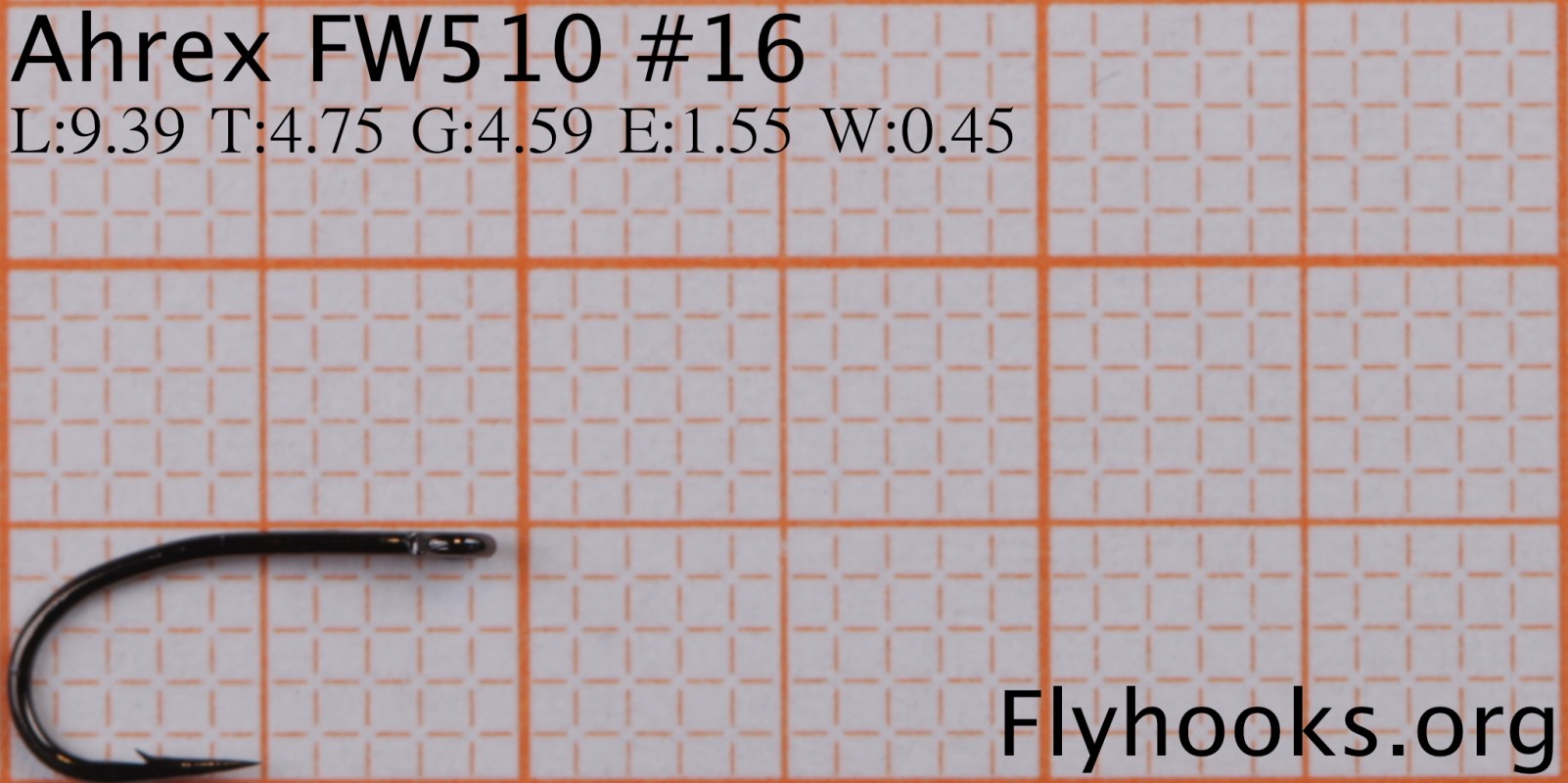

Length9.39 mm
Throat4.75 mm
Gape4.59 mm
Eye Width1.55 mm
Wire Thickness0.45 mm

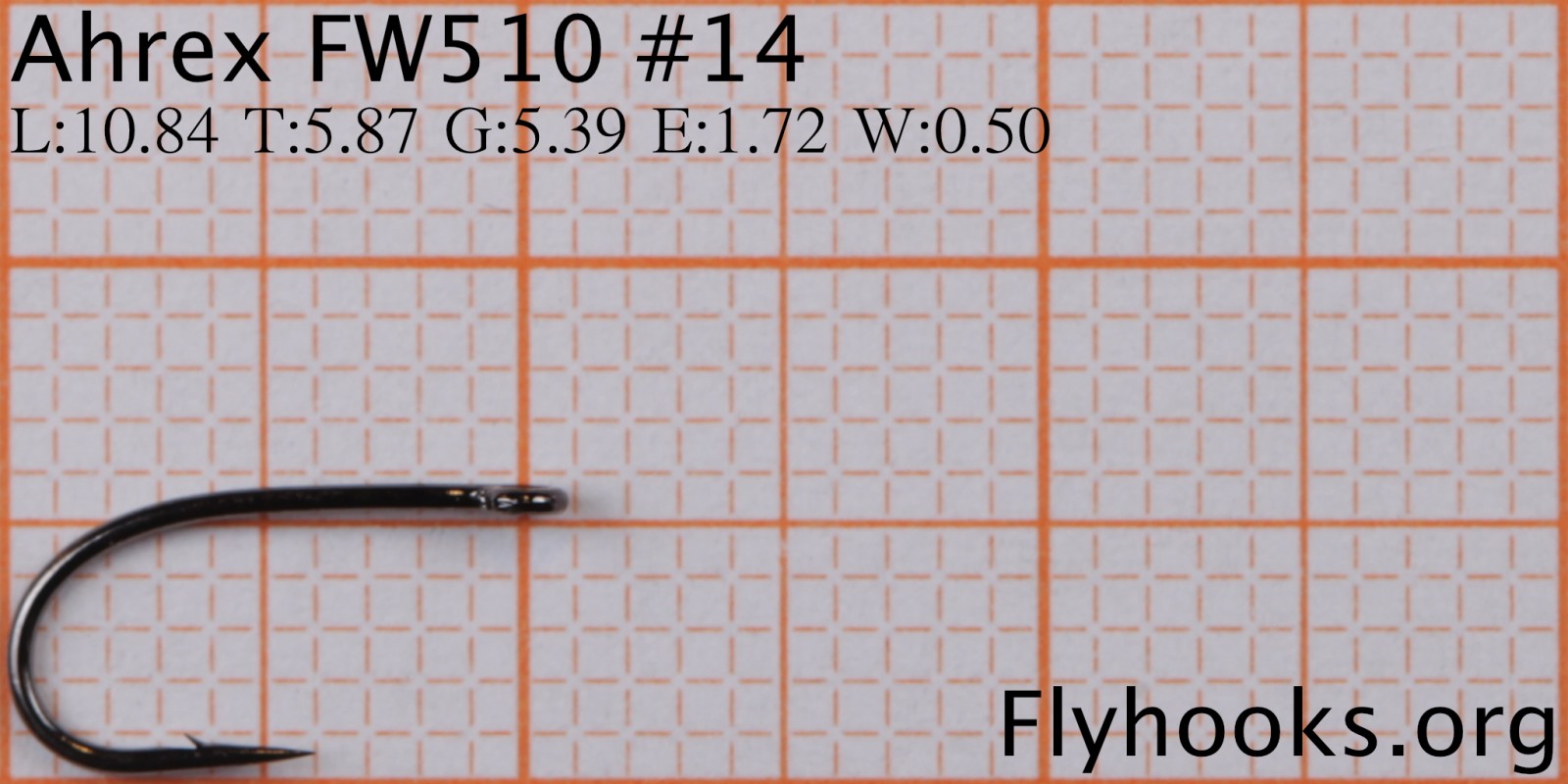

Length10.84 mm
Throat5.87 mm
Gape5.39 mm
Eye Width1.72 mm
Wire Thickness0.50 mm

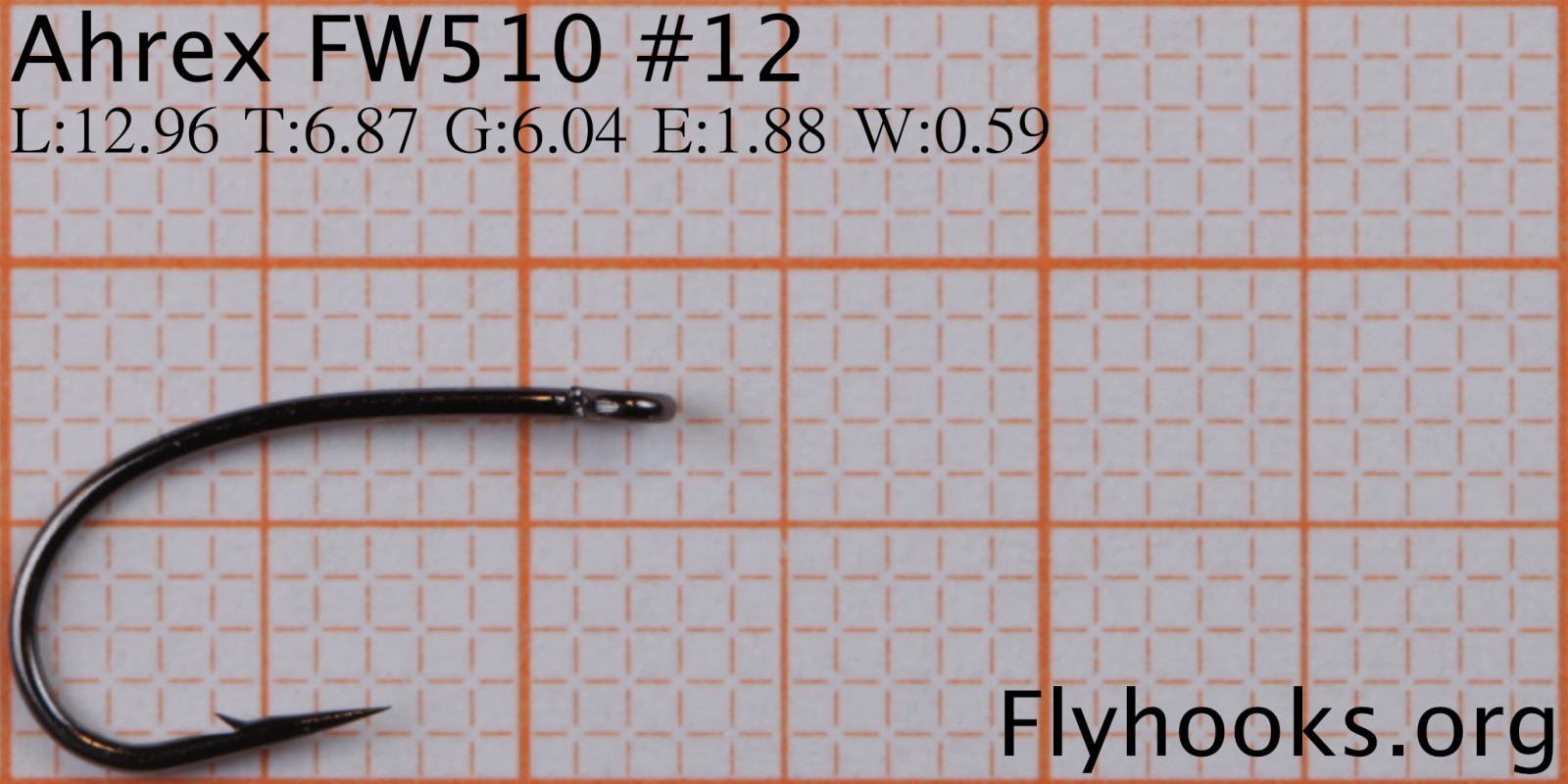

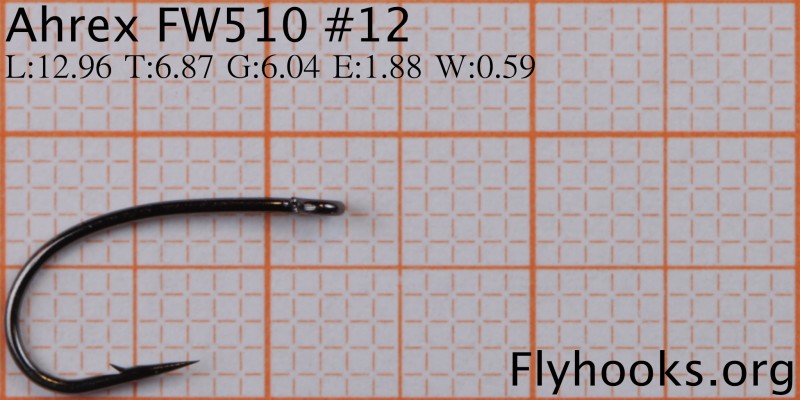

Length12.96 mm
Throat6.87 mm
Gape6.04 mm
Eye Width1.88 mm
Wire Thickness0.59 mm

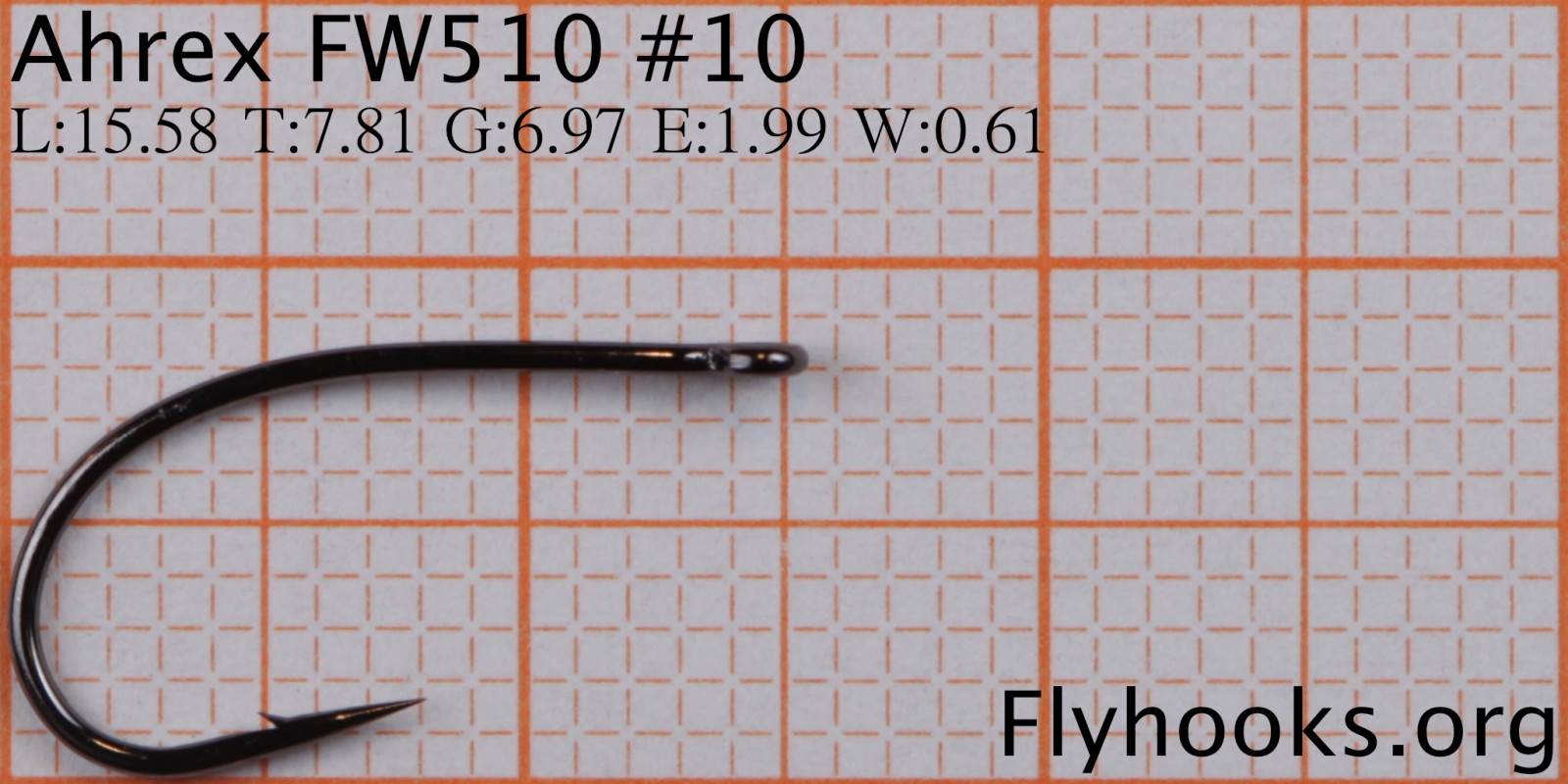

Length15.58 mm
Throat7.81 mm
Gape6.97 mm
Eye Width1.99 mm
Wire Thickness0.61 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 HDG 645 7.75 -> 7.37   4.02 -> 4.11 3.80 -> 3.95 0.43 -> 0.36
18 2110 7.75 -> 7.48   4.02 -> 4.01 3.80 -> 3.66 0.43 -> 0.29
18 FW 517 7.75 -> 7.58   4.02 -> 3.89 3.80 -> 3.92 0.43 -> 0.42
18 FW 511 7.75 -> 7.80   4.02 -> 3.86 3.80 -> 4.08 0.43 -> 0.42
18 250BL 7.75 -> 7.84   4.02 -> 4.12 3.80 -> 3.82 0.43 -> 0.32
18 FW 516 - Curved Dry Mini 7.75 -> 7.89   4.02 -> 3.84 3.80 -> 4.14 0.43 -> 0.43
18 HDG 611 7.75 -> 8.39   4.02 -> 4.27 3.80 -> 4.11 0.43 -> 0.34
18 AK751BL 7.75 -> 8.43   4.02 -> 4.02 3.80 -> 4.18 0.43 -> 0.42
18 FW 520 - Emerger 7.75 -> 8.86   4.02 -> 4.18 3.80 -> 4.04 0.43 -> 0.41
18 FW 521 7.75 -> 8.90   4.02 -> 4.11 3.80 -> 3.83 0.43 -> 0.41
16 HDG 611 9.39 -> 9.04   4.59 -> 4.96 4.75 -> 4.97 0.45 -> 0.37
16 HDG 644 9.39 -> 9.21   4.59 -> 4.99 4.75 -> 4.97 0.45 -> 0.48
16 FW 511 9.39 -> 9.57   4.59 -> 4.48 4.75 -> 4.75 0.45 -> 0.45
16 H300BL 9.39 -> 9.66   4.59 -> 4.92 4.75 -> 5.04 0.45 -> 0.43
16 AK751BL 9.39 -> 9.76   4.59 -> 4.85 4.75 -> 4.76 0.45 -> 0.44
16 H470BL 9.39 -> 9.97   4.59 -> 4.46 4.75 -> 4.71 0.45 -> 0.45
16 HDA 254 9.39 -> 10.04   4.59 -> 4.64 4.75 -> 4.73 0.45 -> 0.33
16 DGE 300 BL 9.39 -> 10.25   4.59 -> 4.77 4.75 -> 4.92 0.45 -> 0.44
16 H280BL 9.39 -> 10.31   4.59 -> 4.42 4.75 -> 4.79 0.45 -> 0.48
16 H450BL 9.39 -> 10.32   4.59 -> 5.14 4.75 -> 5.03 0.45 -> 0.46
16 HDN 302 SP 9.39 -> 10.48   4.59 -> 4.59 4.75 -> 5.05 0.45 -> 0.47
16 HDN 302 9.39 -> 10.70   4.59 -> 4.50 4.75 -> 4.90 0.45 -> 0.42
16 Nymph 9.39 -> 10.73   4.59 -> 4.50 4.75 -> 4.65 0.45 -> 0.50
16 HDN 302 SPR 9.39 -> 10.76   4.59 -> 4.74 4.75 -> 4.62 0.45 -> 0.32
14 7958 10.84 -> 10.52   5.39 -> 5.42 5.87 -> 6.12 0.50 -> 0.51
14 HDP 10.84 -> 11.02   5.39 -> 5.59 5.87 -> 6.52 0.50 -> 0.43
14 H300BL 10.84 -> 11.12   5.39 -> 6.10 5.87 -> 5.95 0.50 -> 0.47
14 HDA 254 10.84 -> 11.24   5.39 -> 5.75 5.87 -> 5.60 0.50 -> 0.37
14 HDG 611 10.84 -> 11.53   5.39 -> 6.18 5.87 -> 5.82 0.50 -> 0.40
14 H250BL 10.84 -> 11.66   5.39 -> 5.80 5.87 -> 6.00 0.50 -> 0.56
14 AK751BL 10.84 -> 11.99   5.39 -> 5.60 5.87 -> 5.81 0.50 -> 0.50
14 H480BL 10.84 -> 12.04   5.39 -> 5.62 5.87 -> 5.67 0.50 -> 0.52
14 H490BL 10.84 -> 12.24   5.39 -> 6.13 5.87 -> 5.82 0.50 -> 0.57
12 DGE 300 BL 12.96 -> 12.66   6.04 -> 6.04 6.87 -> 6.82 0.59 -> 0.54
12 Br 644 12.96 -> 12.74   6.04 -> 6.11 6.87 -> 6.98 0.59 -> 0.51
12 FW 511 12.96 -> 13.09   6.04 -> 6.18 6.87 -> 6.95 0.59 -> 0.56
12 HDU 12.96 -> 13.23   6.04 -> 6.31 6.87 -> 6.62 0.59 -> 0.60
12 AK539BL 12.96 -> 13.30   6.04 -> 5.93 6.87 -> 7.56 0.59 -> 0.50
12 R90 12.96 -> 13.43   6.04 -> 5.88 6.87 -> 6.57 0.59 -> 0.68
12 HDP 12.96 -> 13.65   6.04 -> 6.28 6.87 -> 7.54 0.59 -> 0.46
12 HDJ 12.96 -> 13.68   6.04 -> 6.19 6.87 -> 6.78 0.59 -> 0.49
12 G 12.96 -> 14.22   6.04 -> 6.34 6.87 -> 6.67 0.59 -> 0.53
12 H550BL 12.96 -> 14.26   6.04 -> 6.63 6.87 -> 6.61 0.59 -> 0.55
12 HDW 12.96 -> 14.61   6.04 -> 6.08 6.87 -> 7.14 0.59 -> 0.62
12 AK755BL 12.96 -> 14.87   6.04 -> 6.63 6.87 -> 7.05 0.59 -> 0.48
10 14723 BL 15.58 -> 15.27   6.97 -> 7.26 7.81 -> 7.44 0.61 -> 0.55
10 FW 511 15.58 -> 15.59   6.97 -> 7.19 7.81 -> 7.71 0.61 -> 0.61
10 H200BL 15.58 -> 15.81   6.97 -> 6.78 7.81 -> 7.44 0.61 -> 0.66
10 HDB 15.58 -> 15.87   6.97 -> 7.97 7.81 -> 8.06 0.61 -> 0.75
10 HDW 15.58 -> 17.12   6.97 -> 6.99 7.81 -> 8.25 0.61 -> 0.69
