Ahrex: FW 516 - Curved Dry Mini

Company	Ahrex
Type	Single
Gape	Wide
Eye	Ringed eye
Eye Position	Parallell
Shank Style	Curved
Barb	Microbarb
Color	Black Nickel
Usages	Dry Trout Grayling Midge
Sizes	20 18

Sizes

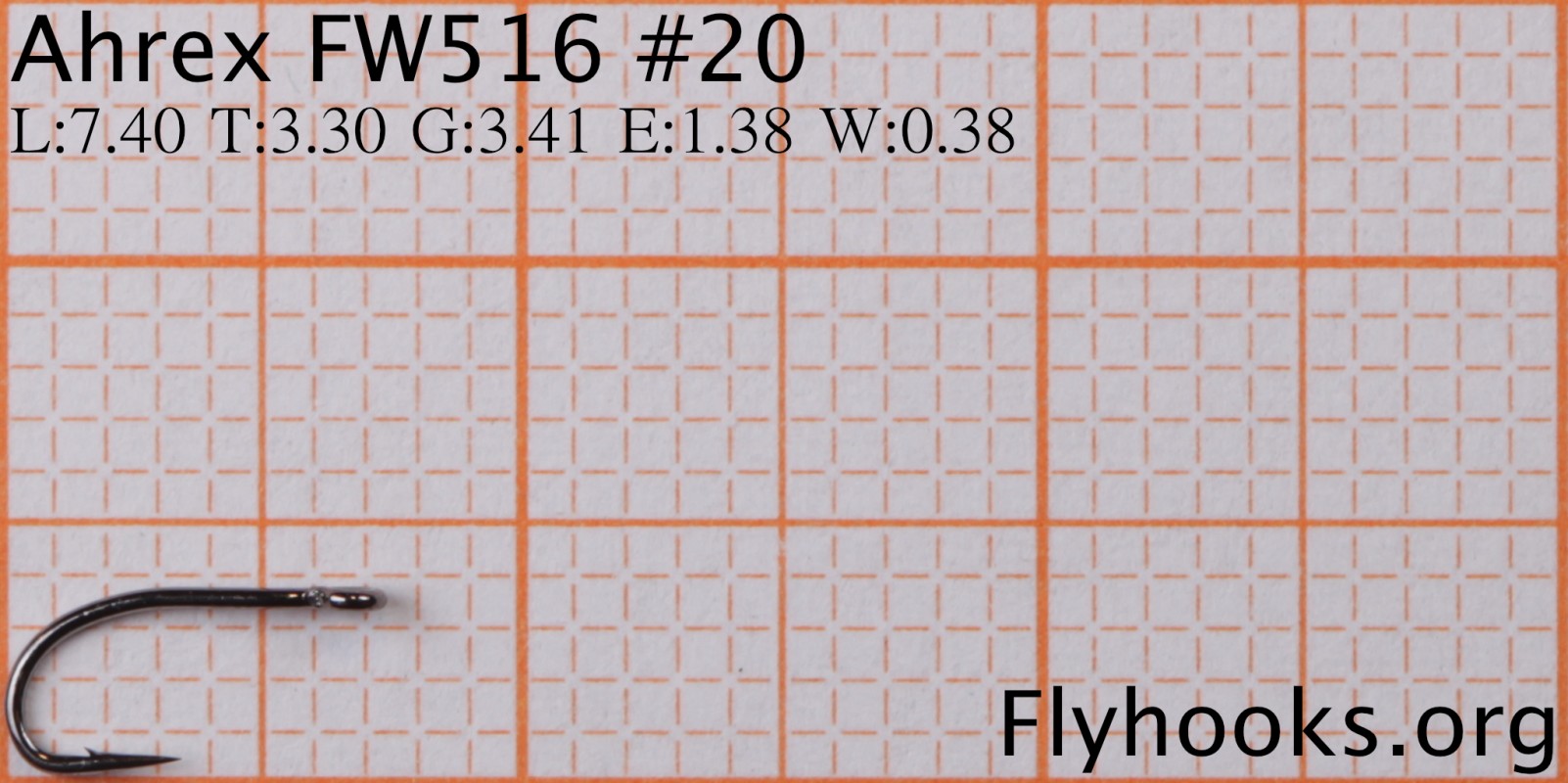

Length	7.40 mm
Throat	3.30 mm
Gape	3.41 mm
Eye Width	1.38 mm
Wire Thickness	0.38 mm

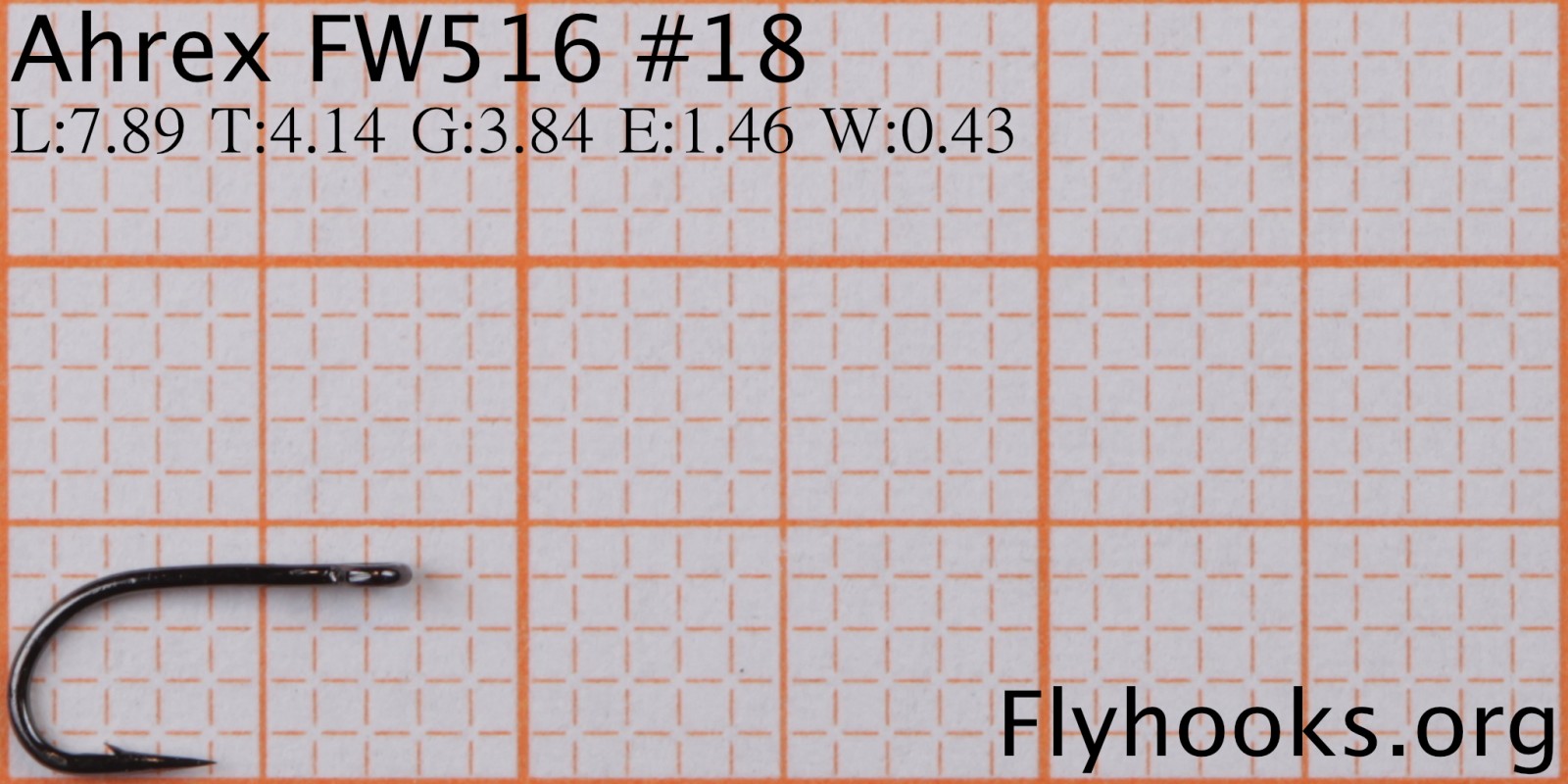

Length	7.89 mm
Throat	4.14 mm
Gape	3.84 mm
Eye Width	1.46 mm
Wire Thickness	0.43 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
20	HDD 301	7.40 -> 7.14		3.41 -> 3.49	3.30 -> 3.40	0.38 -> 0.34
20	FW 517	7.40 -> 7.31		3.41 -> 3.35	3.30 -> 3.19	0.38 -> 0.38
20	FW 507	7.40 -> 7.87		3.41 -> 3.50	3.30 -> 3.64	0.38 -> 0.39
20	TMC108SP-BL	7.40 -> 8.09		3.41 -> 3.29	3.30 -> 3.49	0.38 -> 0.38
18	FW 511	7.89 -> 7.80		3.84 -> 3.86	4.14 -> 4.08	0.43 -> 0.42
18	HDD 301	7.89 -> 8.33		3.84 -> 3.70	4.14 -> 4.19	0.43 -> 0.37
18	HDG 611	7.89 -> 8.39		3.84 -> 4.27	4.14 -> 4.11	0.43 -> 0.34
18	AK751BL	7.89 -> 8.43		3.84 -> 4.02	4.14 -> 4.18	0.43 -> 0.42
18	HDG 644	7.89 -> 8.57		3.84 -> 4.26	4.14 -> 4.75	0.43 -> 0.37
18	FW 520 - Emerger	7.89 -> 8.86		3.84 -> 4.18	4.14 -> 4.04	0.43 -> 0.41
