Ahrex: FW 530 - Sedge/Caddis

Company Ahrex
Type Single
Size Long shank
Strength Fine wire
Eye Ringed eye
Eye Position Parallell
Shank Style Curved
Barb Microbarb
Color Black Nickel
Usages Wet
Larva
Pupa
Caddis
Nymph
Trout
Grayling
Freshwater
Sedge
Sizes 18 16 14 12 10 8 6

Sizes

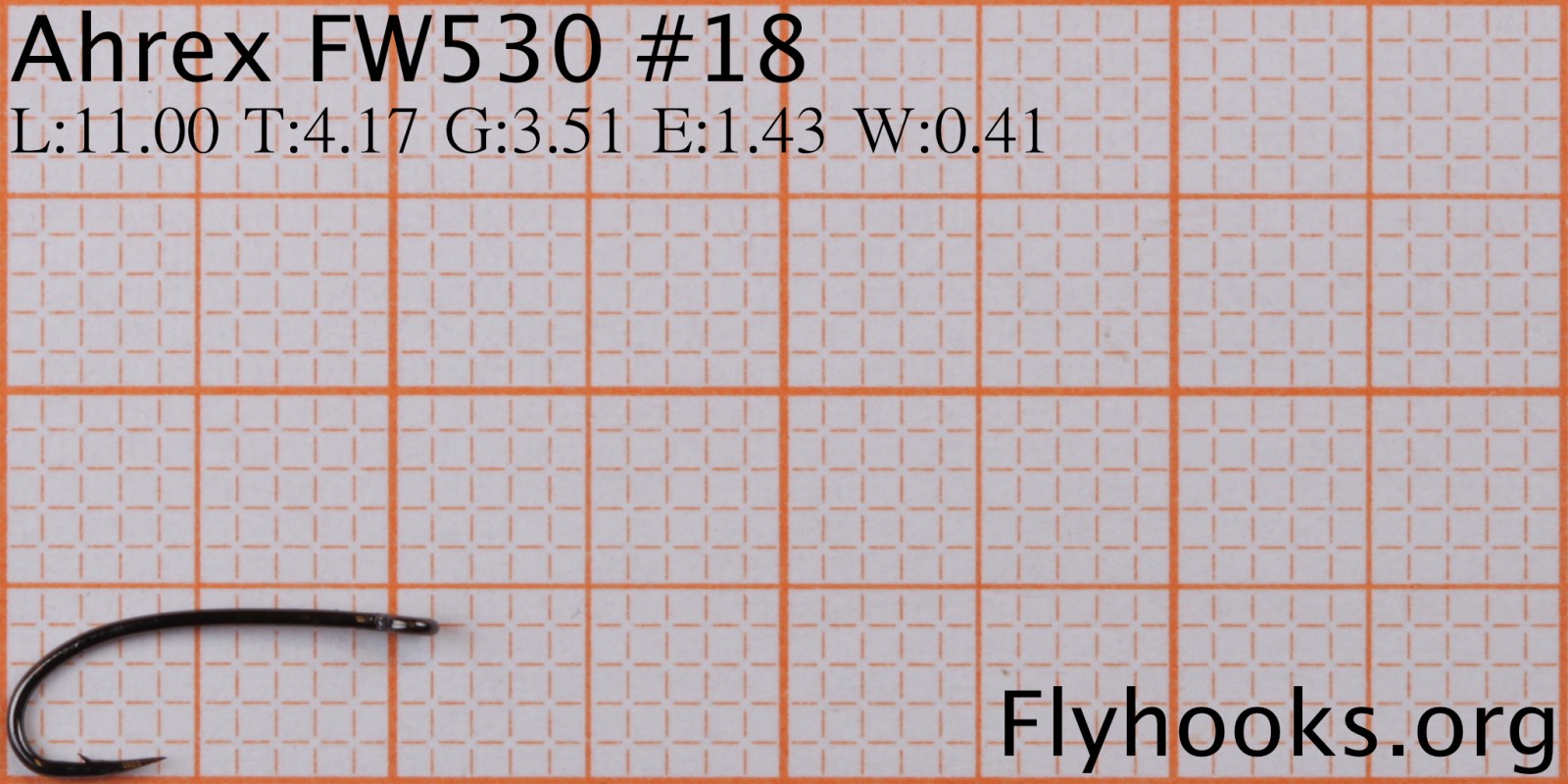

Length11.00 mm
Throat4.17 mm
Gape3.51 mm
Eye Width1.43 mm
Wire Thickness0.41 mm

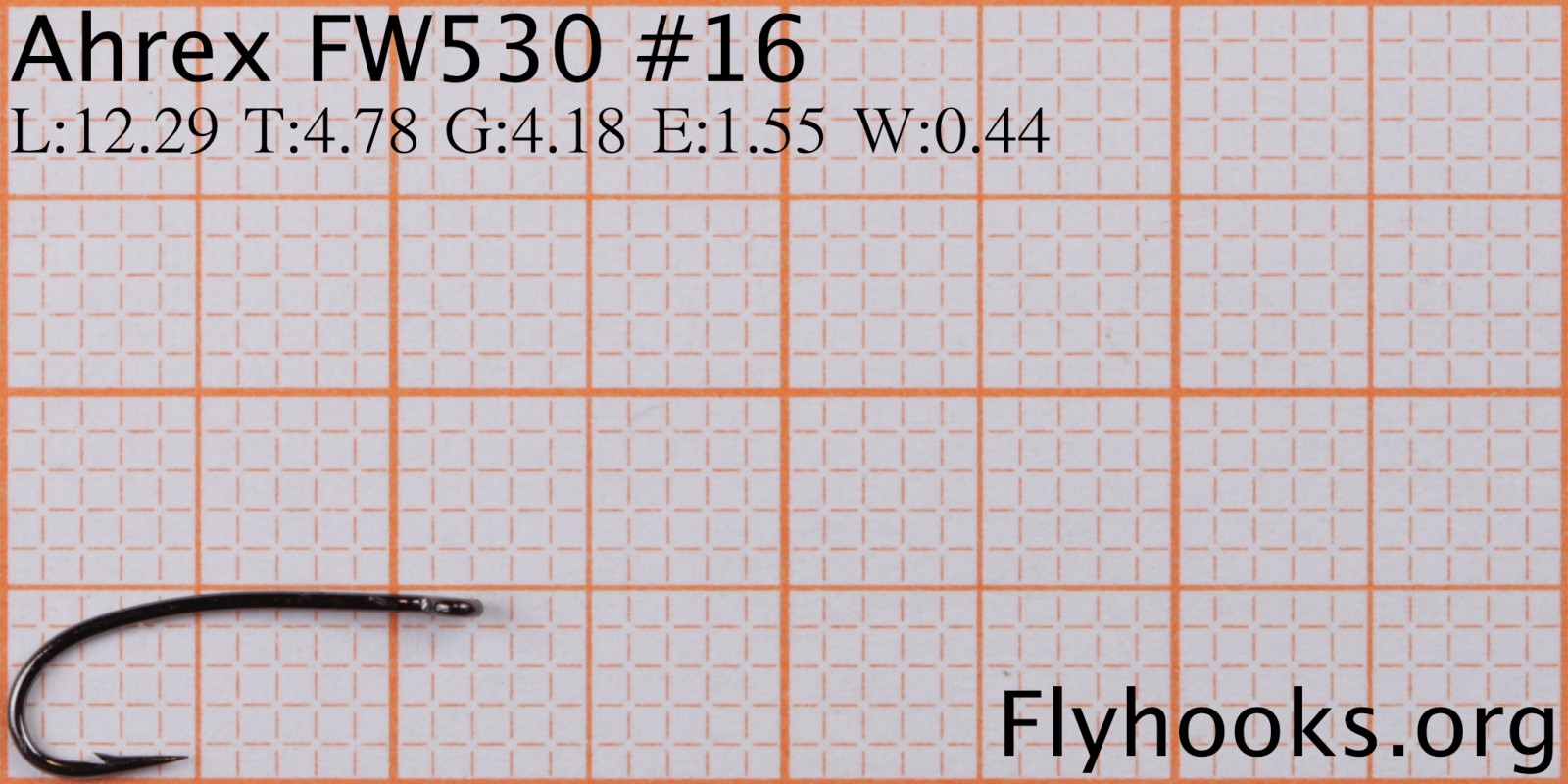

Length12.29 mm
Throat4.78 mm
Gape4.18 mm
Eye Width1.55 mm
Wire Thickness0.44 mm

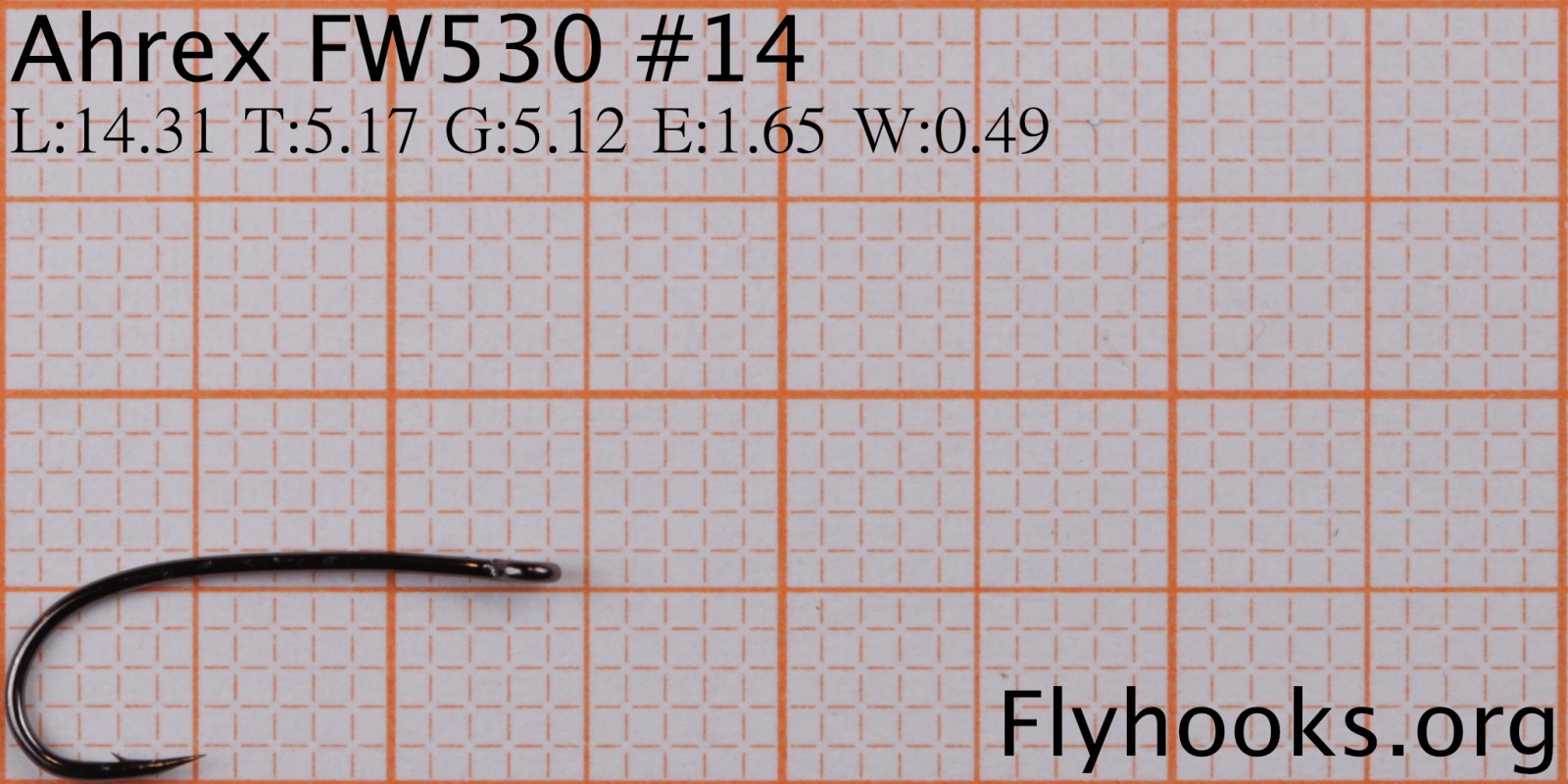

Length14.31 mm
Throat5.17 mm
Gape5.12 mm
Eye Width1.65 mm
Wire Thickness0.49 mm

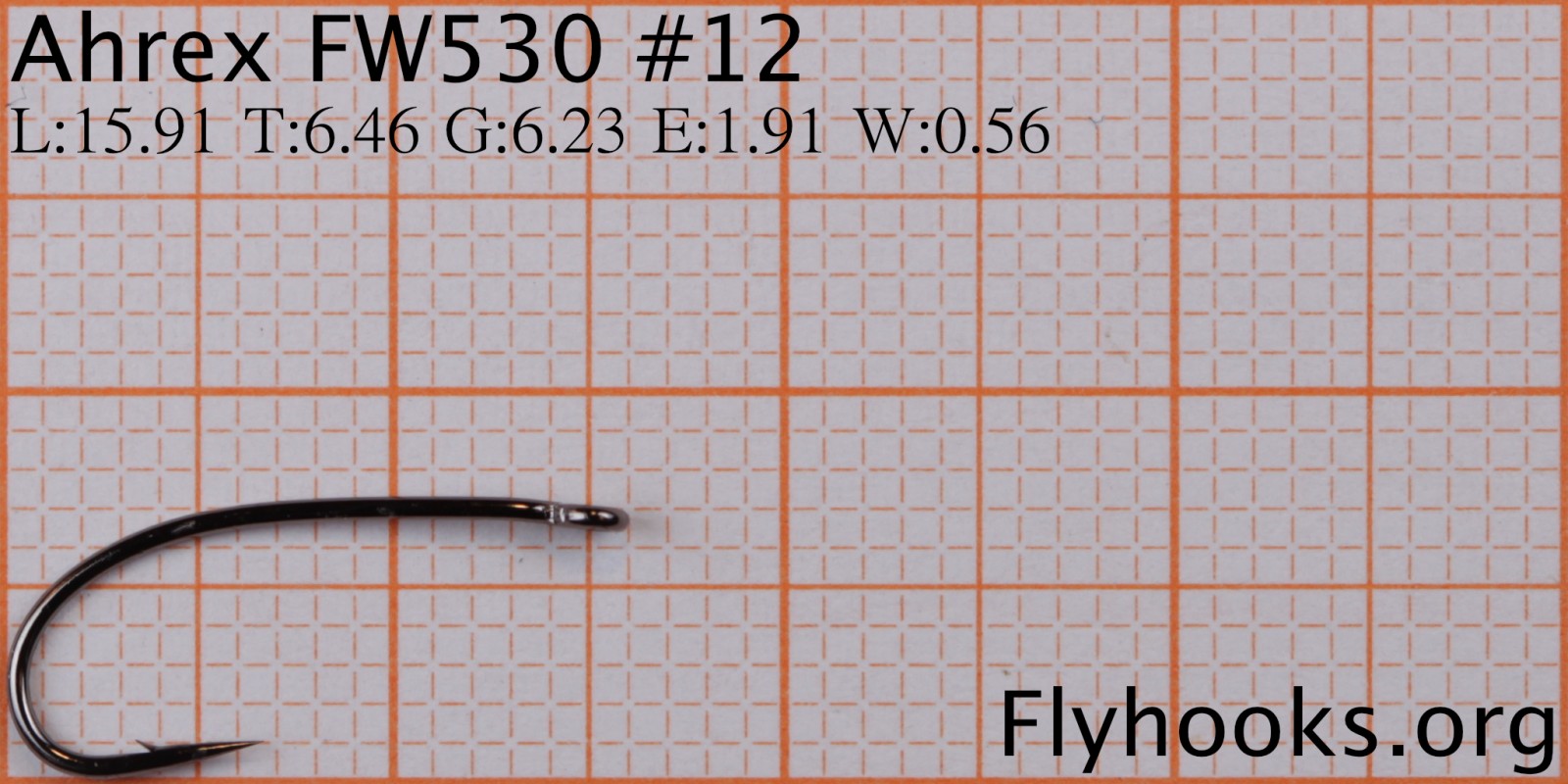

Length15.91 mm
Throat6.46 mm
Gape6.23 mm
Eye Width1.91 mm
Wire Thickness0.56 mm

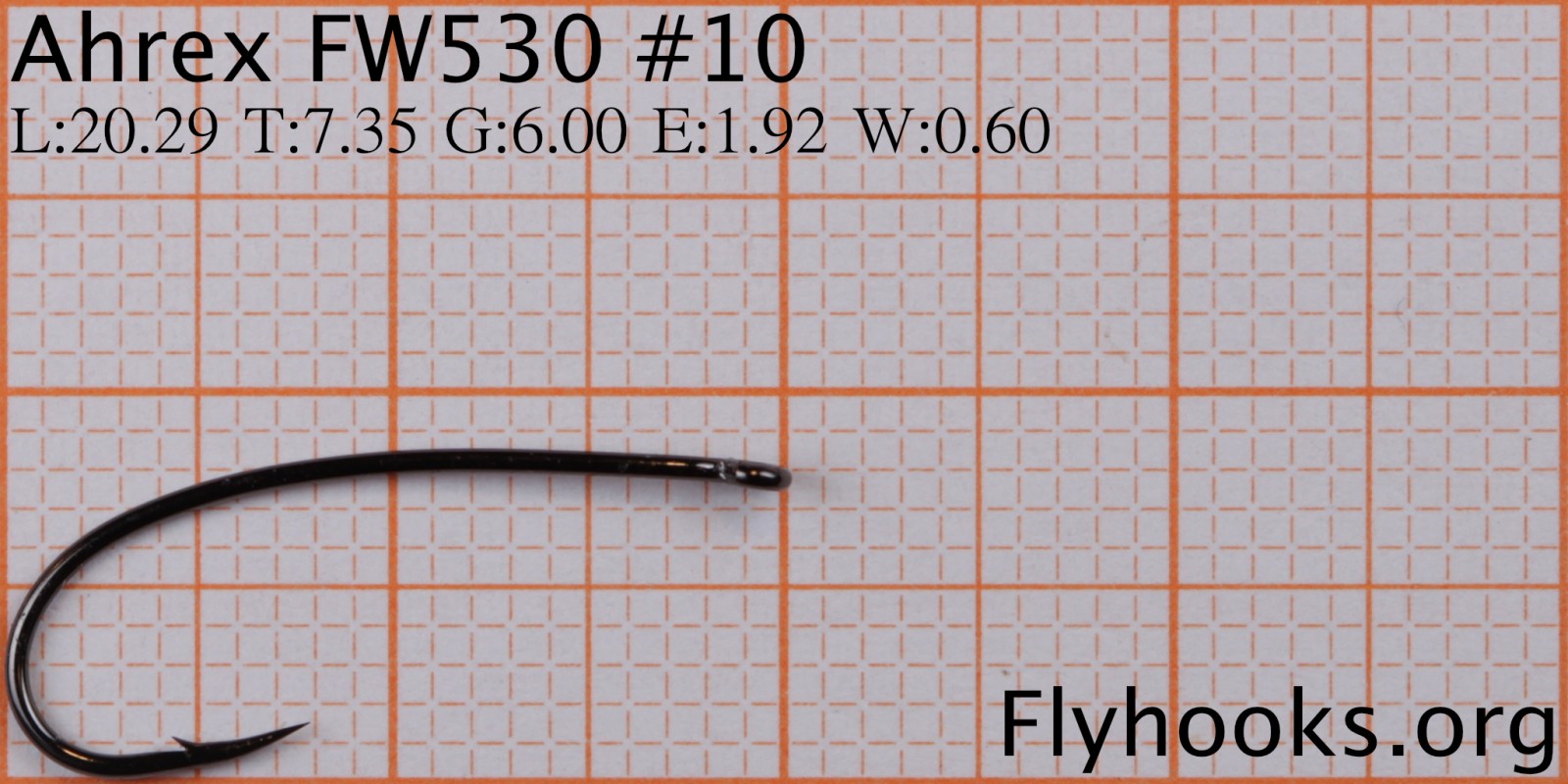

Length20.29 mm
Throat7.35 mm
Gape6.00 mm
Eye Width1.92 mm
Wire Thickness0.60 mm

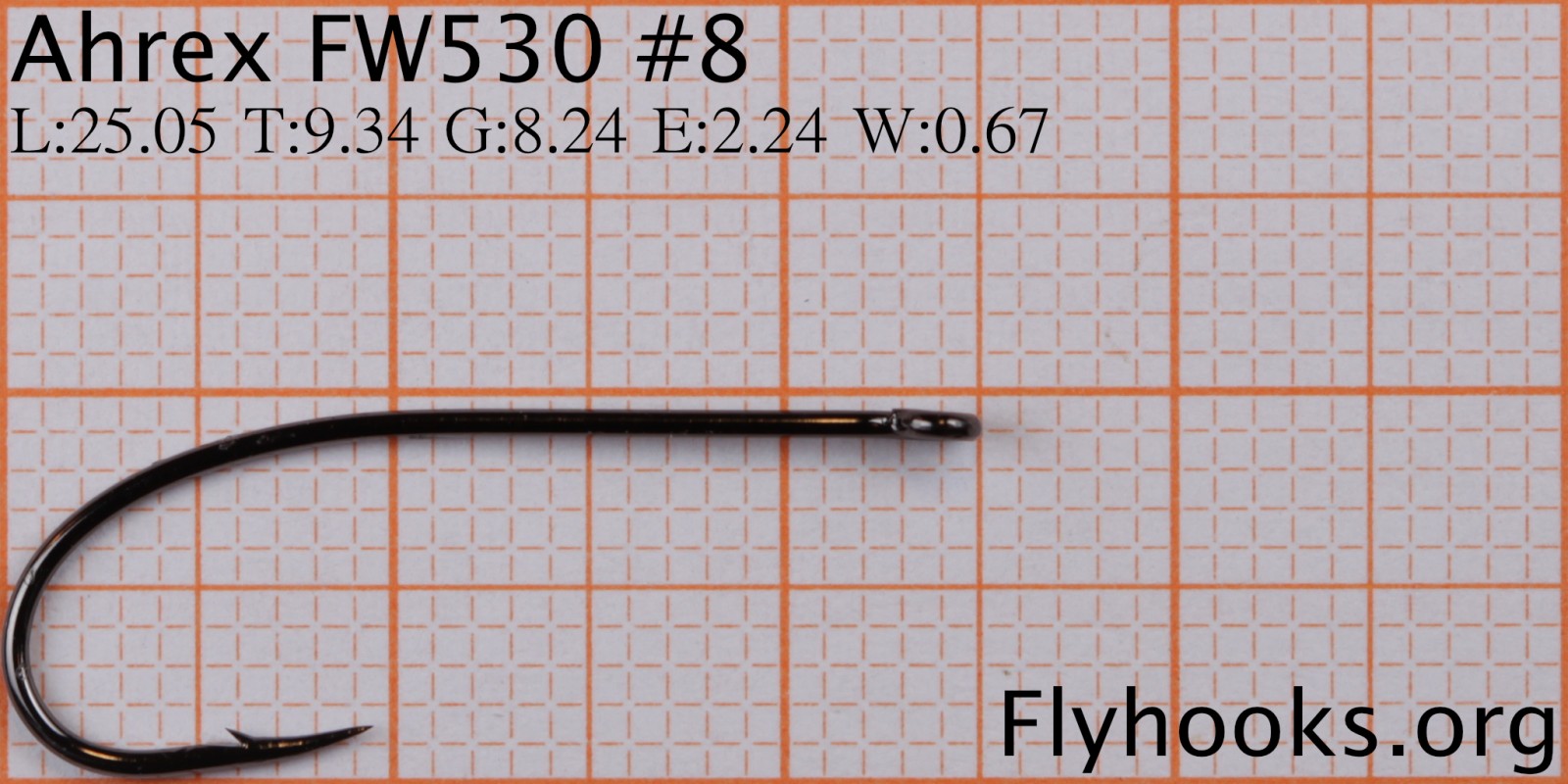

Length25.05 mm
Throat9.34 mm
Gape8.24 mm
Eye Width2.24 mm
Wire Thickness0.67 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 FW 531 11.00 -> 10.83   3.51 -> 3.86 4.17 -> 4.08 0.41 -> 0.41
18 FW 561 11.00 -> 11.39   3.51 -> 3.68 4.17 -> 4.12 0.41 -> 0.45
18 FW 560 - Traditional Nymph 11.00 -> 11.45   3.51 -> 3.74 4.17 -> 4.39 0.41 -> 0.45
18 Curved Nymph 11.00 -> 12.05   3.51 -> 3.81 4.17 -> 4.13 0.41 -> 0.44
16 AK562BL 12.29 -> 12.06   4.18 -> 4.36 4.78 -> 5.44 0.44 -> 0.41
16 1260 12.29 -> 12.18   4.18 -> 4.14 4.78 -> 4.77 0.44 -> 0.45
16 FW 561 12.29 -> 12.98   4.18 -> 4.19 4.78 -> 4.57 0.44 -> 0.46
16 FW 560 - Traditional Nymph 12.29 -> 13.15   4.18 -> 4.33 4.78 -> 4.62 0.44 -> 0.50
14 FW 531 14.31 -> 14.01   5.12 -> 5.06 5.17 -> 5.16 0.49 -> 0.48
14 FW 560 - Traditional Nymph 14.31 -> 14.46   5.12 -> 4.93 5.17 -> 5.22 0.49 -> 0.57
14 TMC200R 14.31 -> 16.00   5.12 -> 5.16 5.17 -> 5.47 0.49 -> 0.54
12 FW 531 15.91 -> 16.11   6.23 -> 6.34 6.46 -> 6.49 0.56 -> 0.56
10 D4AY - Streamer 20.29 -> 19.74   6.00 -> 6.45 7.35 -> 7.18 0.60 -> 0.60
10 Nymph 20.29 -> 19.94   6.00 -> 6.71 7.35 -> 7.06 0.60 -> 0.62
10 FW 531 20.29 -> 20.14   6.00 -> 6.85 7.35 -> 7.58 0.60 -> 0.58
10 M2 - Heavy Salmon Single 20.29 -> 20.38   6.00 -> 6.67 7.35 -> 7.21 0.60 -> 0.61
10 R74NP-BR 20.29 -> 21.93   6.00 -> 6.49 7.35 -> 7.15 0.60 -> 0.68
10 79580 20.29 -> 22.21   6.00 -> 6.34 7.35 -> 7.20 0.60 -> 0.63
8 FW 531 25.05 -> 25.05   8.24 -> 8.17 9.34 -> 9.40 0.67 -> 0.68
8 H970BL 25.05 -> 25.12   8.24 -> 9.32 9.34 -> 10.00 0.67 -> 0.86
8 H950BL 25.05 -> 25.57   8.24 -> 8.66 9.34 -> 9.85 0.67 -> 0.84
8 AK431BL 25.05 -> 27.22   8.24 -> 9.08 9.34 -> 9.77 0.67 -> 0.82
8 TMC777SP 25.05 -> 28.29   8.24 -> 9.00 9.34 -> 9.77 0.67 -> 0.90
8 CS16U/1 - Patriot Single 25.05 -> 28.34   8.24 -> 8.12 9.34 -> 8.88 0.67 -> 0.89
