Ahrex: FW 521

Company Ahrex
www ahrexhooks.com
Type Single
Eye Position Turned up
Shank Style Curved
Barb Barbless
Color Black Nickel
Usages Dry
Trout
Grayling
Freshwater
Emerger
Sedge
Sizes 18 16 14 12 10 8 6

Sizes

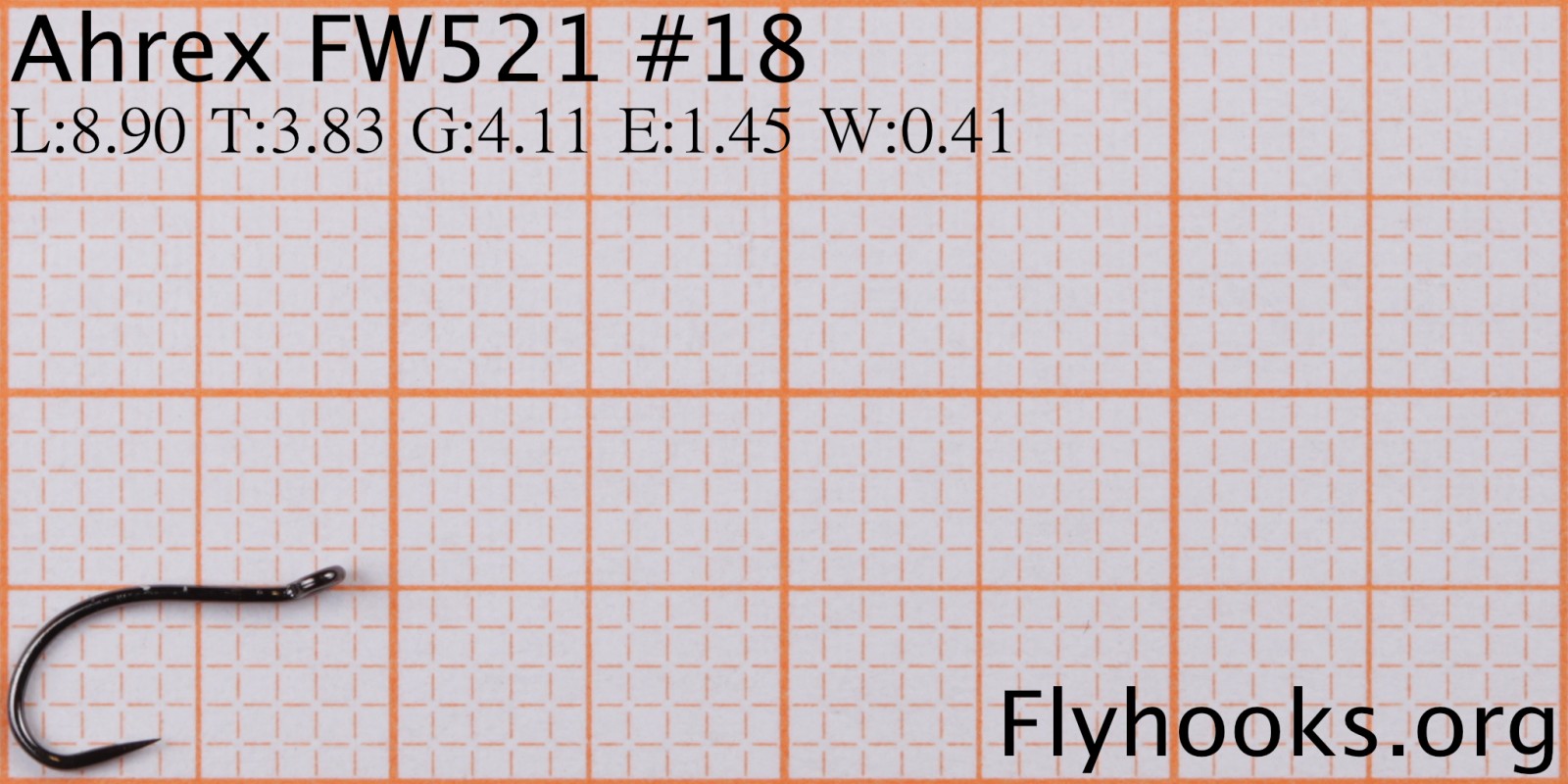

Length8.90 mm
Throat3.83 mm
Gape4.11 mm
Eye Width1.45 mm
Wire Thickness0.41 mm

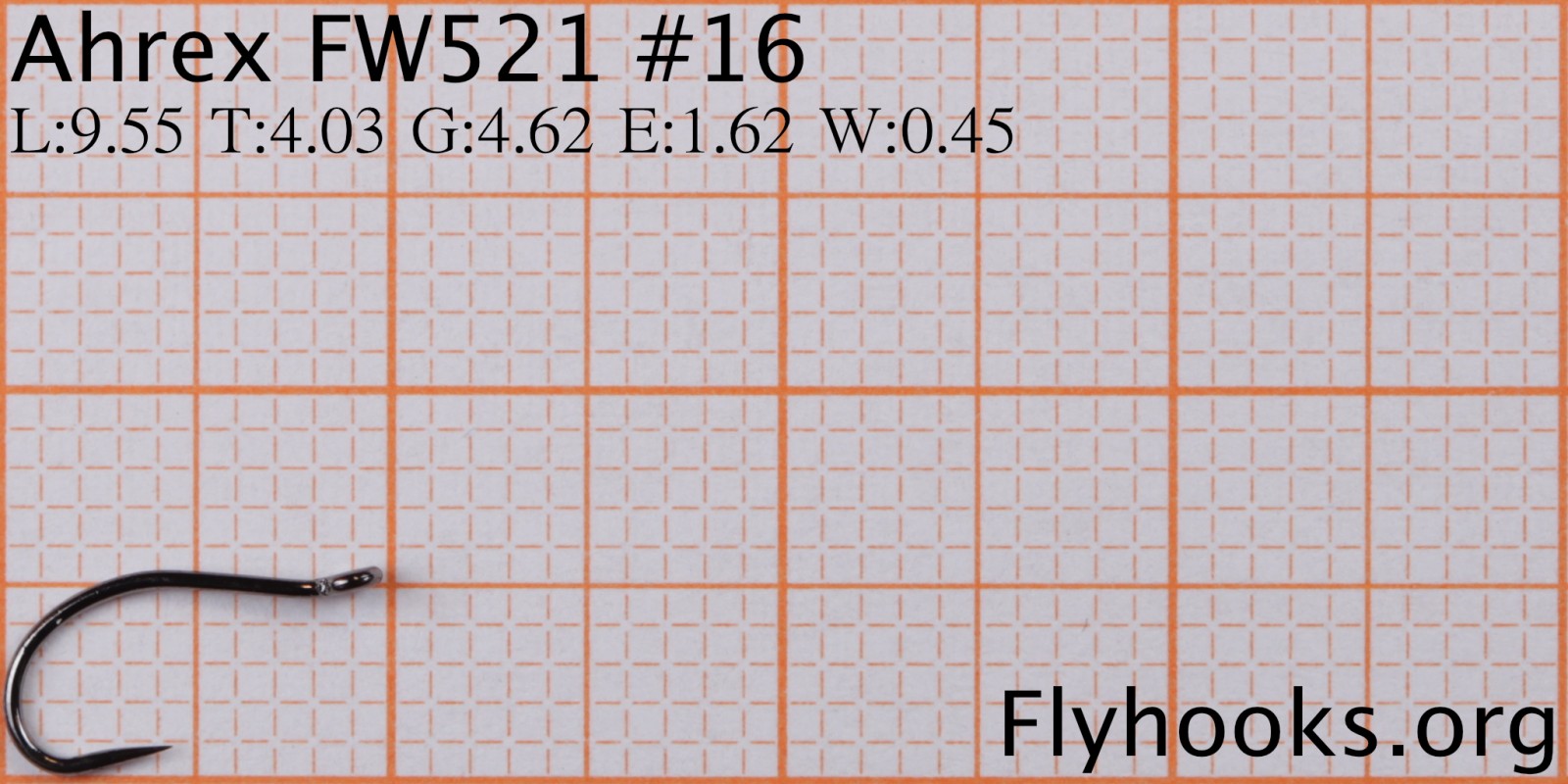

Length9.65 mm
Throat4.03 mm
Gape4.62 mm
Eye Width1.62 mm
Wire Thickness0.45 mm

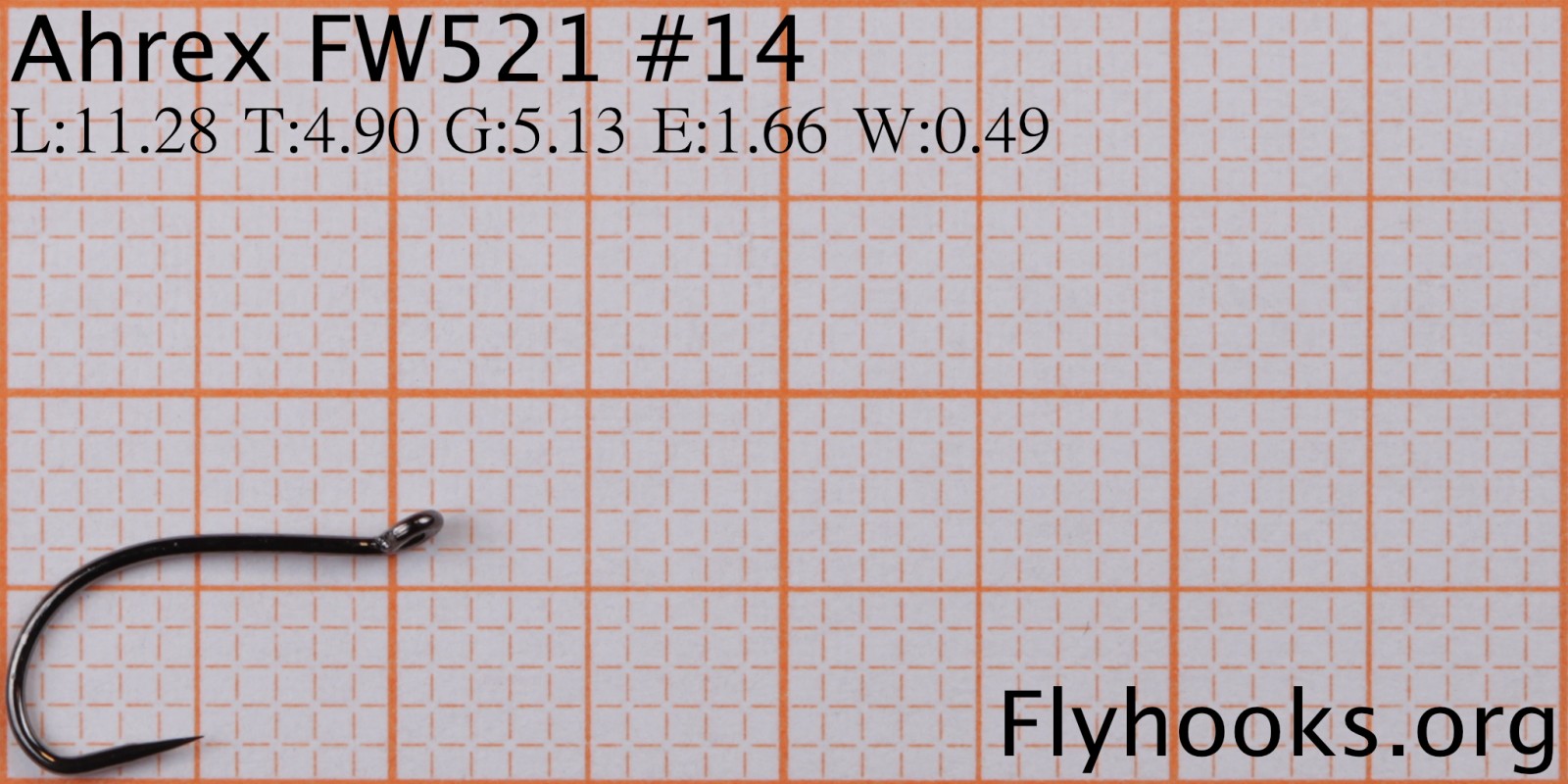

Length11.28 mm
Throat4.90 mm
Gape5.13 mm
Eye Width1.66 mm
Wire Thickness0.49 mm

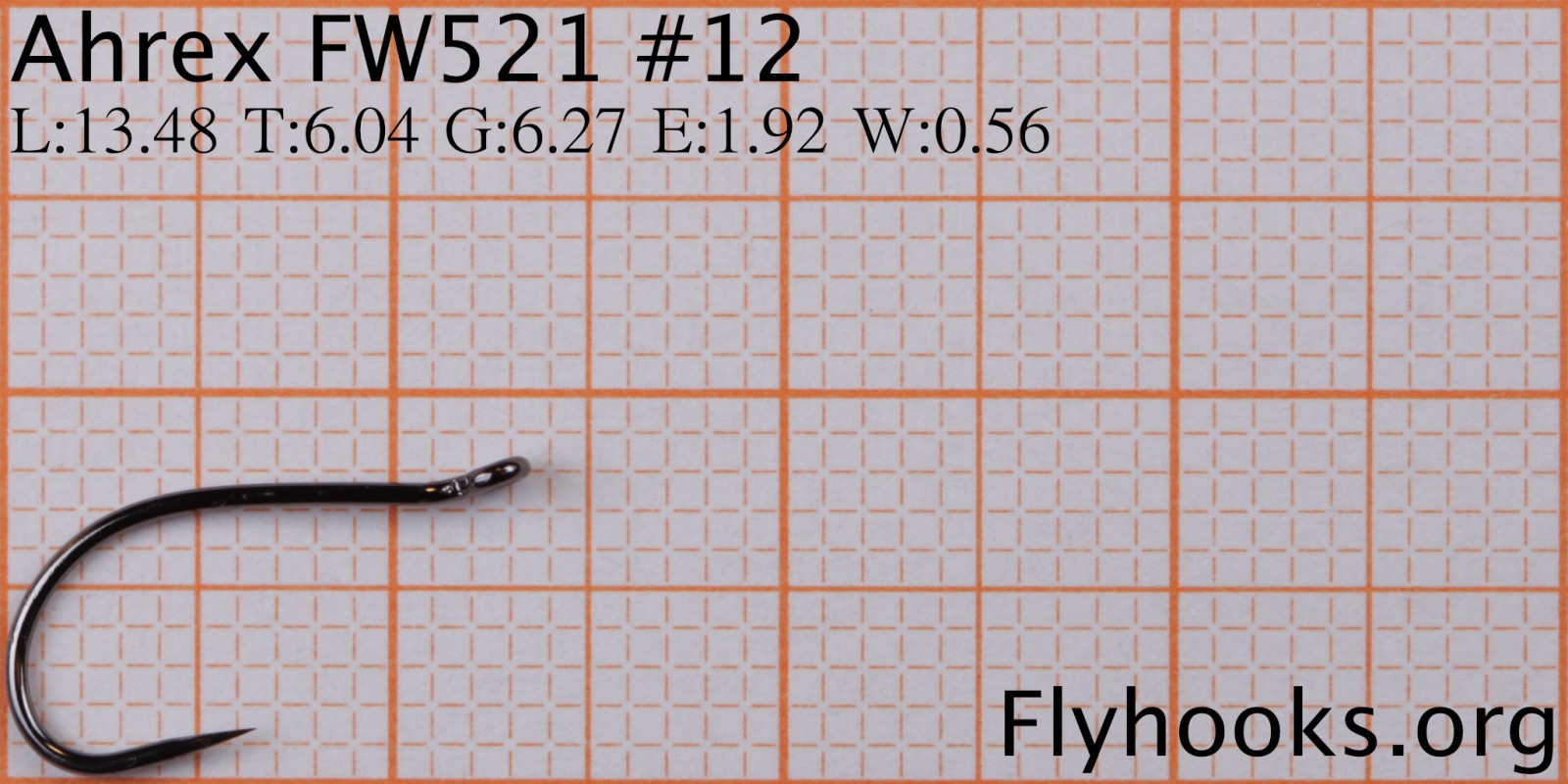

Length13.48 mm
Throat6.04 mm
Gape6.27 mm
Eye Width1.92 mm
Wire Thickness0.56 mm

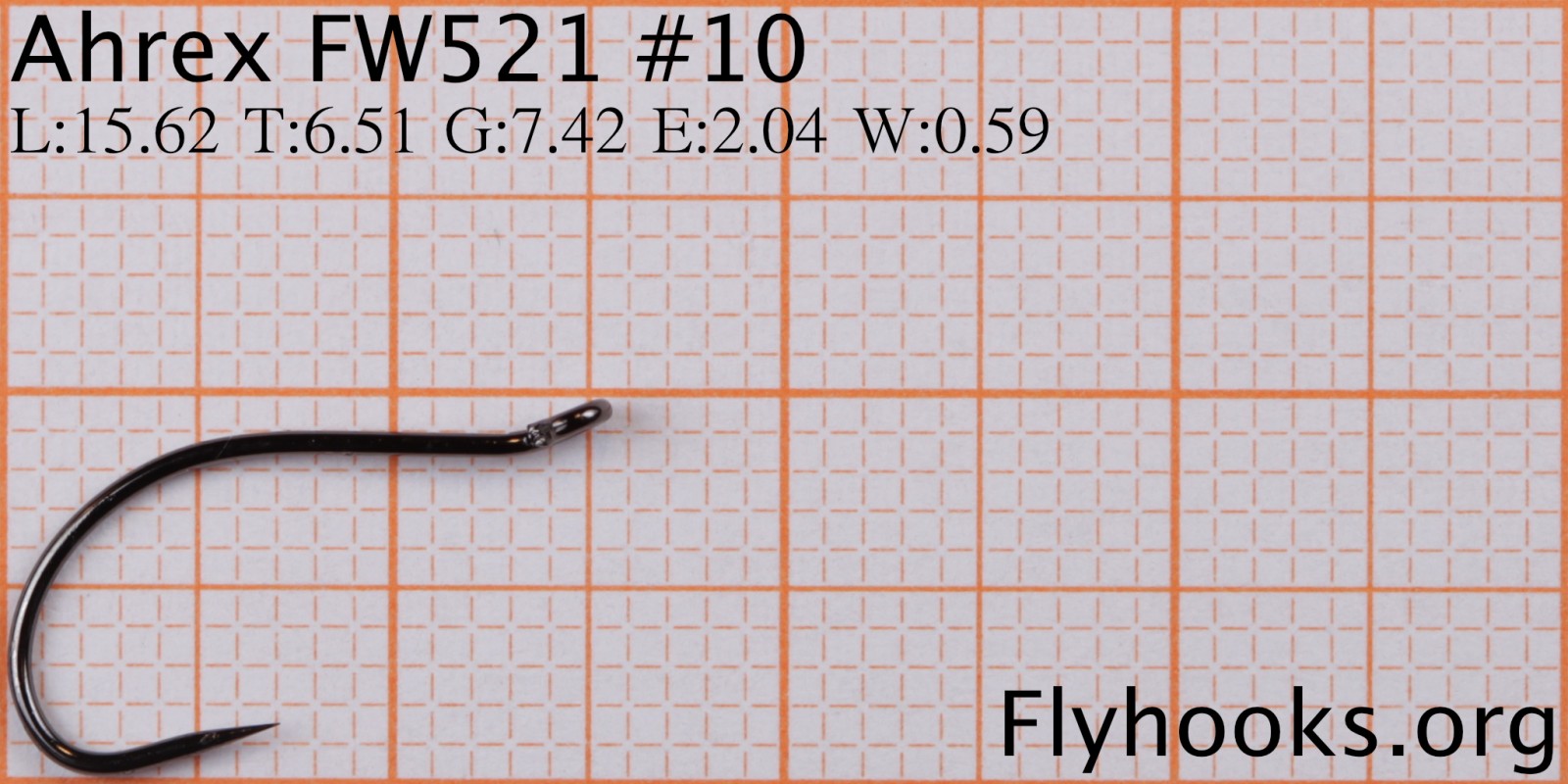

Length15.62 mm
Throat6.51 mm
Gape7.42 mm
Eye Width2.04 mm
Wire Thickness0.59 mm

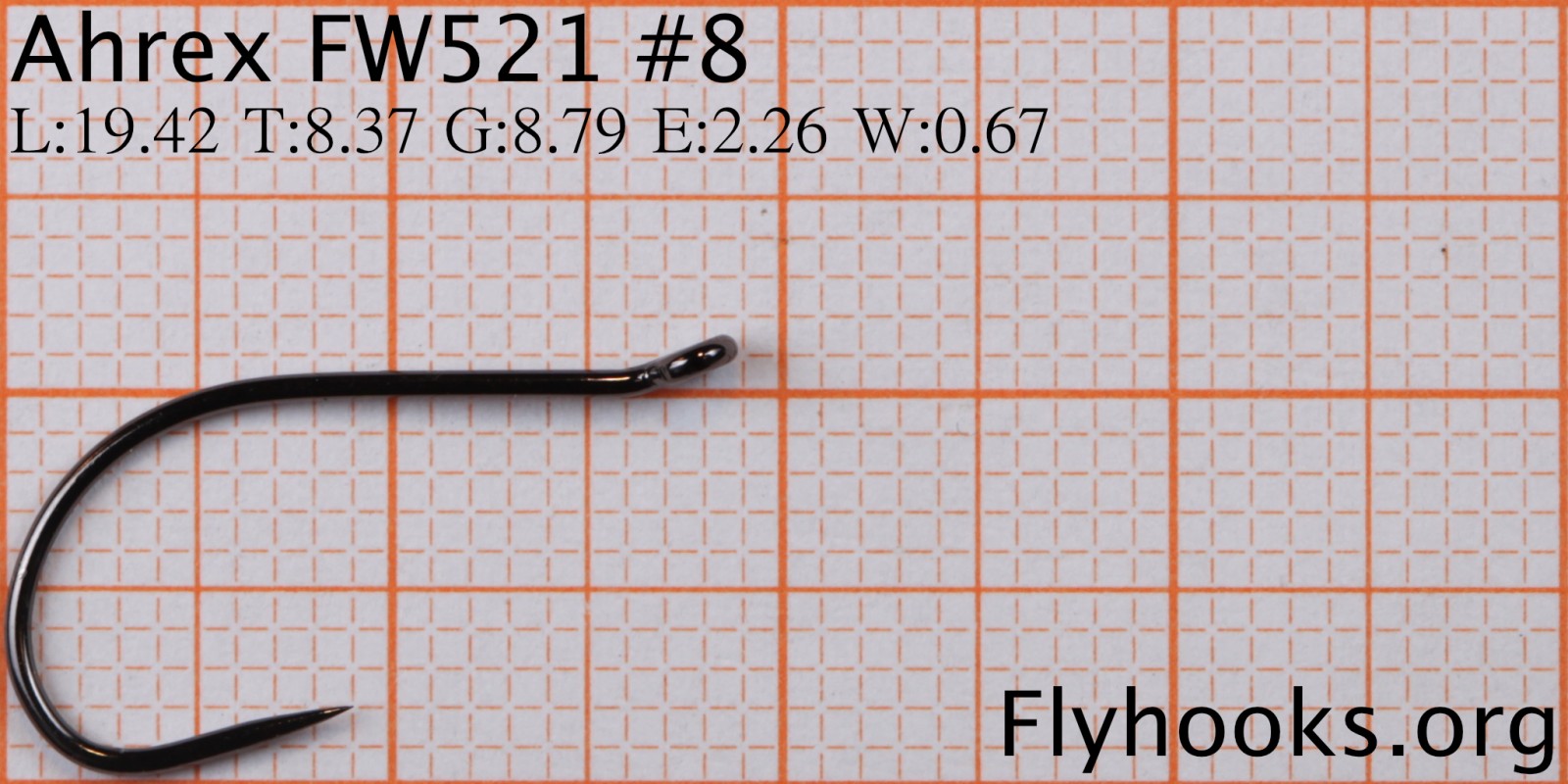

Length19.42 mm
Throat8.37 mm
Gape8.79 mm
Eye Width2.26 mm
Wire Thickness0.67 mm

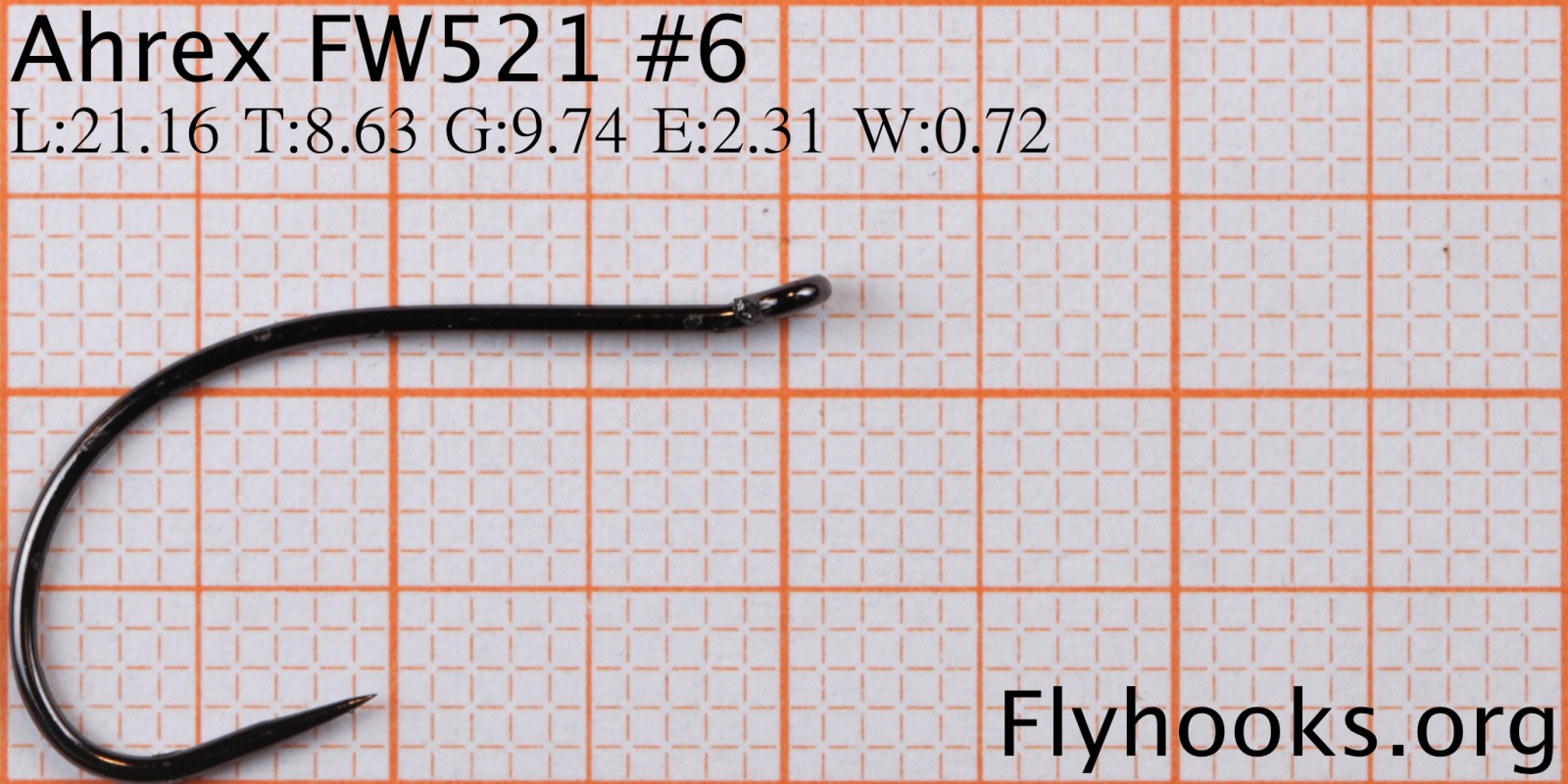

Length21.16 mm
Throat8.63 mm
Gape9.74 mm
Eye Width2.31 mm
Wire Thickness0.72 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 FW 520 - Emerger 8.90 -> 8.86   4.11 -> 4.18 3.83 -> 4.04 0.41 -> 0.41
18 Nymph 8.90 -> 9.53   4.11 -> 4.11 3.83 -> 4.37 0.41 -> 0.48
18 C 220 8.90 -> 10.23   4.11 -> 4.29 3.83 -> 4.32 0.41 -> 0.43
16 250BL 9.65 -> 9.43   4.62 -> 4.40 4.03 -> 4.51 0.45 -> 0.33
16 YK4AL 9.65 -> 9.48   4.62 -> 4.92 4.03 -> 4.38 0.45 -> 0.38
16 FW 520 - Emerger 9.65 -> 9.79   4.62 -> 4.53 4.03 -> 4.17 0.45 -> 0.45
16 H550BL 9.65 -> 9.87   4.62 -> 4.80 4.03 -> 4.47 0.45 -> 0.45
16 BL 454 9.65 -> 10.11   4.62 -> 4.52 4.03 -> 3.90 0.45 -> 0.42
16 220BL 9.65 -> 10.49   4.62 -> 4.43 4.03 -> 4.50 0.45 -> 0.38
16 HDN 302 SPR 9.65 -> 10.76   4.62 -> 4.74 4.03 -> 4.62 0.45 -> 0.32
14 TMC2487 11.28 -> 10.76   5.13 -> 5.23 4.90 -> 4.77 0.49 -> 0.55
14 1167 11.28 -> 10.86   5.13 -> 5.84 4.90 -> 5.52 0.49 -> 0.45
14 FW 520 - Emerger 11.28 -> 10.90   5.13 -> 5.26 4.90 -> 4.79 0.49 -> 0.48
14 HDG 644 11.28 -> 10.90   5.13 -> 5.34 4.90 -> 5.45 0.49 -> 0.41
14 AK539BL 11.28 -> 10.92   5.13 -> 5.05 4.90 -> 5.30 0.49 -> 0.44
14 L3A,TDH - The Dry 11.28 -> 10.97   5.13 -> 5.12 4.90 -> 5.48 0.49 -> 0.43
14 TMC206BL 11.28 -> 11.08   5.13 -> 5.19 4.90 -> 5.47 0.49 -> 0.43
14 250BL 11.28 -> 11.19   5.13 -> 5.70 4.90 -> 5.19 0.49 -> 0.37
14 HDA 254 11.28 -> 11.24   5.13 -> 5.75 4.90 -> 5.60 0.49 -> 0.37
14 BL 154 11.28 -> 11.42   5.13 -> 5.10 4.90 -> 5.21 0.49 -> 0.44
14 AK503BL 11.28 -> 11.64   5.13 -> 4.93 4.90 -> 4.74 0.49 -> 0.40
14 C 214 11.28 -> 11.69   5.13 -> 5.01 4.90 -> 5.09 0.49 -> 0.44
14 H280BL 11.28 -> 11.87   5.13 -> 5.39 4.90 -> 5.44 0.49 -> 0.54
14 H470BL 11.28 -> 11.90   5.13 -> 5.18 4.90 -> 5.03 0.49 -> 0.48
14 DGE 300 BL 11.28 -> 11.95   5.13 -> 5.51 4.90 -> 5.41 0.49 -> 0.51
14 H450BL 11.28 -> 11.99   5.13 -> 5.69 4.90 -> 5.44 0.49 -> 0.53
14 H400BL 11.28 -> 12.04   5.13 -> 5.07 4.90 -> 5.58 0.49 -> 0.50
14 Nymph 11.28 -> 12.05   5.13 -> 5.18 4.90 -> 5.31 0.49 -> 0.57
14 H550BL 11.28 -> 12.21   5.13 -> 5.45 4.90 -> 5.13 0.49 -> 0.51
14 P 11.28 -> 12.25   5.13 -> 5.00 4.90 -> 5.13 0.49 -> 0.44
14 HDJ 11.28 -> 12.42   5.13 -> 5.23 4.90 -> 5.46 0.49 -> 0.47
14 TMC100BL 11.28 -> 12.72   5.13 -> 4.92 4.90 -> 4.71 0.49 -> 0.45
12 H360BL 13.48 -> 12.83   6.27 -> 6.09 6.04 -> 6.28 0.56 -> 0.47
12 H250BL 13.48 -> 12.90   6.27 -> 6.13 6.04 -> 6.00 0.56 -> 0.62
12 FW 510 - Curved Dry 13.48 -> 12.96   6.27 -> 6.04 6.04 -> 6.87 0.56 -> 0.59
12 250BL 13.48 -> 12.97   6.27 -> 6.33 6.04 -> 6.26 0.56 -> 0.43
12 HDU 13.48 -> 13.23   6.27 -> 6.31 6.04 -> 6.62 0.56 -> 0.60
12 H480BL 13.48 -> 13.39   6.27 -> 6.00 6.04 -> 6.39 0.56 -> 0.61
12 AK751BL 13.48 -> 13.42   6.27 -> 6.80 6.04 -> 6.12 0.56 -> 0.53
12 HDJ 13.48 -> 13.68   6.27 -> 6.19 6.04 -> 6.78 0.56 -> 0.49
12 BL 454 13.48 -> 13.69   6.27 -> 6.58 6.04 -> 6.12 0.56 -> 0.52
12 H450BL 13.48 -> 13.70   6.27 -> 7.01 6.04 -> 6.24 0.56 -> 0.62
12 Br 2140 13.48 -> 13.79   6.27 -> 6.18 6.04 -> 5.97 0.56 -> 0.51
12 H490BL 13.48 -> 13.83   6.27 -> 6.75 6.04 -> 6.39 0.56 -> 0.69
12 FW 520 - Emerger 13.48 -> 13.96   6.27 -> 6.41 6.04 -> 6.26 0.56 -> 0.56
12 H230BL 13.48 -> 14.01   6.27 -> 5.97 6.04 -> 5.99 0.56 -> 0.56
12 G 13.48 -> 14.22   6.27 -> 6.34 6.04 -> 6.67 0.56 -> 0.53
12 H280BL 13.48 -> 14.23   6.27 -> 6.27 6.04 -> 6.15 0.56 -> 0.55
12 H550BL 13.48 -> 14.26   6.27 -> 6.63 6.04 -> 6.61 0.56 -> 0.55
10 14723 BL 15.62 -> 15.27   7.42 -> 7.26 6.51 -> 7.44 0.59 -> 0.55
10 AK751BL 15.62 -> 15.41   7.42 -> 7.45 6.51 -> 6.94 0.59 -> 0.59
10 H360BL 15.62 -> 15.57   7.42 -> 7.15 6.51 -> 7.18 0.59 -> 0.55
10 FW 520 - Emerger 15.62 -> 15.62   7.42 -> 7.64 6.51 -> 6.76 0.59 -> 0.57
10 H480BL 15.62 -> 15.77   7.42 -> 7.20 6.51 -> 6.79 0.59 -> 0.66
10 HDG 611 15.62 -> 15.88   7.42 -> 7.85 6.51 -> 7.40 0.59 -> 0.62
10 H450BL 15.62 -> 15.96   7.42 -> 7.95 6.51 -> 7.12 0.59 -> 0.68
10 H490BL 15.62 -> 16.05   7.42 -> 7.48 6.51 -> 7.34 0.59 -> 0.71
10 G 15.62 -> 16.98   7.42 -> 8.11 6.51 -> 7.38 0.59 -> 0.58
8 G 19.42 -> 18.46   8.79 -> 8.95 8.37 -> 8.10 0.67 -> 0.65
8 FW 541 19.42 -> 18.74   8.79 -> 8.84 8.37 -> 8.92 0.67 -> 0.77
8 FW 540 - Curved Nymph 19.42 -> 18.93   8.79 -> 8.98 8.37 -> 8.86 0.67 -> 0.77
8 FW 520 - Emerger 19.42 -> 19.28   8.79 -> 9.15 8.37 -> 8.20 0.67 -> 0.68
6 FW 520 - Emerger 21.16 -> 21.02   9.74 -> 9.74 8.63 -> 8.63 0.72 -> 0.72
6 FW 540 - Curved Nymph 21.16 -> 21.48   9.74 -> 10.12 8.63 -> 9.73 0.72 -> 0.90
6 M2050 21.16 -> 23.41   9.74 -> 10.27 8.63 -> 9.65 0.72 -> 0.97
6 NS122 - Light Stinger 21.16 -> 24.31   9.74 -> 11.02 8.63 -> 8.79 0.72 -> 0.79
