Hanak: H480BL

Company Hanak
Type Single
Strength Medium wire
Gape Wide
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Black Nickel
Usages Wet
Streamer
Nymph
Trout
Grayling
Freshwater
Jig
Sizes 20 18 16 14 12 10 8 6

Sizes

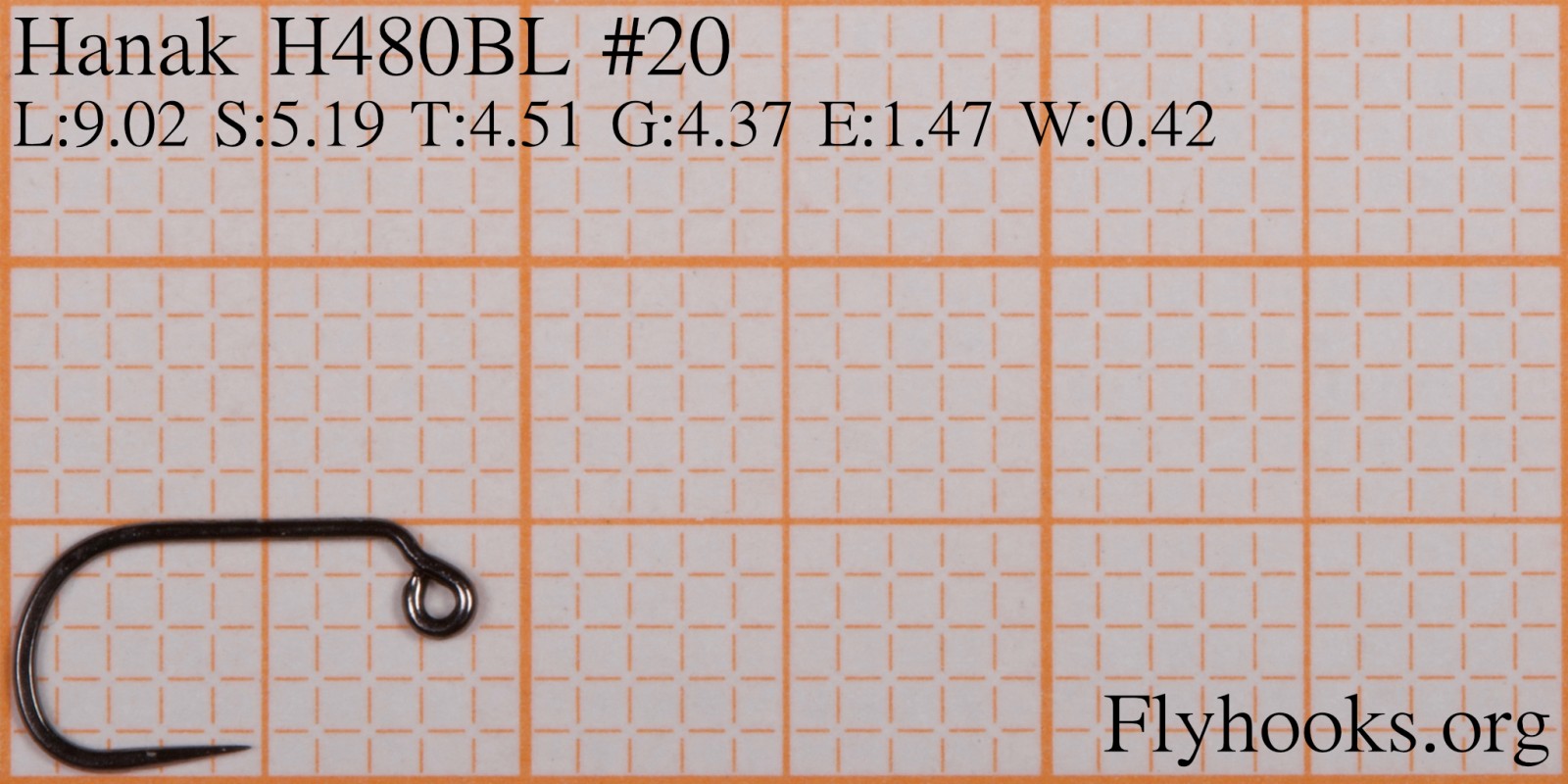

Length9.02 mm
Shank Length5.19 mm
Throat4.51 mm
Gape4.37 mm
Eye Width1.47 mm
Wire Thickness0.42 mm

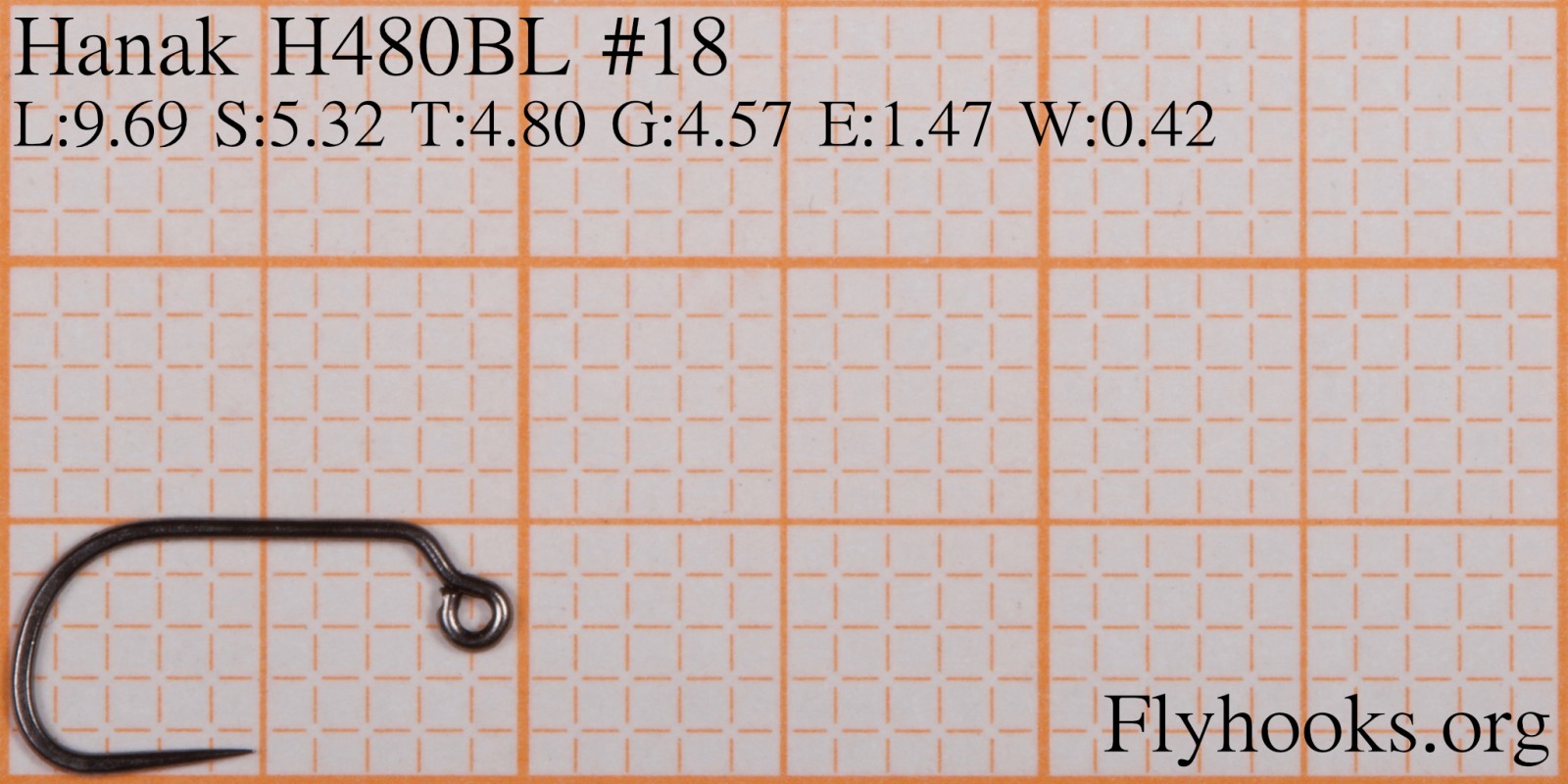

Length9.69 mm
Shank Length5.32 mm
Throat4.80 mm
Gape4.57 mm
Eye Width1.47 mm
Wire Thickness0.42 mm

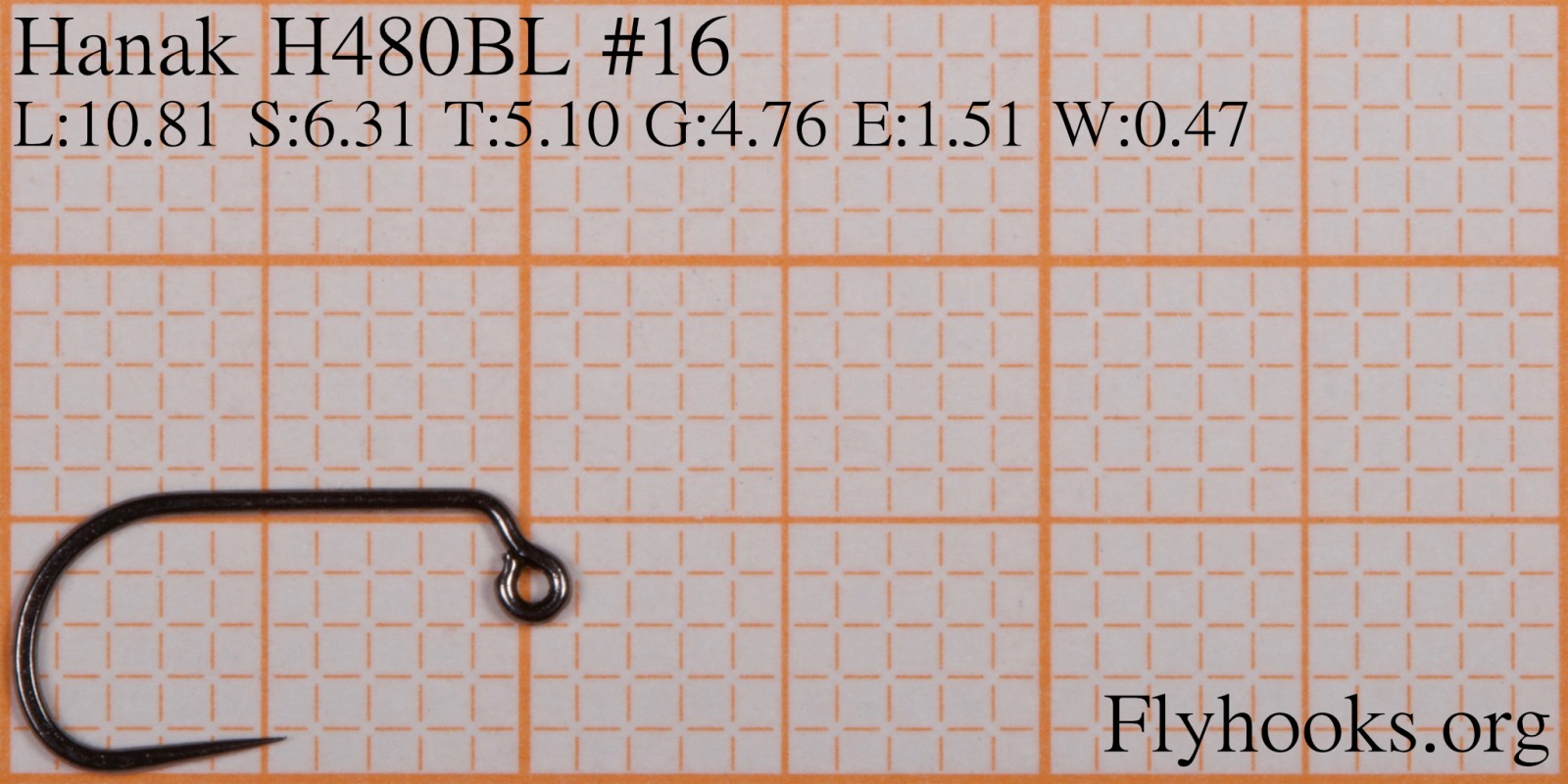

Length10.81 mm
Shank Length6.31 mm
Throat5.10 mm
Gape4.76 mm
Eye Width1.51 mm
Wire Thickness0.47 mm

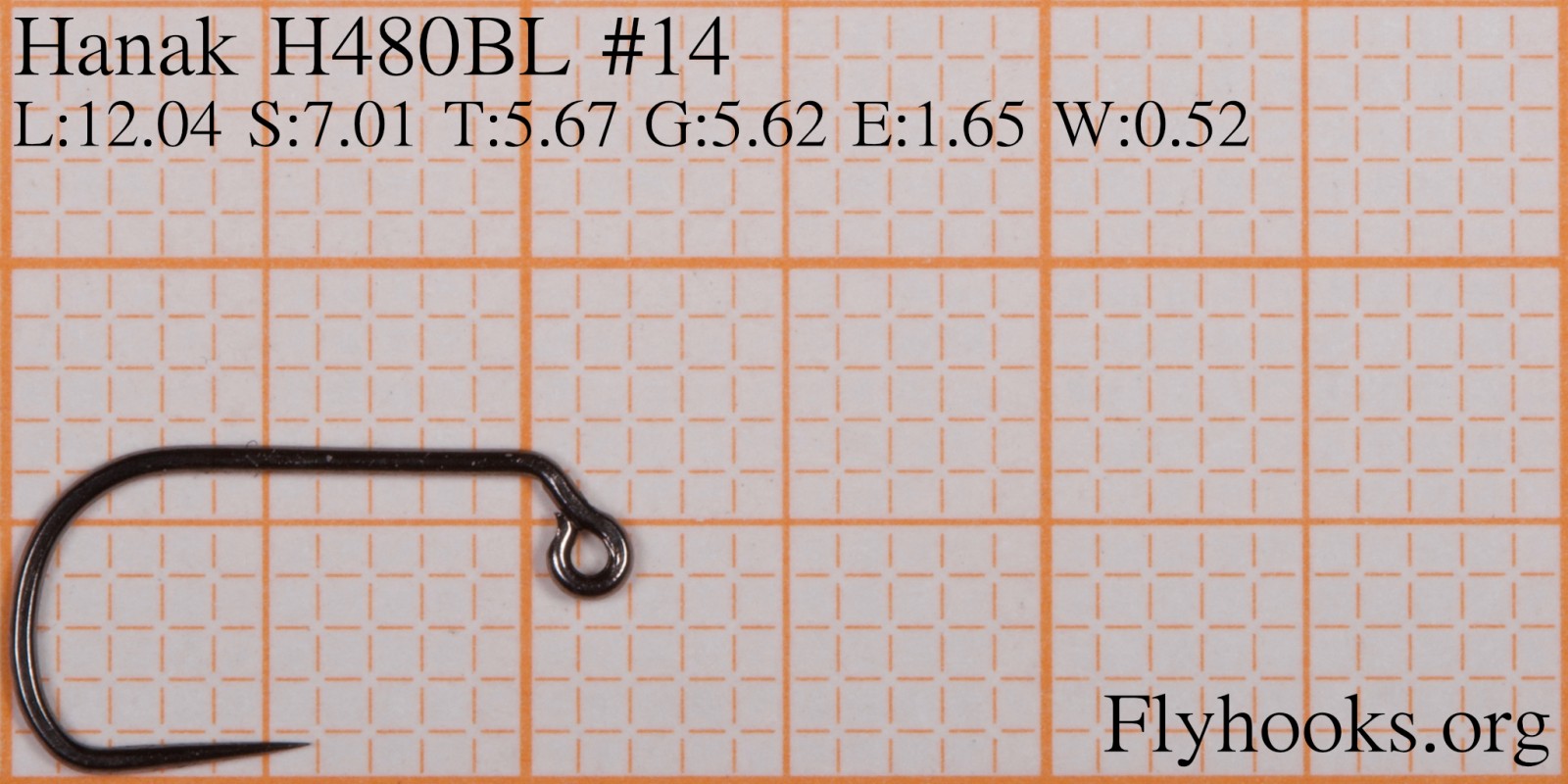

Length12.04 mm
Shank Length7.01 mm
Throat5.67 mm
Gape5.62 mm
Eye Width1.65 mm
Wire Thickness0.52 mm

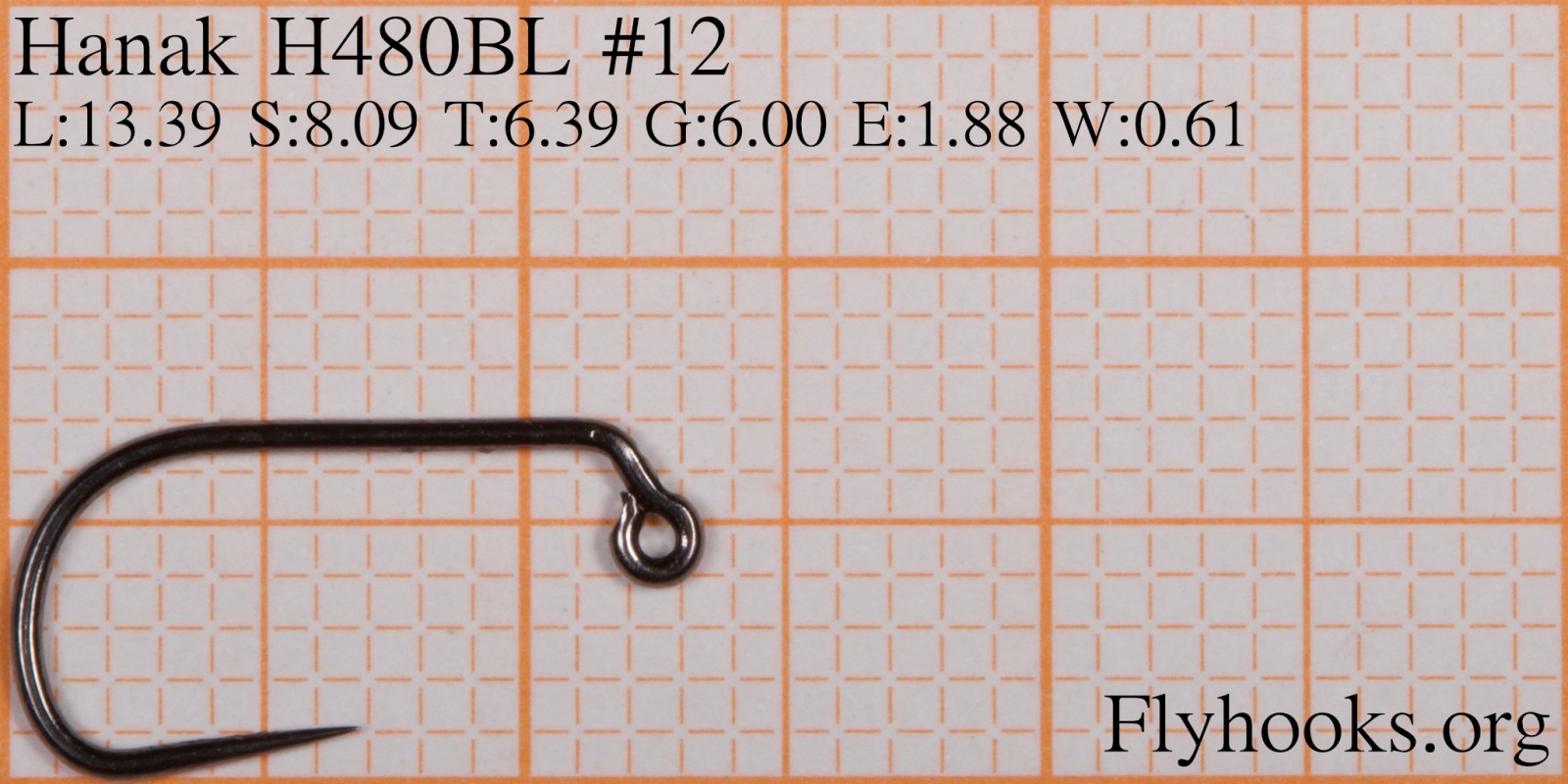

Length13.39 mm
Shank Length8.09 mm
Throat6.39 mm
Gape6.00 mm
Eye Width1.88 mm
Wire Thickness0.61 mm

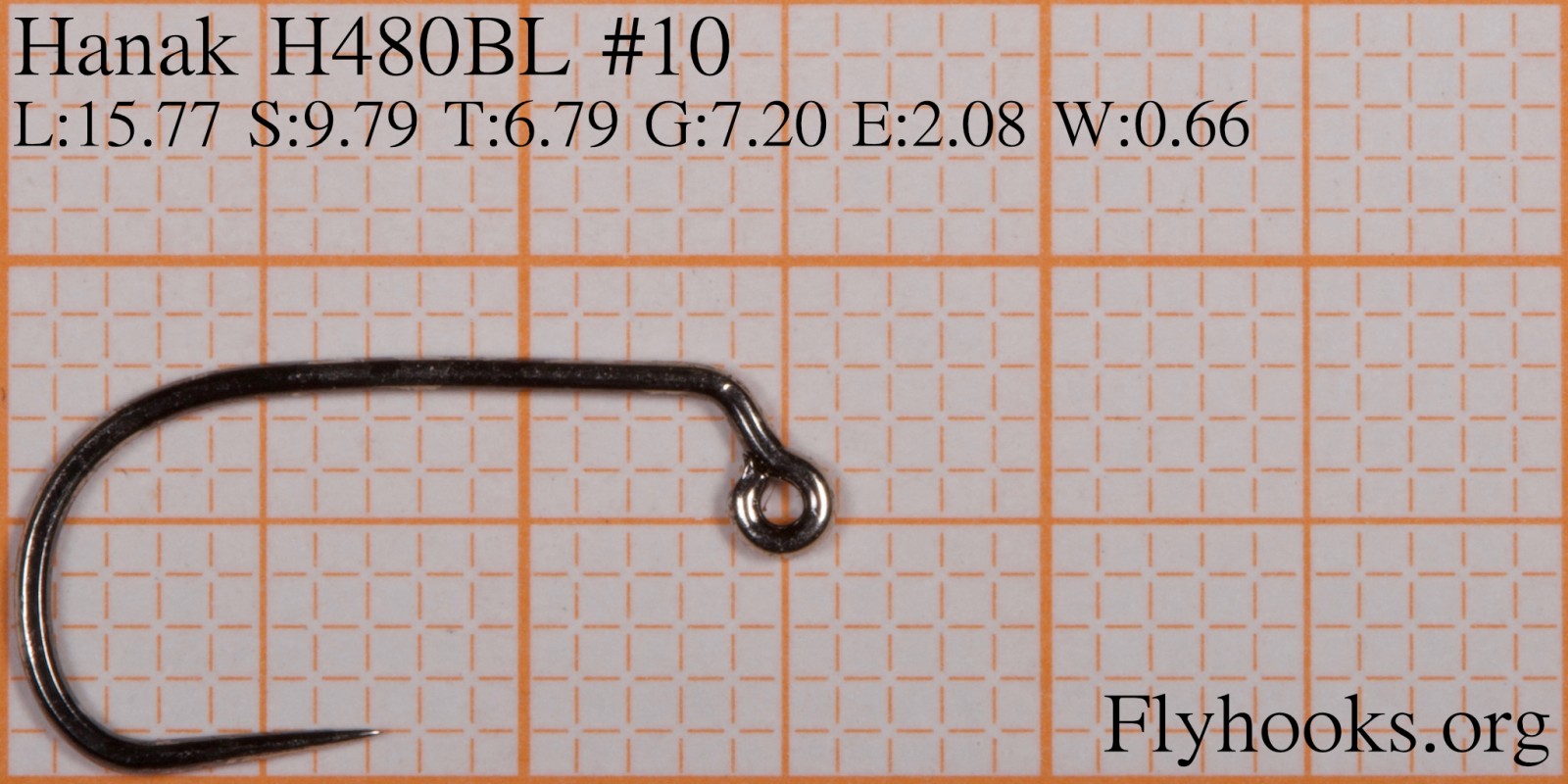

Length15.77 mm
Shank Length9.79 mm
Throat6.79 mm
Gape7.20 mm
Eye Width2.08 mm
Wire Thickness0.66 mm

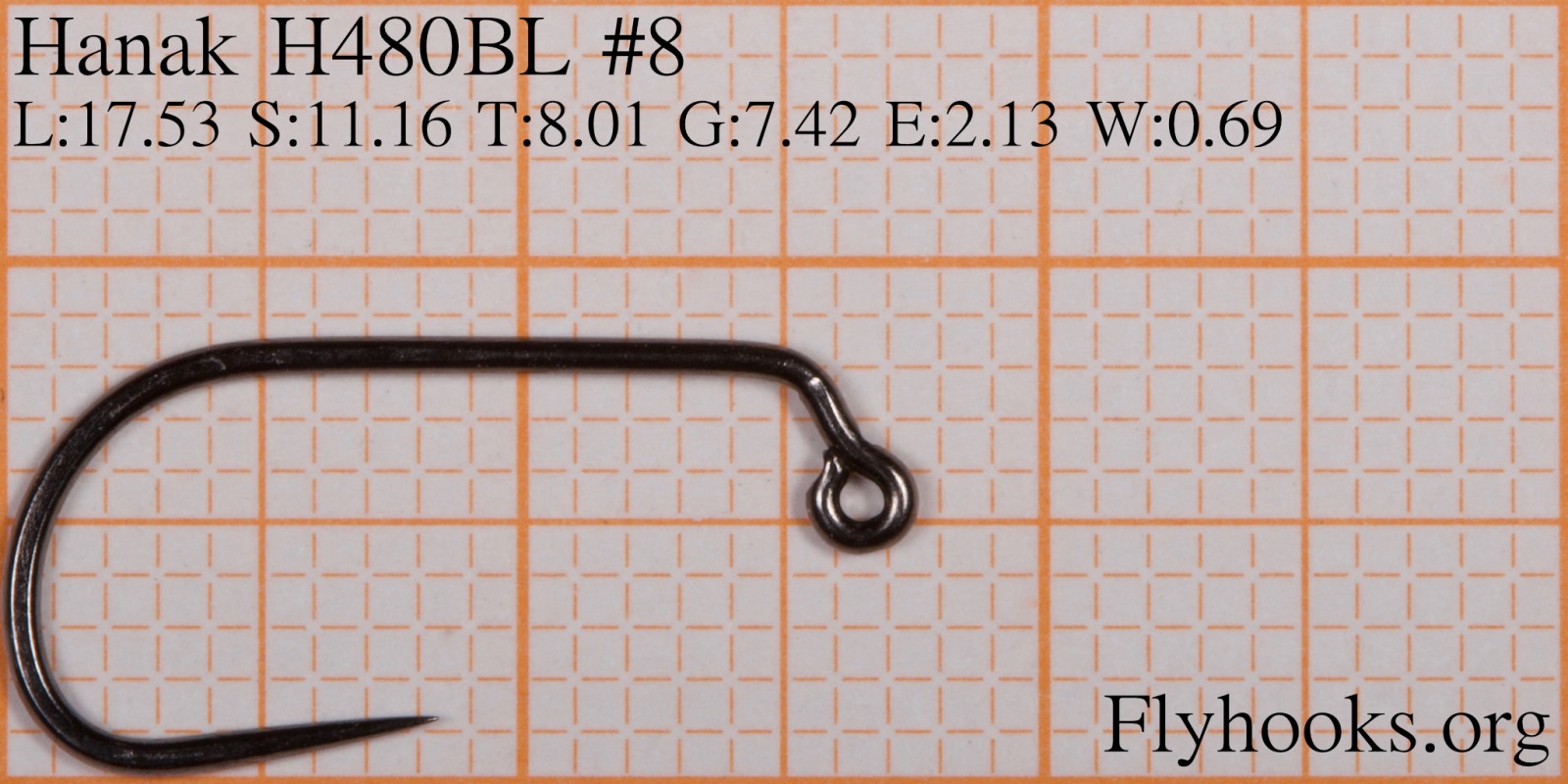

Length17.53 mm
Shank Length11.16 mm
Throat8.01 mm
Gape7.42 mm
Eye Width2.13 mm
Wire Thickness0.69 mm

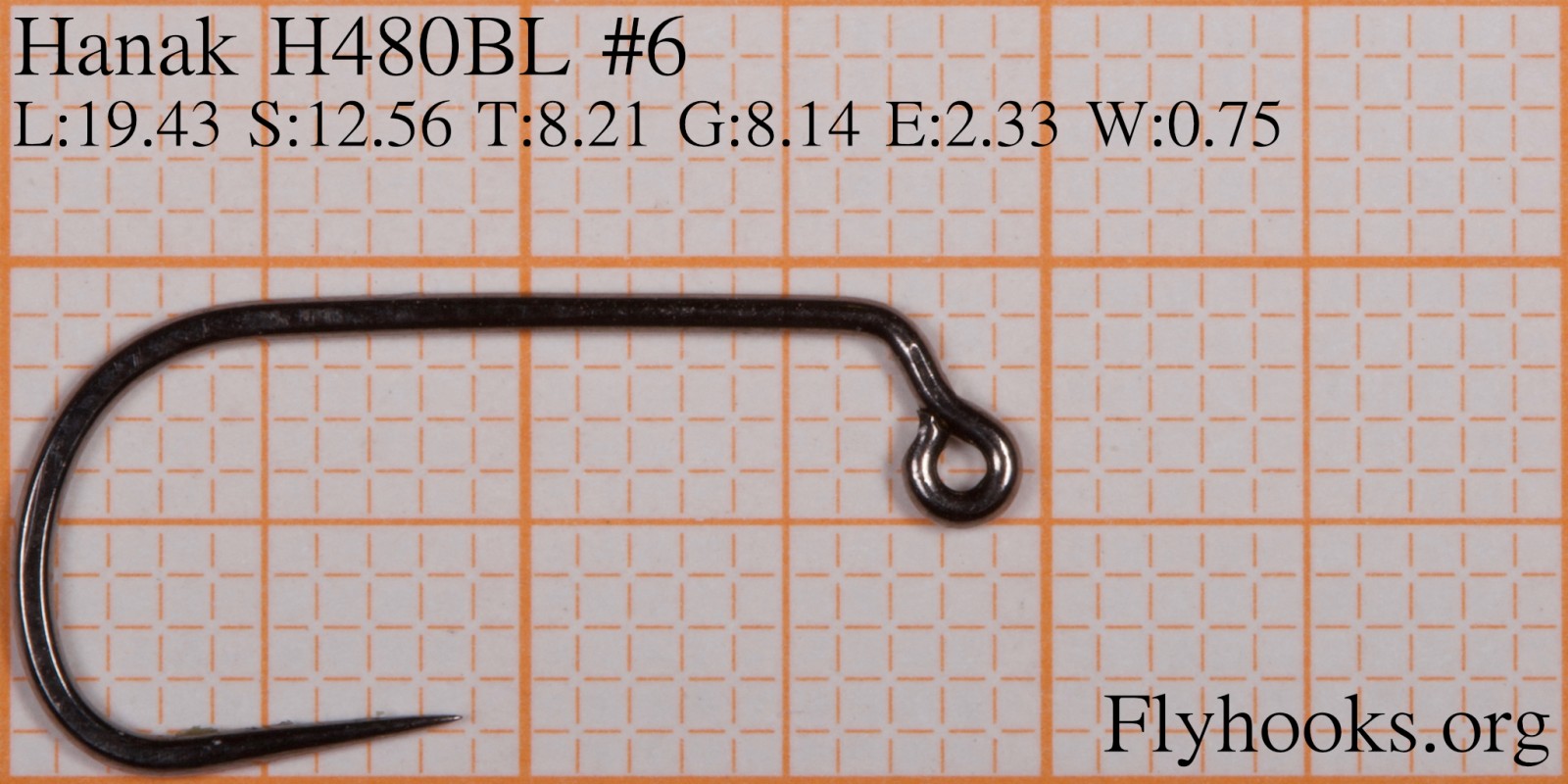

Length19.43 mm
Shank Length12.56 mm
Throat8.21 mm
Gape8.14 mm
Eye Width2.33 mm
Wire Thickness0.75 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
18 H250BL 9.69 -> 9.83 5.32 -> 6.04 4.57 -> 4.57 4.80 -> 4.63 0.42 -> 0.47
16 H490BL 10.81 -> 10.73 6.31 -> 6.86 4.76 -> 5.28 5.10 -> 5.55 0.47 -> 0.57
16 H250BL 10.81 -> 10.74 6.31 -> 6.77 4.76 -> 5.08 5.10 -> 5.67 0.47 -> 0.53
16 HDJ 10.81 -> 11.61 6.31 -> 6.62 4.76 -> 4.88 5.10 -> 5.22 0.47 -> 0.41
14 H250BL 12.04 -> 11.66 7.01 -> 6.80 5.62 -> 5.80 5.67 -> 6.00 0.52 -> 0.56
14 H280BL 12.04 -> 11.87 7.01 -> 7.50 5.62 -> 5.39 5.67 -> 5.44 0.52 -> 0.54
14 H450BL 12.04 -> 11.99 7.01 -> 6.69 5.62 -> 5.69 5.67 -> 5.44 0.52 -> 0.53
14 H490BL 12.04 -> 12.24 7.01 -> 7.27 5.62 -> 6.13 5.67 -> 5.82 0.52 -> 0.57
14 220BL 12.04 -> 12.88 7.01 -> 7.57 5.62 -> 5.34 5.67 -> 5.82 0.52 -> 0.52
14 HDN 302 SP 12.04 -> 13.15 7.01 -> 7.09 5.62 -> 5.35 5.67 -> 5.93 0.52 -> 0.52
14 GHH Gold Headed 12.04 -> 13.37 7.01 -> 6.80 5.62 -> 5.92 5.67 -> 6.39 0.52 -> 0.54
12 R90 13.39 -> 13.43 8.09 -> 8.14 6.00 -> 5.88 6.39 -> 6.57 0.61 -> 0.68
12 HDN 302 13.39 -> 13.44 8.09 -> 8.02 6.00 -> 5.82 6.39 -> 6.19 0.61 -> 0.52
12 H470BL 13.39 -> 13.67 8.09 -> 8.10 6.00 -> 5.80 6.39 -> 6.37 0.61 -> 0.60
12 BL 454 13.39 -> 13.69 8.09 -> 8.66 6.00 -> 6.58 6.39 -> 6.12 0.61 -> 0.52
12 H490BL 13.39 -> 13.83 8.09 -> 8.21 6.00 -> 6.75 6.39 -> 6.39 0.61 -> 0.69
12 HDN 302 SP 13.39 -> 13.87 8.09 -> 7.82 6.00 -> 5.86 6.39 -> 6.37 0.61 -> 0.59
12 H400BL 13.39 -> 14.16 8.09 -> 8.47 6.00 -> 5.87 6.39 -> 6.20 0.61 -> 0.64
12 H280BL 13.39 -> 14.23 8.09 -> 8.97 6.00 -> 6.27 6.39 -> 6.15 0.61 -> 0.55
12 HDW 13.39 -> 14.61 8.09 -> 8.80 6.00 -> 6.08 6.39 -> 7.14 0.61 -> 0.62
10 H280BL 15.77 -> 15.92 9.79 -> 9.70 7.20 -> 7.00 6.79 -> 6.91 0.66 -> 0.59
10 H450BL 15.77 -> 15.96 9.79 -> 9.33 7.20 -> 7.95 6.79 -> 7.12 0.66 -> 0.68
10 H490BL 15.77 -> 16.05 9.79 -> 9.61 7.20 -> 7.48 6.79 -> 7.34 0.66 -> 0.71
8 540 17.53 -> 17.56 11.16 -> 10.93 7.42 -> 7.06 8.01 -> 7.93 0.69 -> 0.73
8 H200BL 17.53 -> 18.00 11.16 -> 11.92 7.42 -> 7.34 8.01 -> 8.39 0.69 -> 0.73
8 H280BL 17.53 -> 18.07 11.16 -> 11.15 7.42 -> 7.94 8.01 -> 8.06 0.69 -> 0.72
8 Br 2200 17.53 -> 18.14 11.16 -> 10.98 7.42 -> 7.46 8.01 -> 8.46 0.69 -> 0.64
8 R90 17.53 -> 18.69 11.16 -> 11.23 7.42 -> 7.87 8.01 -> 8.30 0.69 -> 0.83
8 G3A/L - Wet Heavy Supreme 17.53 -> 18.82 11.16 -> 11.73 7.42 -> 7.83 8.01 -> 7.80 0.69 -> 0.83
8 AK482 BL 17.53 -> 19.15 11.16 -> 12.44 7.42 -> 7.37 8.01 -> 7.86 0.69 -> 0.71
8 FW 581 17.53 -> 20.03 11.16 -> 11.15 7.42 -> 7.99 8.01 -> 7.97 0.69 -> 0.75
6 D.E. Trout 19.43 -> 19.10 12.56 -> 13.25 8.14 -> 8.69 8.21 -> 8.26 0.75 -> 0.71
6 3411 A 19.43 -> 19.64 12.56 -> 13.47 8.14 -> 8.26 8.21 -> 8.00 0.75 -> 0.89
6 TMC3769 19.43 -> 20.38 12.56 -> 13.58 8.14 -> 7.90 8.21 -> 8.34 0.75 -> 0.82
6 540 19.43 -> 20.48 12.56 -> 13.40 8.14 -> 8.18 8.21 -> 8.28 0.75 -> 0.79
6 3906 19.43 -> 20.59 12.56 -> 12.37 8.14 -> 8.68 8.21 -> 9.33 0.75 -> 0.80
6 AK881 19.43 -> 20.78 12.56 -> 13.64 8.14 -> 8.43 8.21 -> 8.75 0.75 -> 0.90
6 B175 Sproat 19.43 -> 21.06 12.56 -> 13.03 8.14 -> 7.79 8.21 -> 8.29 0.75 -> 0.91
6 Saltwater 19.43 -> 21.09 12.56 -> 12.11 8.14 -> 8.15 8.21 -> 9.11 0.75 -> 0.86
6 SS-1930 19.43 -> 21.17 12.56 -> 12.59 8.14 -> 8.54 8.21 -> 8.72 0.75 -> 0.80
6 3435 19.43 -> 21.28 12.56 -> 14.10 8.14 -> 7.99 8.21 -> 8.11 0.75 -> 0.71
6 R70 19.43 -> 21.45 12.56 -> 13.31 8.14 -> 8.74 8.21 -> 8.99 0.75 -> 0.86
6 C70SNP-DT 19.43 -> 21.61 12.56 -> 12.40 8.14 -> 8.72 8.21 -> 8.82 0.75 -> 0.87
6 SW002 19.43 -> 21.75 12.56 -> 12.37 8.14 -> 8.99 8.21 -> 8.76 0.75 -> 0.83
