Tiemco: TMC112TR

Company Tiemco
www www.tiemco.co.jp
Type Single
Size 2.5xs
Strength 1xf
Gape 2xw
Eye Position Turned down
Shank Style Straigth
Barb Barbless
Color Bronze
Usages Dry
Sizes 19 17 15 13 11 9 7

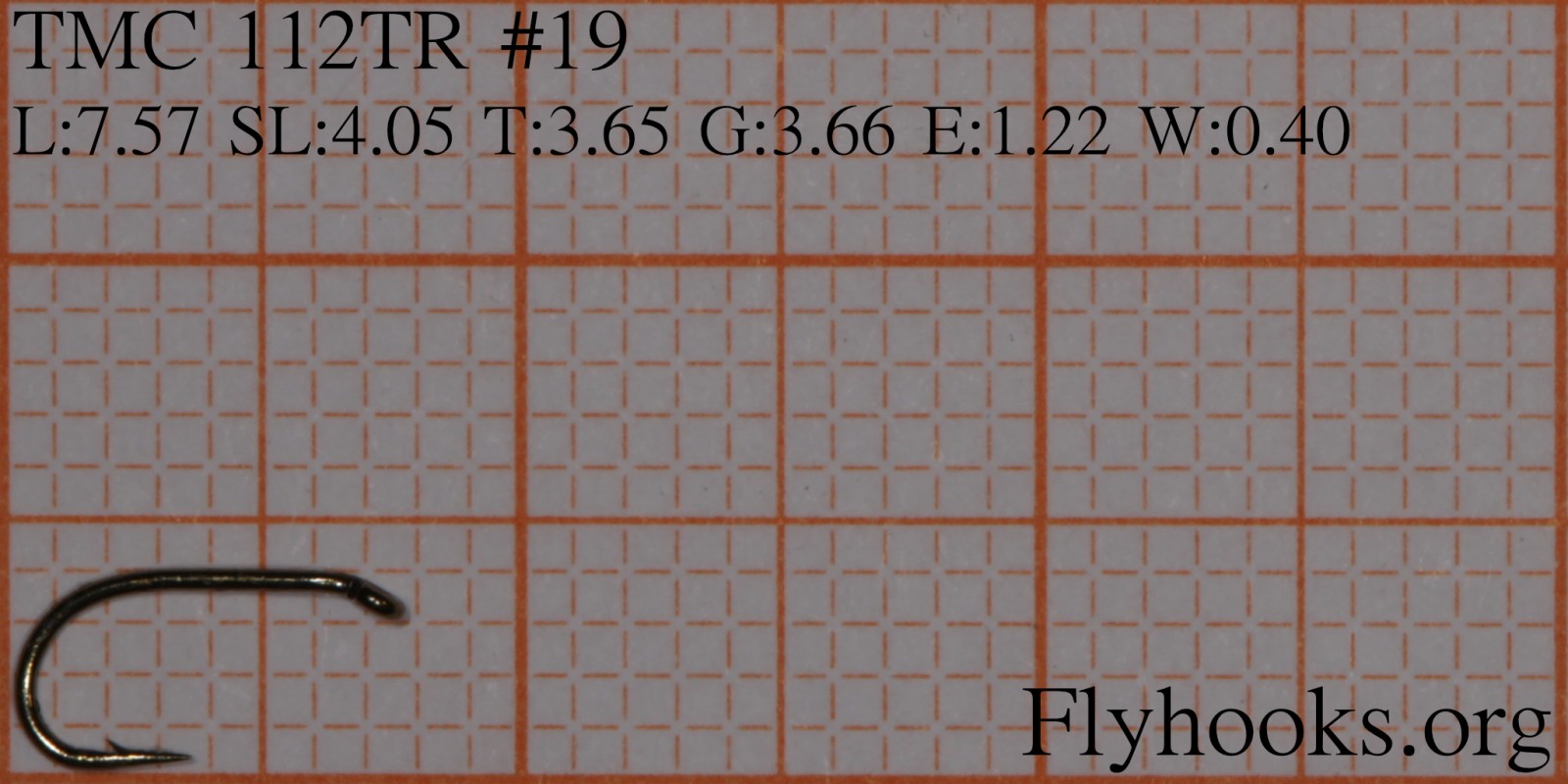

Length7.57 mm
Shank Length4.05 mm
Throat3.65 mm
Gape3.66 mm
Eye Width1.22 mm
Wire Thickness0.40 mm
Length10.16 mm
Shank Length6.06 mm
Throat4.42 mm
Gape4.58 mm
Eye Width1.40 mm
Wire Thickness0.04 mm

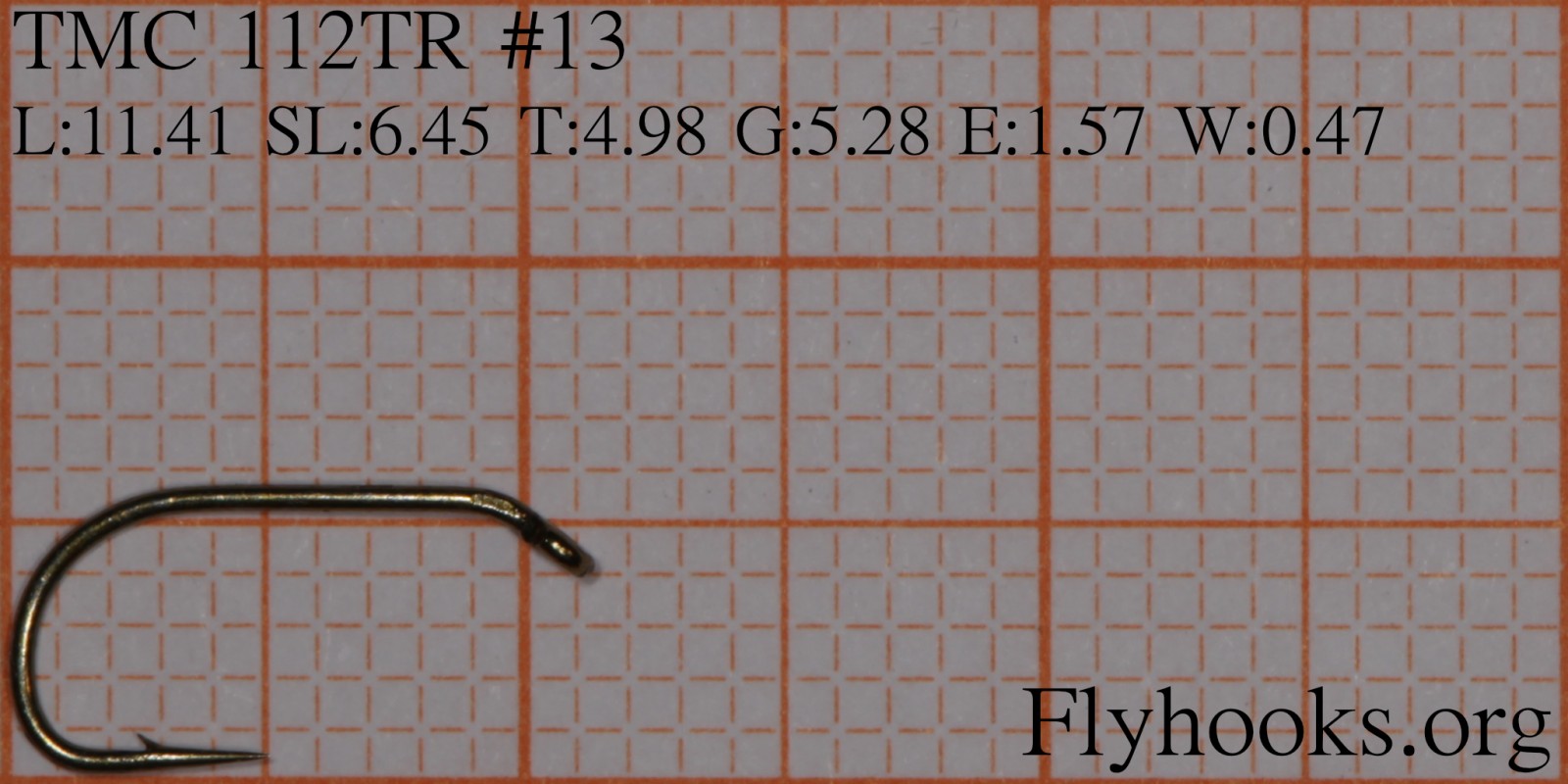

Length11.41 mm
Shank Length6.45 mm
Throat4.98 mm
Gape5.28 mm
Eye Width1.57 mm
Wire Thickness0.47 mm

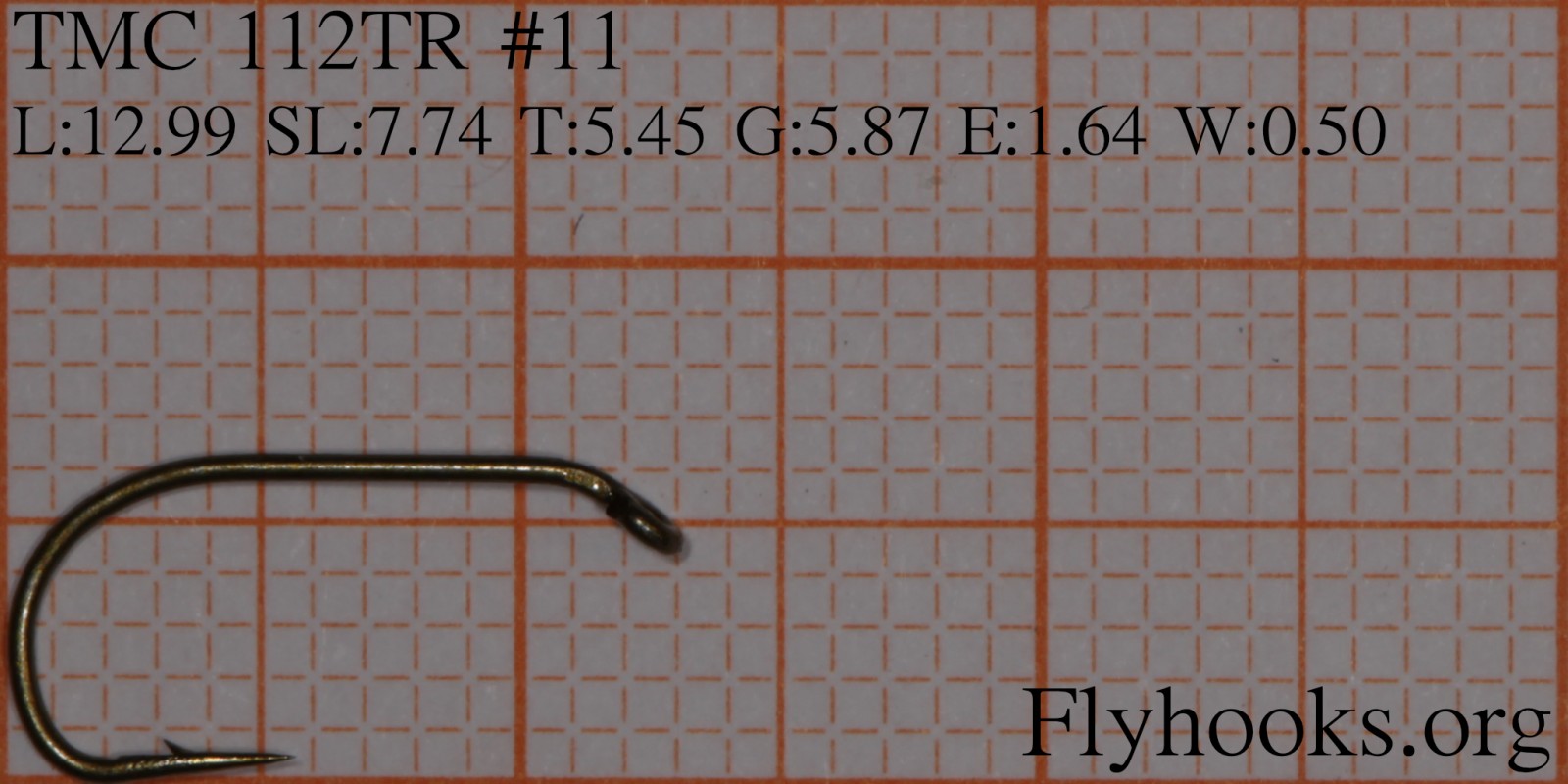

Length12.99 mm
Shank Length7.74 mm
Throat5.45 mm
Gape5.87 mm
Eye Width1.64 mm
Wire Thickness0.50 mm

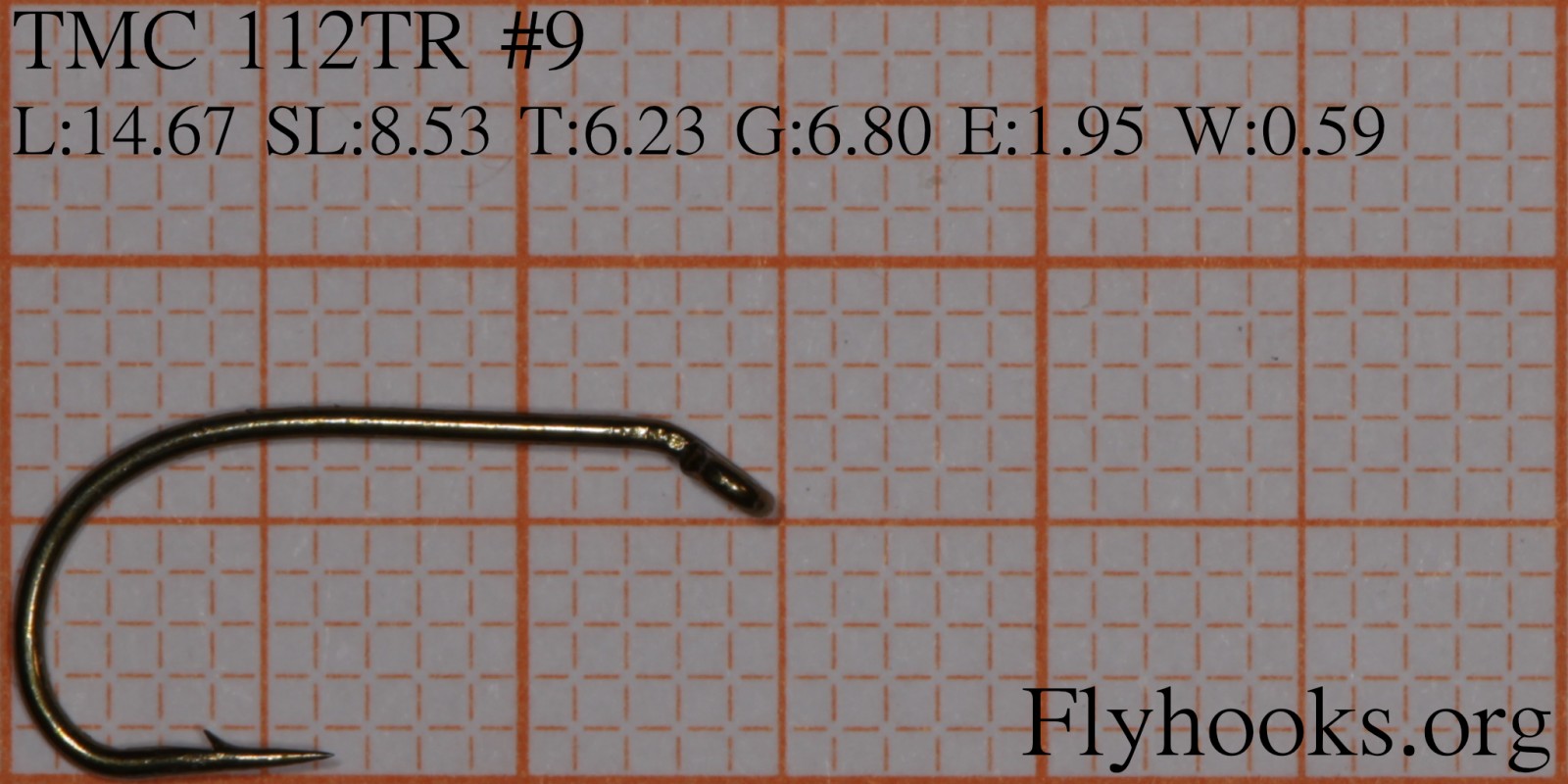

Length14.67 mm
Shank Length8.53 mm
Throat6.23 mm
Gape6.80 mm
Eye Width1.95 mm
Wire Thickness0.59 mm

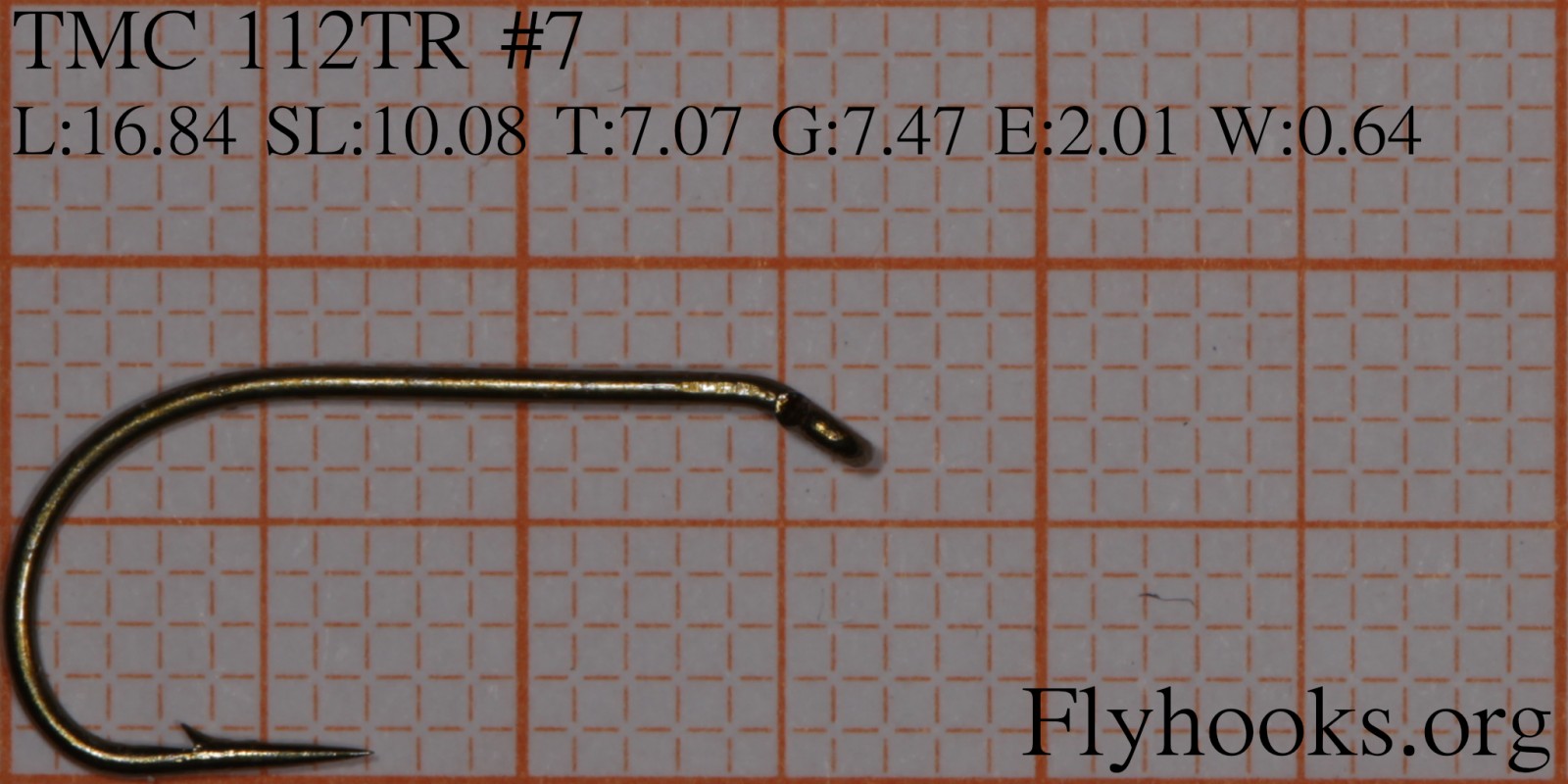

Length16.84 mm
Shank Length10.08 mm
Throat7.07 mm
Gape7.47 mm
Eye Width2.01 mm
Wire Thickness0.64 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
15 TMC112Y 10.16 -> 9.89 6.06 -> 5.85 4.58 -> 4.55 4.42 -> 4.40 0.04 -> 0.37
11 TMC112Y 12.99 -> 12.90 7.74 -> 8.46 5.87 -> 5.58 5.45 -> 5.32 0.50 -> 0.40
