Tiemco: TMC811S

Company	Tiemco
www	www.tiemco.co.jp
Type	Single
Strength	Heavy wire
Eye Position	Parallell
Shank Style	Straigth
Barb	Barb
Color	Stainless Steel
Usages	Saltwater Predator Seabass Bonefish Permit
Sizes	8 6 4 2 1/0 2/0 3/0

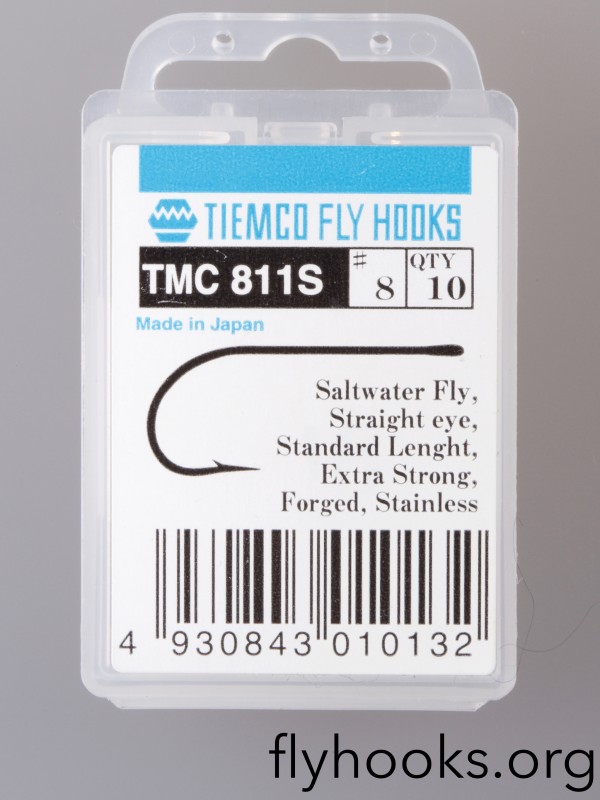

Boxes

Sizes

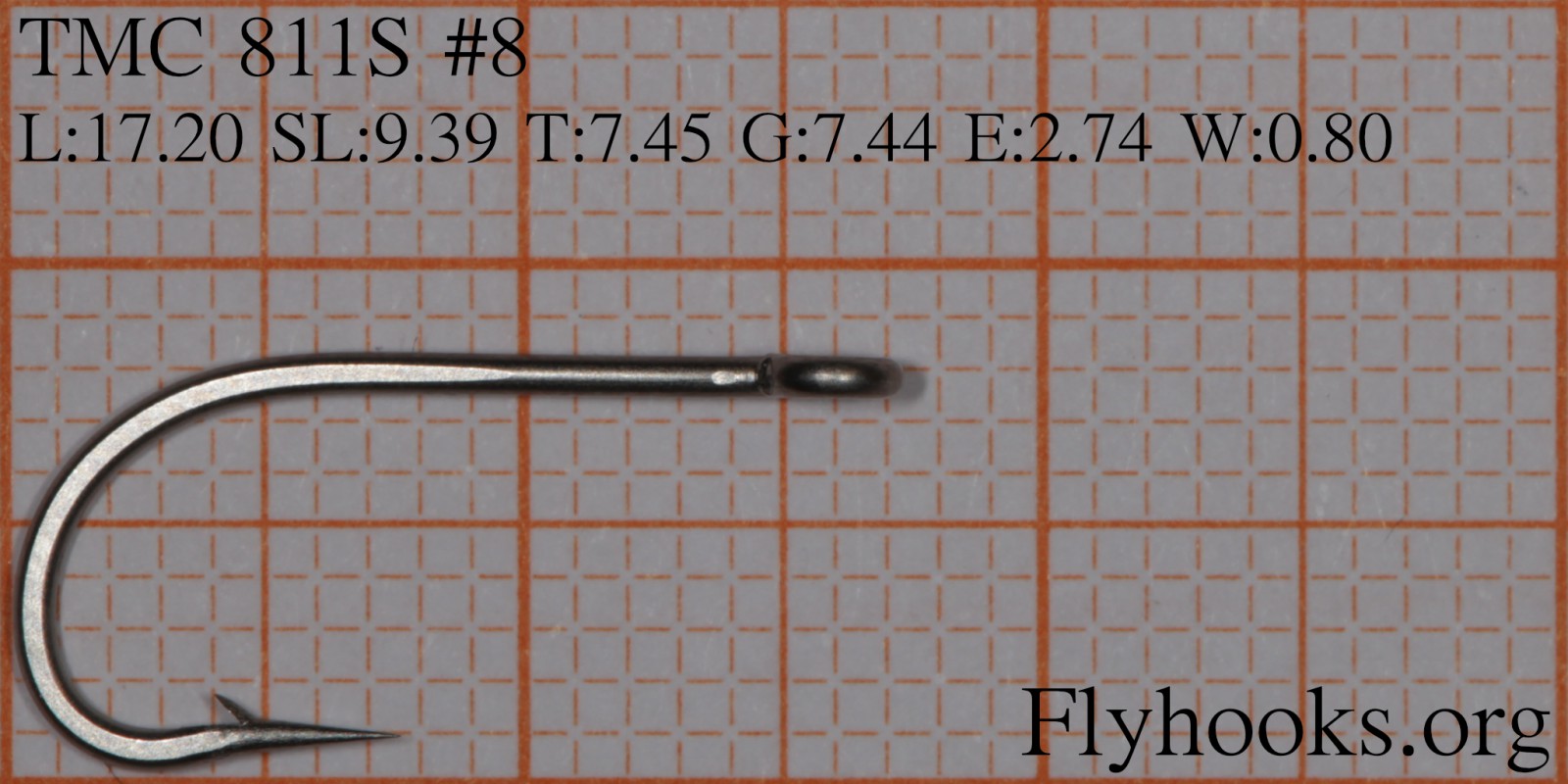

Length	17.20 mm
Shank Length	9.39 mm
Throat	7.45 mm
Gape	7.44 mm
Eye Width	2.74 mm
Wire Thickness	0.80 mm

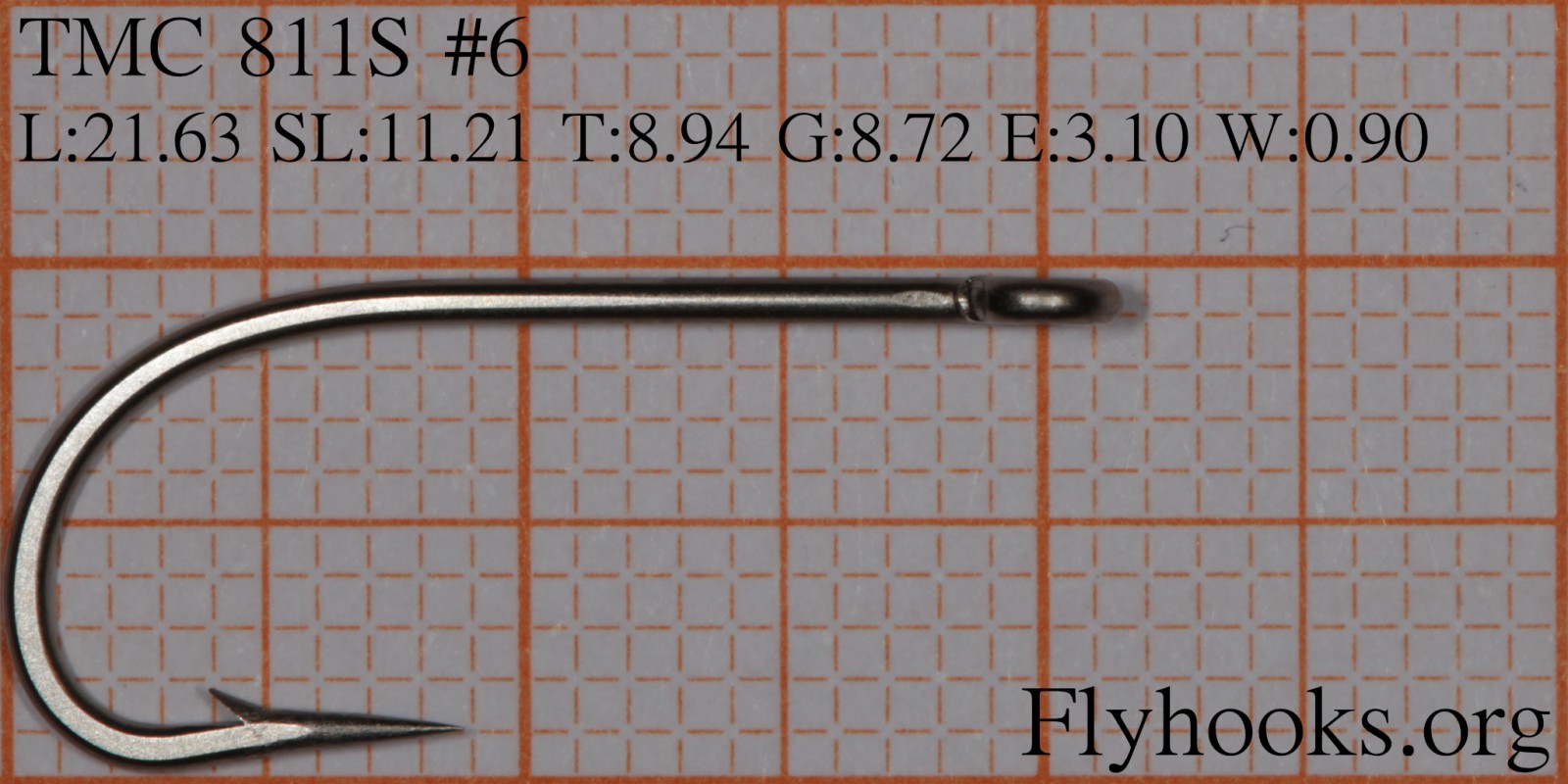

Length	21.63 mm
Shank Length	11.21 mm
Throat	8.94 mm
Gape	8.72 mm
Eye Width	3.10 mm
Wire Thickness	0.90 mm

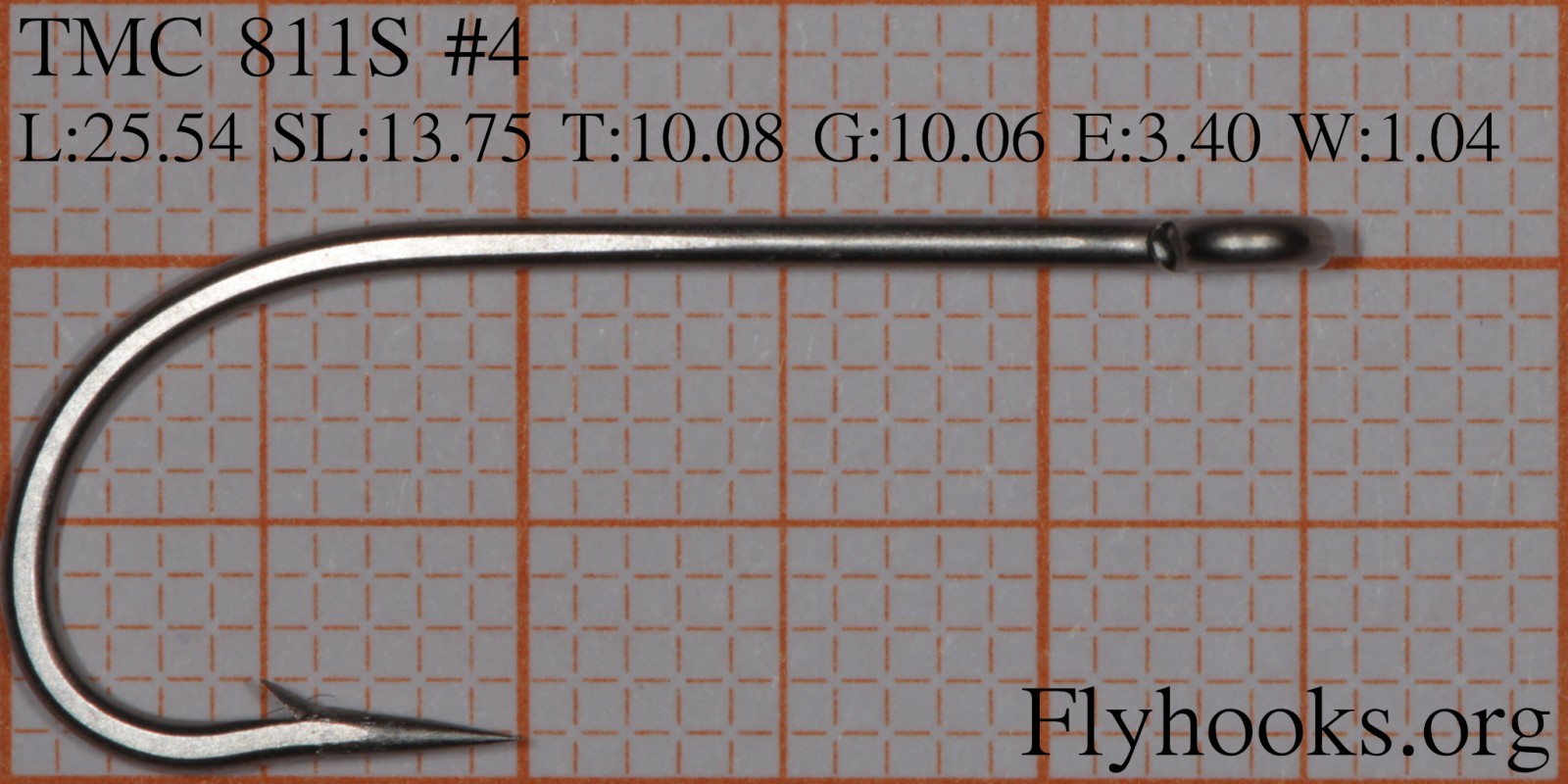

Length	25.54 mm
Shank Length	13.75 mm
Throat	10.08 mm
Gape	10.06 mm
Eye Width	3.40 mm
Wire Thickness	1.04 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size	Hook	Length	Shank Length	Gape	Throat	Wire
8	C 214	17.20 -> 16.56	9.39 -> 10.34	7.44 -> 7.11	7.45 -> 7.23	0.80 -> 0.57
8	HDJ	17.20 -> 16.90	9.39 -> 9.40	7.44 -> 7.21	7.45 -> 7.95	0.80 -> 0.73
8	H400BL	17.20 -> 17.88	9.39 -> 10.59	7.44 -> 7.40	7.45 -> 7.75	0.80 -> 0.72
8	Saltwater	17.20 -> 17.98	9.39 -> 10.38	7.44 -> 7.19	7.45 -> 7.99	0.80 -> 0.82
8	C 220	17.20 -> 18.04	9.39 -> 10.31	7.44 -> 7.22	7.45 -> 7.69	0.80 -> 0.64
6	3906	21.63 -> 20.59	11.21 -> 12.37	8.72 -> 8.68	8.94 -> 9.33	0.90 -> 0.80
6	SS-1930	21.63 -> 21.17	11.21 -> 12.59	8.72 -> 8.54	8.94 -> 8.72	0.90 -> 0.80
6	C70SNP-DT	21.63 -> 21.61	11.21 -> 12.40	8.72 -> 8.72	8.94 -> 8.82	0.90 -> 0.87
6	SW002	21.63 -> 21.75	11.21 -> 12.37	8.72 -> 8.99	8.94 -> 8.76	0.90 -> 0.83
4	R90	25.54 -> 24.50	13.75 -> 15.06	10.06 -> 10.07	10.08 -> 10.78	1.04 -> 1.10
4	M2030	25.54 -> 24.57	13.75 -> 13.51	10.06 -> 10.96	10.08 -> 10.77	1.04 -> 1.01
4	C70SNP-DT	25.54 -> 24.88	13.75 -> 14.42	10.06 -> 10.19	10.08 -> 10.15	1.04 -> 0.98
4	M2050	25.54 -> 25.51	13.75 -> 14.16	10.06 -> 11.30	10.08 -> 11.09	1.04 -> 1.02
