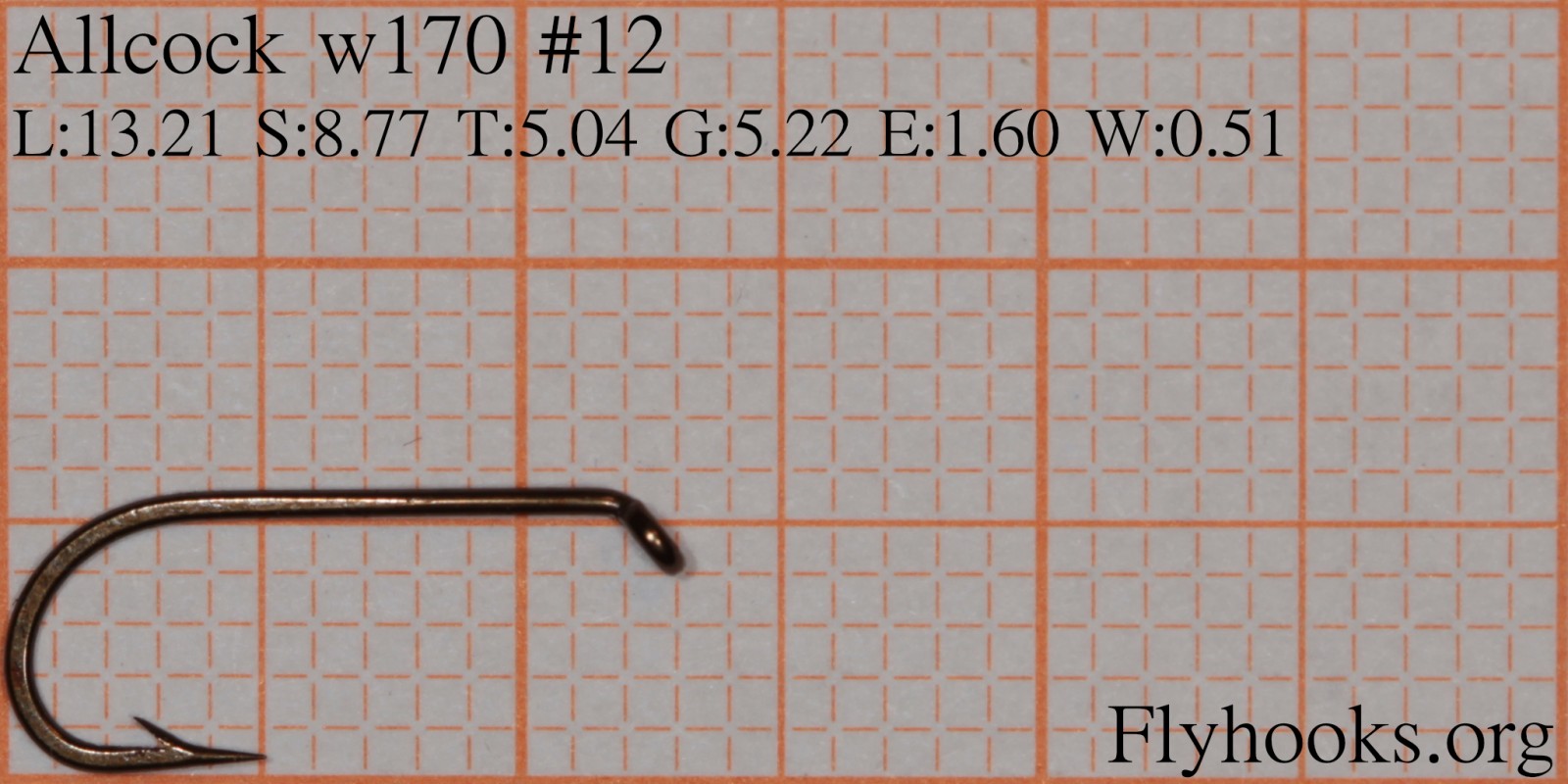

Allcock: W170

Company Allcock
Type Single
Eye Ringed eye
Eye Position Turned down
Shank Style Straigth
Barb Barb
Color Bronze
Usages Dry
Trout
Grayling
Freshwater
Soft Hackle
Sizes 16 14 12 10

Sizes

Length13.21 mm
Shank Length8.77 mm
Throat5.04 mm
Gape5.22 mm
Eye Width1.60 mm
Wire Thickness0.51 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
12 AK502 13.21 -> 12.58 8.77 -> 8.54 5.22 -> 5.74 5.04 -> 4.99 0.51 -> 0.49
12 SUD2 - Ideal Standard Dry 13.21 -> 12.69 8.77 -> 8.45 5.22 -> 5.38 5.04 -> 5.40 0.51 -> 0.51
12 SLD - Patriot Fine Dry 13.21 -> 12.71 8.77 -> 8.96 5.22 -> 5.11 5.04 -> 5.41 0.51 -> 0.41
12 Br 2100 13.21 -> 12.79 8.77 -> 8.51 5.22 -> 5.46 5.04 -> 5.78 0.51 -> 0.49
12 TMC531 13.21 -> 12.87 8.77 -> 8.56 5.22 -> 5.17 5.04 -> 5.63 0.51 -> 0.40
12 D101 13.21 -> 13.02 8.77 -> 8.50 5.22 -> 5.55 5.04 -> 5.32 0.51 -> 0.55
12 w13 13.21 -> 13.04 8.77 -> 8.72 5.22 -> 5.04 5.04 -> 5.10 0.51 -> 0.48
12 73100 13.21 -> 13.09 8.77 -> 8.47 5.22 -> 5.15 5.04 -> 5.40 0.51 -> 0.46
12 130BL 13.21 -> 13.11 8.77 -> 8.54 5.22 -> 5.82 5.04 -> 5.57 0.51 -> 0.48
12 TMC3769SP-BL 13.21 -> 13.26 8.77 -> 9.25 5.22 -> 5.30 5.04 -> 5.74 0.51 -> 0.55
12 Dry Fly 13.21 -> 13.27 8.77 -> 8.53 5.22 -> 5.47 5.04 -> 5.32 0.51 -> 0.49
12 d14 13.21 -> 13.31 8.77 -> 8.53 5.22 -> 5.12 5.04 -> 5.43 0.51 -> 0.48
12 73231 13.21 -> 13.31 8.77 -> 9.71 5.22 -> 5.06 5.04 -> 5.69 0.51 -> 0.41
12 9002 13.21 -> 13.34 8.77 -> 9.12 5.22 -> 5.31 5.04 -> 5.56 0.51 -> 0.55
12 Wet Fly 13.21 -> 13.36 8.77 -> 9.23 5.22 -> 5.11 5.04 -> 5.00 0.51 -> 0.48
12 R30NP-BR 13.21 -> 13.52 8.77 -> 8.63 5.22 -> 5.26 5.04 -> 5.10 0.51 -> 0.46
12 R70 - 7957 13.21 -> 13.53 8.77 -> 8.44 5.22 -> 5.64 5.04 -> 5.61 0.51 -> 0.60
12 9485 13.21 -> 13.55 8.77 -> 9.33 5.22 -> 5.36 5.04 -> 5.57 0.51 -> 0.54
12 94840 13.21 -> 13.65 8.77 -> 9.68 5.22 -> 5.35 5.04 -> 5.32 0.51 -> 0.50
12 W205 13.21 -> 13.79 8.77 -> 8.56 5.22 -> 5.29 5.04 -> 4.98 0.51 -> 0.52
12 TMC9300 13.21 -> 13.98 8.77 -> 9.15 5.22 -> 5.60 5.04 -> 5.69 0.51 -> 0.49
12 d24BL 13.21 -> 14.05 8.77 -> 10.03 5.22 -> 5.17 5.04 -> 5.11 0.51 -> 0.47
12 11911 BL 13.21 -> 14.10 8.77 -> 8.82 5.22 -> 5.11 5.04 -> 5.14 0.51 -> 0.47
12 H290BL 13.21 -> 14.16 8.77 -> 9.79 5.22 -> 5.19 5.04 -> 5.27 0.51 -> 0.48
12 AK761BL 13.21 -> 14.19 8.77 -> 9.31 5.22 -> 5.06 5.04 -> 5.39 0.51 -> 0.49
12 TMC100BL 13.21 -> 14.37 8.77 -> 9.77 5.22 -> 5.47 5.04 -> 5.51 0.51 -> 0.50
12 FW 501 13.21 -> 14.38 8.77 -> 9.54 5.22 -> 5.86 5.04 -> 5.74 0.51 -> 0.56
12 FW 500 - Dry Fly Traditional 13.21 -> 14.41 8.77 -> 9.45 5.22 -> 5.76 5.04 -> 5.59 0.51 -> 0.57
12 3906B 13.21 -> 14.51 8.77 -> 9.54 5.22 -> 4.98 5.04 -> 5.70 0.51 -> 0.58
12 d31 13.21 -> 14.51 8.77 -> 9.82 5.22 -> 5.26 5.04 -> 5.27 0.51 -> 0.48
12 AK501 13.21 -> 14.53 8.77 -> 10.00 5.22 -> 5.68 5.04 -> 5.44 0.51 -> 0.50
12 TMC100 13.21 -> 14.60 8.77 -> 9.80 5.22 -> 5.32 5.04 -> 5.03 0.51 -> 0.47
12 F11 13.21 -> 14.76 8.77 -> 9.74 5.22 -> 5.28 5.04 -> 5.16 0.51 -> 0.47
