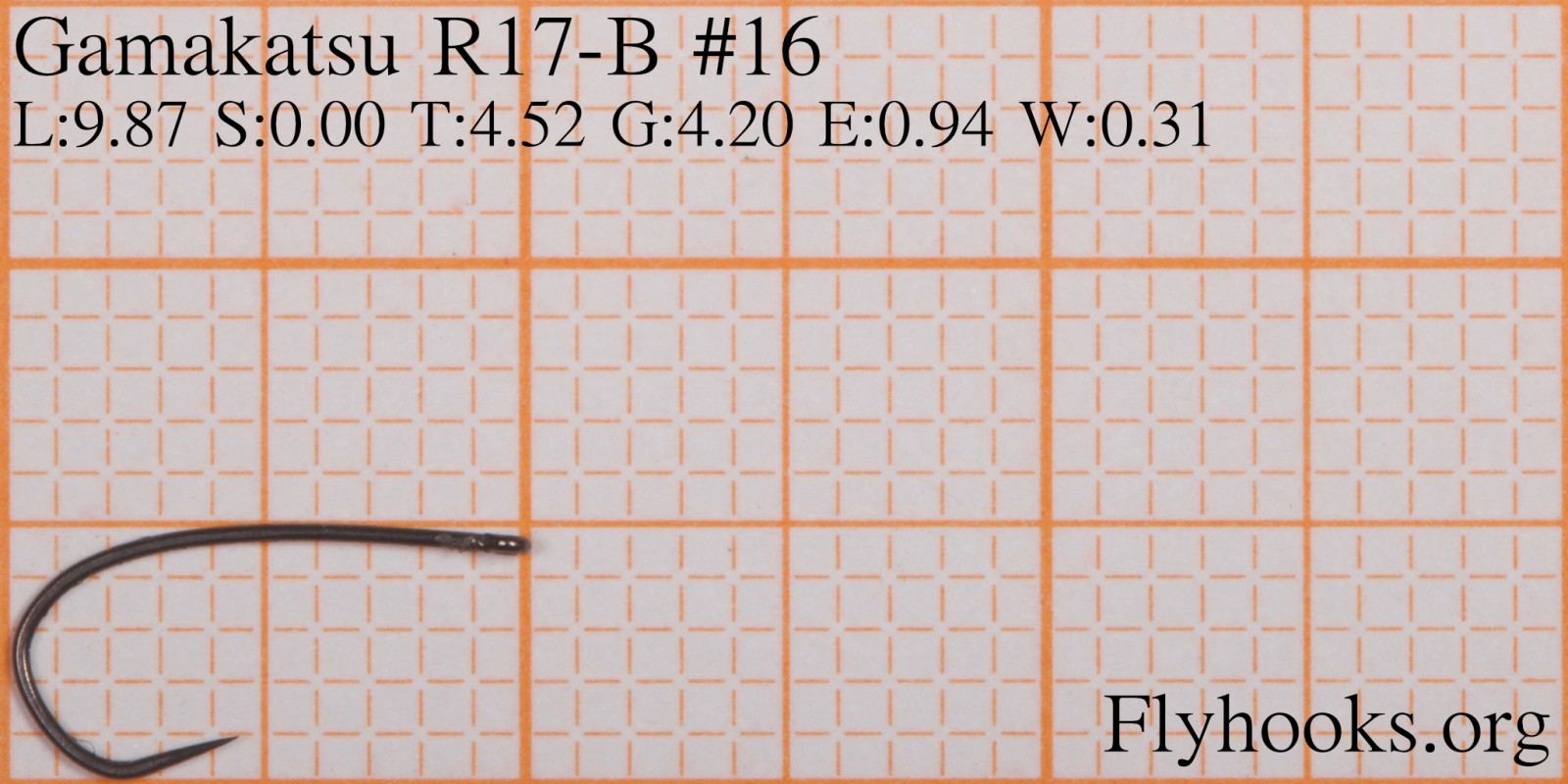

Gamakatsu: R17-B

Company Gamakatsu
www www.gamakatsu.com
Type Single
Strength 3xf
Gape Wide
Eye Position Parallell
Shank Style Curved
Barb Barbless
Usages Dry
Larva
Pupa
Shrimp
Nymph
Trout
Grayling
Freshwater
Spider
Emerger
Midge
Sizes 24 22 20 18 16 14 12

Sizes

Length9.87 mm
Throat4.52 mm
Gape4.20 mm
Eye Width0.94 mm
Wire Thickness0.31 mm

Similar hooks

Hooks found to have similar properties as this hook (matched per hook size, ordered by total length).
The left number in each column is this value for that size.

Size Hook Length Shank Length Gape Throat Wire
16 FW 510 - Curved Dry 9.87 -> 9.39   4.20 -> 4.59 4.52 -> 4.75 0.31 -> 0.45
16 TMC206BL 9.87 -> 9.39   4.20 -> 4.36 4.52 -> 4.48 0.31 -> 0.39
16 L2A - Wet 9.87 -> 9.40   4.20 -> 4.30 4.52 -> 4.41 0.31 -> 0.43
16 250BL 9.87 -> 9.43   4.20 -> 4.40 4.52 -> 4.51 0.31 -> 0.33
16 L 9.87 -> 9.45   4.20 -> 4.19 4.52 -> 5.10 0.31 -> 0.51
16 HDN 302 SH 9.87 -> 9.47   4.20 -> 4.06 4.52 -> 4.91 0.31 -> 0.42
16 FW 511 9.87 -> 9.57   4.20 -> 4.48 4.52 -> 4.75 0.31 -> 0.45
16 H550BL 9.87 -> 9.87   4.20 -> 4.80 4.52 -> 4.47 0.31 -> 0.45
16 R50XNP-BR 9.87 -> 9.94   4.20 -> 4.00 4.52 -> 4.96 0.31 -> 0.40
16 H400BL 9.87 -> 9.96   4.20 -> 4.34 4.52 -> 4.71 0.31 -> 0.48
16 R70NP-BR 9.87 -> 9.96   4.20 -> 4.12 4.52 -> 4.84 0.31 -> 0.47
16 H470BL 9.87 -> 9.97   4.20 -> 4.46 4.52 -> 4.71 0.31 -> 0.45
16 H200BL 9.87 -> 9.97   4.20 -> 4.19 4.52 -> 4.75 0.31 -> 0.47
16 HDA 254 9.87 -> 10.04   4.20 -> 4.64 4.52 -> 4.73 0.31 -> 0.33
16 H230BL 9.87 -> 10.08   4.20 -> 4.29 4.52 -> 4.78 0.31 -> 0.46
16 130BL 9.87 -> 10.21   4.20 -> 4.16 4.52 -> 4.30 0.31 -> 0.38
16 J 9.87 -> 10.23   4.20 -> 4.01 4.52 -> 4.55 0.31 -> 0.44
16 DGE 300 BL 9.87 -> 10.25   4.20 -> 4.77 4.52 -> 4.92 0.31 -> 0.44
16 H280BL 9.87 -> 10.31   4.20 -> 4.42 4.52 -> 4.79 0.31 -> 0.48
16 C 214 9.87 -> 10.33   4.20 -> 4.33 4.52 -> 4.34 0.31 -> 0.37
16 HDN 302 SP 9.87 -> 10.48   4.20 -> 4.59 4.52 -> 5.05 0.31 -> 0.47
16 220BL 9.87 -> 10.49   4.20 -> 4.43 4.52 -> 4.50 0.31 -> 0.38
16 HDN 302 9.87 -> 10.70   4.20 -> 4.50 4.52 -> 4.90 0.31 -> 0.42
16 Nymph 9.87 -> 10.73   4.20 -> 4.50 4.52 -> 4.65 0.31 -> 0.50
16 HDN 302 SPR 9.87 -> 10.76   4.20 -> 4.74 4.52 -> 4.62 0.31 -> 0.32
16 H480BL 9.87 -> 10.81   4.20 -> 4.76 4.52 -> 5.10 0.31 -> 0.47
16 C 220 9.87 -> 10.86   4.20 -> 4.46 4.52 -> 4.87 0.31 -> 0.48
16 7368 B 9.87 -> 11.04   4.20 -> 4.16 4.52 -> 4.63 0.31 -> 0.50
16 P 9.87 -> 11.11   4.20 -> 4.77 4.52 -> 5.16 0.31 -> 0.41
